3-Axis Joystick CCTV Keyboard Controller Keypad for Security PTZ Speed Dome Camera Decoder DVR NVR Pelco RS485 Pan Tilt Zoom
0.0 (1 votes) | 13 orders
Price:
US $
114.59
/ piece

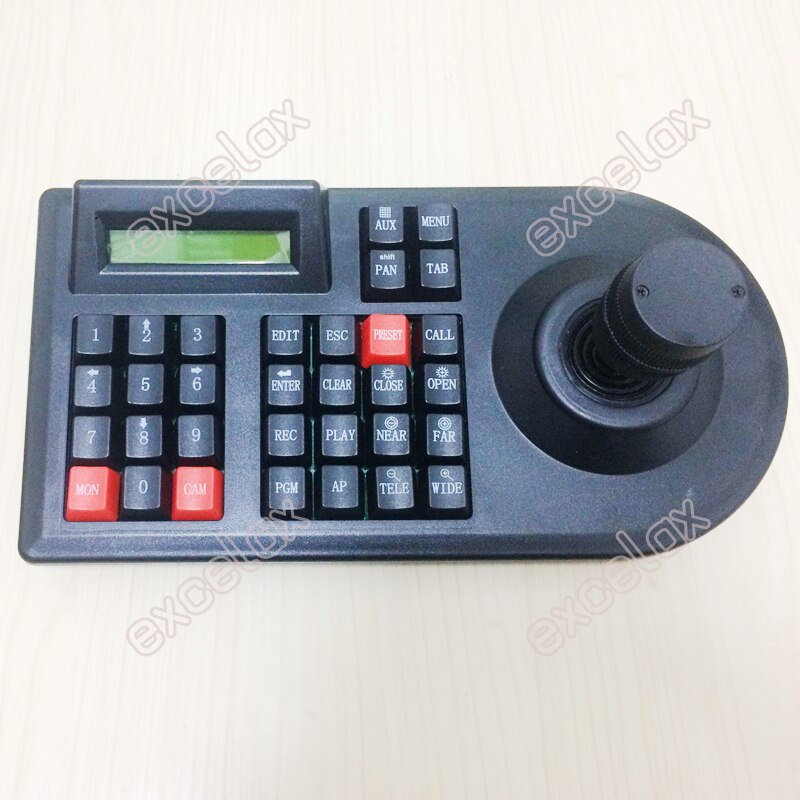

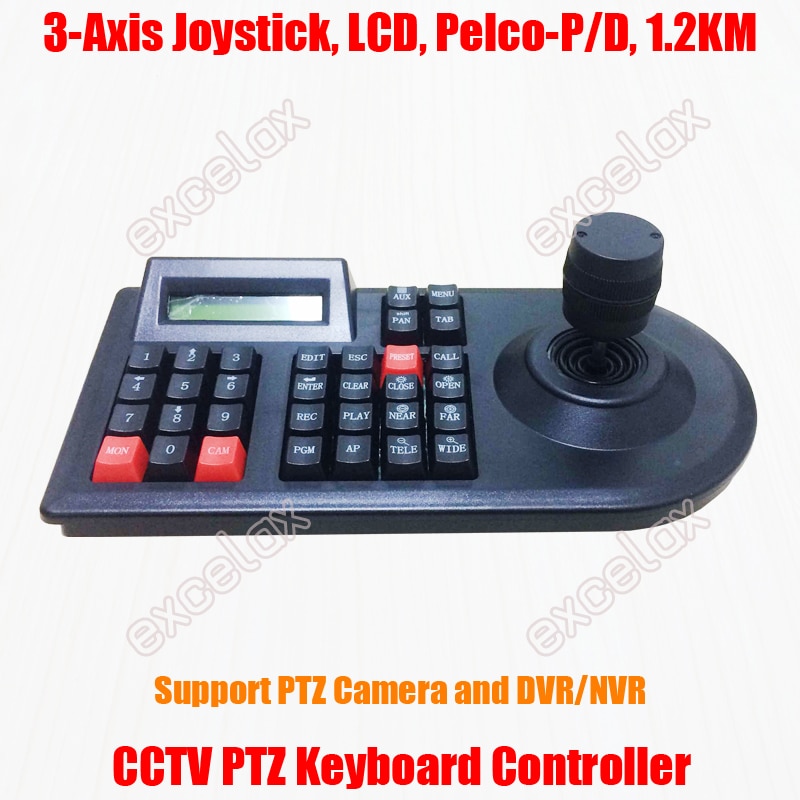

3-Axis Joystick CCTV Camera Keyboard Controller
Notice:
1. The RJ45 port is Not Available currently and it is reserved for future function, NOT in use yet.
Features:
- 3-axis CCTV keyboard controller

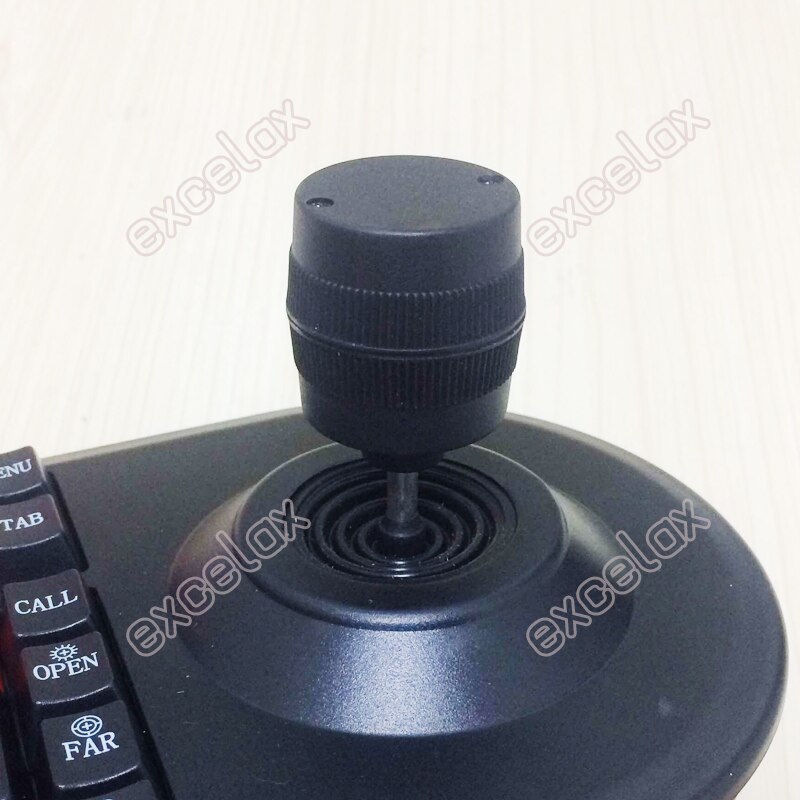

- 3D joystick for convenient pan/tilt/zoom control
- Real-time display current control address and baud rate
- Available to set device protocol, baud rate, address ID, etc.
- RS485 BUS control
- Support control over 16 units of DVR/NVR
- Support sync control 64 units of PTZ camera and pan/tilt device
- Support straight end decoder control to operate pan/tilt, lens, lights, rain brush, etc.
- Lightning-proof communication interface design, excellent anti-interference performance
- Standard transmission distance up to 1.2km (0.75mi)
- Multiple protocols built in with better compability
- LCD screen to display operate status
- Support for Hikvision, Dahua and Han Bang DVR and NVR
Specifications:
- Communication Mode: point-to-multipoint half-duplex
- Communication Port: RS485
- Baud Rate: 1200/2400/4800/9600bps
- Protocol: Pelco P/D
- Joystick: 3-axis operation
- Supported DVR/NVR: Hikvision, Dahua, Hanbang, etc.
- Maximum Transmission Distance: 1.2km/0.75mi
- Maximum DVR/NVR Supported: 16 units
- Maximum PTZ Camera/Decoder Supported: 64 units
- Power Input: DC 9~12V
- Power Consumption: About 3W
- Working Temperature: -20 ~ 50C degrees
- Weight: About 0.6kg / 1.32lb
- Product Dimension: 265(L)x133(W)x93(H)mm / 10.43(L)x5.24(W)x3.66(H)in (incl. joystick)

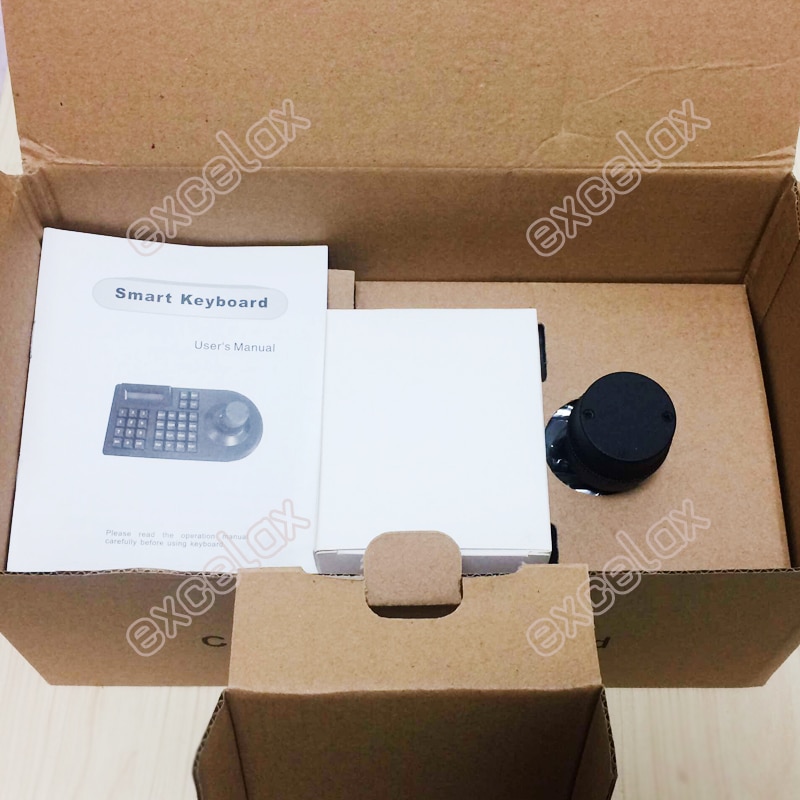

Package Content:
1* Keyboard Controller

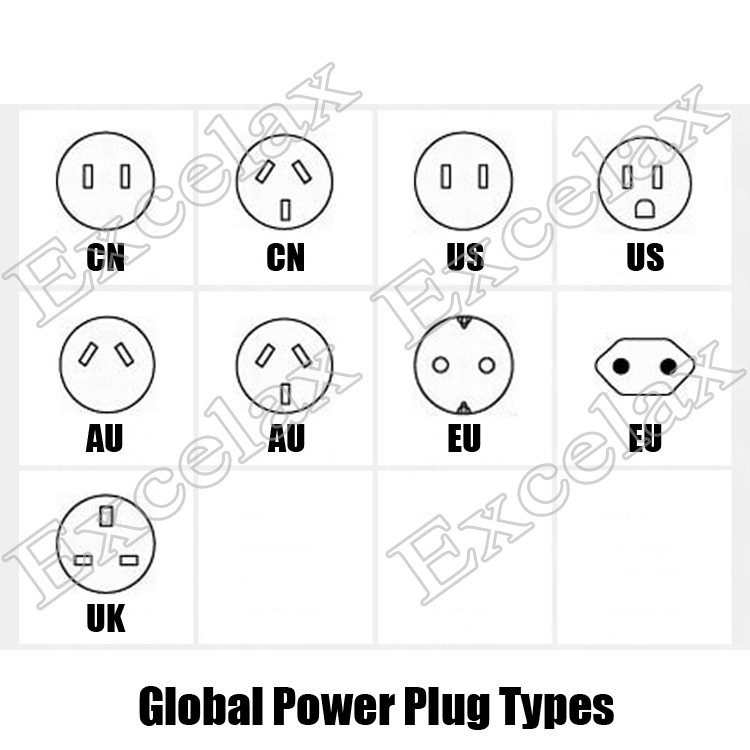

1* Power Adapter (Default US/CN type power plug. Please leave message for EU/UK/AU type.)
1* User Manual
Tips:
1. Turn on/off key tone: 66+[PGM]
2. For other keyboard operations related to PTZ camera, pan/tilt scanner with decoder built in, decoder and other equipment, please refer to respective user manual.
Notice:The above RJ45 network port is N/A currently and reserved for future function, NOT in use yet.
- Model Number: SK-KB03
- Brand Name: SankiView
- Origin: Mainland China
- Smart home platform: NONE
- Certification: NONE
- Joystick: 3D
- Pan/Tilt/Zoom Control: Yes
- RS485: Yes
- Power Supply: DC 9~12V, 1A
- Power Consumption: 3W
- Protocol: Pelco P/D
- Distance: 1.2KM
- Support DVR/NVR: 16 Units
- Support Camera/Decoder: 64 Units
- RS485 Port Pitch: 3.81mm
