ID: 34504

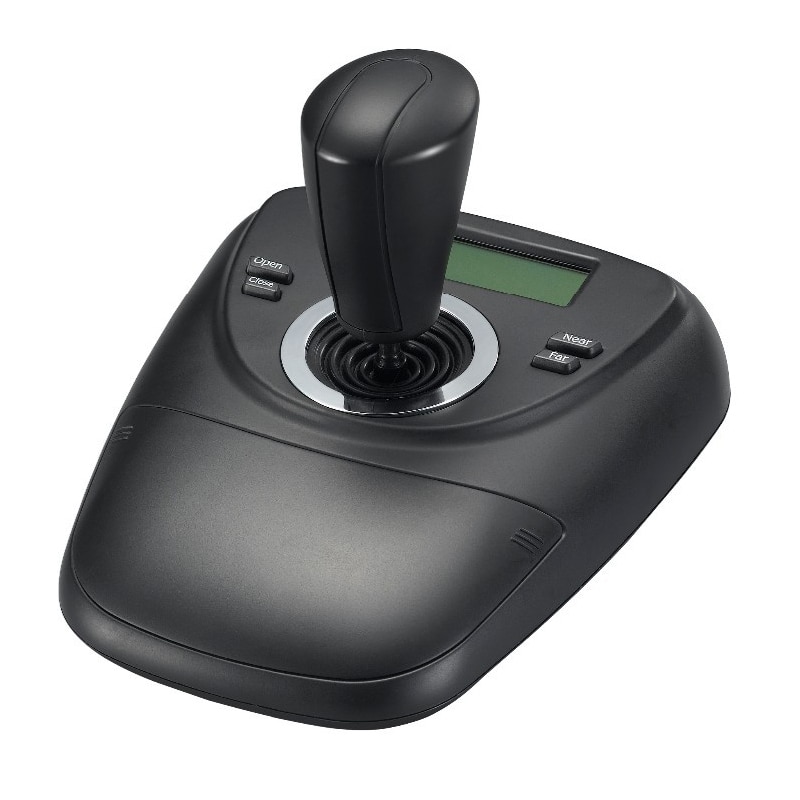

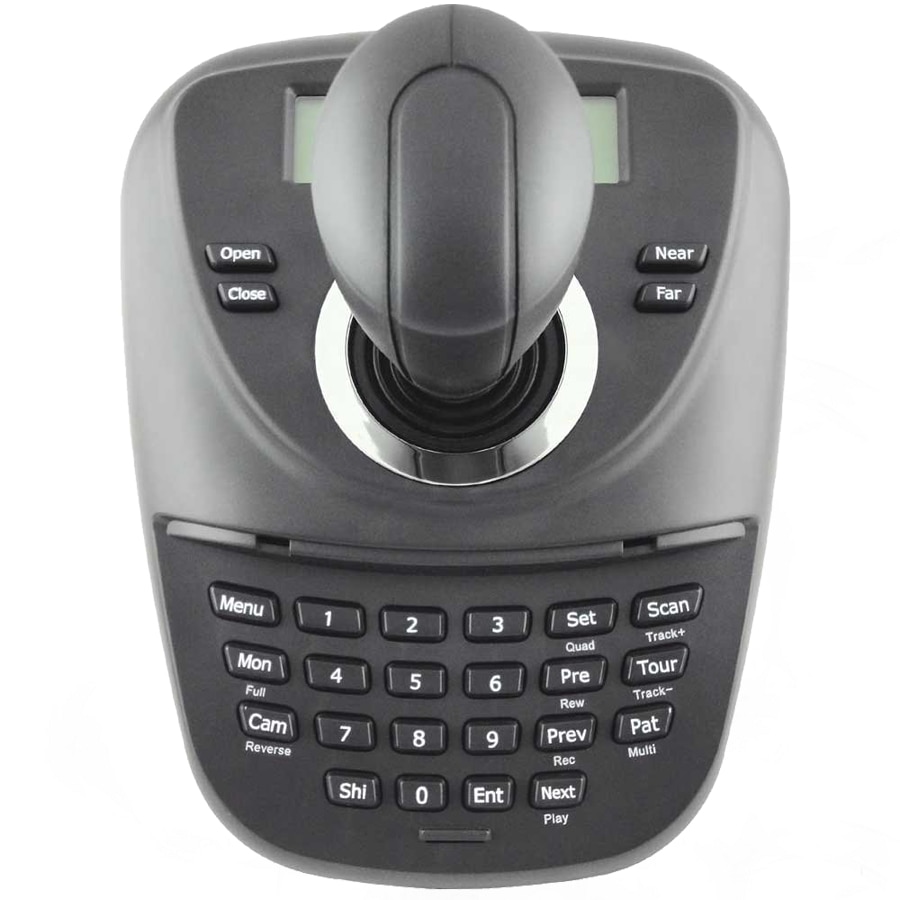

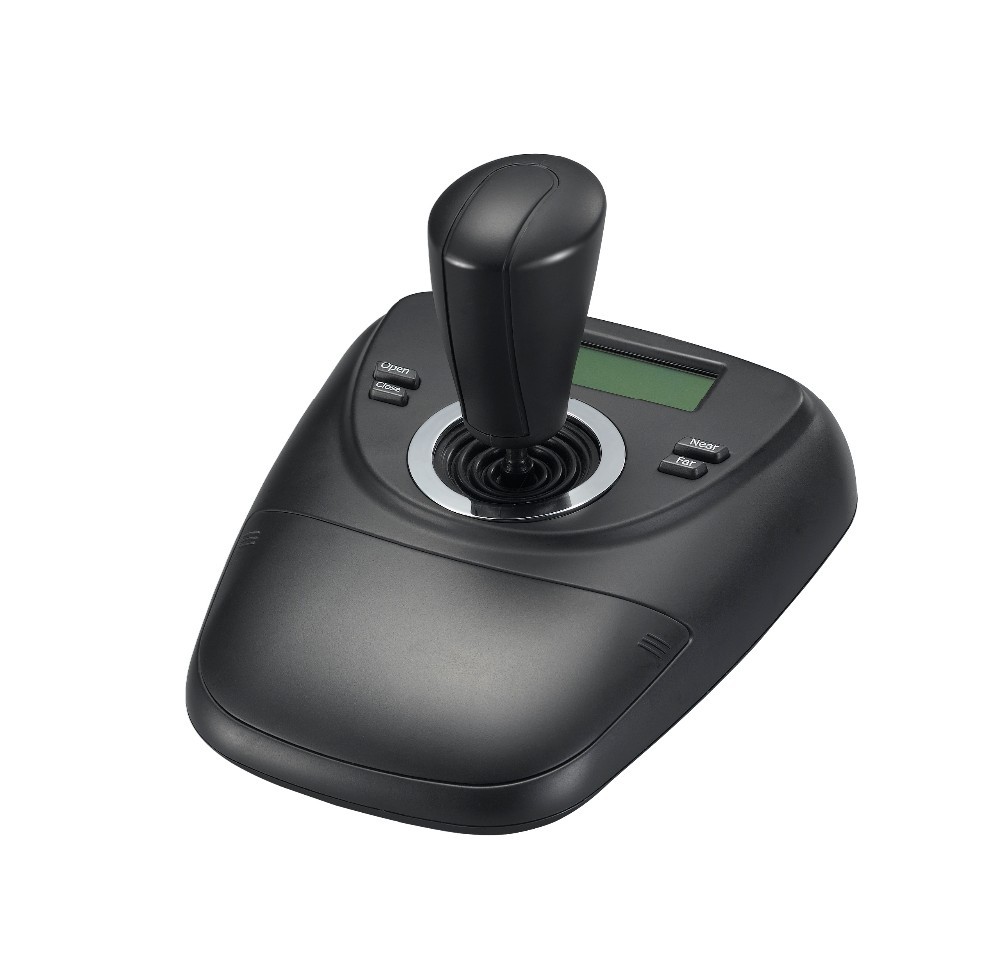

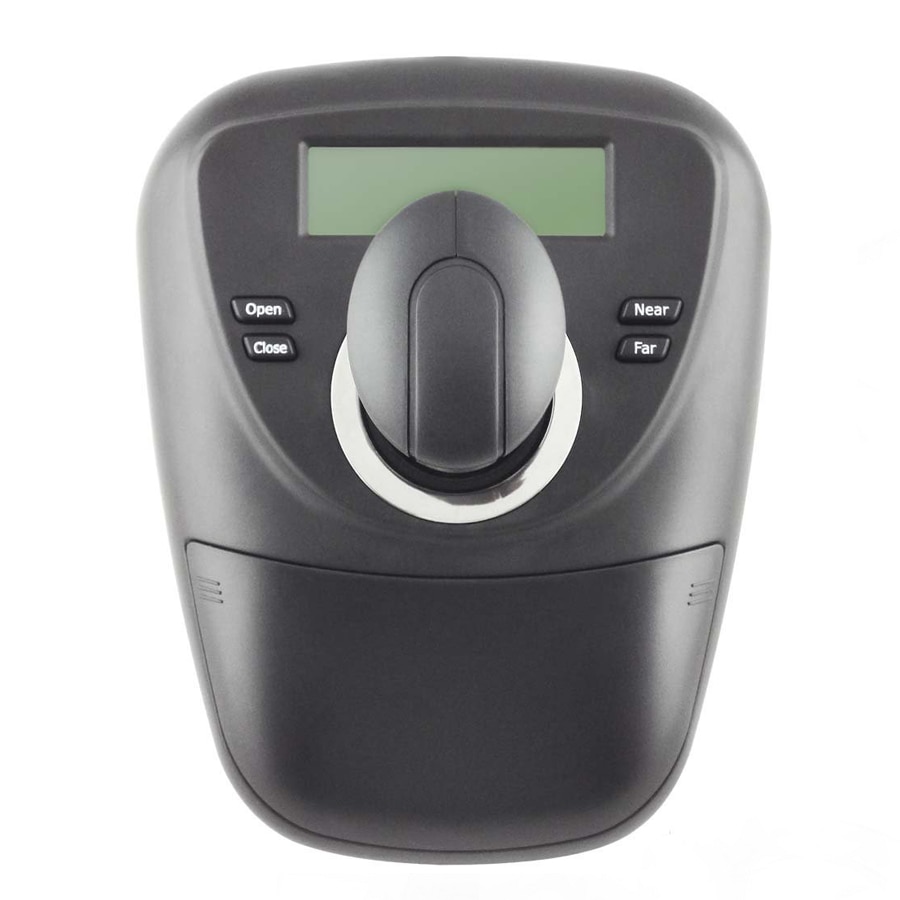

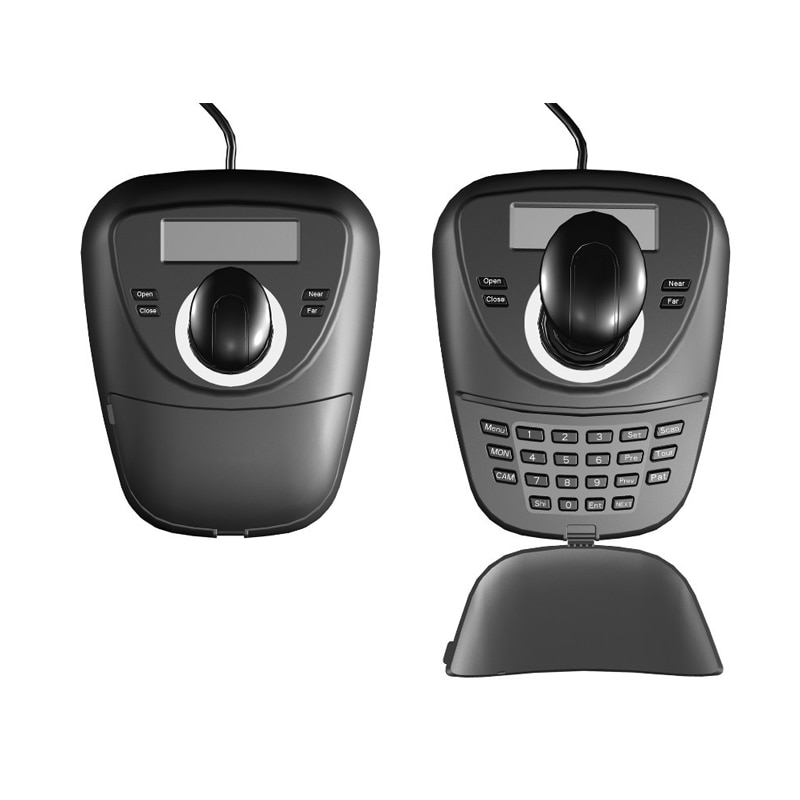

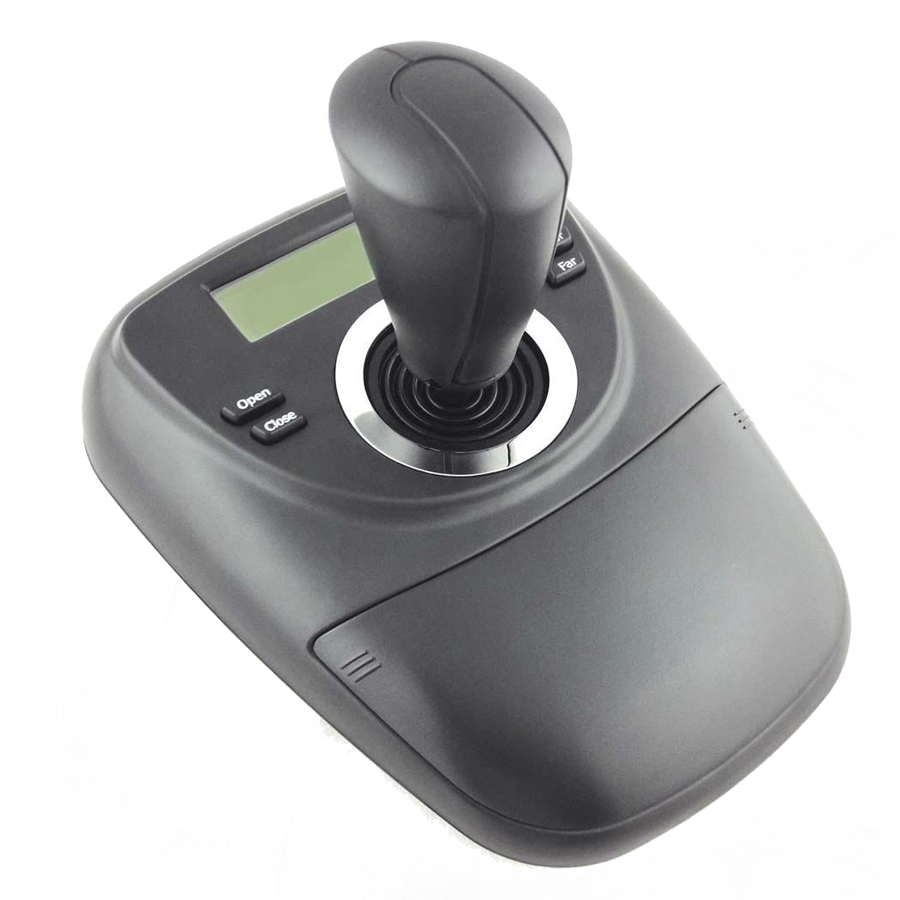

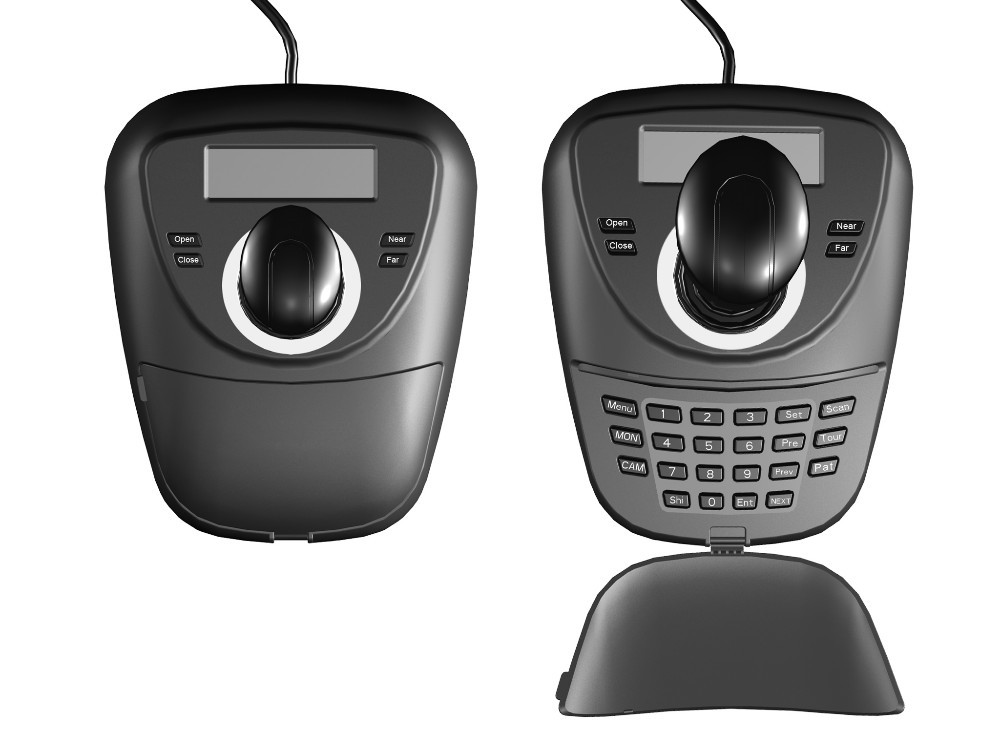

New LCD Analog RS485 PTZ Keyboard Controller PELCO-D/PLCD Display For Analog Pan Tilt CCTV control Speed Dome camera

0.0 ( votes)
Price: US $251.92 / piece
Discount Price:
US $ 171.70 / piece
-32%
Quantity

nd



Feature

• 3D Joystick

• Control Iris, Focus and Zoom

• Support Multi DVR Protocol,likeHIKVISION, DAHUA,TVT ect

• Support Multi speed dome communication protocol: Pelco D/P,Factory,DH-SD

• Can set and call presets, run the scanning, pattern and tour

• Can control the Matrix,and via Matrix control dome camera

 • Infrared ray emission, the same data&content as RS485 technical Data

• Via RS485 bus line, one keyboard can connect at most 31 domes in the direct control model,support 4 keyboards linkage



Specification



Communication Mode RS485,IR
Communication Interface RS485X1; IR Remote X1
Communication distance RS485:1200M, IR:10M
Joystick Range 50°Maximum Rotation Angle
Baud rate 2400,4800,9600,19200bps
Humidities Less than 90%
Operation Temperature  -10°~+50°
Operation Voltage 9V-12V
Power 0.5W
Measure L169mm*W137mm*H105mm
Weight 845g
Material ABS Plastic





136

aeProduct.getSubject()

aeProduct.getSubject()



Quality policy:



Actively ensure that our customers" requirements and needs are identified and incorporated into our solutions.

Ensure that quality is included at all points in our research, development and delivery processes

Strive to provide a superior service to our customers.

Always keep in mind that the only reason for Tisan existence lies in our services provided to our customers.





Shipment

1)For most items,we can send out the goods within 2-7days.

2)so pls be patient for the products. Our servicer also will contact you to explain the delivery time. Thanks in advance for your understanding.

3)BTW,The shipping cost does not include any import taxes, and buyers are responsible for customs duties.






  • Model Number: TI-AKB1780
  • Brand Name: PEGATAH
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Communication Mode: RS485, IR
  • Communication Interface: RS485x1; IR Remote x1
  • Communication distance: RS485: 1200M, IR: 10M
  • Joystick Range: 50 degrees Maximum Rotation Angle
  • Baud rate: 2400,4800,9600,19200 bps
  • Humidities: Less than 90%
  • Operation Temperature: -10~50 degrees Celsius
  • Operation Voltage: 9V~12V
  • Power: 0.5W
  • Control Iris Focus and Zoom: 800g
  • Speed Dome multi-Protocols: Pelco D/P LG-PRO etc
  • DVR multi-protocols: Hikvision Dahua
  • Control the Matrix: Analog
  • Material: ABS Plastic
