4 Channel H.265/264 4K HDMI Video Encoder HTTP RTSP RTMP UDP ONVIF to IPTV NVR
0.0 ( votes) | 2 orders
Price:
US $
791.30
/ piece
4 Channel H.265/264 4K HDMI Video Encoder HTTP RTSP RTMP UDP ONVIF to IPTV NVR

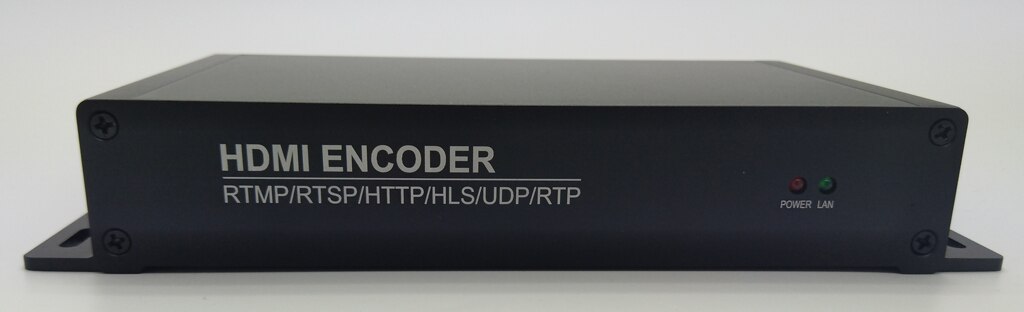

CEL-HEC541 4 Channel H.265/H.264 HDMI Video Encoder encoder is our newest professional HD audio & video encoding device with powerful functionality.

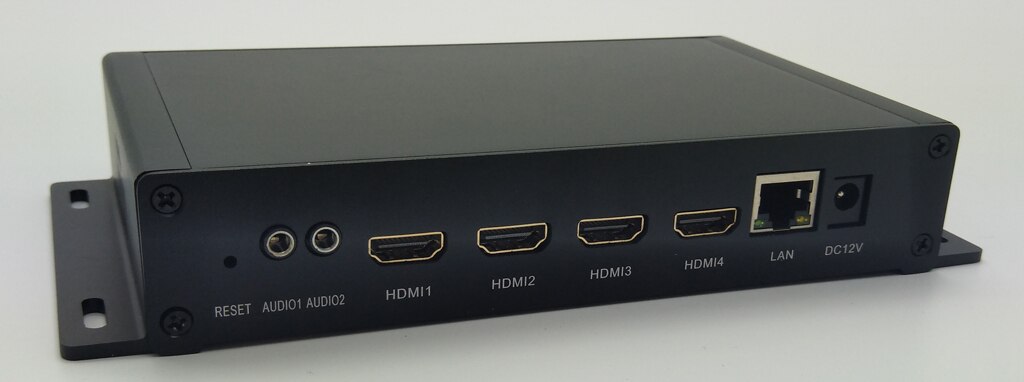

It support H.265/H.264 encoding,max up to 3840x2160P 30fps streaming.It is equipped with 4xHDMI channels input supporting H.265/H.264 High Profile code format & main Profile code format.and 2 external audio input,audio 1 is overlay hdmi 1, audio 2 is overlay hdmi 2.
support max up to (3 channel
3840x2160P 60fps + 1 channel 1080P 60fps) streaming to output at the same time.
its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as IPTV digital head-end. satellite and terrestrial digital TV etc.it can support VLC decode.
also, have a firmware can support
simulate 4 onvif IPC device and connect to NVR.
Features
1. It support H.265/H.264 encoding,max up to 3840x2160P 30fps streaming.It is equipped with 4xHDMI channels input supporting H.265/H.264 High Profile code format & main Profile code format.and 2 external audio input,audio 1 is overlay hdmi 1, audio 2 is overlay hdmi 2.
support max up to (3 channel
3840x2160P 60fps + 1 channel 1080P 60fps) streaming to output at the same time.
2. Embedded Linux System, stable and effective.

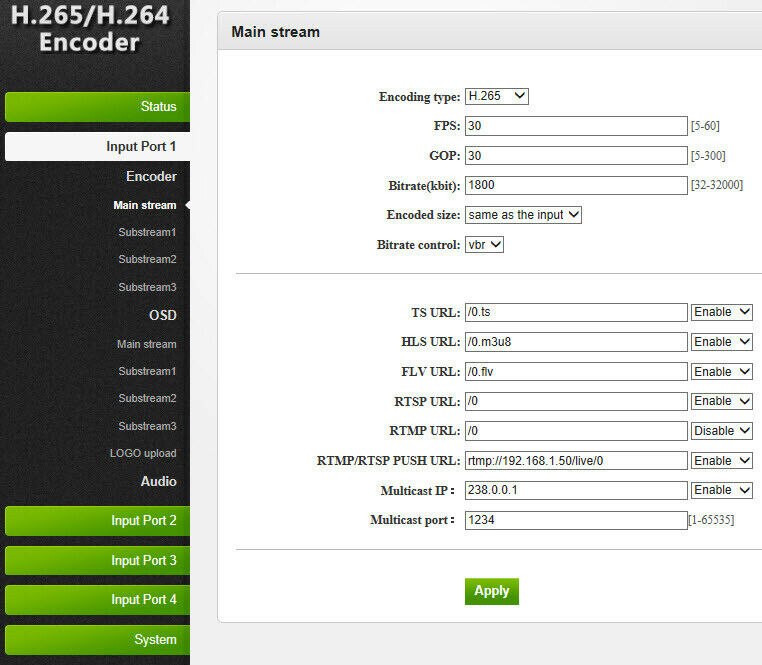

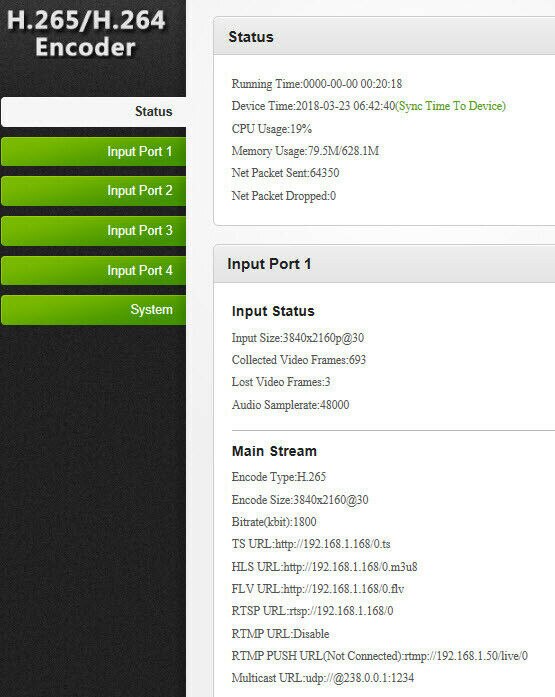

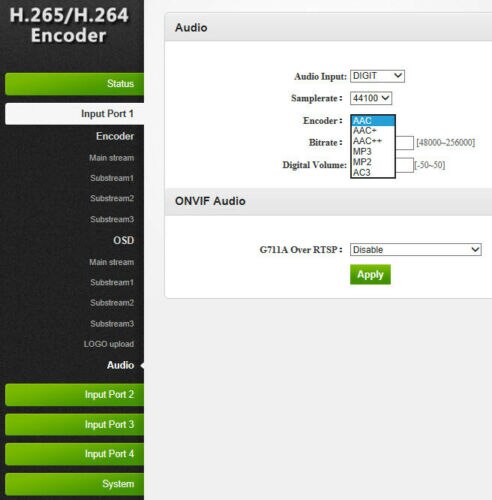

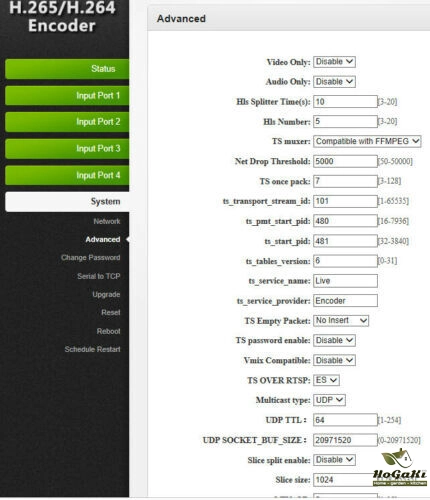

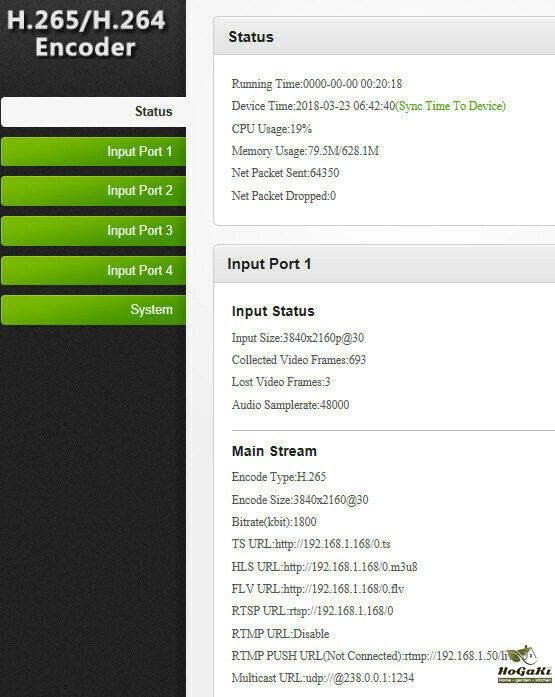

3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.

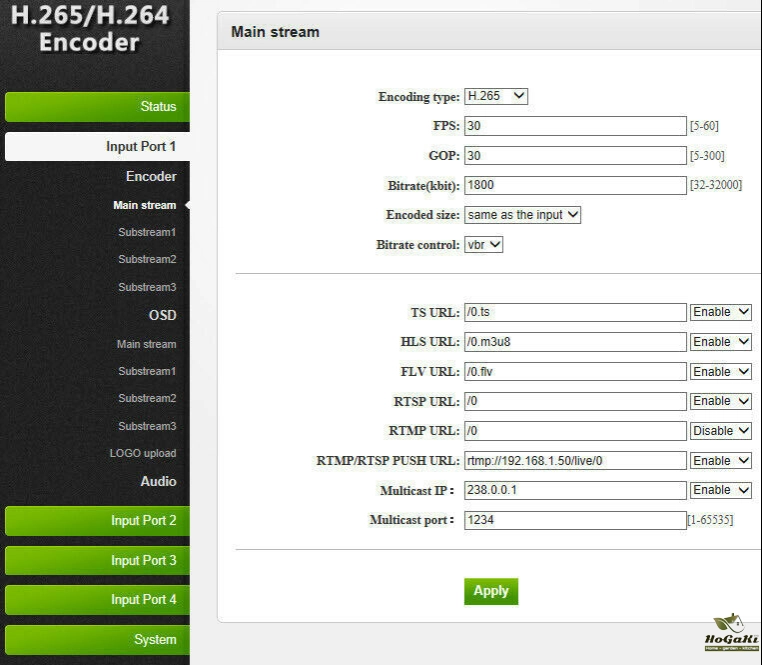

5. Every channel, support output 1 main stream and 3 substream to different Media Server independently.
6. Main Stream Support output resolution - 3840x2160, 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.

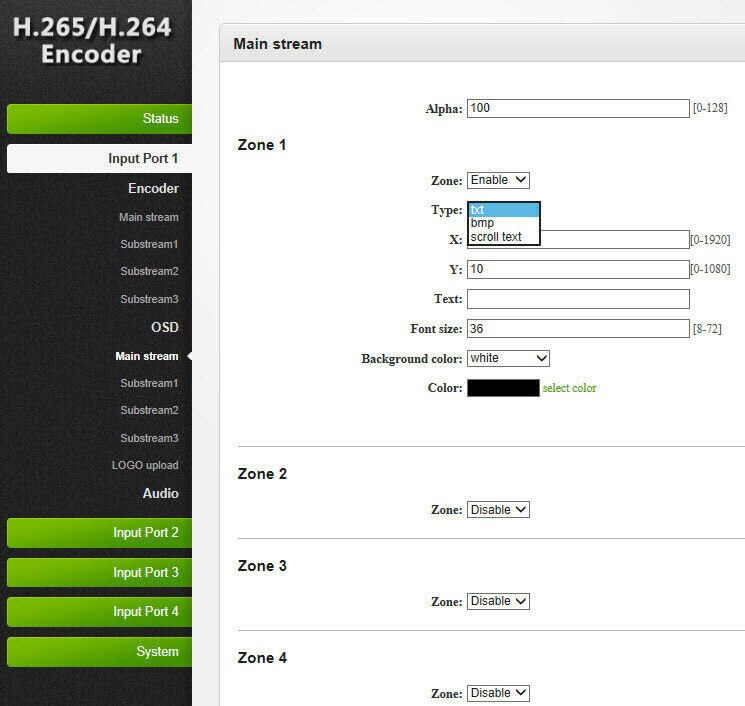

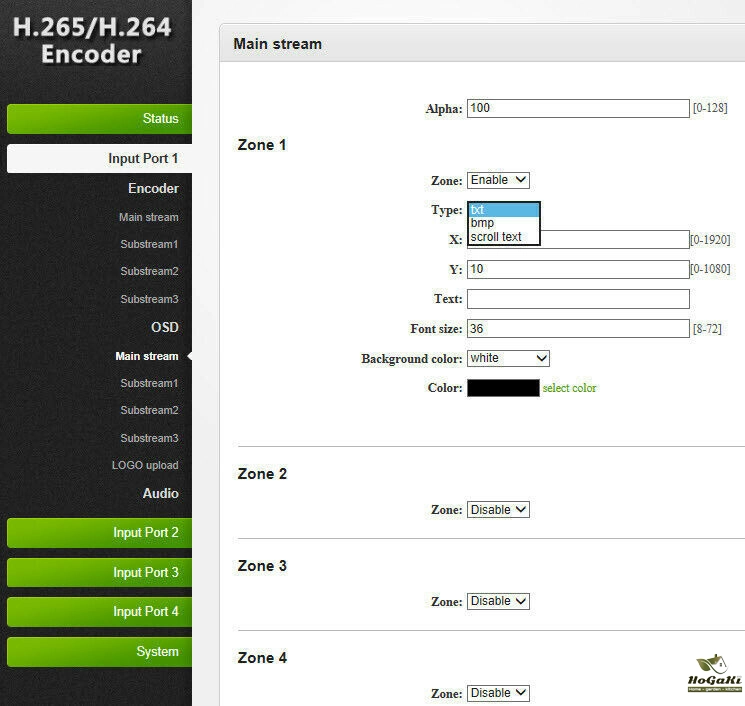

7. Support Text scroll text and BMP photo insert as Stream Logo for main stream and substream.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.

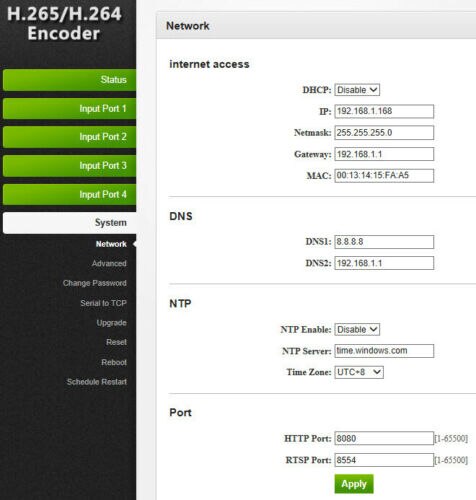

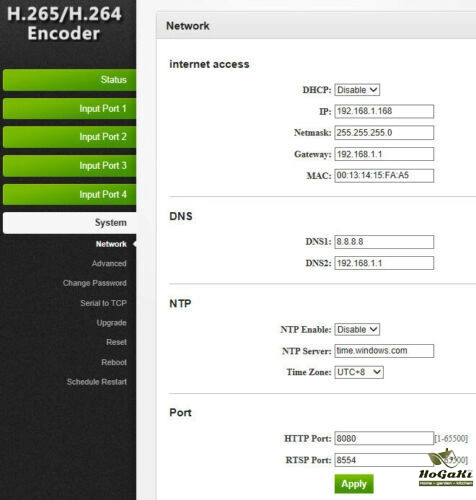

10. IP address can be set by yourself.
11. Support remote control via router port forward.
Application
1. IPTV
2. Online Live Broadcast
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. NVR Recording System
Usages:
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.hls
3) http://192.168.1.168/0.m3u8
4) http://192.168.1.168/0.flv
5) rtsp://192.168.1.168/0
6) rtmp://192.168.1.168/0
6) udp://238.0.0.1:1234
also,set the RTMP push address from the third live webcasting platform, such as YouTube, Ustream, Twitter, Sopplus, etc.
Package

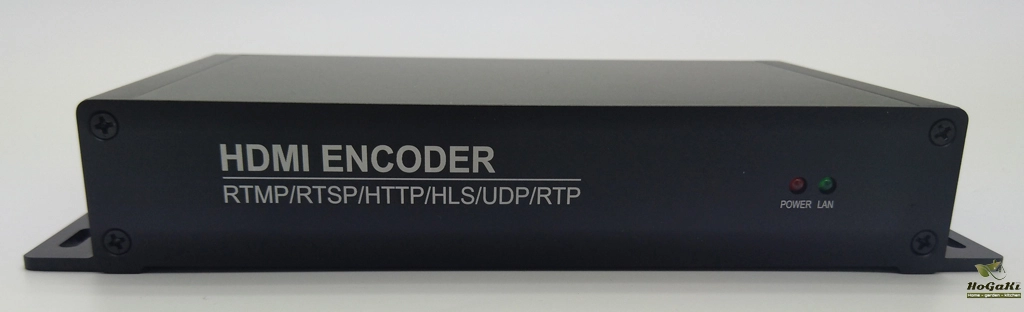

- a 4 channel h.265 4K HDMI encoder
- a 220V AC to 12V DC power adaptor

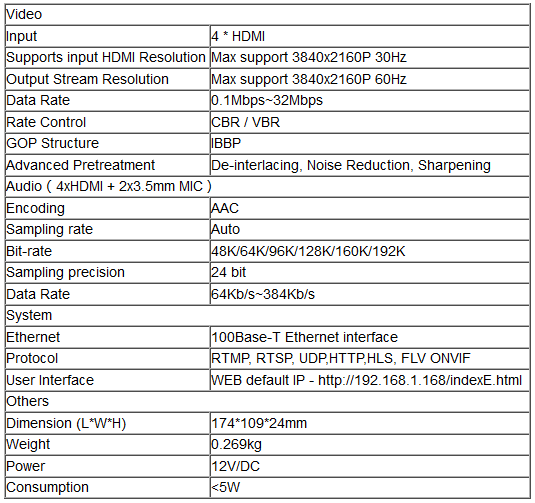

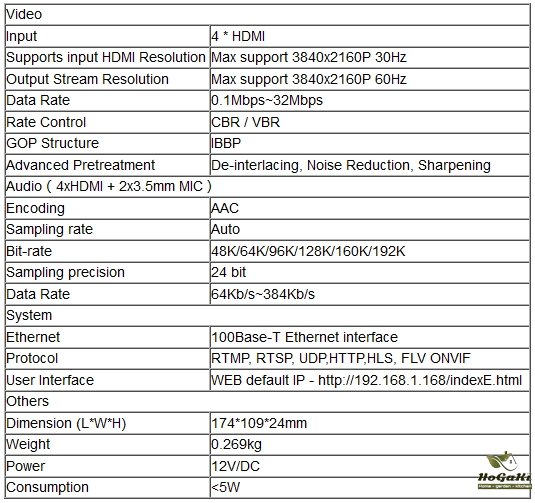

Specifications
Packaging Details
- Unit Type: piece
- Package Weight: 0.500
- Package Size: 10x5x25
- Brand Name: VBCTECHNOLOGY
- Origin: Mainland China
- Model Number: CEL-HEC541
