Zoom Camera Module CVBS BNC Decoding Board for FCB-EX CCD Series Analog Block Camera w/ RS485 Focus OSD Menu Control by Excelax
0.0 (2 votes) | 1 orders
Price:
US $
65.61
/ piece

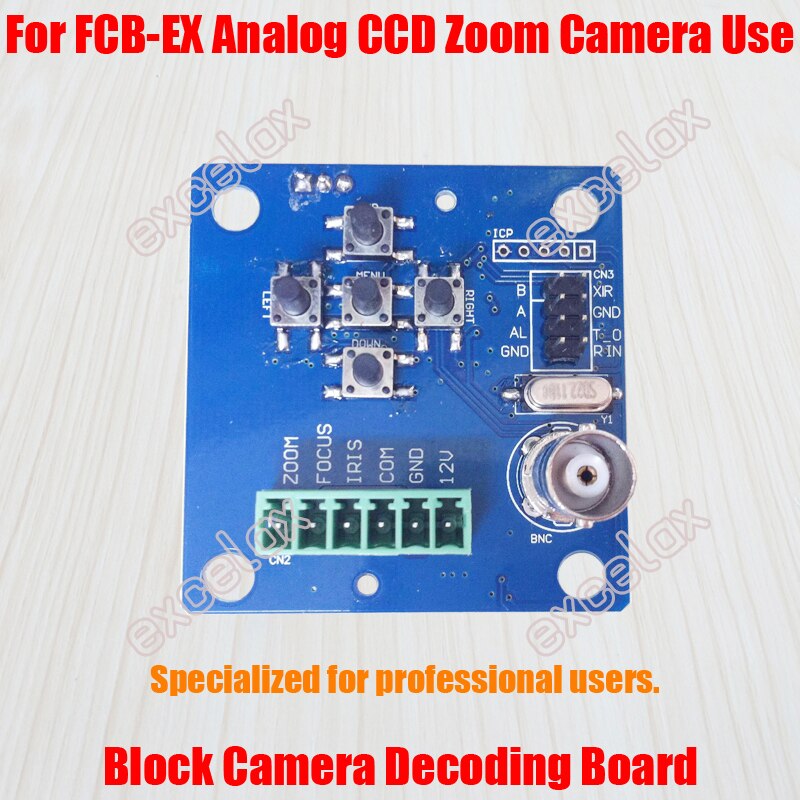

Zoom Camera Module CVBS BNC Decoding Board for FCB-EX CCD Series Analog Block Camera w/ RS485 Focus OSD Menu Control
Description:
1. This decoding board is ONLY provided to professional users. If you are not very experienced with FCB-EX/CX series block camera application, please DO NOT place order. --- VERY IMPORTANT!
2. The BNC output decoding board is applicable to FCB-EX/CX series CCD sensor analog block cameras only. Through the ribbon cable connection with the block camera, it can recognize the camera automatically and output CVBS video format.
Features:
1. CVBS output decoding board for FCB-EX and FCB-CX series CCD block cameras use
2. 5-button design for TELE/WIDE, NEAR/FAR and OSD control
3. RS485 (Pelco P/D protocol) port for remote zoom/focus/OSD operation
4. DC 9~12V power input
5. CVBS BNC video output

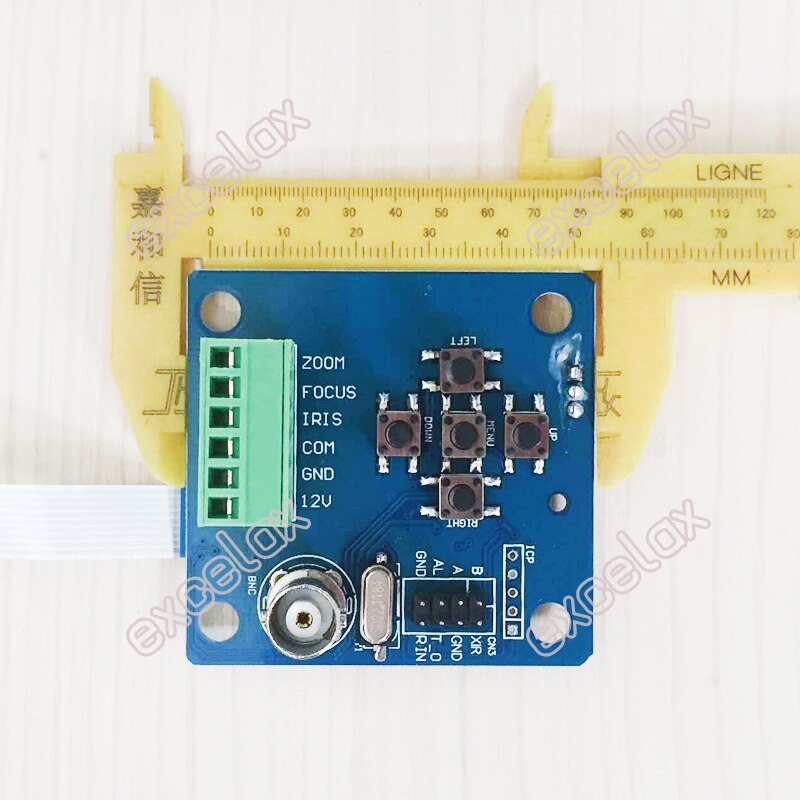

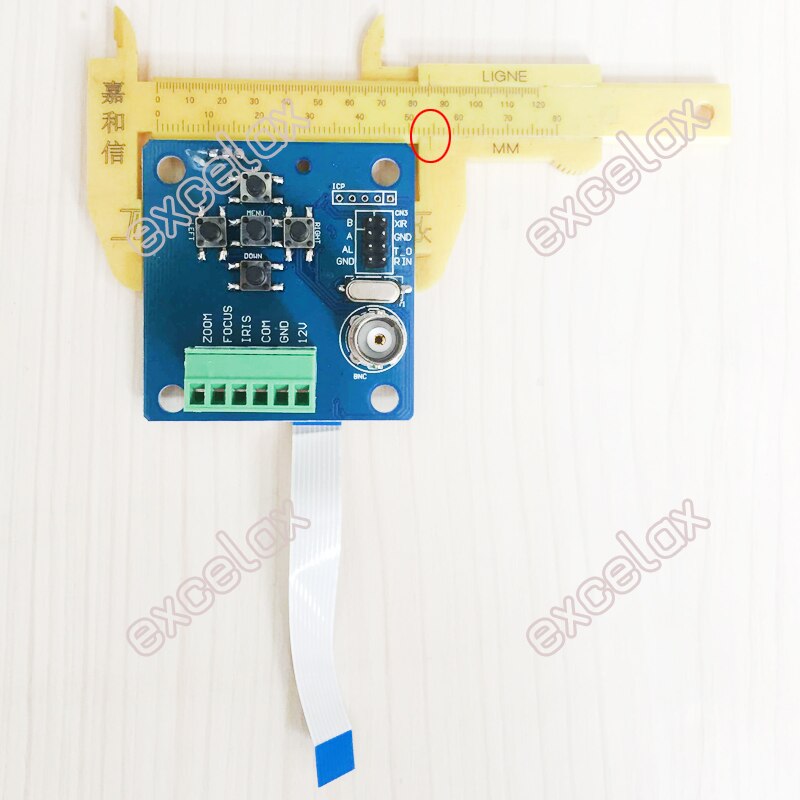

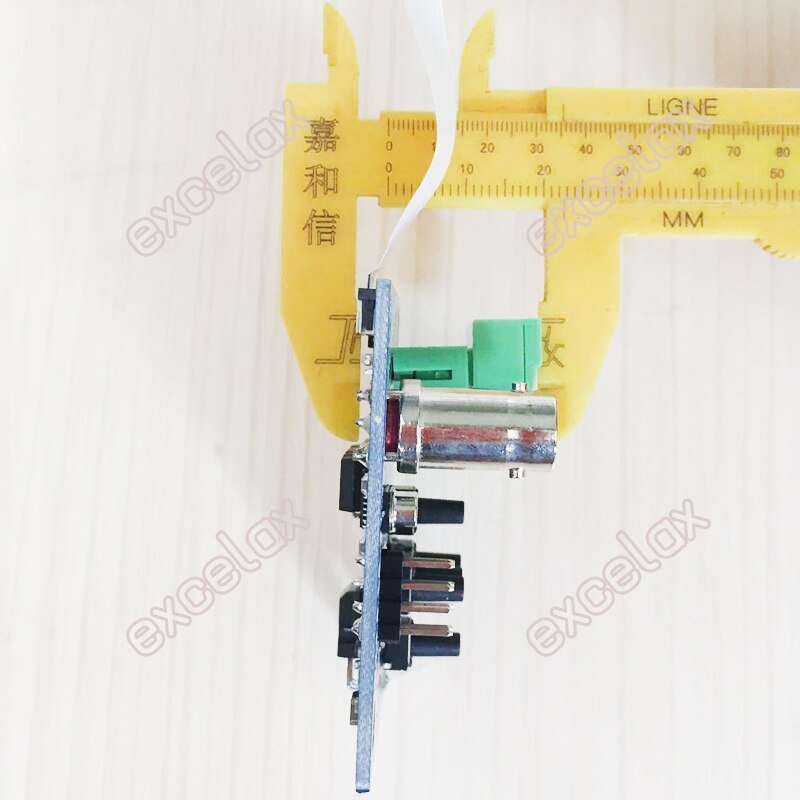

6. PCB size: 54x56x25mm
7. Available to mount onto the rear plate of block camera
8. Specialized for Sony FCB-EX and FCB-CX series CCD zoom camera modules, e.g. FCB-EX2700(P), FCB-EX2400(P), FCB-EX2200, FCB-EX1020(P), FCB-EX1010, FCB-EX995, FCB-EX985, FCB-EX980, FCB-EX490, FCB-EX480.
Package Content:

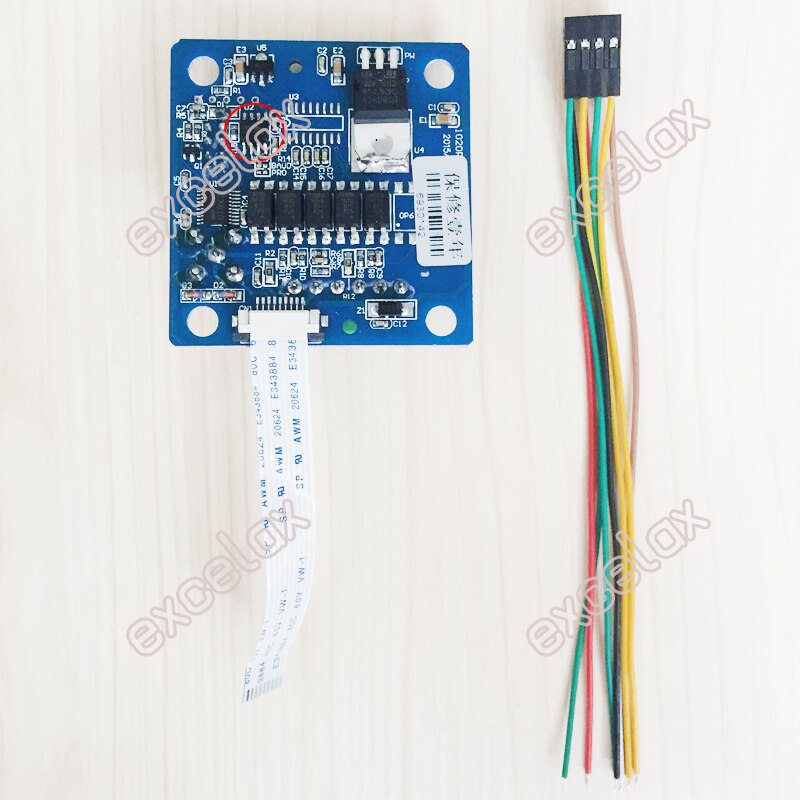

1x CVBS Decoding Board
1x 9-pin Ribbon Cable
Remarks:
1. Below camera module in pictures is for demonstration purpose only. It is not included in decoding board price.
2. Please confirm your block camera model with us before you place order.
3. If you need Sony FCB-EX/CX, FCB-EV/CV, FCB-EH/CH, FCB-ER/CR series block cameras, please contact us for quotation.
- Model Number: DB-SYZM-CVBS-RS485
- Brand Name: SankiView
- Origin: Mainland China
- Certification: NONE
- Application: FCB-EX Series CCD Block Cameras
- Power Input: DC 9~12V
- Zoom Control: Yes
- Focus Control: Yes
- OSD Control: Yes
- Connection Cable: Included
- RS485: Yes
- RS232: No
- Video Output: CVBS BNC
