IP68 Waterproof Access Control System Outdoor RFID Keypad WG26/34 Access Controller Reader Rainproof 10 EM4100 Keyfobs for Home
5.0 (3 votes) | 23 orders
Price:
US $13.75 - 37.98
/ piece
Discount Price:
US $
11.68 -
32.28
/ piece
-15%
- Color
-
-

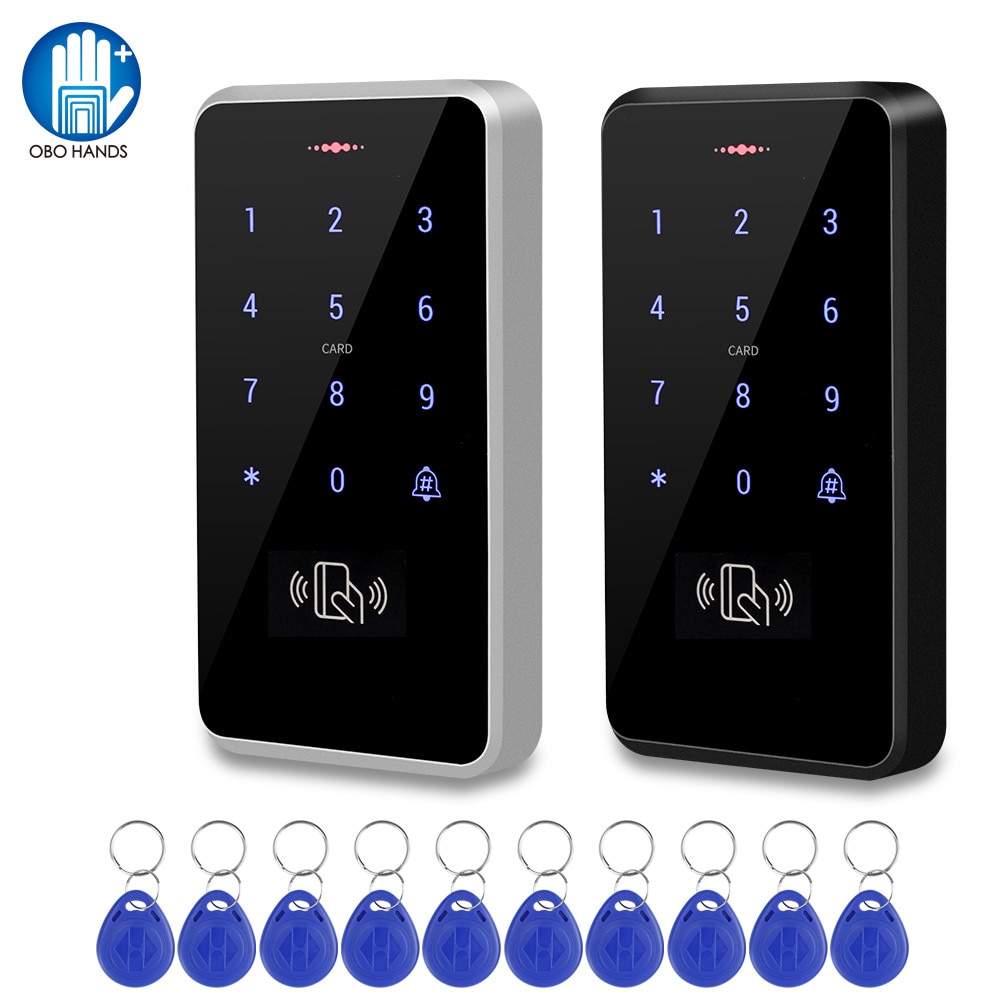

IP68 Waterproof RFID Card Door Access Controller With Wiegand 26 / 34 Output
High quality / 3000 user capacity / 3 unlock method
Product Specification:
User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

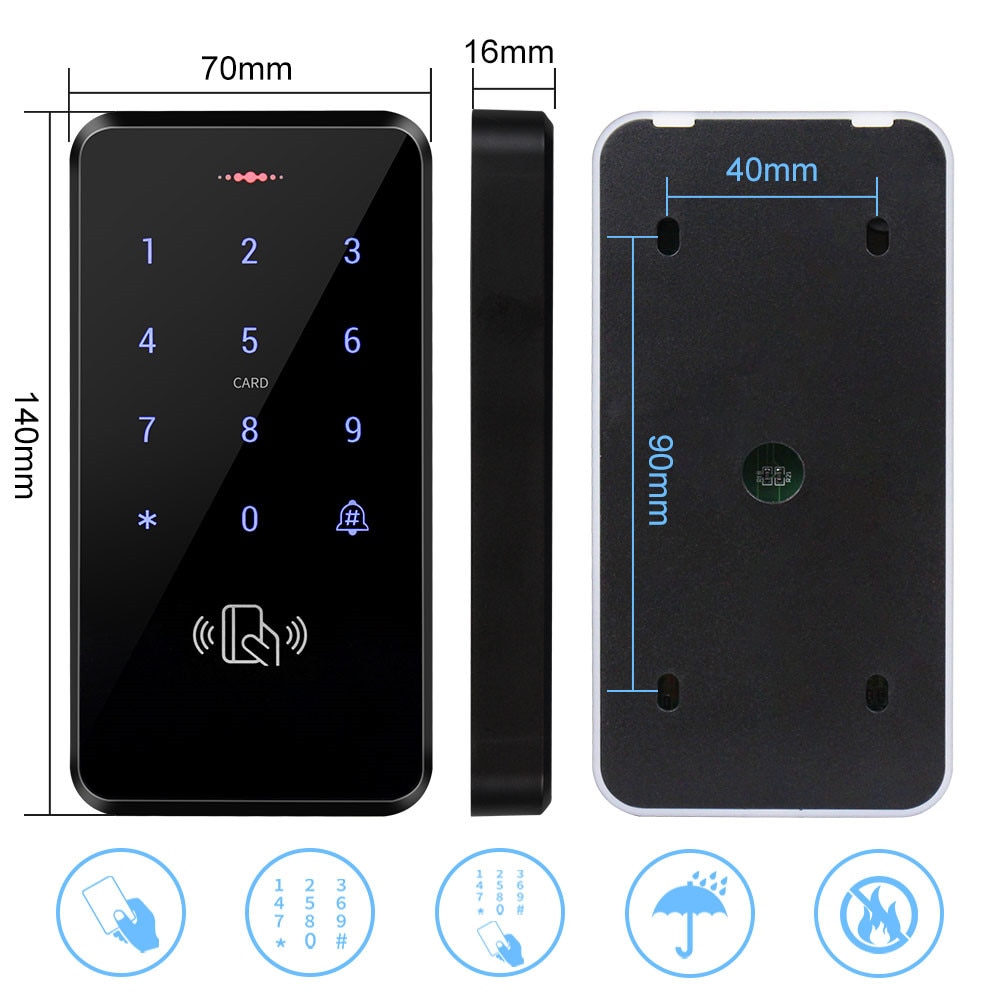

Product size: 140*70*16mm
Product Details:

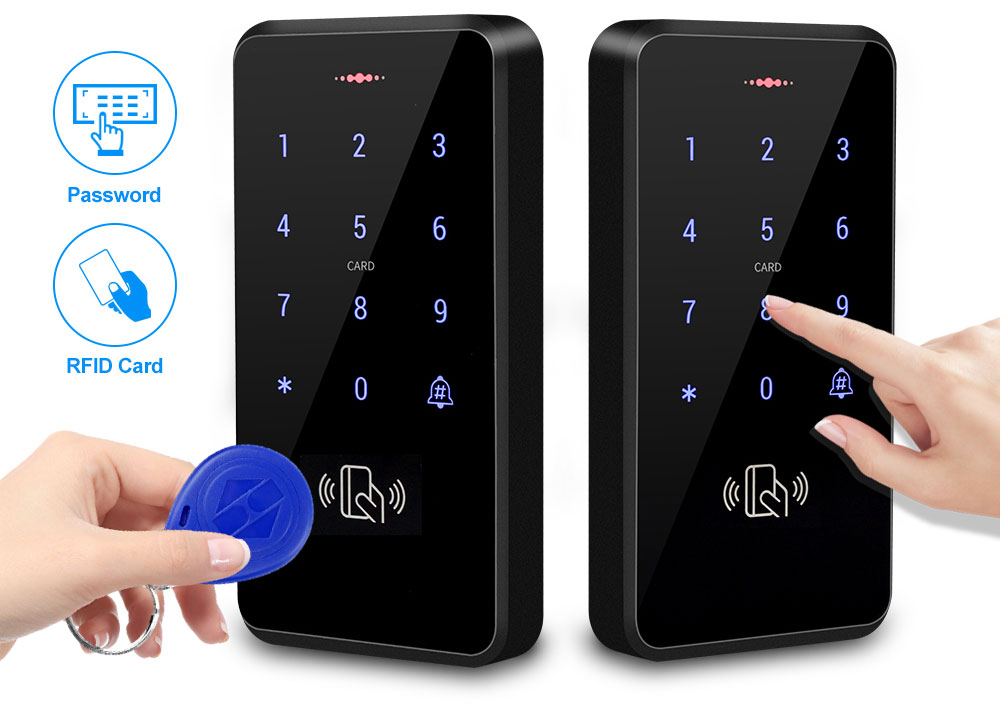

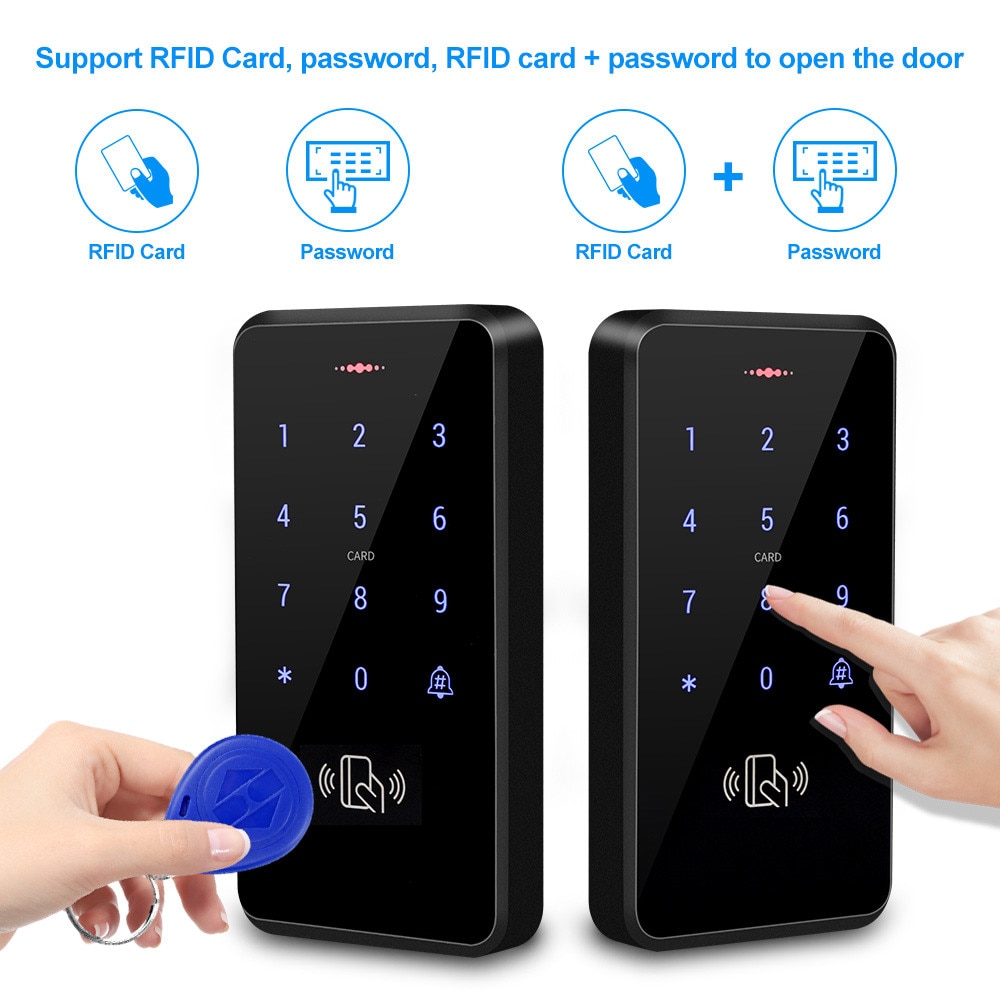

Support RFID Card, password, RFID card + password to open the door
Support 3000 card and password user capacity, can set card + password to open the door, more secure!

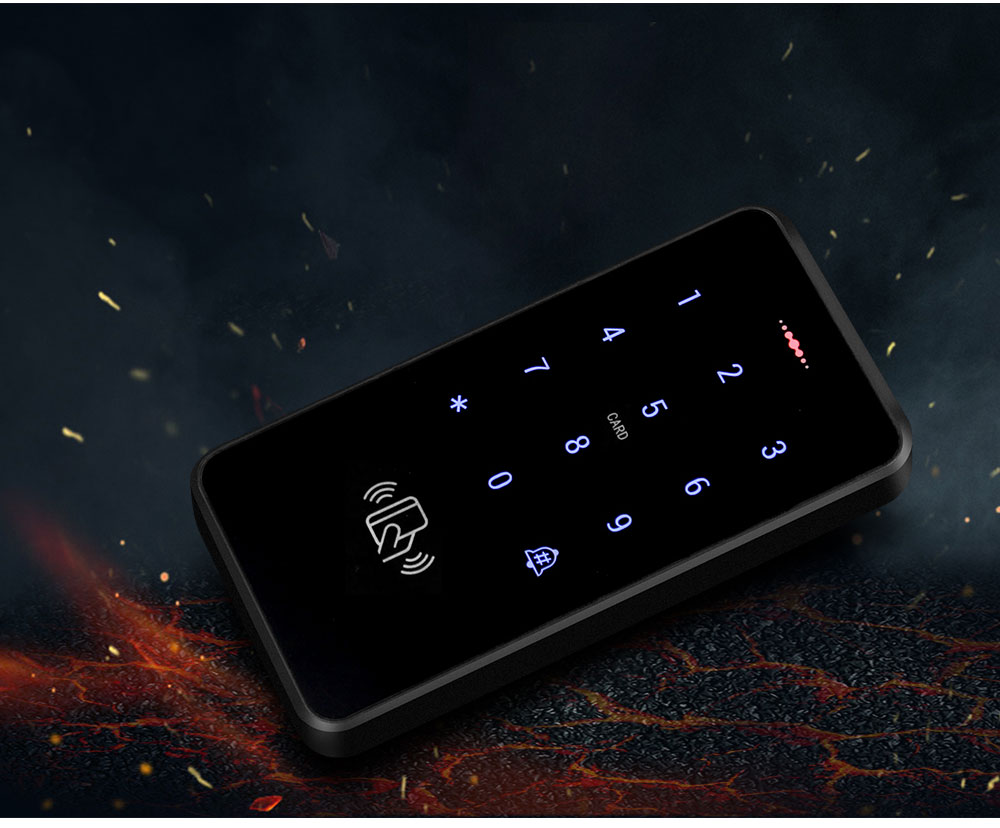

ABS fire retardant material shell
One-piece molding, hard plastic treatment. Fire retardant, impact resistant and wear resistant!

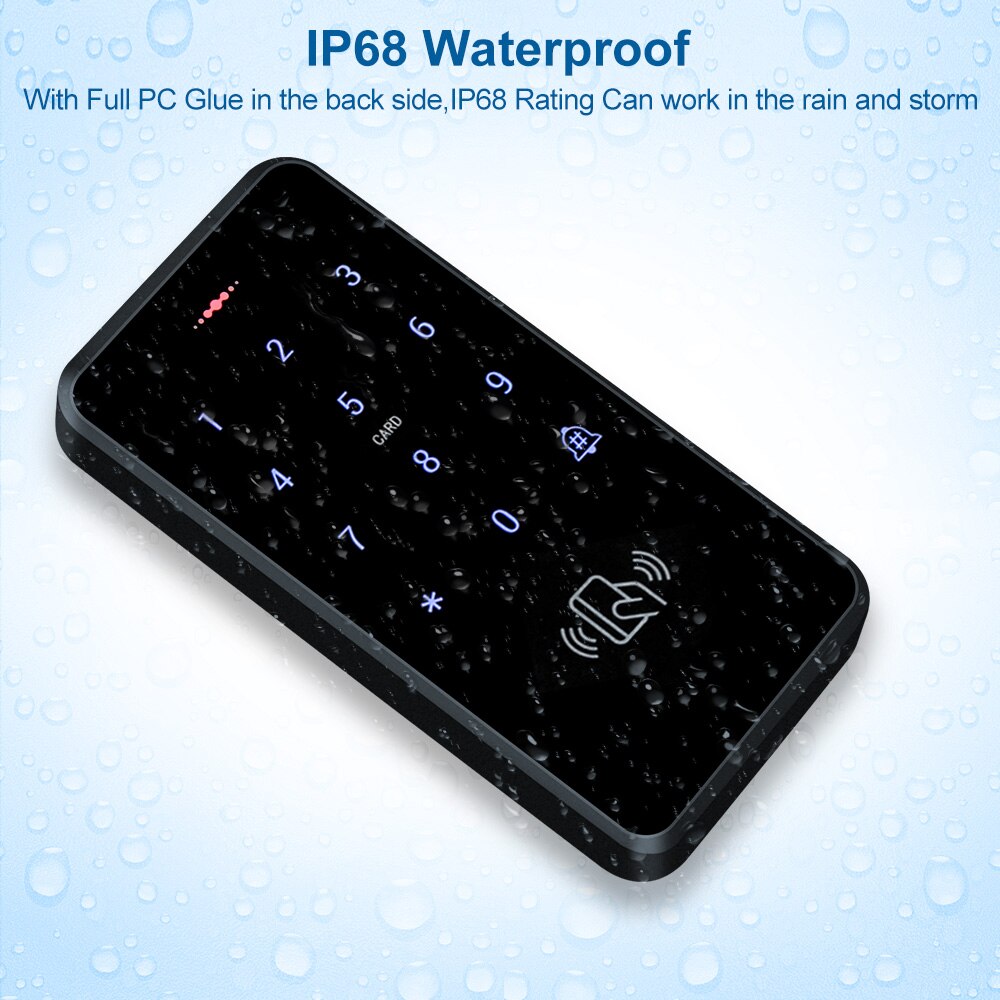

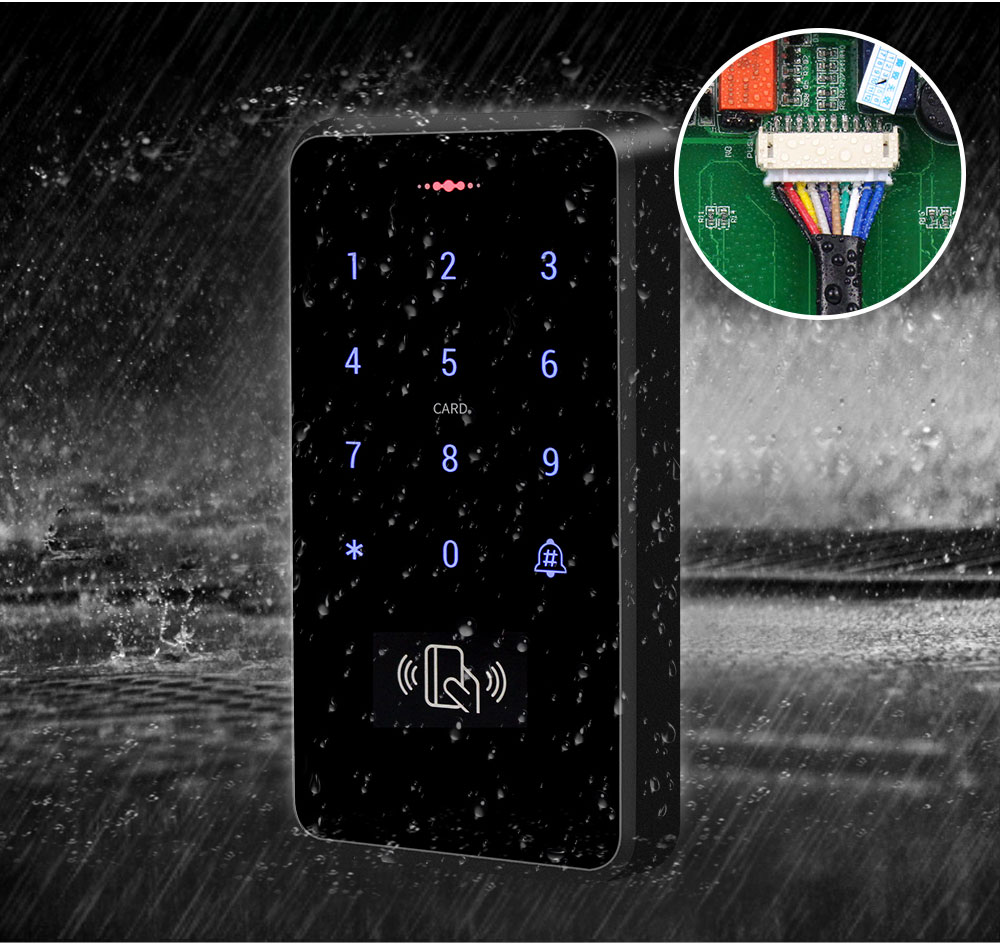

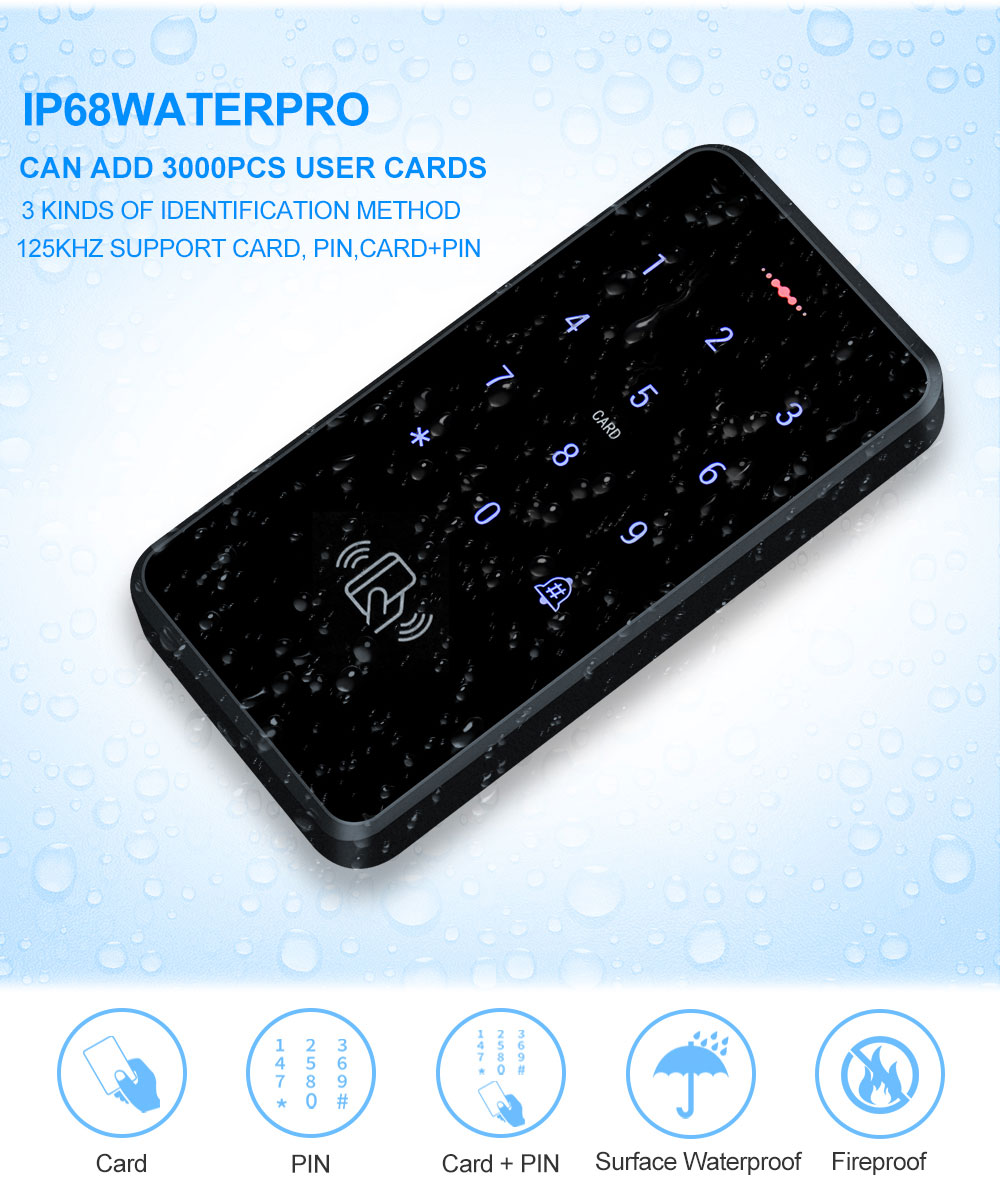

IP68 waterproof, Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

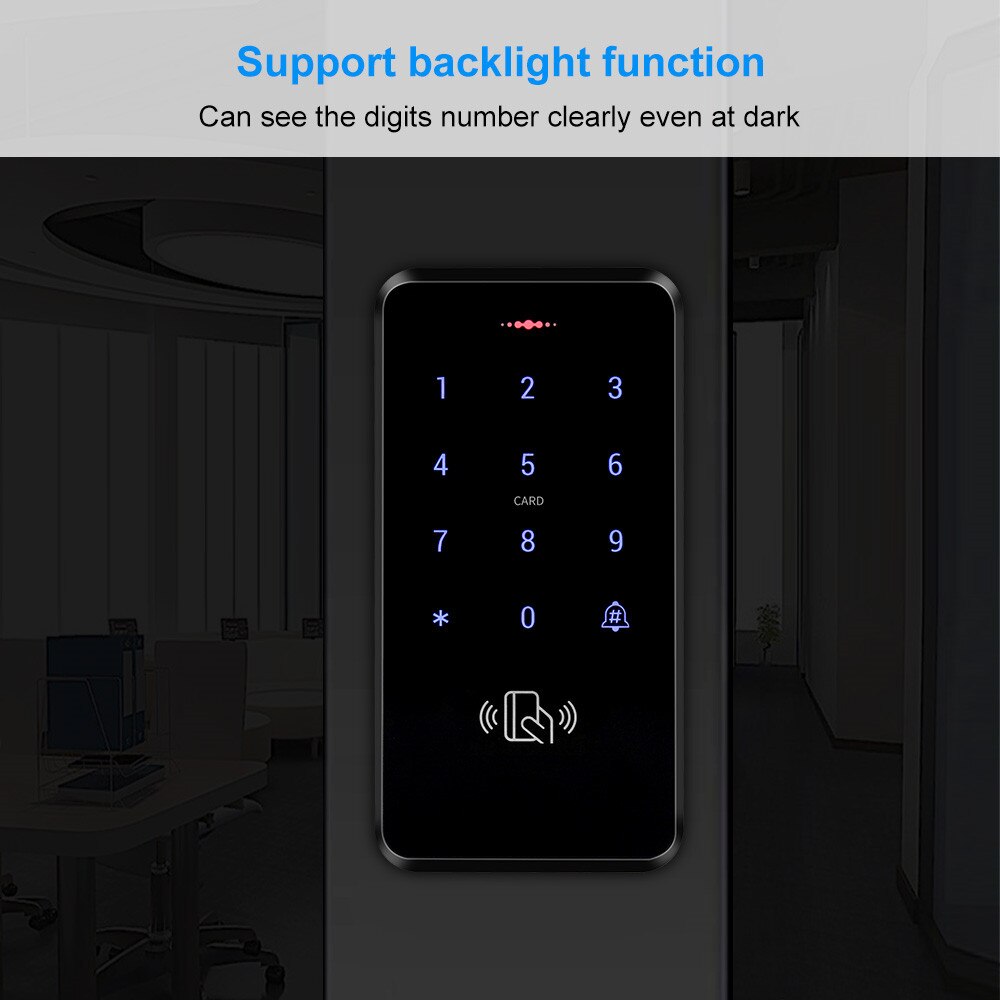

Backlight keypad
The digits number can be seen clearly even at dark
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

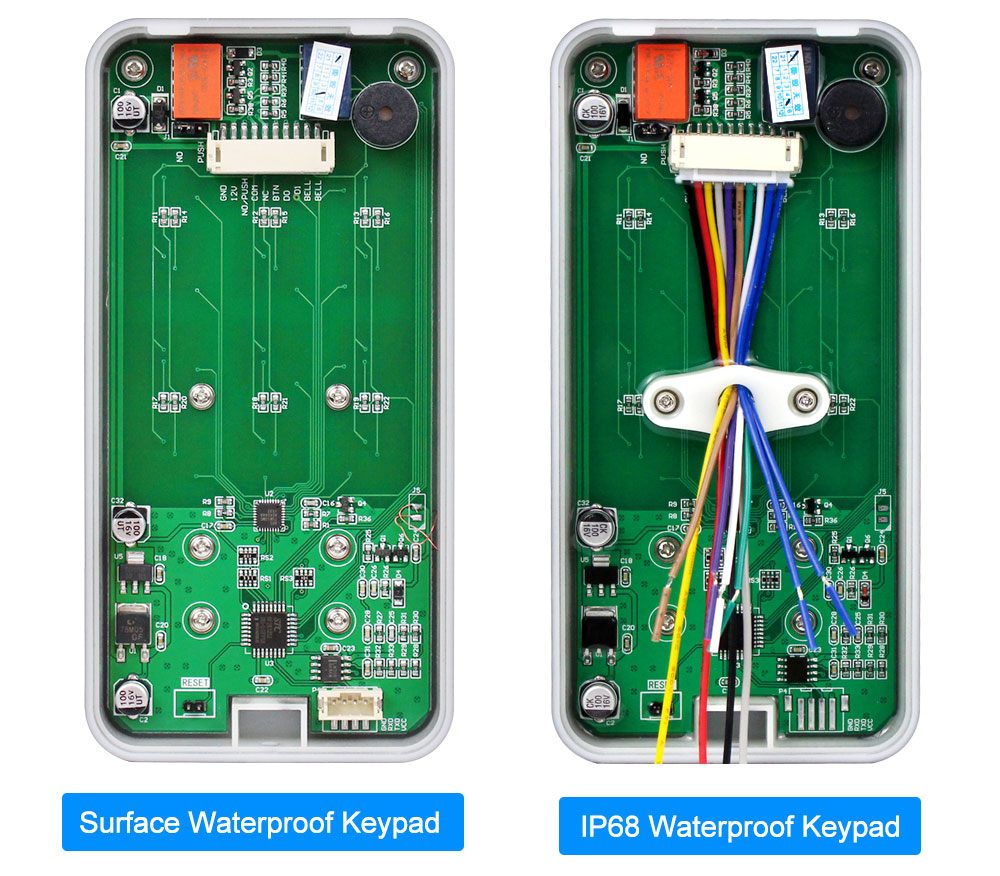

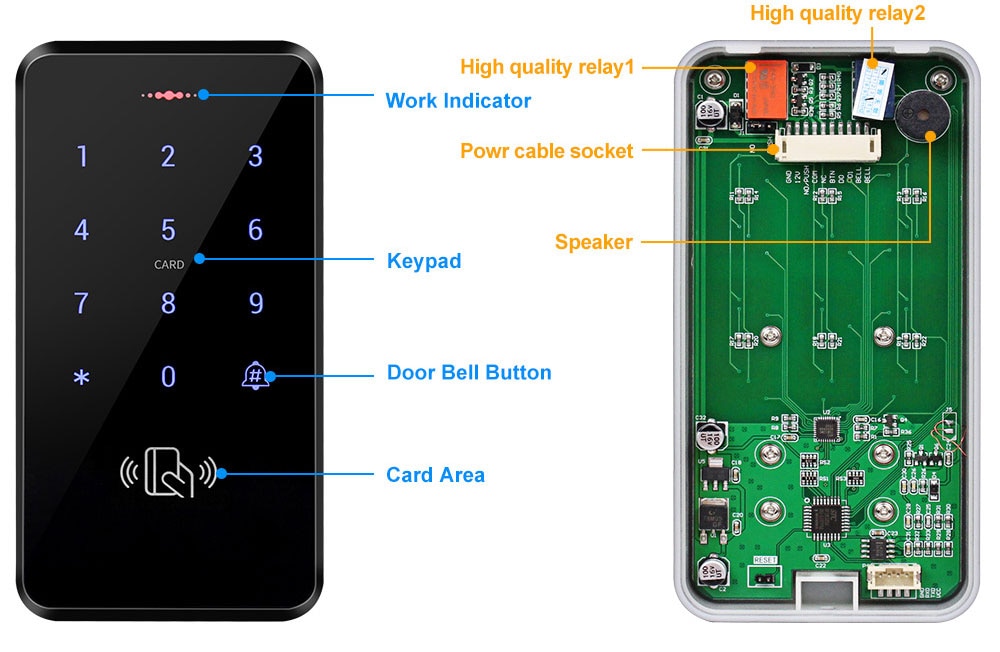

Product Analysis
Very Important!
The Surface waterproof keypad can't be used under the rain directly.
The IP68 waterproof keypad can be installed outdoor, and used under the rain directly.

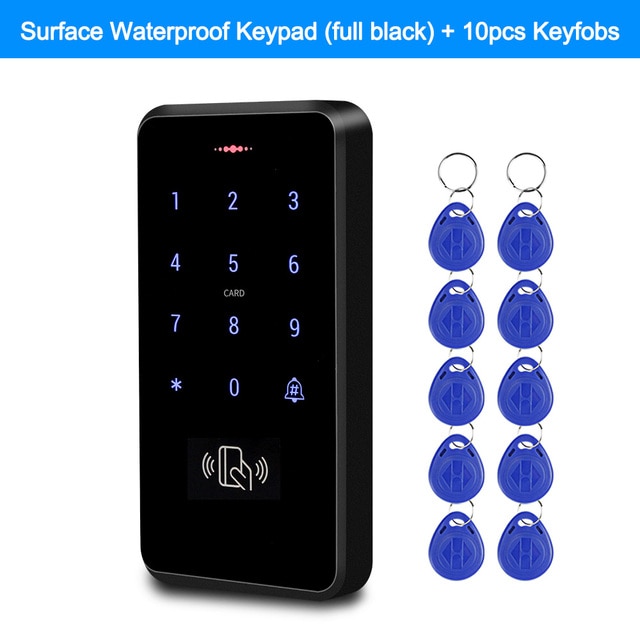

S20 sureface waterproof Keypad, with full black color.
S20 IP68 waterproof Keypad, with full black color. Can be installed outdoor.

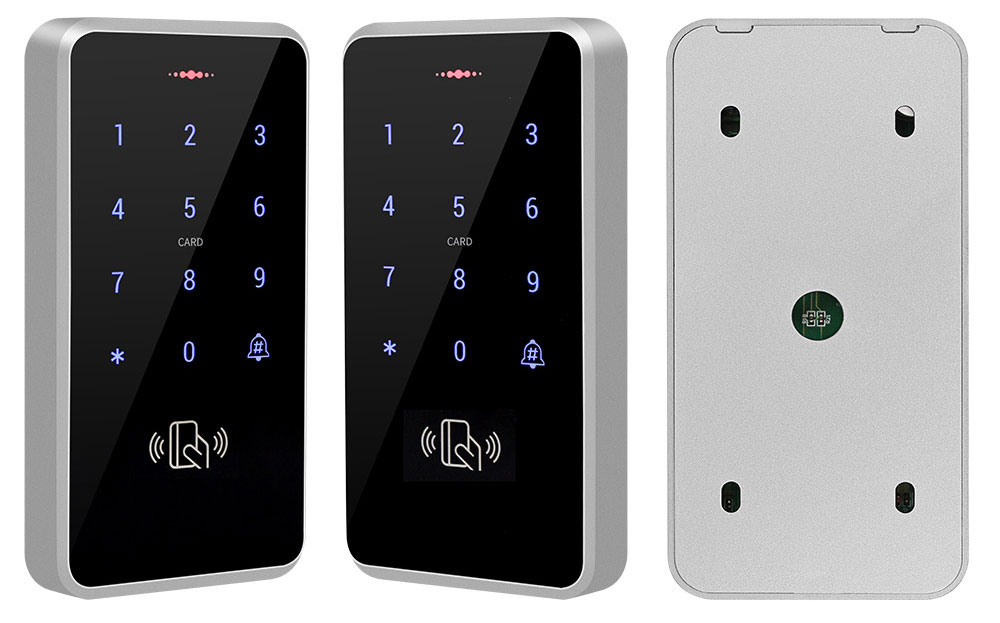

S20 sureface waterproof Keypad, with black and silver color.
S20 IP68 waterproof Keypad, with black and silver color. Can be installed outdoor.

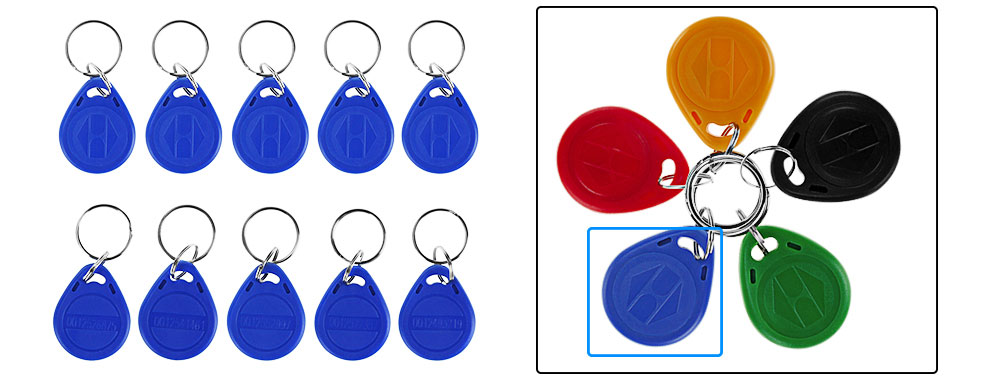

RFID Keyfobs
1. Material: ABS
2. Working Frequency:125Khz
3. Support: read only, not support write.
4. Reading distance: 0-10cm
5. Each one has a unique ID number printing on it
6. Color: we will send the blue by default, if you want other color, please lease a message to us.
Quantity: 10pcs. If you want more RFID key cards, please contact us. Thank you!

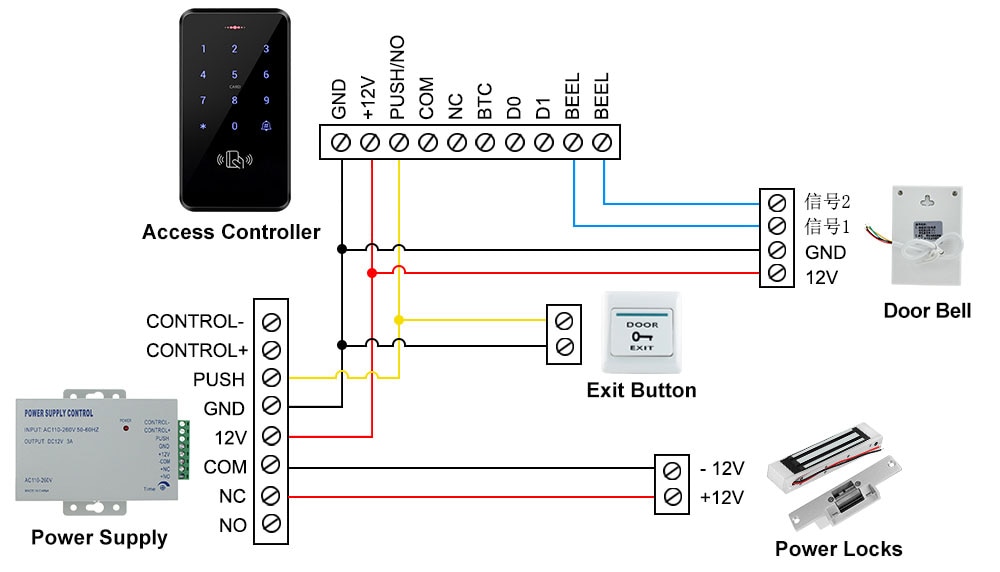

Wiring Diagram:
(Note: Both of the power supply, lock, exit button are Not included in the package, need to buy extral)
- Model Number: S20+10
- Brand Name: OBO HANDS
- Certification: NONE
- Origin: Mainland China
- Material: High quality ABS
- User capacity: 3000 users
- Blacklight: Blue backlight
- Working Voltage: DC12V
- Quiescent current: ≤ 30mA
- Waterproof function: IP68 Waterproof
- Working frequency: 125KHz
- Card type: EM Card
- Unlock method: RFID Card, password, RFID card + password
- Door bell function: Support
- Can be installed outdoor: Yes
- WG interface: WG26/34 input/output
- Touch screen panel: Yes
- Type: RFID Keypad
- Type1: RFID Keypad waterproof
- Type2: Access Control Keypad
