RFID Access Control System Kit Standalone Controller Keypad 1000 Users Electronic Door Lock Power Supply 125KHz ID Keyfobs Tags
5.0 (4 votes) | 2 orders
Price:
US $60.62 - 143.71
/ Set
Discount Price:
US $
55.44 -
123.17
/ Set
-9%
- Color
-
-

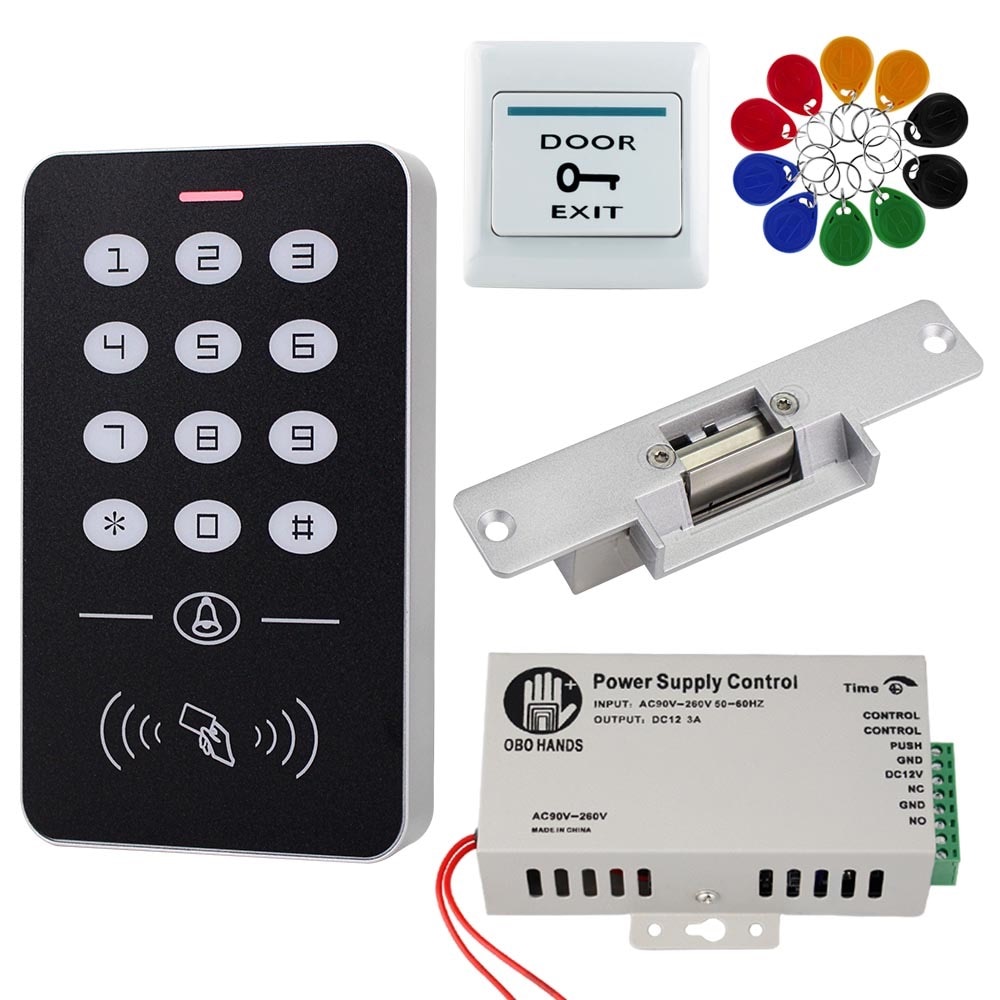

125KHz RFID Access Control System Kit

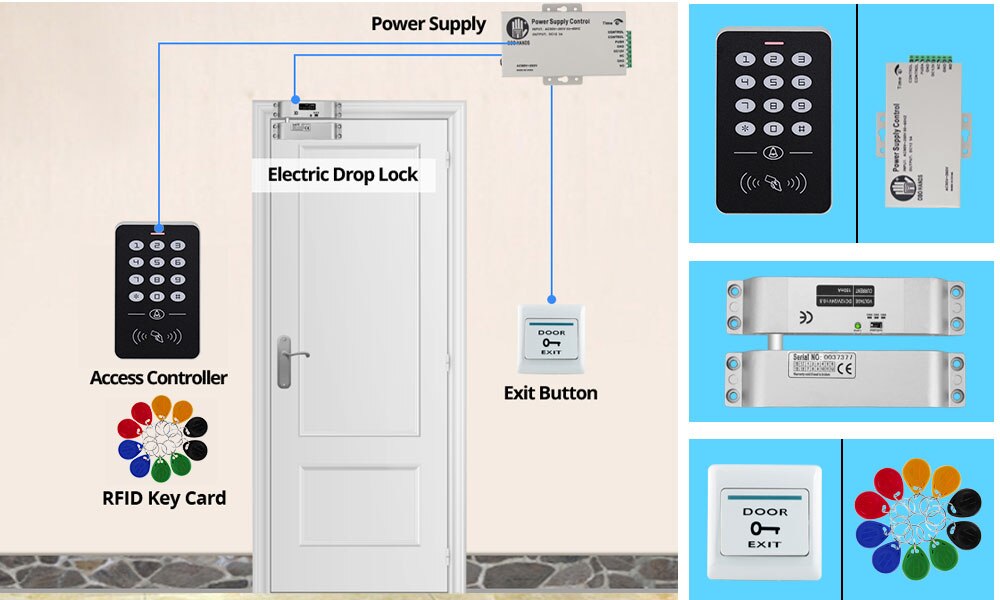

A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.
Product Description

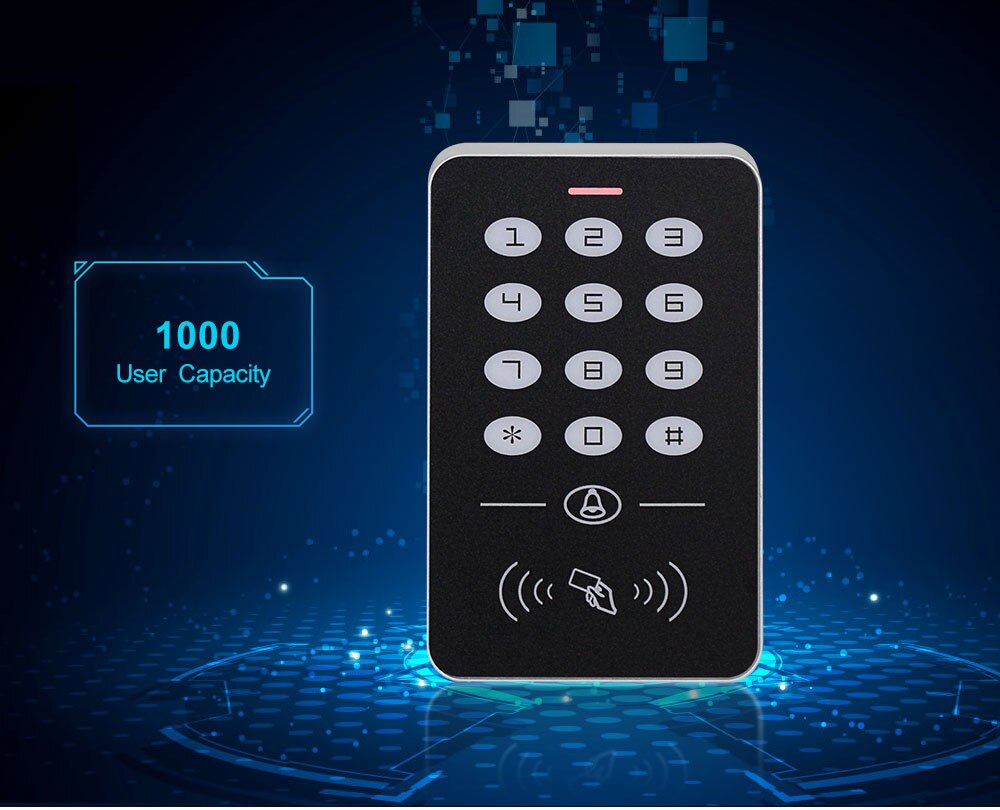

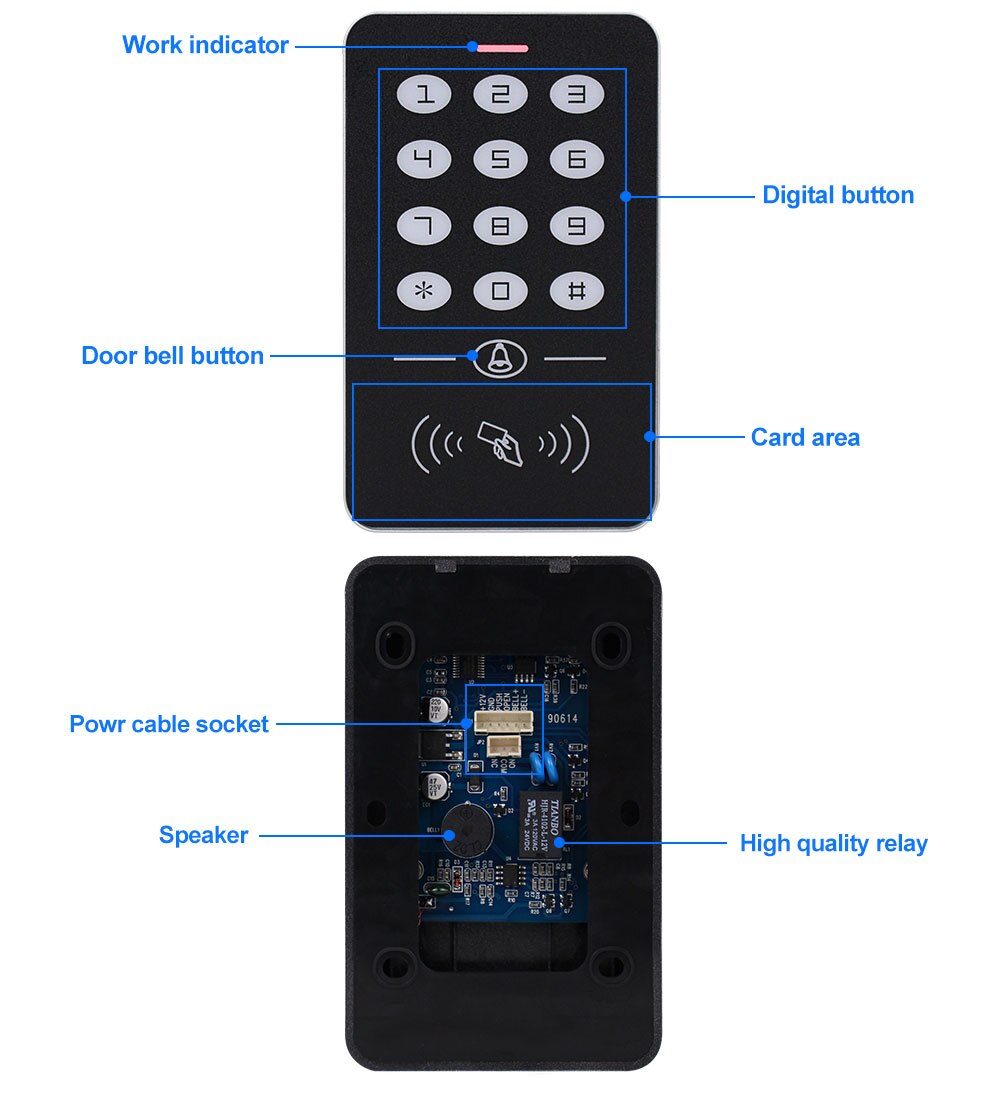

Access Controller:
Product Features: User capacity: 1000 Card reading type: EM card Card reading distance: 1-5CM Identification method: card, password, card + password Programming password: 123456 Unlocking time: 5 seconds Open the door input: all the way to open the button input Doorbell output: one way wired doorbell output Can be connected to automatic door or gate Working voltage: DC 12V ± 10% Working power supply: <100mA Working temperature: 0 ° C ~ 60 ° C Size of A1: 113*70*20mm Size of A2: 86*86*20mm

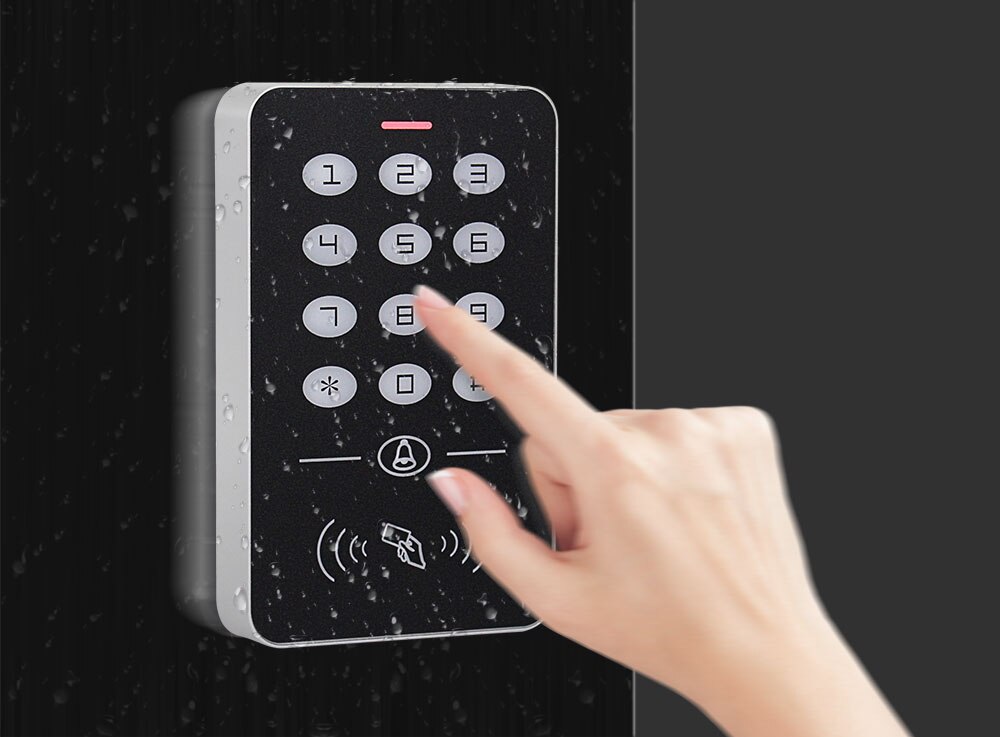

Surface Waterproof and dustproof panel
The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly)

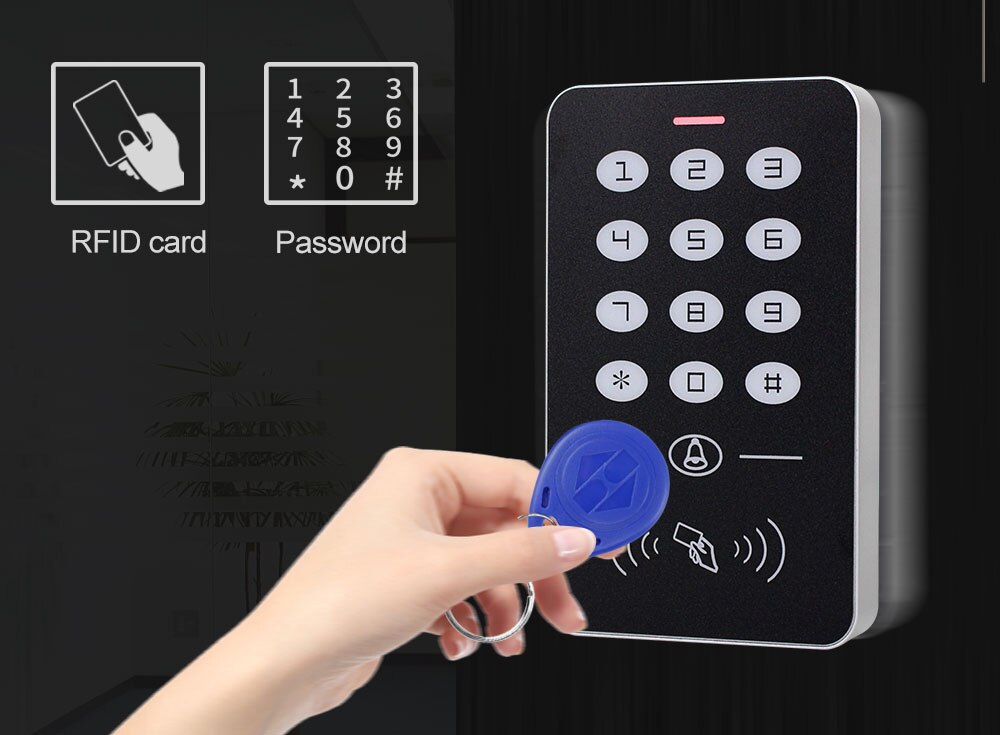

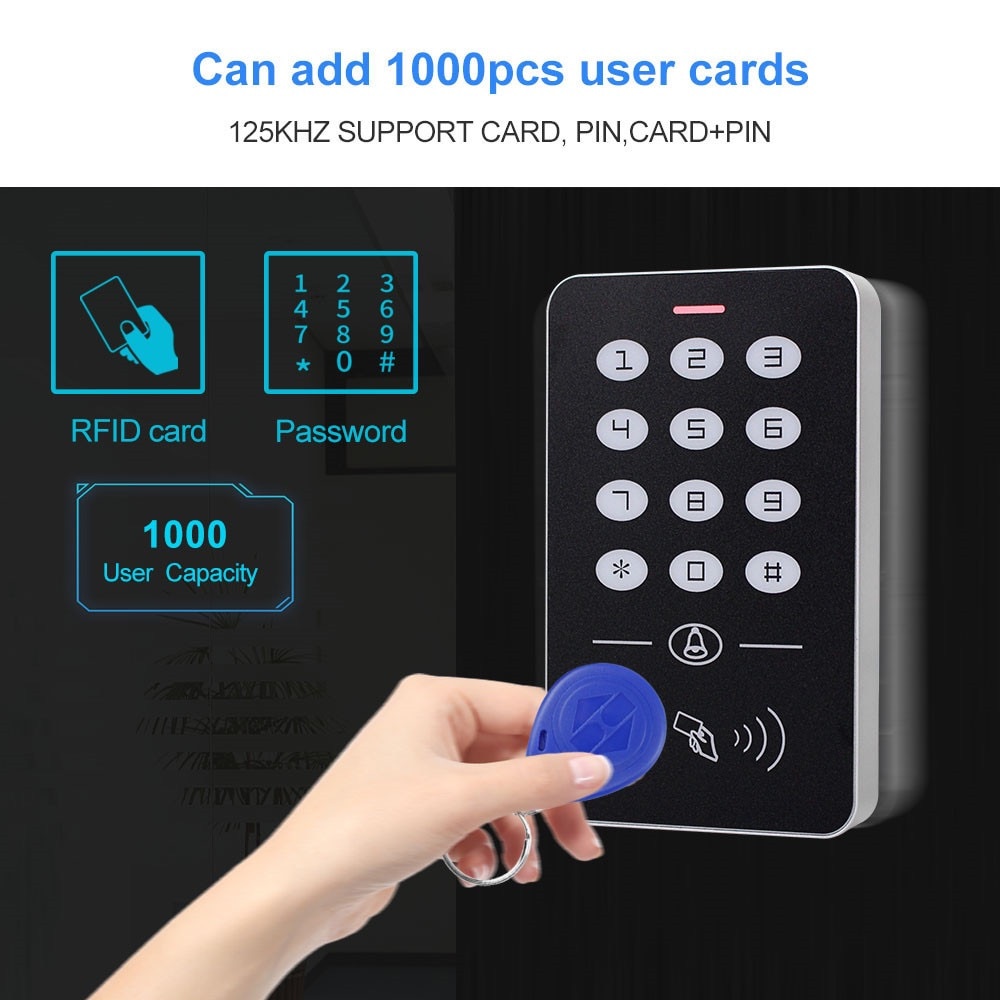

Support RFID Card, password, RFID Card+ password to open the door
Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher
Smart original chip
Large user capacity, fast identification, full-featured, stable operation and simple operation

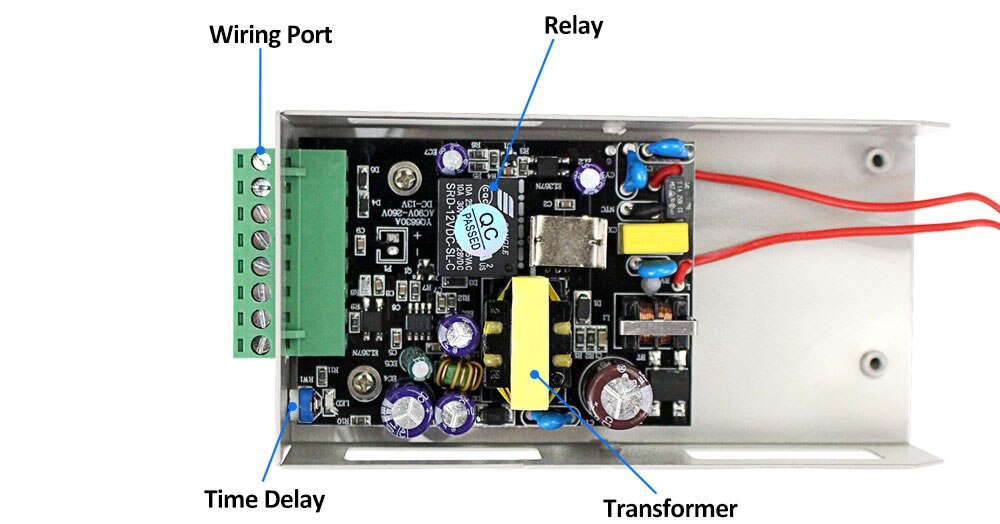

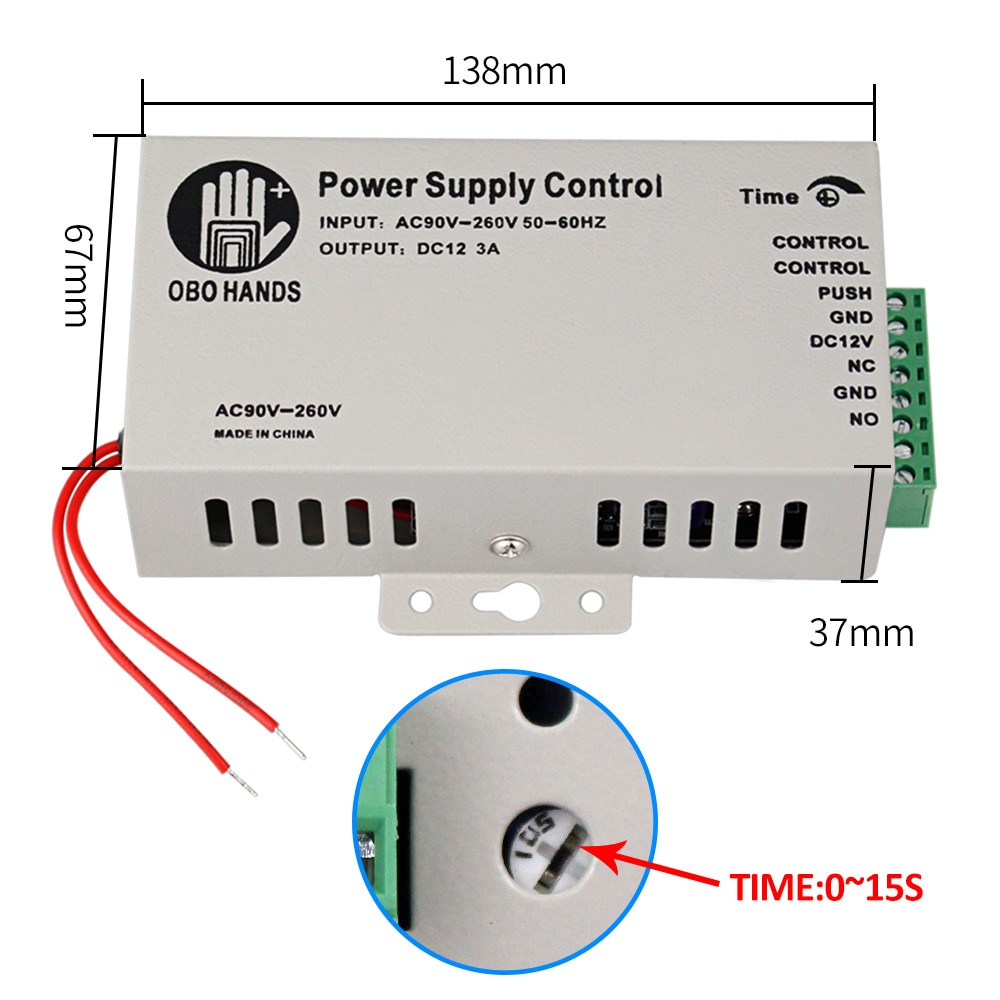

Power Supply:
1.AC input: Standard AC100V-240V 50-60HZ 2.DC output: Stabilivolt DC12V/ 3 A 3.Package Dimensions: 117 x 68 x 32mm 4.Remote control function:Yes 5.Dimension: 138X67X37mm( L/W/H )
Door Exit Button:
Material:Hard Plastic Maximum Power Rating:36V DC 3A—5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode) Dimension:86X86MM ( L / W )
RFID Keyfobs:
125KHz rfid frequency key card, waterproof Operating frequency: 125kHz Detection range: 0-10cm Each card pre programmed and has a unique identity number on it. Please Noted: There are 5 color of the RFID keyfobs for optional Note:(blue, red, yellow, green, black). We will send blue by default. If you need other color, please leave message to us.

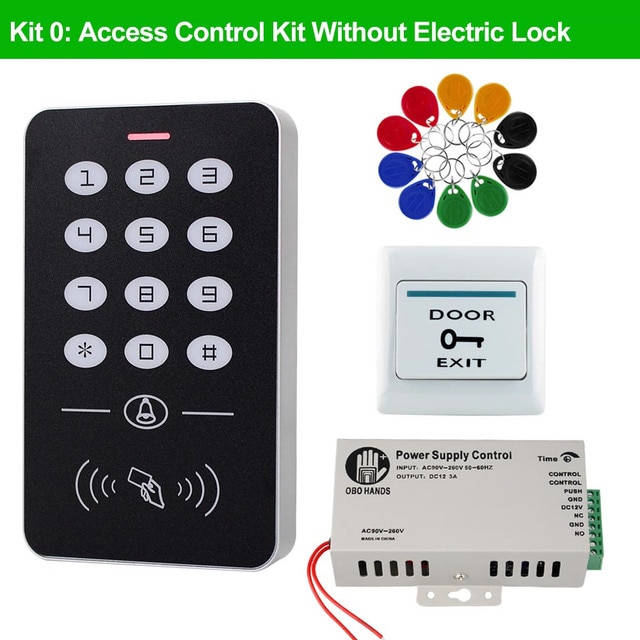

Multi Model for Choices

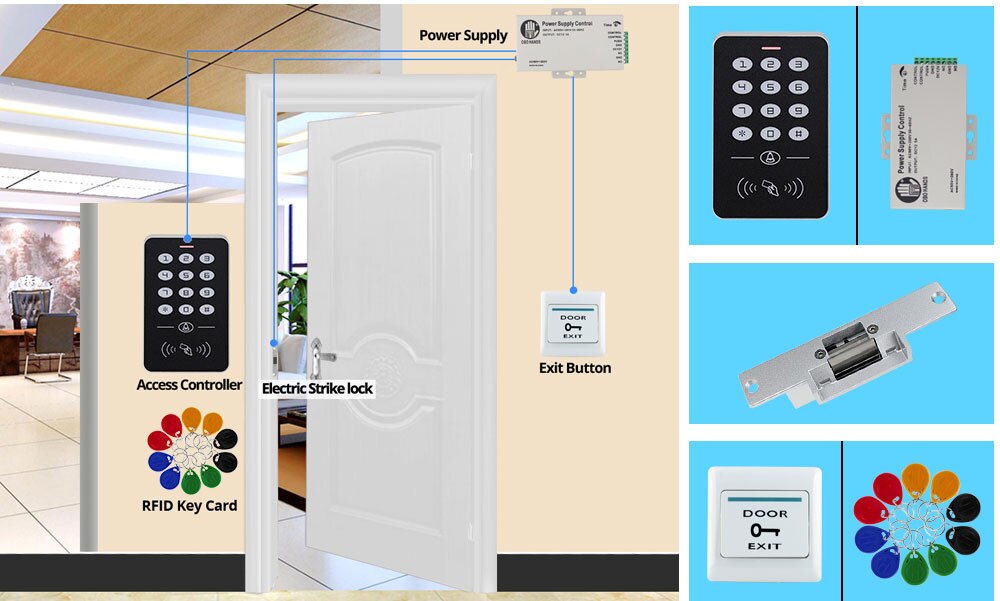

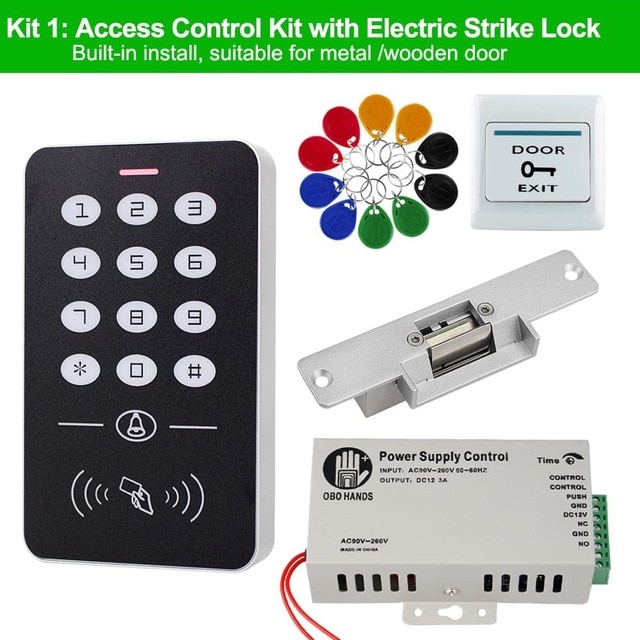

Kit1: suitable for wooden door, convenient and beautiful.

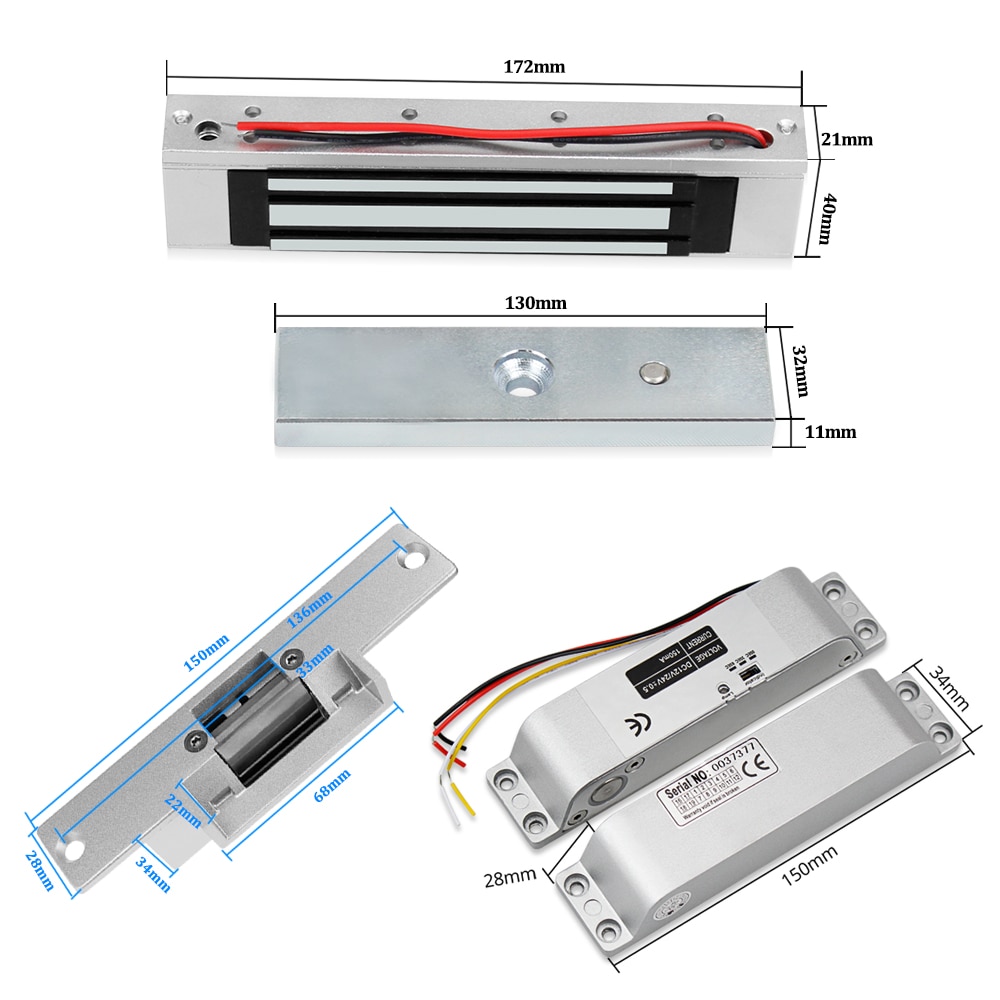

With a electric strike lock Material: Stainless steel Lock time is determined by the power-on time Voltage: 12V +/- 10% Working Current: 110mA ~ 50mA Performance Testing: 1000000 times aging test Opening Mode: 90 degree swinging door Size: 150 × 28 × 34mm (L / W / H) Unlock Mode: NC mode --- Locked when power on, unlocked when power off.

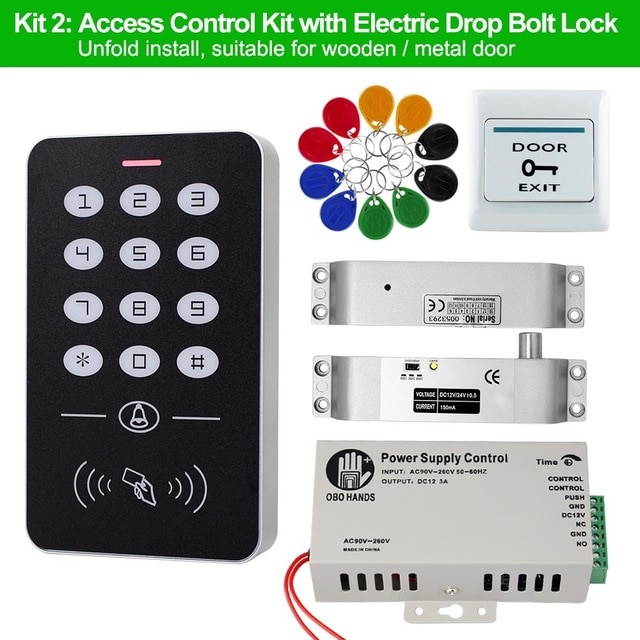

Kit2: suitable for wooden and metal door, not need bracket, convenient to install.
With a Electric Bolt Drop Lock Working voltage: DC 12V Time Delay: 0s, 3s, 6s (Adjustable) Unlock Mode: NC mode --- Locked when power on, unlocked when power off. Dimension: 150X34X28mm (L/W/H)

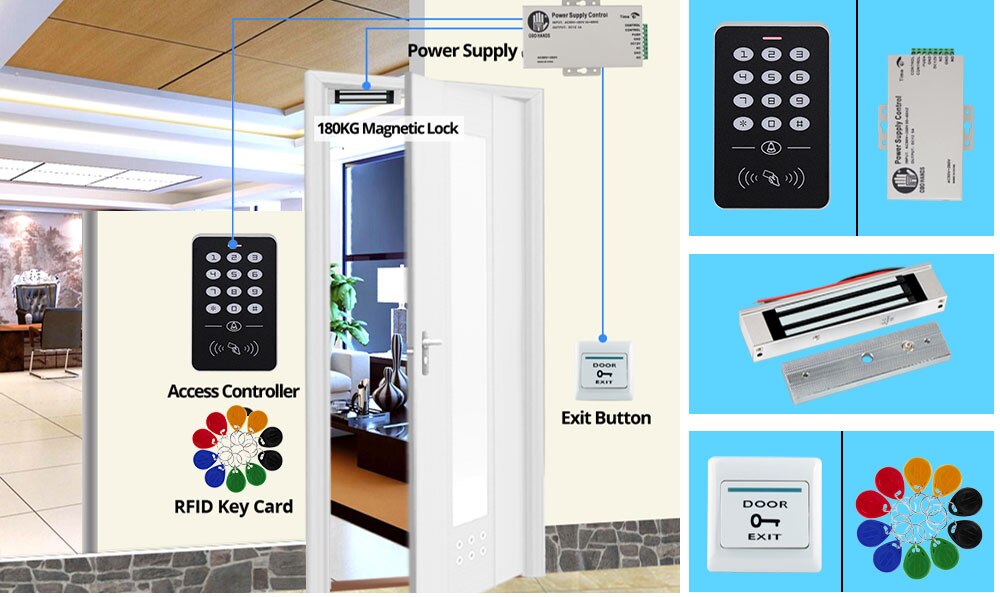

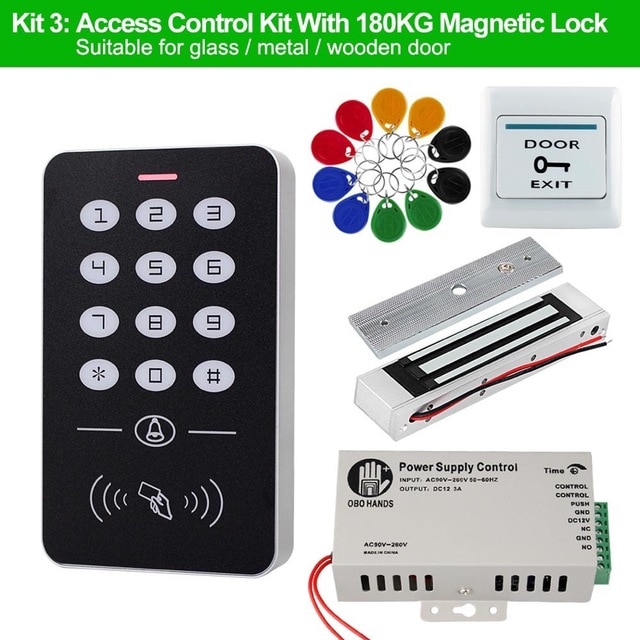

Kit3: suitable for wooden, metal and glass door, not need bracket, convenient to install.
With a Electric Magnetic Lock Material: Aluminium Alloy Working Voltage: DC12V Working Current: 380-500mA Holding Force:180KG/ 350lbs Dimension:172*40*20mm (L/W/H) / 130*32*11mm (L/W/H) Unlock model: Locked when power on, unlocked when power off (NC mode: Fail-safe mode)

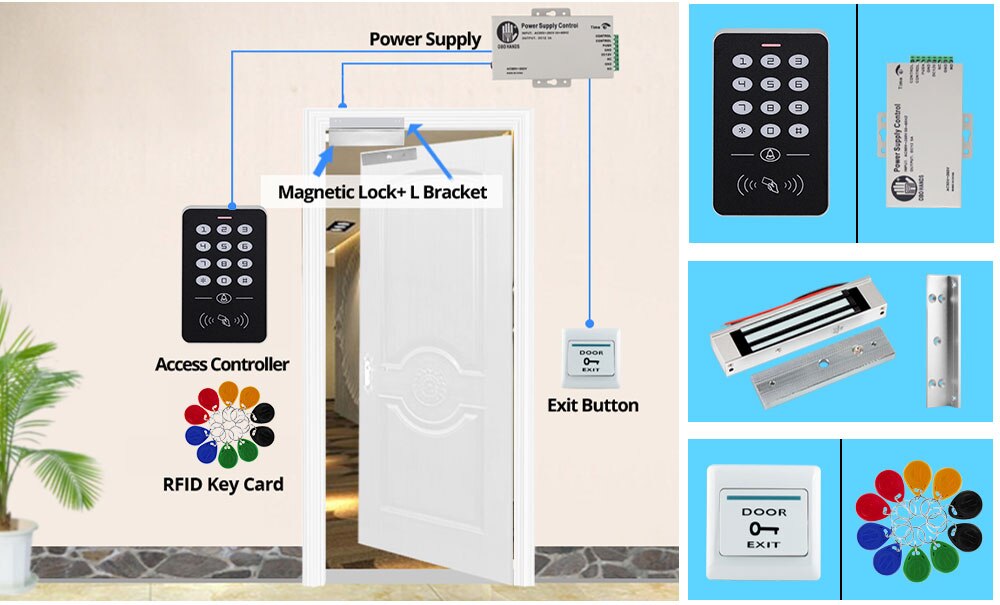

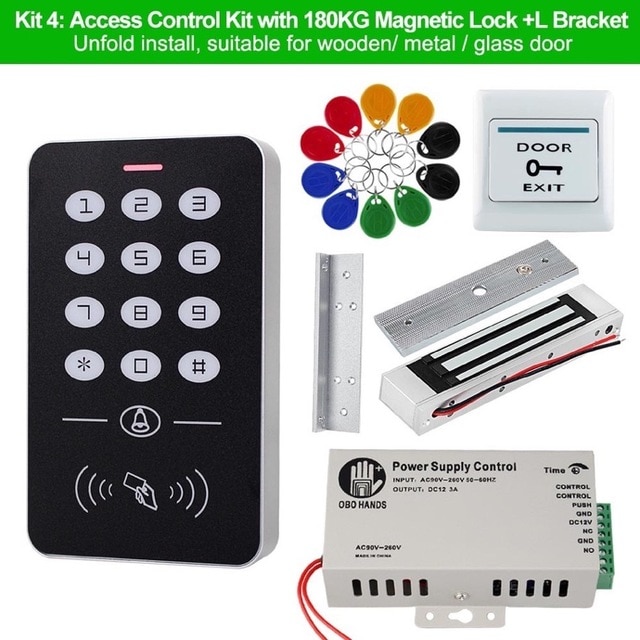

Kit4: suitable for wooden, metal and glass door, need L bracket, convenient to install.
This kit is as the same as the Kit01, but only add a 180kg L lock bracket. L bracket: 168*39*24mm Material: High strength aluminum alloy, the surface spray sand Use type: all kinds of narrow and open from inside door Open angle: 90 °

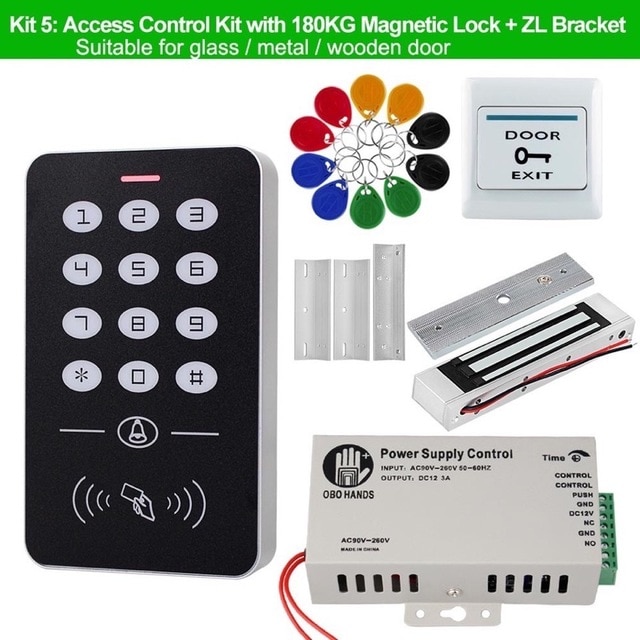

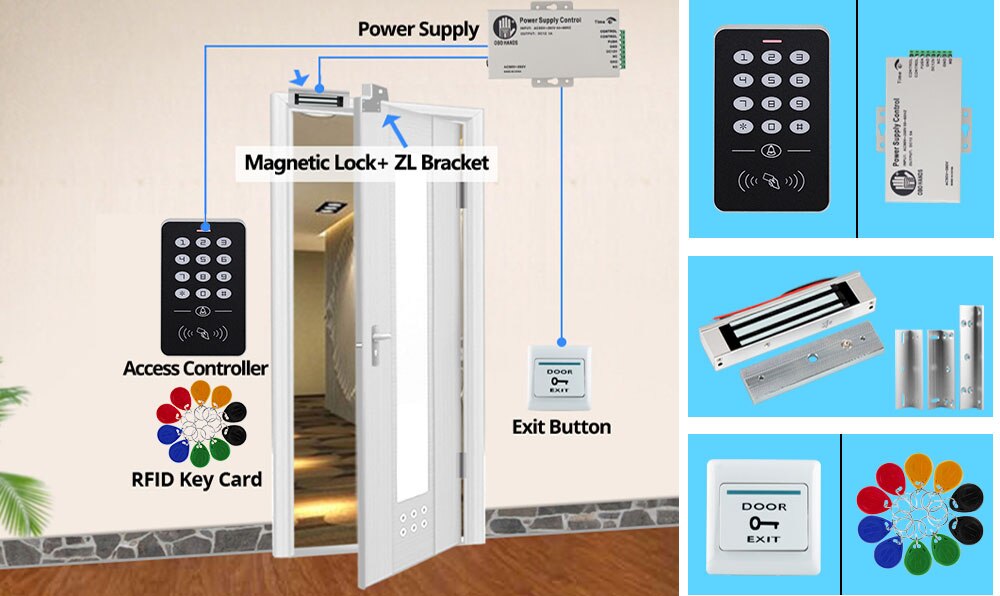

Kit5: suitable for wooden, metal and glass door, need ZL bracket, convenient to install.
This kit is as the same as the Kit01, but only adding a 180kg ZL lock bracket ZL Bracket: L bracket: 168*39*24mm + Z bracket: 139*36*36mm Material: High strength aluminum alloy, the surface spray sand Open angle: 90 °

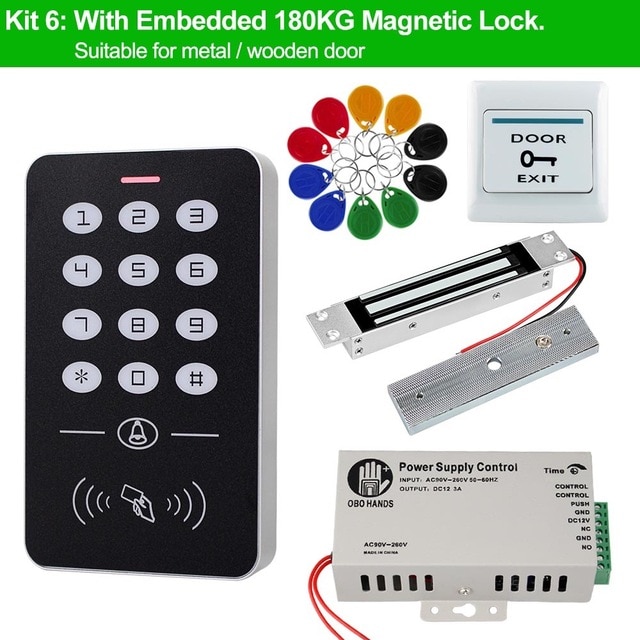

Kit6: Suitable for wooden, metal and glass frame door. No need bracket.
With embedded electric magnetic lock Embedded installed, suitable for framed door.
Feedback
We are committed to your satisfaction. Your positive feedback and 5 stars rating will be highly appreciated. Thanks! If you are not satisfied by any means, please give us an opportunity to offer you a proper solution.
Our Services
Shipping
1, We will ship out order within 2-5 days (except holidays)once your payment is confirmed. 2, We send packages worldwide by DHL, EMS, Fedex, TNT, E-packet,China post, Hogaki Standard Shipping, etc. You can have tracking information by choosing anyone of these shipping method.
Payment
1, When you place an order, please choose a shipping method and pay for the order including the shipping fee. 2, Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery.We will not refund shipping charges for refused shipments. 3, The shipping cost does not include any import taxes, and buyers are responsible for customs duties. 4, We only ship to the confirmed address provided by AliPay. Before you pay, please make sure your address and phone number in AliPay address notes for safe shipping. 5, Please fill out address in English, and make sure that your address in Hogaki is matched with your detail shipping address before you pay. Russian buyers, please leave us your full name due to Russia policy, thank you!
Return Policy
1, Please contact us within 7 days after receiving the items if you are not satisfied with them. Return shipping will be paid by buyer. 2, For wrong item, you may return the product within 7 Days you received for replacement. The products must be returned in new, resalable condition: Include all original packaging materials. 3, Carefully repackage.
Contact Us
If you have any question, Please send the message via Trade manager. All message will be answered within 24 hours from Monday to Saturday.
- Direction: None
- Security Mode: Fail Safe
- Model Number: A1 Kit
- Brand Name: OBO HANDS
- Certification: NONE
- Origin: Mainland China
- Working Power Supply: DC: voltage 12V+10%, Current < 350mA
- Identification method: card, password, card + password
- Dimension: 113*70*20mm
- User capacity: 1000
- Card reading type: EM card
- Unlocking time: 5 seconds
- Working temperature: 0 ° C ~ 60 ° C
- Card reading distance: 1-5CM
