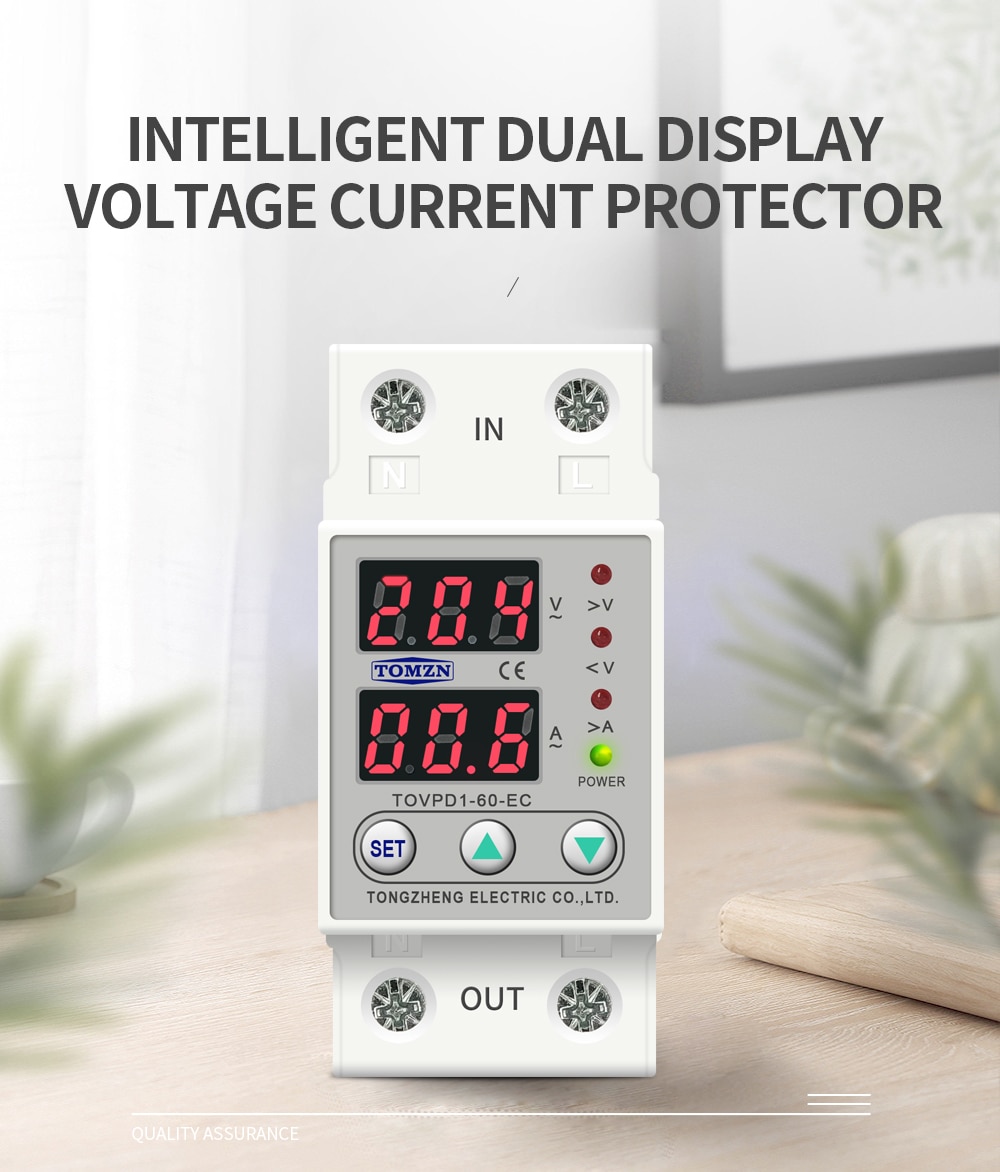

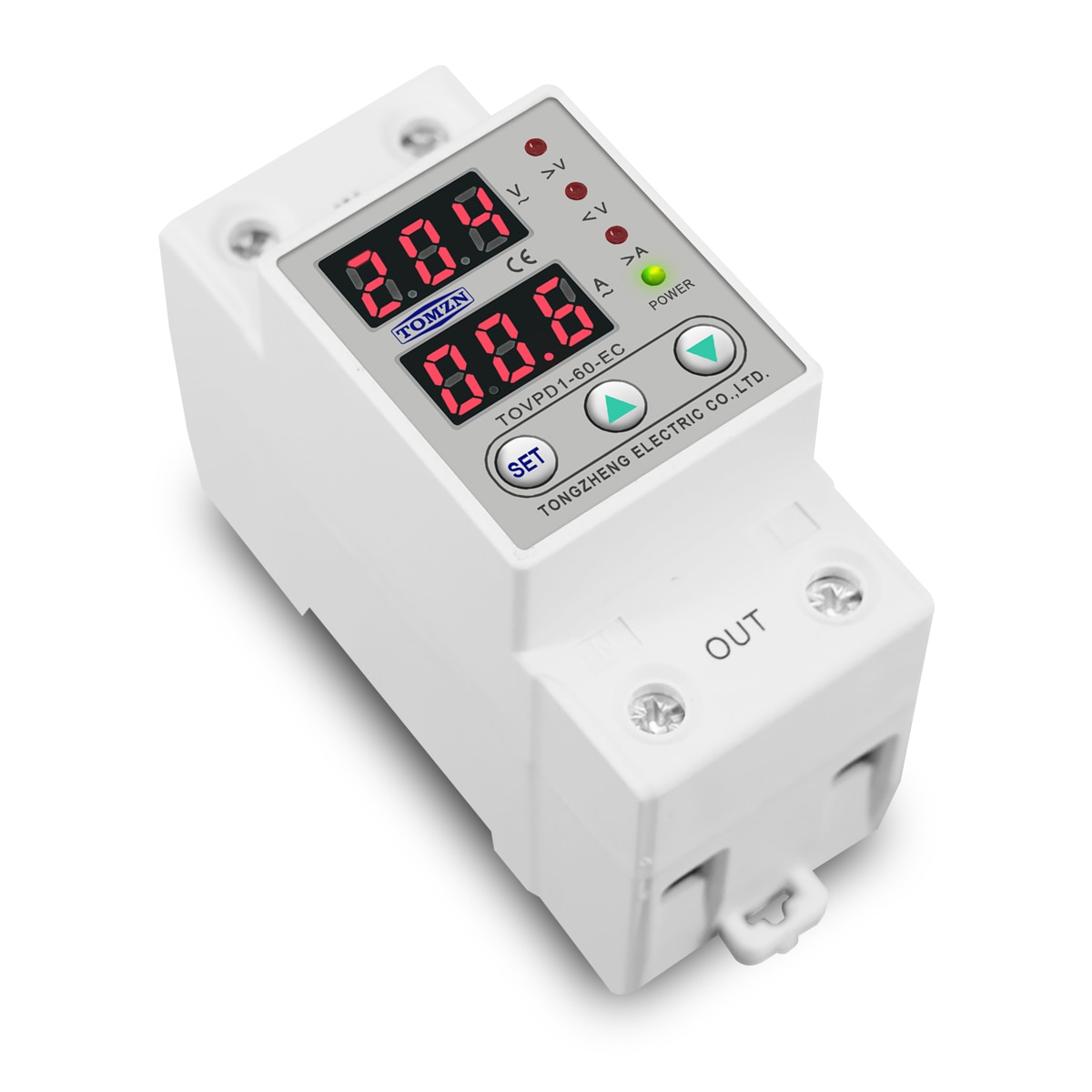

60A 230V Din rail adjustable over and under voltage protective device protector relay with over current protection Voltmeter

5.0 (23 votes) | 68 orders
Price:
US $ 20.87 - 22.15 / piece
Rated Current
Quantity

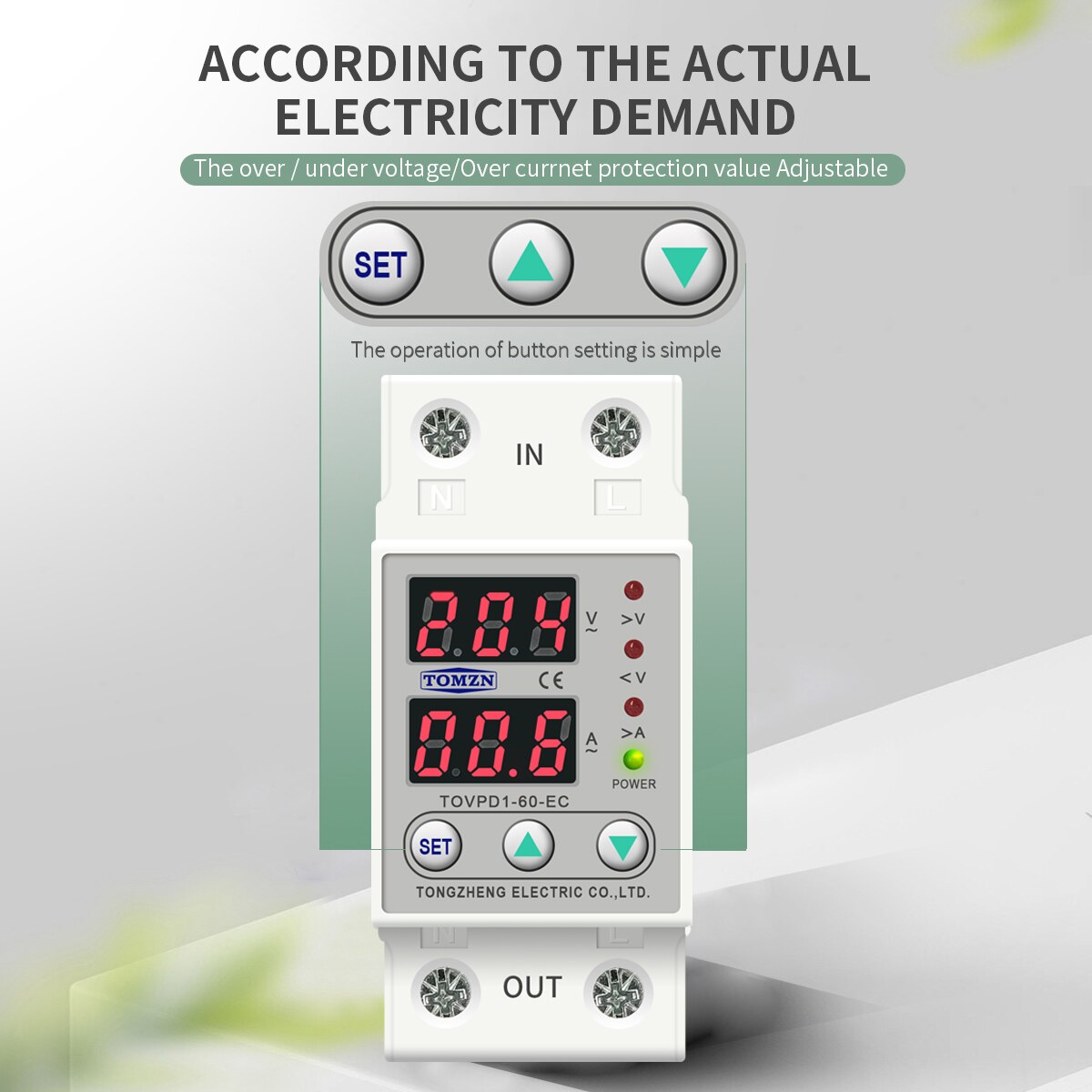

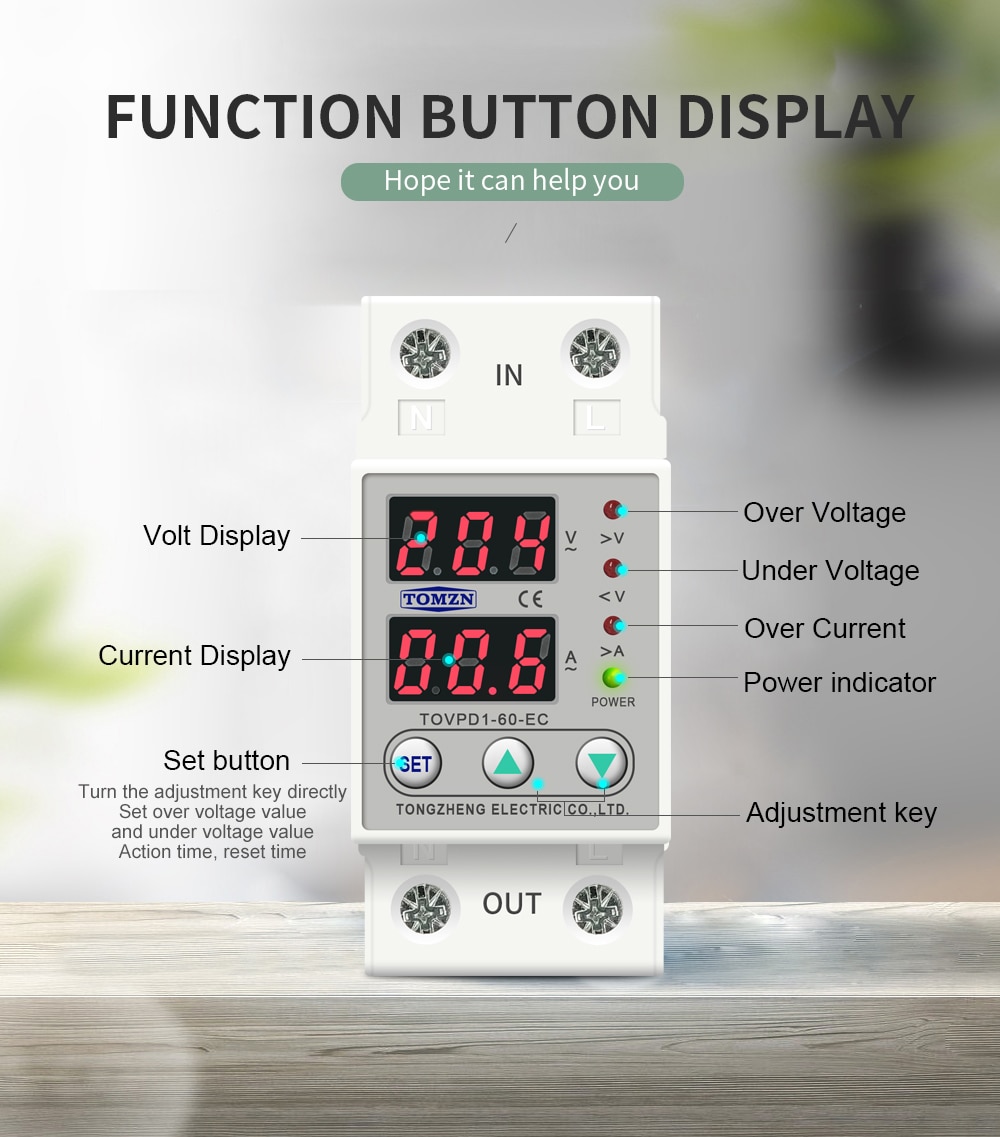

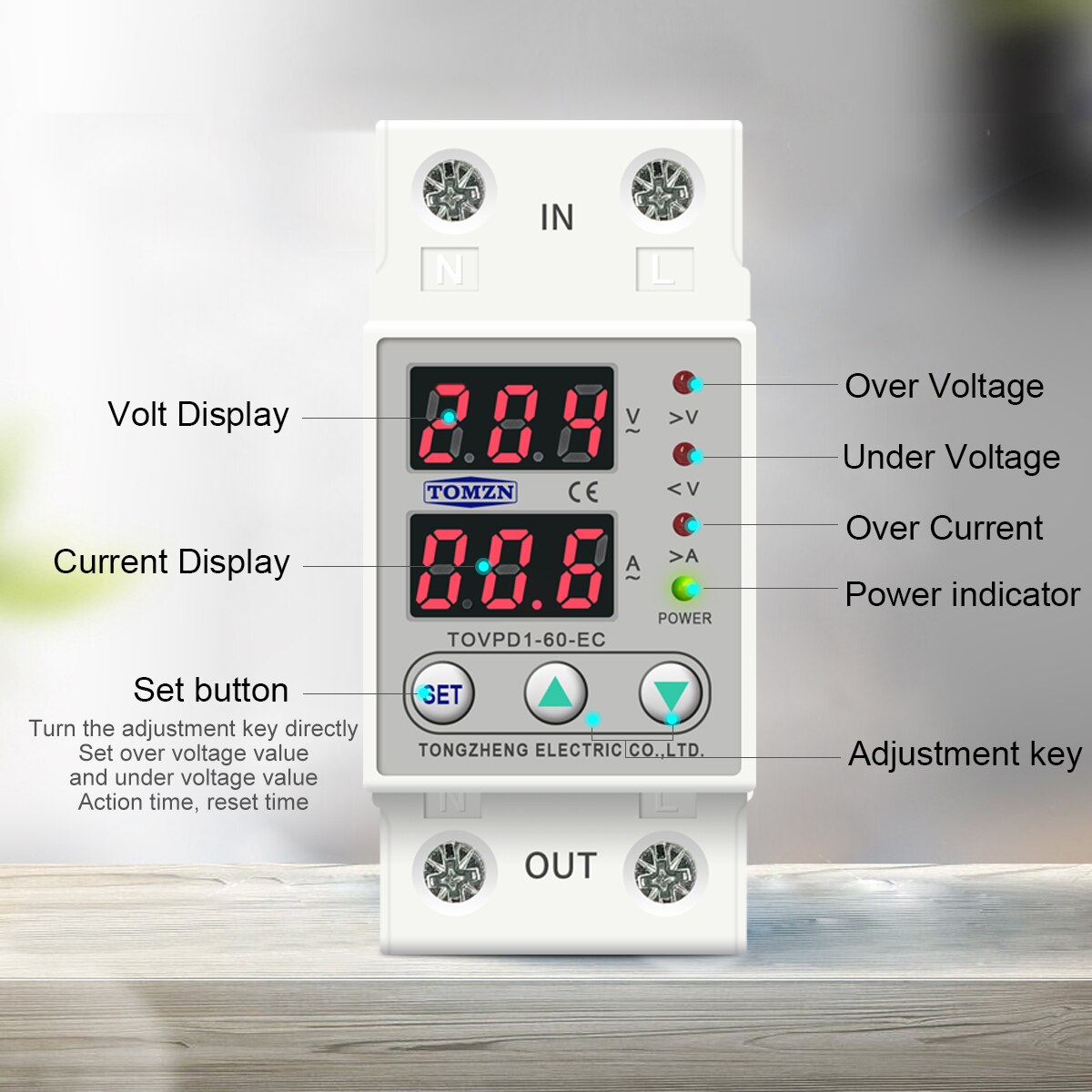

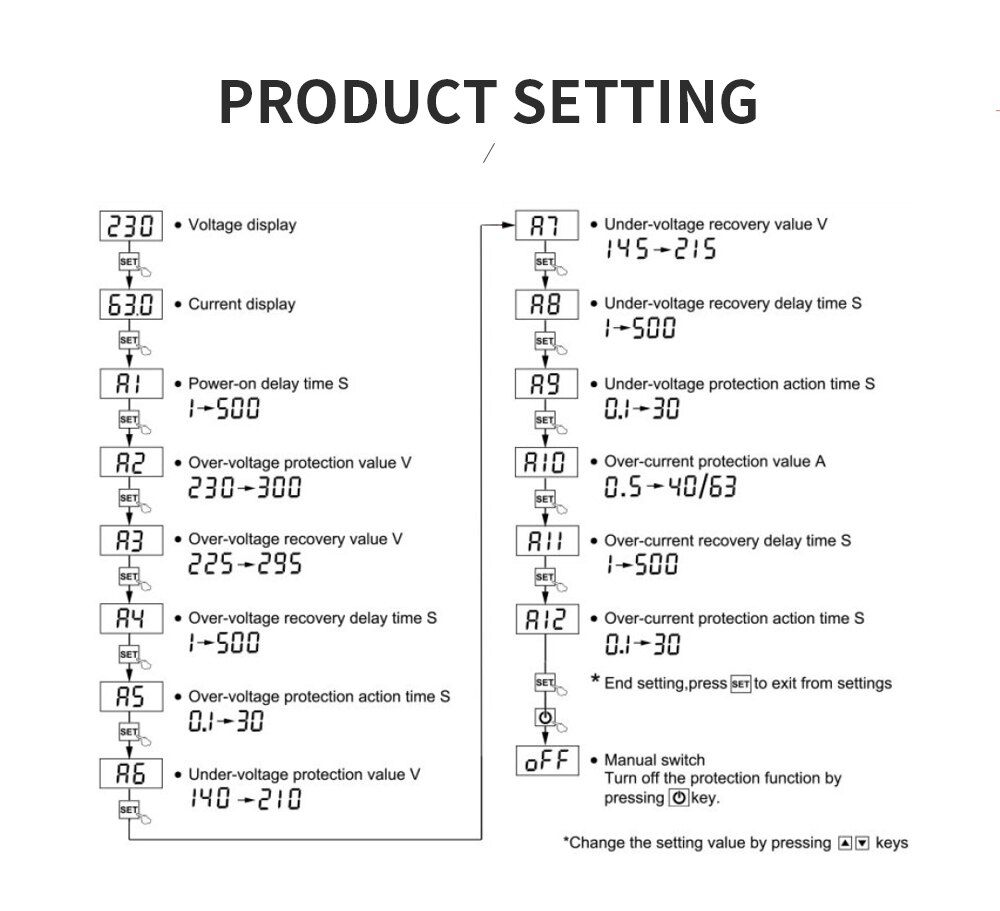

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

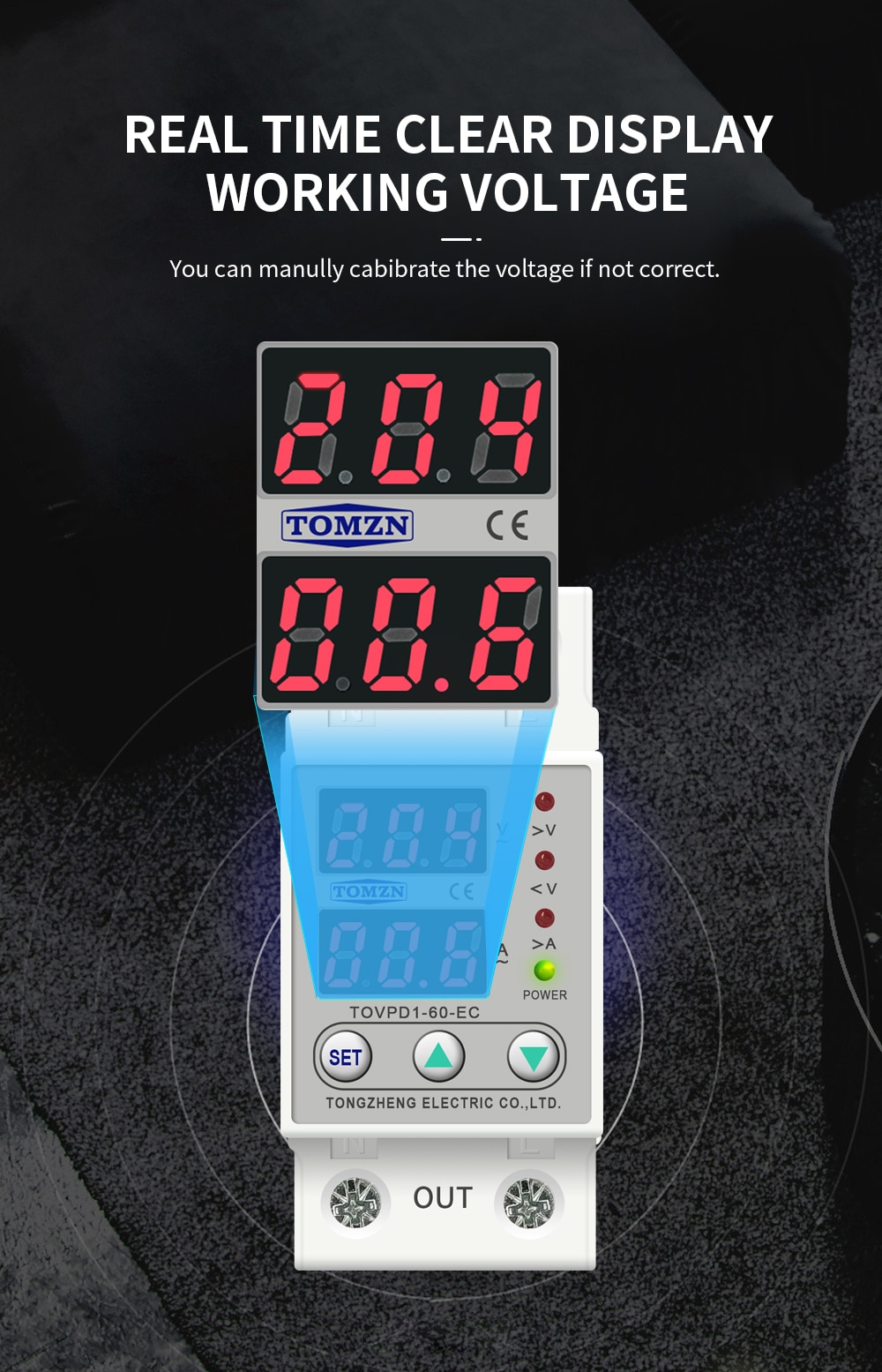

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration A13
Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)
                                    1~63A  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300V (default:270V)
   Over-voltage recovery voltage range:225V--295V(default:250V)
   Over-voltage protection action time:0.1s~30s(default value:0.5s)
    Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V (default:170V)
    Under-voltage recovery voltage range:145V--215V (default:190V)
   Under-voltage protection action time:0.1s~30s(default:0.5s)
   Under-voltage  r ecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A) 1-63A  (default:40A)
   Over-current action range:0.1~30 second (default:0.5s)
   Over-current   r ecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

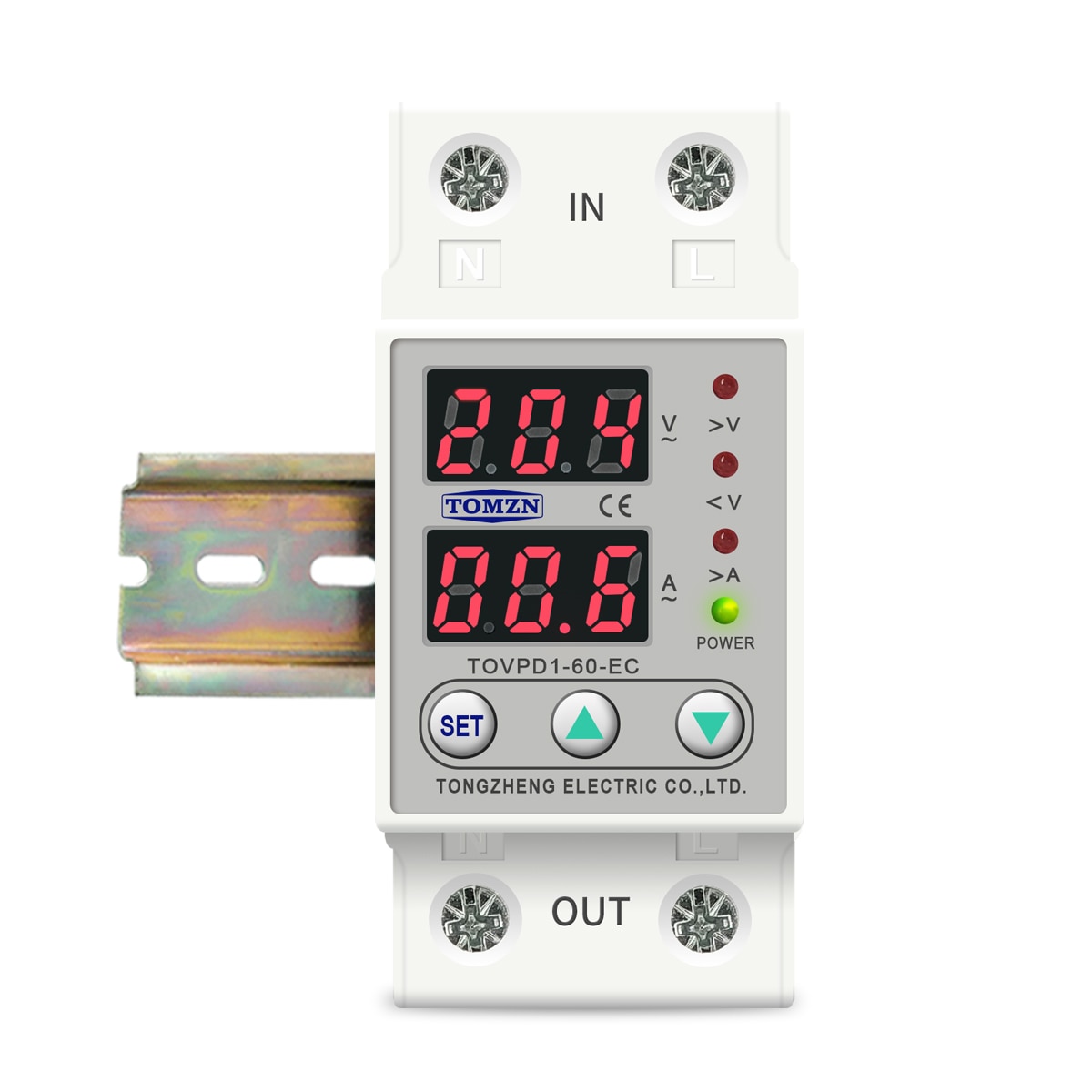

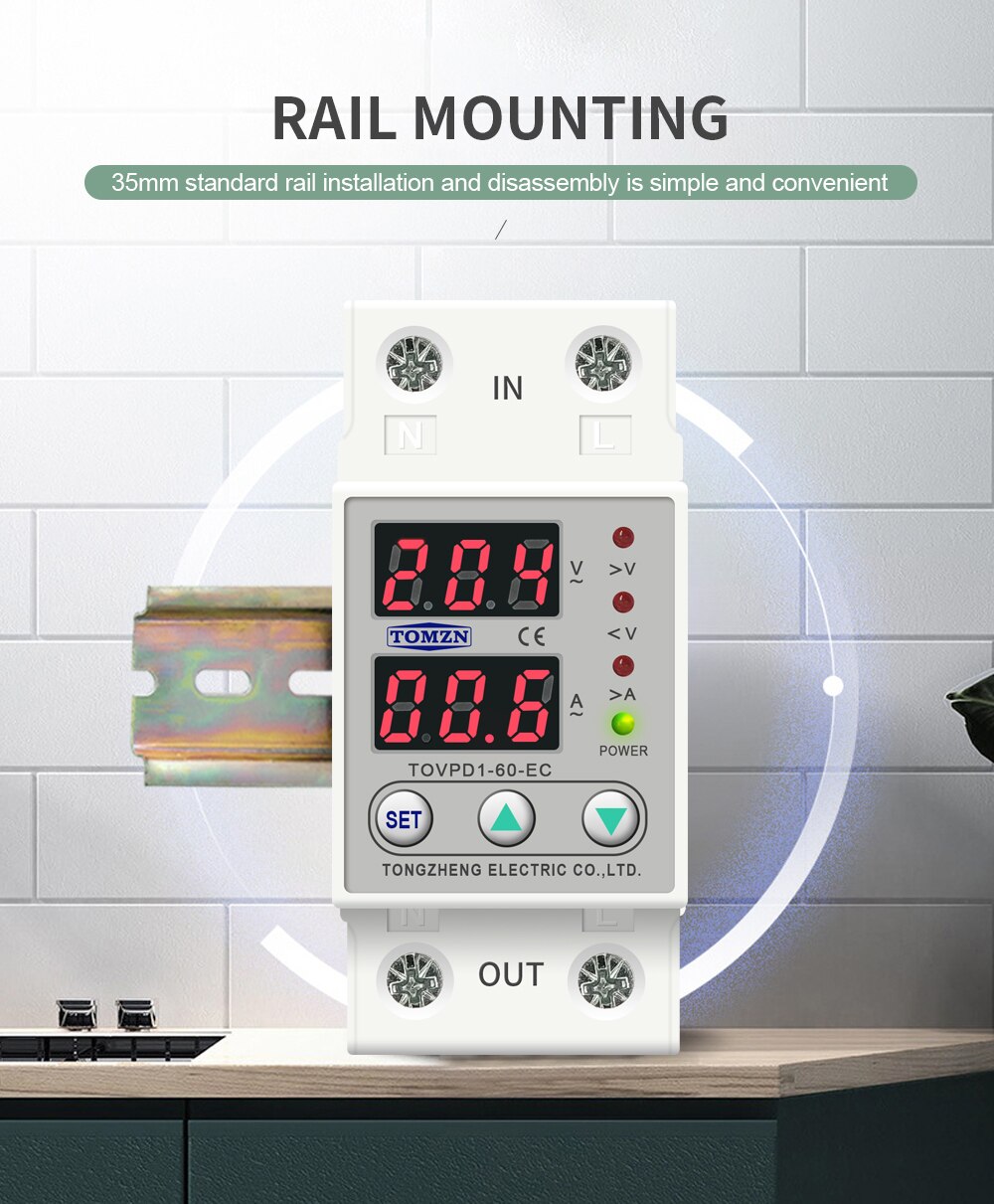

11.Installation:35mm DIN rail

A13 Voltage adjustable+-9.5%


  • is_customized: Yes
  • Model Number: TOVPD1-63
  • Type: Voltage protector
  • Brand Name: TOMZN
  • Certification: NONE
  • Origin: Mainland China
  • Under voltage protection: 210V-145V (adjustable) (default: 170V)
  • Over voltage proteciton: 230V-300V (adjustable) (default: 270)
  • Over current protection: 1A-63A (adjustable) (default: 40A)
  • Reconnect time: 3s-300s
