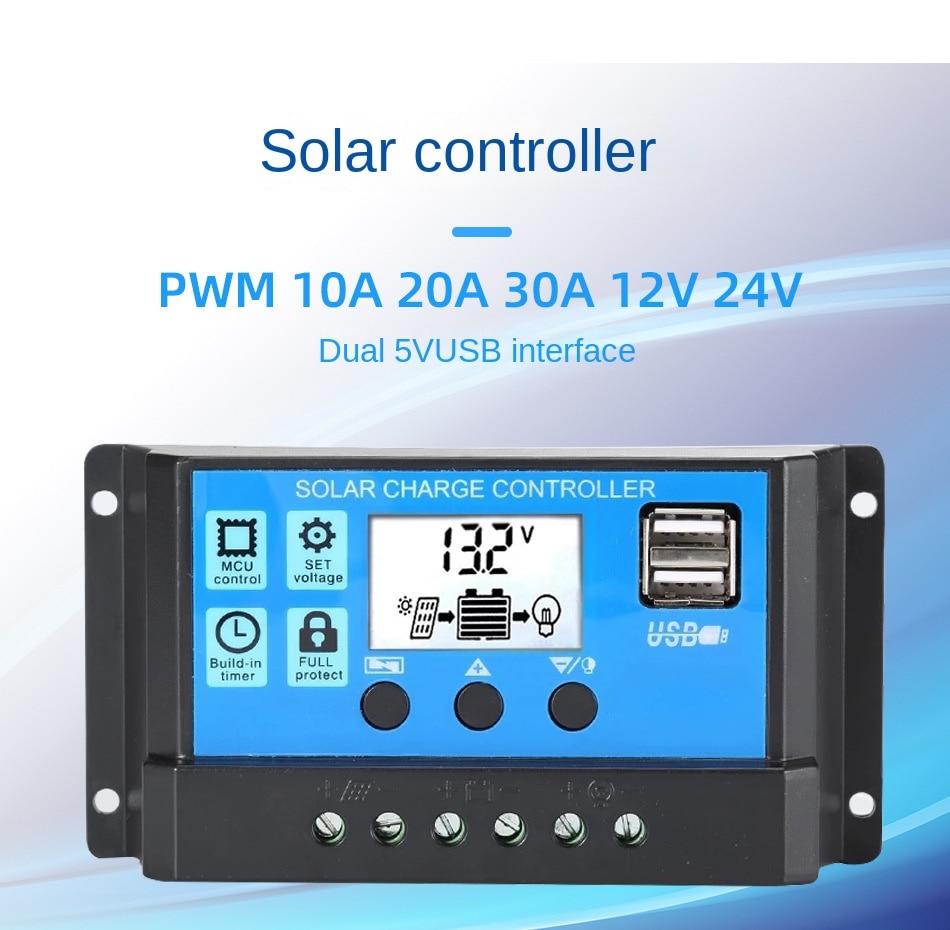

Solar Controller 12V/24V 60A 50A 40A 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output

4.7 (142 votes)
Price: US $17.61 - 56.68 / piece
Discount Price:
US $ 11.52 - 36.92 / piece
-35%
Current
Quantity



The reverse order applies when deinstalling!


An improper sequence order can damage the controller!

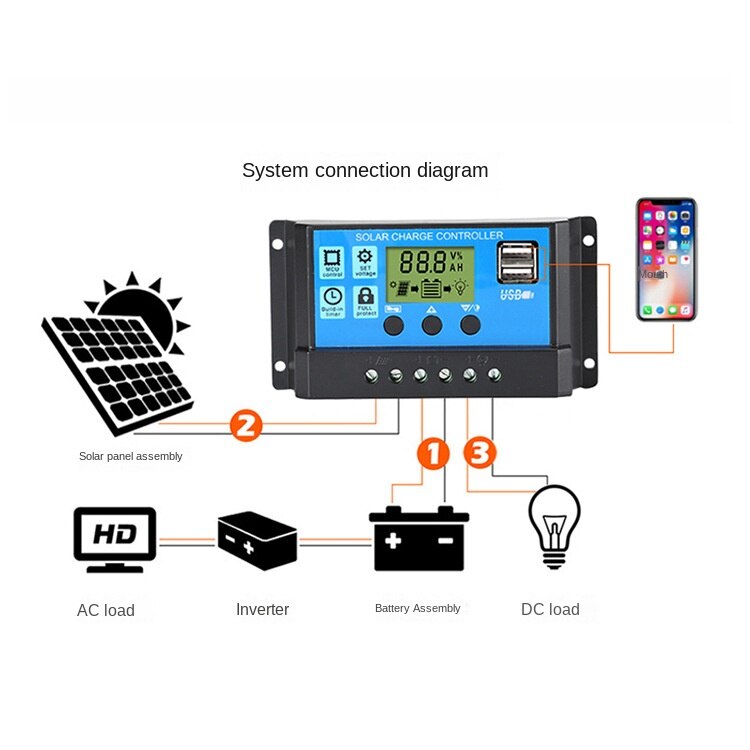

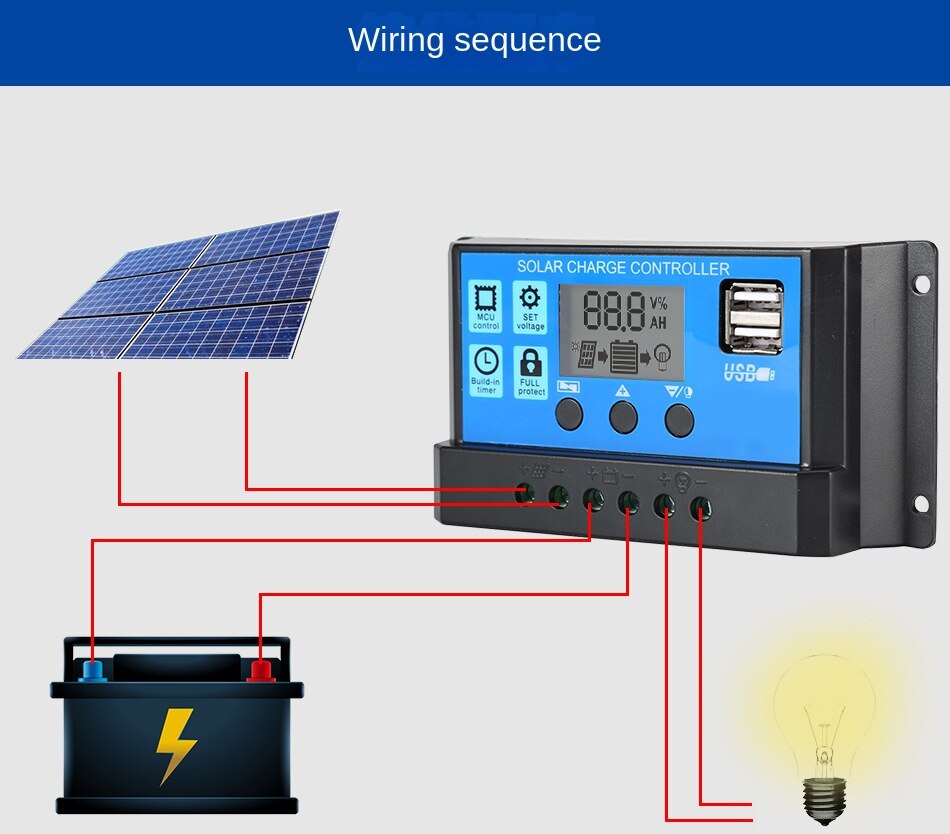

Connection

1.Connect the battery to the charge regulator - plus and minus,double check the connection is right or not

2.Connect the photovoltaic module to the regulator - plus and minus.

double check the connection is right



3. Connect the consumer to the charge regulator - plus and minus.

double  check the connection is right

Deinstalling


1.Disonnect the consumer to the charge regulator - plus and minus.

2.Disconnect the photovoltaic module to the regulator - plus and minus.


3.Disconnect the battery to the charge regulator - plus and minus


MODEL

PWM-E-10A

PWM-E-20A

PWM-E-30A

PWM-E-40A

PWM-E-50A

PWM-E-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel8V(Light lights delay)

Voltage of close light

Solar Panel8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.


this solar controller is not waterproof, please install it in indoor or out of the rain


Features

1.Build-in industrial micro controller.

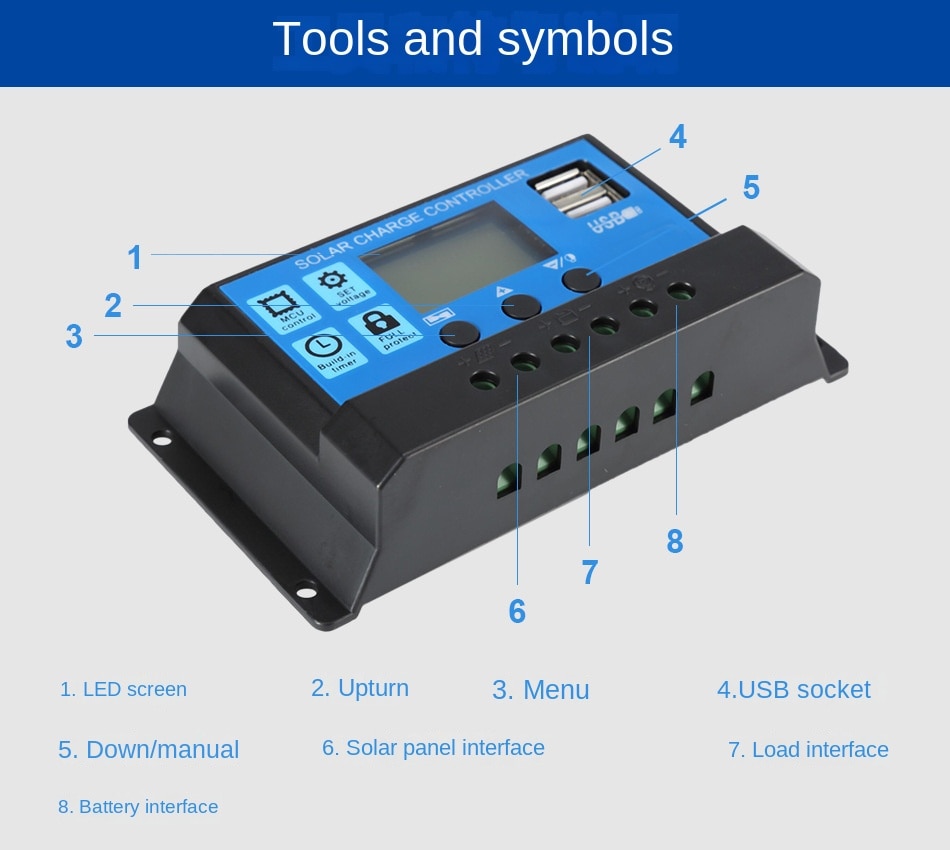

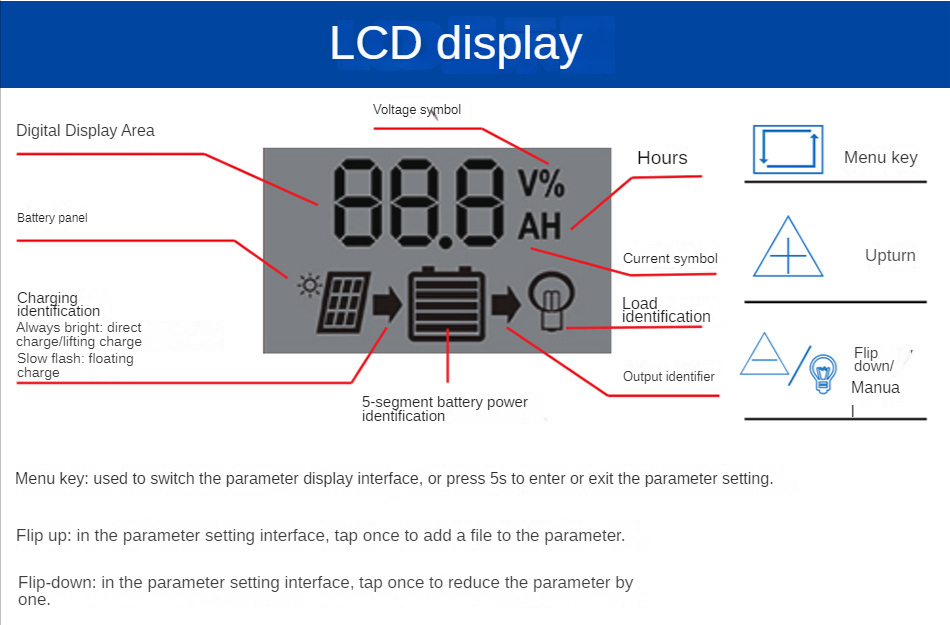

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

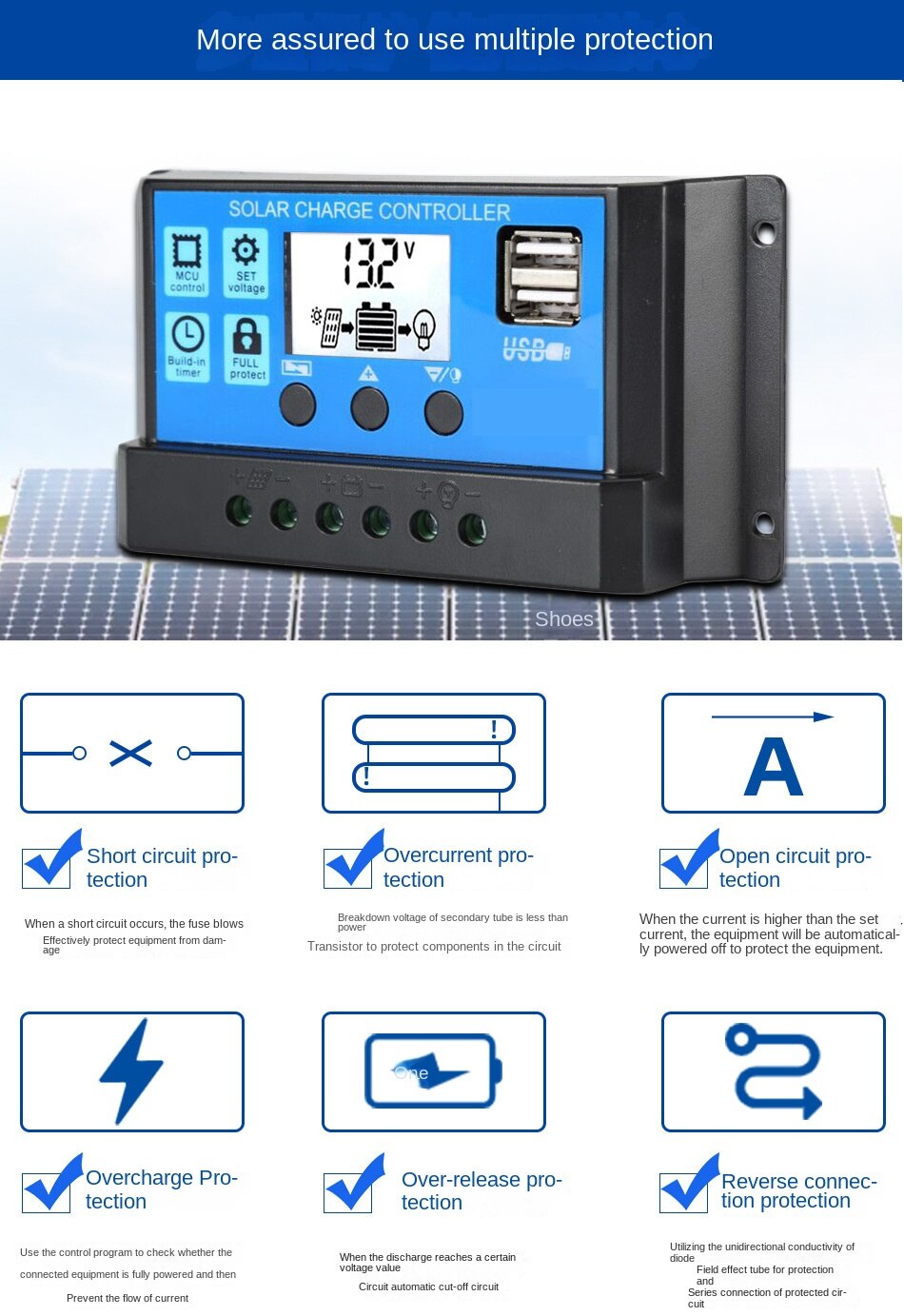

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements

PWM-E-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
PWM-E-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
PWM-E-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
PWM-E-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
PWM-E-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
PWM-E-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
























  • Is Smart Device: No
  • Maximum Current: 10A 20A 30A
  • Model Number: PWM-E
  • Application: Charger Controller
  • Origin: Mainland China
