IP55 Waterproof Wall Mount Touch Sensor Switch Buttion With LED Work Well in the Dark NC NO COM For Door Access Control system
0.0 (1 votes) | 1 orders
Price:
US $15.68
/ piece
Discount Price:
US $
14.90
/ piece
-5%
IP55 Waterproof Wall Mount Touch Sensor Switch Buttion With LED Work Well in the Dark NC NO COM For Door Access Control system
I.Introduction

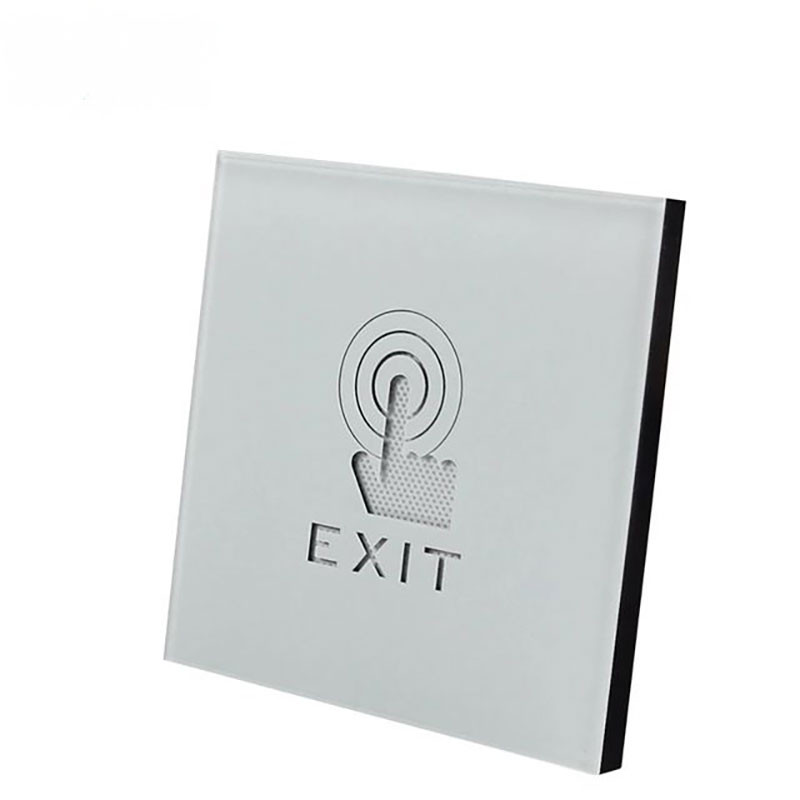

SJY-60B(LED) ia a Touch Exit Button with LED, in size of 86LX86WX15Hmm and 86LX50WX15Hmm, with Luxury , Fashion,Trend ,Technology design.
II.Features

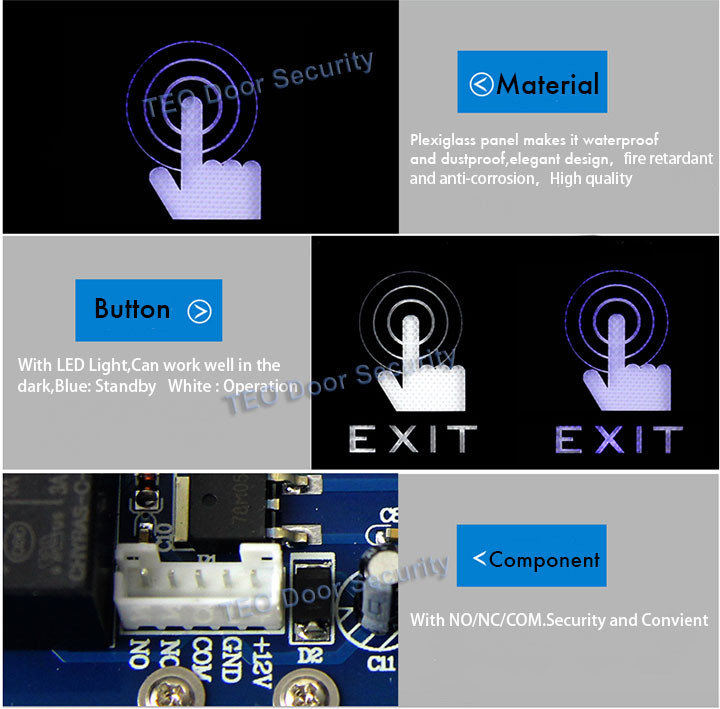

- Piezoelectric Design, No Mechanical Fault
- LED Transformation ,Can work well in the dark.
- Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
- Special Design for Top Grade Office , Best Choice for Sophisticated group
- 2 size for you choose A:86X86X15mm.B:86X50X15,Please leave message which size you need,IF you not leave message,We will send it according to our choose
III.Specification
| dimensions |
86Lx86Lx16Hmm |
| voltage |
12V |
| current |
Standby 30mA,operation:70mA |
| Output Contact |
NO/NC/COM |
| current rating |
1A 30VDC |
| Waterproof level |
IP55 |
| LED Status |
Standby blue,Operation: white |
| color |
white |
| weight |
0.1kg |

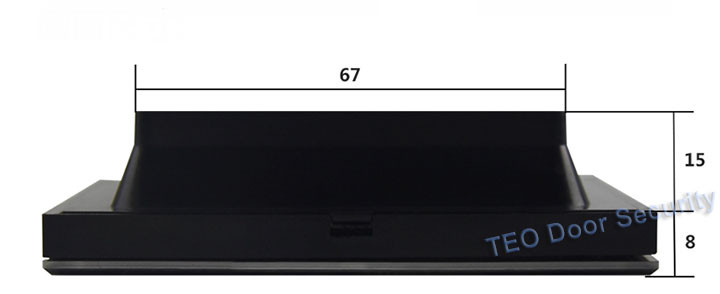

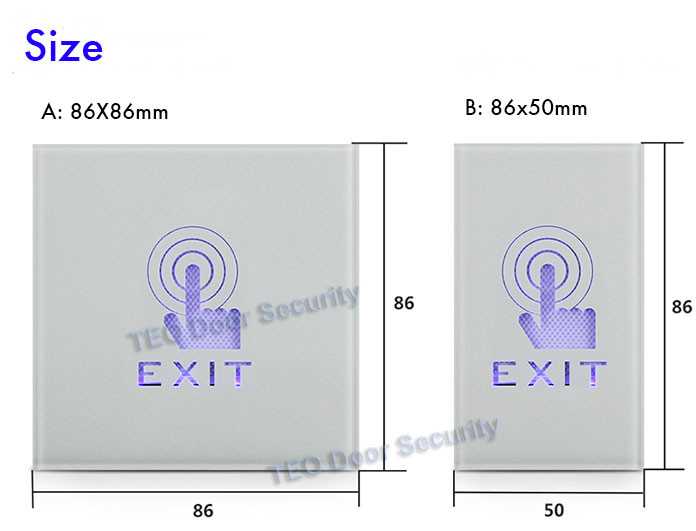

III.Size and Pictures

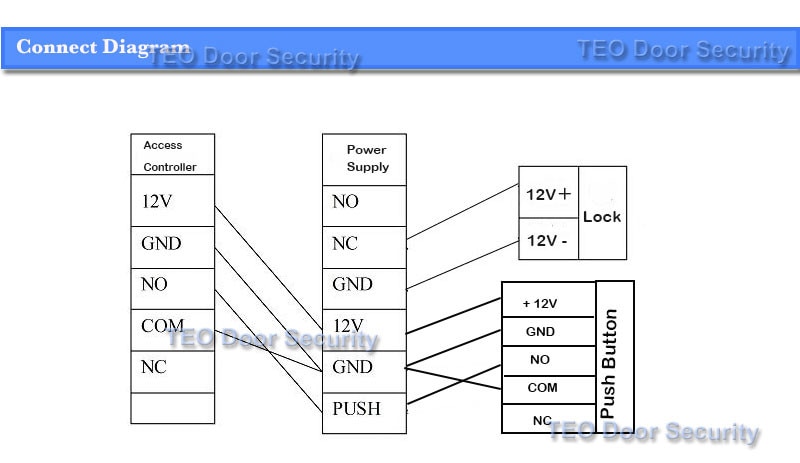

IV.Connect diagram

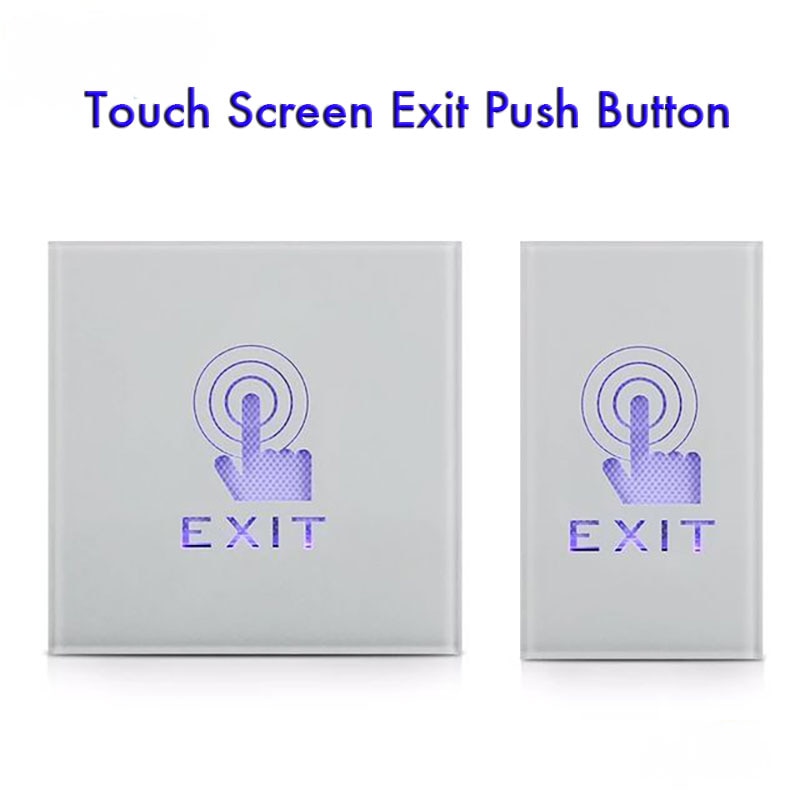

1Pcs Touch Screen Exit Push Button A:86X86X15mm.B:86X50X15,IF you not leave message,we will send it accoring to our choose
1Pcs wiring
1. Warranty Service will be honored if the damage is not caused by human, We Company Provides 1 years warranty for relative products. (excluding items damaged and/or misused after receipt).Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!
3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
1.You have 7days to contact us and 10days to return it from the date it was received. IF this item in Your Possession more than 7days,It is considered used and WE WILL NO ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
2.All returned items MUST BE in the original packing and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your Hogaki ID.
3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and Packaging with allComponents and accessories included, After BOTH Buyer and seller cancel the transaction from Hogaki. Or, You may choose to have a replacement.
1. Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed
2. Delivery,We will ship every order with their tracking numberm and you can view the shipment status on the corresponding website.
- DHL/UPS/Aramex/Fexed : 3-7 working days (We have the right to choose one of the shipping way to you)
- e-EMS: 5-15 working days
- China post:10-40 working days
3.We are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service.
4. Please make sure that you have no difficulty to clearing customs and make sure you are available in the address you filled on Hogaki.
5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Model Number: SJY-60B
- Size: 86LX86WX15Hmm
- Item Type: Exit Button
- Brand Name: Realhelp
- voltage: 12V
- current: Standby 30mA,operation:70mA
- Output Contact: NO/NC/COM
- current rating: 1A 30VDC
- Waterproof level: IP55
- LED Status: Standby blue,Operation: white
- color: white
- weight: 0.1kg
