Face Recognition Camera Door Lock Time Attendance Clock Entrance Access Control Visual Image Wiegand Fever Temperature Detector

0.0 ( votes)
Price: US $4374.78 / piece
Discount Price:
US $ 1268.94 / piece
-71%

Sorry! This item is out of stock

---------------------------------------------------------------------------------------------------------------------------------------

Maybe you will also like another one below:



-------------------------------------------------------------------------------------------------------------------------------------





Camera Features:

  • Device VOICE in multi languages:

Voice language of thermalscanner: Russian, French, Spanish, Italiano, Portuguese, Turkish, Korean, Japanese, Israeli, Thai, Vietnamese, Indian, 粤语, Arabic, Australian, Canadian,  you can choose one of them.

Management  PC software & Menu language: English

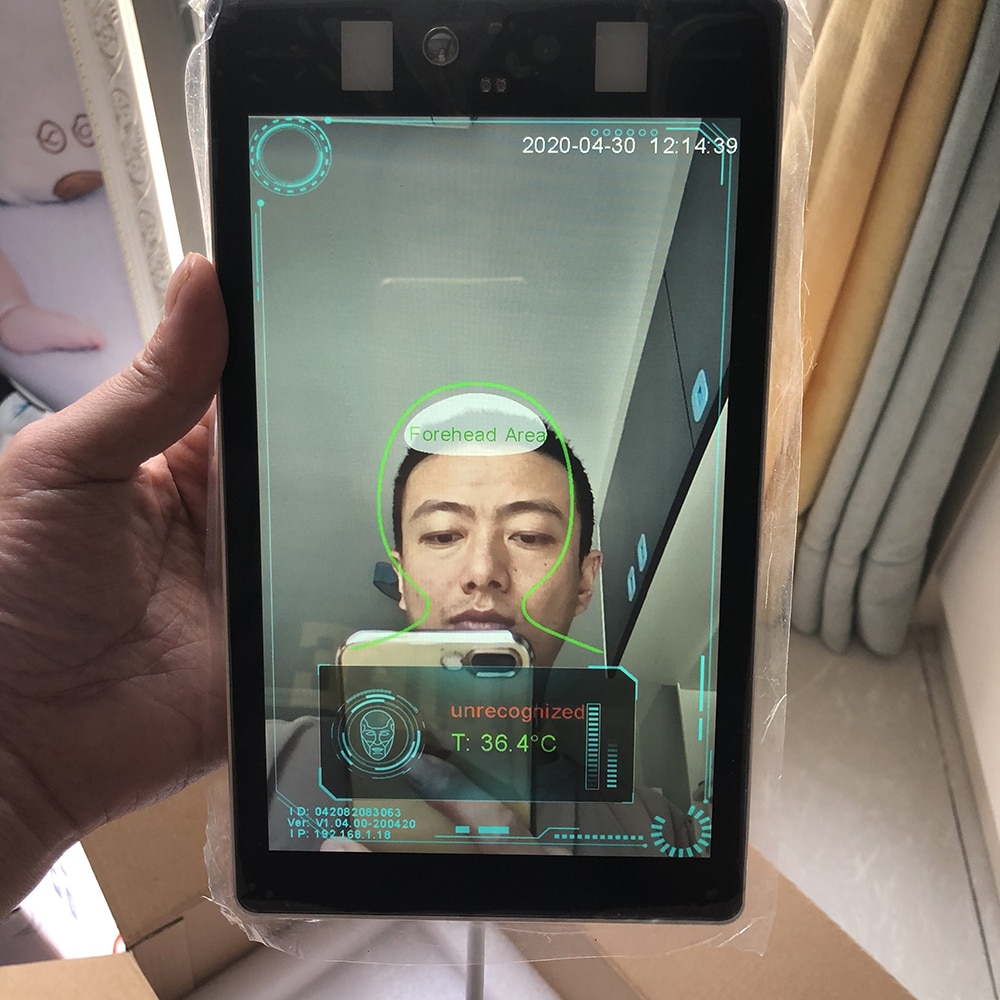

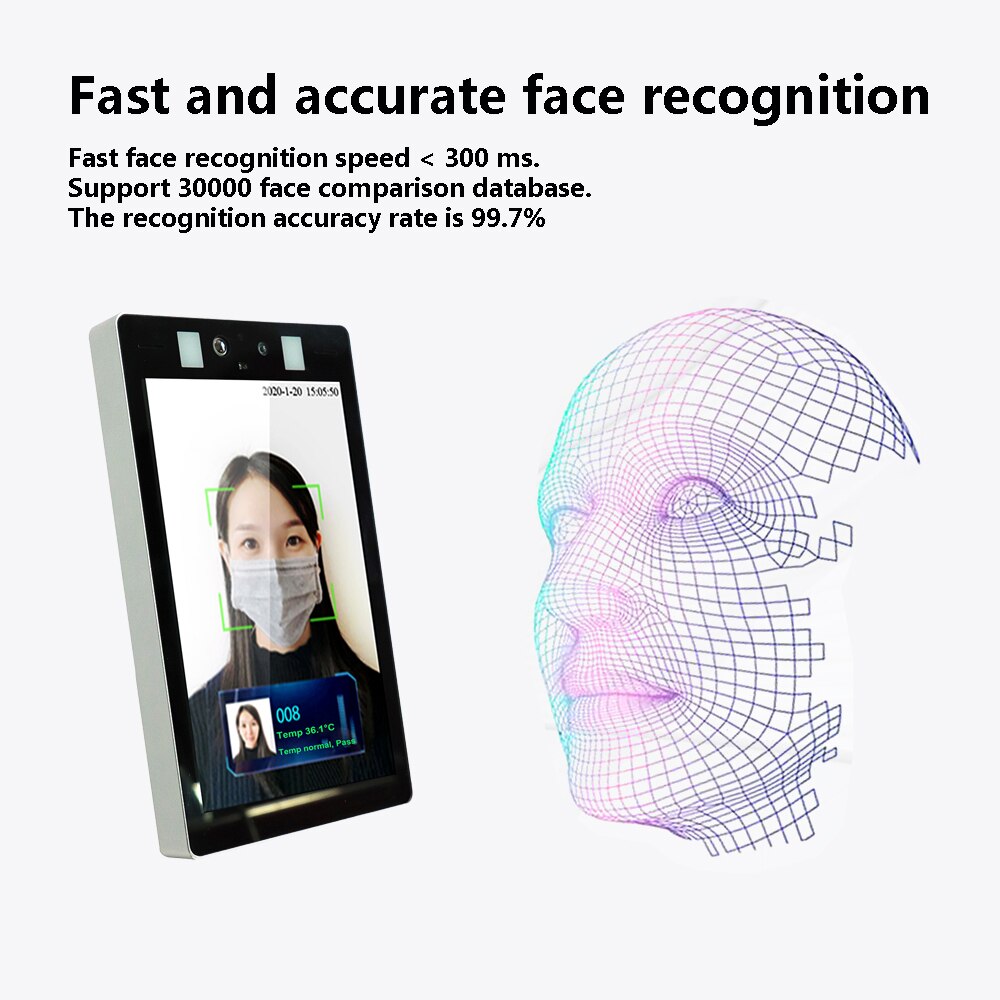

  • Fast Face Recognition & 30000 Face Database:

High precision infrared temperature collector, non - contact automatic temperature detection, accurate and efficient.

Monocular liveness detection, face recognition distance of 0.3-1 meters (0.5m is the best), photos / video false-proof.  Fast face recognition speed < 300 ms. Built-in 8GB eMMC local storage, support 30000 face comparison database. The recognition accuracy rate is 99.7%

Faces are collected directly on the camera, without a face collector, you can also import mobile phone photos or computer photos, support batch upload

  • People Forehead Temperature Measurement

Thermal temperature sensor: Heimann sensor HPTA 32x32d thermal imaging sensor

Temperature measurement range:30-45(℃),Precision can reach ± 0.3℃

Real-time output of authentication results (pass or not pass) and voice broadcast (voice in multi languages)



  • Mask Detect:

Automatic identification of people not wearing masks and real-time warning.

This function can be disabled in settings if you do not want to use.



  • High Fever Alarm & Action

Abnormal temperature alarm: voice alarm ; trigger alarm output

When the camera detects a fevered person with high temperature data (you can set critical value), the camera will actively grab a picture and indicate abnormal temperature on screen and give alarm voice broadcast.

High fever alarm to prevent entry



  • Access Control PC Management Software

Defatult ip address of thermal camera is 192.168.1.18 (you can modify it by ip tool)

Real-time live view 2MP video & image from PC management software

Face database mangement: you can add/delete/modify/import/export faces from software. Face information include: Face / ID / Name / Gender / Age / White list or black list / Phone number / Card number/ Expiry date(Accurate to the point of time, and automatically expires beyond the point of time)

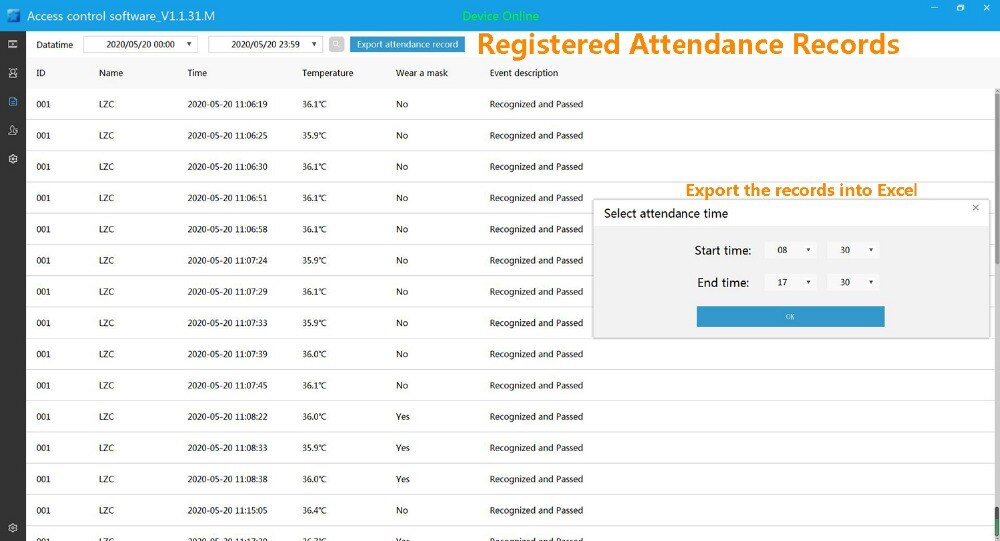

Support staff time attendance record: All staff information such as ID/name/time/temperature/wear mask or not/event description can be recorded into system, and all the identify records can be backup into PC in Excel files.

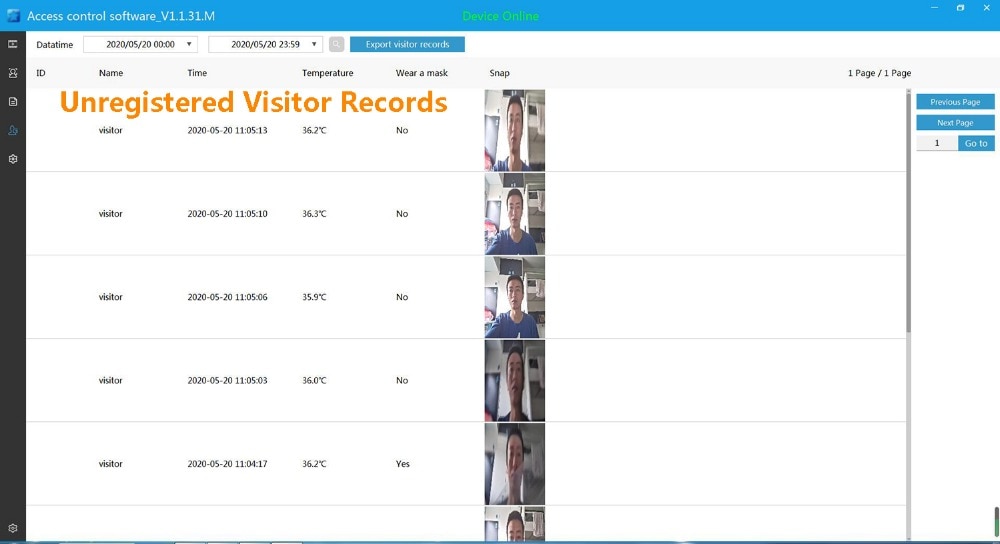

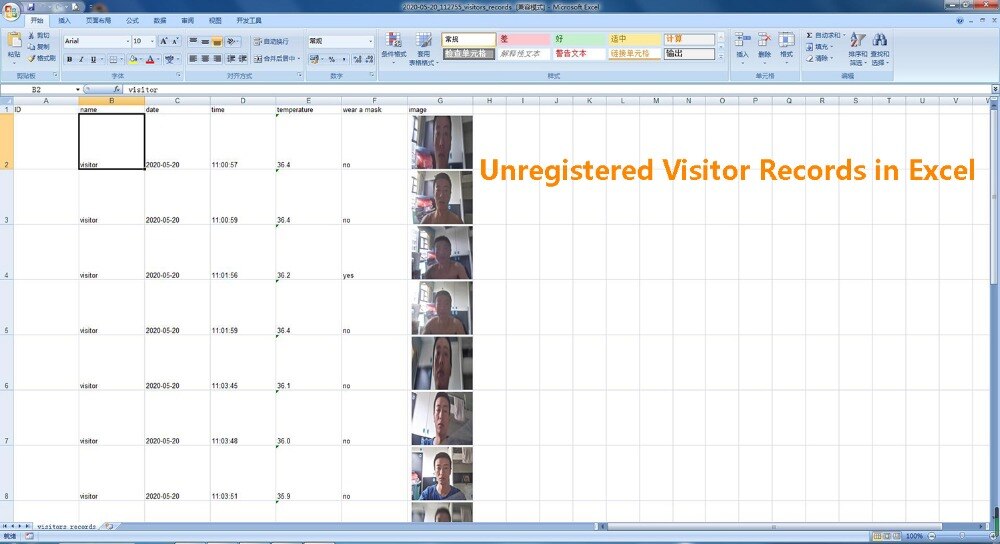

Support stranger visitor record export into excel, include ID, name, time, temperature, wear a mak or not, snap

Support access control software parameter configuration (default settings suggested)



  • Day & Night

All-weather 24/7 identification, with large light flux lens and intelligent white LED fill light, can also be identified in direct sunlight and dark environment.



  • HTTP protocol communication

Support relay output & wiegand output

We can provide HTTP protocol for your second-development, you can integrate this device into your own system, such as door access control , entrance gate or other devices.

You can download HTTP protocol from this link below:

http://www.mediafire.com/file/p7zc9354gddcfv5/HTTP_Protocol_V1.12.1_OwlCat_-8T.docx/file

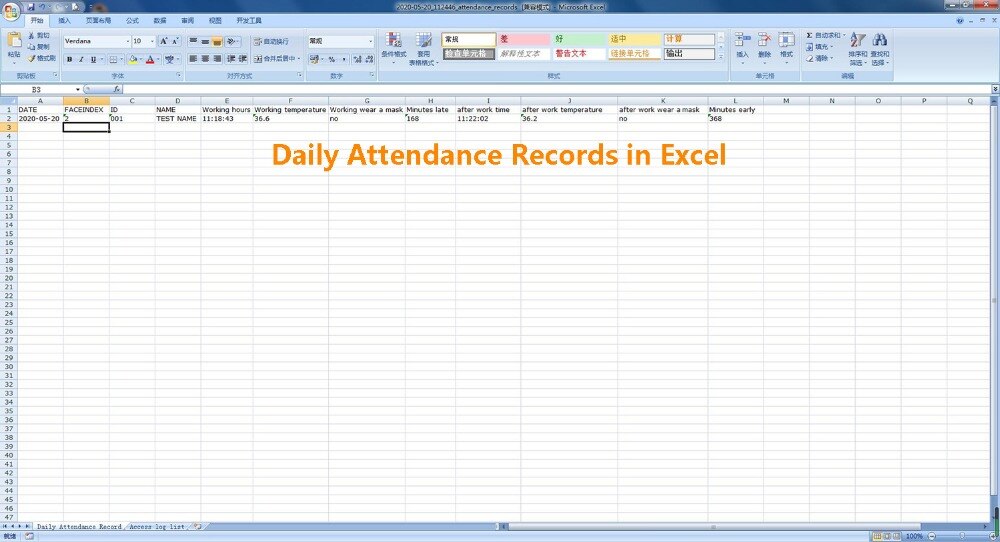

  • Time Attendance Record

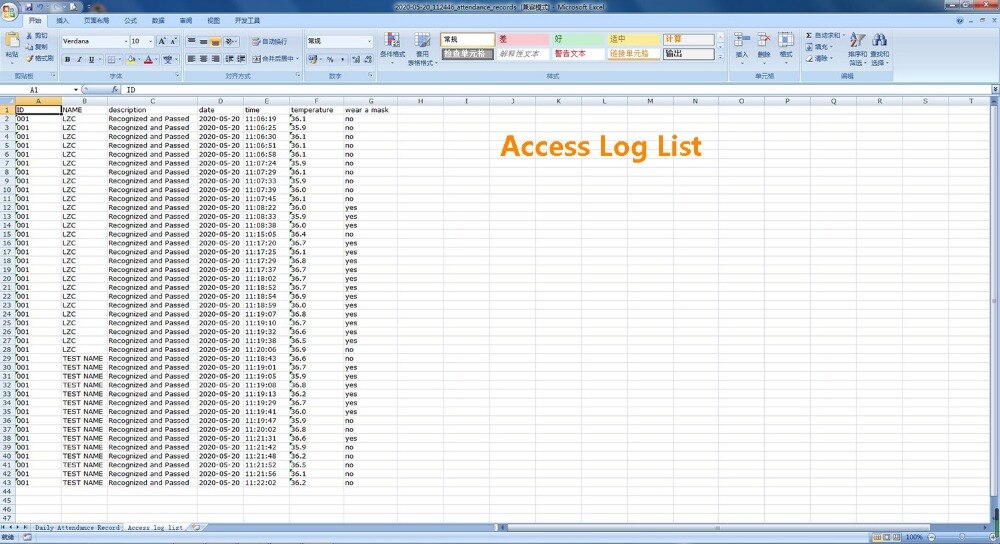

Camera can record all the face recognition records & temperature information and export in Excel file, easy to manage your company staff attendance.



  • Full HD Camera 1080P resolution

2 million pixels, wide dynamic low illumination CMOS, image resolution 1920 (H) * 1080 (V), frame rate up to 30 frames per second

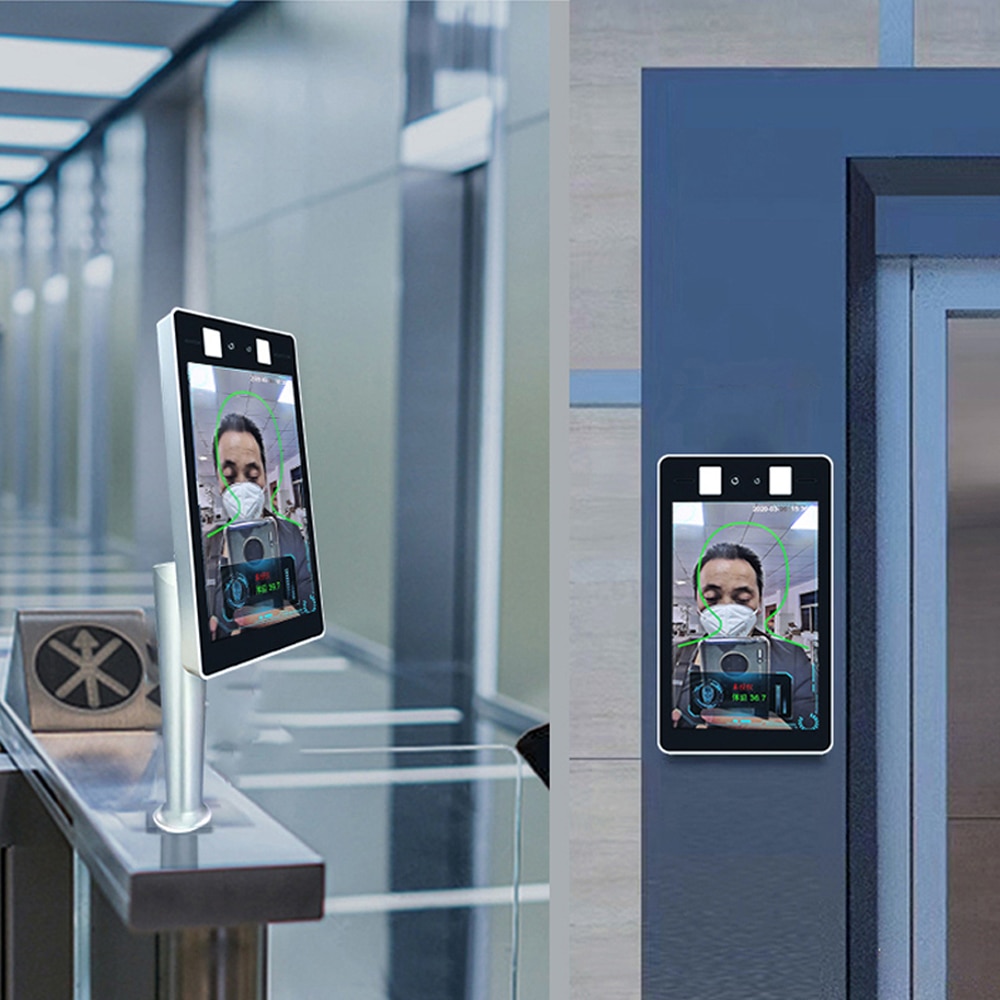

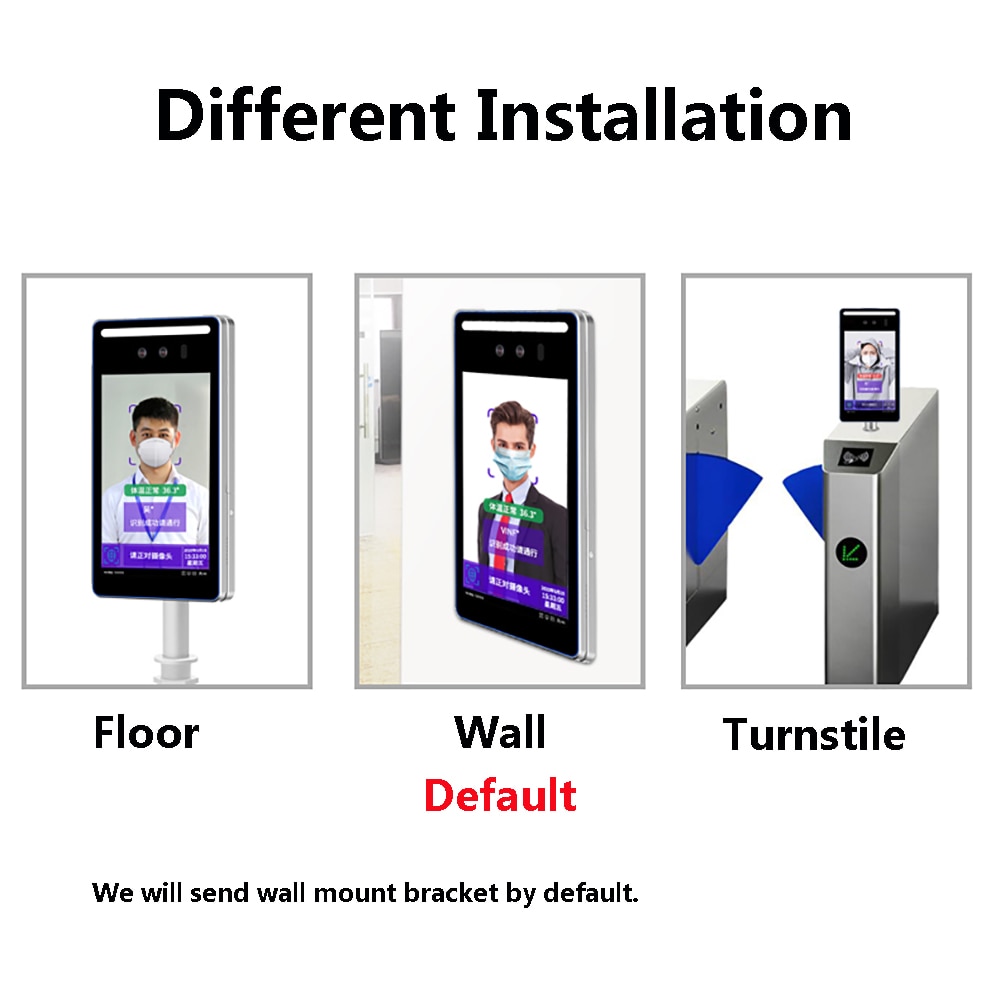

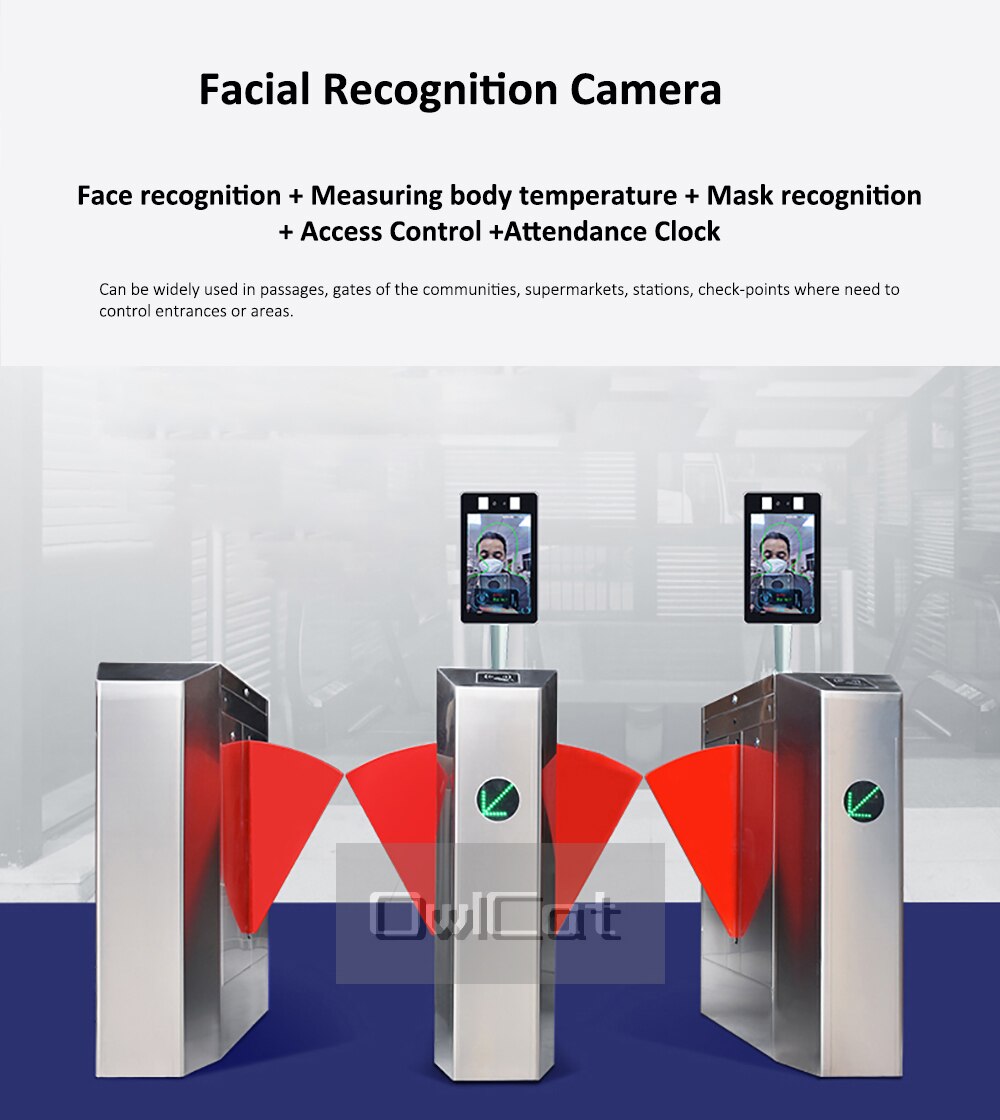

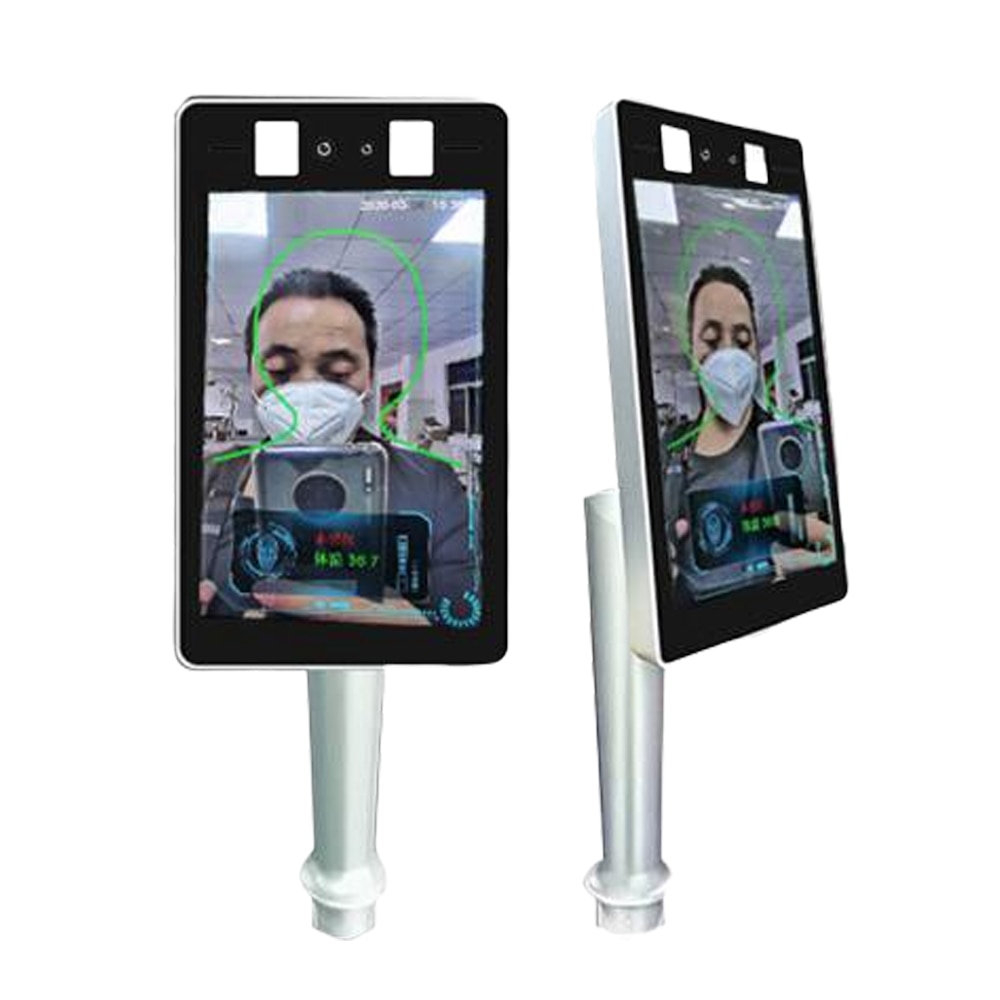

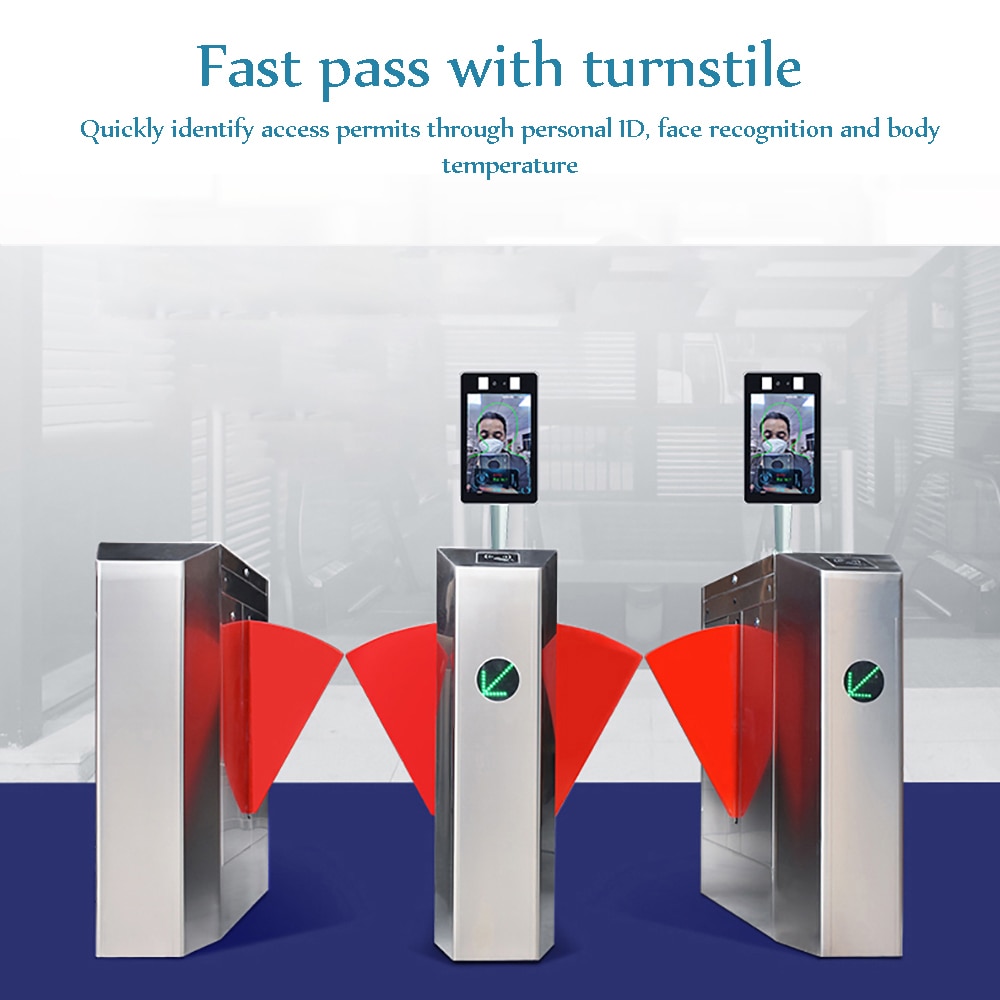

  • Wall Mount Support or  turnstile support option

We will send wall mount bracket by default. If you do not want wall mount bracket, you can choose turnstile bracket and leave me a message in your order. You can only take one of the two.

  • Stainless Steel material

Adopt 304 brushed stainless steel material on the body, high-end & beautiful, IP66 waterproof

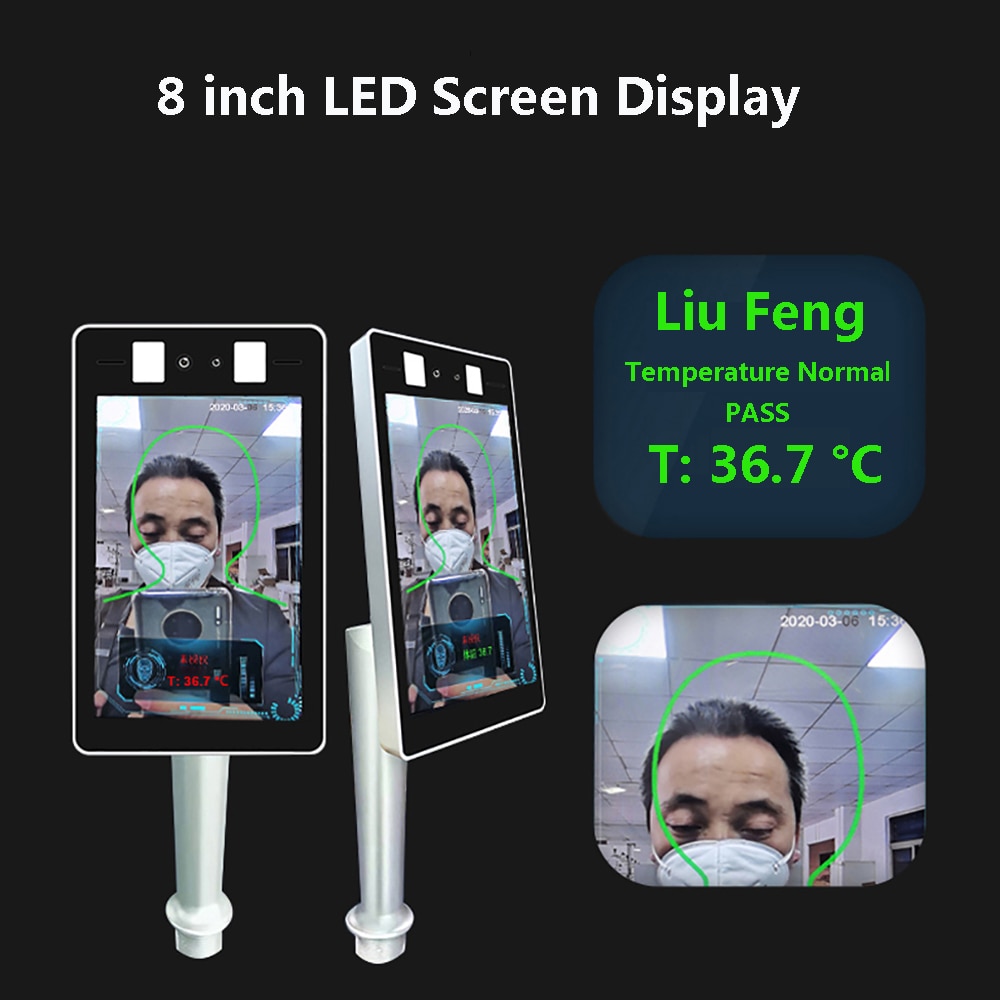

  • 8 inch color screen

Built with 8 inch smart color led screen display, easy to carry and install

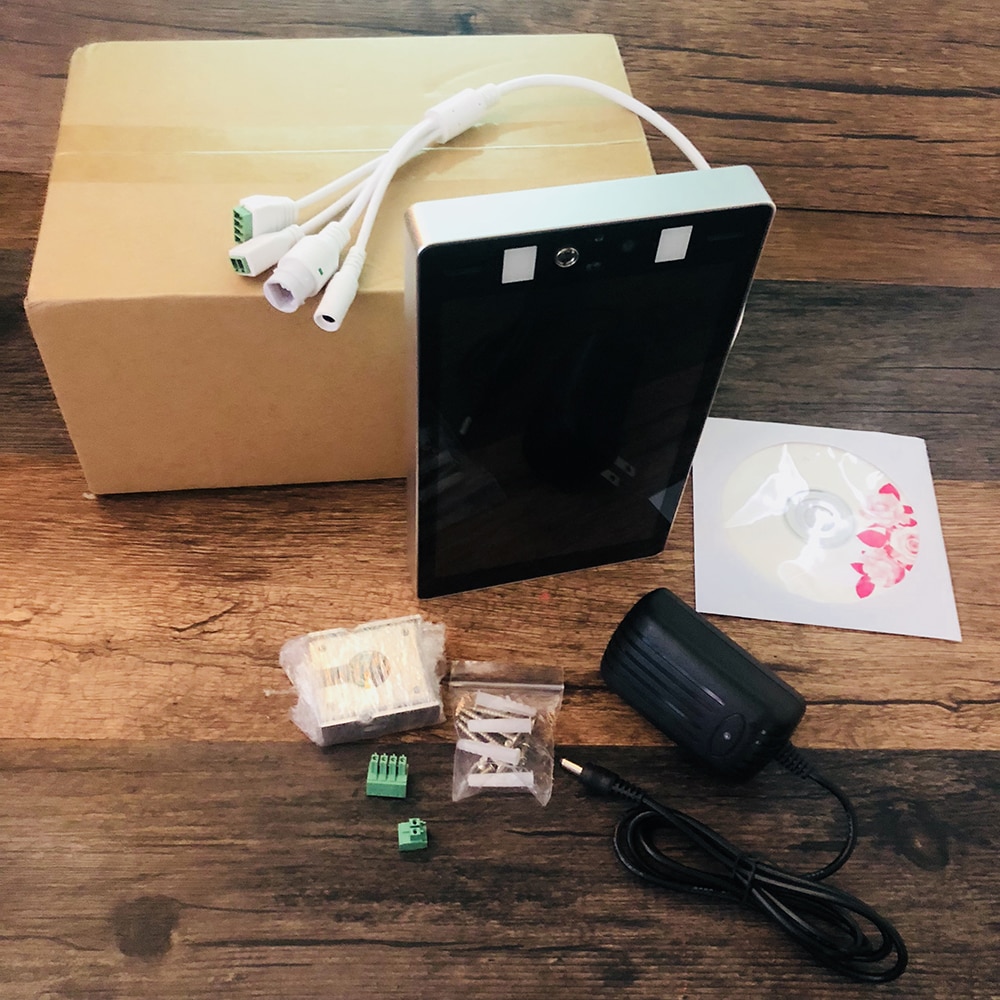

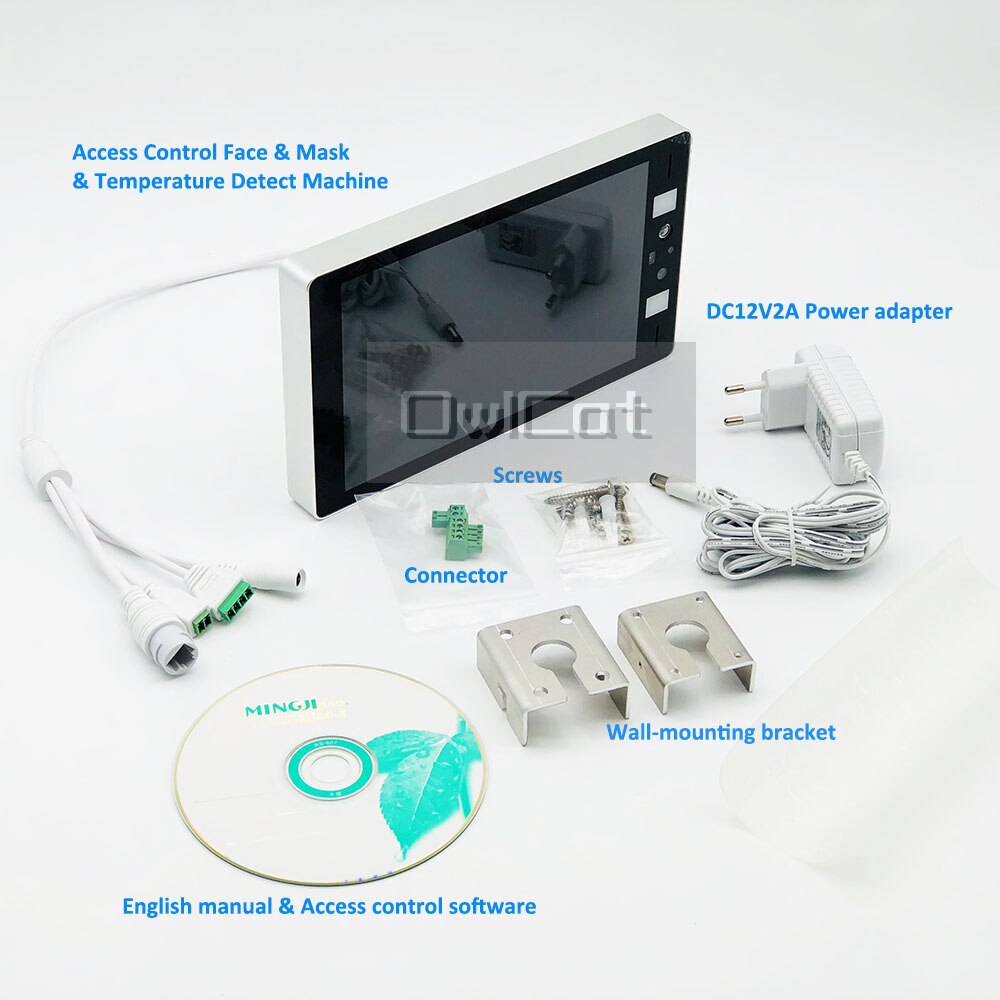

Camera Packing List:

1 x Temperature Detector Camera

1 x Wall mount bracket with screws by default ( turnstile support is an option, you can choose one of the two and leave message to us)

1 x DC12V2A power adapter ( EU /US /AU/ UK plug is available)

1 x Disk of sofware and manual



Thermo Camera Overall:

8 inch 2MP temperature measurement face recognition intelligent panel machine series products, using LED display screen, embedded deep learning face recognition algorithm, integrated high-precision thermal imaging temperature measurement chip, ISP image processing and other technologies in one AI intelligent access control products. This product has powerful functions such as face detection, mask detection, face recognition comparison, body temperature detection, and living body judgment. It can accurately capture personnel information (such as facial information, identity information, whether or not to wear a mask, etc.) through the field of view of the camera, as well as body surface temperature.It can effectively help users manage the access authority and temperature status of the detector, and help prevent epidemics.The user manages the access authority offline by loading the face library to all devices. Can also be used with attendance software to achieve employee attendance management. It can be widely used in community access control, barrier gates, school square entrances, and office buildings.  it is an embedded system, it does not support ios android version. We can provide HTTP protocol to integrate it into your own software if your system support.

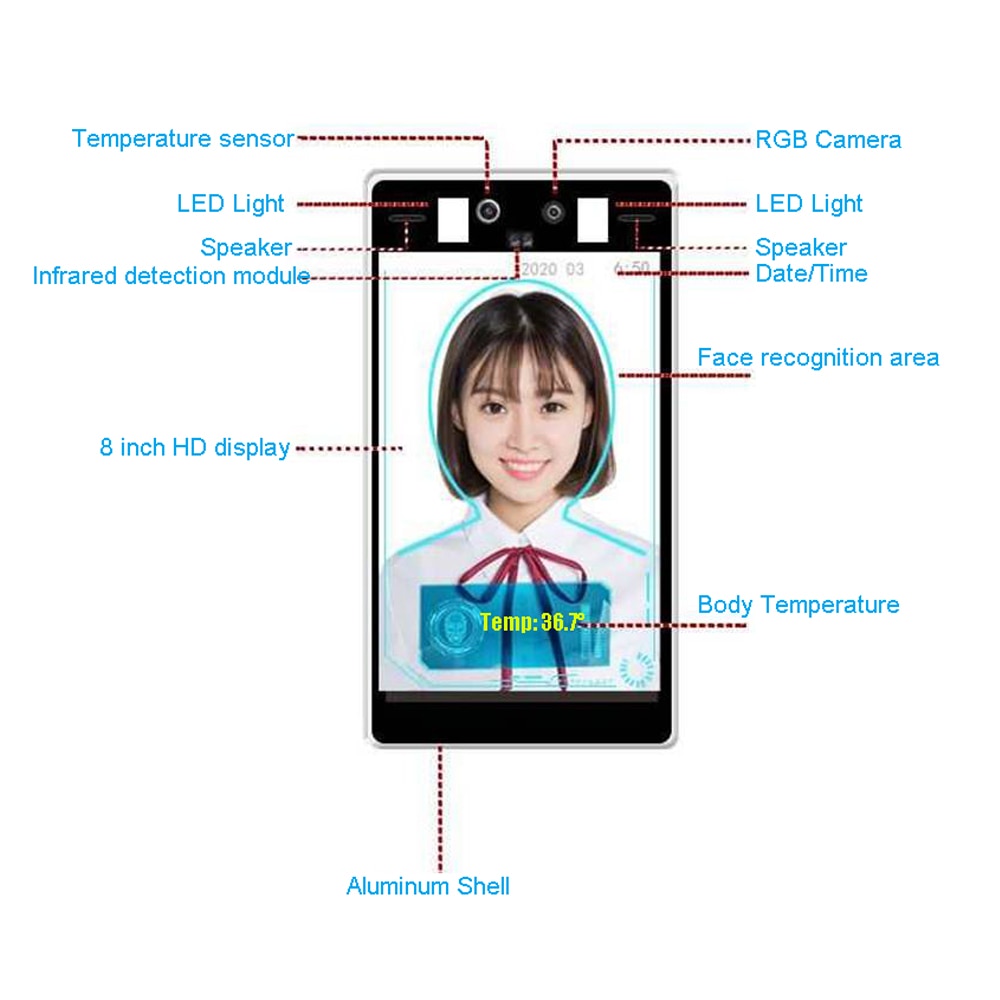

Device Functions:

7d949c9475be248eFast and accurate face recognition453a0e689249fc2bdetect distancefast pass with gateIMG_9225IMG_9226首图3PC softwareproduct explain支架

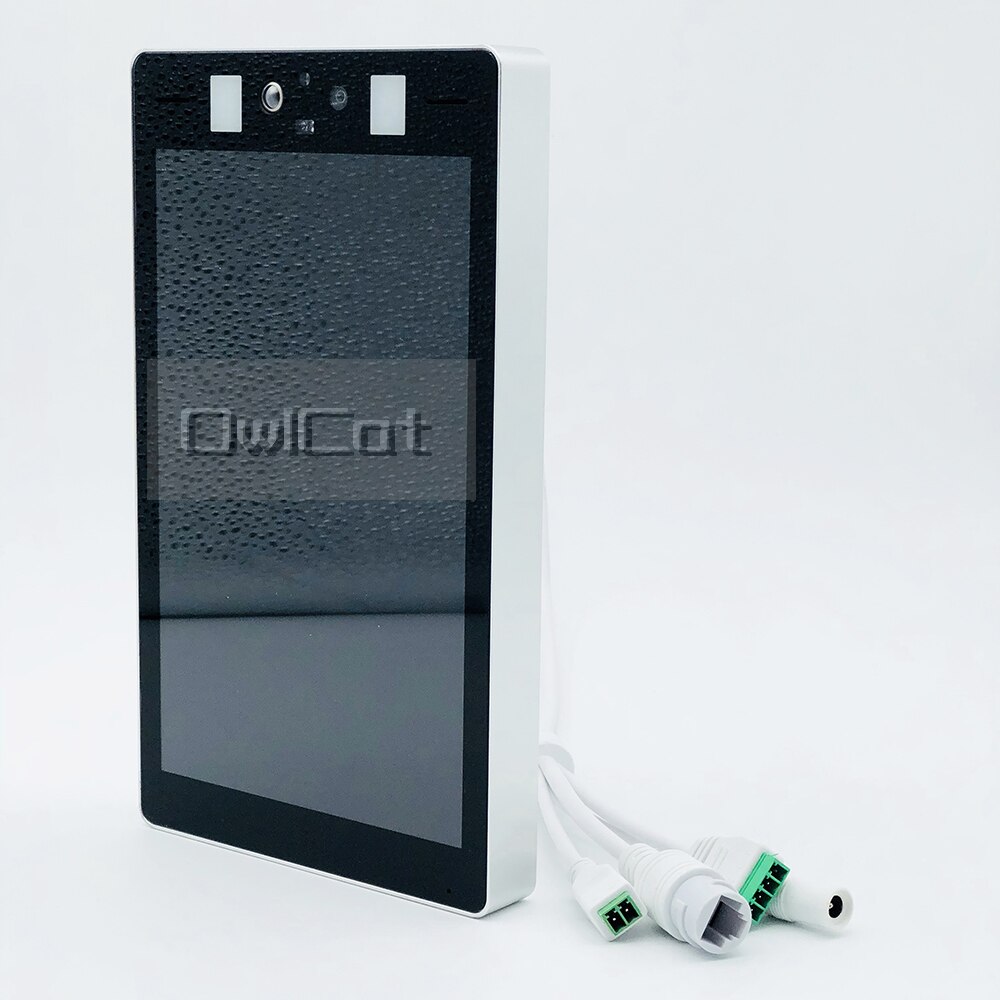

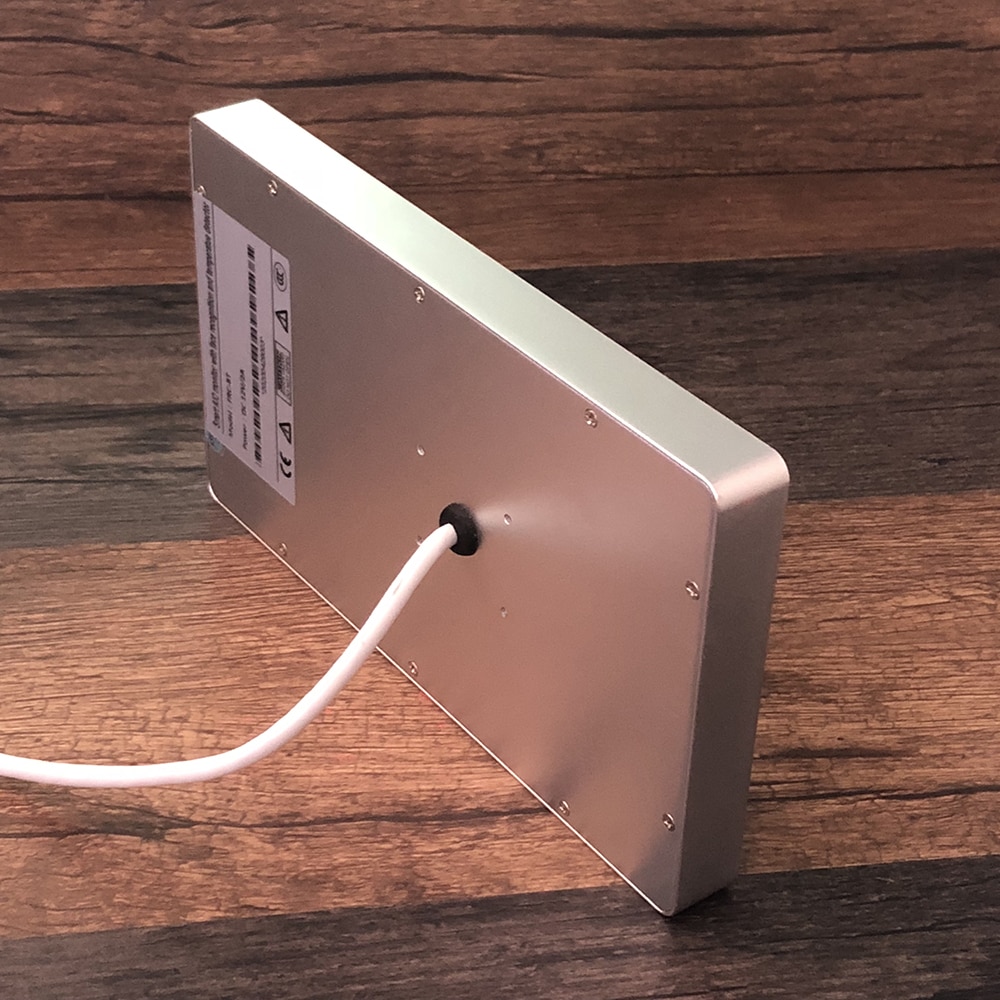

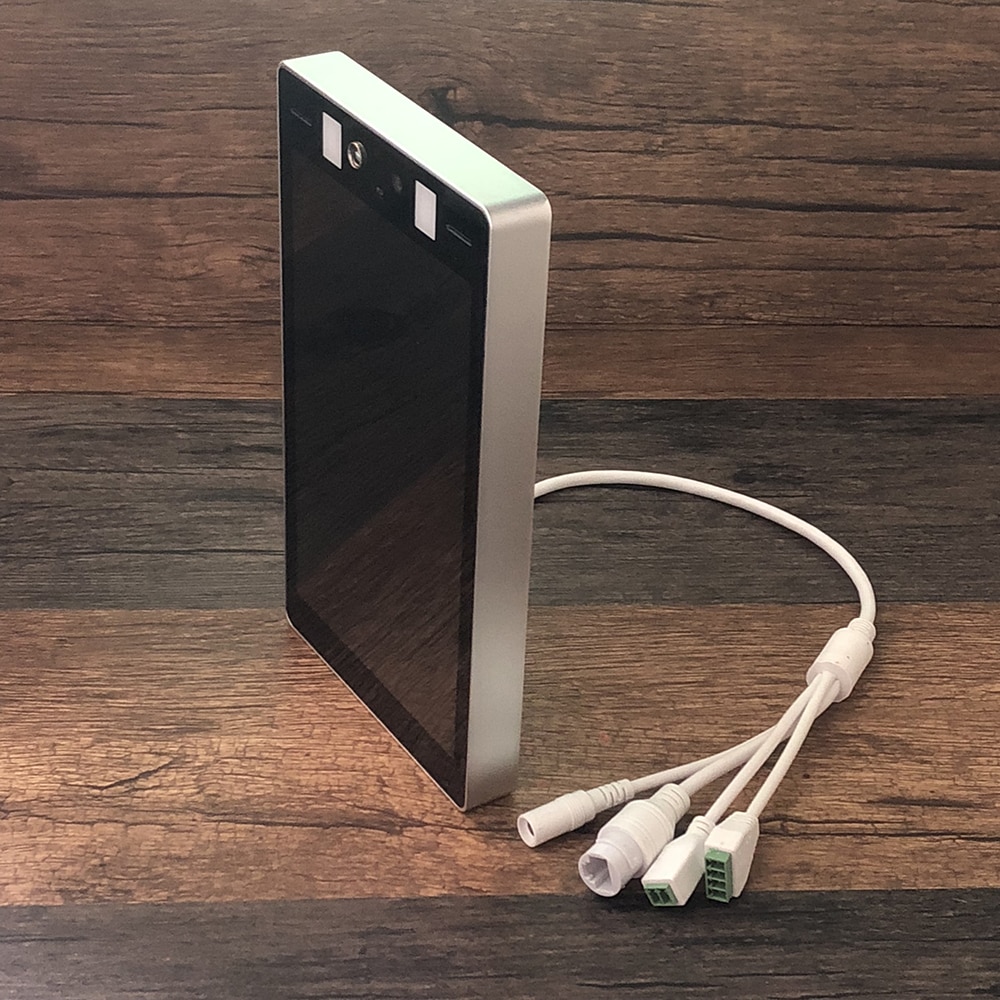

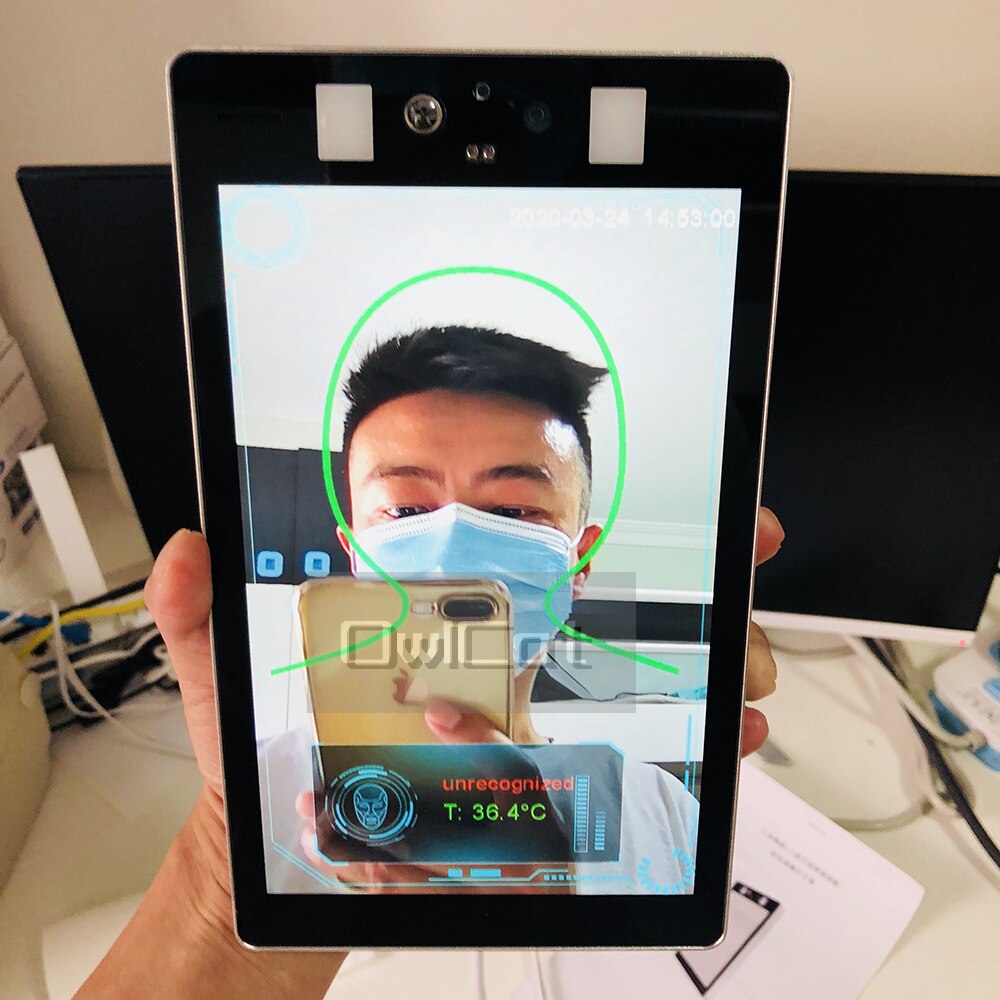

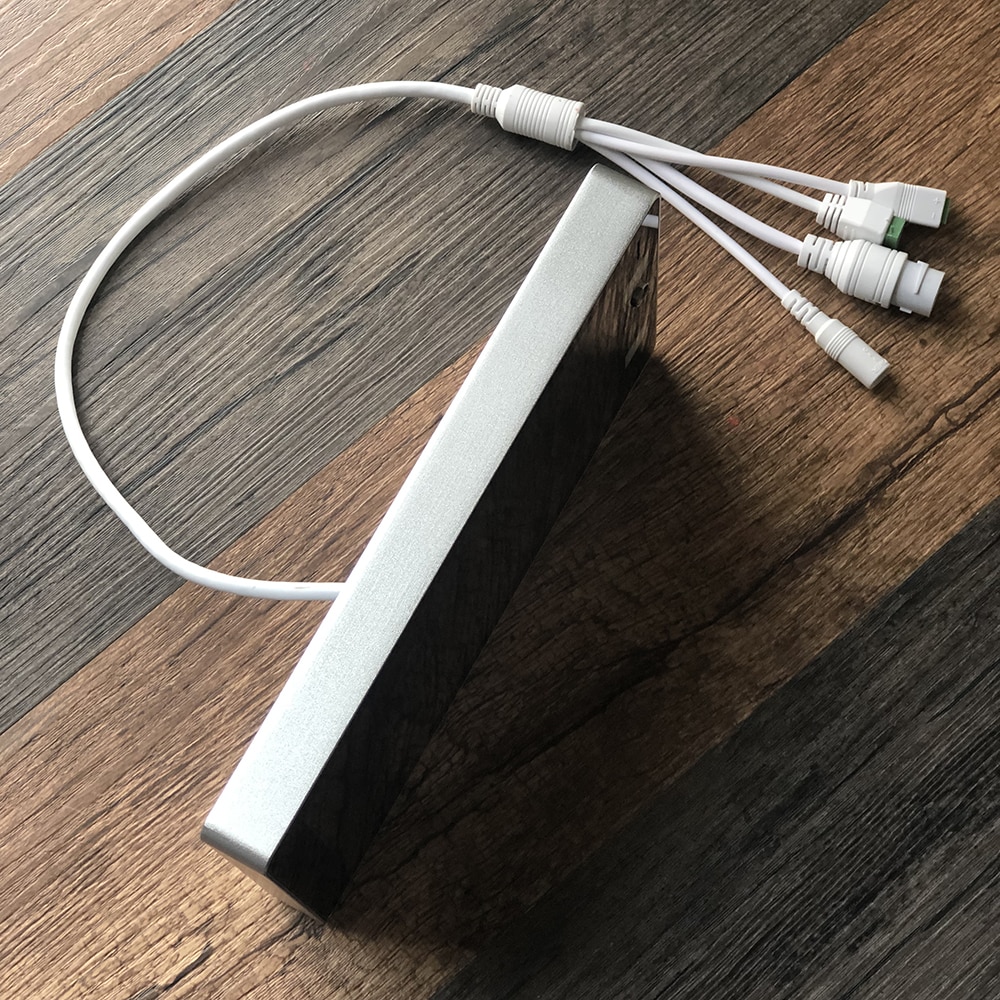

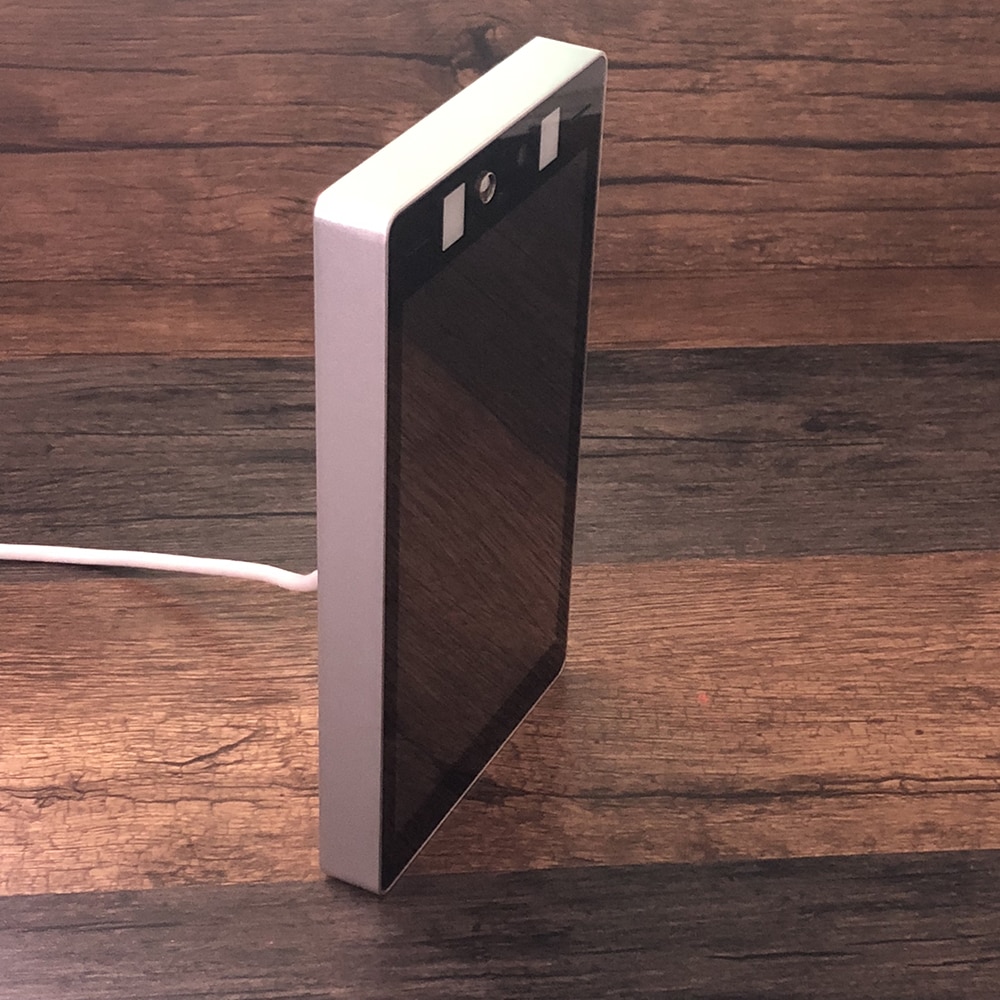

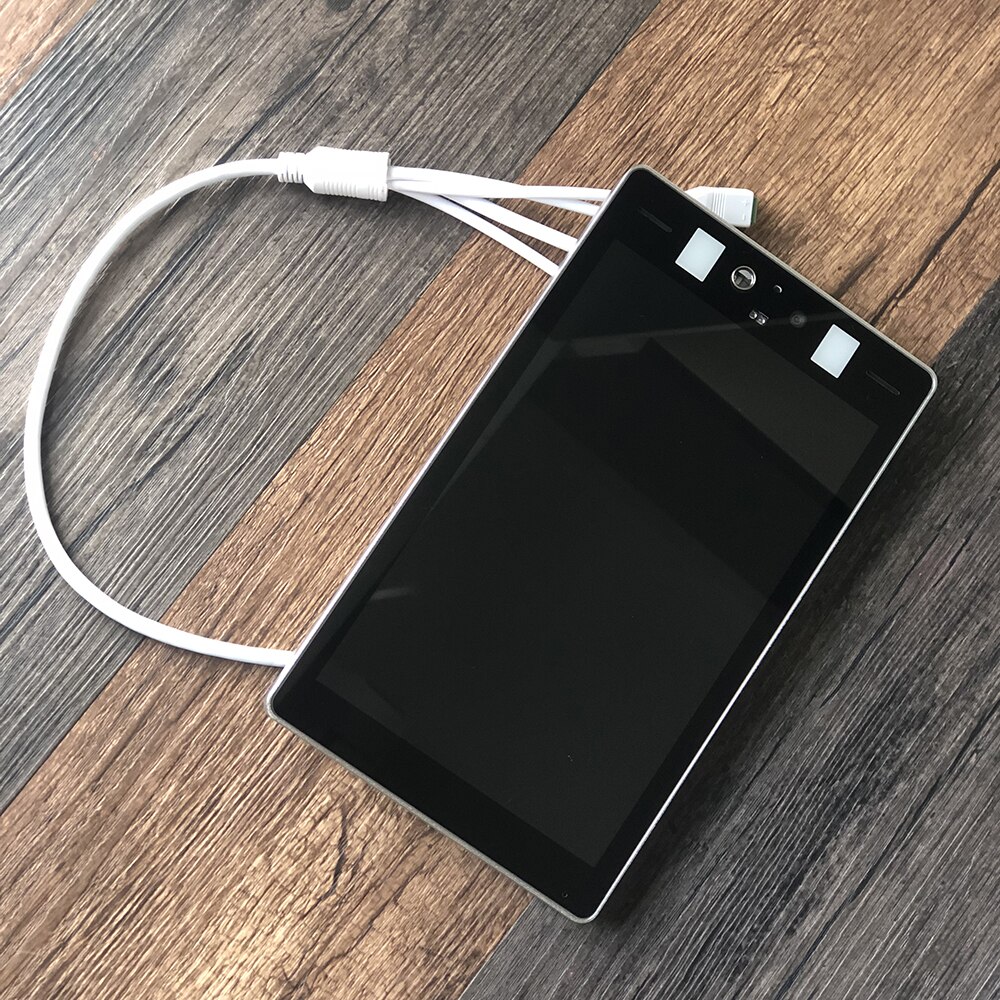

Device Real Photo:

IMG_0793IMG_0807IMG_0801IMG_0802IMG_0803IMG_0805IMG_0806IMG_E0809







Parameters:

Model number

1080P HD Face Recognition+ Temperature Measurement

FRC-8T

Display

8 inch Color LED

Thermal Camera

Sensor

Thermal real imaging temperature sensor

Temperature Measurement

Temp range:  30°c - 45°c

Accuracy: ± 0.3°c

Detect Distance

0.4M – 0.7M (0.5M best)

Visible light parameters

Lens

2.8mm ; View angle: 89°

Min. illumination

0.005 Lux @ F1.2 Color

Dynamic Range

≥ 120db

Noise ratio

≥ 46db (AGC OFF)

Exposure mode

Program mode (customizable shutter interval), shutter mode (1/5-1 / 20,000s), support for slow shutter

White balance

Auto, indoor, outdoor, sodium lamp mode, manual

Digital noise reduction

Support DNR, 3DNR

Day & Night mode

Fill light at night,

Fixed Color mode

  • Image and compression



Video compression

H.265 Main Profile / H.264 High profile / M-JPEG

Maximum resolution

1920 x 1080 @30FPS

Main stream

1920x1080, 1280x960, 1280x720, 720x576

Substream

640x480, 352x288, 320x240, 176x144

MJPEG

1920x1080, 1280x720 ,close

Output bit rate

Fixed code stream (CBR) or variable code rate (VBR), code stream can be set from 32Kbps to 10Mbps

Audio compression

G711, PCM

Character overlay

Support channel name, date and time superposition, adjustable superposition position

Temperature measurement function

Support live real-time forhead temperature measurement, abnormal temperature alarm

AI

Number of face bases

Max. 30,000 faces

Recognition speed

Less than 300ms

Faces import

Single image, batch image, real-time snapshot image import

Live detect

Support

Mask detect

Support

Voice broadcast

Support high fever temperature alarm

Person Type

Blacklist, whitelist, temporary users

Local storage

Built-in 8GB

Records export

Support export all records in excel file

Protocol support

 Wiegand, relay

Hardware Interface

Power interface

DC12V



Network interface

1 x RJ45 10/100 base T Ethernet interface



Wiegand

1 x Wiegand interface



Switch interface

1 x Relay interface



Audio

Built-in speaker

General Specification

Operating temperature

-10°C~+60°C



Working humidity

0%-90%



Power consumption

5W



Weight

Less than 1KG

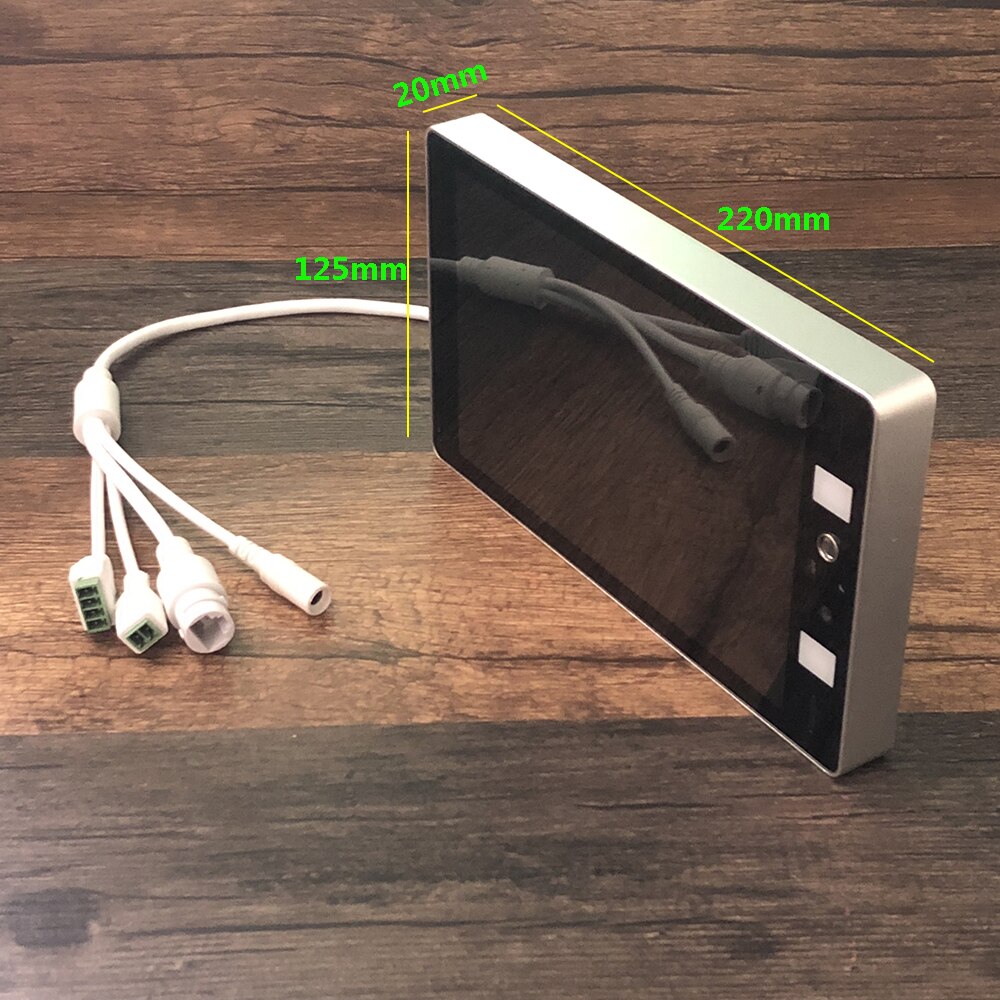

Dimension

220x125x20mm



PC management software

Free, Include



Bracket

Default wall mount bracket

(Turnstile gate mount bracket option)

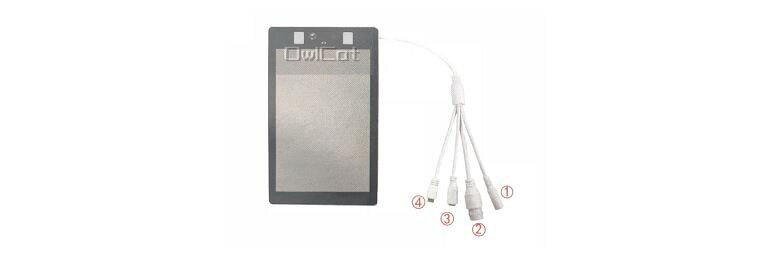

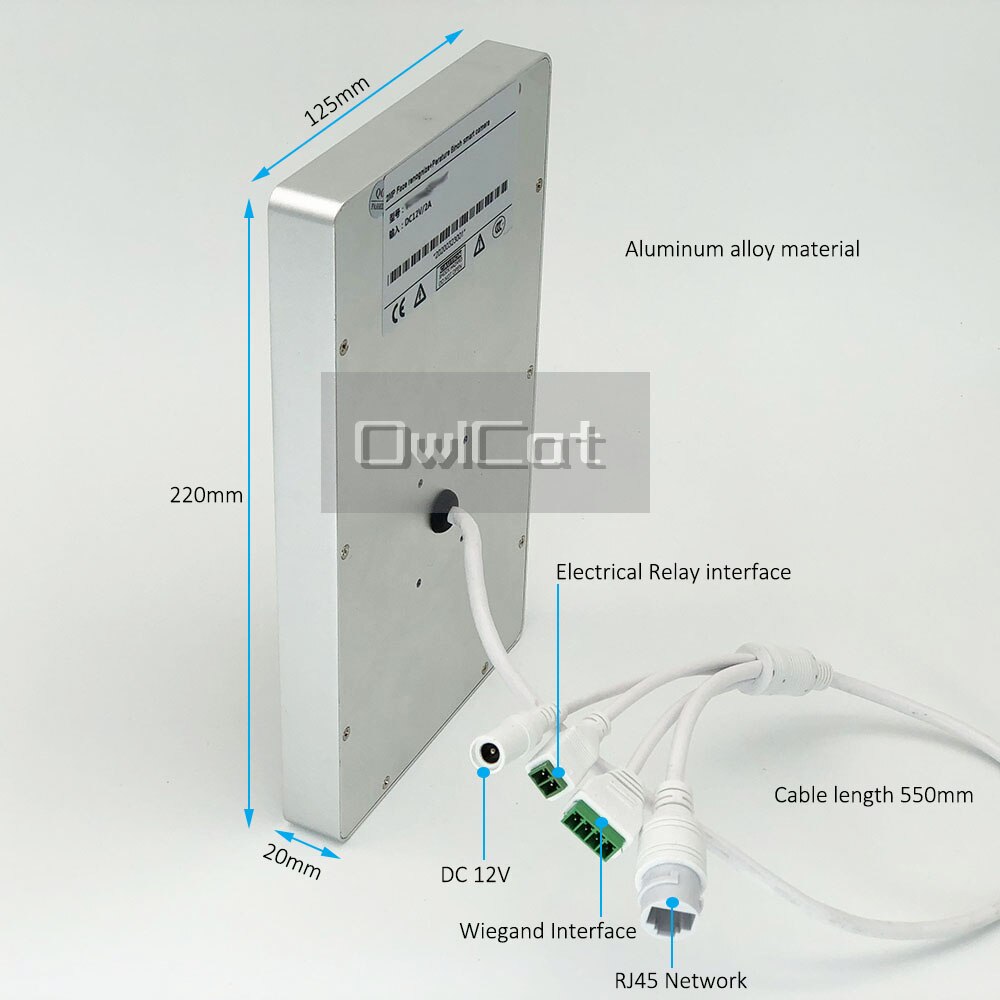

  • Interface Description

QQ截图20200326131554

Interface number

Pin

Interface name

Function

1(Power interface)

/

Power

12VDC

2(Network Interface)

/

Ethernet

RJ45 Network

3(Relay interface)

+

Alarm-NO

NO port

-

Alarm-NO

COM port

4(Wiegand interface)

1

VCC

 12VDC

2

Wiegand_D1

Wiegand protocol data port D1

3

Wiegand_D0

Wiegand protocol data port D0

4

GND

Ground





IP address Search & Modify Tool:

ip tool

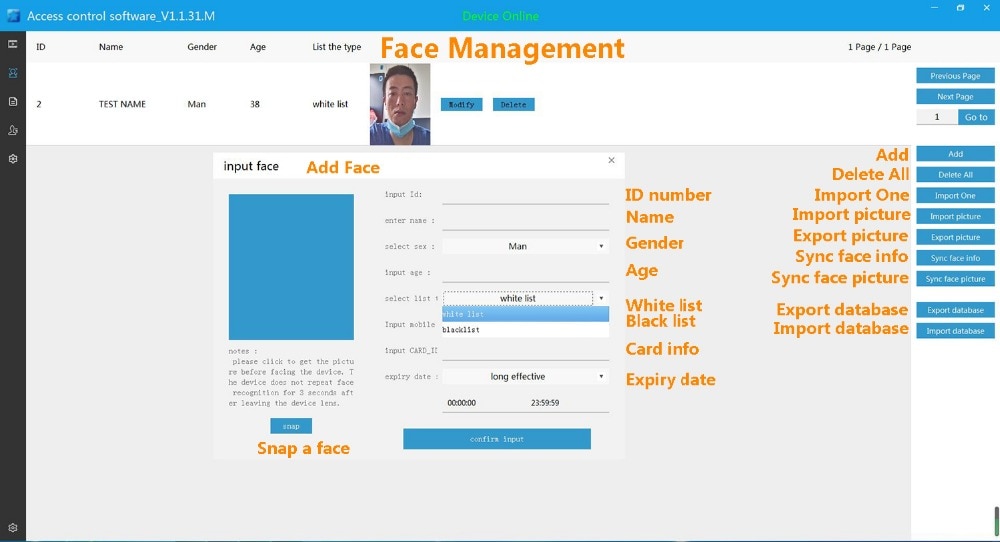

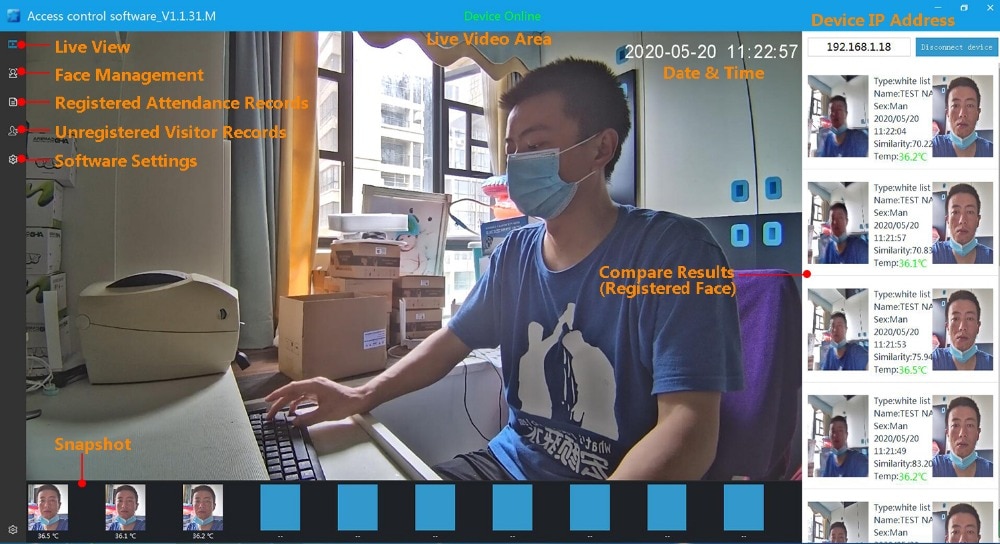

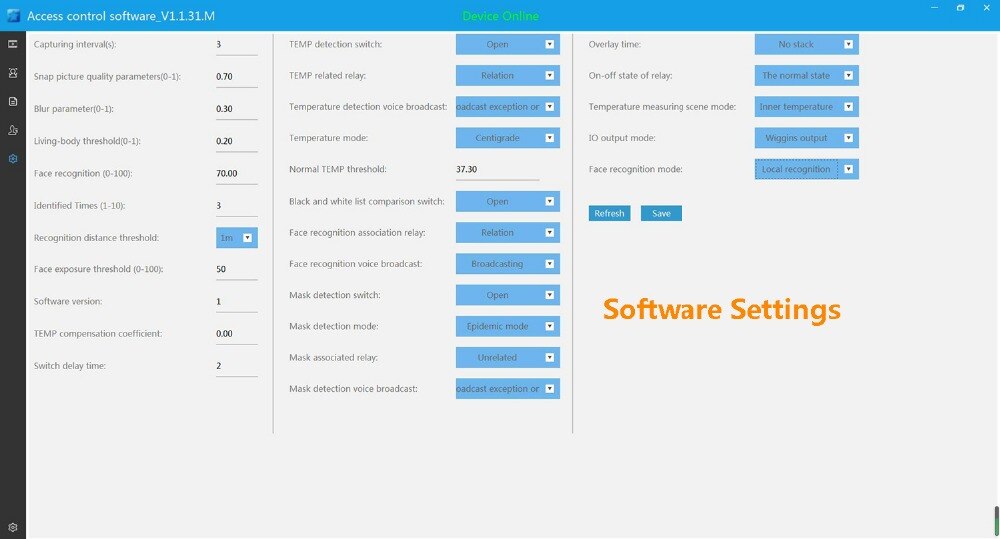

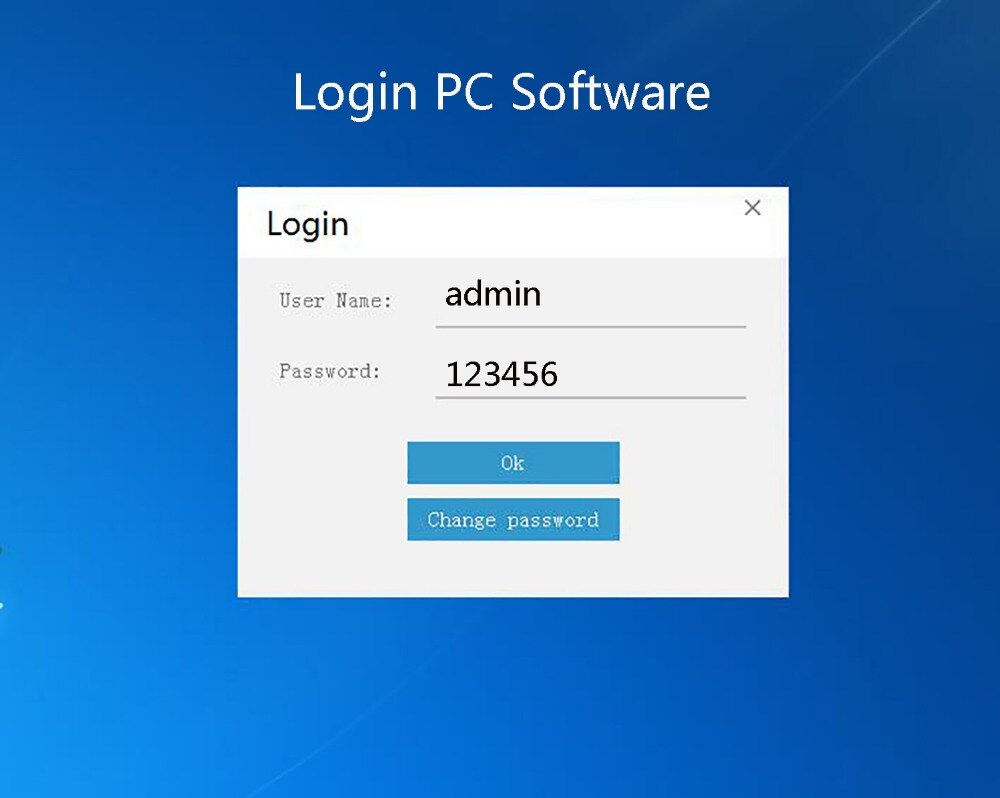

PC Management Software:

QQ截图20200520111625QQ截图20200520112314QQ截图20200520112345QQ截图20200520112409QQ截图20200520112641QQ截图20200520112710QQ截图20200520112746QQ截图20200520112842QQ截图20200520113226

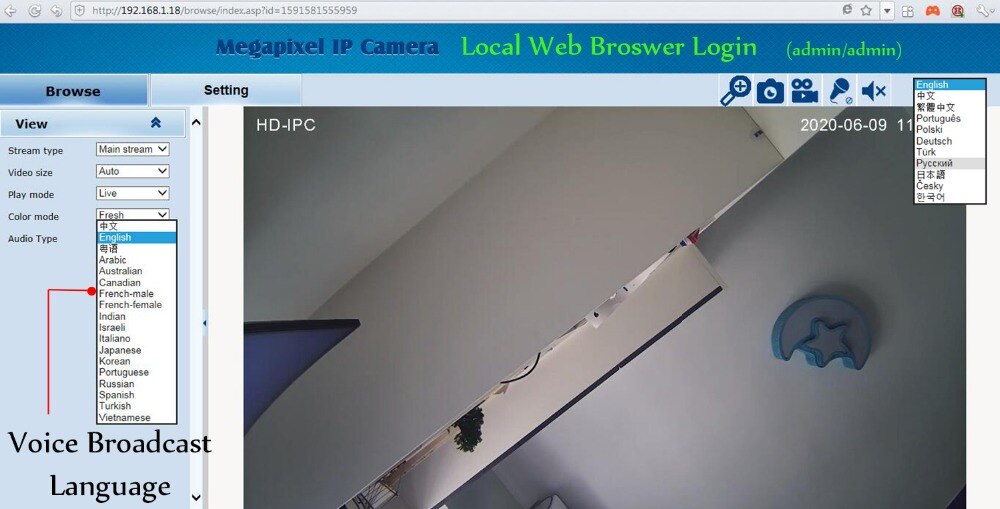

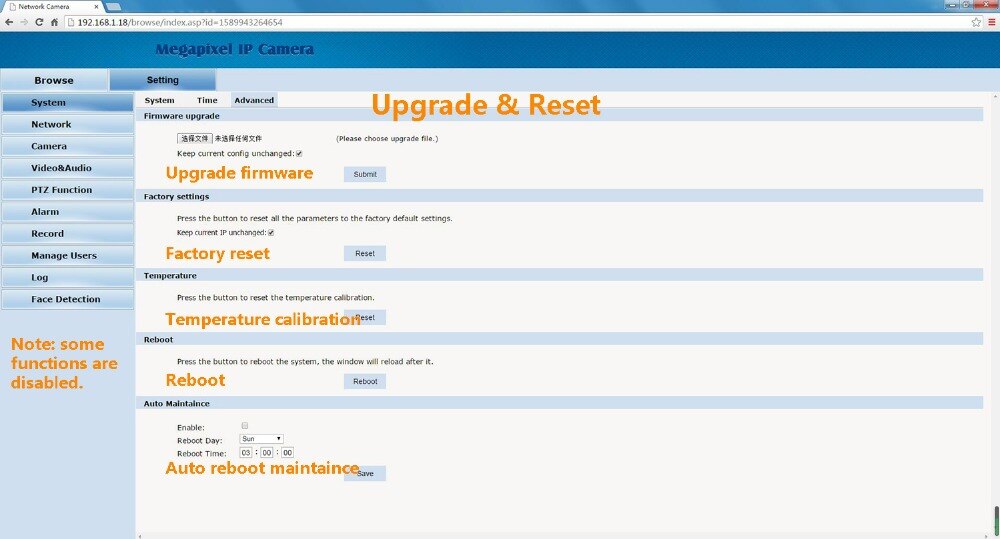

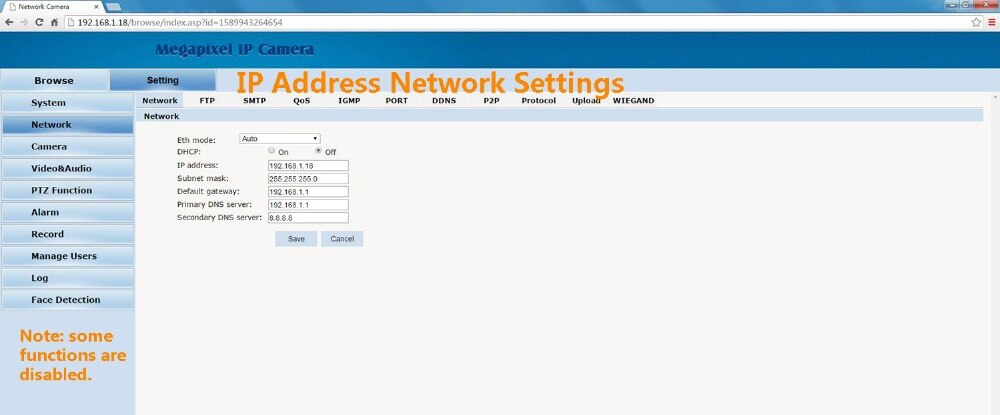

PC Web Broswer Local Login:

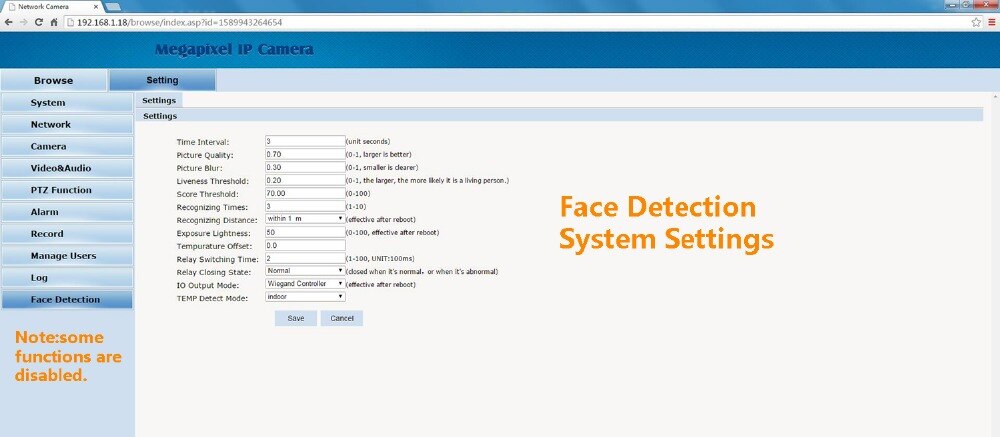

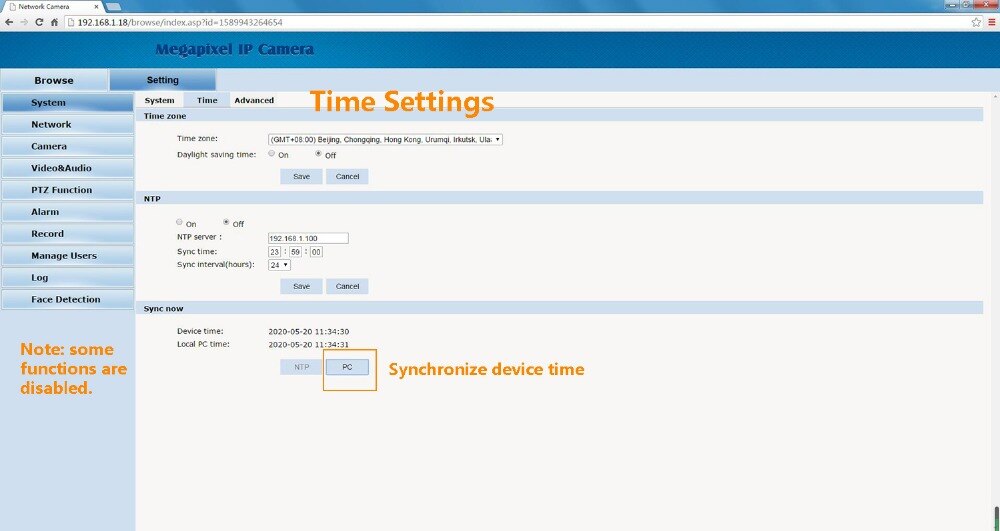

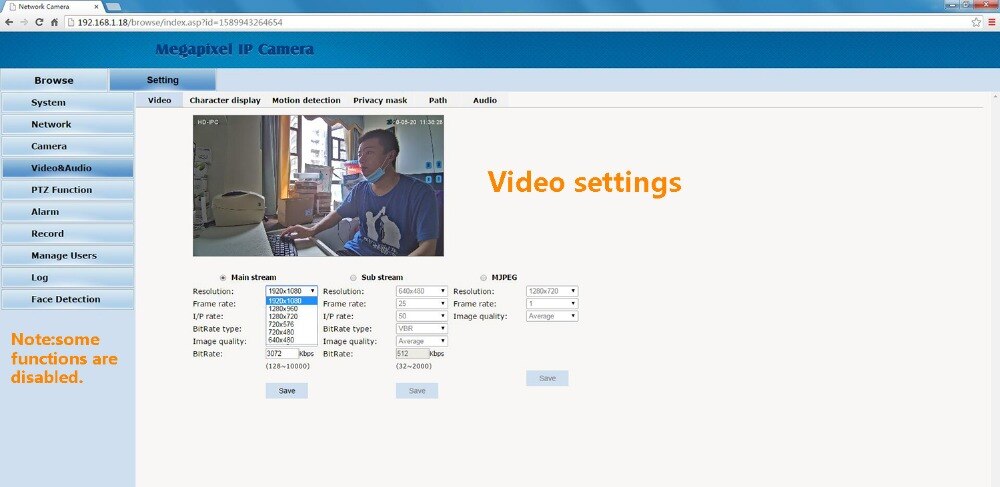

QQ截图20200609114840QQ截图20200520113422QQ截图20200520113438QQ截图20200520113452QQ截图20200520113527QQ截图20200520113641QQ截图20200520113853



About your tax:

This price does not include any customs duties, if the tariff is generated, the buyer must be responsible for paying the tariff to receive his parcel. If you have any special requirements, please leave message to us in your order, buyer will take his risk to pay any tax.



About your DHL remote fee (if any):

If you choose the DHL logistics method when you place your order, and the city in your address belongs to a remote area in the DHL delivery system, then you will be contacted to charge an additional $ 35 DHL remote delivery fee before the goods despatch. If you are unwilling to pay this fee, then we have the right to change to another logistics company to ship your order. If your city is not a remote city, then please ignore it.



you can check your city name and post code in below website to know whether it is remote city or not:

https://www.trackingmore.com/remote_area.php?lang=en






  • Origin: Mainland China
  • Model Number: OwlCat-8T
  • Screen display size: 8 inch
  • Face recognition: Yes
  • Body temperature detect: Yes
  • Mask recognition: Yes
  • Temperature Abnormal alarm: Yes
  • Camera Resolution: 1920 x 1080 HD 2MP
  • Camera Lens: 3.6mm
  • Number of face bases: Max 30,000 faces
  • Waterproof lever: IP66
  • MIC: Built-in Microphone
  • Voice broadcast: Support temperature abnormal alarm
  • Product size: 220x125x20mm
  • Wiegand Protocol: Support
