KONLEN Wireless GSM Fixed Gateway Terminal With Standby Battery Connect Home Office Desktop Phone Work With Sim Card
107.24 87.28 $
SALE
ID: 16089
Quantity
Gsm Fixed Wireless Terminal Connect Desktop Phones or Telephone Line PSTN Alarm System by insert Sim Card to Make Call
0.0 ( votes) | 1 orders
Price:
US $89.95 - 108.32
/ piece
Discount Price:
US $
76.82 -
89.64
/ piece
-15%
- Ships From
Name: Gsm Fixed Wireless Terminal Connect Desktop Phones or Telephone Line PSTN Alarm System by insert Sim Card to Make Call.
Model No. :KLN-FWT101G
Product Introduction
You can dial the local calls, domestic and international calls with this Terminal by connecting with a common wired desktop phone and install a GSM SIM card.then connect it with desktop phone by a common telephone line so that the desktop phone can make phone call normally based on GSM network, which is suitable for the places that no pstn/landline. It can also connect with the telephone line burglar alarm system with PSTN LRJ11 port.

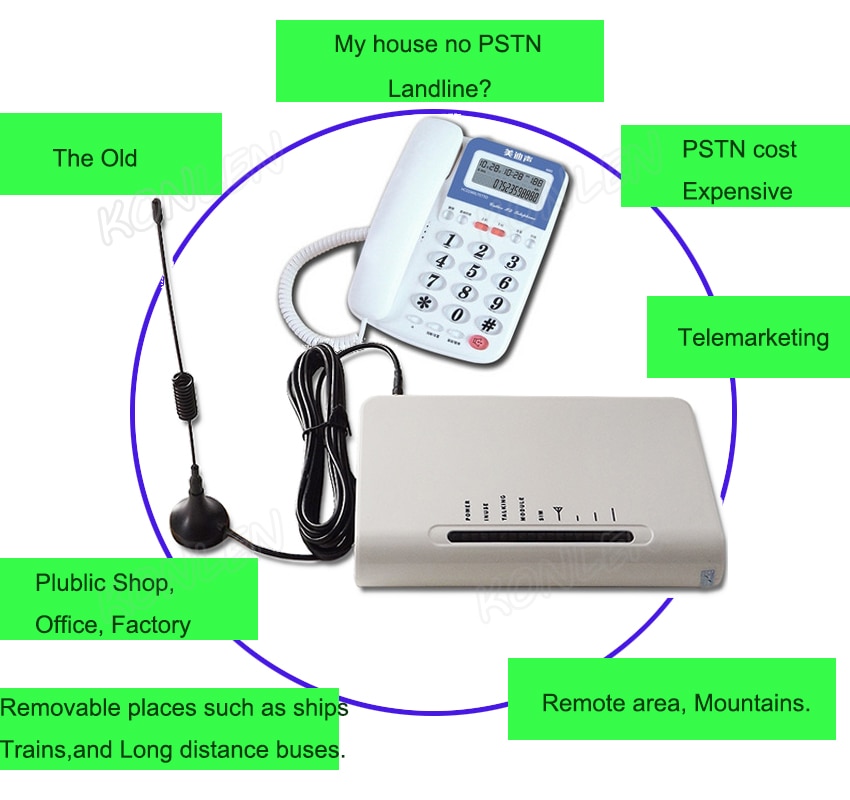

It is widely used in these areas:
Remote area, Mountains, Telemarketing, Public shop, office, factory, Removable places such as ships, trains, and long distance buses, and some house without PSTN landling or PSTN cost expensive.Easy to install, Easy to operation, Powerful capacity of signals receiving,
Clear talking setting, Long using life, Steady performance.
How to use this device?

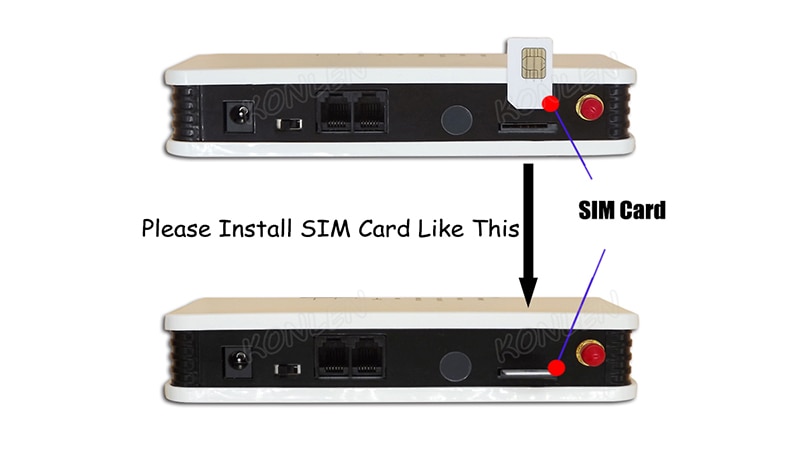

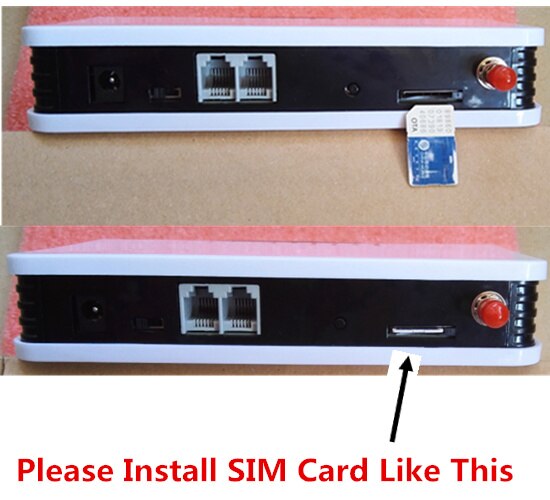

Step 1: Install a SIM Card
Insert the SIM card only when the terminal is switched off and the AC adapter is unplugged.
Step 2: Connect the Antenna
For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there.Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal. Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram etc. It will disturb the signal of the terminal.

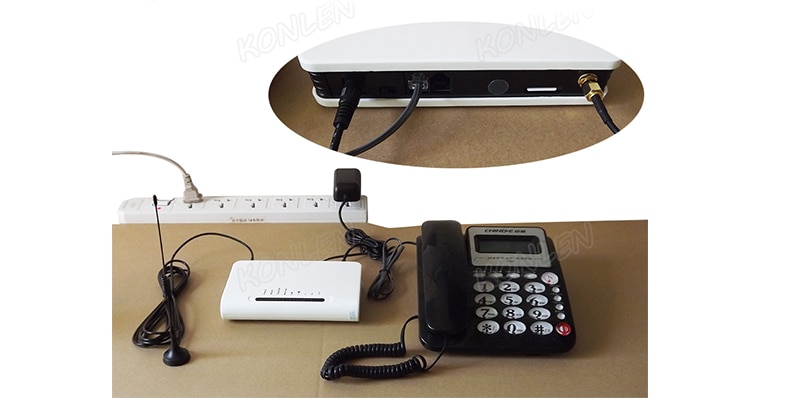

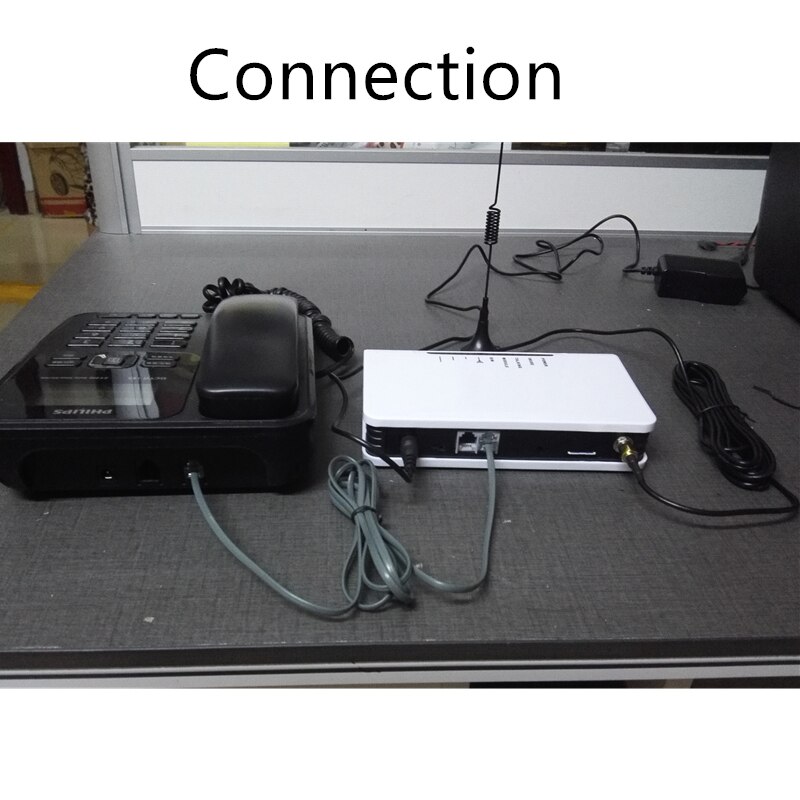

Step 3:Connecting your terminal with desktop phone
To make calls, you should connect the telephone line with RJ11 phone port of GSM terminal and telephone set,
There are two communication portals at the side of the terminal .You canconnect one or two desktop phones with terminal.(Please use the telephone line in the package)
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get GSM signal and enter normal working status.
Step 6: Make phone call(dial in and dial out) with your telephone set that connected with terminal.
The phone number of desktop phone is the GSM SIM card number inside terminal.
Key Technical Specifications
1.Networks support: GSM900/1800MHz .
2. Voltage: DC 12V, AC110V to 240V
3.Power consumption:Static≤25MA emission≤SOOMA
4.Peak power consumption: 0.25W/0.5W
5.Receive sensitivity: -104db
6.Antenna increment: All directions: S.Odb Certain/Selection: 12db
7. Caller ID only support DTMF format of telephone, not support other types
Remark:
The gsm fixed wireless terminal with two types of gsm frequency:
The GSM900/1800mhz dual band as default for Asia, European, Africa and Oceania countries.
The GSM850/900/1800/1900MHZ quad band for America countries. If you want quad band ,please buy from link and click picture.
.
FAQ 1: The deivce can’t recognize my SIM card, What should I do?
If you called the device, but with voice" Your call phone power off, can't get through, not in the service etc", the following is possible reasons. Please check it.
1. Your SIM card with a pin code for access, please unlock it first with your cellphone. Please do perpetual unlock, not temporarily
2. Normally all the GSM device in the market only support 2G SIM card, not 3G, 4G and CDMA. But most of customers said their SIM cards are 3G, 4G, it can still work, the possible reason is that their 3G, 4G SIM card cover 2G itself. In China we also have 3G, 4G SIM card, all of them support 2G, so the type of 3G and 4G SIM card can also work with the device. But a few SIM cards are pure 3G, 4G, not include 2G, so it will not work.
Please change the SIM cards from other carriers for try.
3. The GSM signal is weak. Please check whether the GSM signal in your house is good or not.
4. Your SIM card is no enough money or overdue.
5. You installed the SIM card, but not install well.
1. Your SIM card with a pin code for access, please unlock it first with your cellphone. Please do perpetual unlock, not temporarily
2. Normally all the GSM device in the market only support 2G SIM card, not 3G, 4G and CDMA. But most of customers said their SIM cards are 3G, 4G, it can still work, the possible reason is that their 3G, 4G SIM card cover 2G itself. In China we also have 3G, 4G SIM card, all of them support 2G, so the type of 3G and 4G SIM card can also work with the device. But a few SIM cards are pure 3G, 4G, not include 2G, so it will not work.
Please change the SIM cards from other carriers for try.
3. The GSM signal is weak. Please check whether the GSM signal in your house is good or not.
4. Your SIM card is no enough money or overdue.
5. You installed the SIM card, but not install well.
6. You install the SIM card oppositely.
FAQ 2: The device not working, I can’t make phone call. What’s caused my problem?
Answer: Except for the 6 reasons mentioned in FAQ 1, there are 2 another possible reasons.
1.Are you using yourself telephone line to connect the fixed terminal and your telephone set?
Please note your telephone line must be with two cables inside, can’t work with 4 cables, because the line with 4 cables are for updating software program of device.Suggest to use the one inside product box that seller send you.
2.Maybe a few of telephone sets in market are high-power type, common GSM terminal is difficult to drive such type of special telephone sets requested so high power. Please change another types of telephone sets to try.
- Power: DC12V 1A, AC110V to 240V
- Model Number: KLN-FWT101G
- Answering Mode: TELEPHONE
- Item Type: Indoor Machine
- Zone Number: None
- Connection Type: Wireless
- Access Control: None
- Waterproof: No
- Samrt Home Interface: No
- Brand Name: KONLEN
- Power supply adapter: EU,UK,AU, US plug for your option
- Usage: Connect desktop phone to make call
- Product name: Gsm fixed wireless gsm terminal, gsm fixed phone
- Networks support: GSM900/1800MHz
