SIP Audio Door Phone Intercom Wired IP Doorbell For Door Access Control

0.0 ( votes) | 2 orders
Price: US $417.32 / piece
Discount Price:
US $ 286.35 / piece
-31%
Quantity

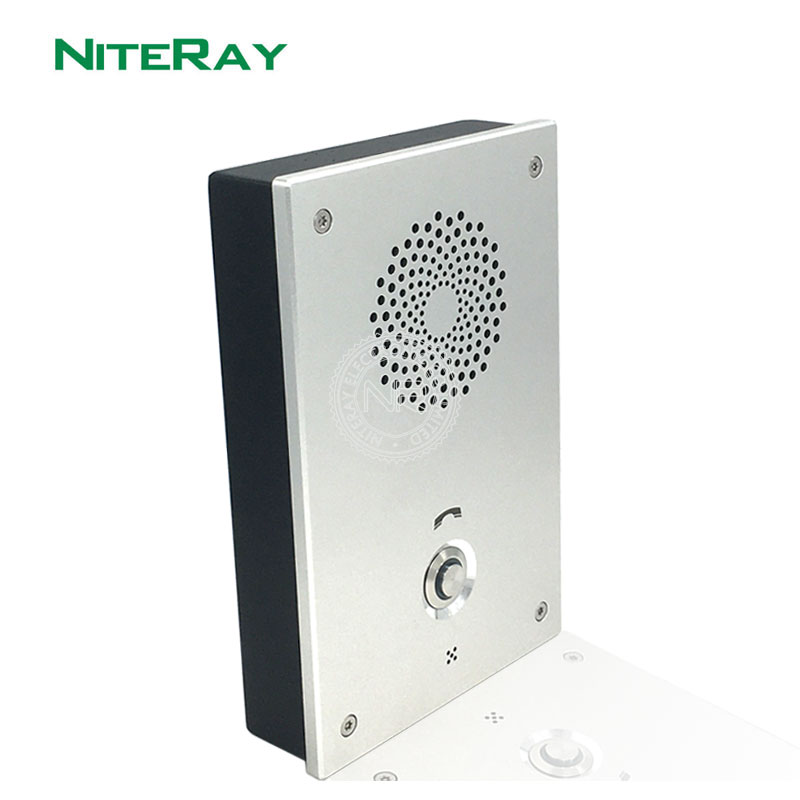

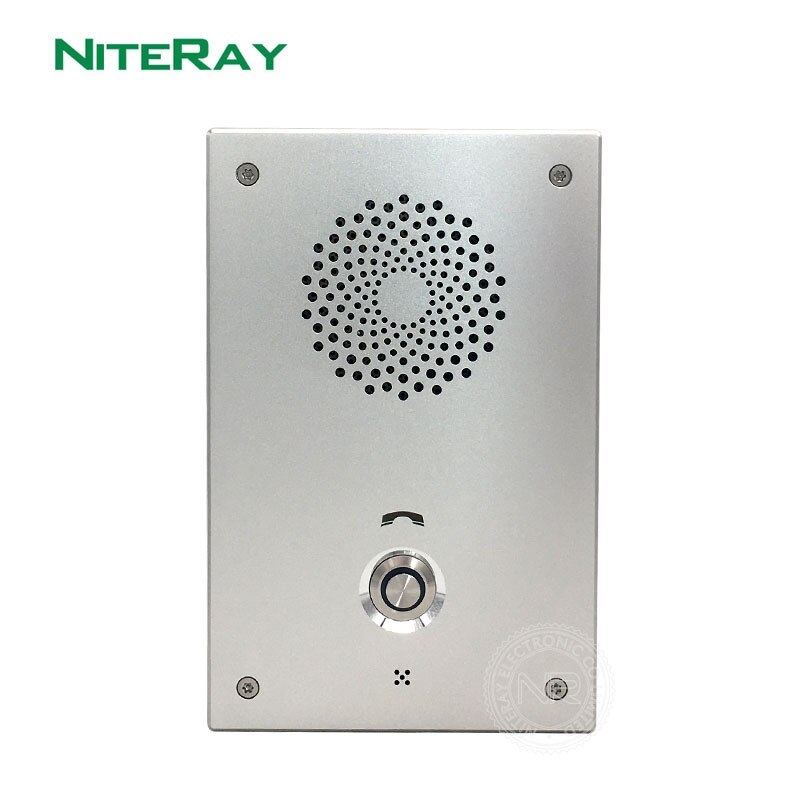

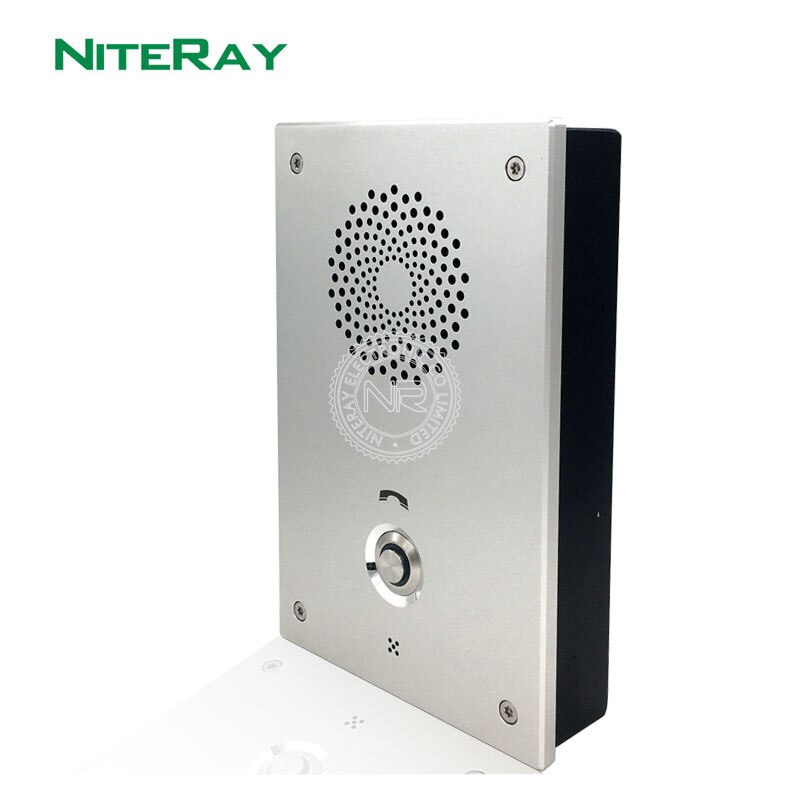

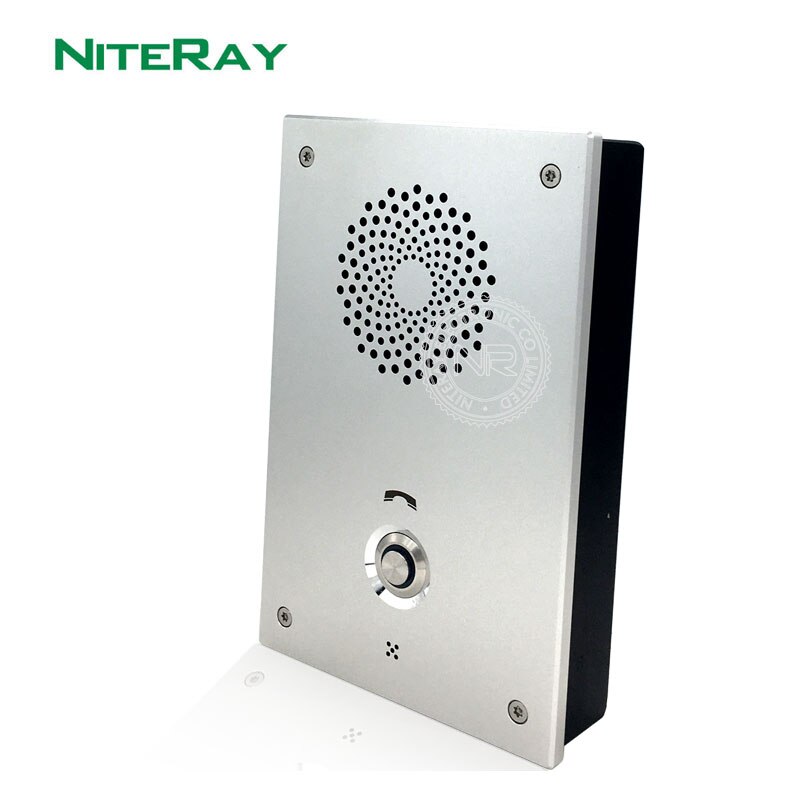

Q504 SIP Intercom & Door Phone

The Intercom is based on the embedded Linux OS and industrial standard RFC3261 (SIP 2.0), has high compatibility with major IPPBXs and dispatch systems. This intercom supports two-way voice talking,1~3 speed dial buttons, 2 sets of relay control output input, POE power supply, external power amplifier, etc. This product can be widely used in public emergency places such as commerce, education, logistics, medical treatment, high-speed, barrier and so on.

Highlights

  • Standard SIP 2.0 protoco
  • 2* RJ45 10/100M Ethernet ports (support POE)
  • 1~3*Programmable buttons
  • 12V power input
  • 2* Short circuit input/output
  • External amplifier

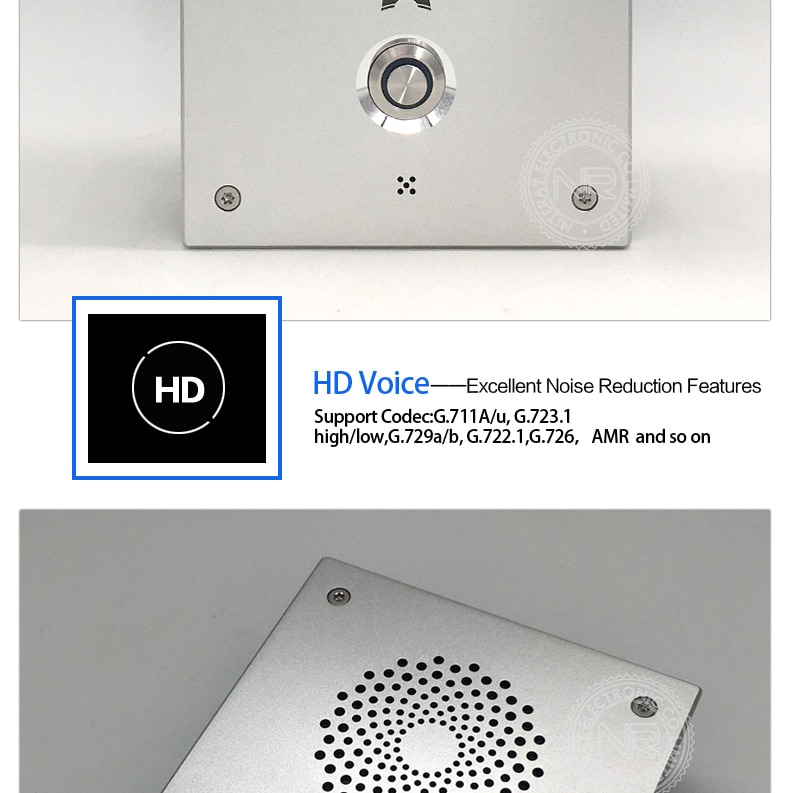

  • G.711A/U,G.722,G723.1,G.726-32,G729AB
  • One-click get IP address and reset
  • Auto provisioning
  • Compatibility with platforms like Broadsoft, VoS,FreeSWITCH and Asterisk/Elastix, etc.
  • Working Temperature: -30 -- 45 ºC

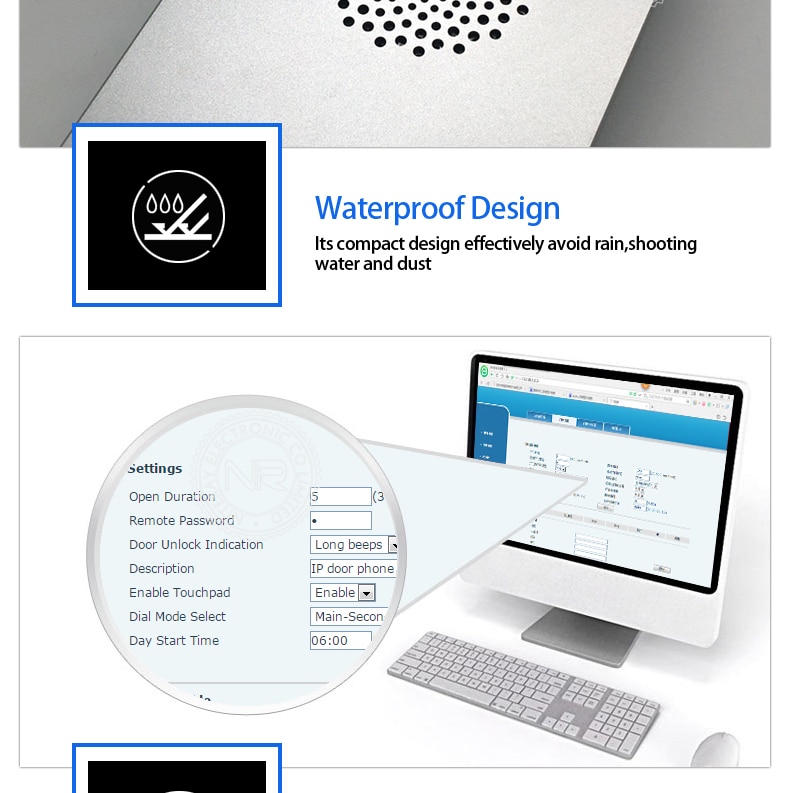

  • Waterproof level: IP57
  • Dimension: 105*162*30mm
  • Package: Specification & QIG/ Tool Kit/ Ethernet cable (Optional)/ Power Adapter (Optional)

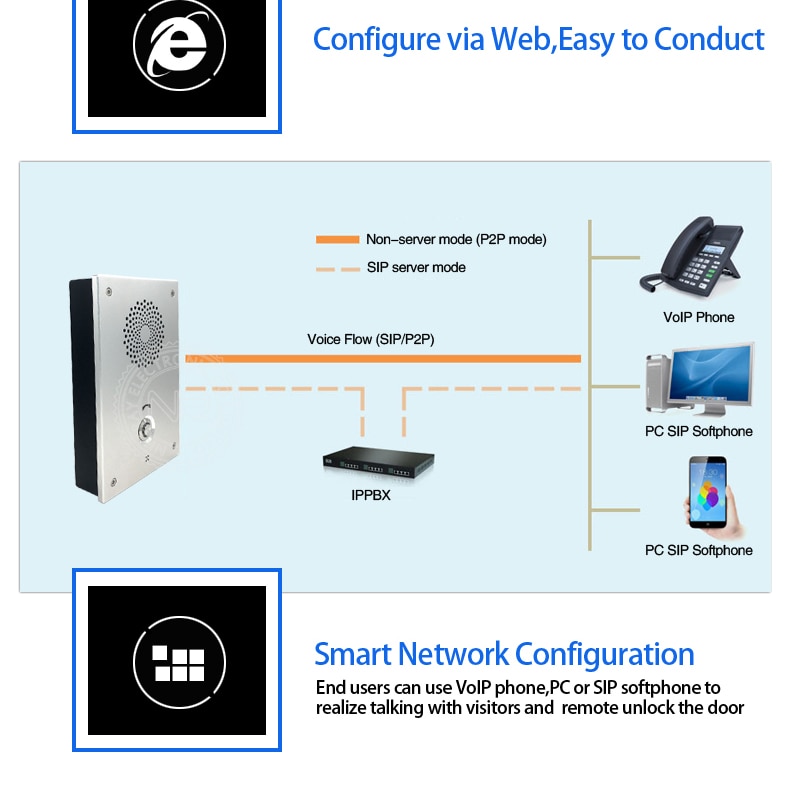

Q504-宝贝详情_01Q504-宝贝详情_02Q504-宝贝详情_03Q504-宝贝详情_04Q504-宝贝详情_05Q504-宝贝详情_06

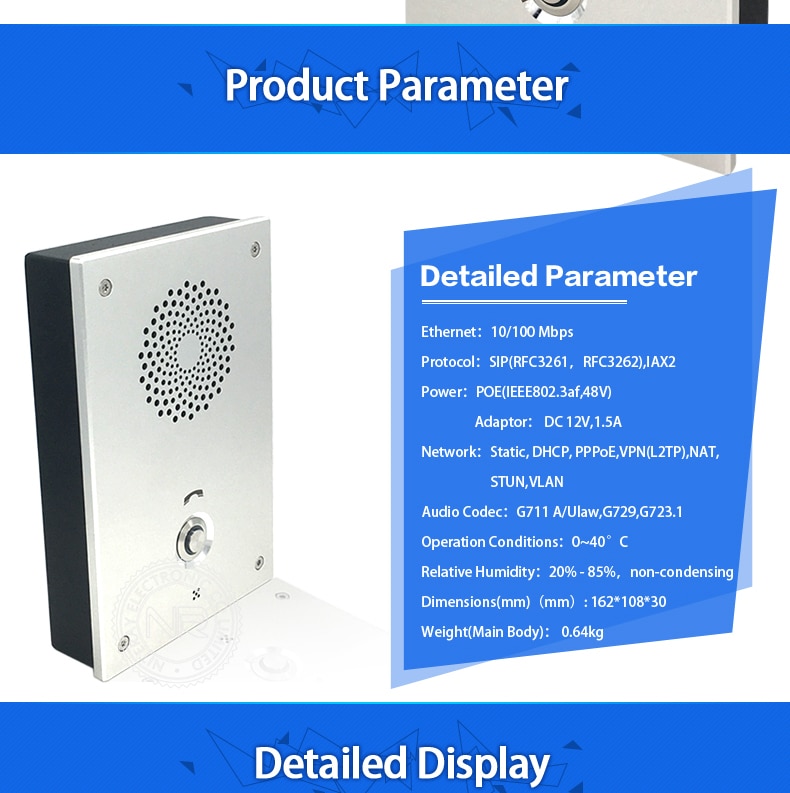

Intercom Audio
Two SIP lines, supporting SIP 2.0 (RFC3261) and related RFC Narrowband speech coding: G.711a / u, G.723.1, G.726-32K, G.729AB
Supports two lines RTSP Broadband speech coding: G.722
Voice broadcast IP address Full-duplex speakerphone
Button or remote volume adjustment DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Switch signal input and output
Handsfree talking Physical Specifications
Default auto answer RJ45 interface:
Dynamic multicast function Yellow: WAN port 10 / 100M adaptive, support POE
Supports DC or POE power supply PoE: 802.3af (Class 3: 6.49 ~ 12.95W)
Support for Function key interface Black: LAN port (Only connected to the original camera)
Support monophonic active speakers Cable: Super five lines or better
Network time synchronization 1 blue indicator (SIP status and network status)
Action URL / Active URI remote control Programmable DSS/Soft keys
  1 security screw bag
Networking/ Protocols Speaker: 8Ohm 2W
Supports PoE (802.3af) 1 way microphone input interface:  58db
Primary and secondary DNS servers are supported Cables: CAT5 or better
Support VLAN Shell material: Aluminum  plate + stainless steel
Supports SNTP client Wateproof: applied (IP65)
Support VPN L2TP / PPTP / IPSec 1 DSS key interface (2 lines):  Interface:pluggable terminal block
Support for HTTP / HTTPS web pages Standby power consumption: DC12V  / POE 48V
Support Qos: 802.1p / q, DSCP Housing material: aluminum alloy shell
Supports Web Filter Installation: Indoor/Outdoor installation
DHCP / static / PPPoE Operating temperature: -10 ~ 60 ºC
STUN Storage temperature: -40 ~ 70 ºC
  Relative humidity: 10% - 95%

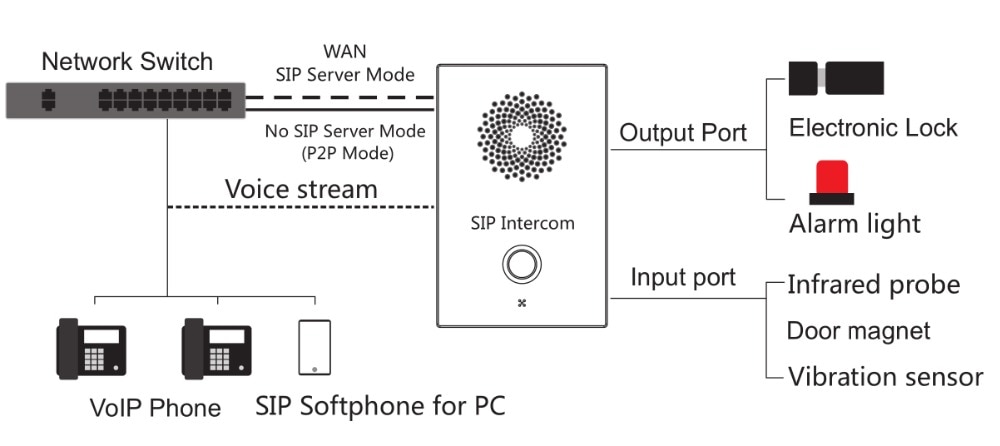

connect-diagram


Package
QQ截图20201028172501QQ截图20201028172521

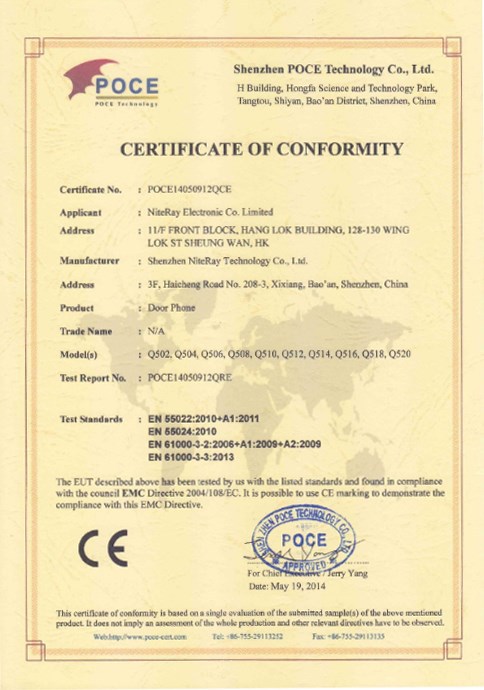

Certificate


  • Size: 105*162*30mm
  • Power: 12V DC or 48V PoE
  • Material: Stainless Steel
  • Model Number: Q504
  • Answering Mode: Hands-free
  • Installation: Wall Mounting
  • Item Type: Entrance Machine
  • Zone Number: None
  • Connection Type: WIRED
  • Access Control: Password
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Brand Name: NiteRay
  • Certification: CE,FCC
  • Origin: Mainland China
  • Protocol: SIP
  • Intercom Type: Two-way Intercom
  • Telecommunication Type: Voip (Voice over IP)
  • Relay to Door Lock: NC and NO
  • Waterproof: IP65
  • PoE standard: IEEE802.3af 48V
  • Doorbell Button: Waterproof,Stainless Steel
