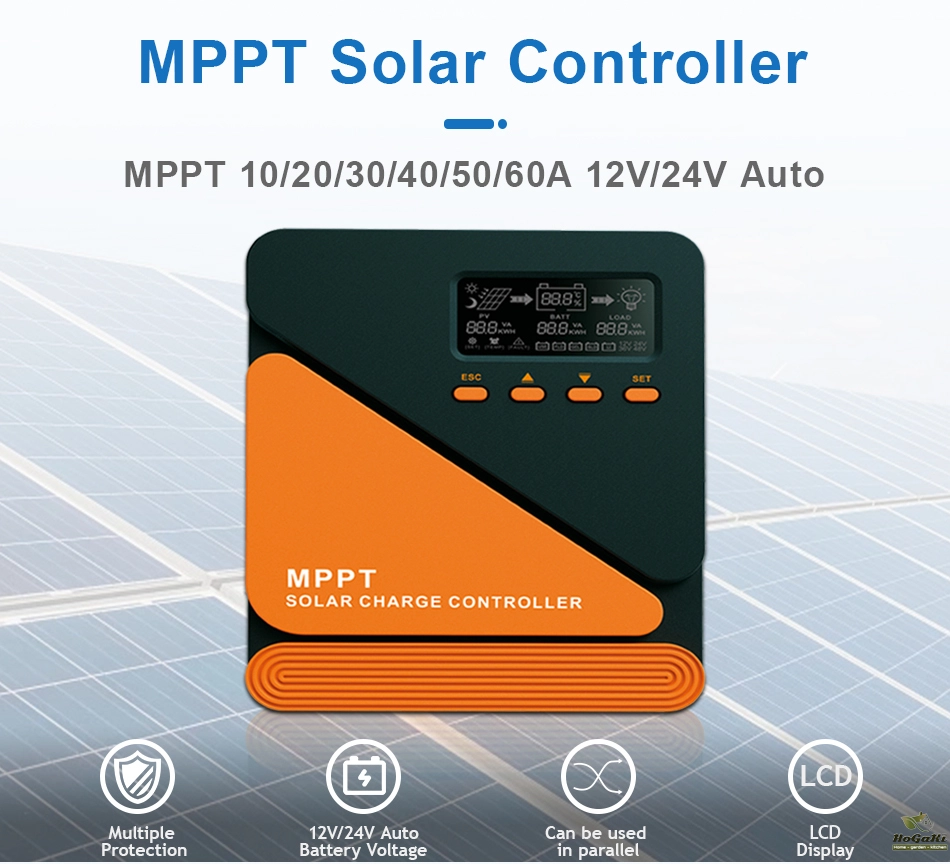

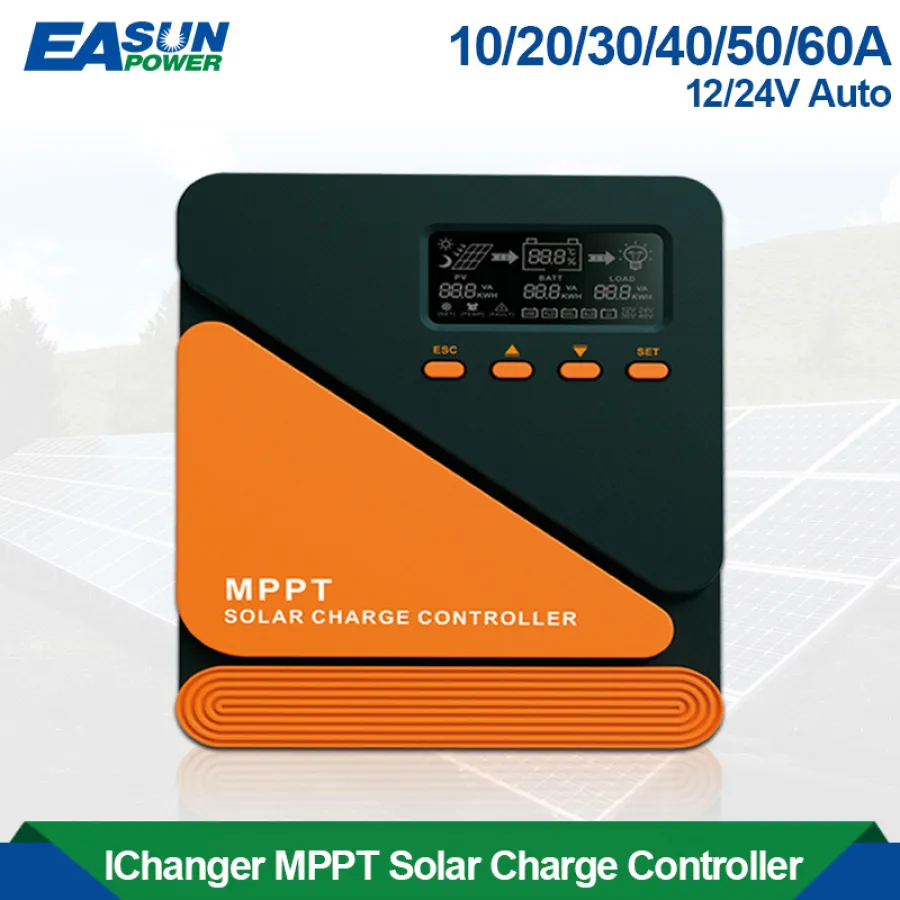

EASUN Solar Charger Controller MPPT 60A 50A 40A 30A 20A 10A Solar Panel Solar Charge Regulator 12V 24V Battery PV Input 100VOC

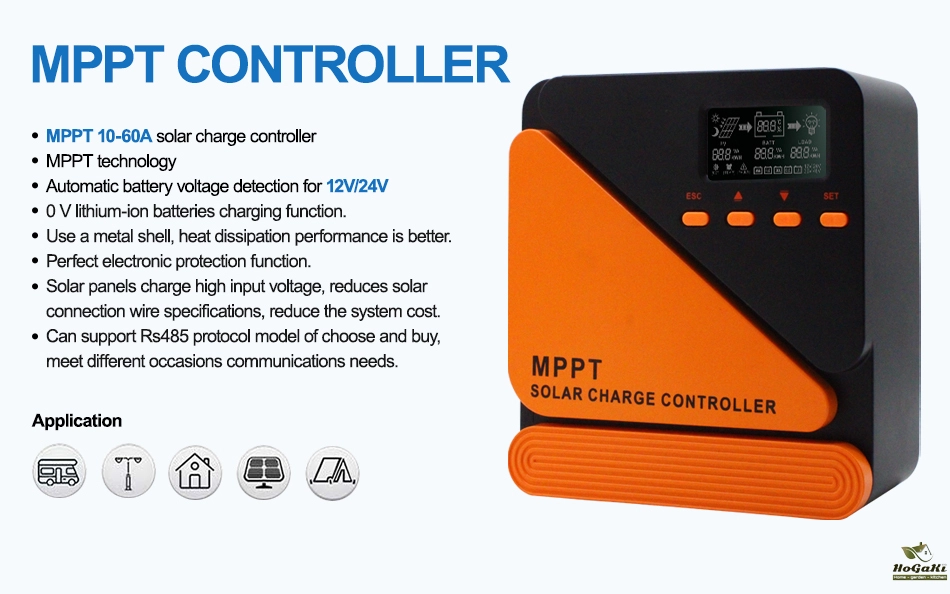

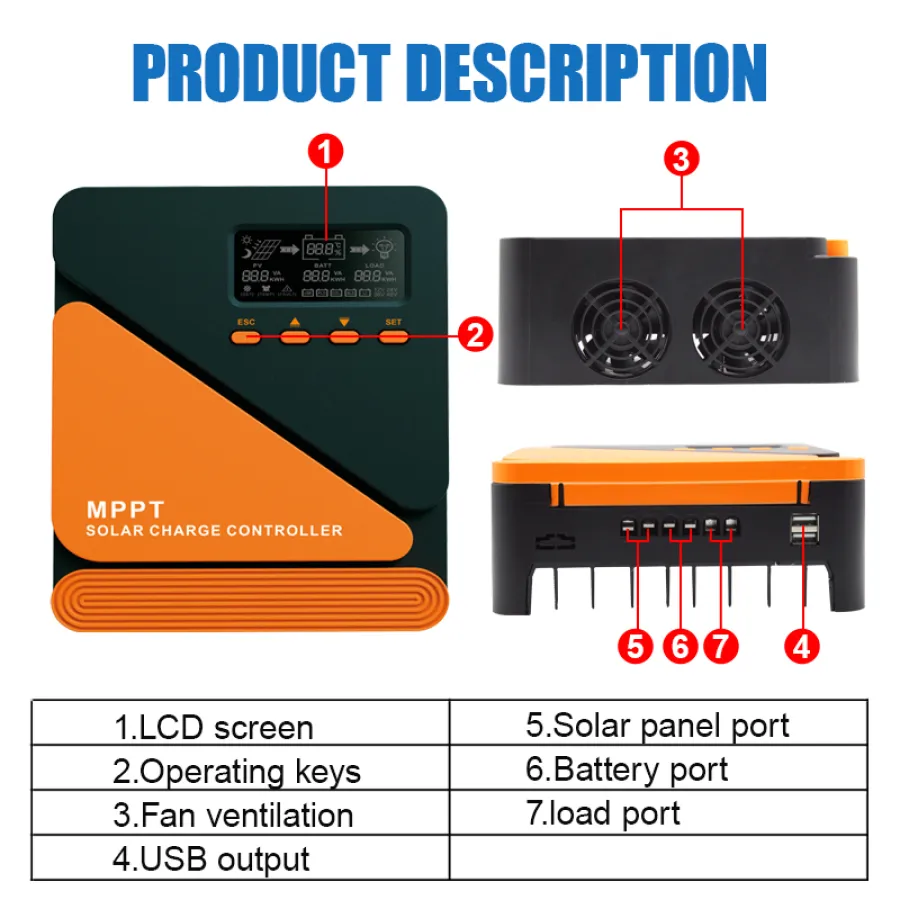

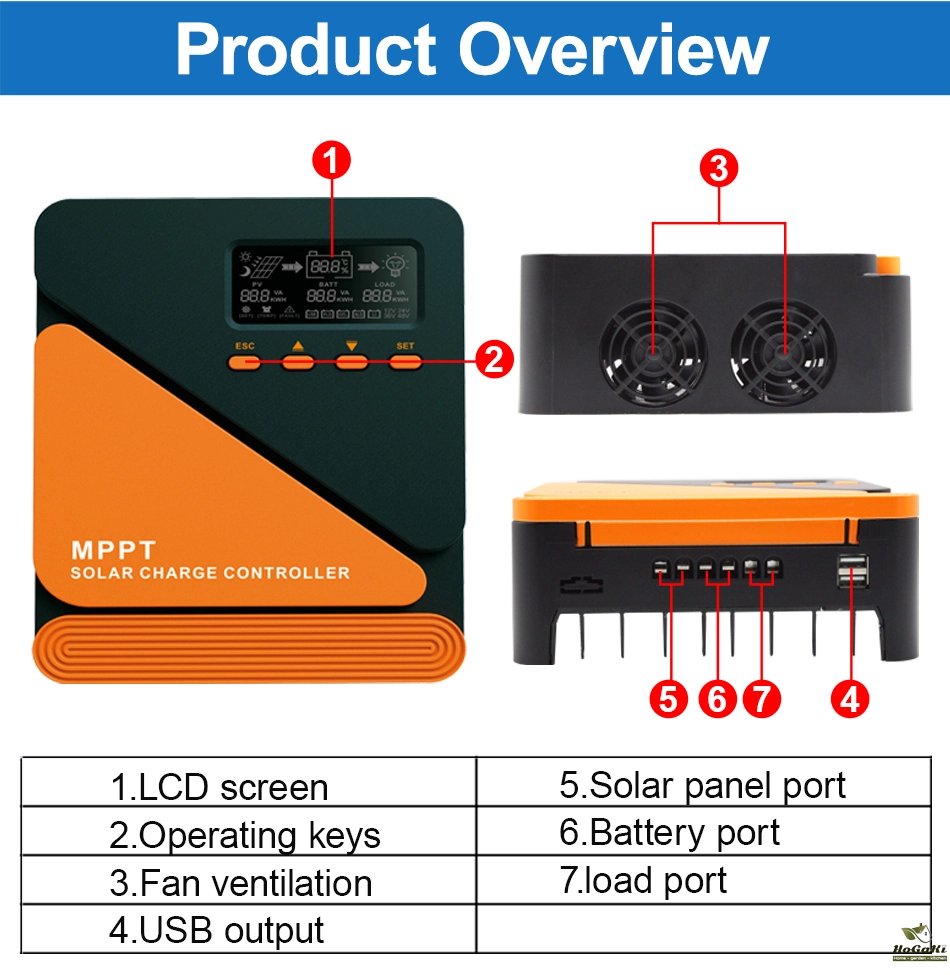

Features：
100% MPPT controller

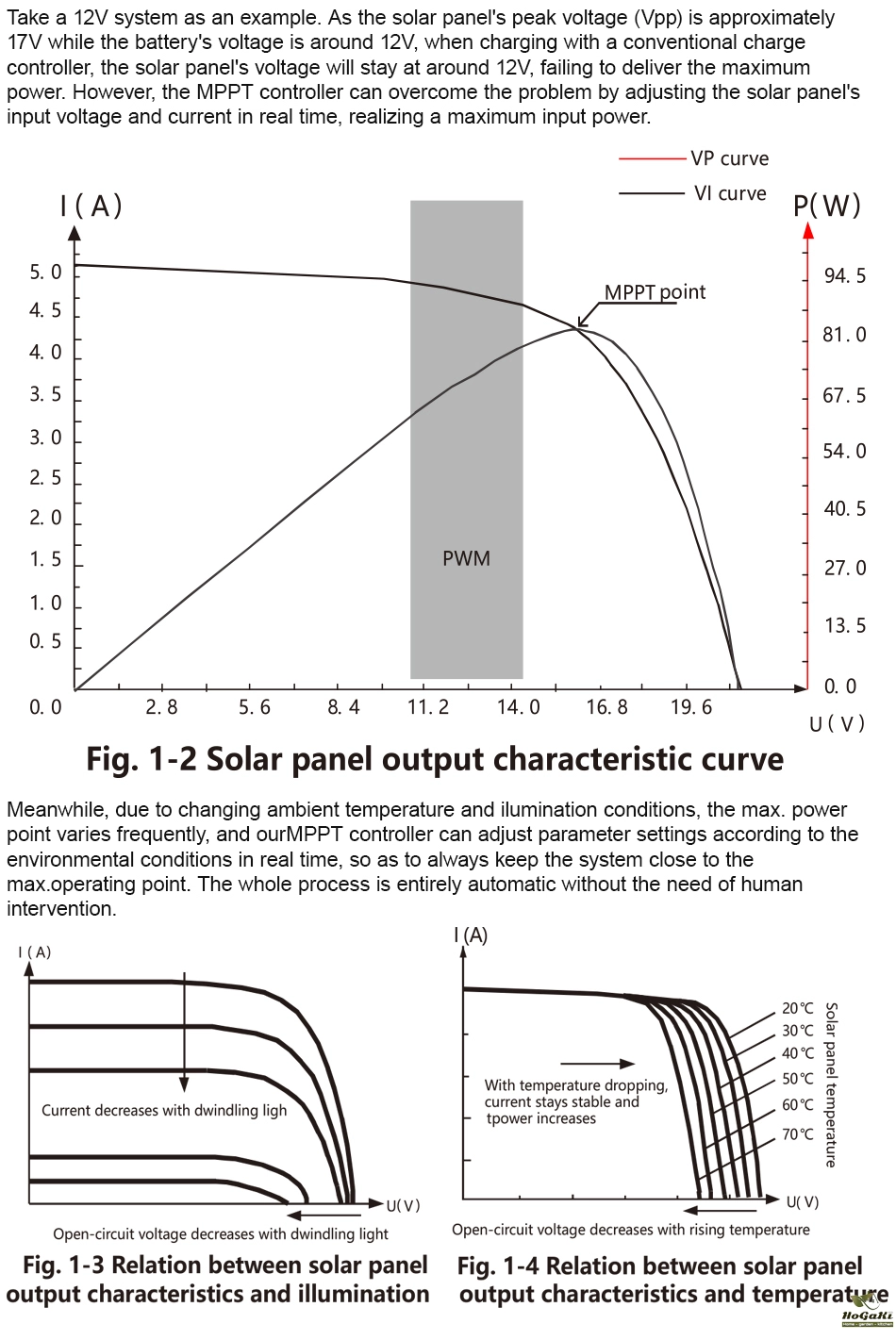

Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V
Three-stage charging optimizes battery performance

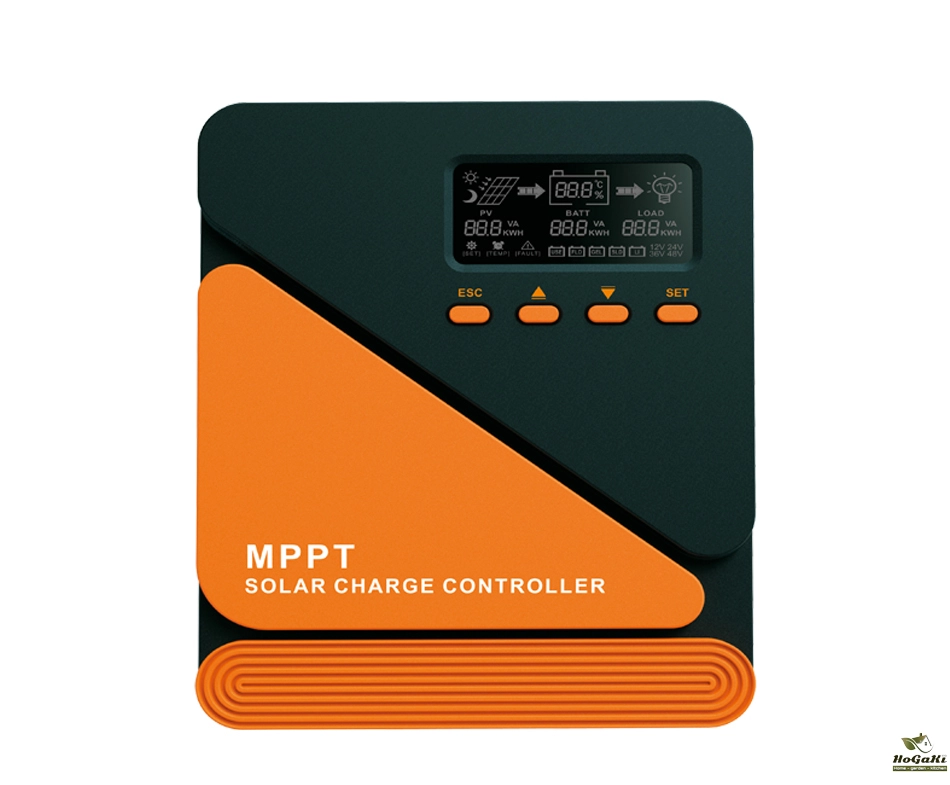

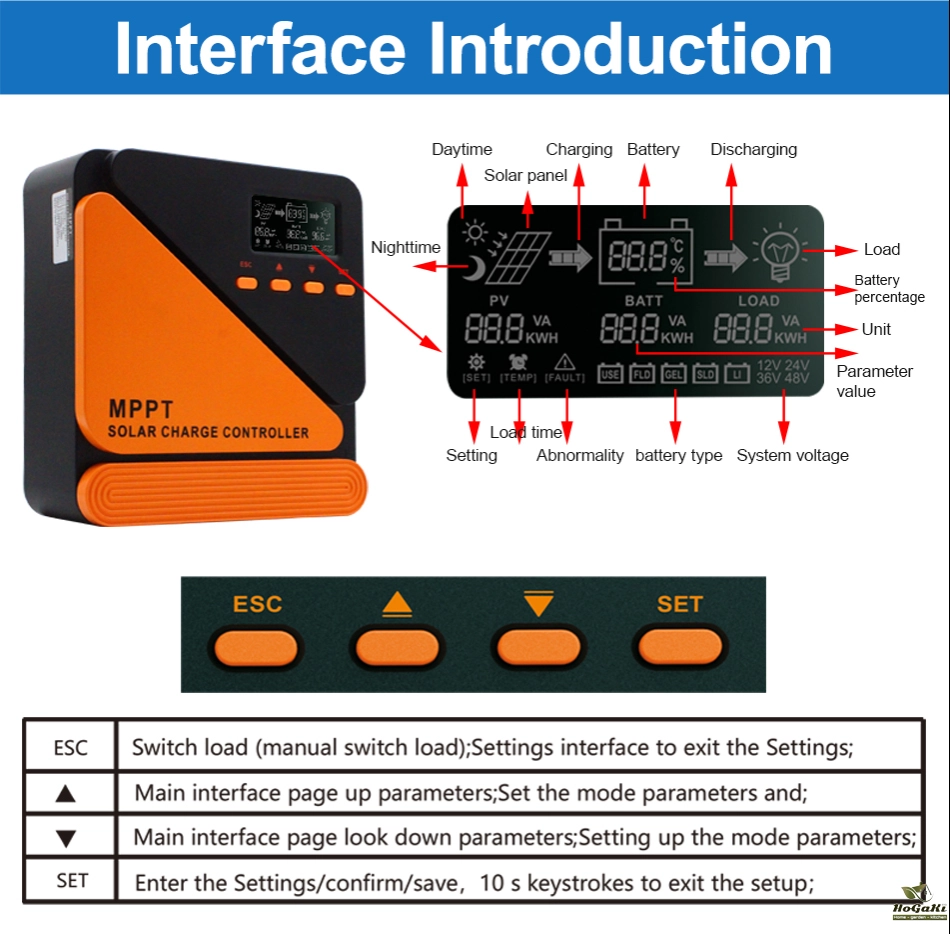

Multi-function LCD displays

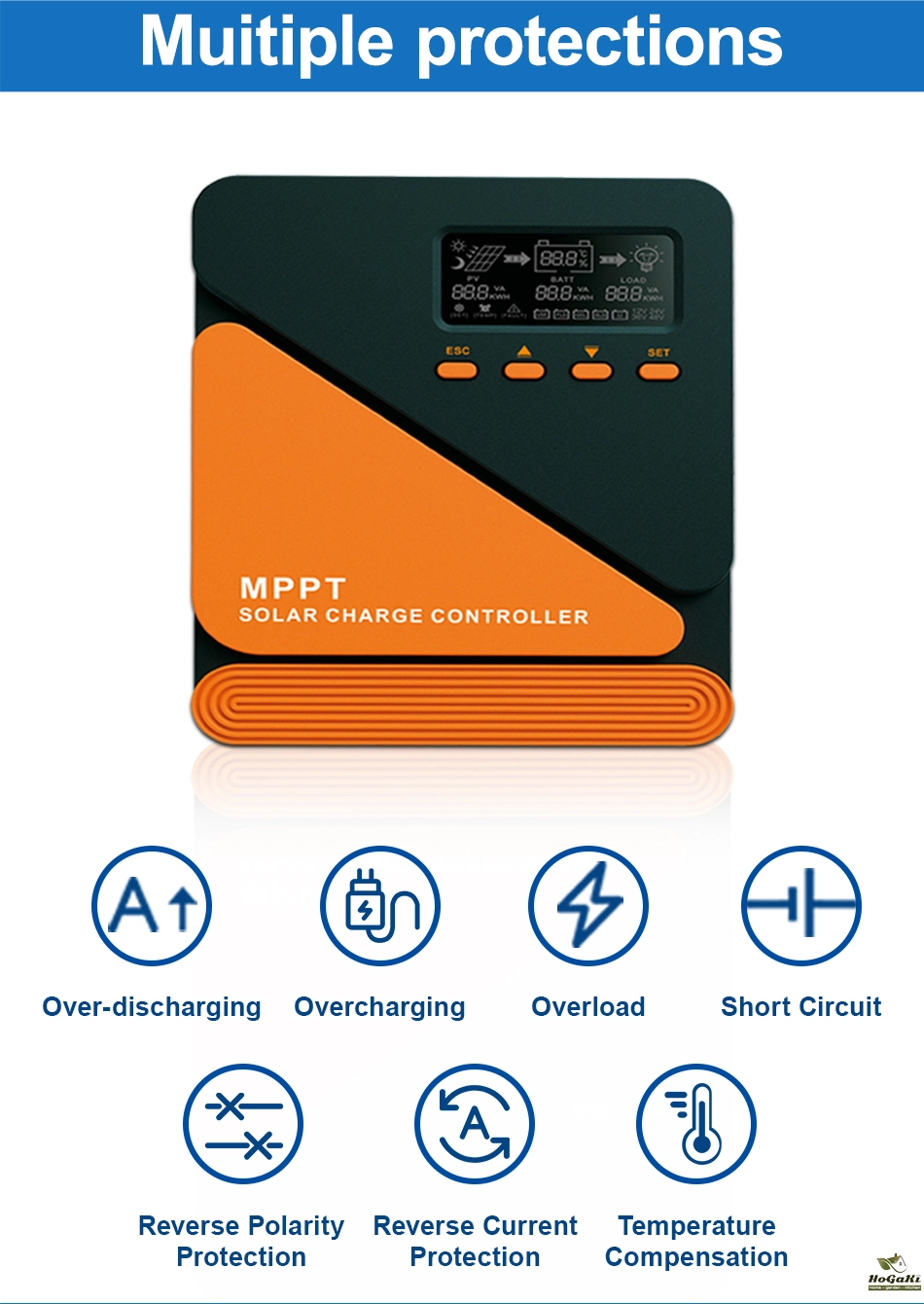

Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily

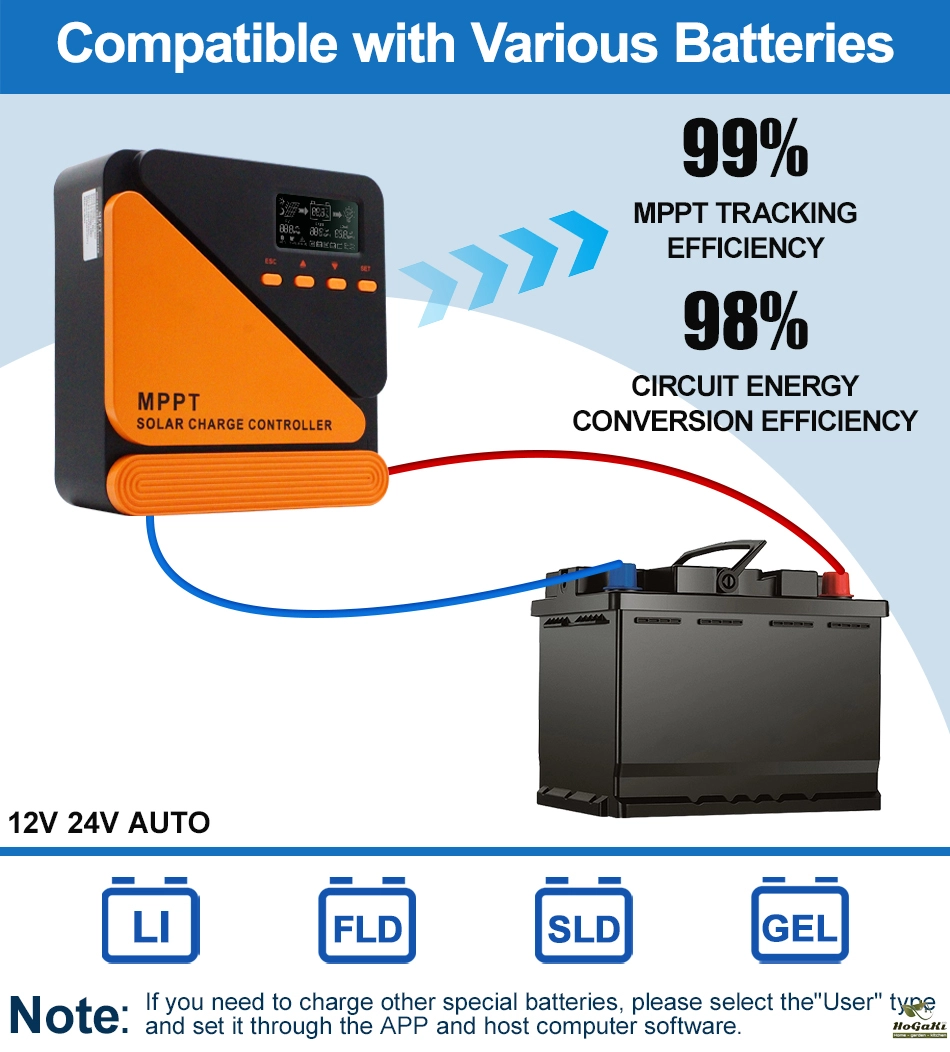

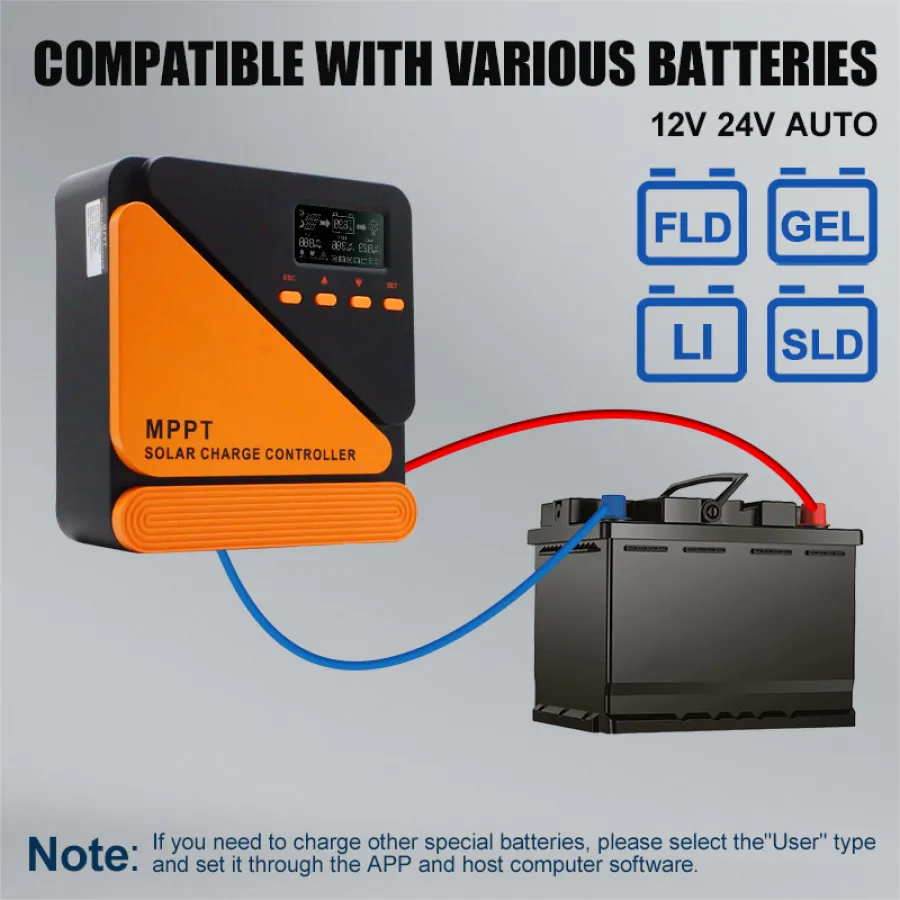

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Model | MPPT10A | MPPT20A | MPPT30A | MPPT40A | MPPT50A | MPPT60A |
Systemvoltage | 12V/24V/Auto | |||||
No-loadloss | ≤0.4W | |||||
Max.solarinputvoltage | 50VVOC | 100VVOC | ||||
Batteryvoltage | 9~32V | |||||
Max.powerpointvoltagerange | Batteryvoltage+2V~50V | Batteryvoltage+2V~100V | ||||
Ratedchargingcurrent | 10A | 20A | 30A | 40A | 50A | 60A |
Ratedloadcurrent | 20A | |||||
USBoutput | 5V*3A | |||||
Max.photovoltaicsysteminputpower | 120W/12V | 240W/12V | 360W/12V | 480W/12V | 600W/12V | 720W/12V |
Conversionefficiency | ≤98% | |||||
MPPTtrackingefficiency | ＞99% | |||||
Temperaturecompensationfactor | -2mv/C/2V(default) | |||||
Operatingtemperature | -10C~+65 C | |||||
Waterprooflevel | IP21 | |||||
Netweight | 0.4kg | 1.08kg | 1.43kg | |||
Grossweight | 0.52kg | 1.3kg | 1.65kg | |||
Electromagneticcompatiblity | AccordtoEN61000,EN55022,EN55024 | |||||
Communicationmethod | Rs485(Needtochooseandbuy) | |||||
Altitude | ≤3000m | |||||

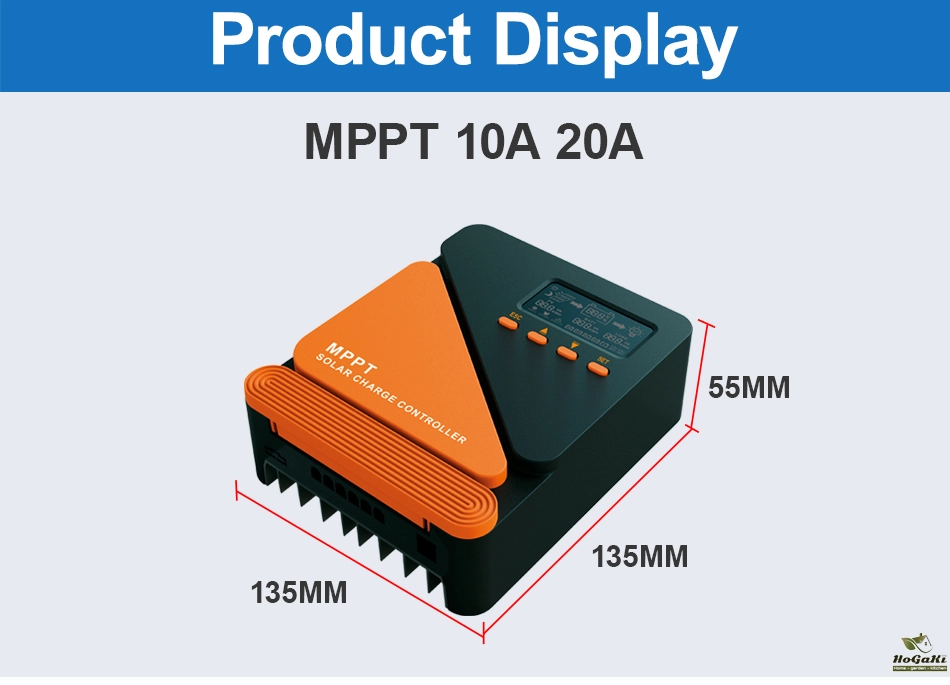

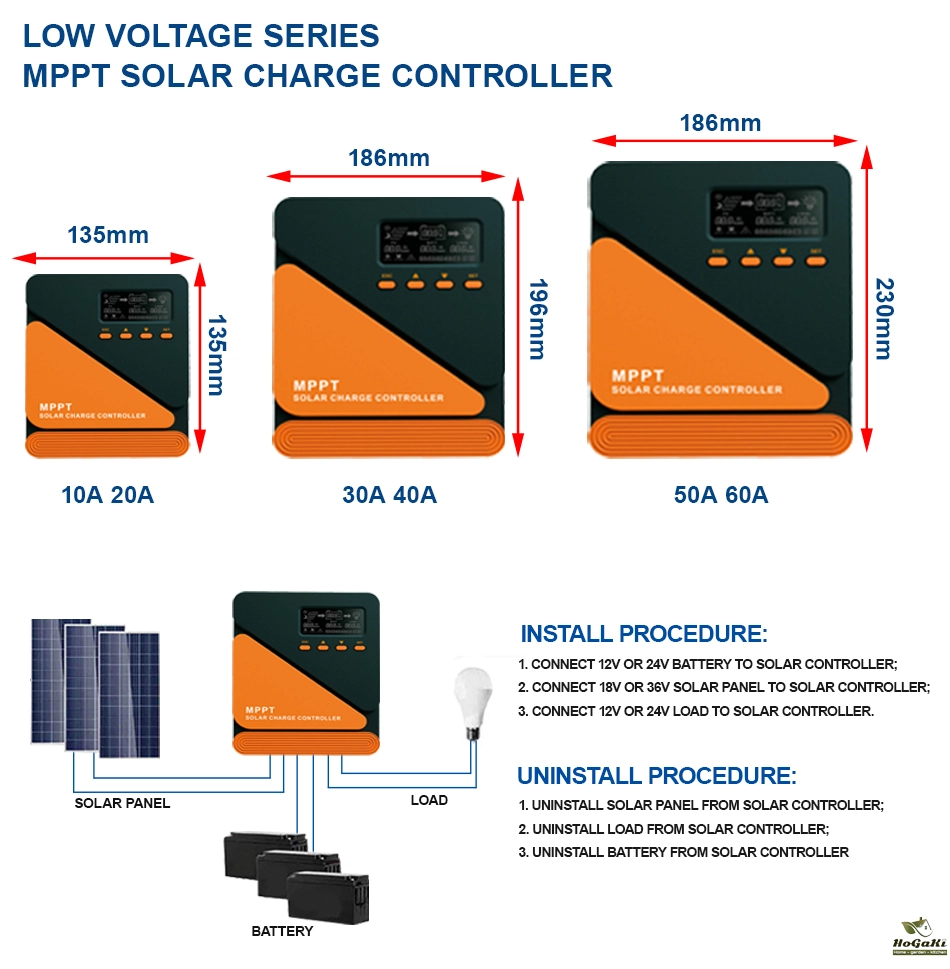

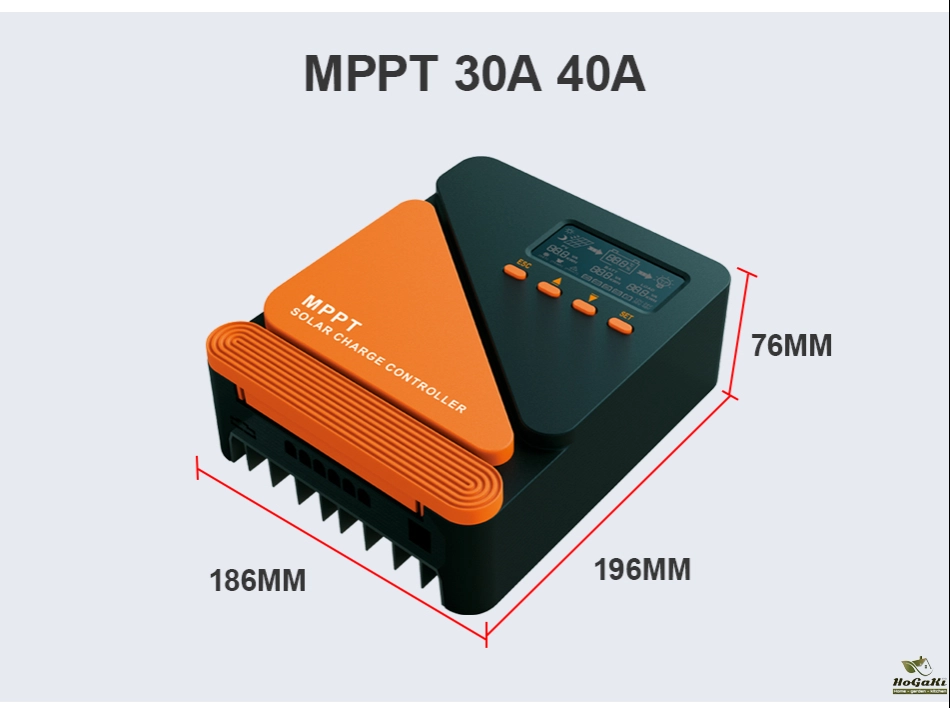

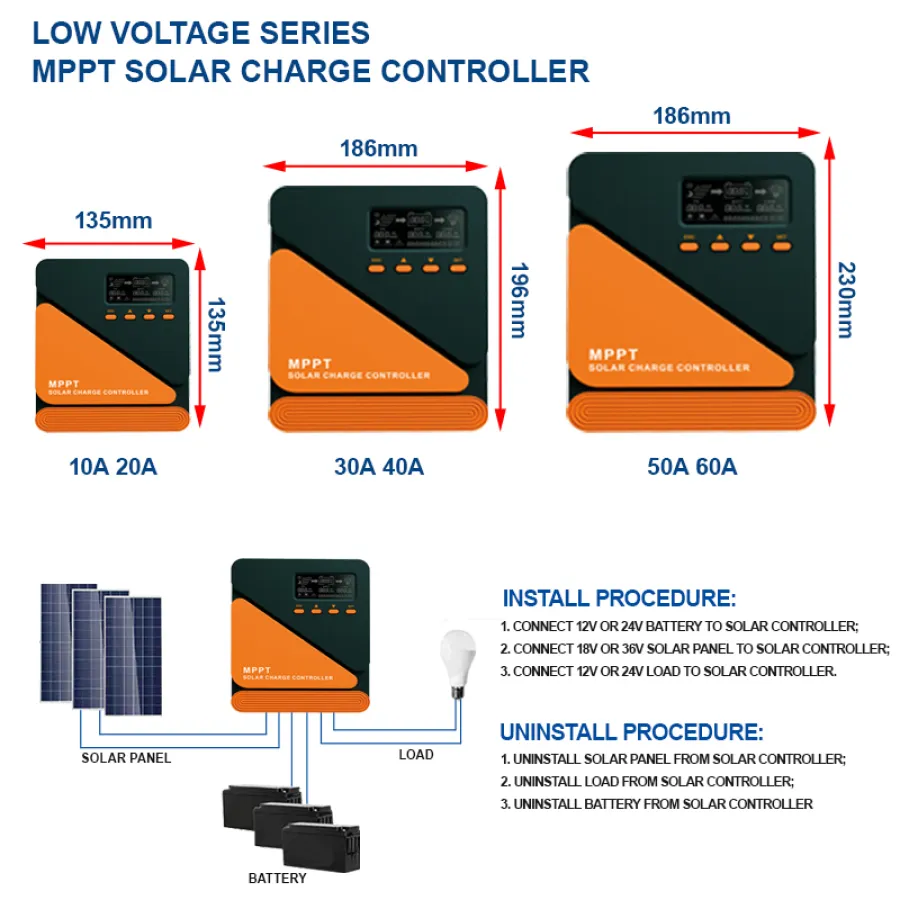

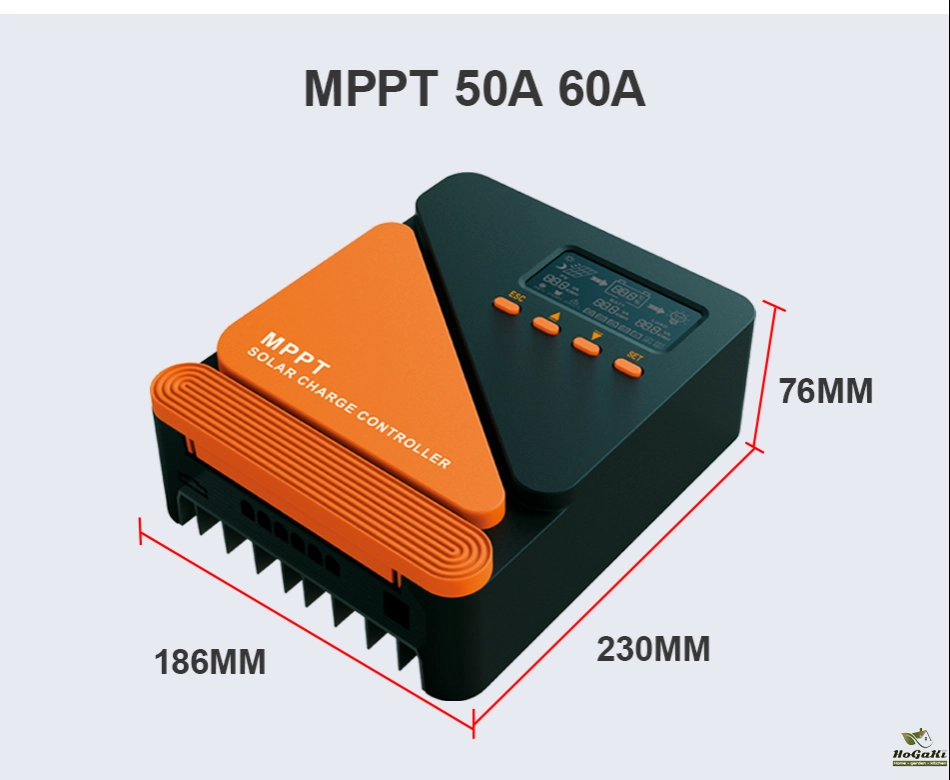

Productdimensions | 135x135x55mm | 196x186x76mm | 230x186x76mm | |||

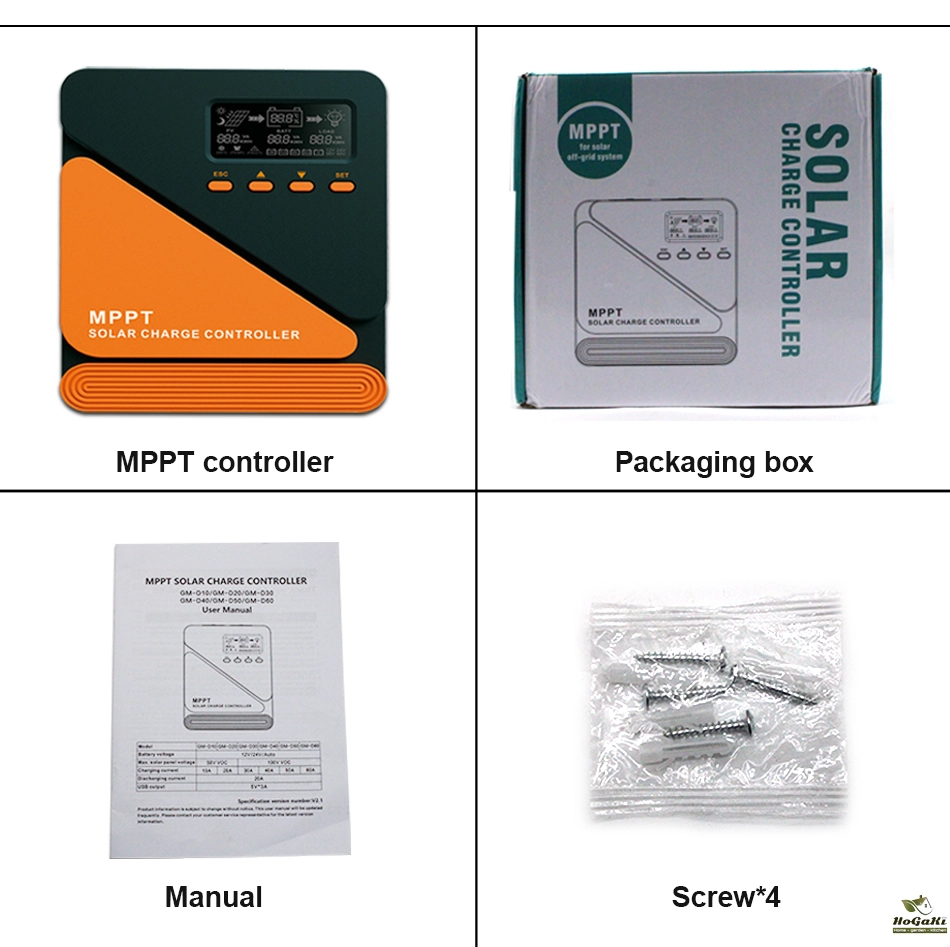

Packaging Details
- Unit Type:
- Package Weight: 1.487
- Package Size: 22x10x27
- Brand Name: EASUN POWER
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: ICharger-CM-MPPT
- Maximum Current: 60A
- is_customized: Yes
- Certification: CE
- Is Smart Device: Yes
- Application: Solar System Controller
- Application: Charger Controller
- Application: Lighting Controller
- Application: Voltage Controller
- Application: Solar Working Station
- Choice: yes
