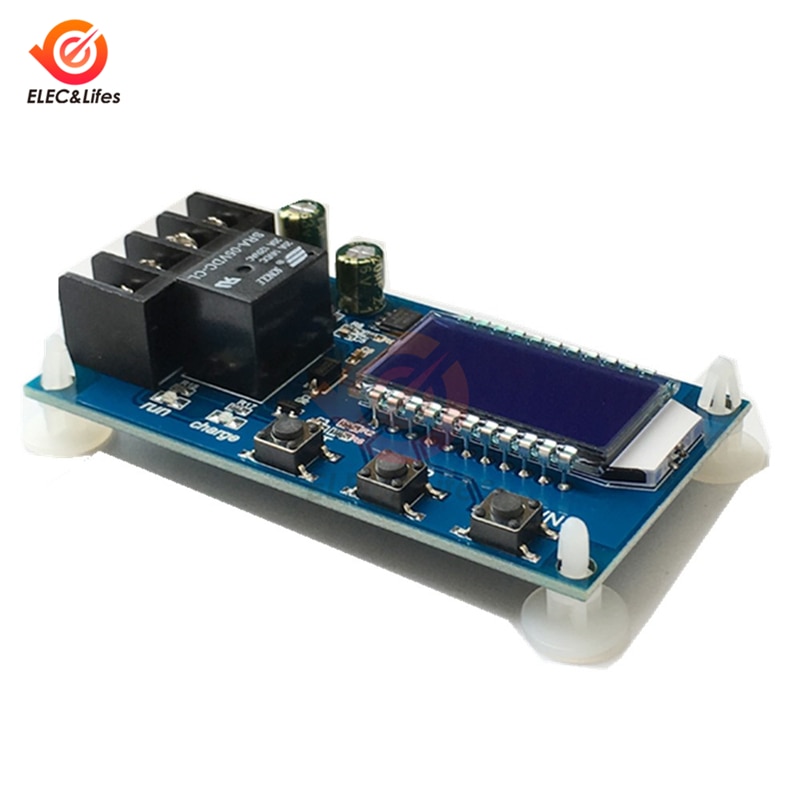

20A 30A 6-60V Lead-Acid Lithium Battery Charger Control Module Automatic charging control Overcharge Protection Board 12V 24V
4.8 (44 votes) | 89 orders
Price:
US $15.19 - 15.68
/ piece
Discount Price:
US $
14.04 -
14.45
/ piece
-8%
- Color
-
-
Product Parameters:

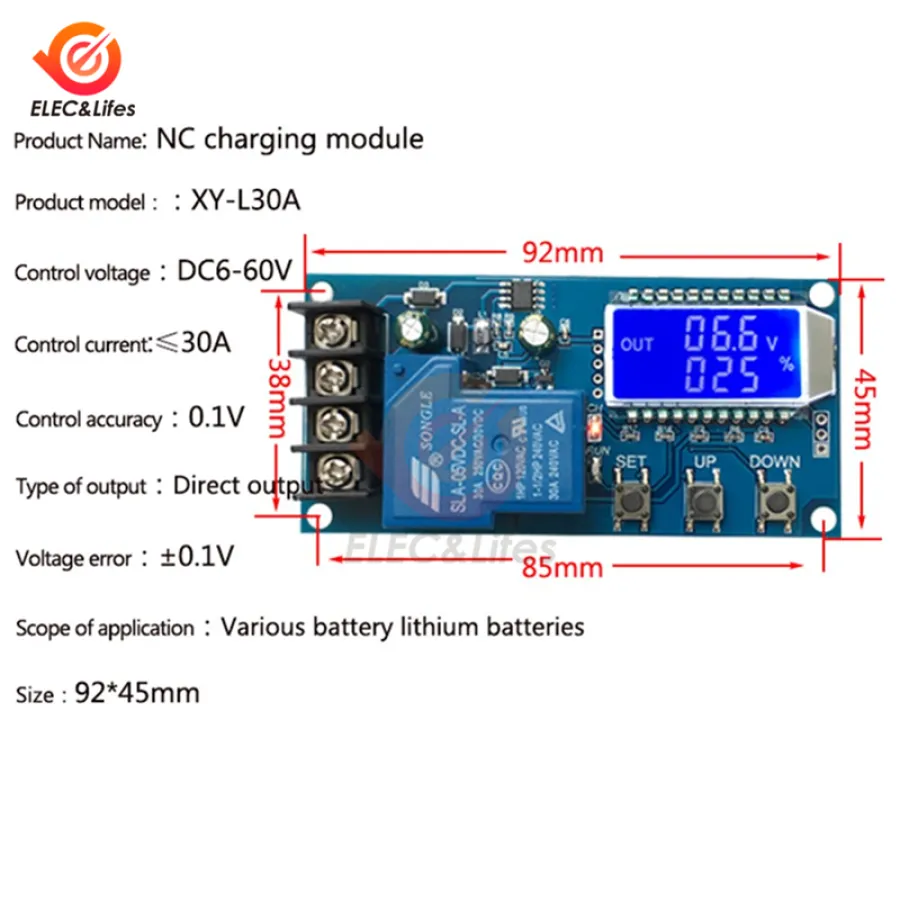

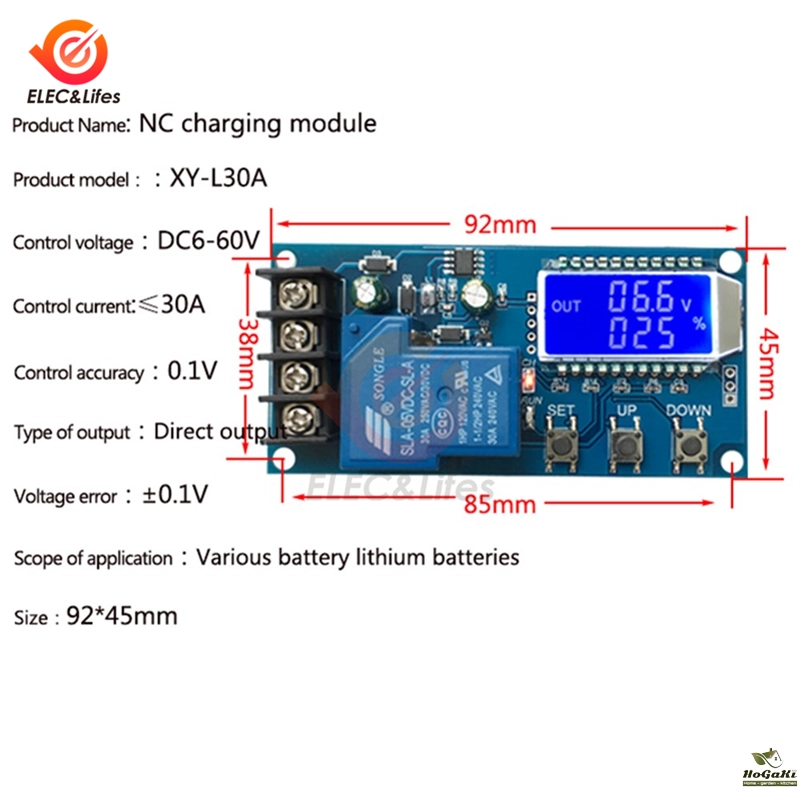

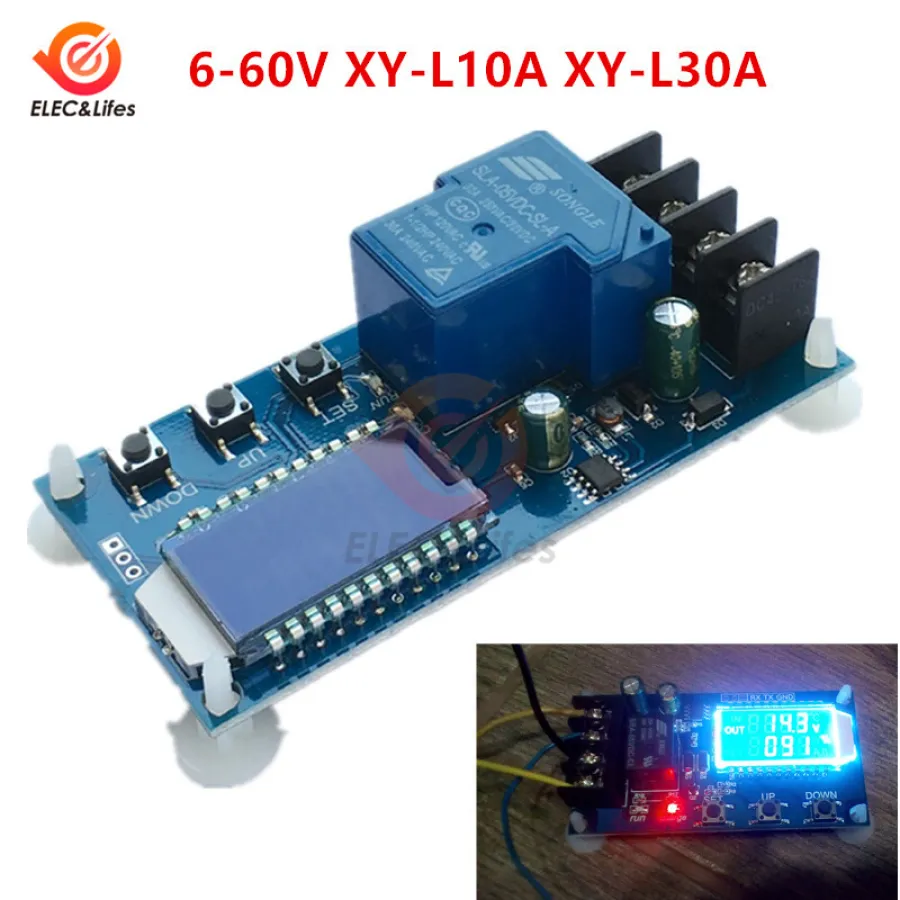

Product model: XY-L10A,XY-L30A
Control voltage: DC6~60v
Control current: ≤10A/30A (as you choose)
Control accuracy: 0.1V
Output type: direct output
Voltage error: ±0.1V
Use range: various battery lithium batteries

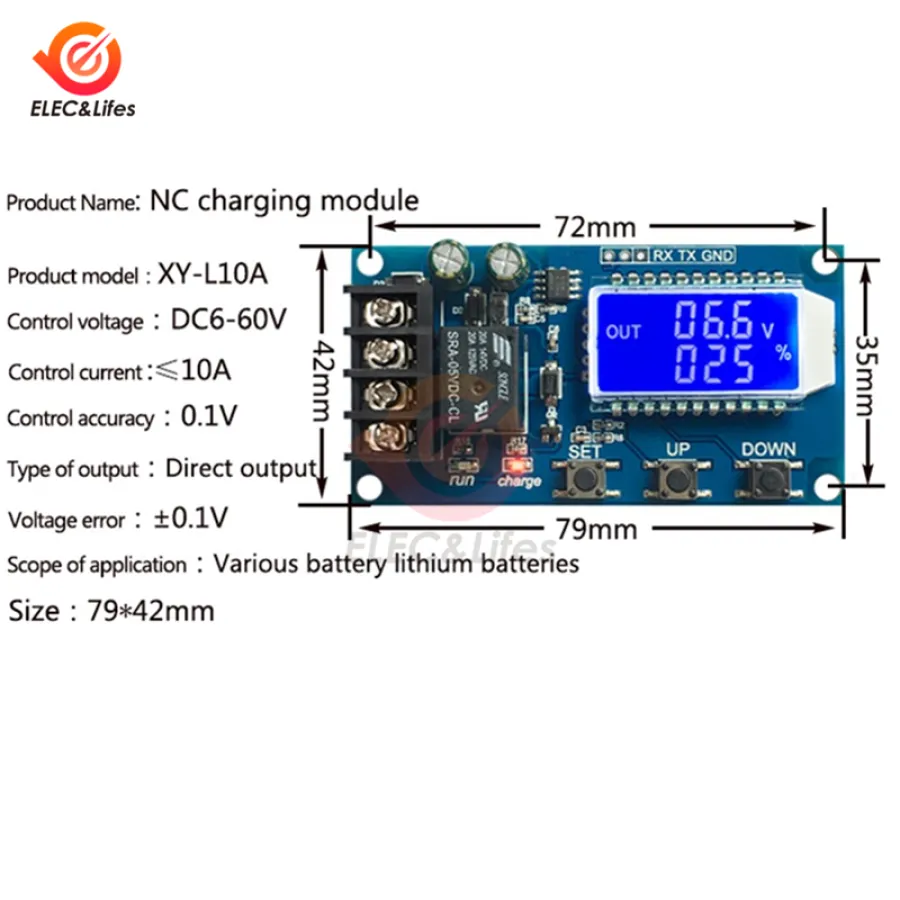

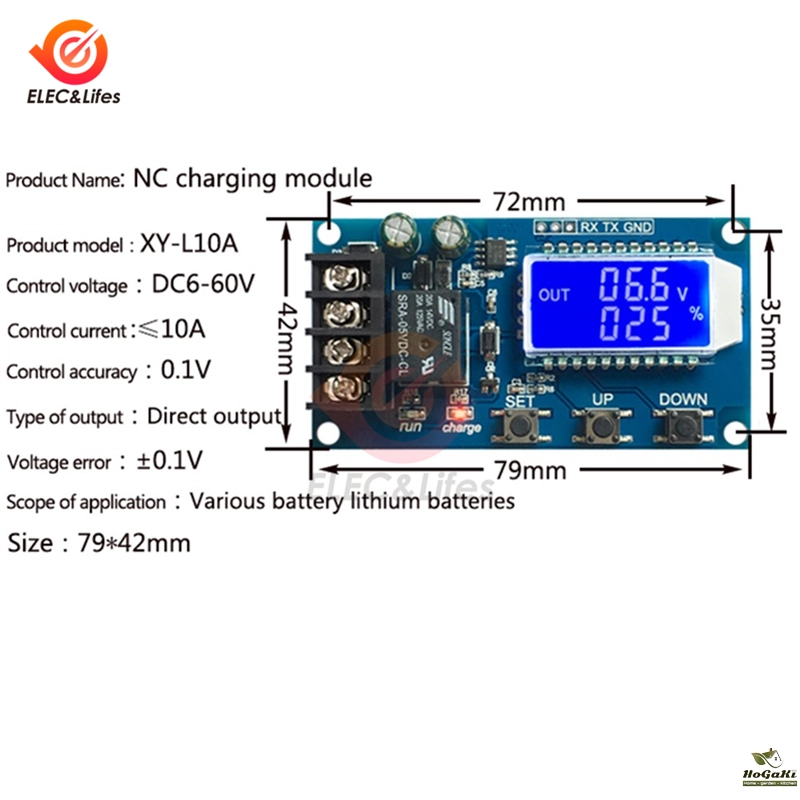

Appearance size: 79*42MM
6-60V any battery, lithium battery can be used
LCD display, battery voltage, charge percentage and charging time at a glance
The function is very powerful, it can automatically charge control, can control the charging time, and can set and upload the corresponding parameters through the serial port
Parameter Settings：
Press and hold the SET button to enter the parameter setting interface, the LCD will display SET;
After entering the parameter setting interface, switch the set parameters by short pressing the SET button;
After selecting the parameters, you can use the UP/DOWN button to set, support short press, long press (rapid increase or decrease);
If you want to set other parameters, repeat steps b), c);
After all the parameters are set, press and hold the SET button to exit and save;
First, the function description:
1. Automatic charging control function:
By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage ≤ the lower limit voltage dn, the relay is turned on, the charger starts to charge the battery; when the battery voltage ≥ the upper limit voltage UP, the relay is turned off, and an automatic charging is completed;
2. Charging time control function:
How to turn on time control?
After entering the parameter setting, if the setting parameter OP is not 0, the time control function is enabled. The default parameter of the OP is: -----h, the time control function is not enabled by default;
After the time control function is turned on (OP is not 0), when the battery voltage < lower limit voltage dn, the charger starts to charge the battery, and the system starts timing; during the timing, the battery voltage ≥ the upper limit voltage UP, the relay is turned off; if the battery voltage
Note: Time format: 00:59 (00 for hours, 59 for minutes) The maximum time is 99:59, which is 100 hours.
3. Serial data upload and parameter setting function:
The system supports UART data upload and parameter setting function (TTL level);
UART: 115200, 8, 1
Command | Function |
on | Relay open |
off | Relay close |
start | Start data reporting function |
stop | Stop data reporting function |
read | Get system parameters |
dw10.0 | Set lower limit voltage |
up20.0 | Set upper limit voltage |
xx:xx | Set the charging time and turn off the charging time control function at 00:00 |
Data upload message format:
Battery voltage + battery percentage + charging time + charging status
12.0V,020%,00:10,OP
Parameter setting:
a) Press and hold the SET button to enter the parameter setting interface, the LCD will display SET;
b) After entering the parameter setting interface, switch the set parameters by short pressing the SET button;
c) After selecting the parameters, you can use the UP/DOWN button to set, support short press, long press (rapid increase or decrease);
d) Repeat steps b), c) if you want to set other parameters;
e) After all parameters are set, press and hold the SET button to exit and save; 3. Key function description

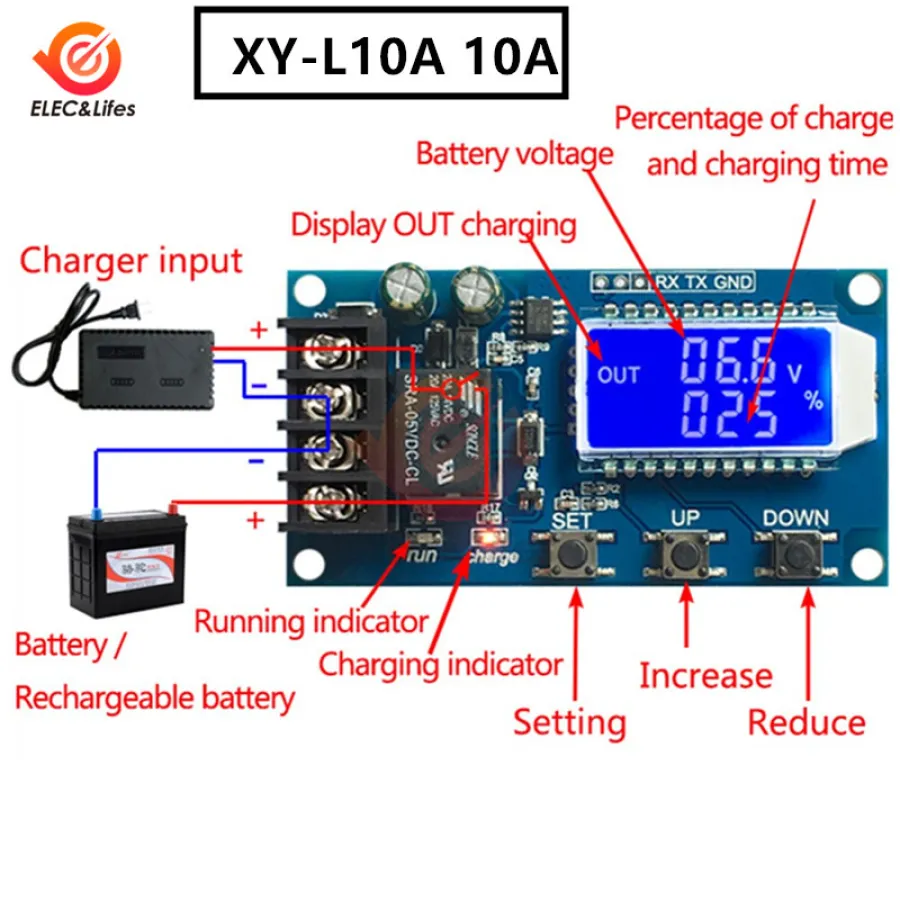

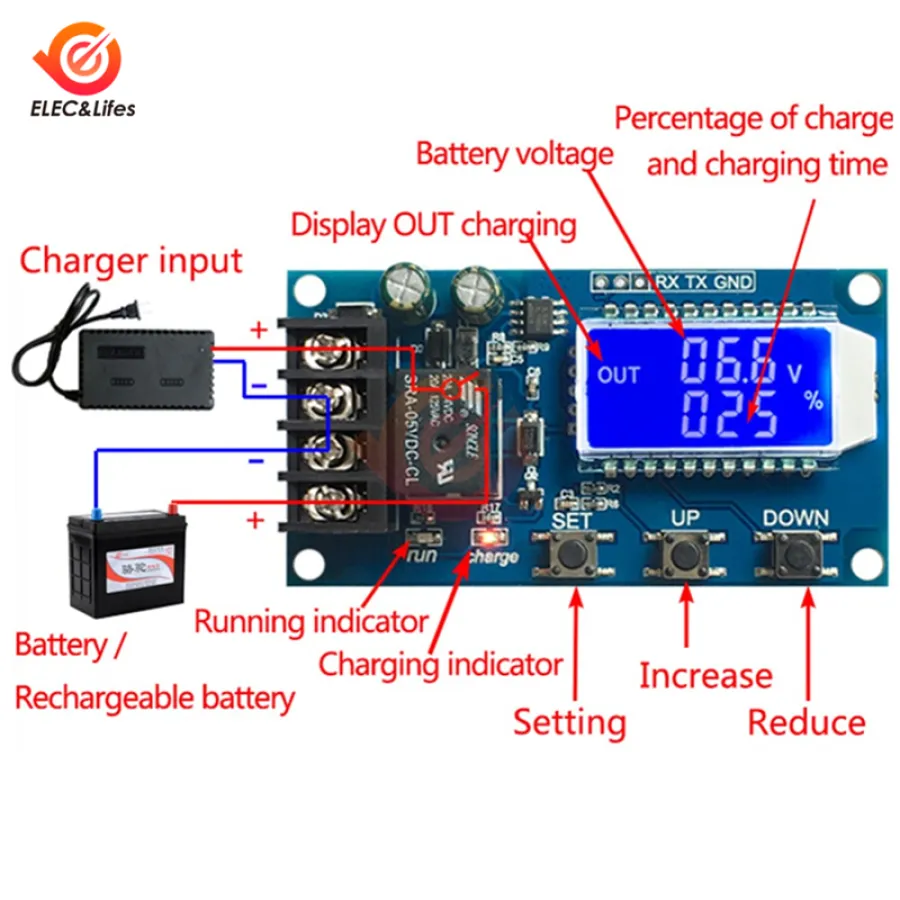

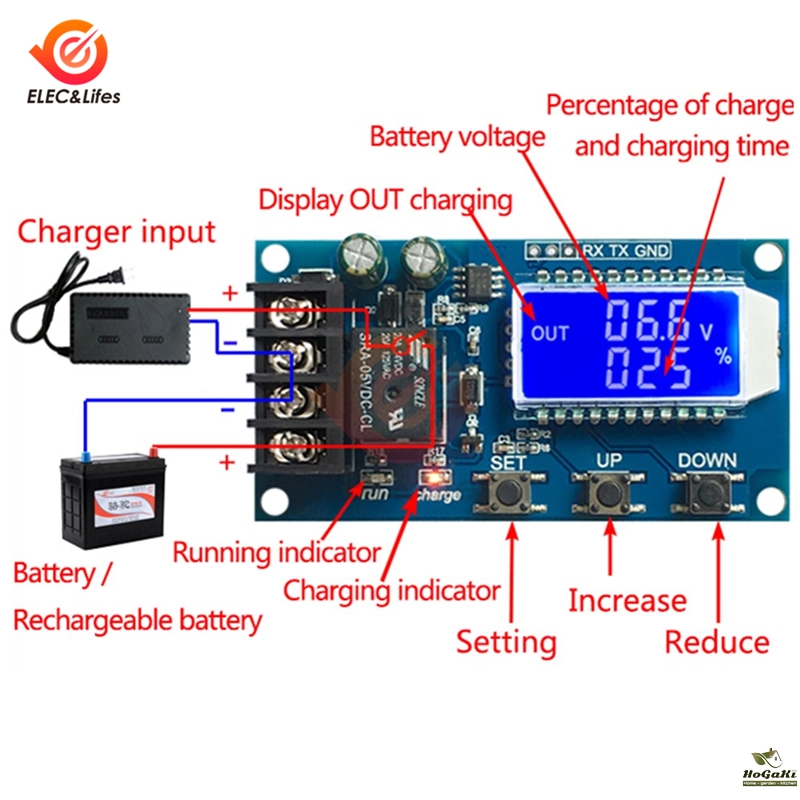

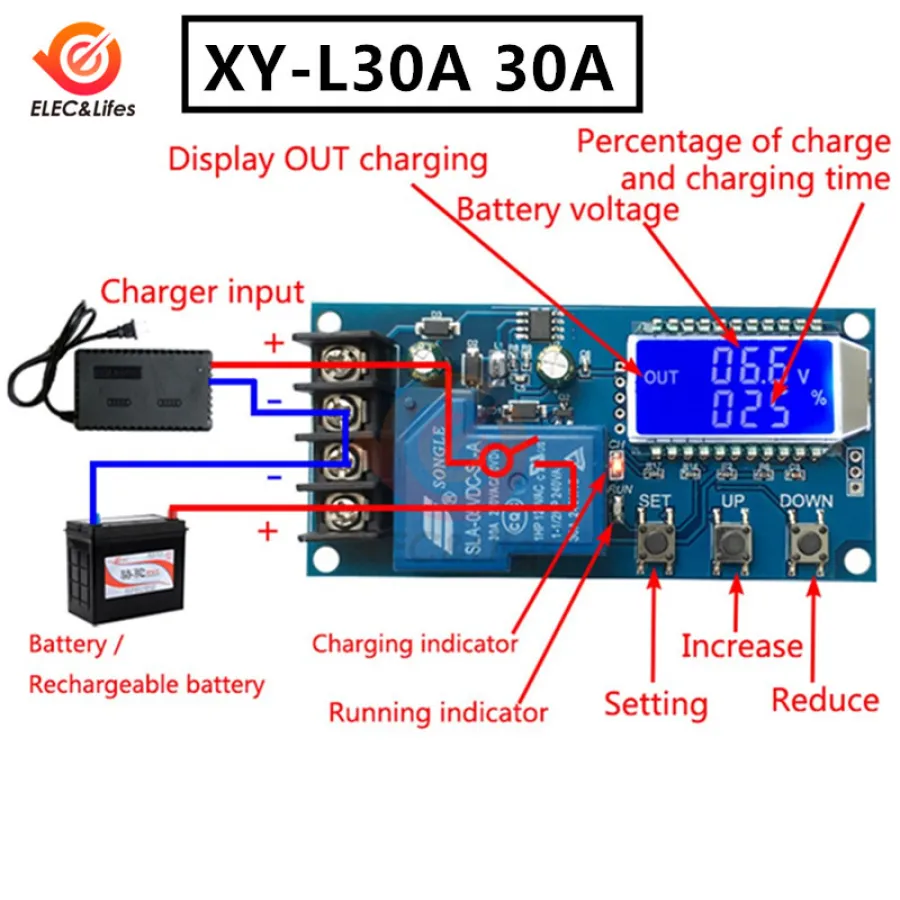

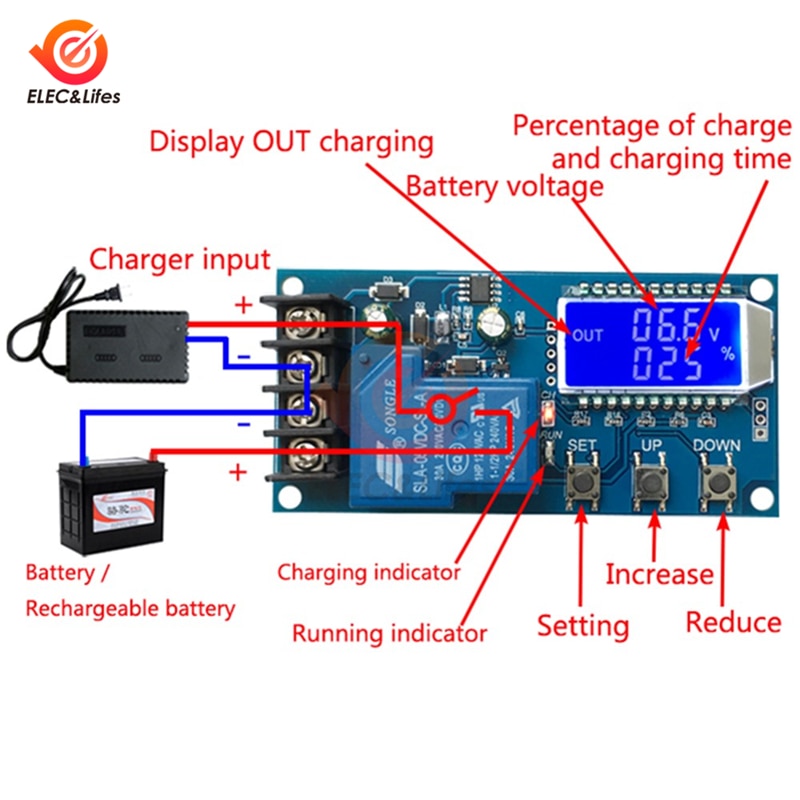

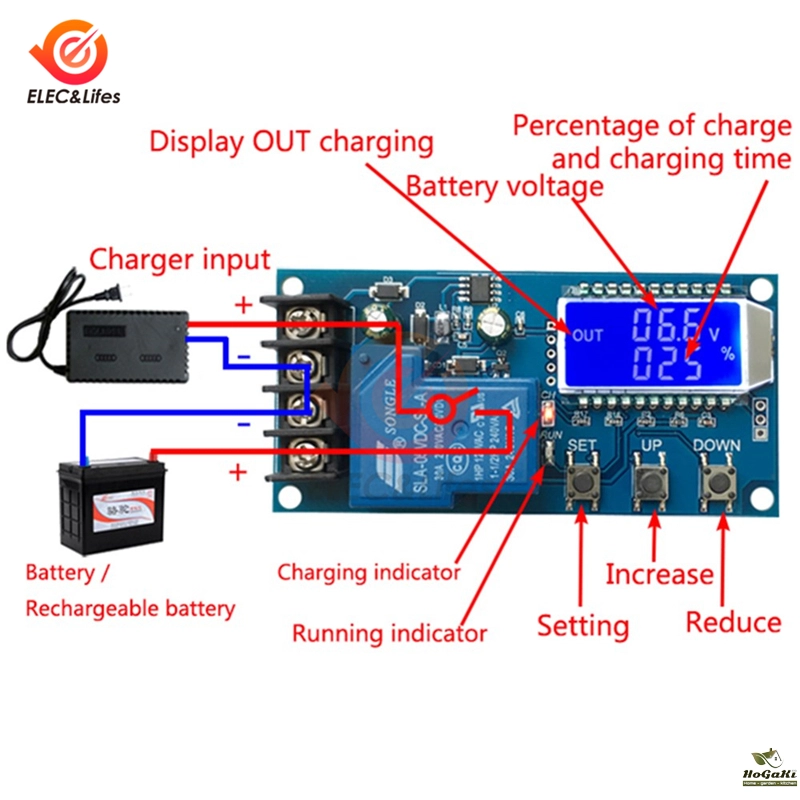

In the running interface (main interface),
Short press the SET button to display the currently set parameters;
Short press the UP button to switch between display charging percentage and charging time;
Short press the DOWN button to select the enable/disable relay enable. If the relay is enabled to turn off, ‘OFF’ will be displayed to remind you that the relay is disconnected;
Press and hold the UP button to set the status of the LCD backlight (L-P), OFF: the backlight is always on, on: the backlight is automatically turned off after 5-10 minutes;
Press and hold the SET button to enter the parameter settings.
Fourth, the calculation of the voltage percentage: battery voltage / (upper limit voltage - lower limit voltage).
Five, additional features:

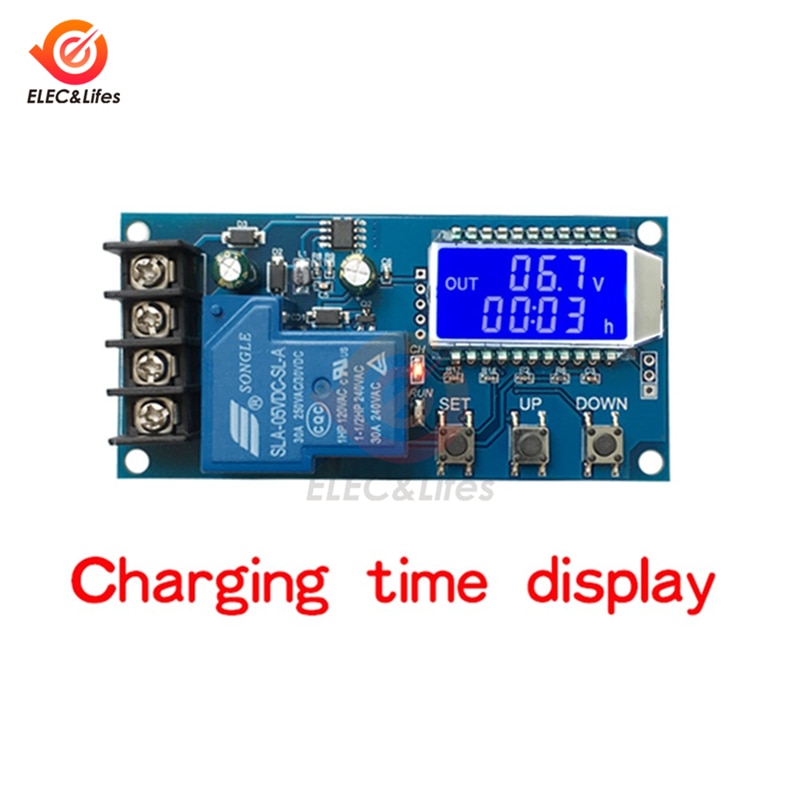

a) Charging time recording function: When the charging time control is not turned on, the product will record a complete time. When entering the time display interface, the charging time will flash; when the time display interface is exited or the next charging is turned on (the relay is turned on) ;
b) Automatic parameter detection: When the parameter is set, when exiting, if the voltage lower limit dn ≥ upper limit voltage up, the system will flash “ERR” to indicate the alarm;

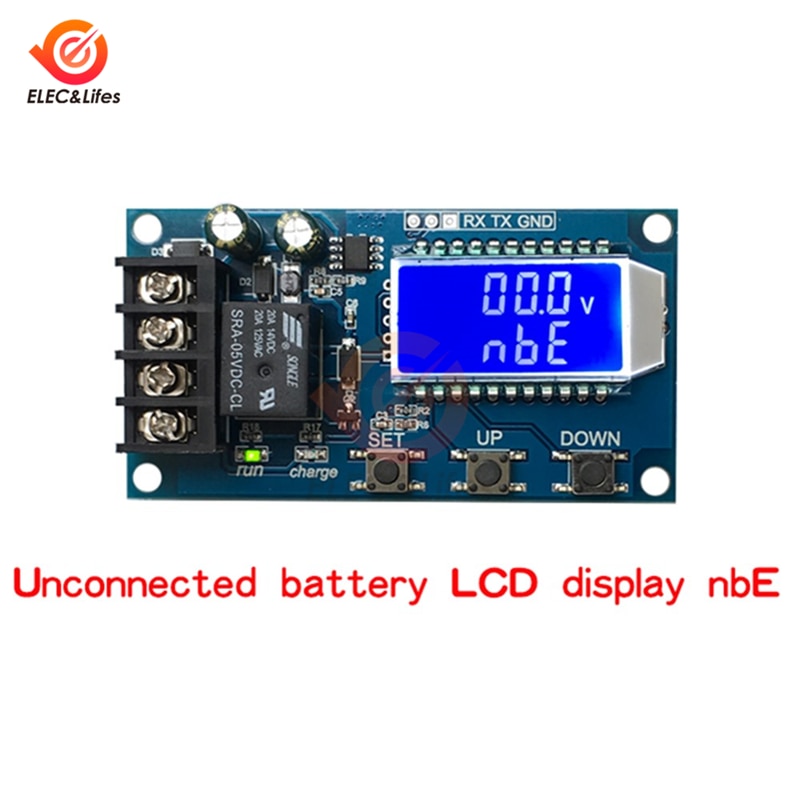

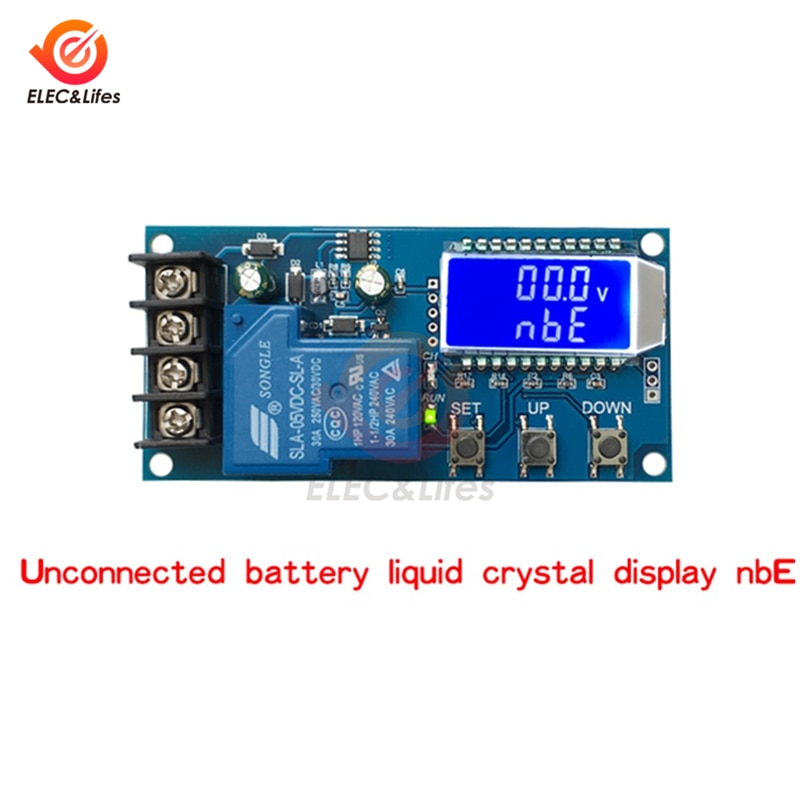

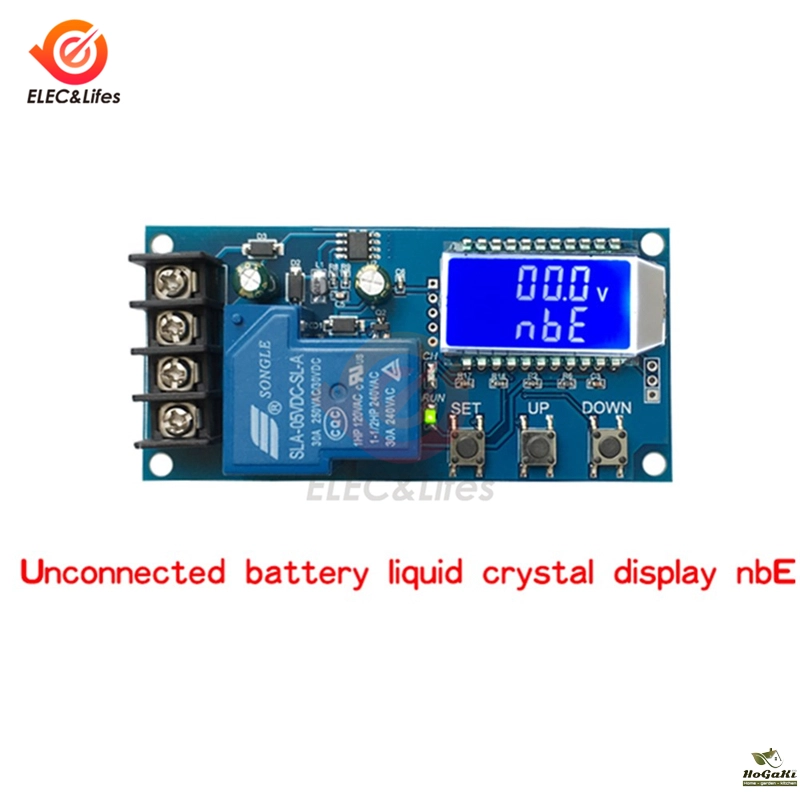

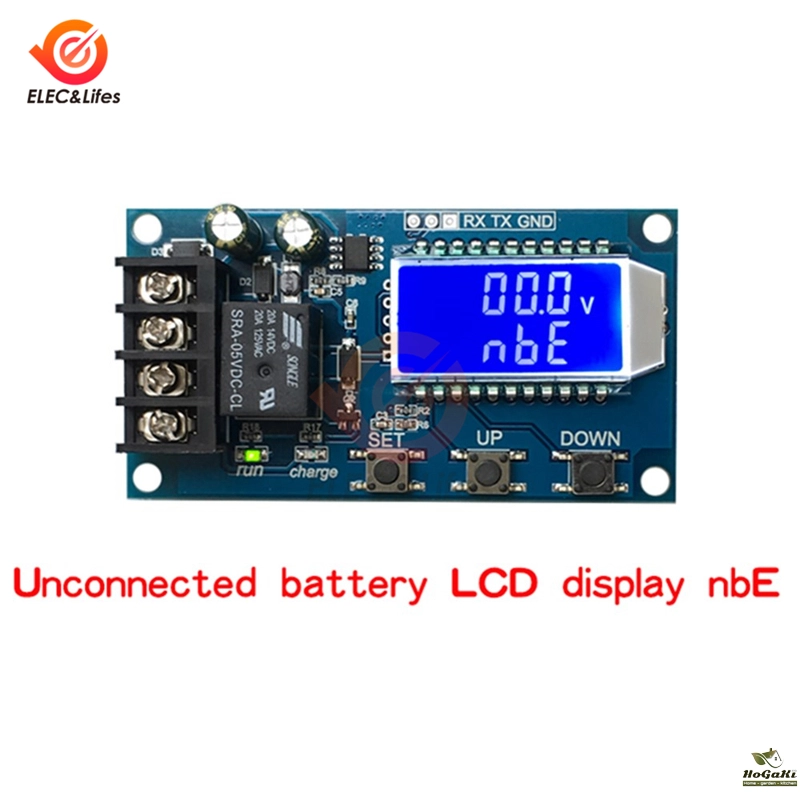

c) Battery access detection: This product is attached to the battery. If the battery is not connected, the system will display “nbE” on the lower line to remind you; 6. Common fault analysis
Q: How many V levels are suitable for use? How many V voltages does this module fit?
A: This model is suitable for use in the lowest 6V, up to 60V voltage range. The maximum expenditure level is 48V. Because the 48V battery is fully charged at 60V, it will burn when it is high. If your battery is higher than 48V, please choose other models.
Q: The relay is ringing after power-on! The indicator light flashes?
Answer: This is because your charging current is too large or the battery capacity is too small, and the voltage upper limit is reached immediately upon power-on. When the relay is disconnected, the voltage drops rapidly to the lower voltage limit, and charging begins again. When you want to reduce the charging current, usually the charging current is 1 to 1.5 of the battery capacity, such as 20AH battery charging current is generally around 2-3A! Note that high current charging can cause the battery to heat up, aging, bulging or even exploding!
Q: What control method? Can I cycle automatically? Can you use the side charge? Can you limit the flow?
Answer: This is voltage control. For example, set the voltage lower limit of 12.0V, the voltage upper limit is 14.5V, and the voltage is charged to 14.5V. This voltage is cut off. The voltage is reduced to 12.0V. The relay is closed and begins to charge. The mode only turns off and on, can't limit the current, the charging current is completely dependent on your charger!
Q: Can I charge a 24V battery by inputting 12V, or can I charge a 12V battery by inputting 48V?
A: This is a simple voltage controller that only functions as a switch. It cannot be charged to charge the battery. So what kind of charger should you prepare for charging the battery? necessary!
- Is Smart Device: No
- is_customized: Yes
- Maximum Current: 10A 30A
- Model Number: XY-L10A XY-L30A 6-60V Lead-acid LithiumBattery Charging Control Module
- Application: Charger Controller
- Brand Name: Aideepen
- Origin: Mainland China
- Certification: CE
- Type1: 10A 30A Battery Charging control board
- Type2: 12V 24V 36V 48V Lead-acid lithium battery Charger Control Module
- Function: Automatic charging control function
- Feature1: Controller Protection Board with Overcharge Protection Switch XY-L10A
- Feature2: Lead-acid Solar Storage Battery Charger Controller board
