EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery
4.9 (410 votes) | 2000 orders
Price:
US $339.74
Discount Price:
US $
154.16
-55%
- Rated Voltage
- Current

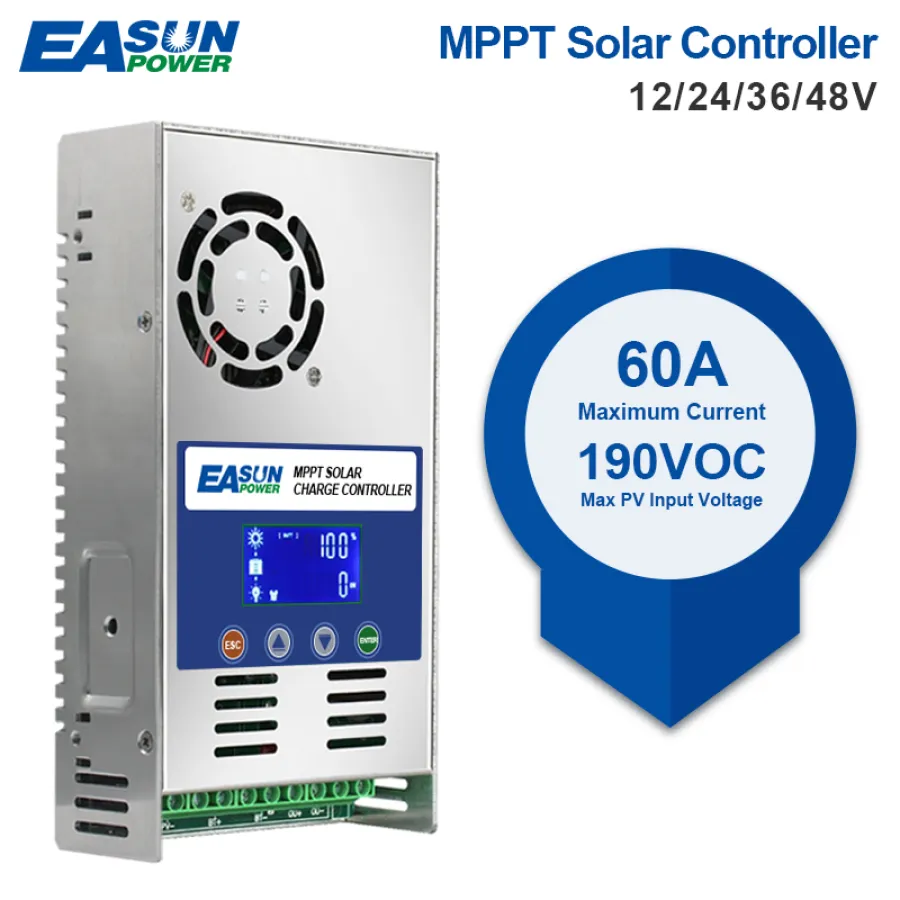

EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery

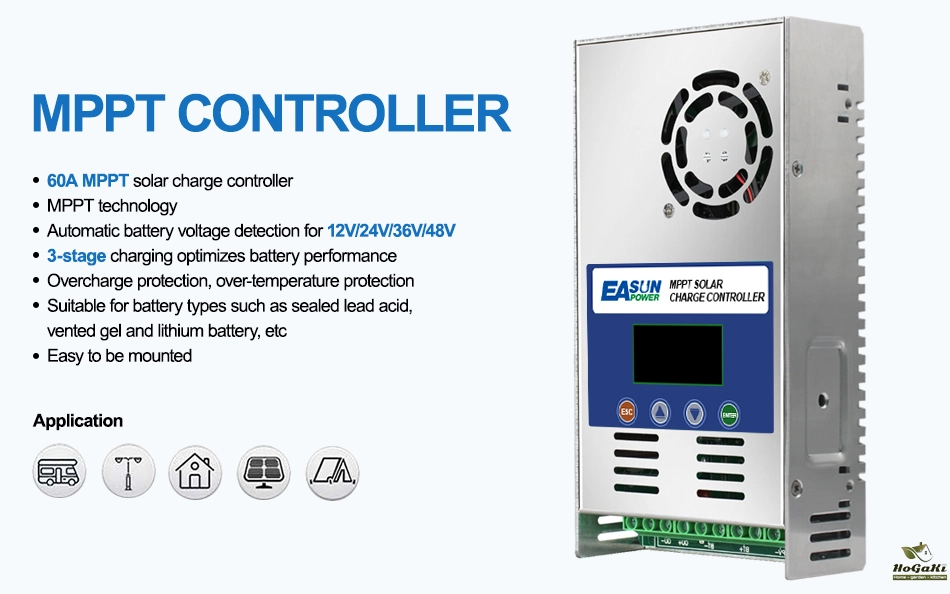

Features：
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance

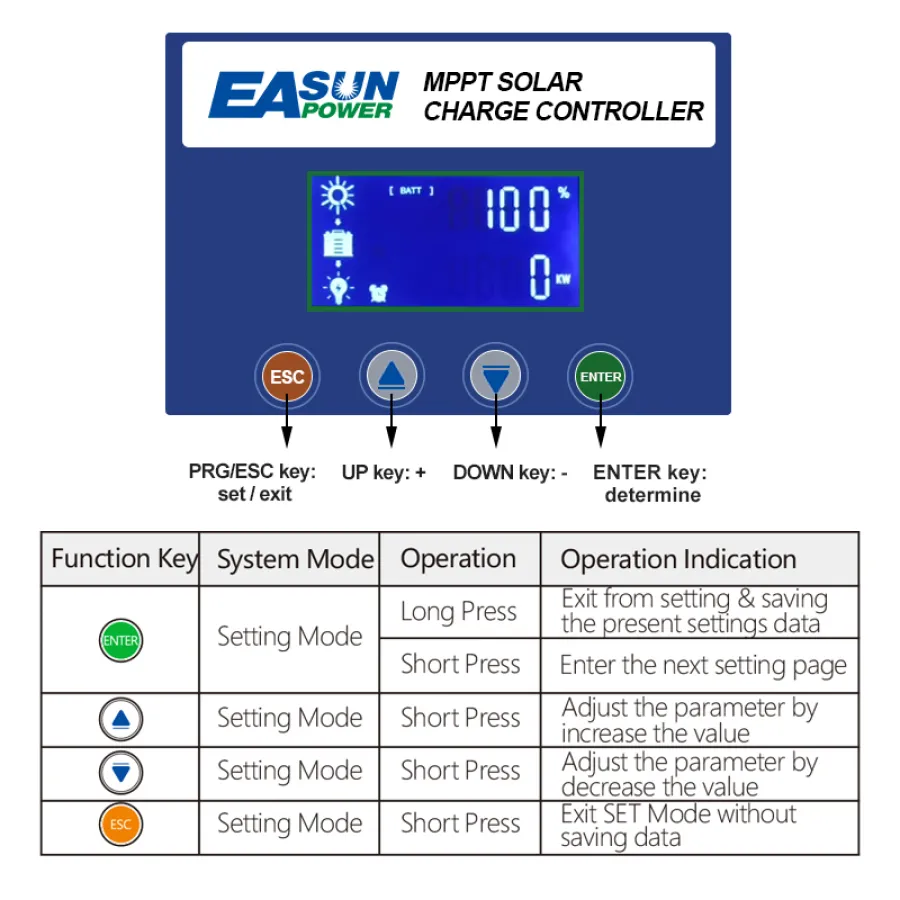

Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

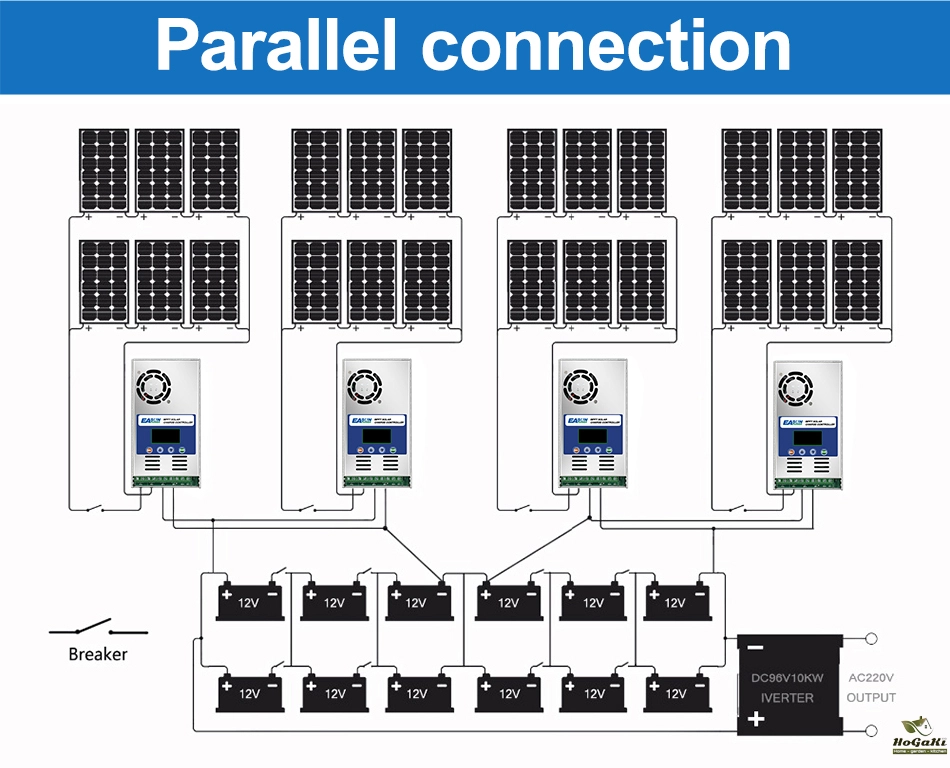

you can Put two pieces60Ain parallel ,So total isMPPT 120A
Support unlimited parallel connection
Item | Parameter | ||||||

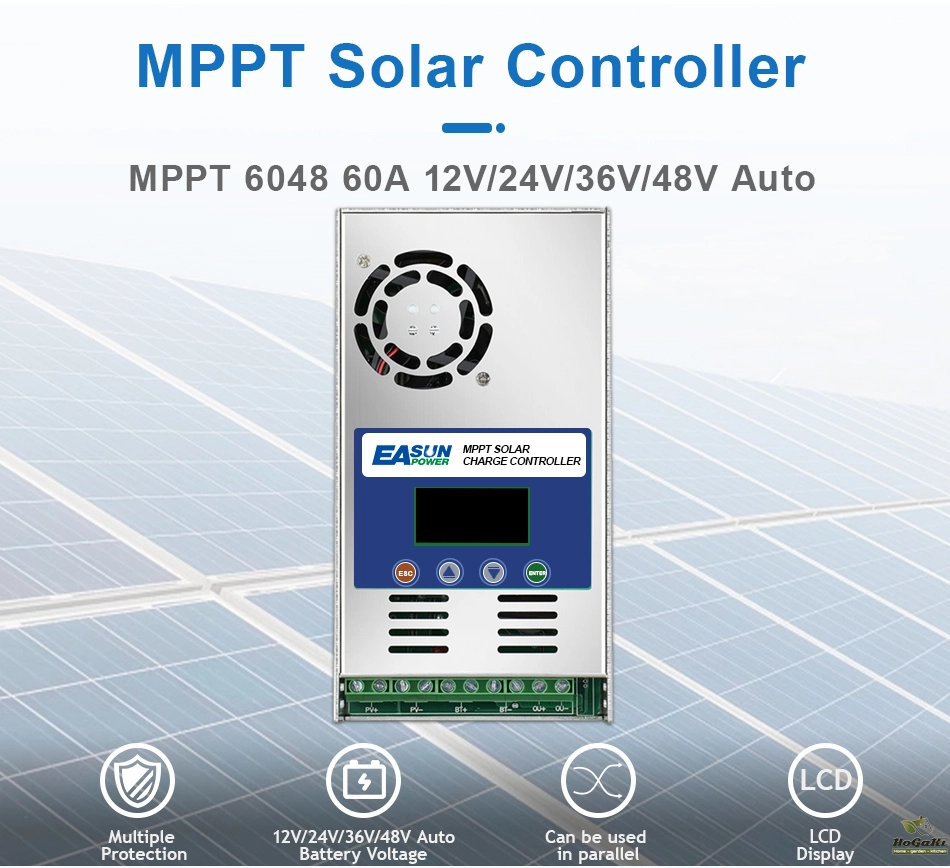

Models | ICharger MPPT 6048 | ||||||
Chargingmode | 3-stage:constantcurrent(MPPT),constantvoltage,floating | ||||||
SystemVoltage | 12/24/36/48/Auto | ||||||
MaxPVInputPower | 720W/12V; 1440W/24V2160W/36V; 2880W/48V | ||||||
MaxPVInput Voltage | 190Voc | ||||||
Batteryvoltageautomaticrecognition | 12Vsystem(DC8.7V-DC15.5V)；24Vsystem(DC16V-DC31V) 36Vsystem(DC33V-DC41V)；48Vsystem(DC42V-DC64V) | ||||||
Overchargingprotectionvoltage | 12V system (16V)；24V system (32V)36Vsystem(48V)；48Vsystem(64V) | ||||||
Limitedcurrentprotection | 61A | ||||||
Maxefficiency | ≥98.1% | ||||||
PVutilization | ≥99% | ||||||
AutoTemperatureCompensation | -3mV/2V/ºC | ||||||
ProtectionFunction | |||||||
Temperatureprotection | 75℃ | ||||||
Fan-ontemperature | >45℃ | ||||||
Fan-offtemperature | <40℃ | ||||||
Properties | |||||||

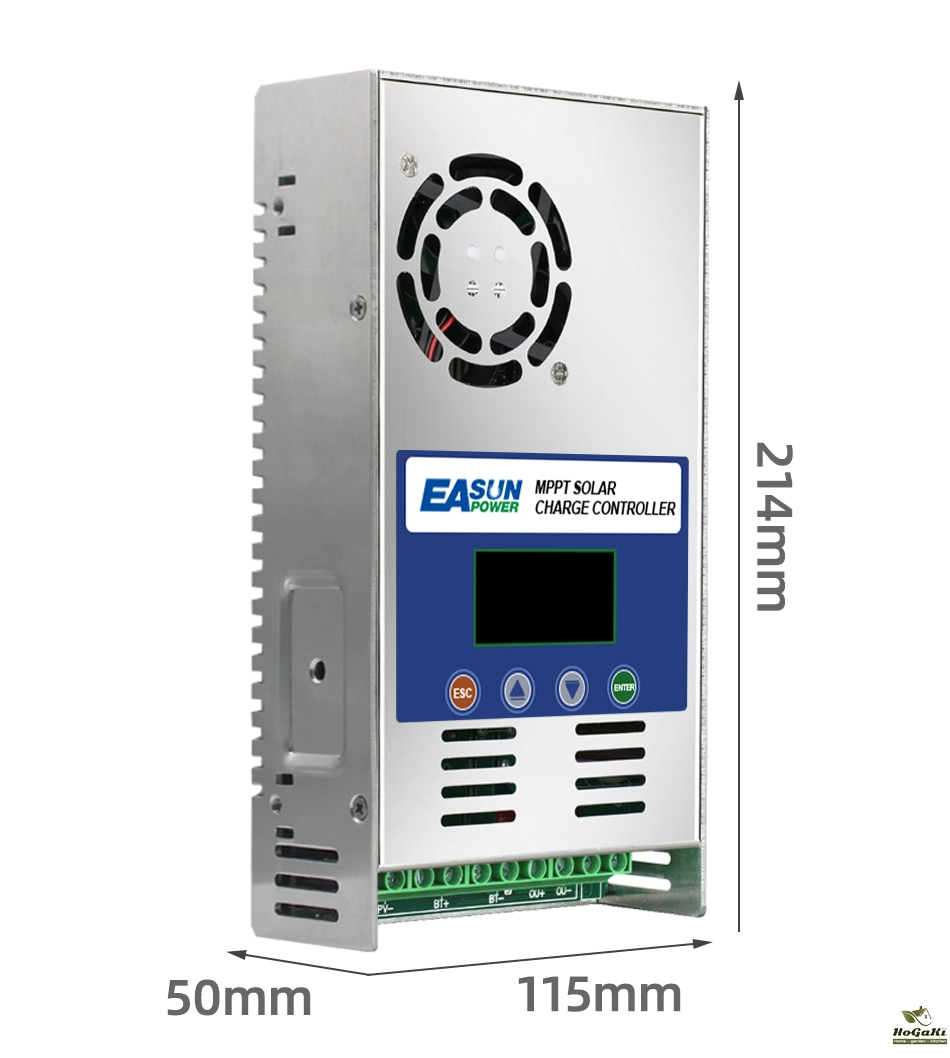

Size(mm) | 214x115x50 | ||||||
Netweight(Kg) | 1.1 | ||||||
Grossweight(Kg) | 1.2 | ||||||
Electromagneticcompatibility | AccordtoEN61000,EN55022,EN55024 | ||||||
Enclosure | IP21 | ||||||
Environmentaltemperature | -20℃~+55℃ | ||||||
Storagetemperature | -40℃~+75℃ | ||||||

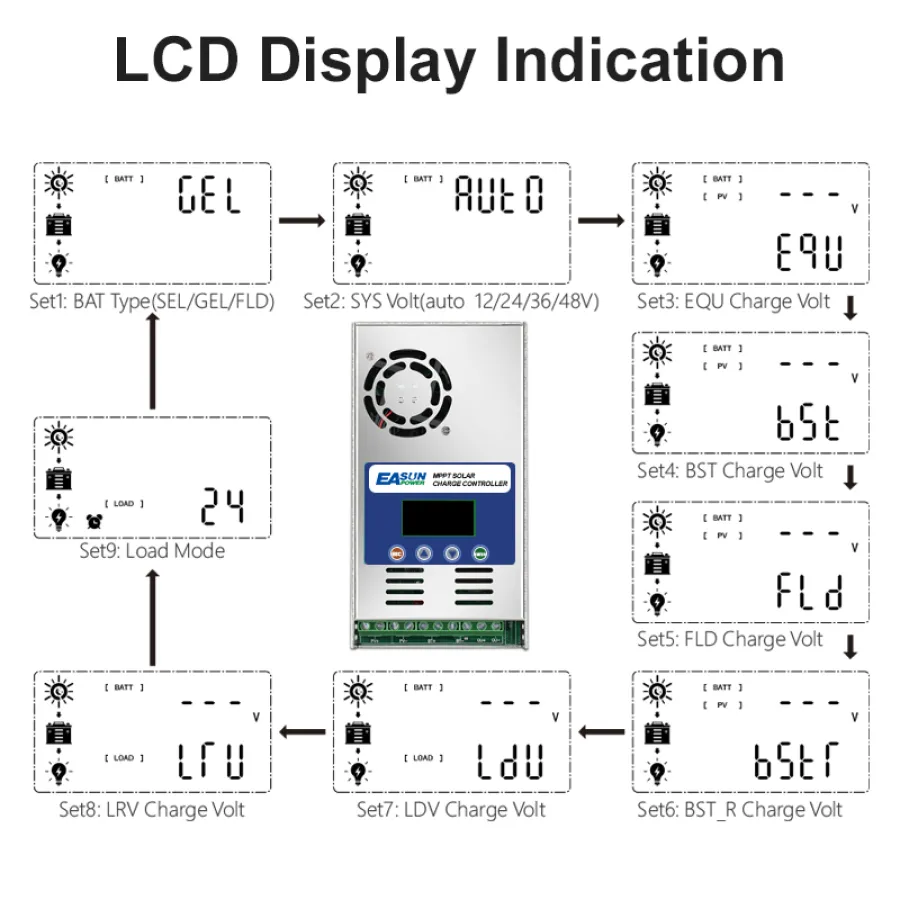

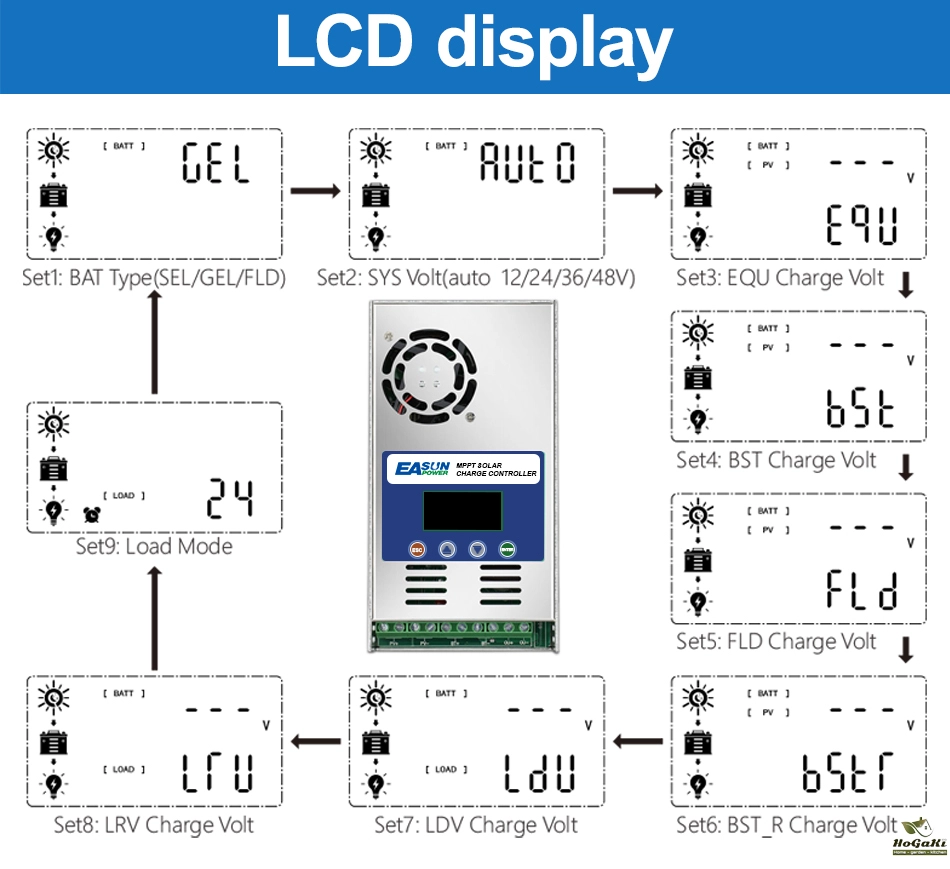

BatteryParameters | |||||||
BatteryType | SystemVolt | EQU | BST | FLD | BST_R | LRV | LDV |
GEL | Auto | 14.2V | 14.2V | 13.8V | 13.2V | 12.6V | 12.0V |
SEL | Auto | 14.6V | 14.4V | 13.8V | 13.2V | 12.6V | 12.0V |
FLD | Auto | 14.8V | 14.6V | 13.8V | 13.2V | 12.6V | 12.0V |
USE | Auto/12/24/36/48V | Definedbyusers | |||||
LI | 12/24/36/48V | --- | Definedbyusers | --- | --- | Definedbyusers | |
ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe controller.) | 12Vsystem(360W) | 12Vsystem(480W) | 12Vsystem(600W) | 12Vsystem(720W) | |||
24Vsystem(720W) | 24Vsystem(960W) | 24Vsystem(1200W) | 24Vsystem(1440W) | ||||
36Vsystem(1080W) | 36Vsystem(1400W) | 36Vsystem(1800W) | 36Vsystem(2100W) | ||||
48Vsystem(1440W) | 48Vsystem(1700W) | 48Vsystem(2200W) | 48Vsystem(2800W) | ||||
Packaging Details
- Unit Type:
- Package Weight: 1.343
- Package Size: 18x10x27
- Brand Name: EASUN POWER
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: ICharger-4860
- Maximum Current: 60A
- is_customized: Yes
- Certification: CE
- Is Smart Device: Yes
- Application: Solar System Controller
- Application: Solar Working Station
- Application: Voltage Controller
- Application: Lighting Controller
- Application: Charger Controller
- Battery System Voltage: 12V 24V 36V 48V
- Enclosure: IP21
- Fan-off temperature: <40℃
- Fan-on temperature: >45℃
- Gross weight (Kg): 1.2KG
- Max Solar Input Voltage: 190VOC
- PV utilization: 99%
- Quality: 100% genuine
- Temperature protection: 75℃
- The maximum PV input power: 720W/12V; 1440W/24V2160W/36V; 2880W/48V
- Choice: yes
