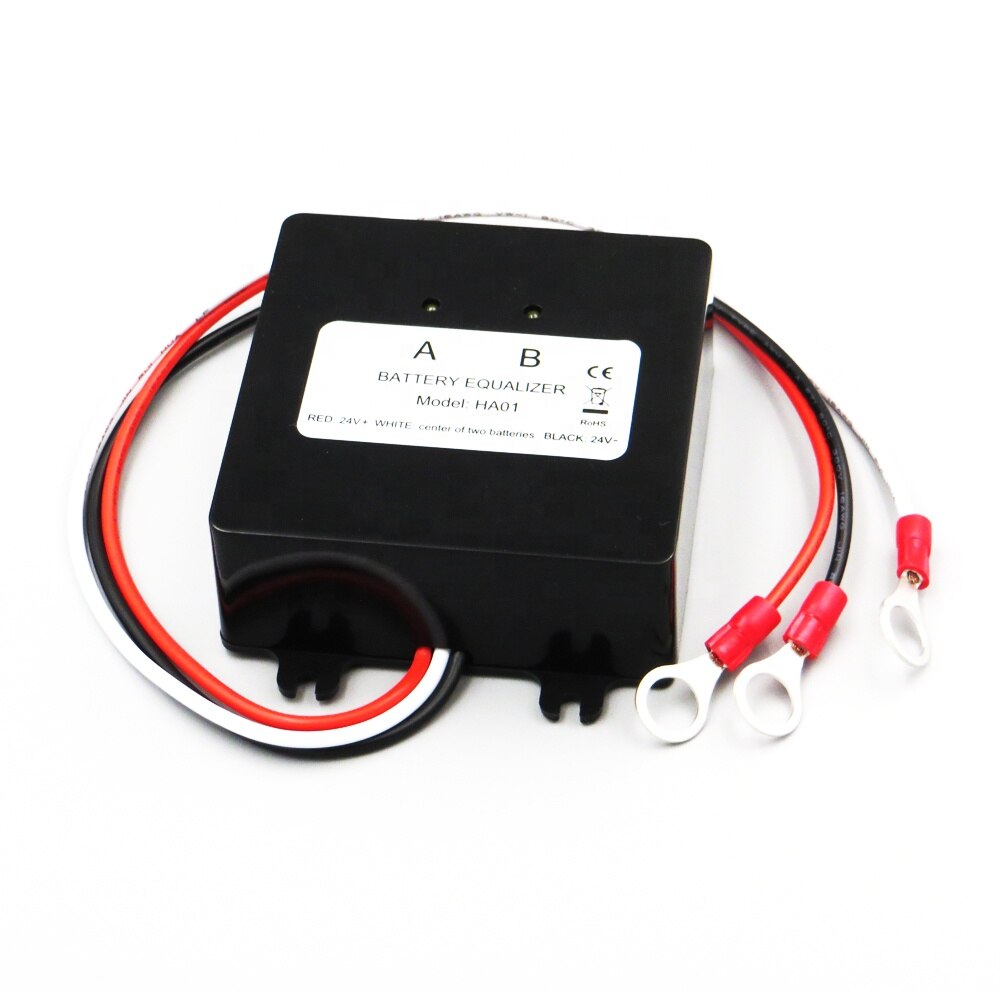

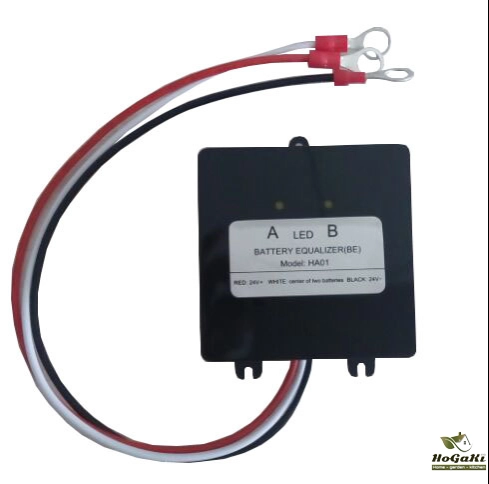

battery equalizer HA01 for 12V lead acid battery connected in series:

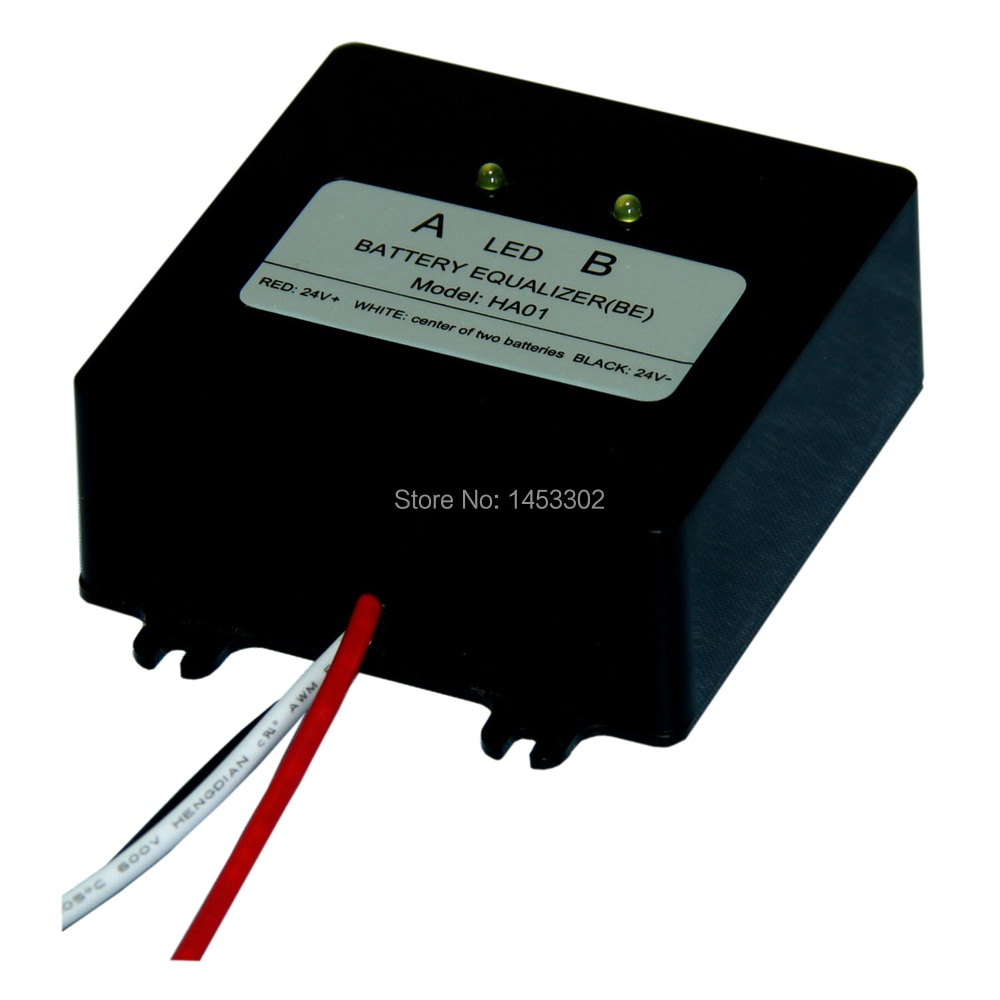

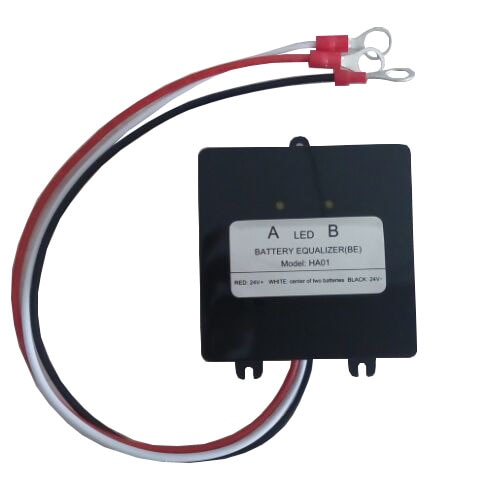

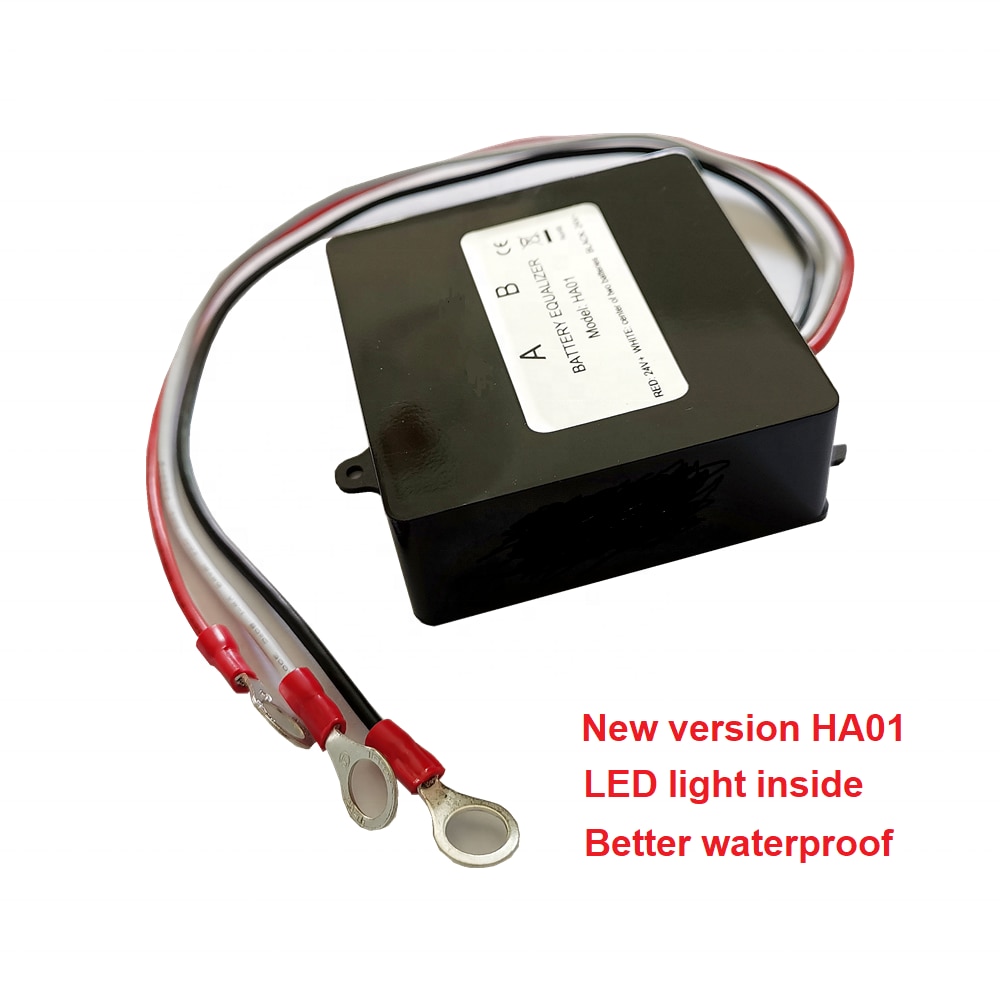

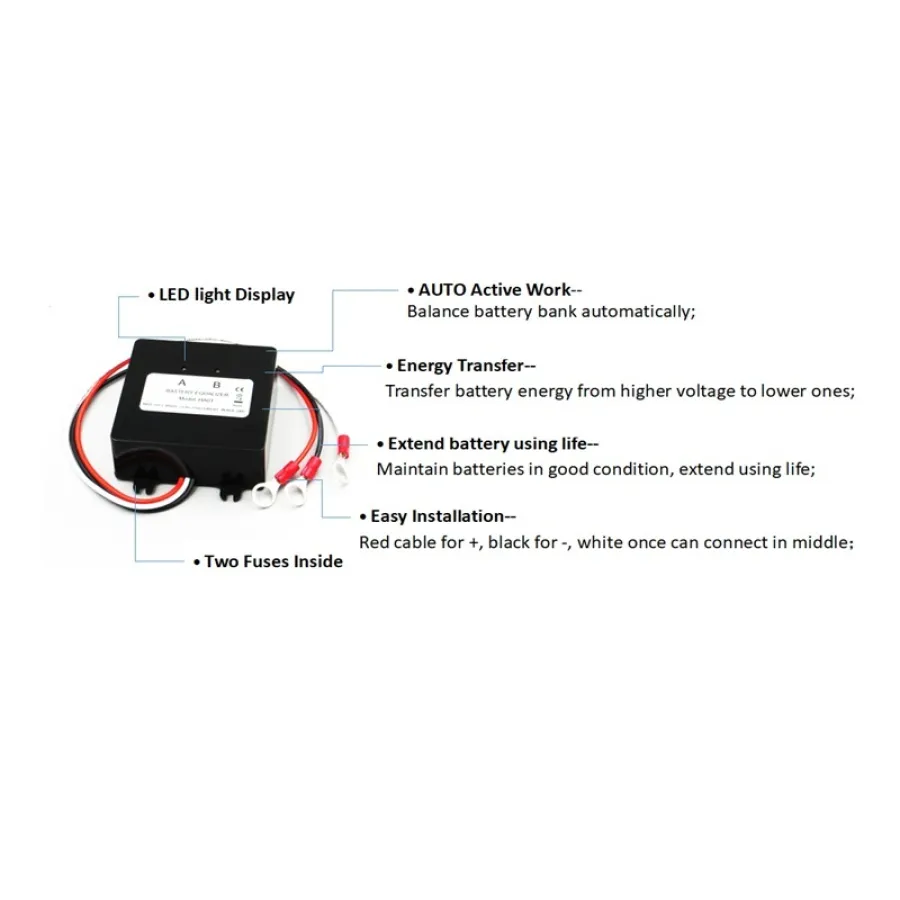

Battery equalizer HA01 is used for the lead-acid batteries which are connected in series to keep battery voltage balance.


When two or more in-series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low.

The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve batteryrsquos performance and extent batteryrsquos life time.


Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;

............




TECHNICAL DATA


Battery nominal voltage /

2*12V

Optimizing current /

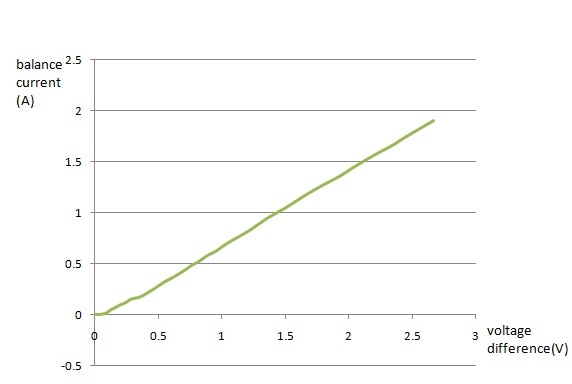

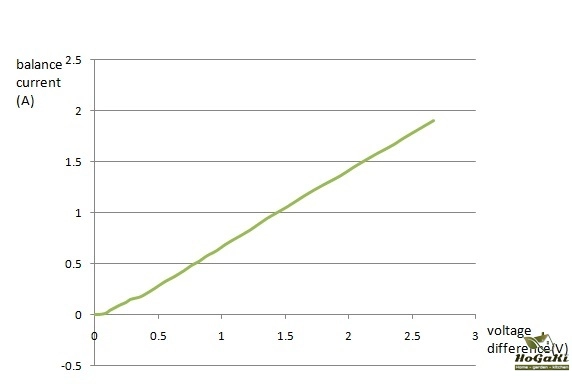

0-5A(balance current based on batteries voltage difference)

Quiescent current

<3mA

Size

70*70*27 mm

Protection

Reverse polarity protection

Low voltage disconnect

10V

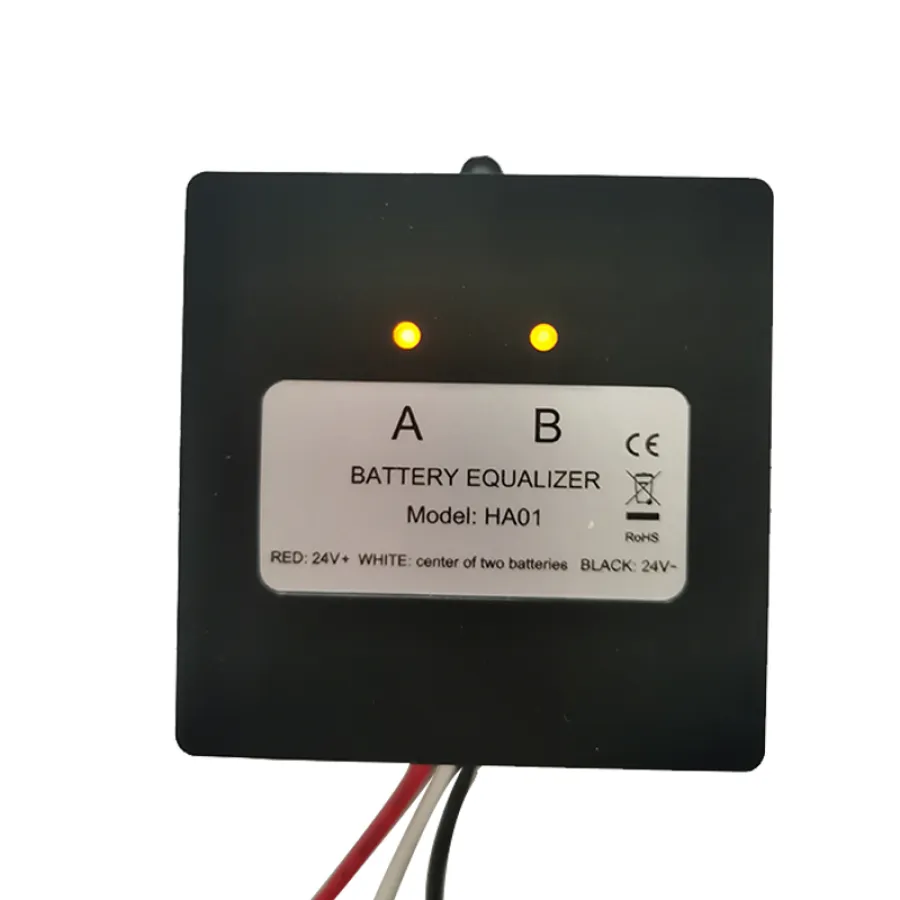

LED INDICATOR



LED A

LED B

U(A)=U(B)

Off

Off

U(A)>U(B)

Flash

Off

U(A)

Off

Flash

U(A)<10V

On

Off

U(B)<10V

Off

On

U(A/B)<10V

On

On


Installation:

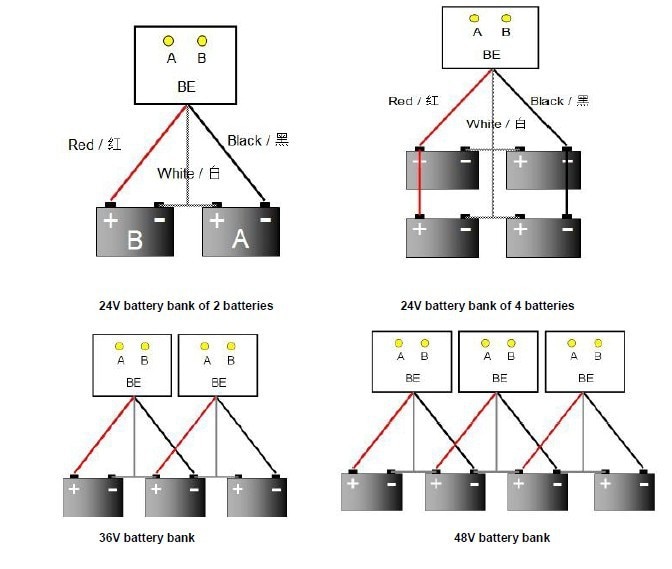

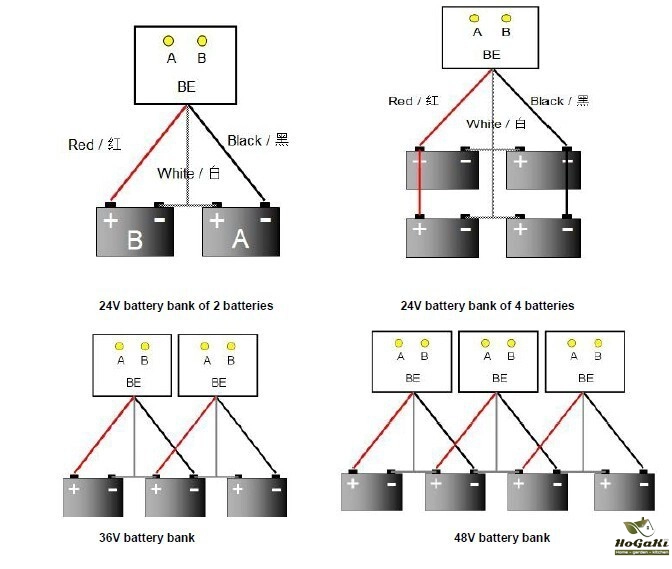

Please connect the battery equalizer to battery as follows: (Please check the pictures)

1. Red cable: Battery B positive/+ pole

2. Black cable: Battery A negative/- pole

3. White cable: Battery B negative pole or Battery A positive pole. (The pole which connected Battery A and Battery B in series)

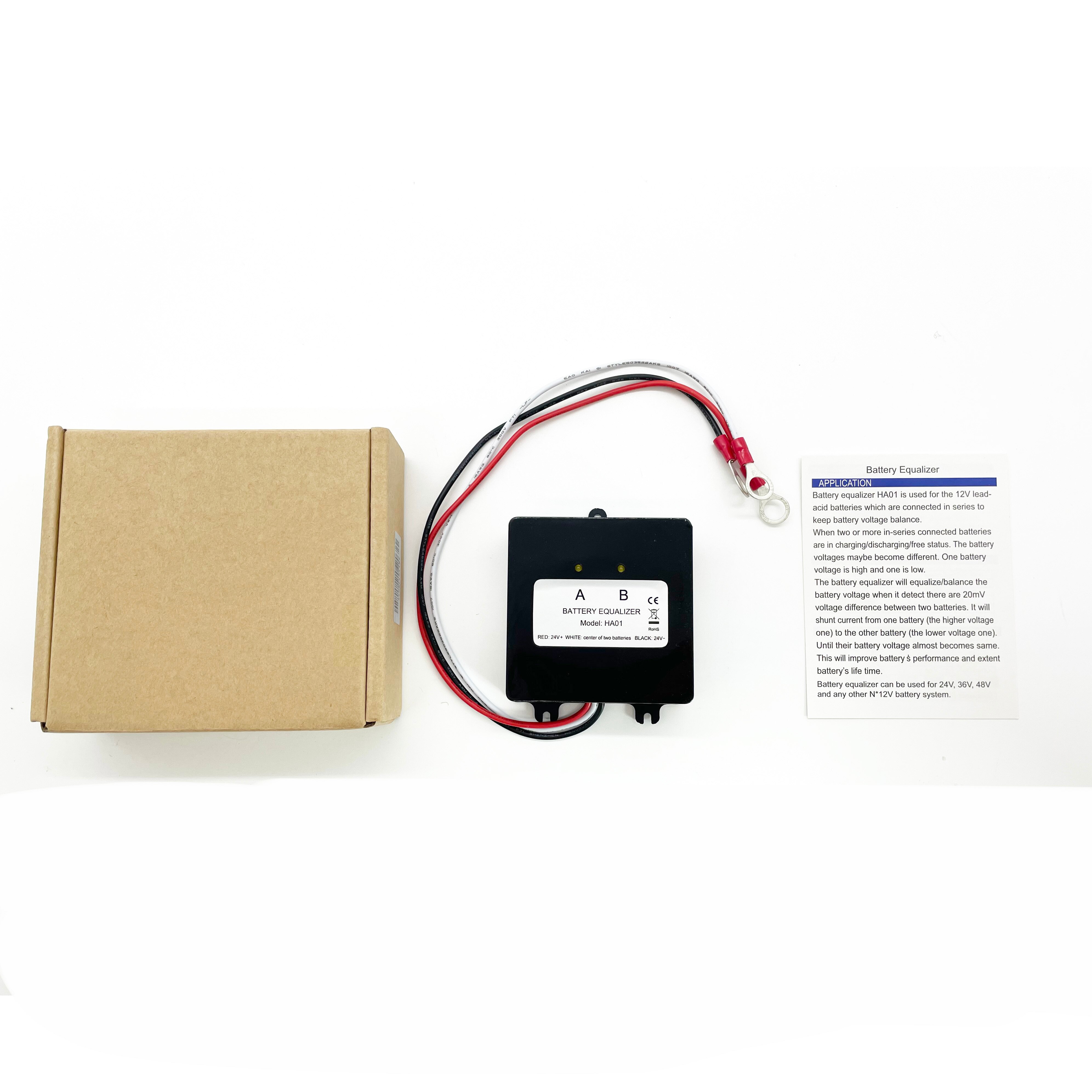

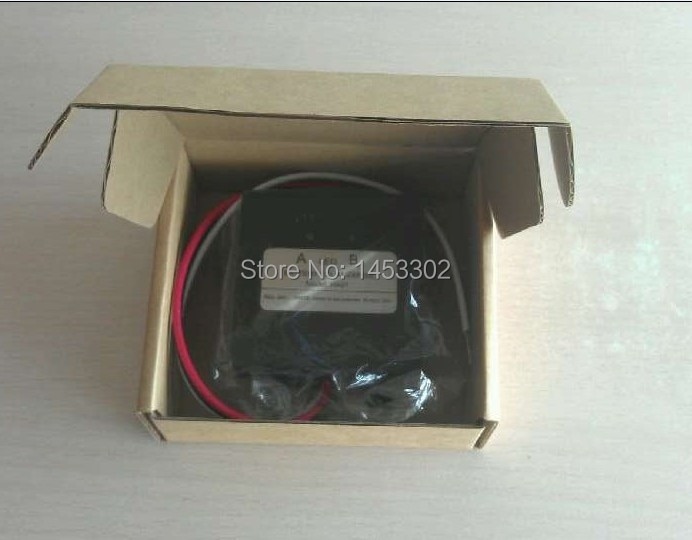

Package details:


Packaging Details

  • Unit Type: piece
  • Package Weight: 0.200
  • Package Size: 7x3x7

  • Brand Name: NoEnName_Null
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: HA01
  • is_customized: Yes
  • Application: Voltage Controller
  • Application: Solar System Controller
