Best Tester 5inch network HD coaxial CCTV Tester monitor IPC5100 PLUS HIKVISION Dahua test tool network cable TDR test WIFI POE

0.0 ( votes) | 1 orders
Price: US $534.09 - 623.16 / piece
Discount Price:
US $ 427.26 - 486.06 / piece
-20%
Ships From
Color
Quantity

CCTV tester Monitor

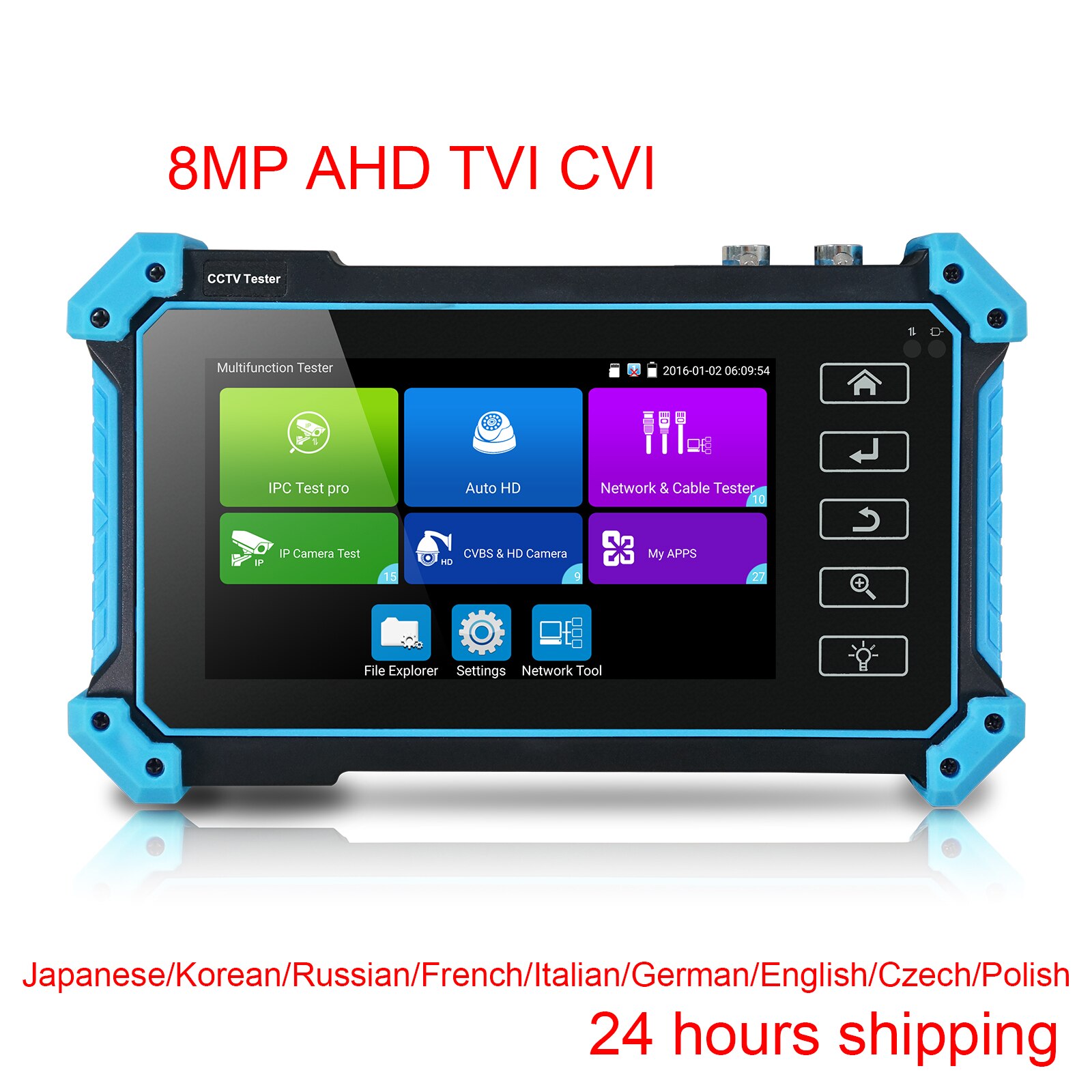

CCTV tester monitor Newest 5 inch All in one VGA & 4K HDMI input IP Camera Tester  8Mp AHD TVI CVI CVBS camera test monitor

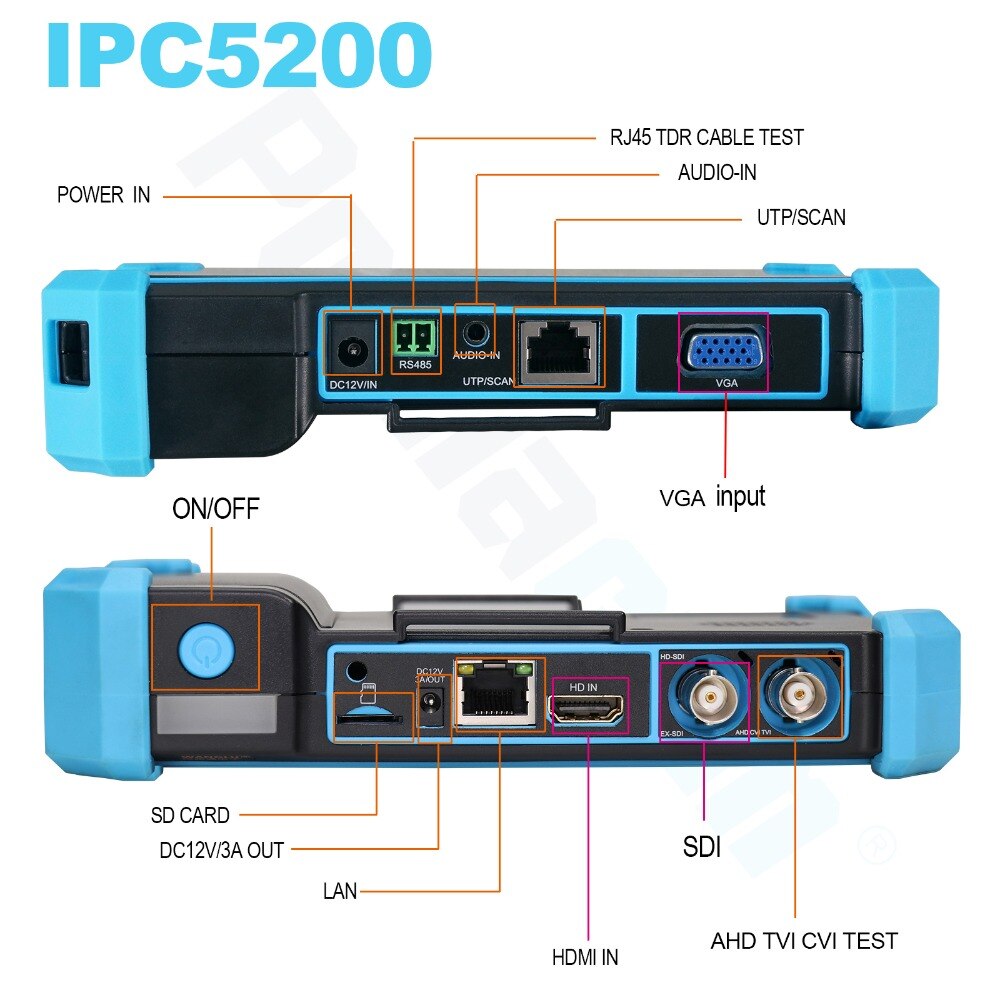

Model: IPC-5000 Plus series

IPC-5000 Plus support 8MPAHD TVI CVI with battery

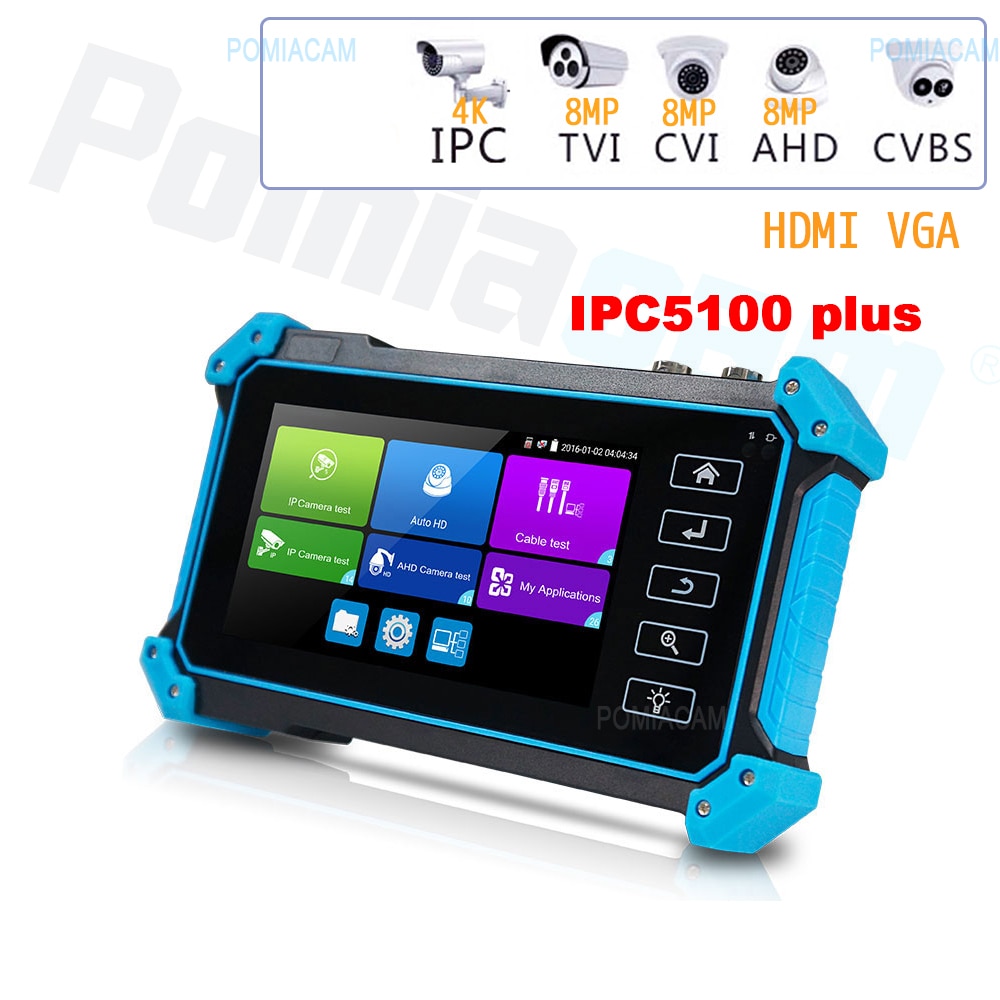

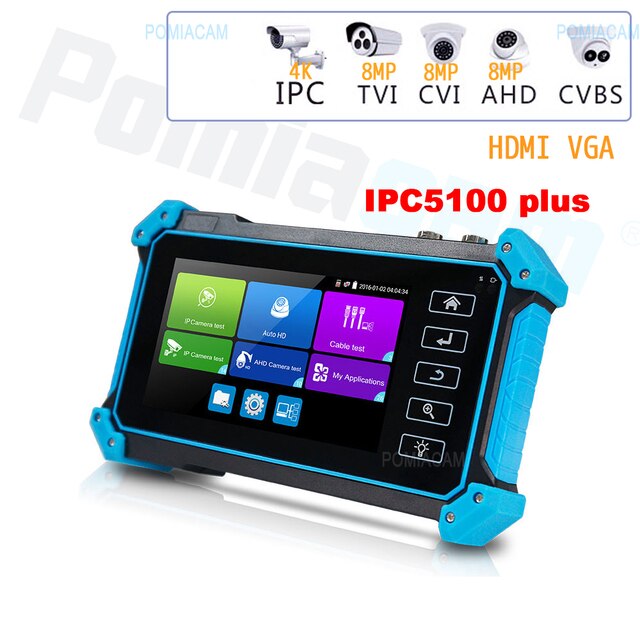

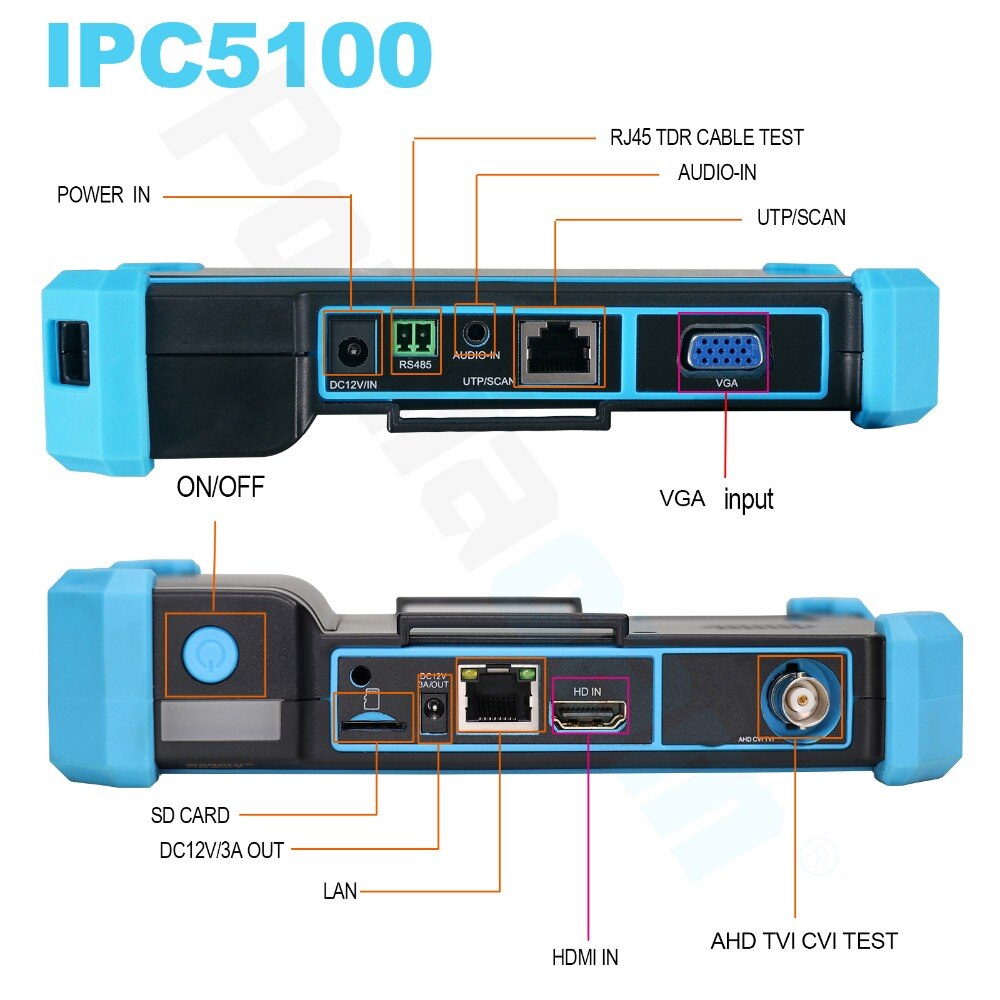

IPC-5100 Plus support 8MPAHD TVI CVI with battery +HDMI in, VGA in

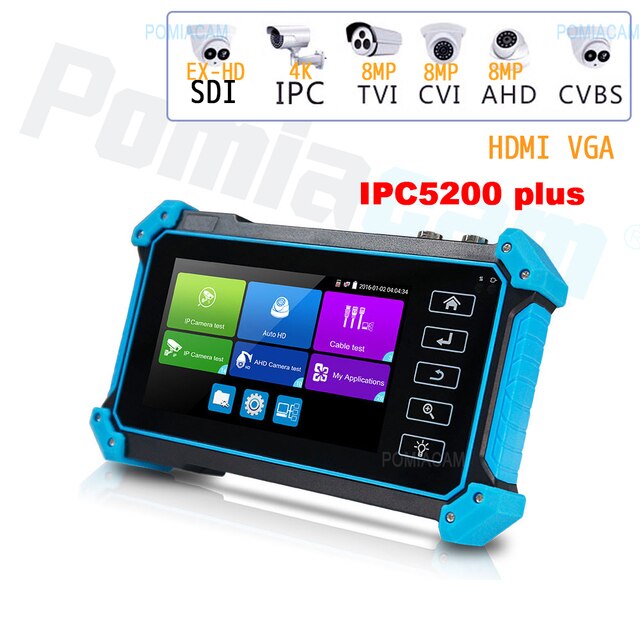

IPC-5200 Plus support 8MPAHD TVI CVI with battery +SDI , HDMI in , VGA in

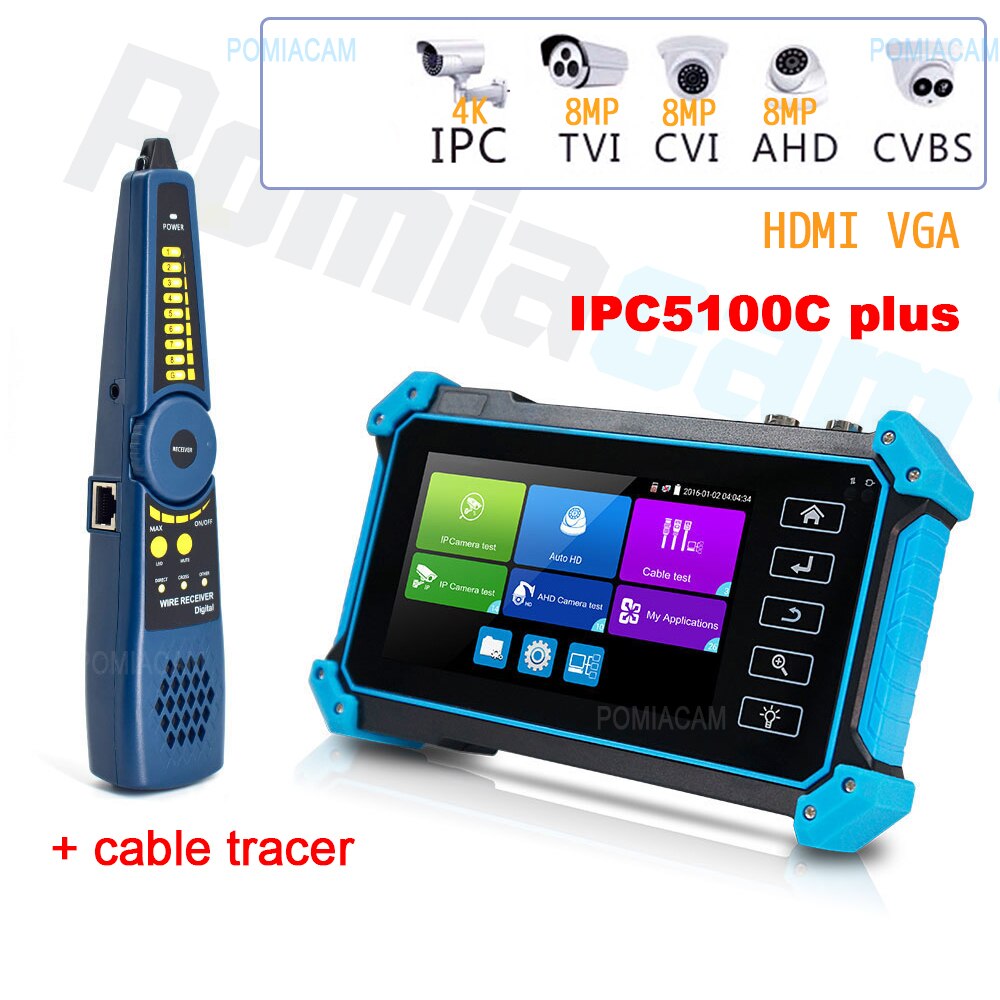

IPC-5100 Plus support 8MPAHD TVI CVI with battery+ digital cable tracer +HDMI in, VGA in

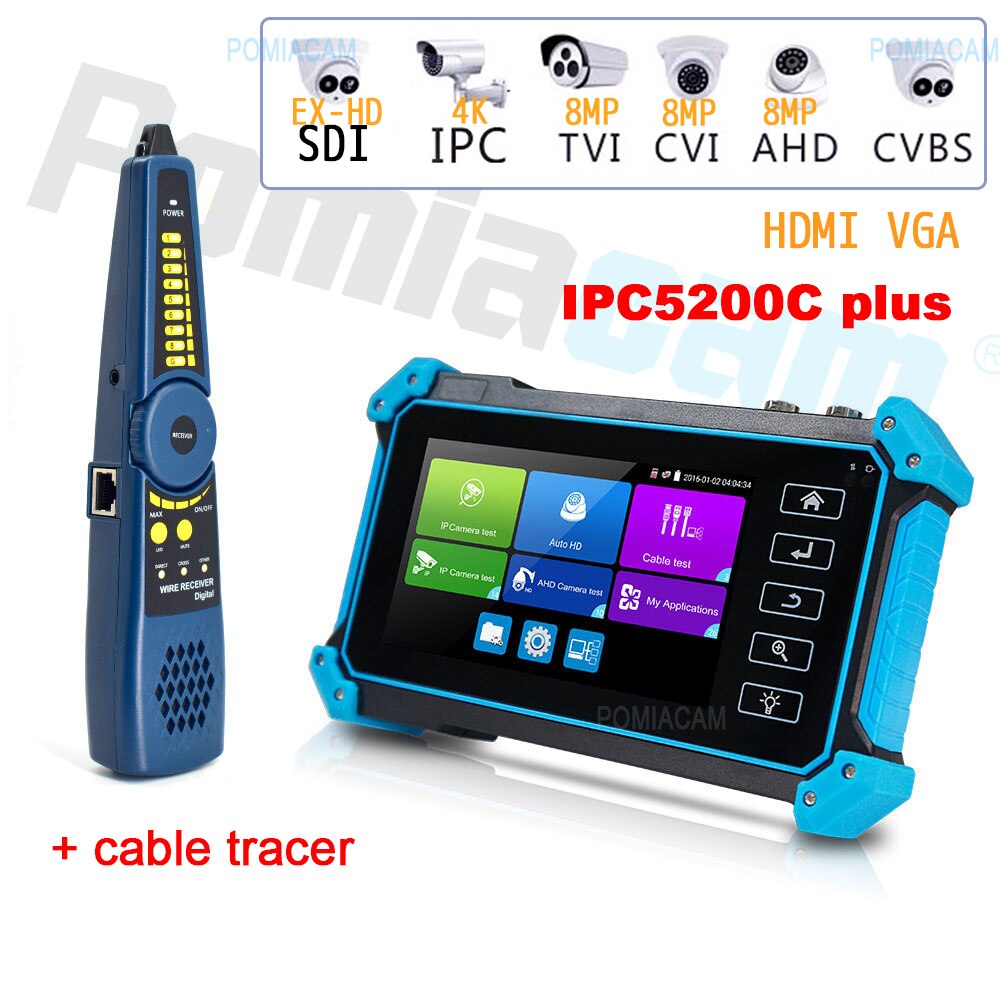

IPC-5200 Plus support 8MPAHD TVI CVI with battery + digital cable tracer optional+SDI , HDMI in , VGA in


Comparison Table:

Features/  Model

IPC-5000 Plus

IPC-5100 Plus

IPC-5200 Plus

8MP AHD

8MP TVI

8MP CVI

HD-SDI/3G-SDI/EX-SDI*

X

X

HDMI IN*

X

VGA IN*

X

Battery

2600mAh

3350mAh

3350mAh

Digital Cable tracer*

Optional

Optional

Optional

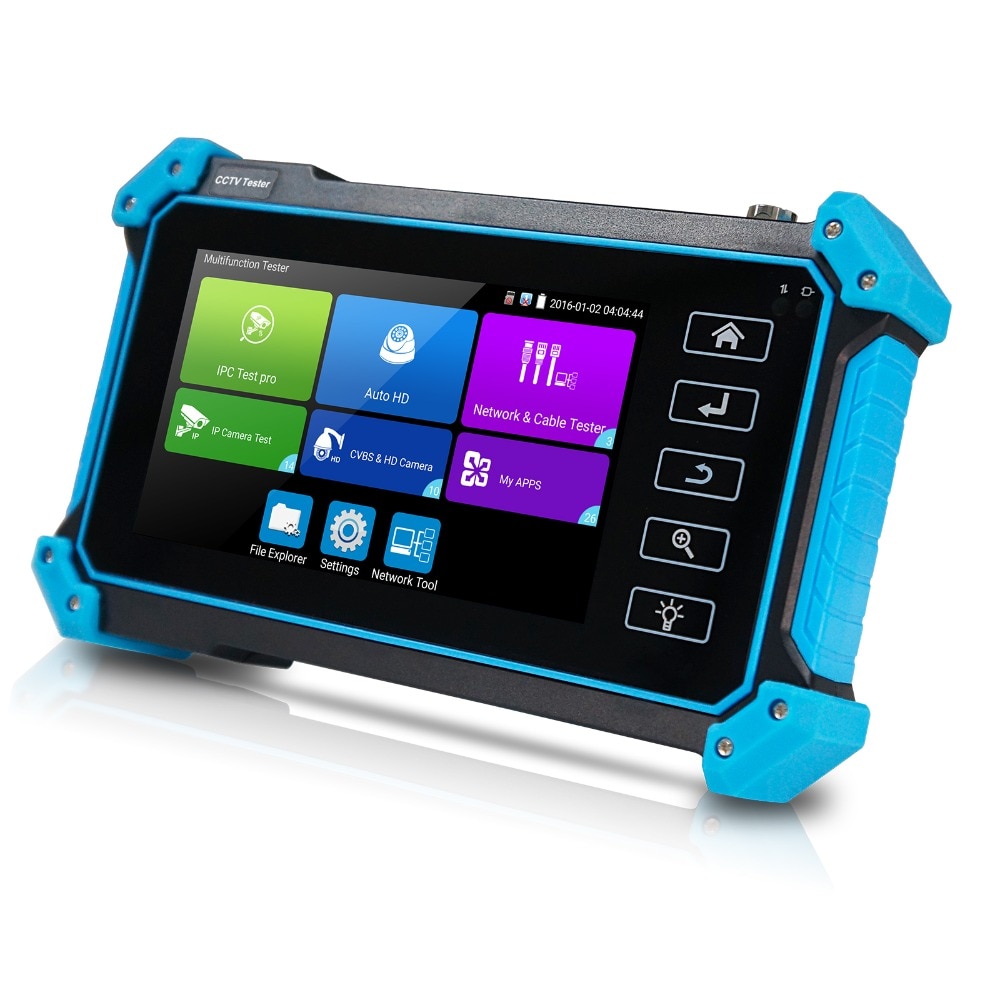

● 5 inch IPS touch screen, 1920x1080 resolution

● 8MP CVI/ TVI/ AHD camera test

8MP EX-SDI, HD-SDI, 3G-SDI camera test* ( only for IPC5200 plus )

● H.265/H.264, 4K video display via mainstream

● VGA input, support 2048 x 1152 60FPS*(● VGA input, support 2048 x 1152 60FPS*(only forIPC5100 plus , IPC 5200 plus )

● HDMI input, support 4K 30FPS*(only for IPC5100 plus , IPC 5200 plus )

● DC12V 3A, 48V PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable quality test

● UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable plug



Camera test:

● 5 inch IPS touch screen, 1920*1080 resolution

● H.265 & H .264 IP, 4K video display via mainstream

● Analog camera test, PTZ controller

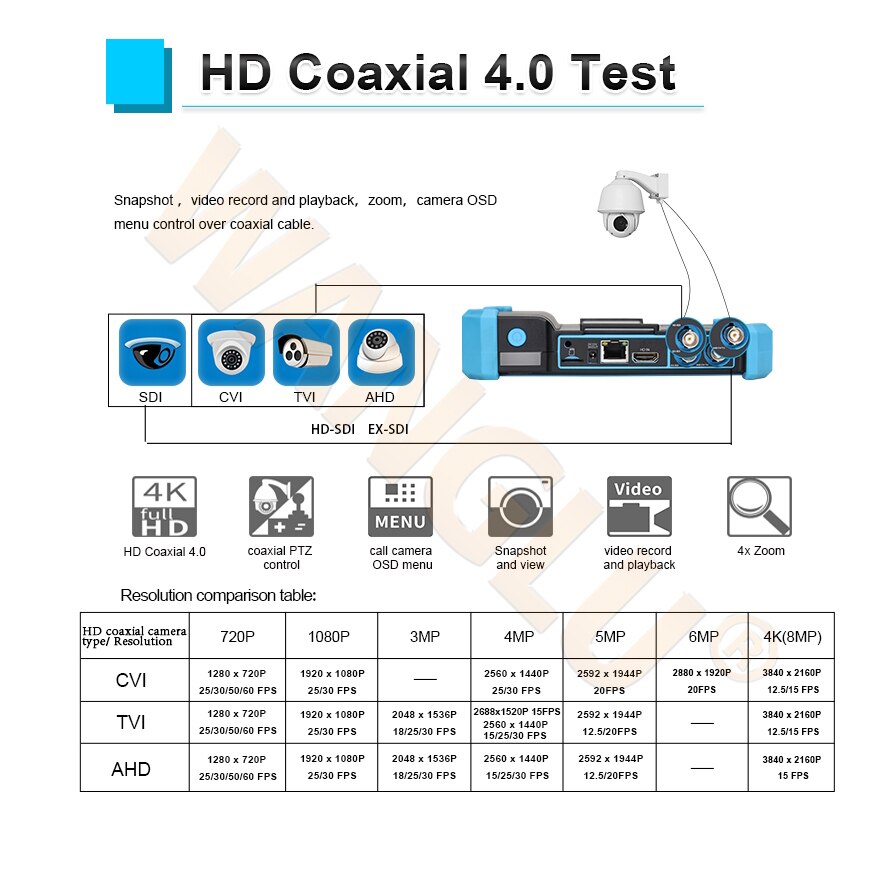

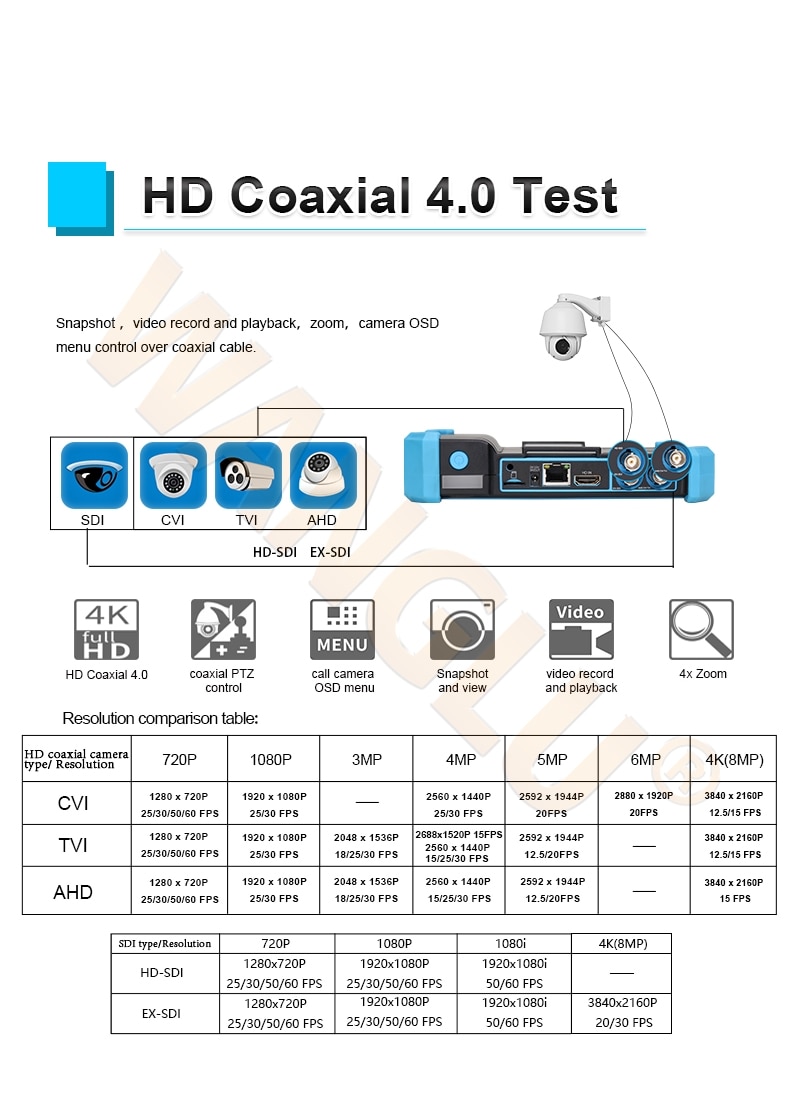

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(only forIPC 5200 plus )

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

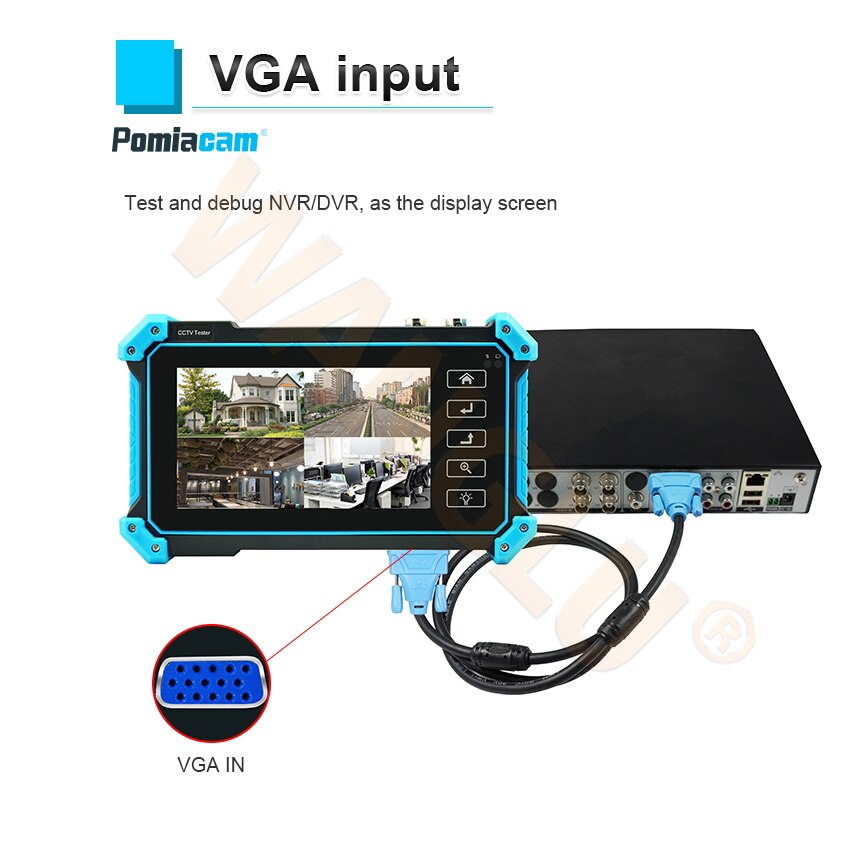

● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*(only forIPC5100 plus , IPC 5200 plus )

● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*(only forIPC5100 plus , IPC 5200 plus )

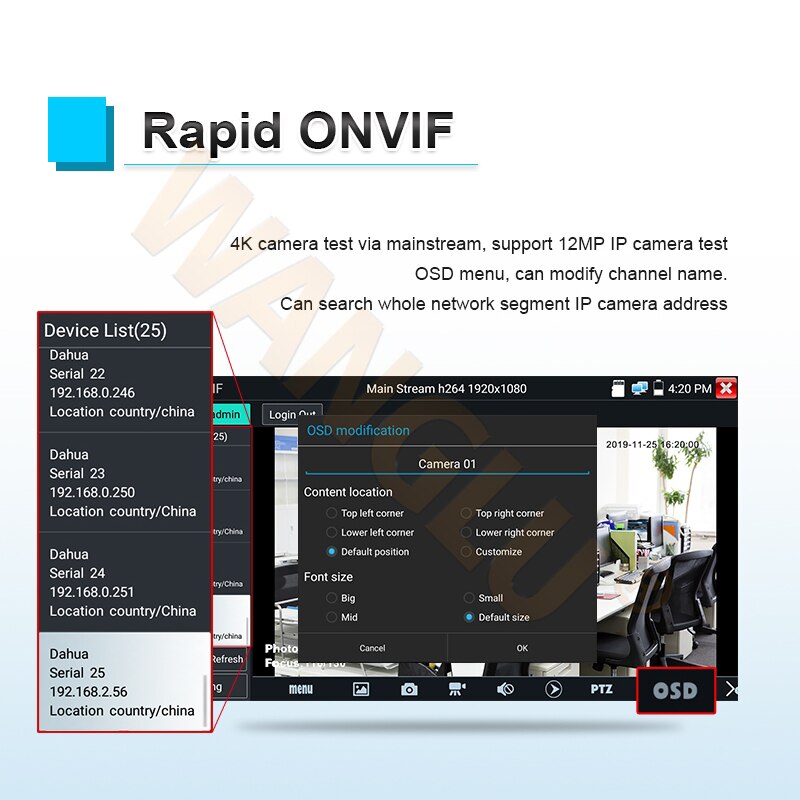

● Rapid ONVIF, Auto log in and display image, create testing report

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● DC12V/3A power output, camera can be powered from DC 12 Voltage

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

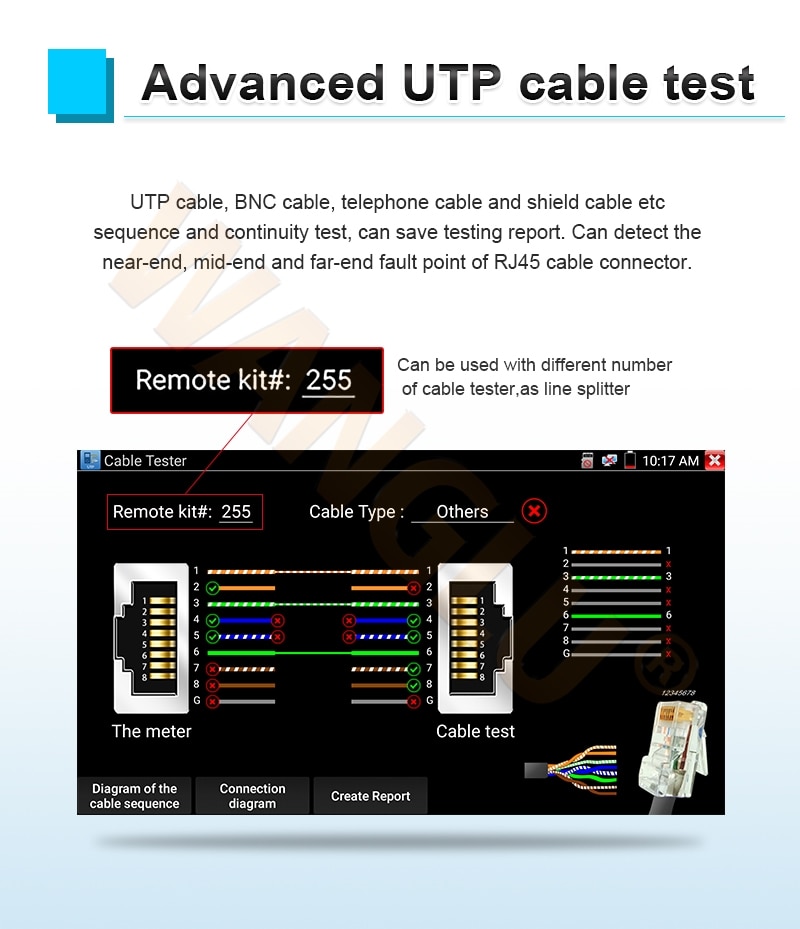

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

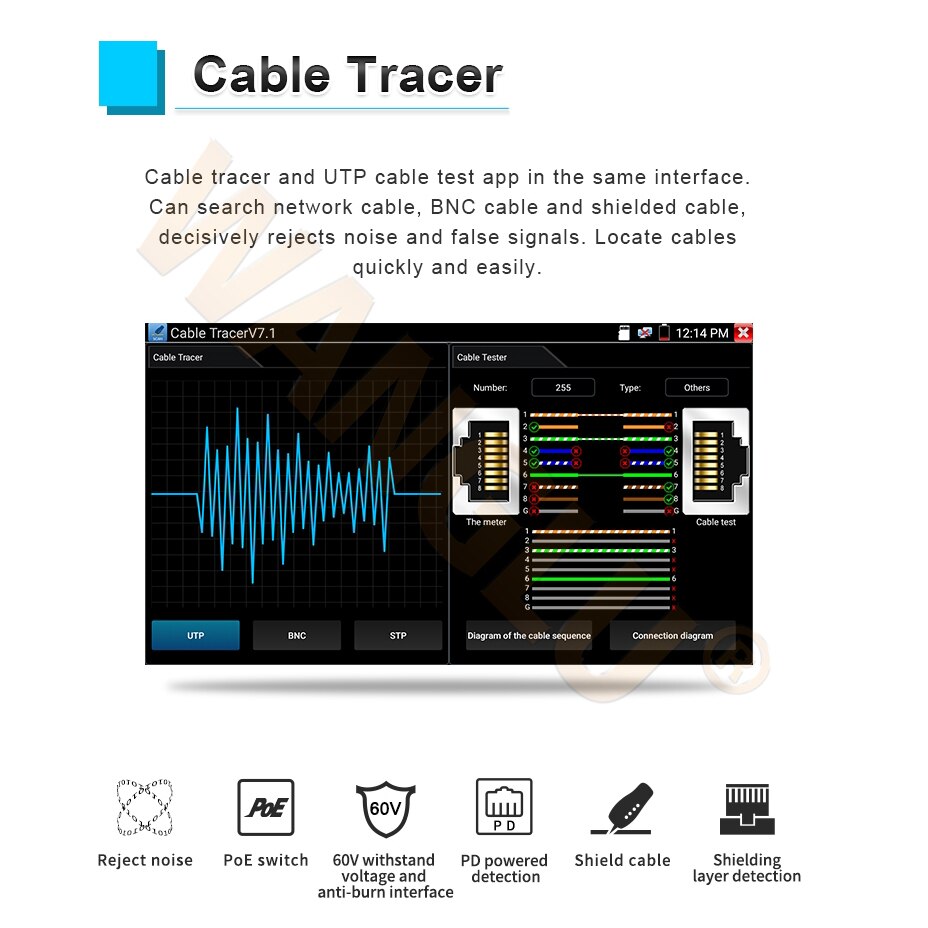

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * it is optional , if you need this one , pelase contact me .

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 Plus and IPC-5200 Plus)

● 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)



Application:

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, 4K H.265 IP camera testing

● Video transmission channel testing

● PTZ controller


IPC5000 plus IPC camera tester monitor


IPC5100 plus IPC camera tester monitor



IPC5200 plus IPC camera tester monitor







  • Plug Type: EU plug
  • Sensor Type: CCTV tester monitor
  • Model Number: IPC5000
  • Maximum IR Distance(m): CCTV tester monitor
  • Sensor Size: CCTV tester monitor
  • Lens: CCTV tester monitor
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
