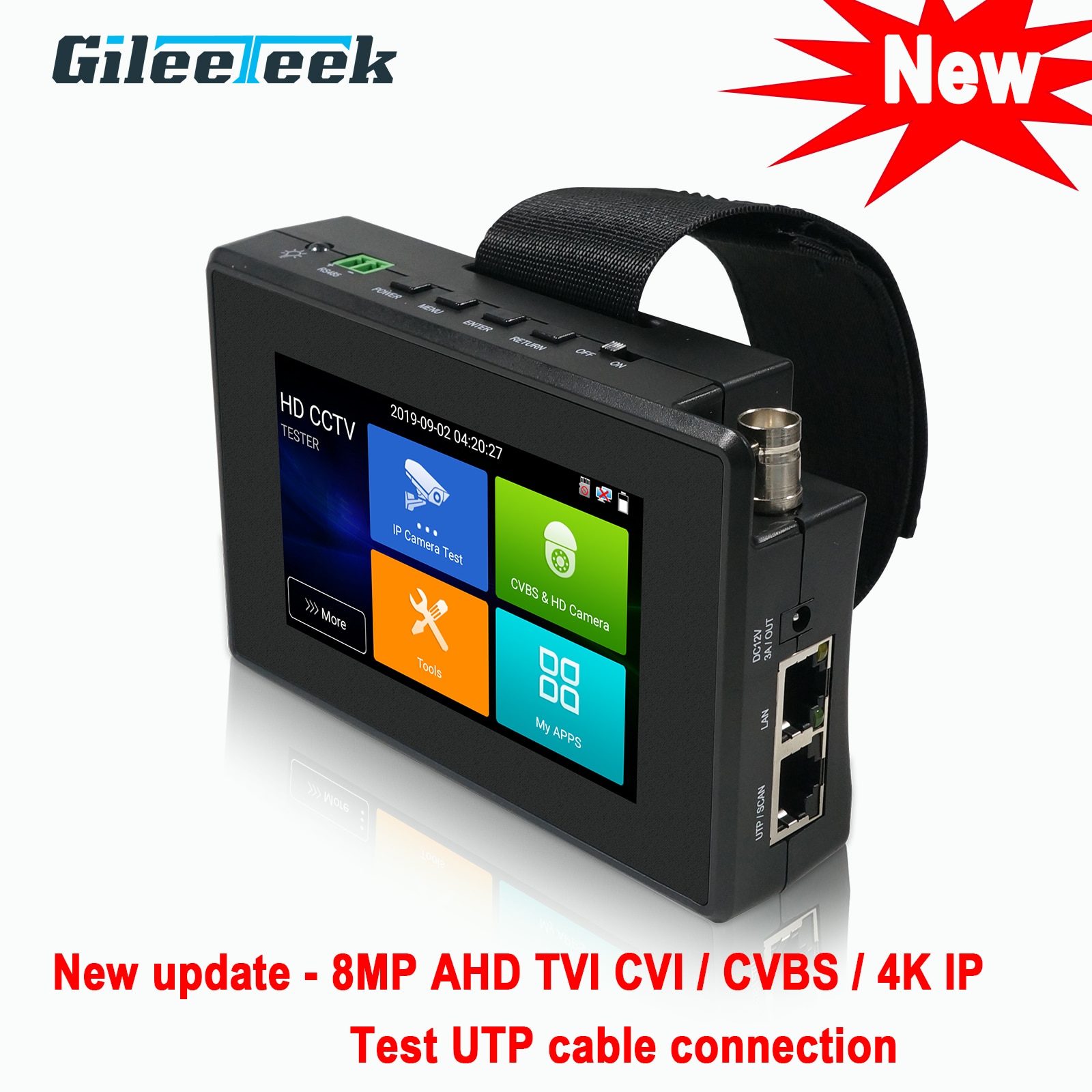

New IV8C plus 5 Inch CCTV camera monitor Professional CCTV testing tool 8MP AHD TVI 8MP CVI CVBS CCTV Camera Tester Monitor PTZ
177.60 145.63 $
SALE
ID: 63943
Quantity
IPC1800ADH plus cctv tester monitor 8MP TVI CVI CVBS 4K H.265 IP camera tester with New up-date Test UTP cable connection
0.0 (1 votes) | 4 orders
Price:
US $490.29
/ piece
Discount Price:
US $
334.40
/ piece
-32%
- Ships From
New update :
support 8MP AHD+ 8MP TVI+ 8MP CVI+ 4K H.265 IP+ CVBS camera test and New- Test UTP cable connection status and display in the screen. Read the number of the test box.
The other is the same as the original as follow :
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese ,German,Turkish,Serbian,Czech
◆4 inch IPS touch screen, 800*480 resolution
◆8MP TVI, 8MP CVI, 8MP AHD camera test
◆H.265/H.264, 4K video display via mainstream
◆Dual window test, IP &Analog camera test
◆CVBS and PTZ control
◆DC12V 3A, DC48V PoE power output
◆HD coaxial video signal quality
◆PPPOE dial test
◆Rapid ONVIF, auto view video and create testing report
◆Hik test tool, hikvision camera , Image test, can modify the user name, password and IP parameters
Features:
-
4 inch IPS touch screen,800*480 resolution
-
New- 8MP TVI test,3840 *2160P 15 FPS,video record and playback ,coaxial PTZ control and call camera OSD menu
-
8MP AHD test, 2560*1944P 12.5F/ 20F,video record and playback ,coaxial PTZ control and call camera OSD menu
-
8MP CVI test,2560*1440P 25/30 FPS ,video record and playback ,coaxial PTZ control and call camera OSD menu
-
IP & CVBS camera test, PTZ controller
-

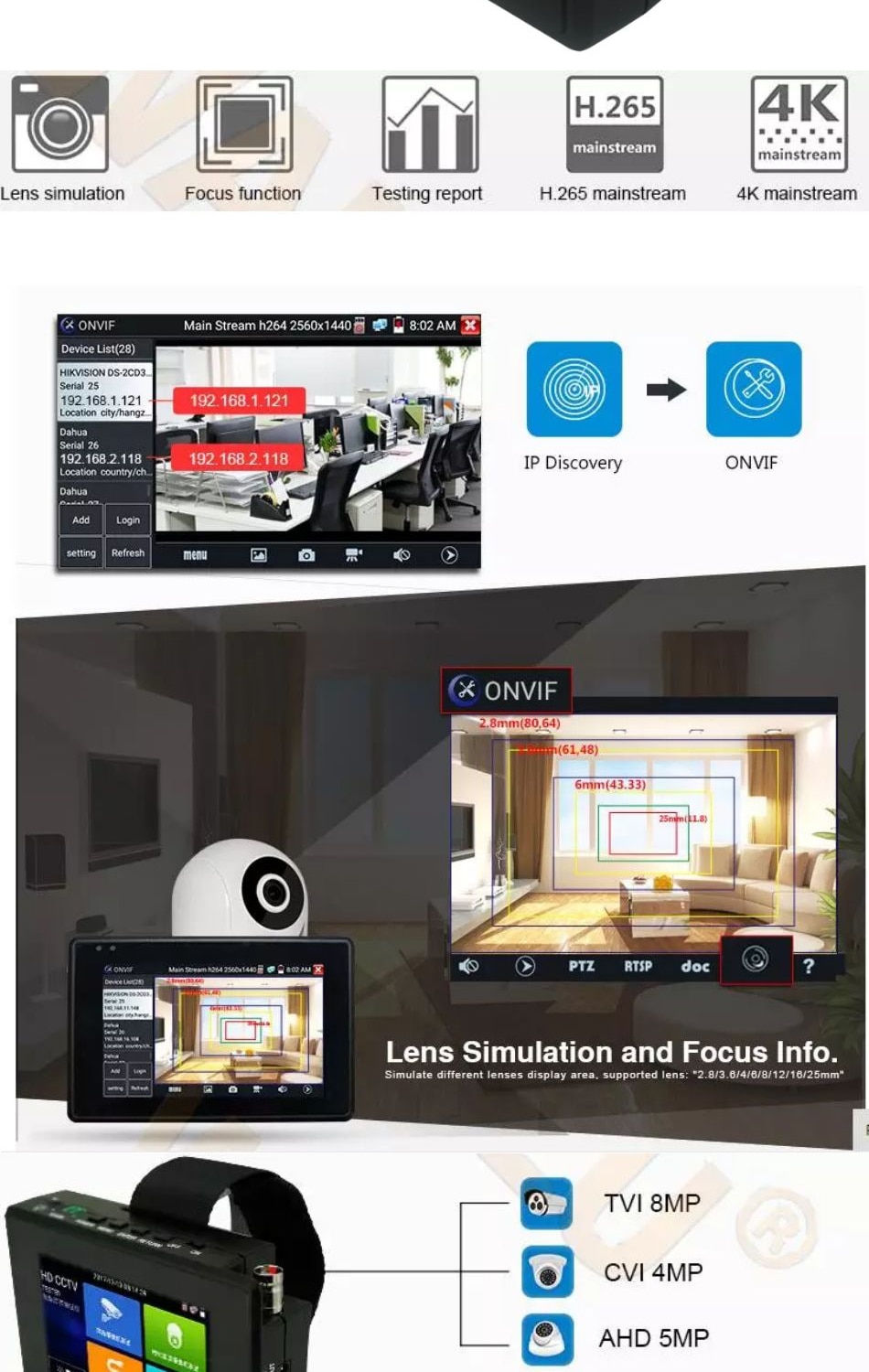

New-IP discovery , just by one key to detect all network cameras IP address
-

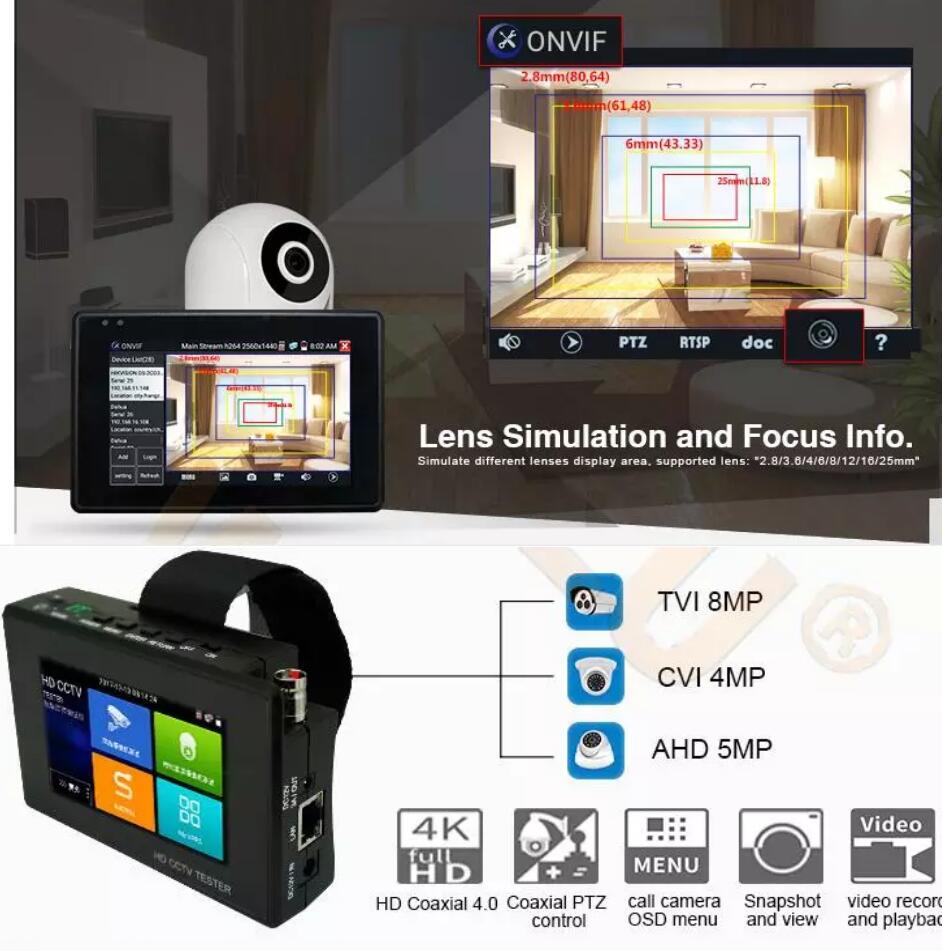

Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
-
New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
-

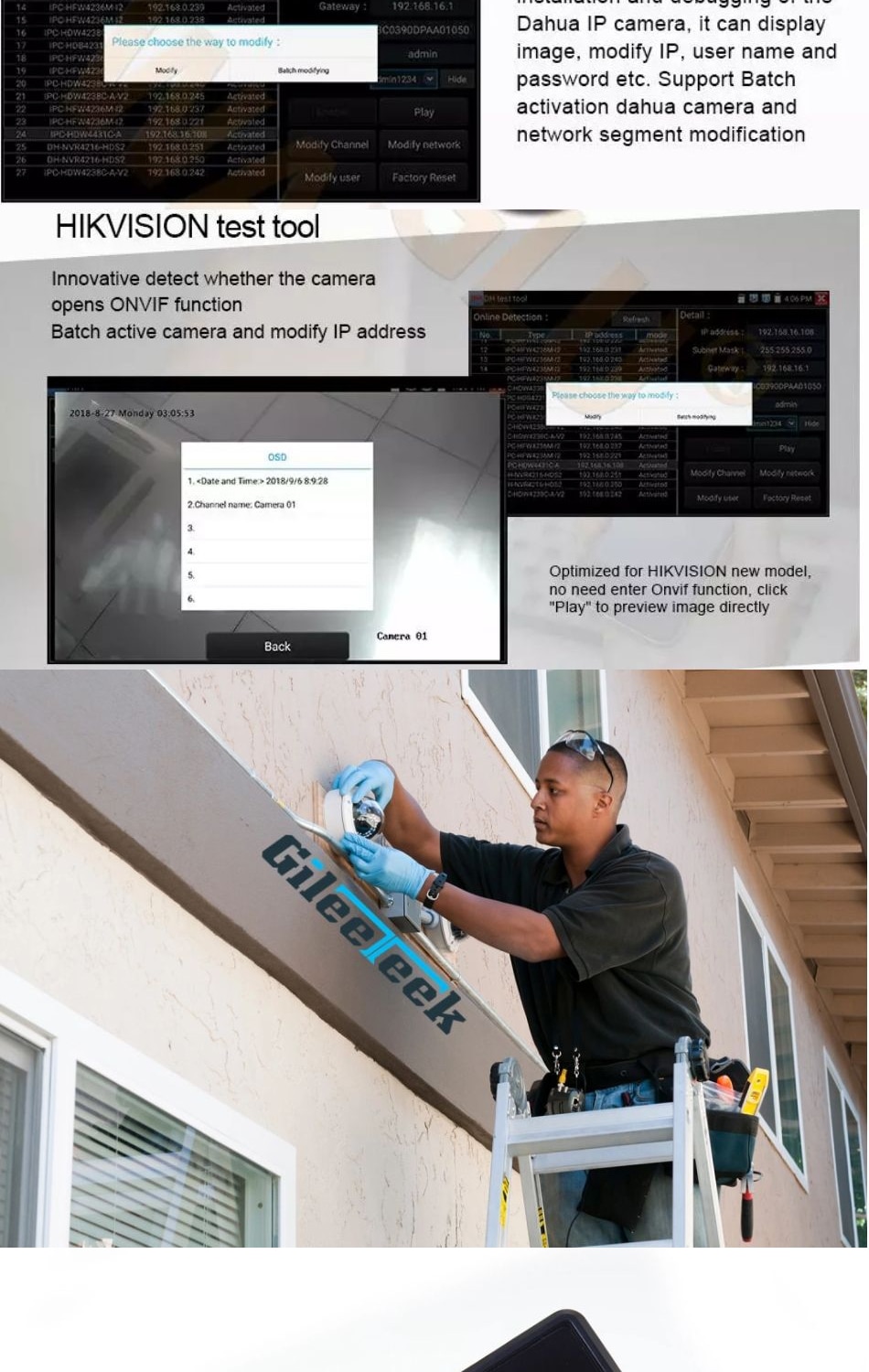

Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
-
ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
-
PoE DC48V power output, Max power 24W,DC 12V /3A power output
-
PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Specifications:
|
Item series |
IPC-1800ADH Plus |
||
|
Display
|
New 4 inch IPS touch screen , 800*480 resolution |
||
|
Video Mode |
CVBS |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|||
|
IP camera test 4K/H.265/H.264 |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
||
|
Rapid Video |
Auto view the video, create testing report |
||
|
Hik test tool |
pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
||
|

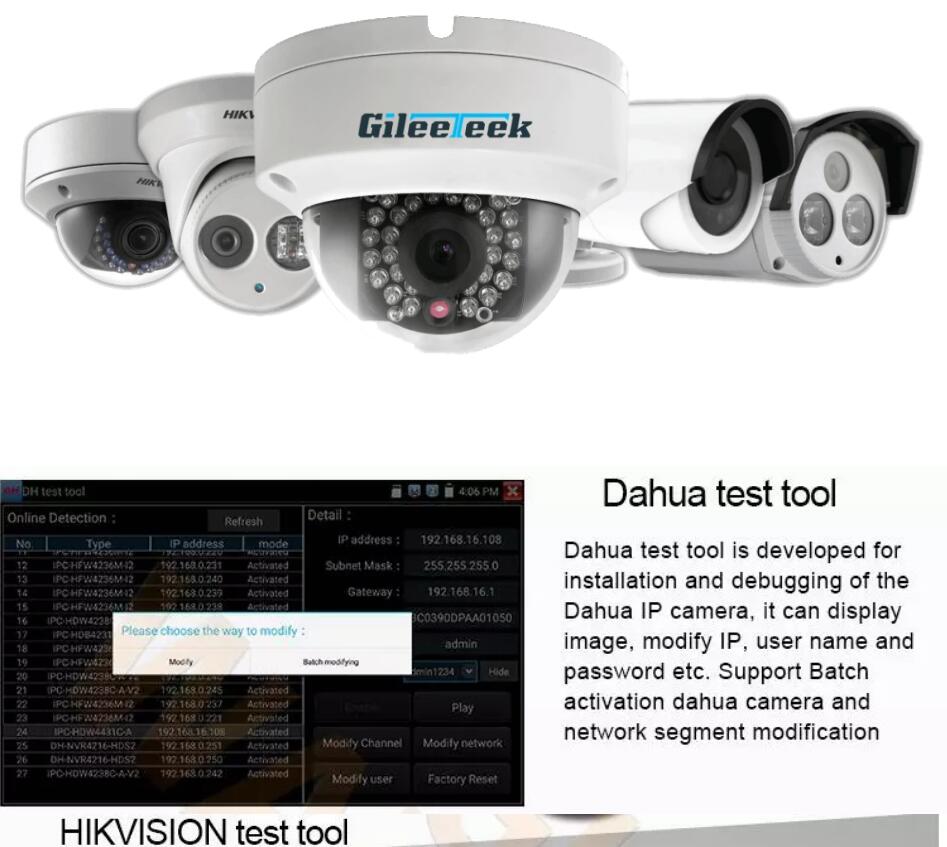

Dahua test tool |
Dahua camera test, modify the user name, password and IP parameters |
||
|
Coaxial HD test |
8MP TVI camera test, 3840*2160P 15 FPS, UTC control/ call OSD menu |
||
|
8MP CVI camera test, 2560*1440P 25/30 FPS, UTC control d call OSD menu |
|||
|
8MP AHD test, 2560*1944P 12.5F/20F, UTC control d call OSD menu |
|||
|
Zoom Image |
Zoom, Screen snapshot, record, save, view, record and play back |
||
|
|
12V/3A power |
Output DC12V/3A power out, supply temporarily power for the camera |
|
|
Power output |
PoE power output |
48V PoE power output, max power 24W |
|
|
Network test |
Link monitor, port flashing, Ping test |
||
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
||
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
||
|
Drop-down menu |
You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface |
||
|
External power supply |
DC 12V/1A |
||
|
Battery |
Built-in 7.4V Lithium polymer battery , 2400mAh |
||
|
Rechargeable |
After charging 4~5 hours, normal working time 8 hours |
||
|
Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
||
|
Auto off |
1-30 (mins) |
||
|
Working Temperature |
-10℃---+50℃ |
||
|
Working Humidity |
30%-90% |
||
|
Dimension/Weight |
126mm *83mm* 33mm / 0.32kg |
||
The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us
|
IPC-1800ADH Plus |
- Plug Type: EU plug
- Sensor Type: IPC tester
- Model Number: IPC1800ADH plus
- Maximum IR Distance(m): IPC tester
- Sensor Size: IPC tester
- Lens: IPC tester
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: NONE
- support 1: 4K H265 IP camera
- support 2: 8MP AHD cameras
- support 3: 8mp tvi cameras
- support 4: 8mp cvi cameras
- support 5: CVBS Cameras
