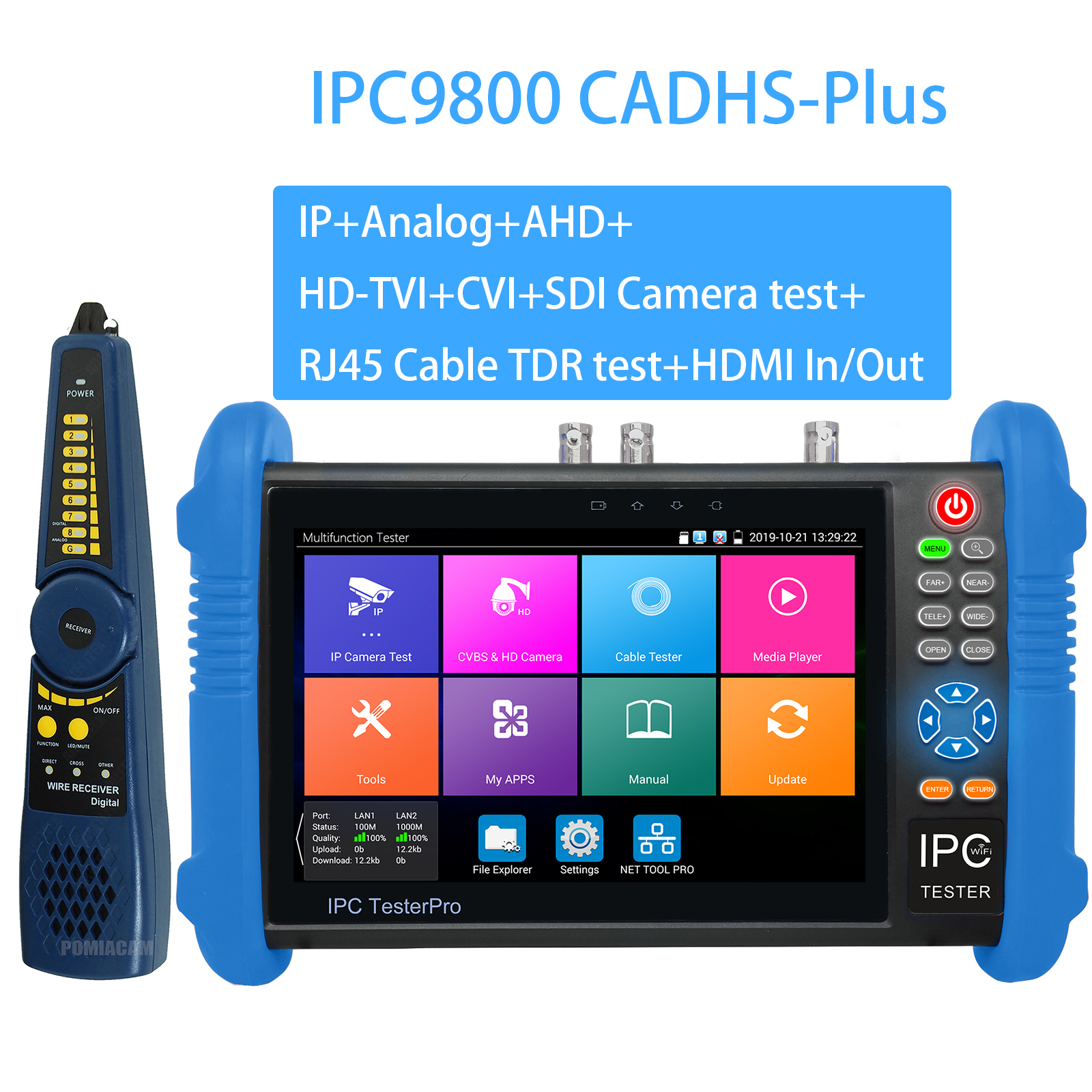

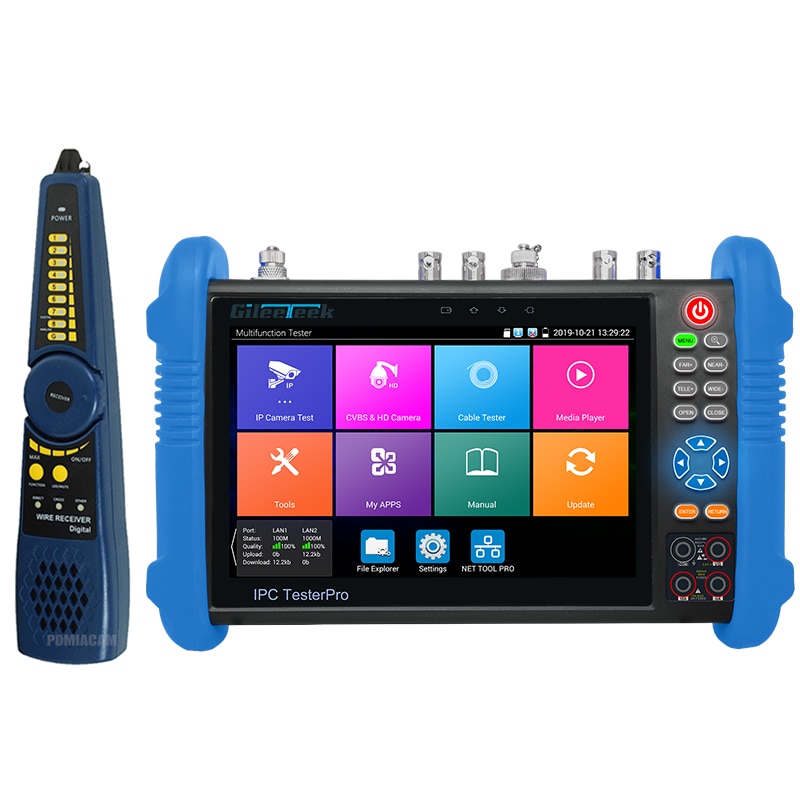

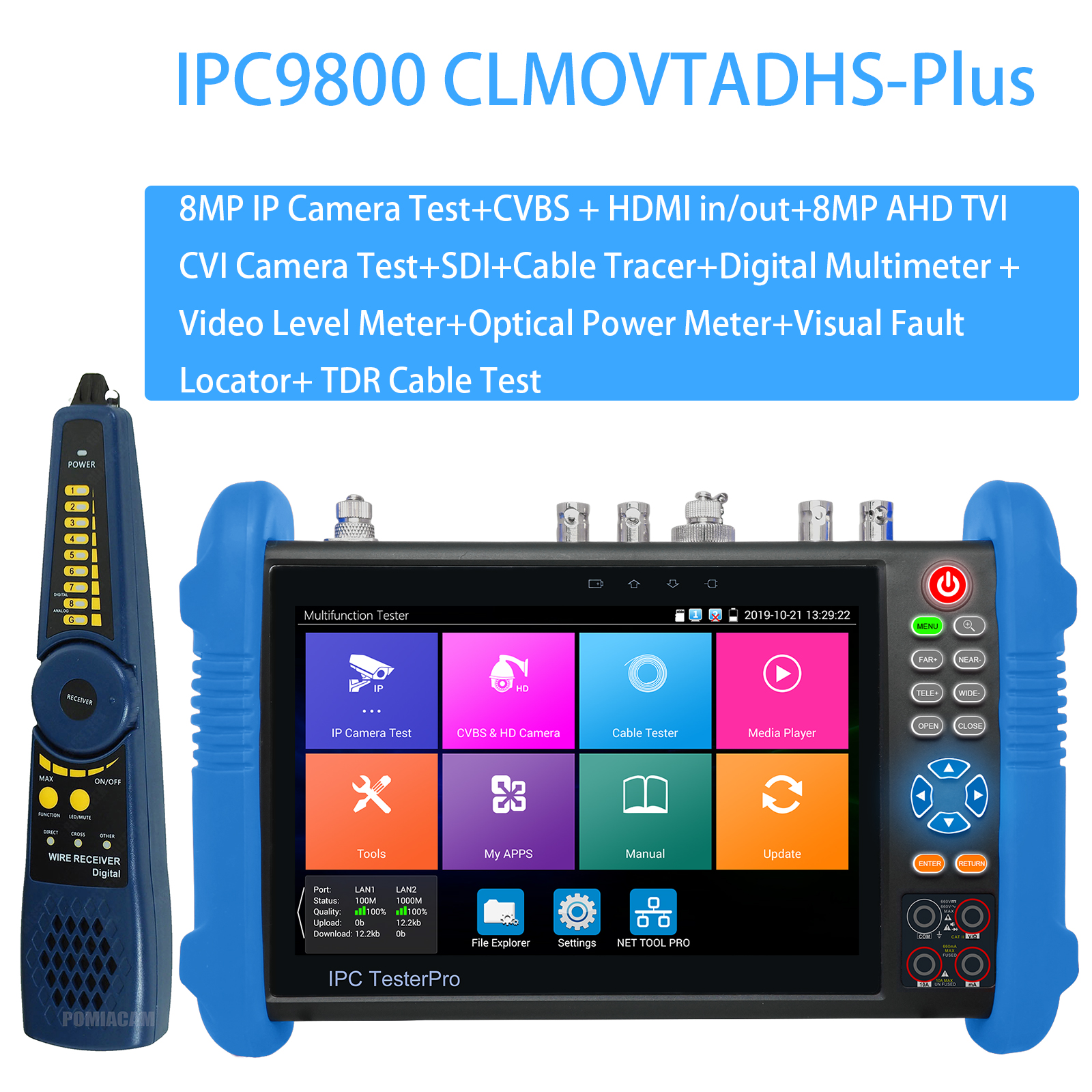

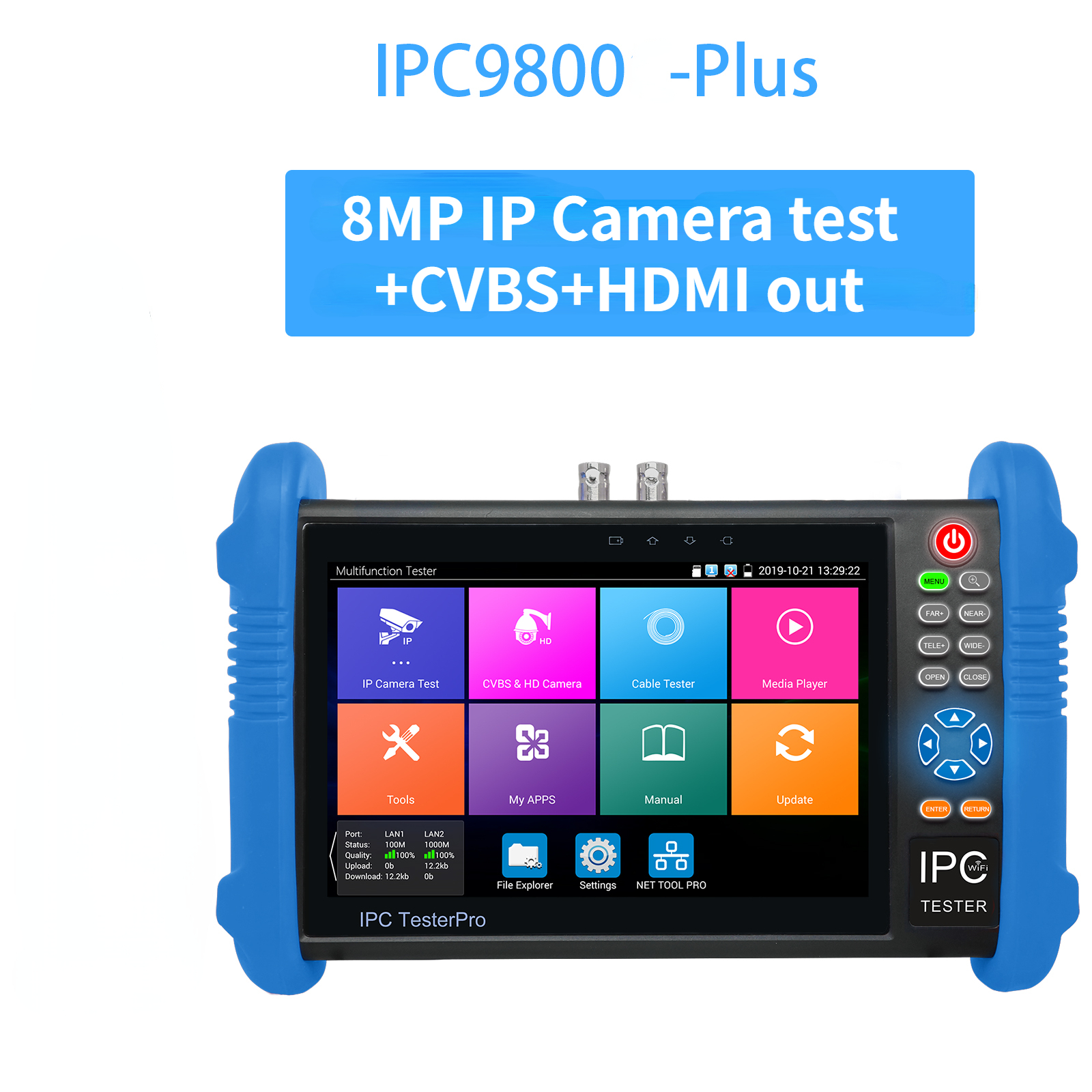

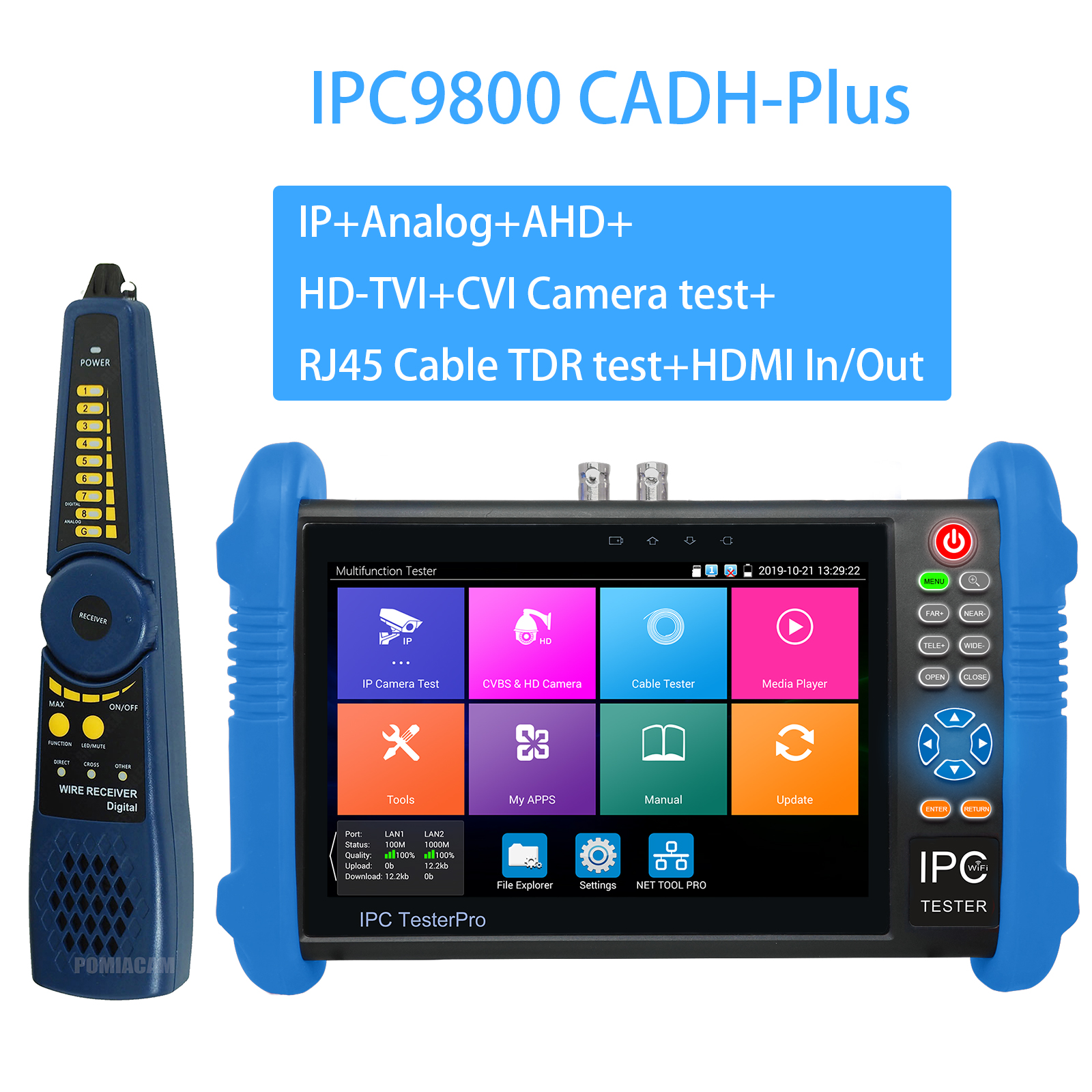

SUPPORT CAMERA TYPE

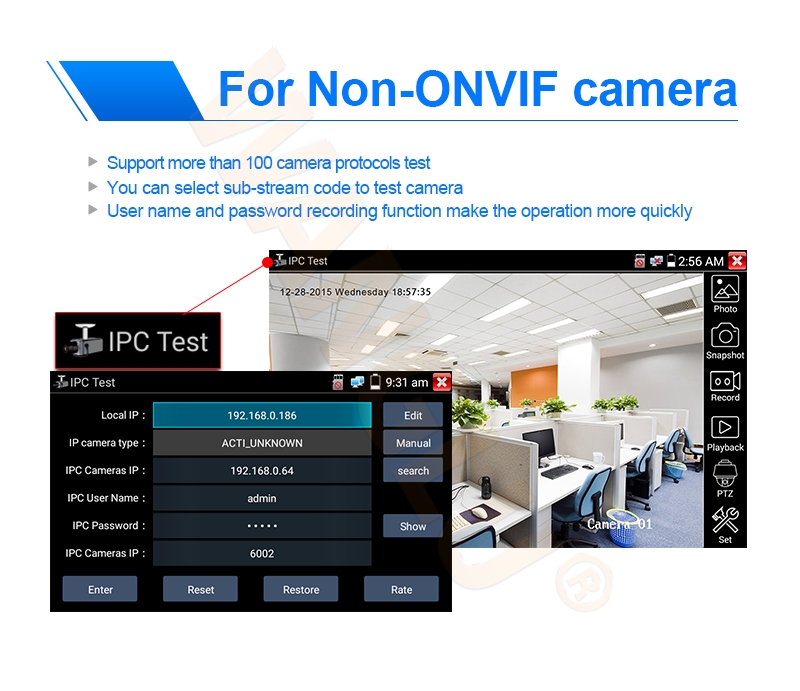

• IP camera test:

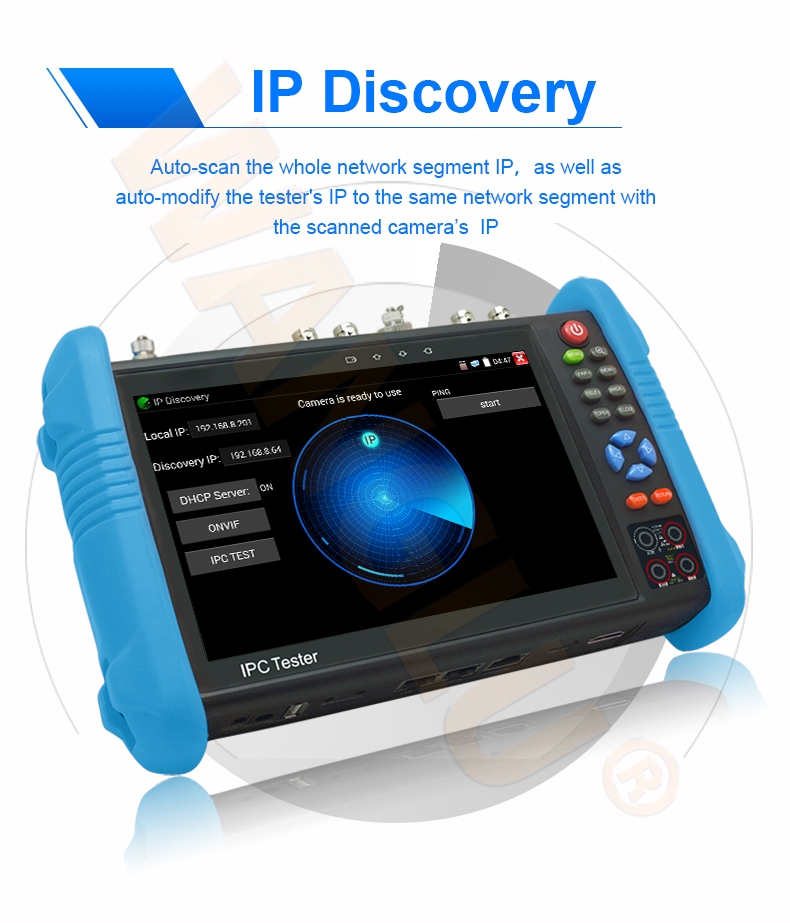

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

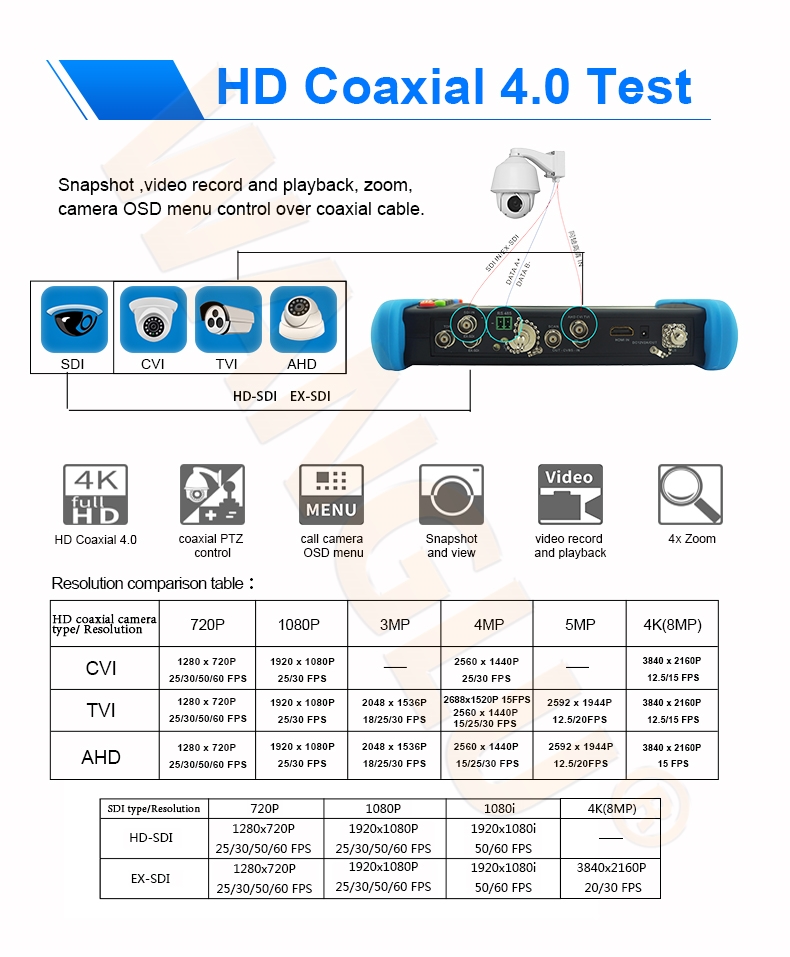

• Coaxial HD camera test:

Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.

• CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc. Support PAL/NTSC color bar test.

• AXIS IP cameras test:

Install the APP "Axs test tool" suitable for AXIS testing through automatic update before testing.

TDR Breakpoint Test (Hardware Support)

• TDR cable Breakpoint Test

Quickly measure the length of power, BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's over a distance of up to1200 meters. Detects cable whether it is unblocked and locates breakpoints precisely.

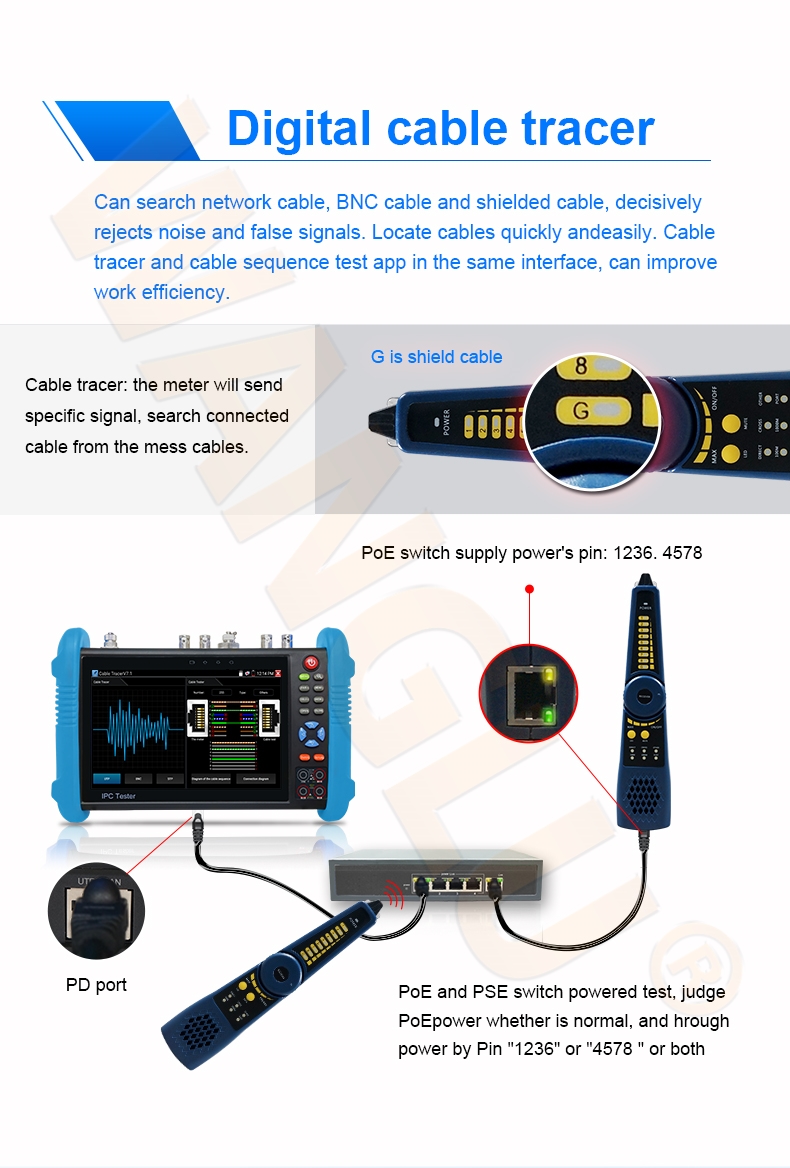

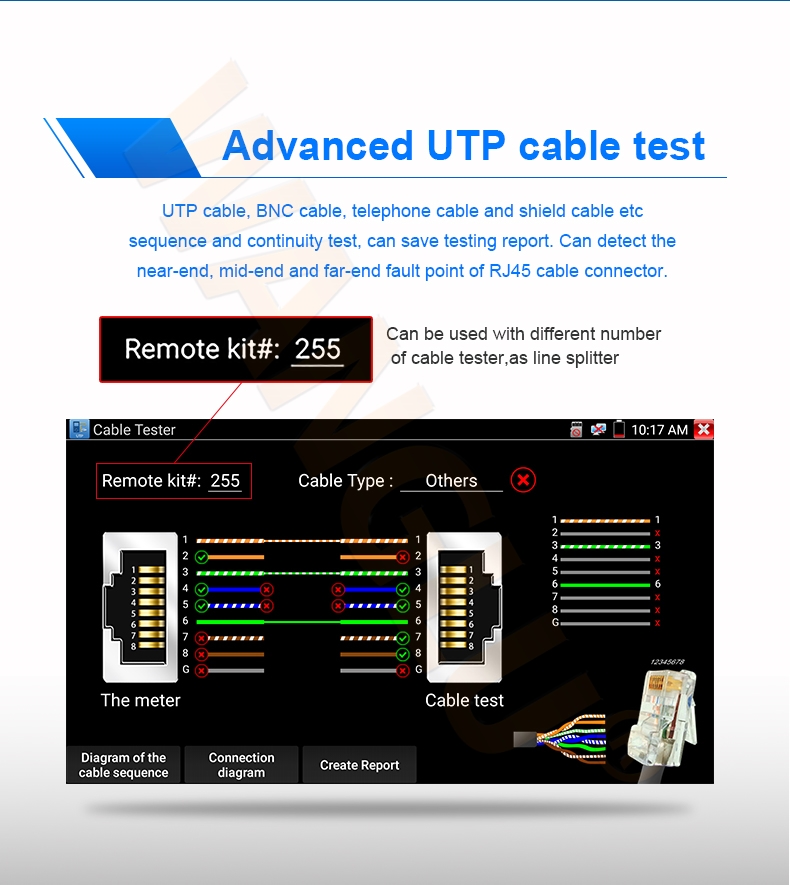

With the attached cable tester tool, you can test the arrangementtype of the network cable and whether it is unblocked.


Optical Power Meter and Red Visible laser light source

• Optical Power Meter

Detector type: InGaAs; Calibration wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm; Power measurement range (dBm): -70 to +10; Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃); Display resolution: Linear display 0.1%, logarithmic display 0.01dBm; Connector: Active FC/PC; Working temperature: -10℃ to +50℃(14℉~122℉); Storage temperature: -20℃ to +70℃(-4℉~158℉)

• Red Visible laser light source

Laser type: LD; Calibration wavelength: 650nm; Output power: 10mW; Modulation mode: CW/1Hz/2Hz; Measuring range 8000 meter; Connector: Active FC/PC; Working temperature: -10℃ to +50℃(14℉ to 122℉); Storage temperature: -20℃ to +70℃(-4℉ to 158℉)

• Digital Multi-meters

DC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.3%+4), the resolution is 100mV
AC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.8%+6), the resolution is 100mV
DC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA
AC current measurement(A): the highest range is 10A, accuracy is ±(1%+5), resolution is 10mA
At the same time, the tester's multimeter can also measurement resistance, diode, capacitance measurement and continuity testing. Automatically adjust 0.

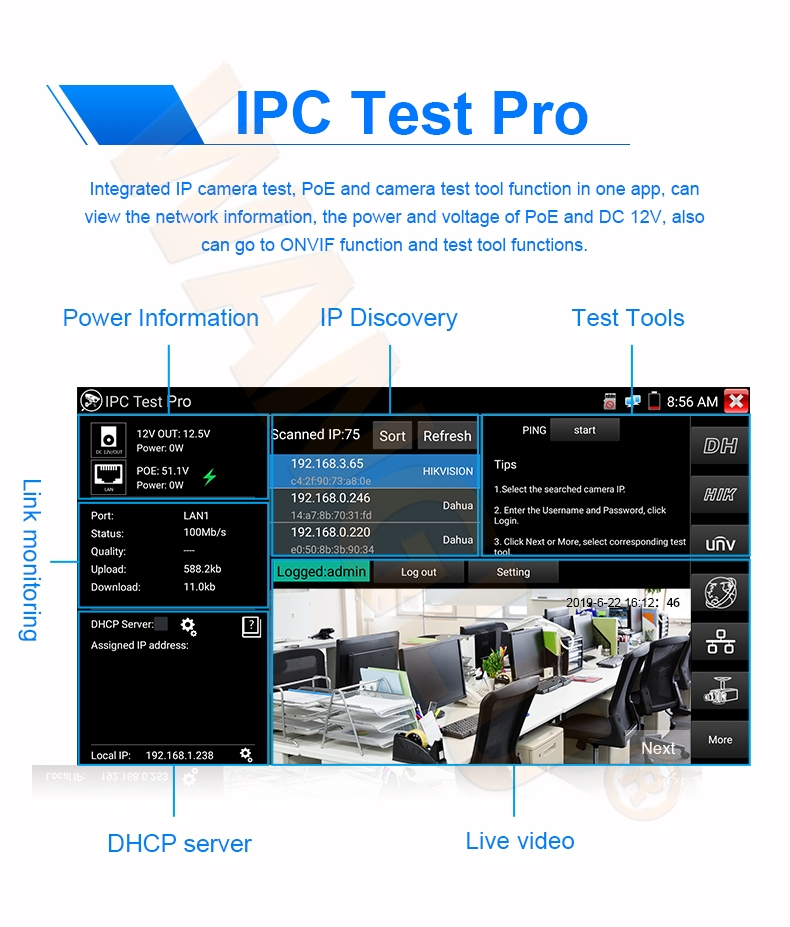

Test tool for HIK & DH & others brand security cameras

• Support batch activate Hik & DH cameras and modify IP address, modify password etc & self-defined modify channel name;For HIK Test tool can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
• Support snapshot, video record & playback, coaxial PTZ & call OSD menu;

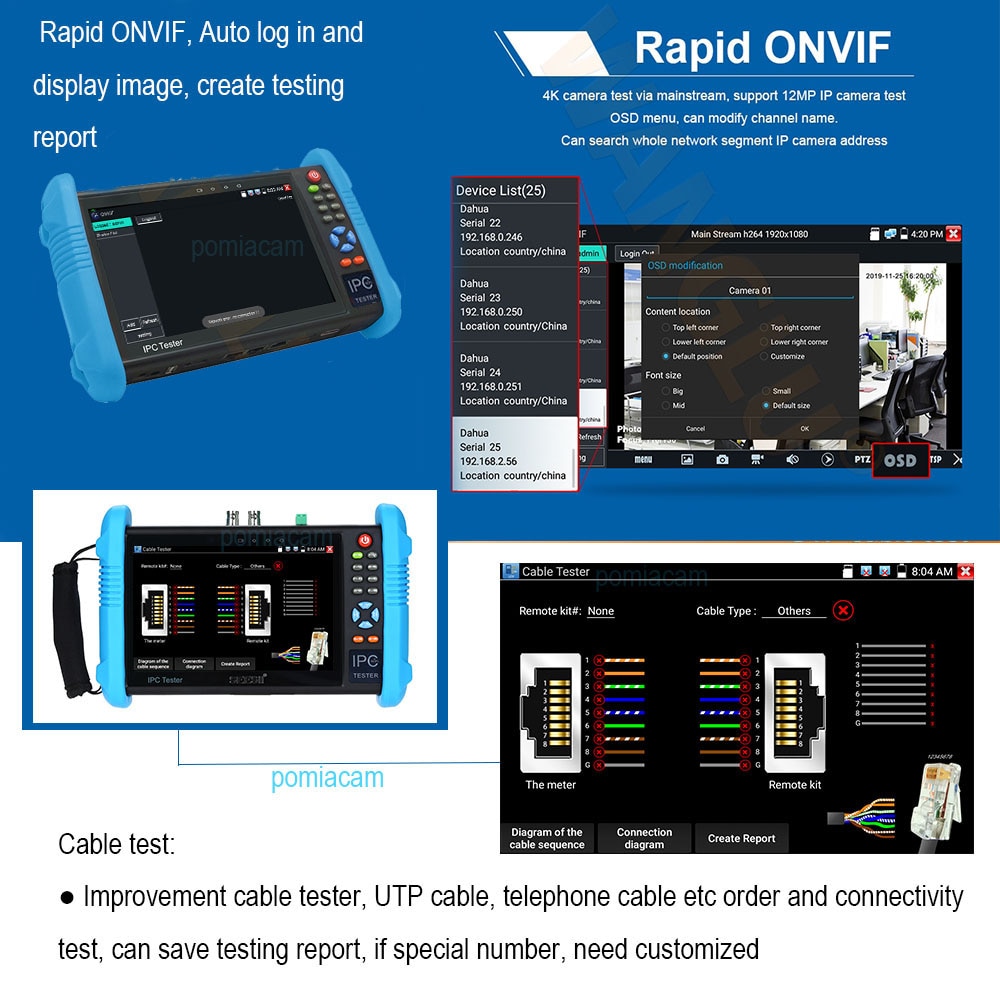

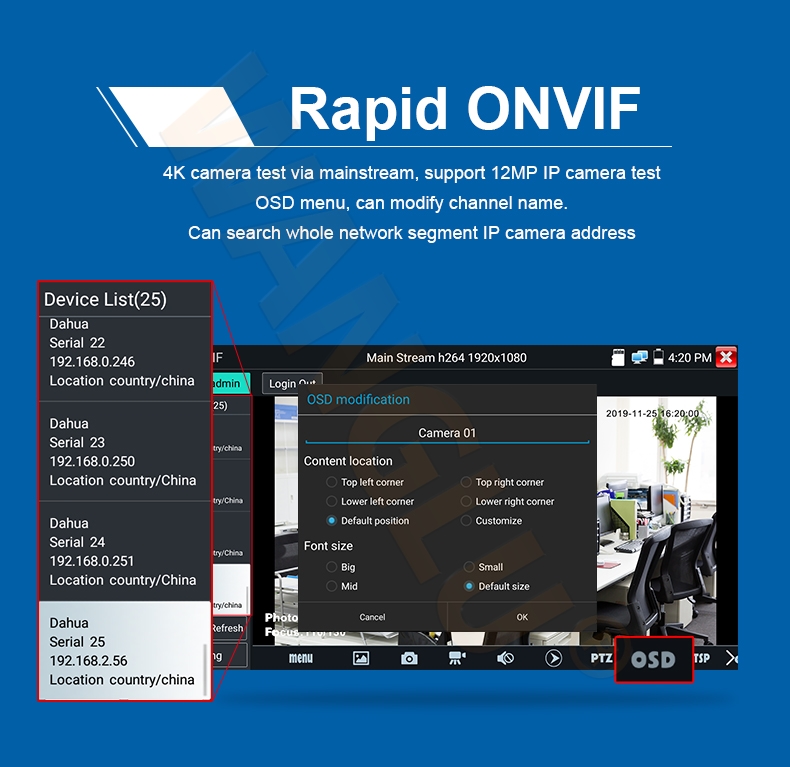

• Rapid OVIF, Auto log in and display image, create testing report. Compatible with more than 90% of existing brand cameras.

Built-in WIFI:
Built-in wireless network WIFI function, 2.4GHz, speeds 150Mbps
Support connect and test wifi camera and display wireless camera image, support creation of WIFI hotspot.

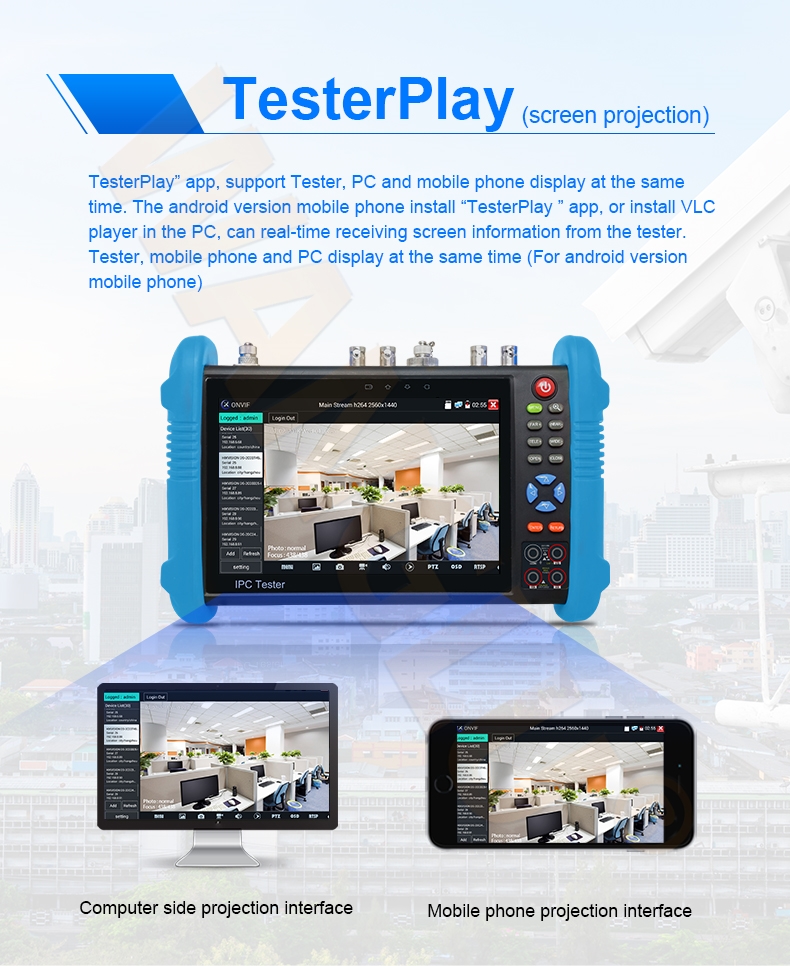

The screen of the tester can be projected onto the Android cell phone in the same hotspot.

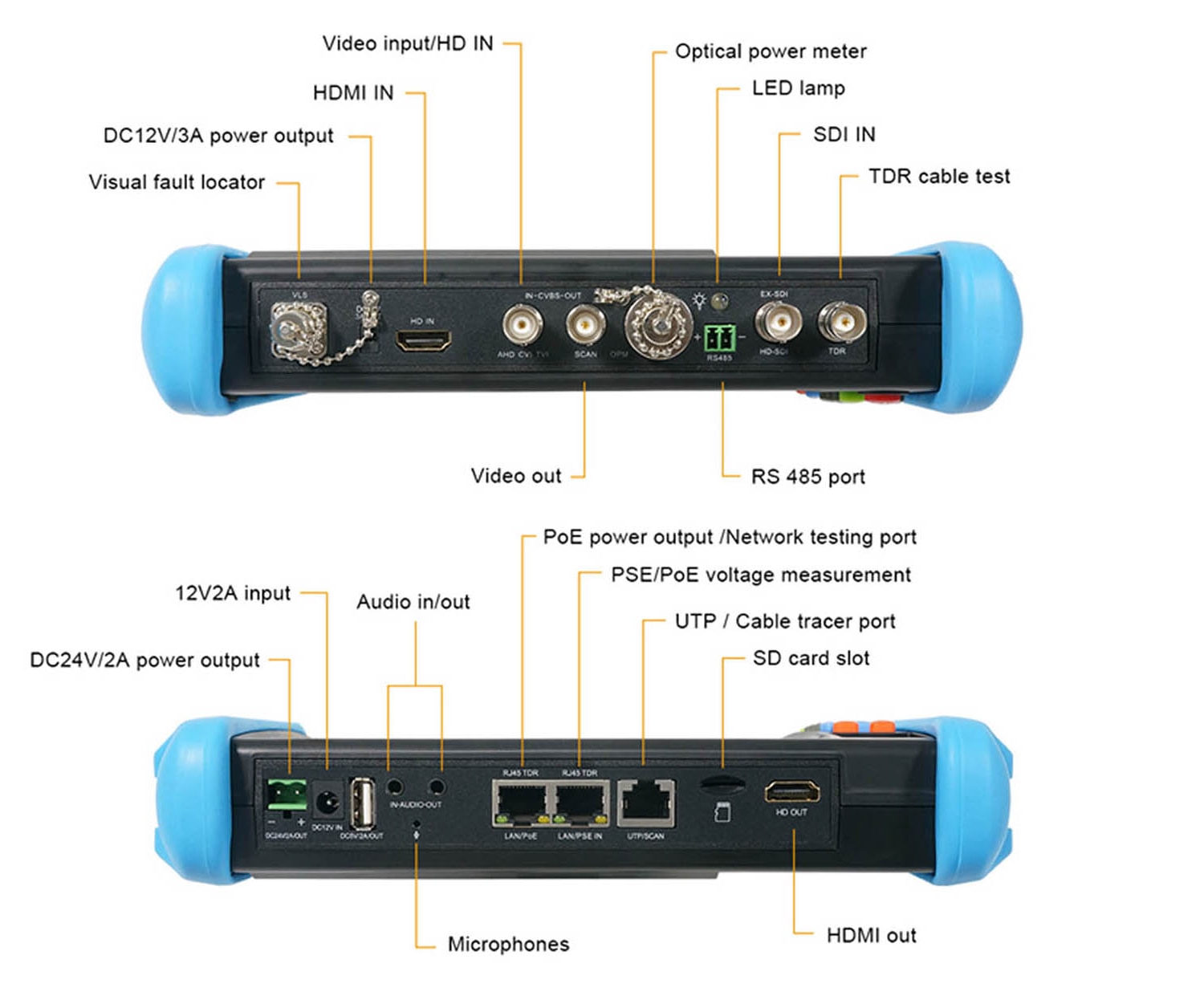

POE/PSE function

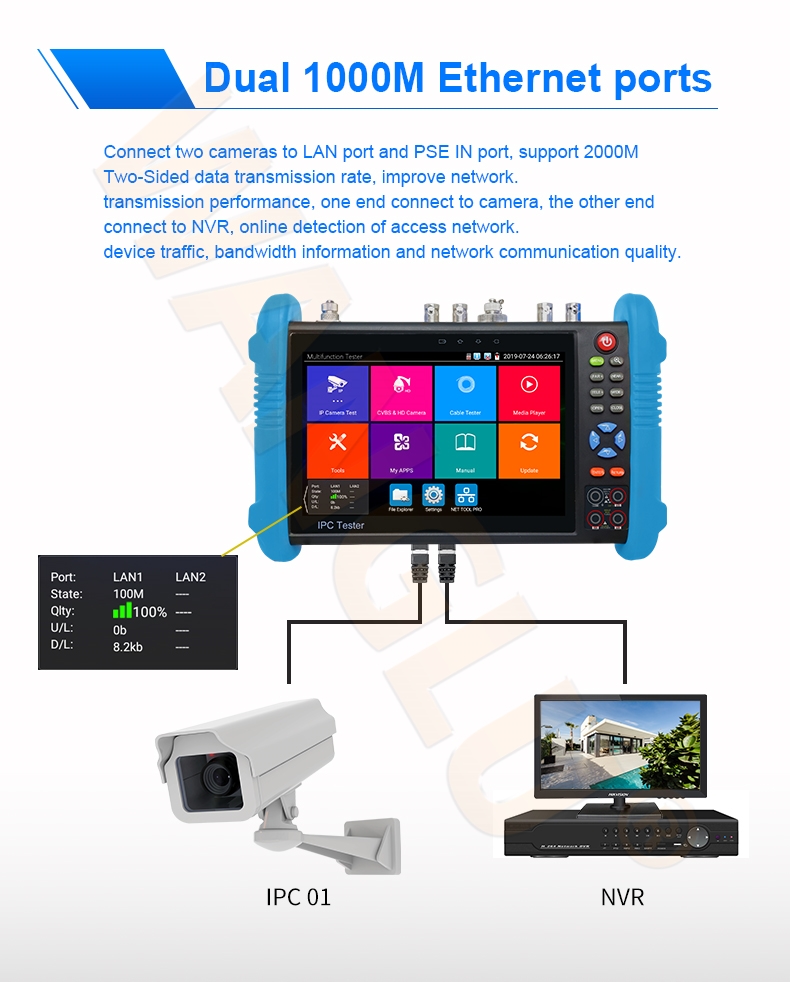

Dual Gigabit Ethernet Ports:
2 Ethernet ports, 10/100/1000Mbps adaptive.
POE/PSE function:
The camera tester comes with a standard POE(IEEE 802.3af/at.48V) max 25.5W. No additional power supply is needed to test the POE camera
The tester's POE function supports POE, PSE voltage measurement, and power measurement at the same time.

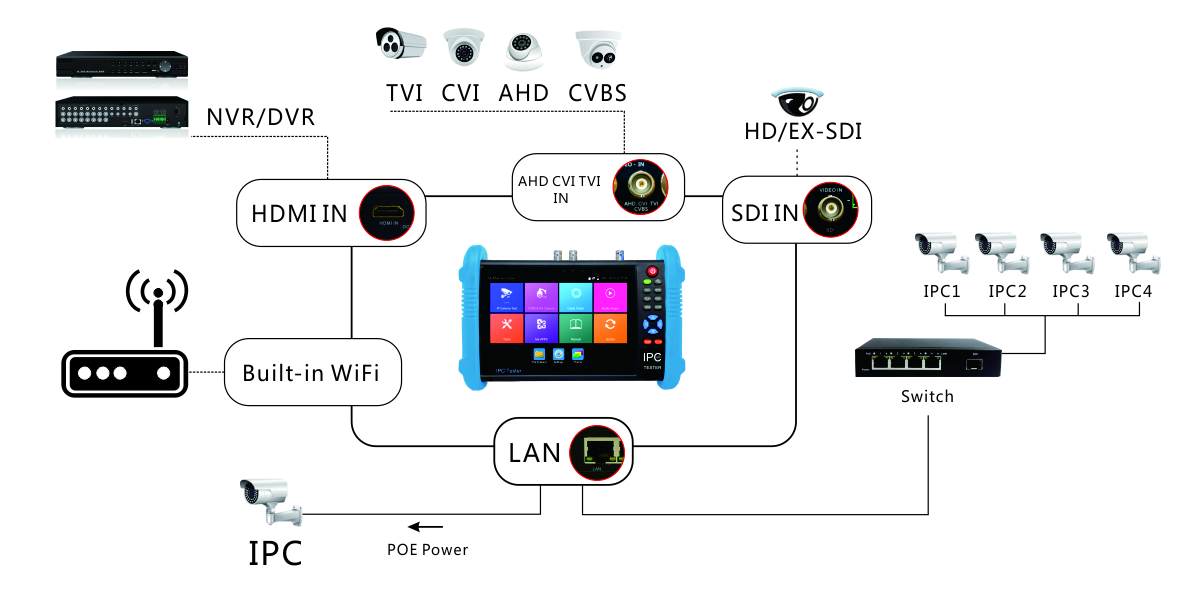

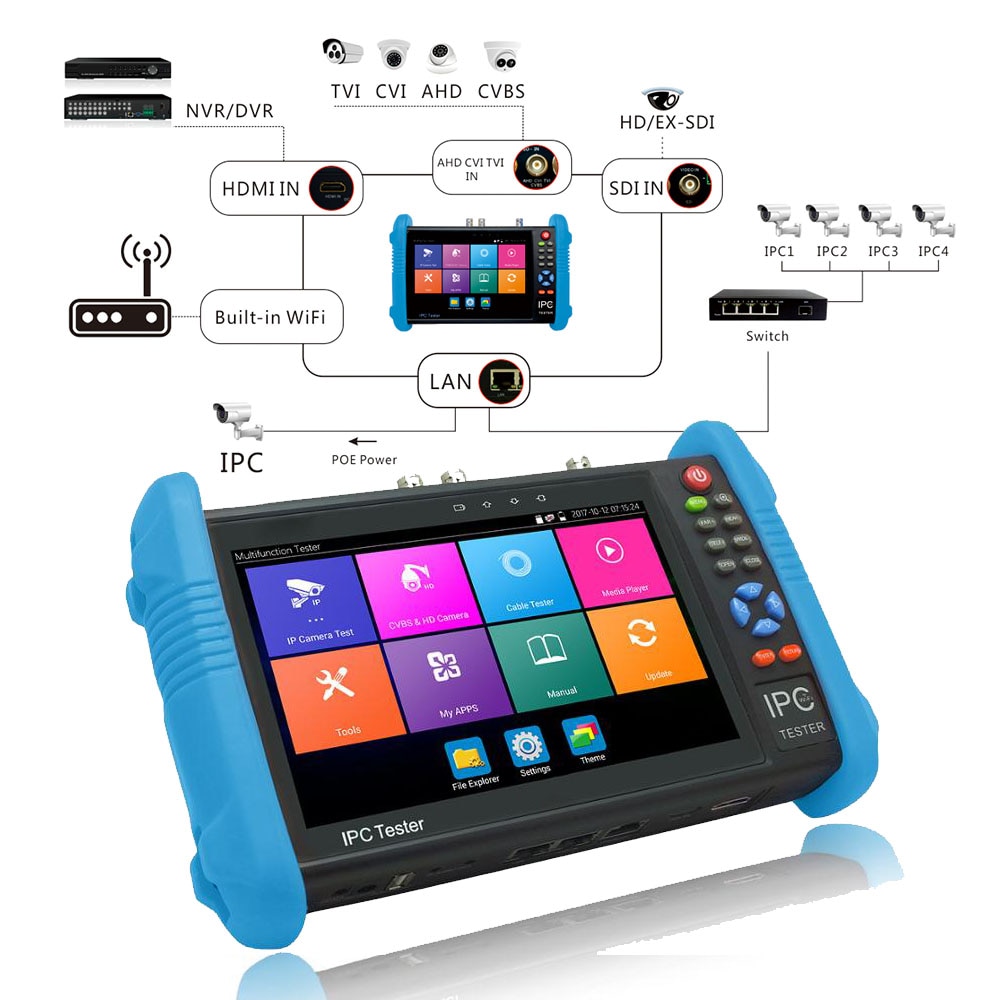

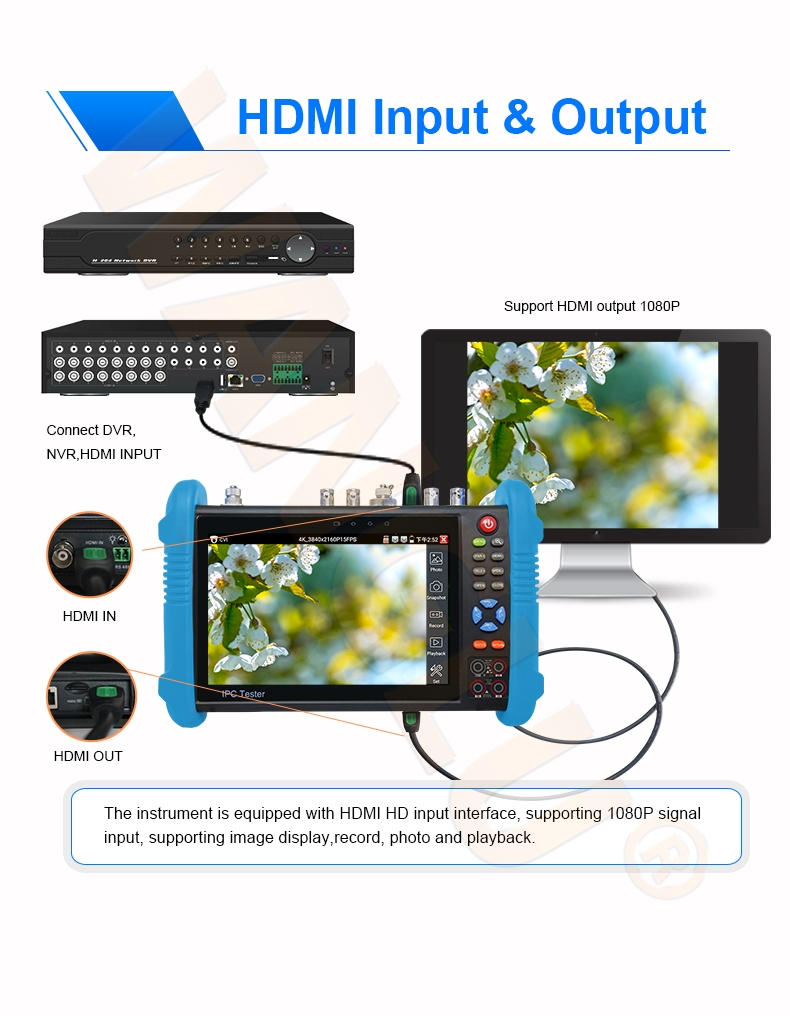

HDMI In/Out & RS485
HDMI input / HDMI output:
HDMI input resolution support up to 4K 3840X2160P 30fps, HDMI Input can be connect to DVR/NVR, directly as a display screen, easy to operate, improve efficiency.
HDMI output resolution support up to 1920x1080P 60fps, can be connect to a larger screen.
Universal RS485 interface:
you can easily use it to control cameras and other devices with RS485 interface.

Flashlights & Power supply
DC power output:
Built-in 7.6V 7800mAh 59.28Wh lithium-lon polymer battery. Support DC 5V.2A/12V.3A/24V.2A power output, provide power supply for the camera, so that the camera test more convenient, you can test the camera anywhere, anytime.
Flashlight:
The flashlight function of the tester can provide lighting for you in a dark working environment.

Note: The above data is for reference only .
it will be without advance notice if subject to change.For detailed please cobtact me .
cctv tester, hdmi camera ,  rapid test,   hdmi port,  network cable tester,  hdmi tester , audio cable tester,  cctv test , ethernet tester , power tester,   cctv ip hd tester ,  cctv monitor  camera monitor,  coaxial cable tester,  ahd camera tester cctv,  cctv test monitor

1.Question:What is the max voltage for the digital multimeter?
Answer:Hi friend, The parameters of the tester's digital multimeter are as follows:
DC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.3%+4), the resolution is 100mV
AC voltage measurement(V): the highest range is 660V, the accuracy is ±(0.8%+6), the resolution is 100mV
DC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA
AC current measurement(A): the highest range is 10A, accuracy is ±(1%+5), resolution is 10mA
Voltage and current measurement can also use a smaller range to obtain higher measurement accuracy can be obtained. At the same time, the tester's multimeter can also measurement resistance, diode, capacitance measurement and continuity testing.

2.Question:This is so expensive, why
Answer:Ok let me tell you why
Because it has many functions.
In addition to testing 12MP IP cameras and 4K 8MP AHD TVI CVI SDI and CVBS cameras, it has four other important functions:
1. TDR, true TDR, built-in TDR hardware module, can help you find the location of the cable fault
2. It has a digital multimeter. Measuring voltage, current, resistance..., this does not require much explanation, you must know what it does
3. It has a red visible laser light source. Power 10mW, effective distance 8KM. You will use it when installing optical fiber
4. Optical power meter, also, you will definitely use it when installing optical fiber.
Then you should understand why it is expensive

3.Question:Can you identify the network parameters and switch port?
Answer:These come in several models. all can use the toner to identify the wire/data jack the traditional way. They can also get you the IP/Network parameters/information. I believe only the top models can do a network port test/blink for port identification, but the lower models may also be able to. I have the top model and it has been a great tool for CCTV cameras. I also use the built in HDMI input for a bunch of applications

4.Question:When testing sdi input will i also hear the audio coming with it in the tester speakers?
Answer:Hello, this camera can support TVI, CVI, AHD coaxial audio, but does not support SDI coaxial audio. You can try to enable the audio function under the "auto HD" APP, and then record and play the sound through the "Audio Recorder" APP.

5.Question:What type of camera can the tester test
Answer:IP camera test:Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick ONVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hikvision and Dahua camera test tool, onvif test tool etc.
Coaxial HD camera test:Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.
CVBS camera test:1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc. Support PAL/NTSC color bar test.
