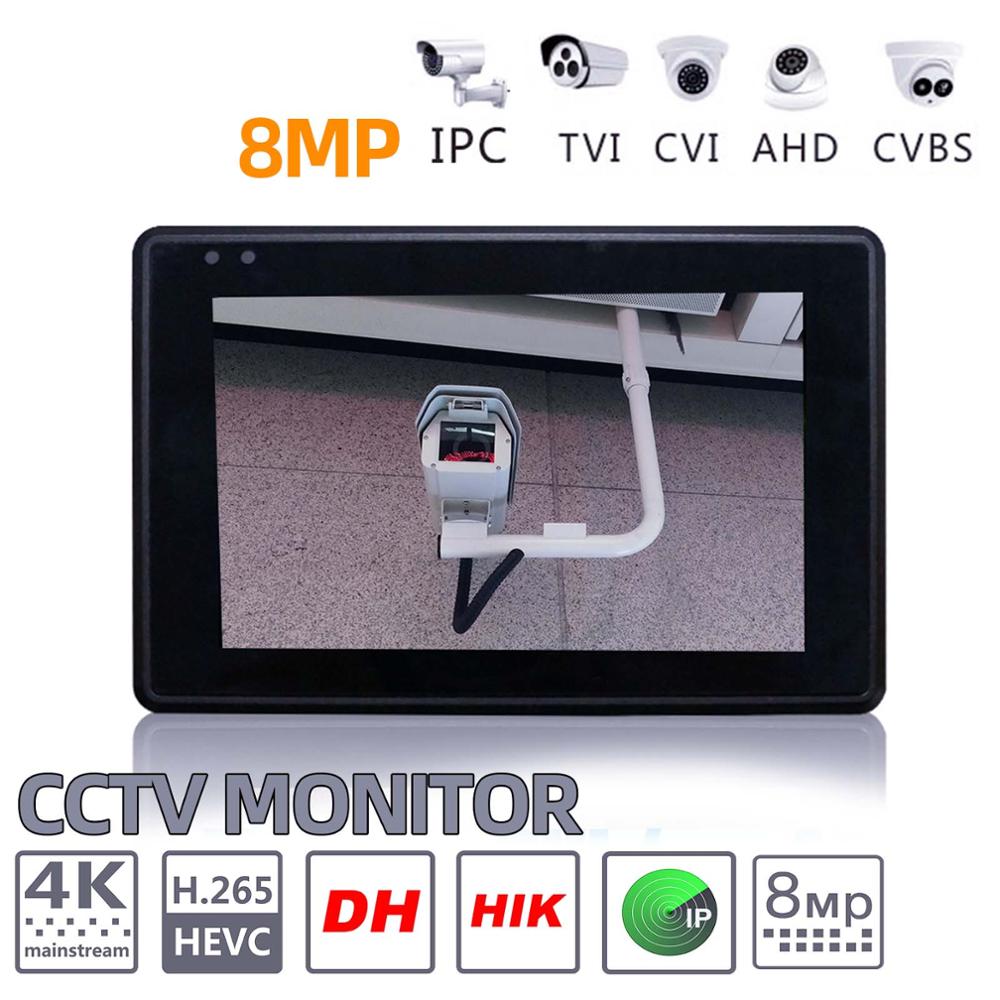

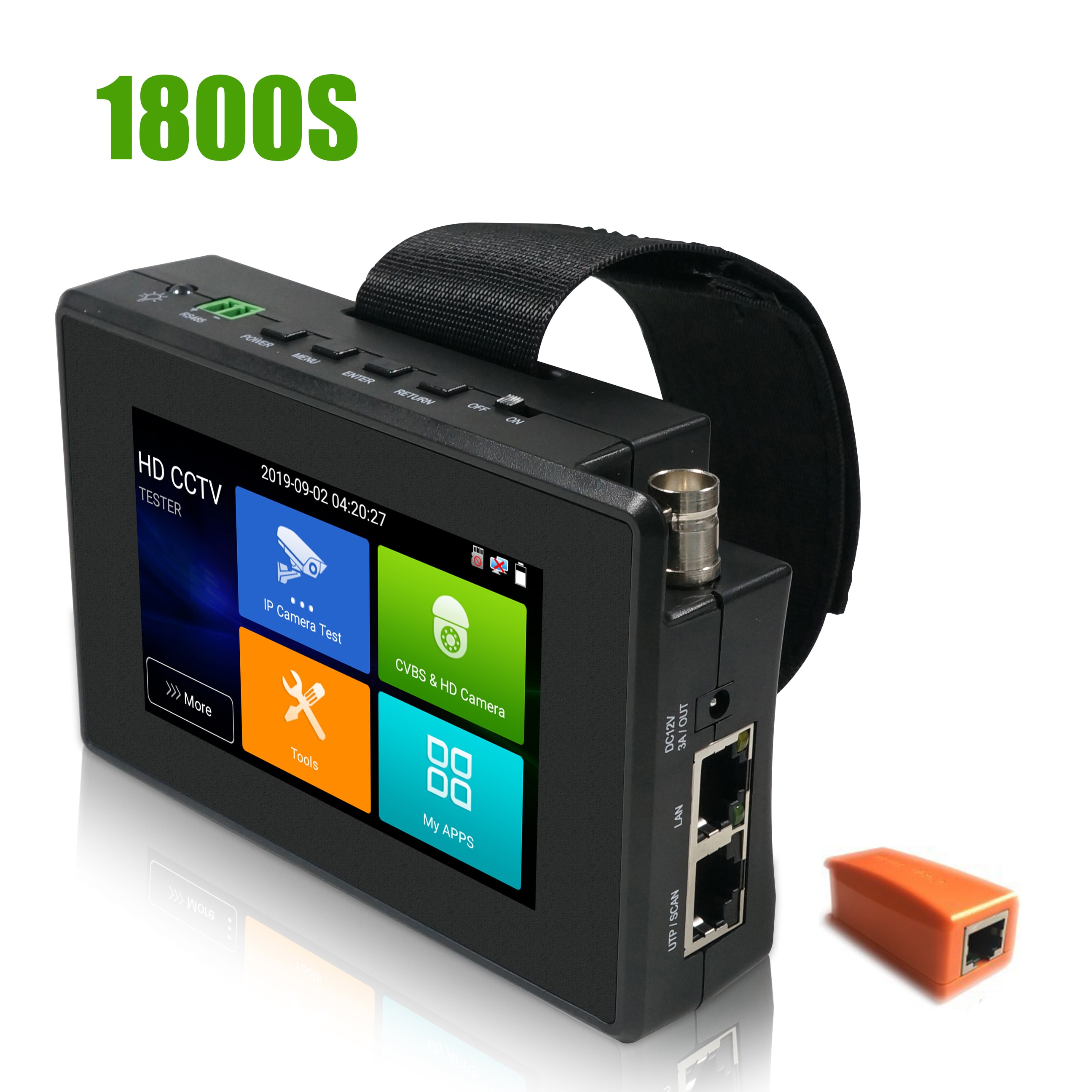

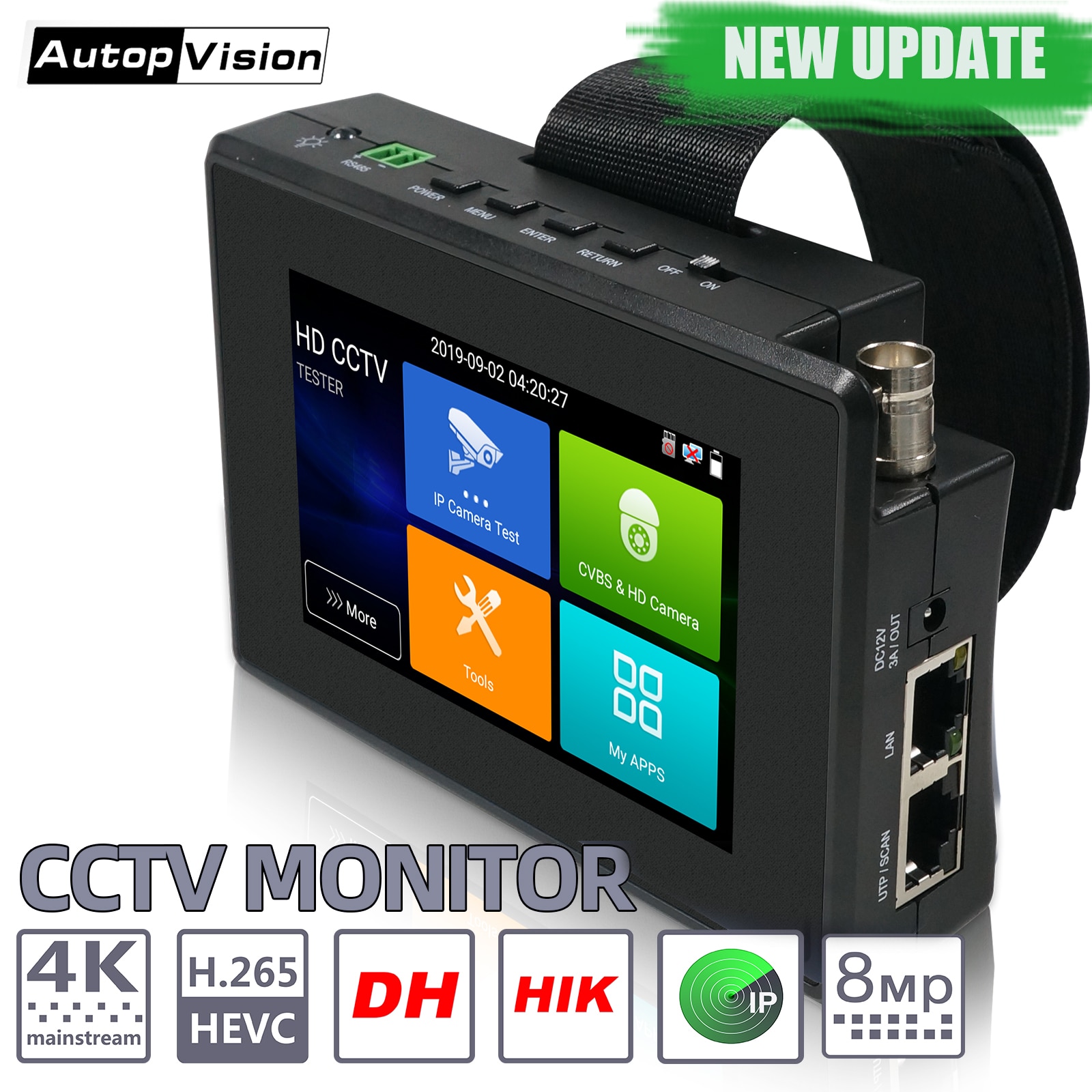

PEGATAH 4K Wrist IP Camera Tester CCTV Tester 4 Inch H.265 AHD/CVI/TVI Analog Touch Screen Camera Tester IPC Monitor POE Testers
521.29 325.07 $
SALE
ID: 14835
Quantity
IPC1800plus 1080P 5-IN-1 TVI AHD CVI Analog IP CCTV Camera Tester Build in Battery Security Tester Monitor Video Audio Test PTZ
5.0 (5 votes) | 26 orders
Price:
US $429.00
/ piece
Discount Price:
US $
334.40
/ piece
-22%
- Ships From
Wanglu New 4" wrist coaxial HD 4.0 CCTV Tester Monitor 4K H.265 IP CVI TVI AHD CVBS Camera tester with WIFI hotspot PTZ Control
IPC 1800ADH plus New updeat :8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBS camera test
New 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester
Model: IPC-1800ADH Plus
● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBScamera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● DC12V 3A, DC48V PoE power output
●Built in WIFI, create WIFI hotspot
●RJ45 cable TDR test,cable quality test

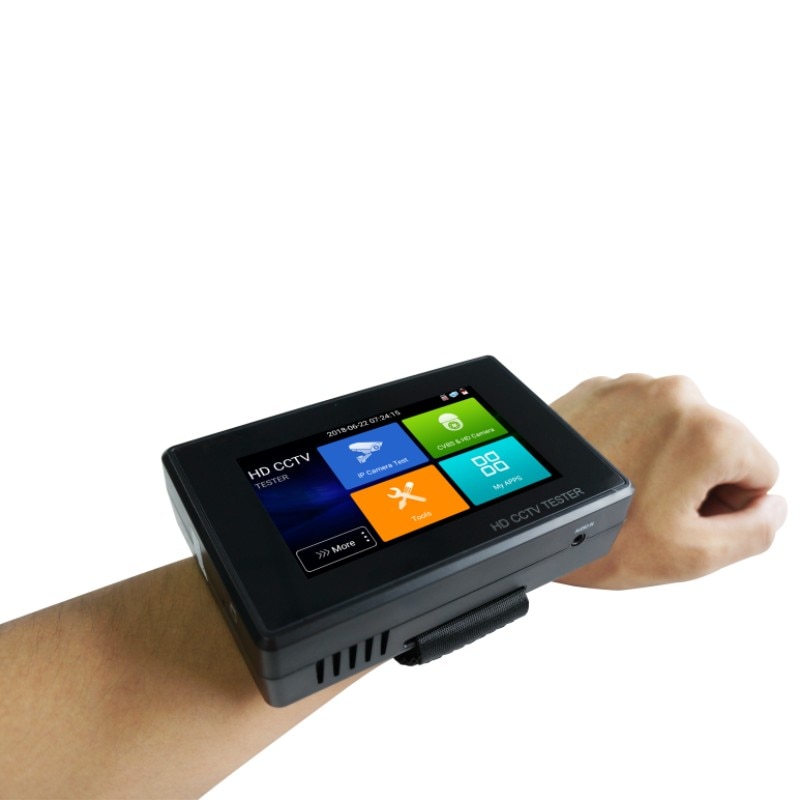

● Wrist design, portable and easier to carry
● 10/100/100M Ethernet,network state and traffic display
Camera test:
● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream

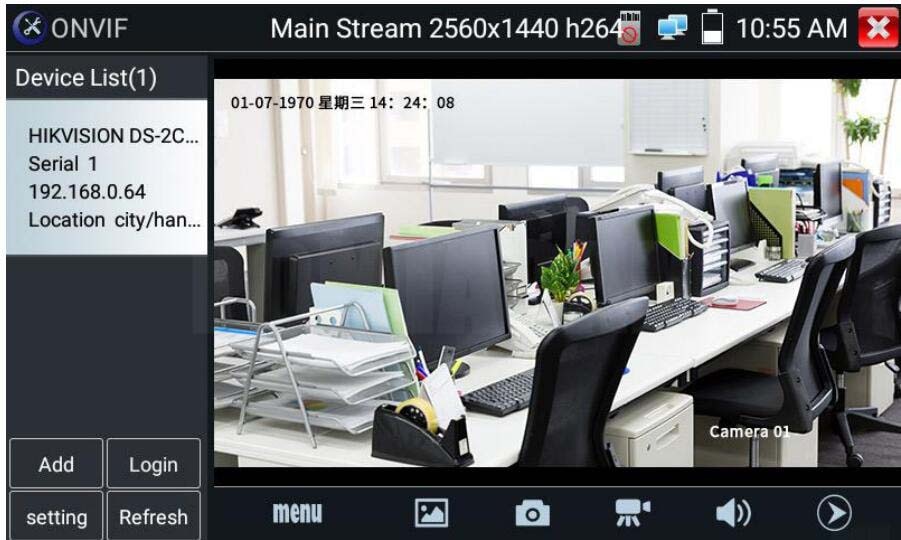

● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD
● CVBS camera test and PTZ control

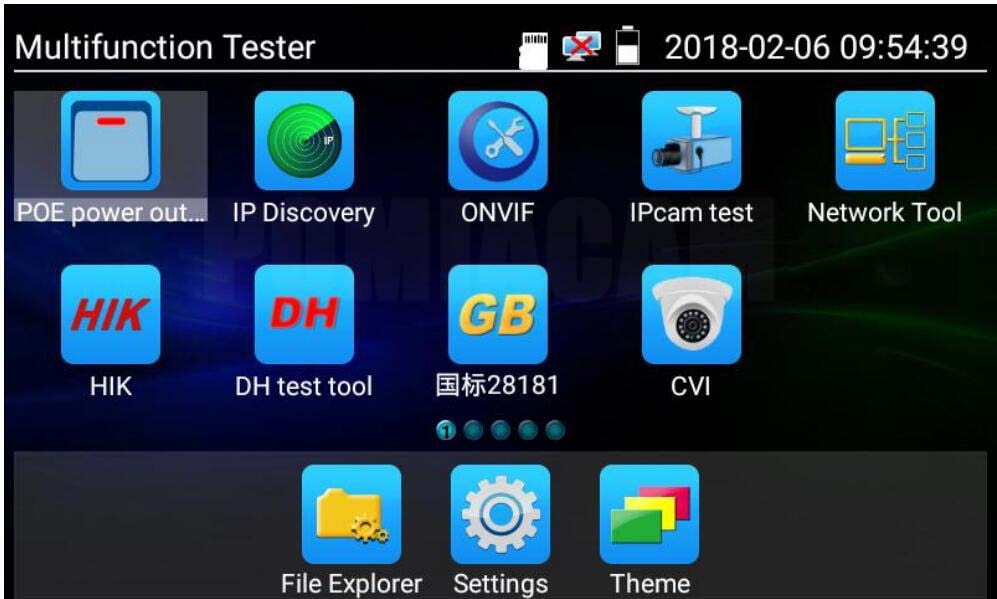

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output
● PoE DC48V power output, Max power 25.5W

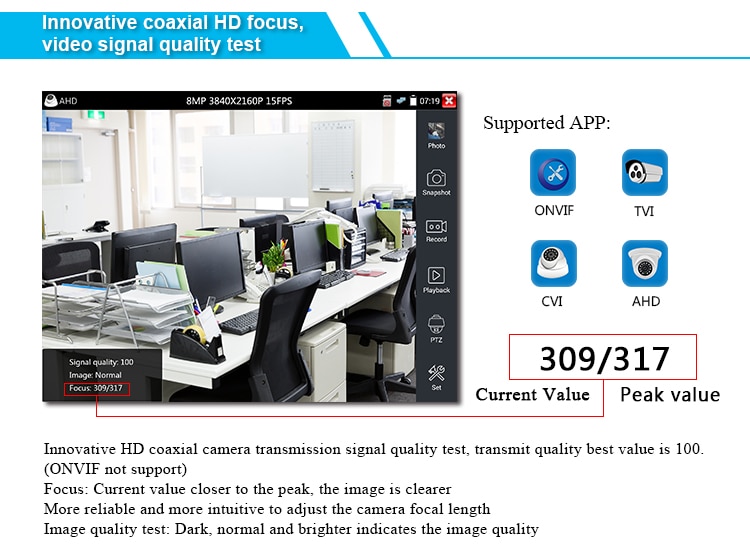

● Innovative coaxial HD focus, video signal quality test
●Built in WiFi, display image from the wireless camera, create WIFI hotspot
Cable test:
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

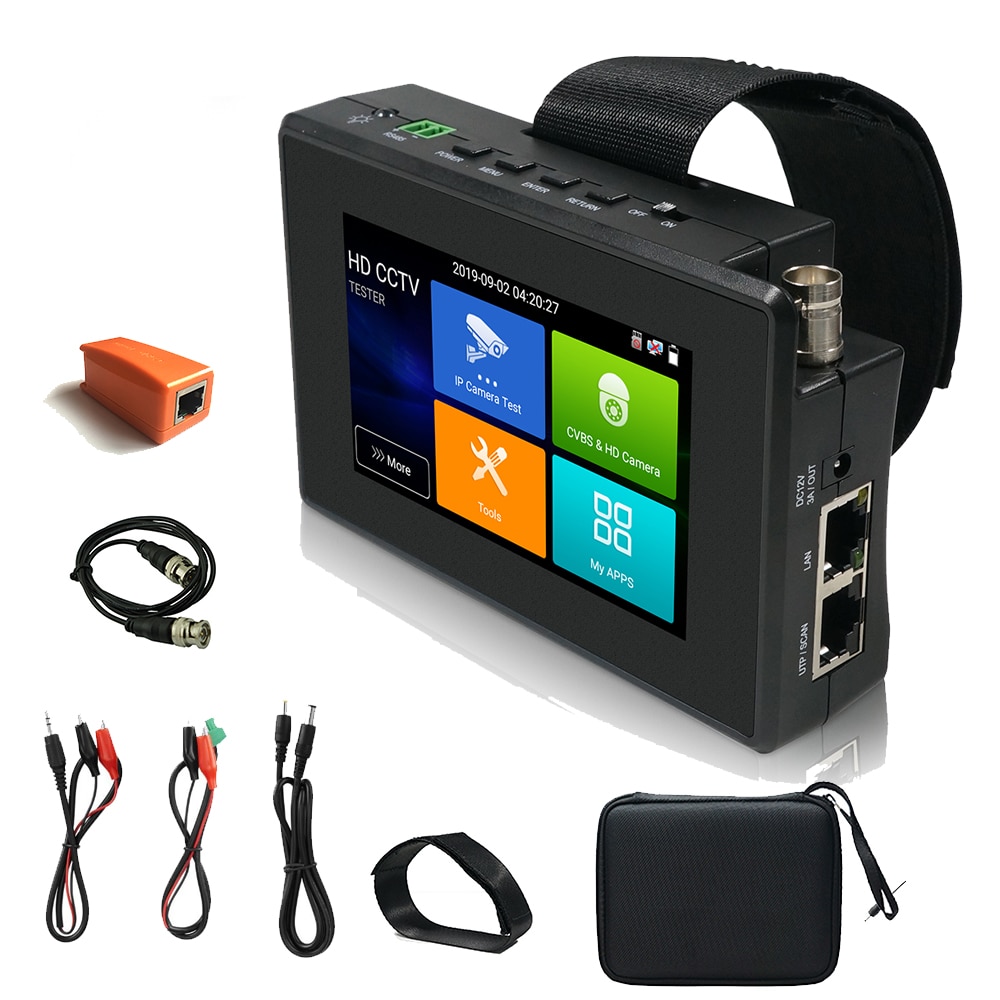

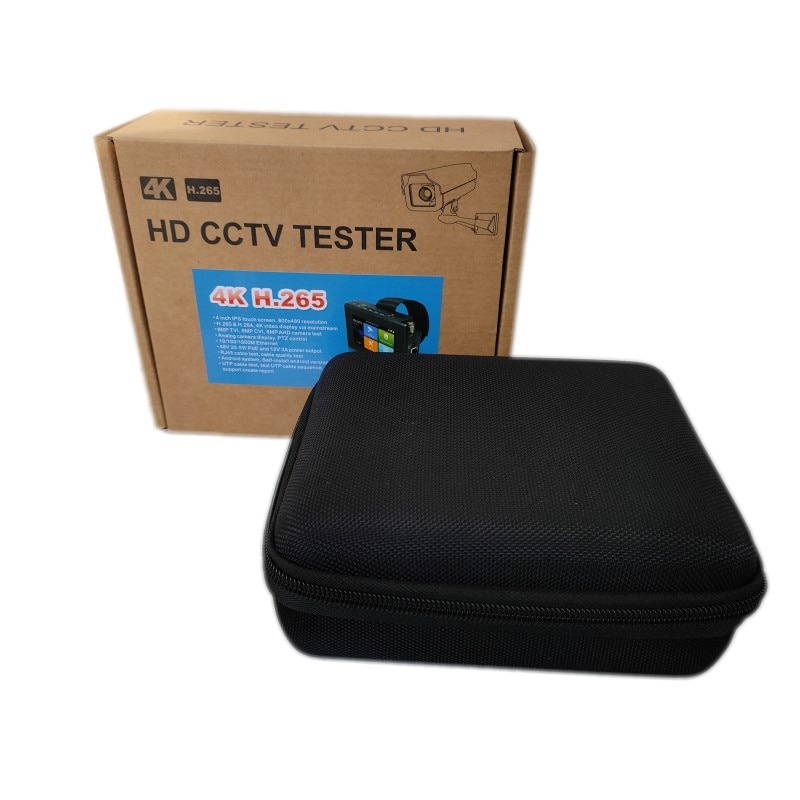

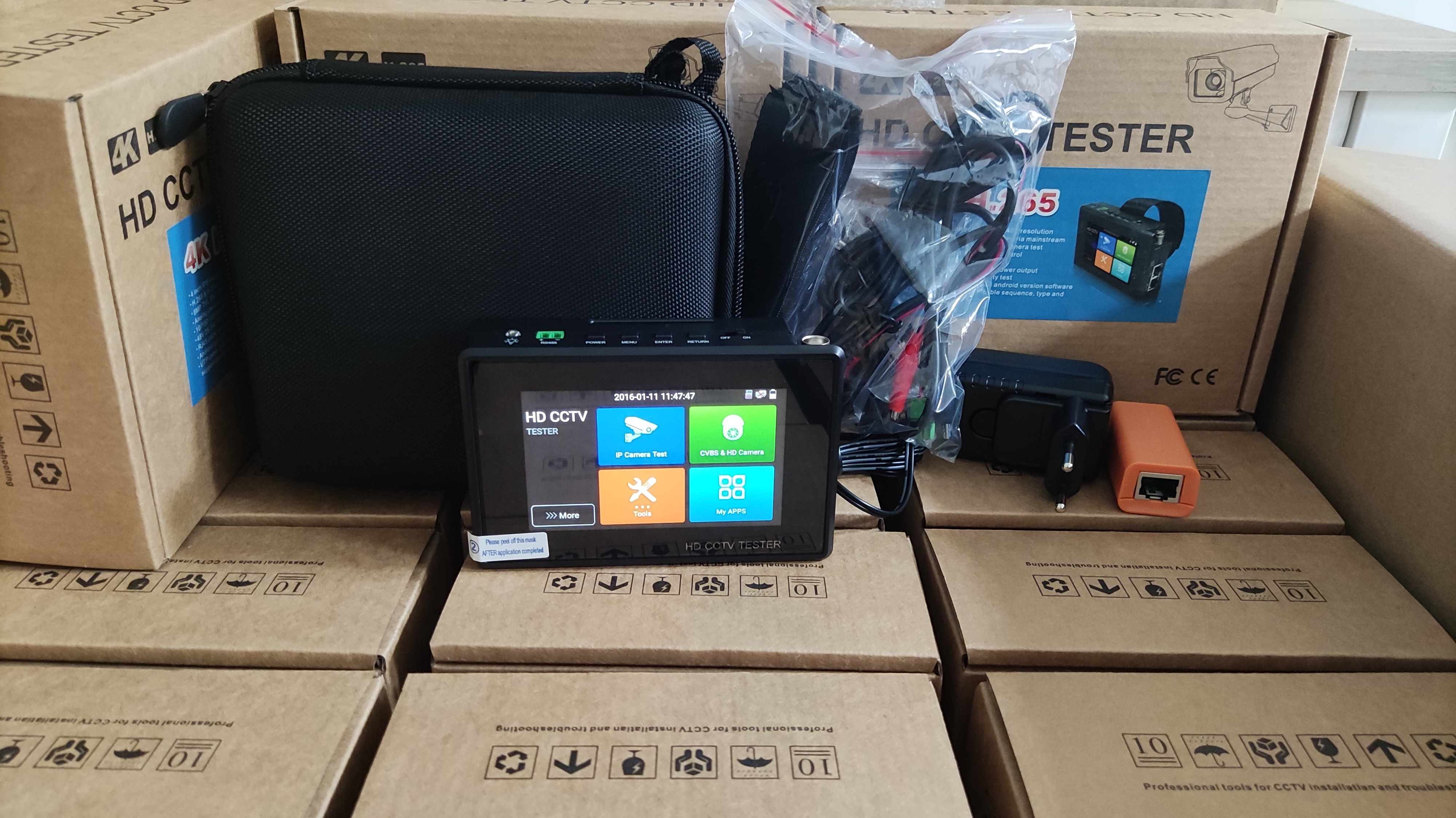

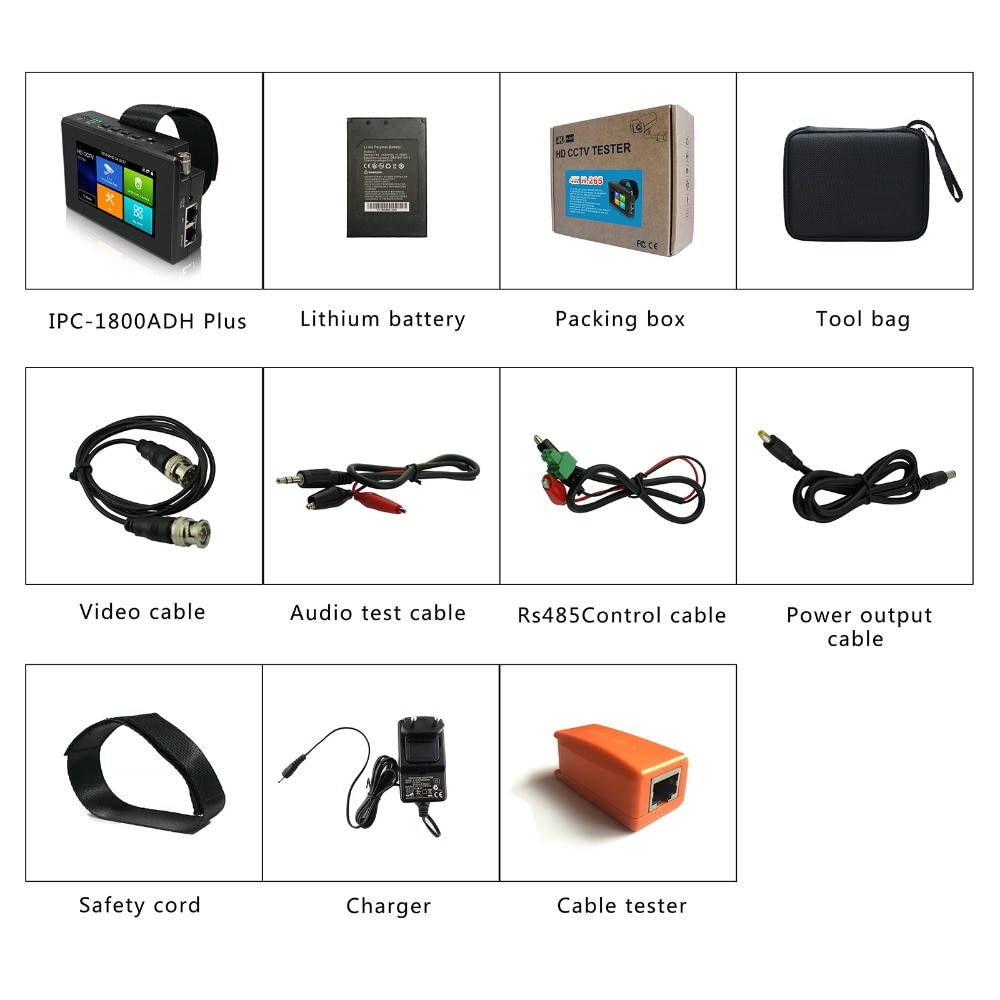

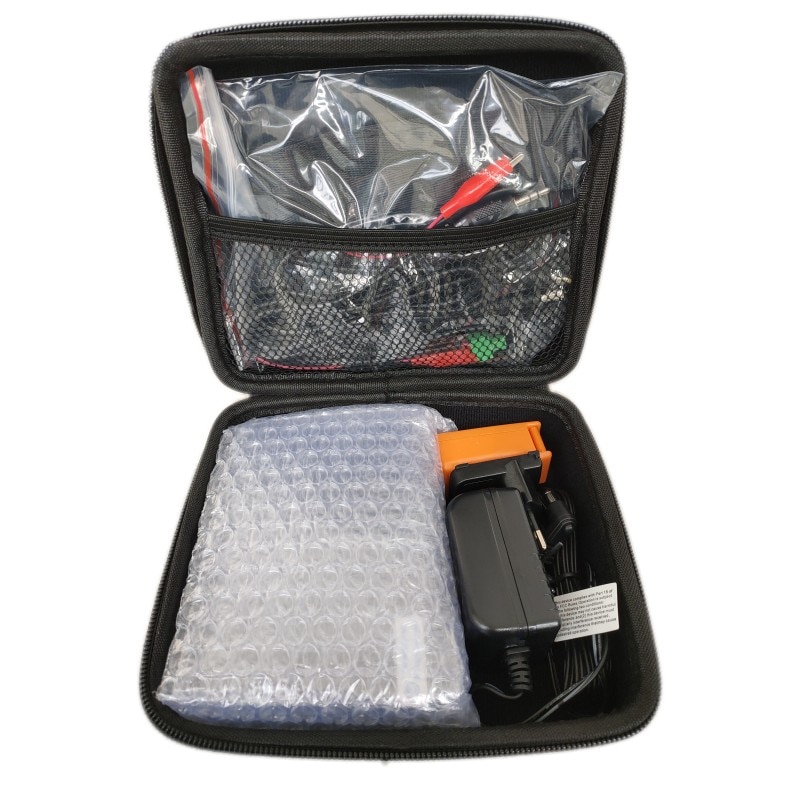

Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
Detail :
Display:New 4 inch IPS touch screen , 800*480 resolution
CVBS:
1 channel BNC input, NTSC/PAL (Auto adapt)

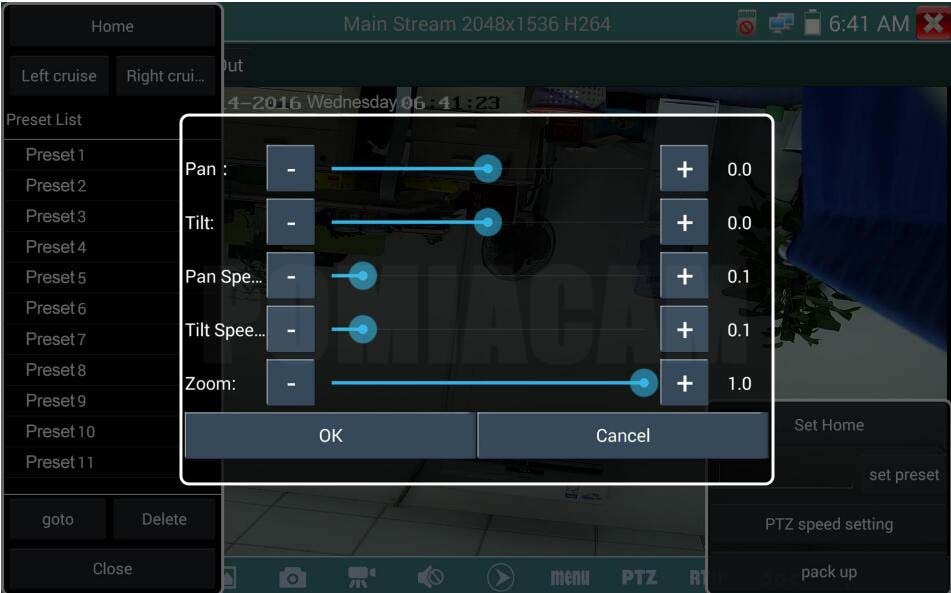

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
IP camera test4K/H.265/H.264:
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid Video:Auto view the video, create testing report
Hik test tool:pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

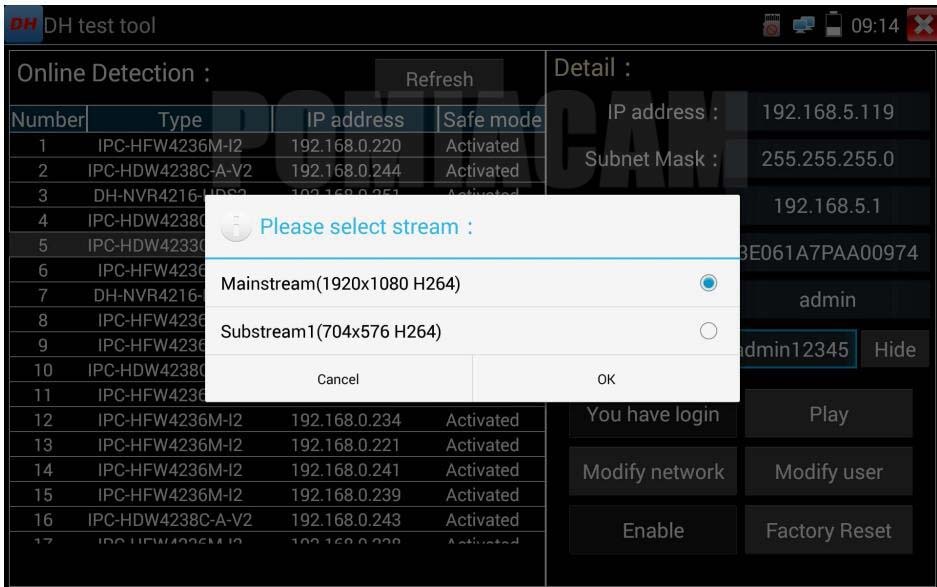

Dahua test tool :Dahua camera test, modify the username, password and IP parameters

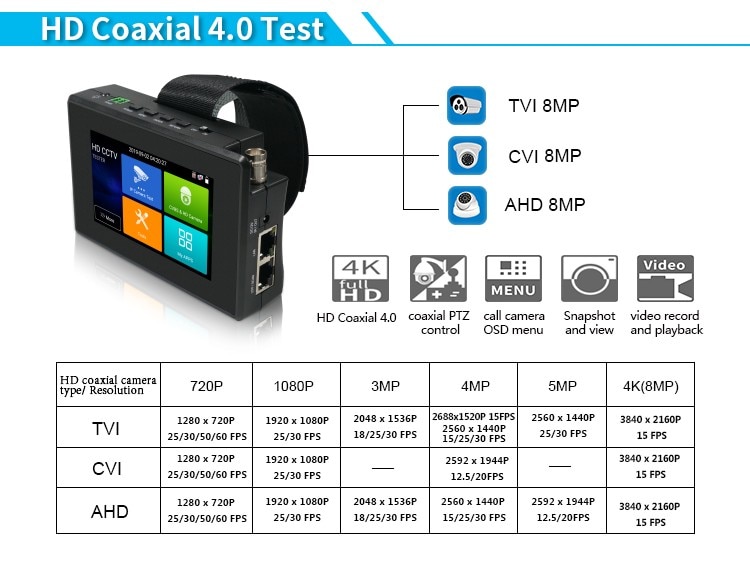

Coaxial HD test :
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu
8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
Zoom Image
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

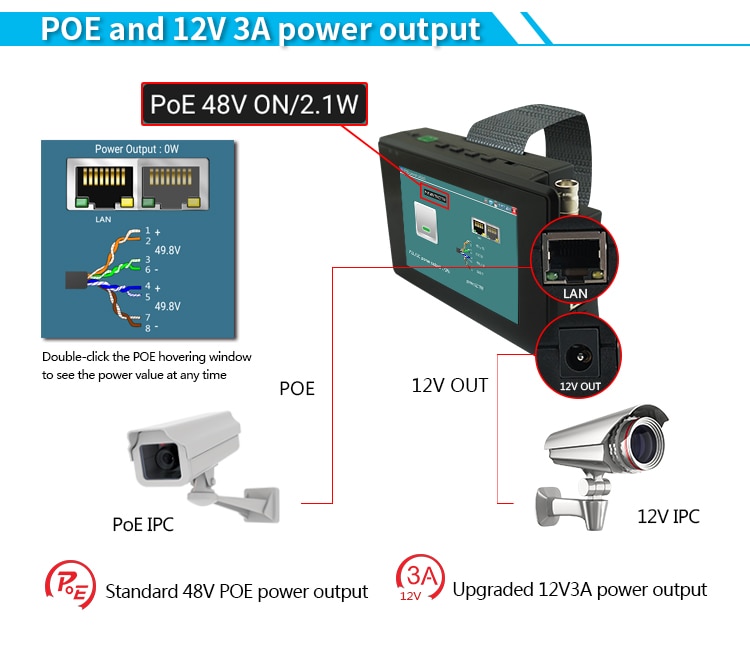

12V/3A power :Output DC12V/3A power out, supply temporarily power for the camera
PoE power output :48V PoE power output, max power 25.5W
Network test:Link monitor,port flashing, Ping test
Audio test :1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor:Captures and analyzes the command data from controlling device, also can send hexadecimal

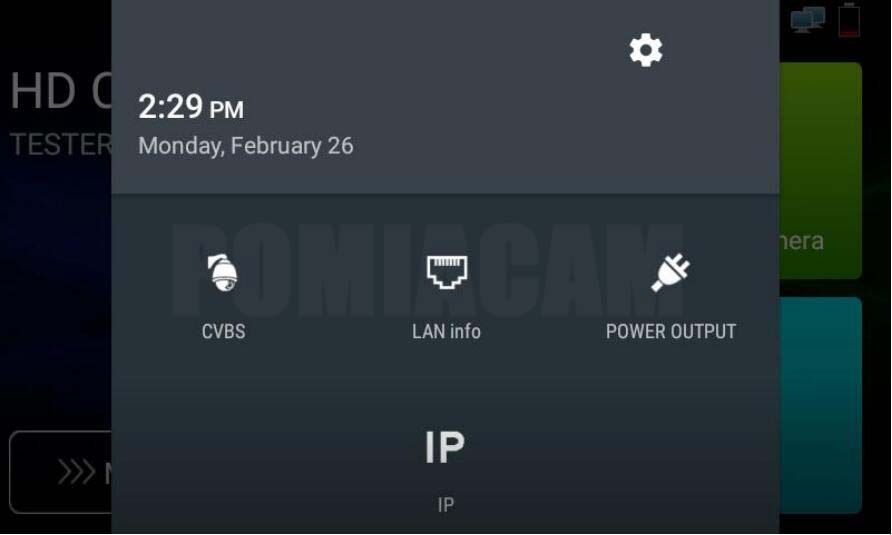

Drop-down menu :You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface
External power supply:DC 12V 1A
Battery:Built-in 7.4V Lithium polymer battery , 2400mAh
Rechargeable:After charging 4~5 hours, normal working time 7 hours
Operation setting:OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off :1-30 (mins)
Working Temperature:-10℃---+50℃
Working Humidity :30%-90%
Dimension/Weight:126mm x 83mm x 33mm / 0.32kg
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera testing
● Video transmission channel testing
● PTZ controller
1. CVI camera test
2. TVI camera test
3. AHD camera test
4. HD CVBS camera test
This CCTV monitor has 1 year warranty, 1 month free return, high quality service, please choose us! 10 years of factory, complete certificate.

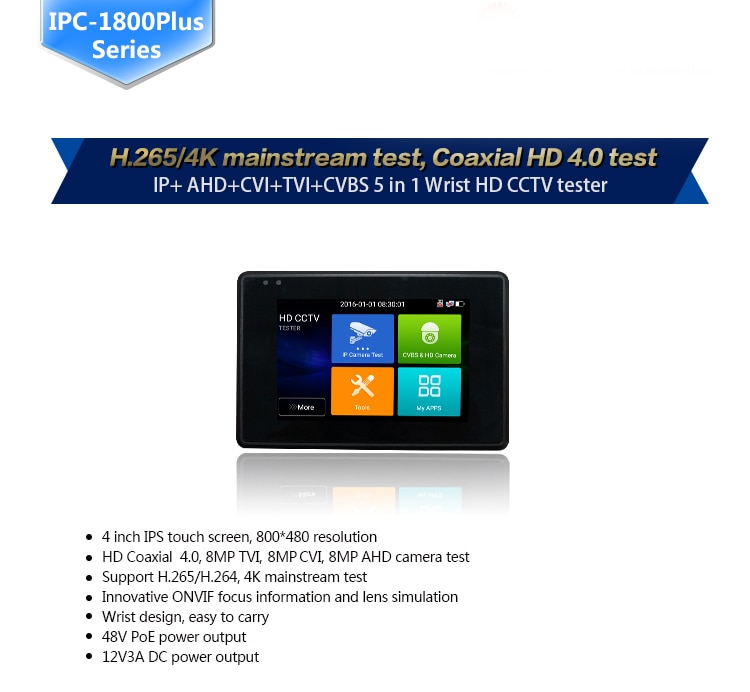

⚫ Camera Tester 4-inch 800x480 full-view capacitive touch screen + new interface, clearer and smoother. Support H.265/H264, 4K main stream test.
⚫CCTV Tester 10/100/1000M adaptive network port, network status and traffic display. One-click video one-click plot.
⚫Upgraded version of the fast ONVIF, support cross-network segment testing, generate test reports, support audio testing and more

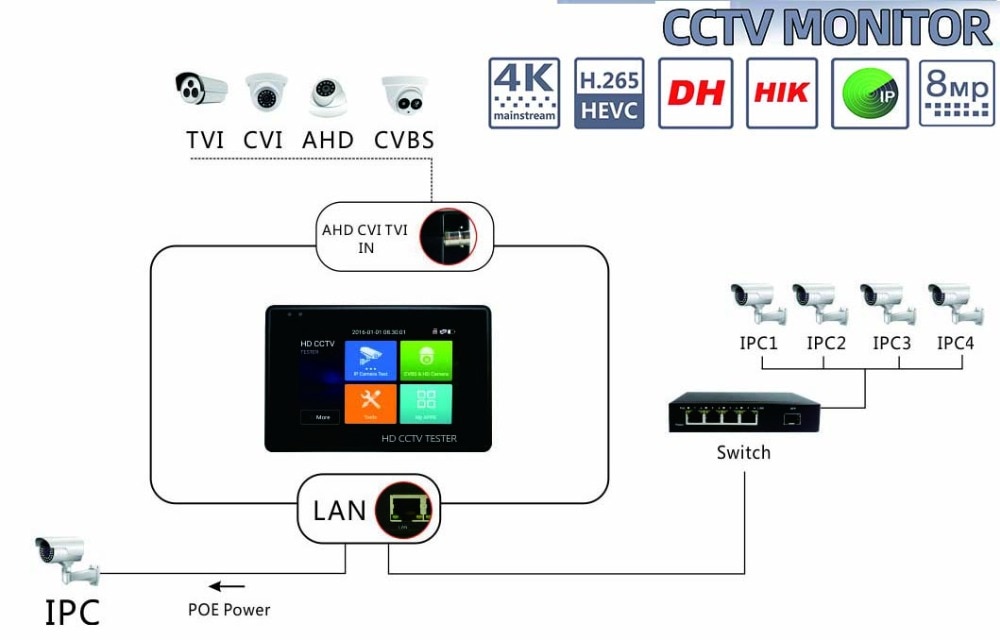

⚫5 in 1 CCTV Tester One screen dual display, network camera and analog camera are tested at the same time. Upgrade coaxial HD 4.0, TVI 8MP, CVI 8MP, AHD 8MP.
⚫Wrist-style wearing, small and portable 48V PoE power supply output Large-capacity polymer battery power supply, charging 4-5 hours, can work normally for about 7 hours

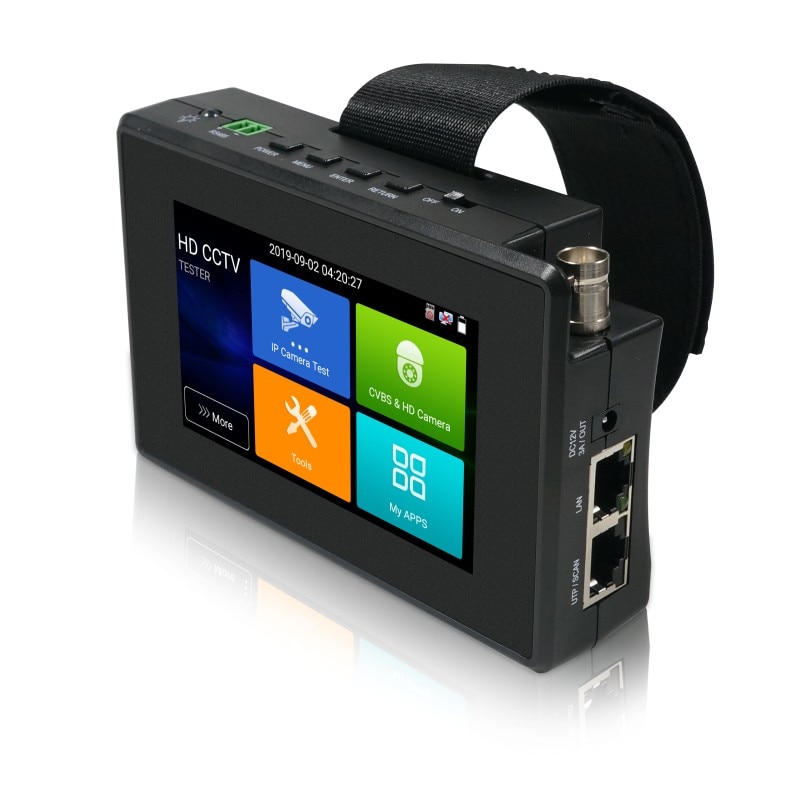

The tester is a test tool specially developed for the installation and maintenance of a new generation of H.265, 4K HD network cameras. It is wrist-worn, compact and portable. Upgrade the 4-inch 800x480 full-view HD capacitive touch screen and use the new system to make the test picture clearer and smoother. It also takes into account analog, coaxial HD surveillance dome and camera testing.
- Plug Type: EU plug
- Sensor Type: camera testing
- Model Number: IPC1800 plus Ip camera tester
- Maximum IR Distance(m): camera tester
- Sensor Size: IP camera tester
- Lens: camera test
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: CE
- 1: Ip camera tester
- 2: CCTV system installation and maintenance
- 3: Network cabling project installation and maintenance
- 4: Dome camera, IP TVI CVI AHD 4K H.265 camera testing
- 6: Video transmission channel testing
- 5: PTZ controller
- 7: 8MP TVI/8MP CVI/8MP AHD/4K H.265 IP /CVBS
- 9: H.265/H.264, 4K video display via mainstream
- 8: Dahua, Hikvision, Axis etc ONVIF camera test
- 10: Rapid ONVIF, auto view video and create testing report
