500w Air cooled spindle Motor +13pcs ER11 chuck + 52mm clamps + Power Supply speed governo
236.36 149.59 $
ID: 45011
Quantity
Air cooled 0.8kw DC110V 20000RPM CNC spindleMotor Kit ER11/ chuck 800W Spindle Motor + Power Supply speed governor For Engraving
5.0 (5 votes) | 27 orders
Price:
US $202.84 - 619.20
/ piece
Discount Price:
US $
128.37 -
392.42
/ piece
-37%
- Color
-
-
0.8kw spindle motor Air cooled spindle 1Pcs ER11 chuck CNC 800W Spindle Motor 20000rpm

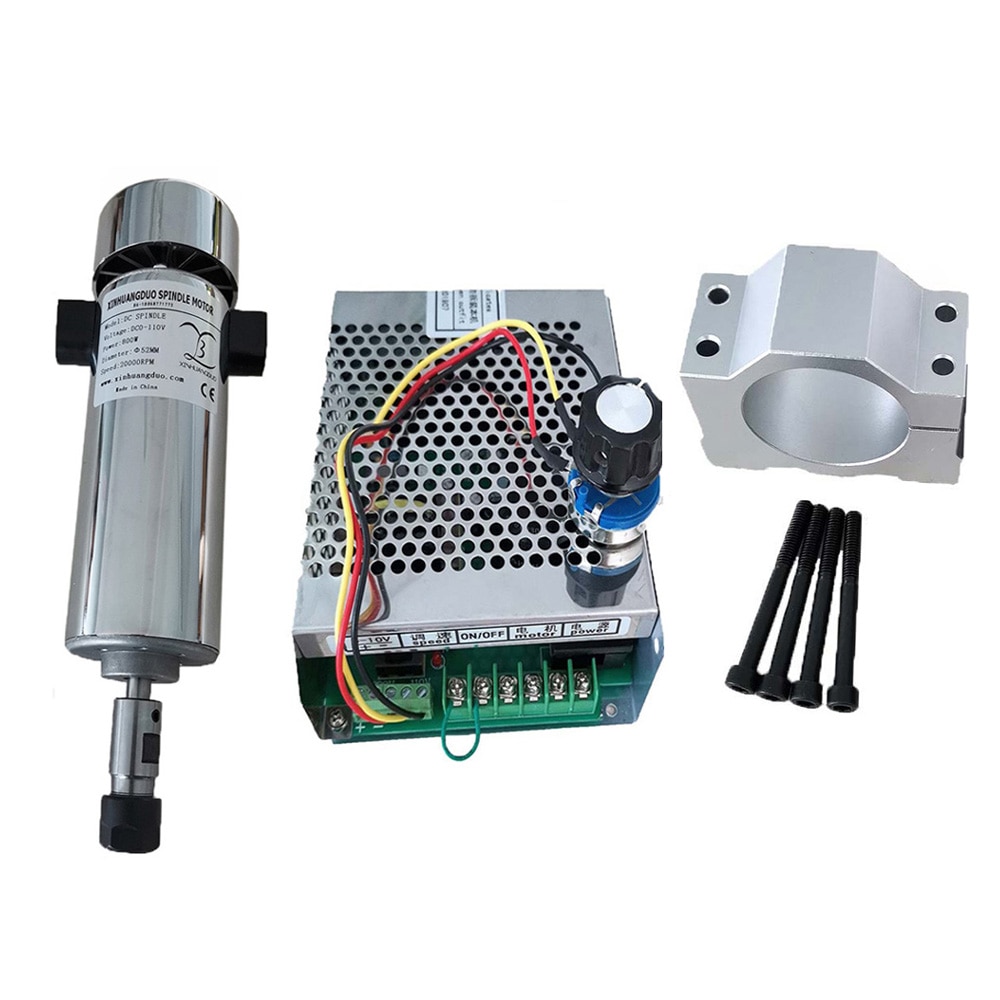

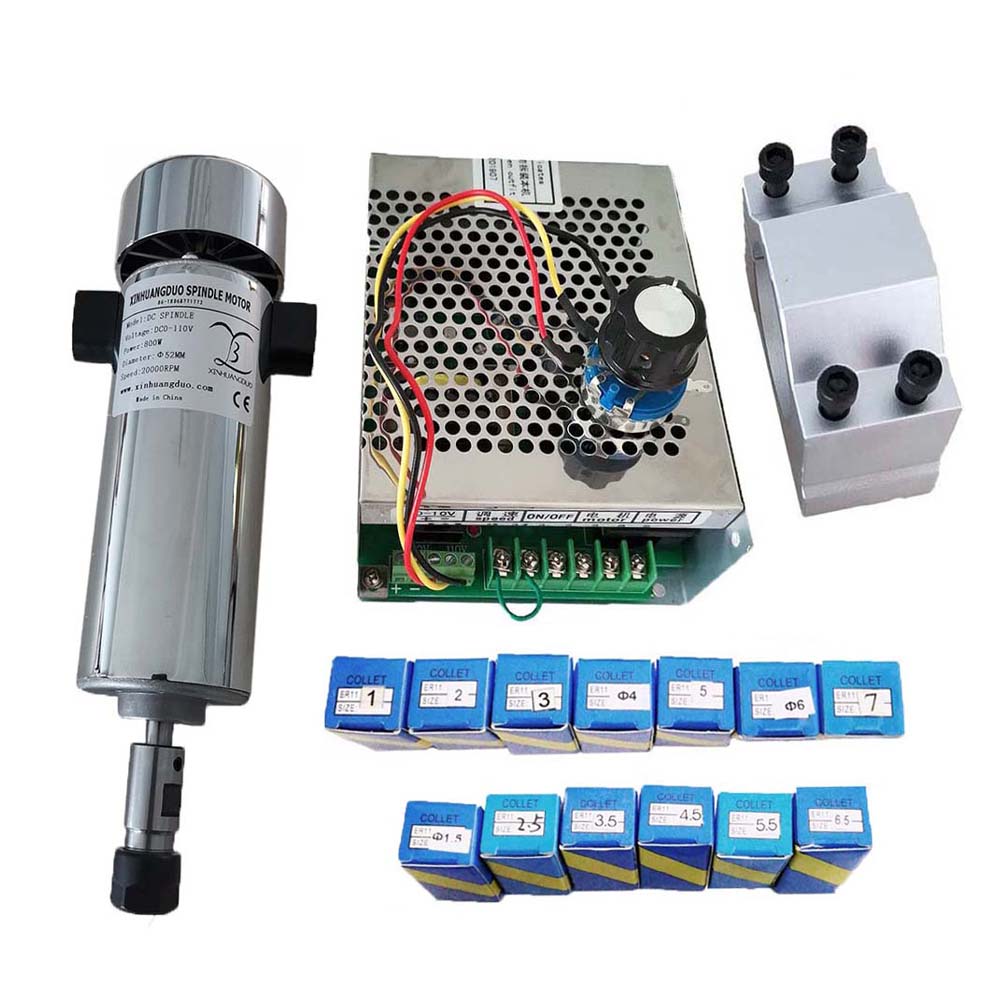

Package introduce:
package 1: 1pcs 800w spindle
package 2: 1pcs 800w 220v/110v mach3 power supply

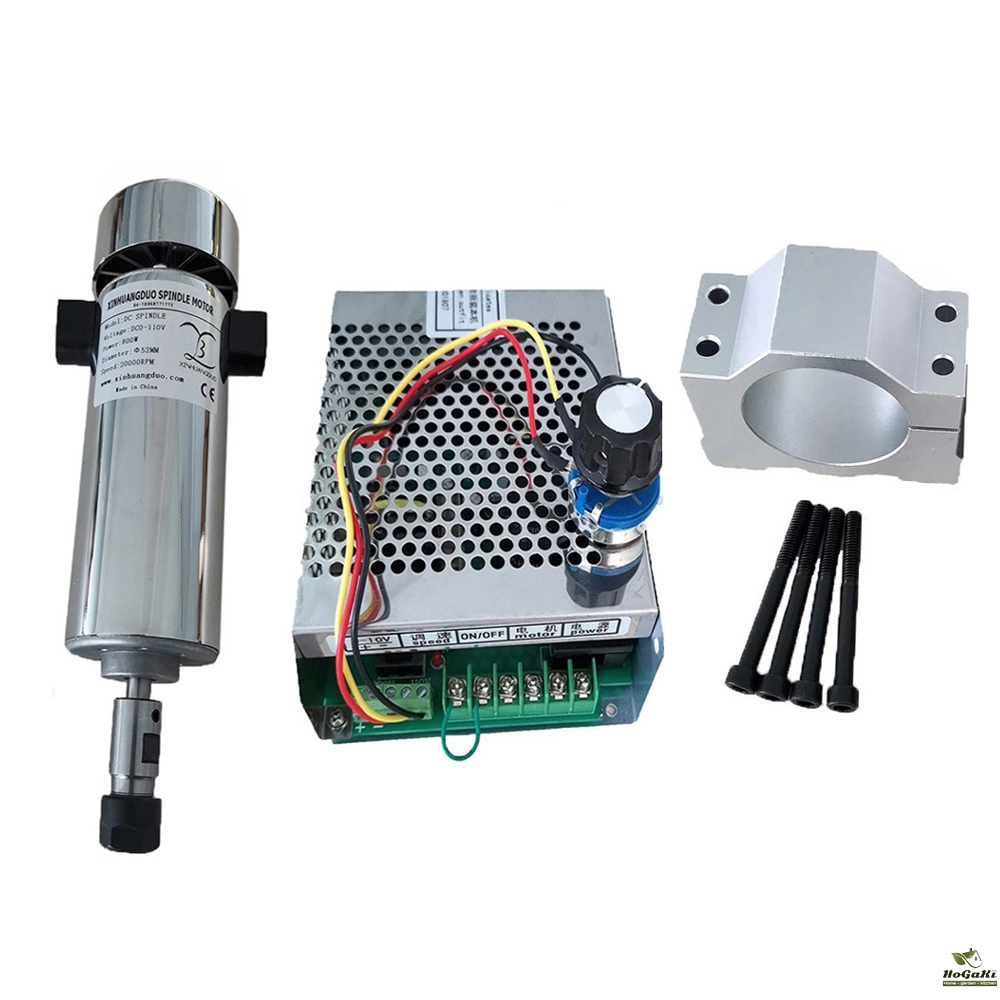

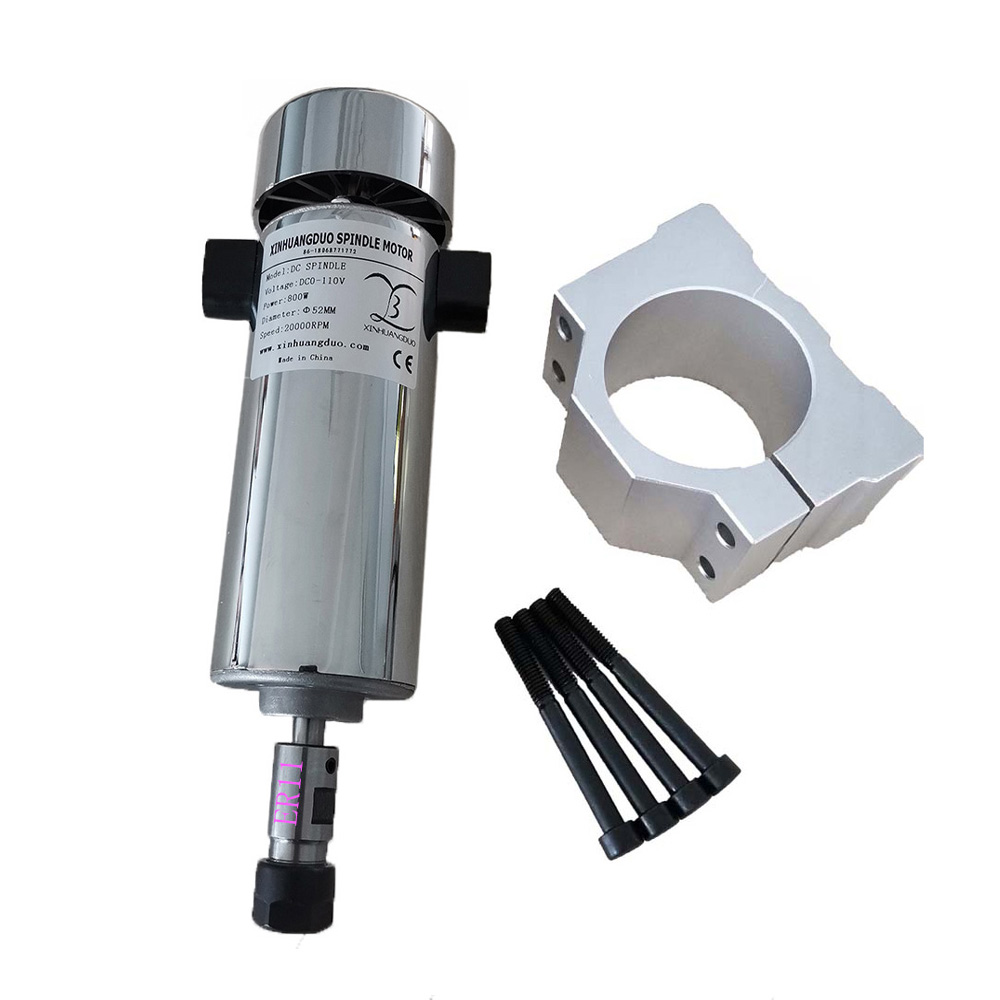

package 3: 1pcs 800w spindle+1pcs 52mm clamp

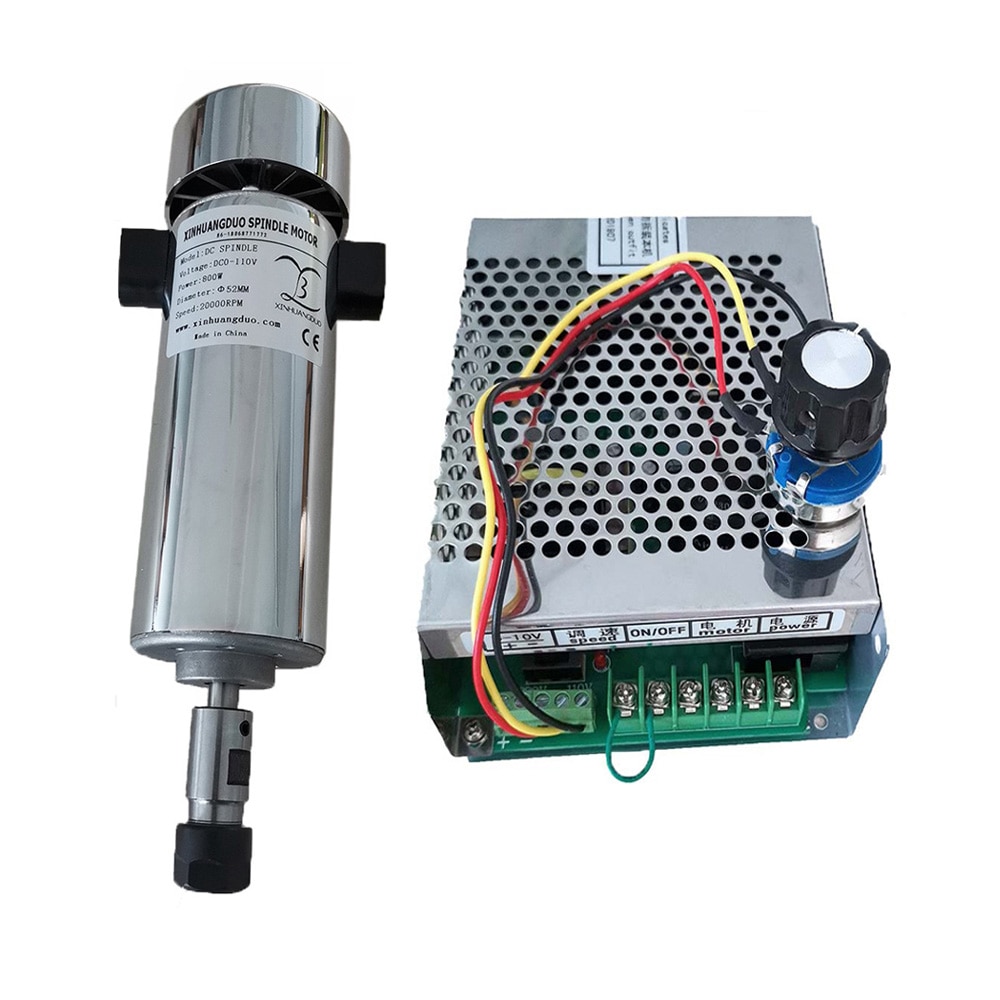

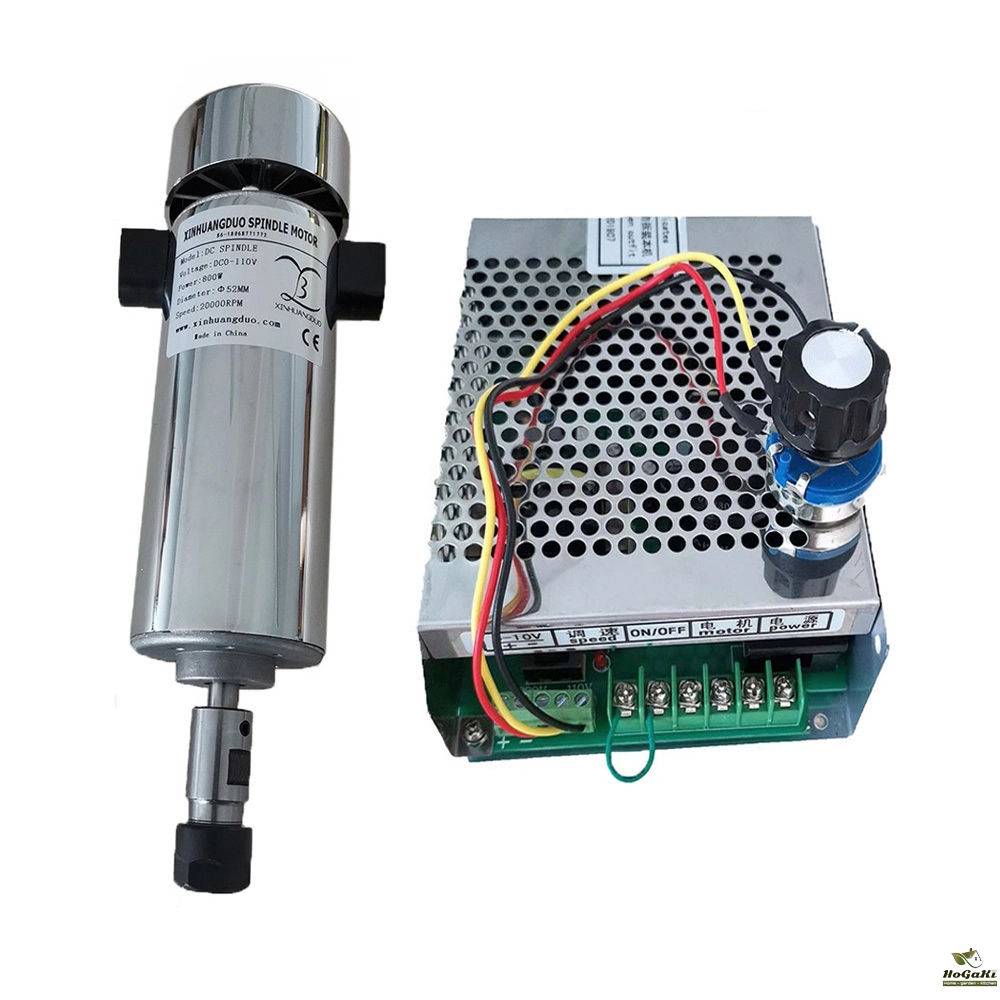

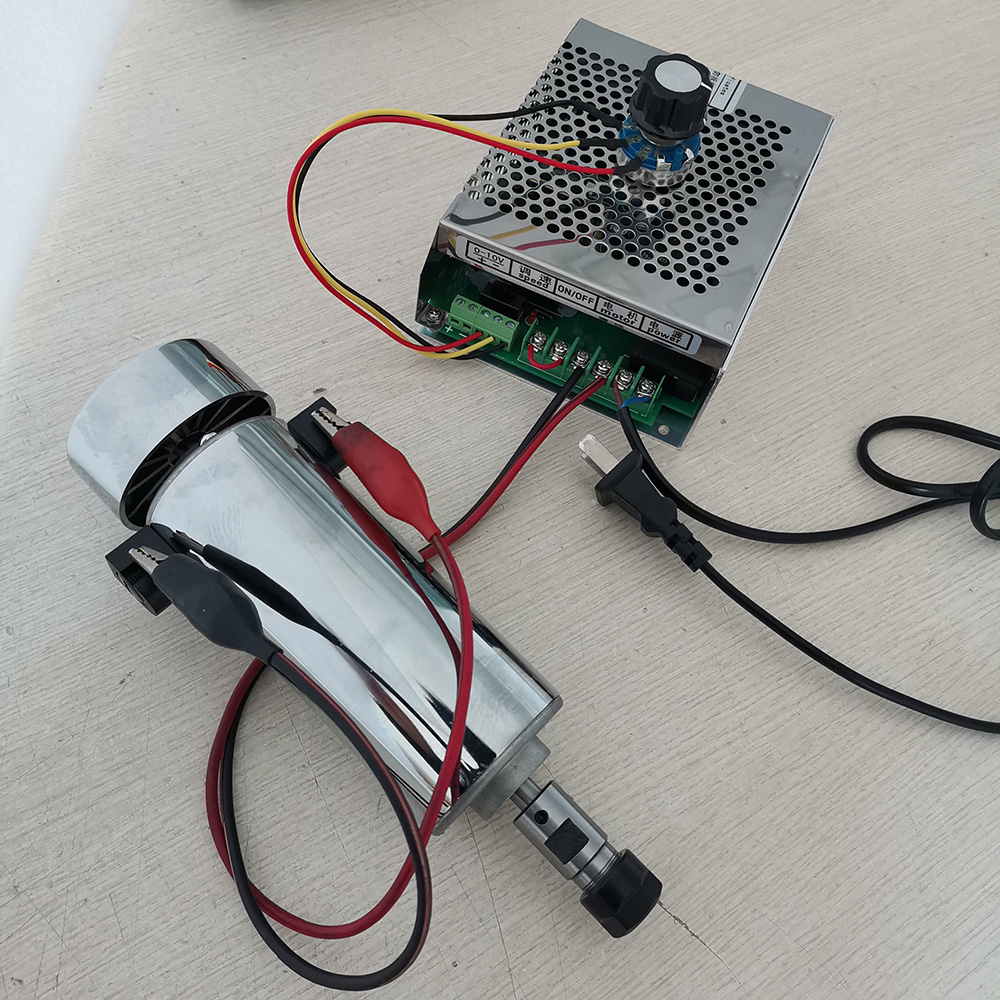

package 4: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply
package 5: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply+1pcs 52mm clamp

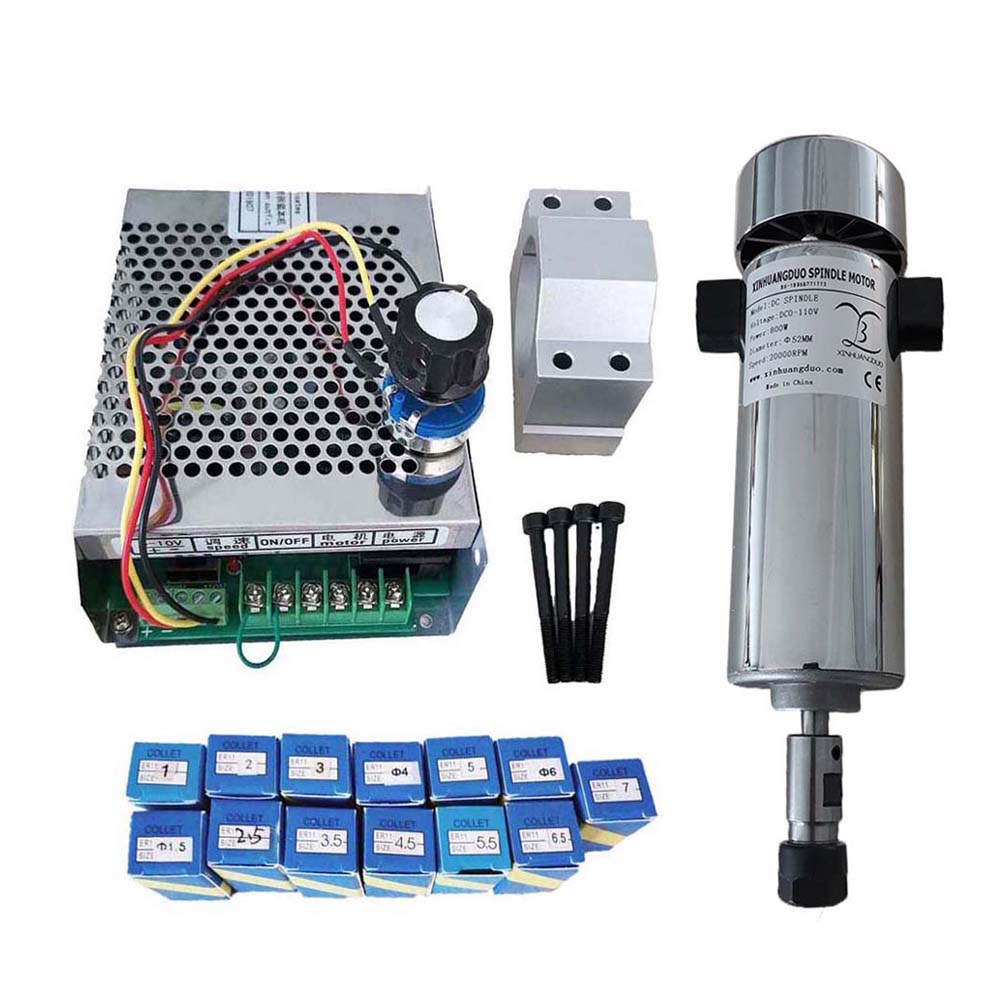

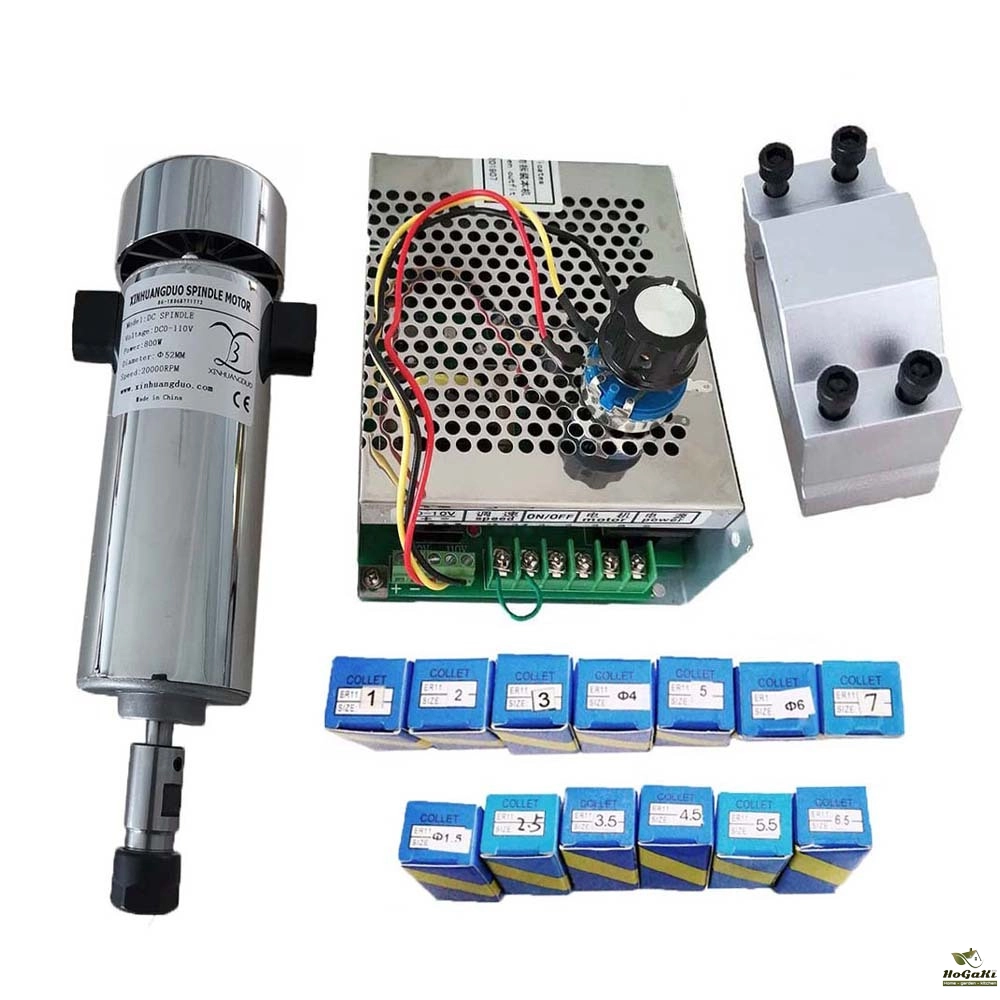

package 6: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply+1pcs 52mm clamp+13pcs ER11 collect
Feature:

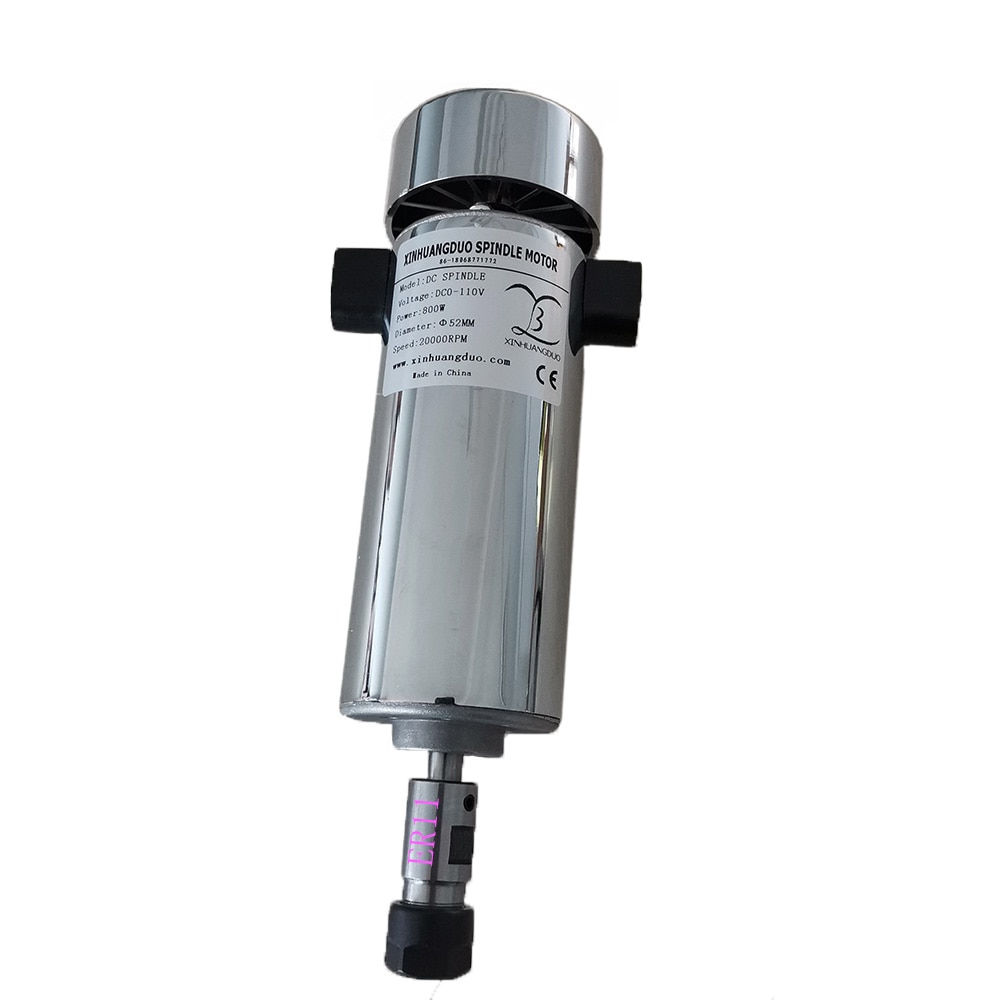

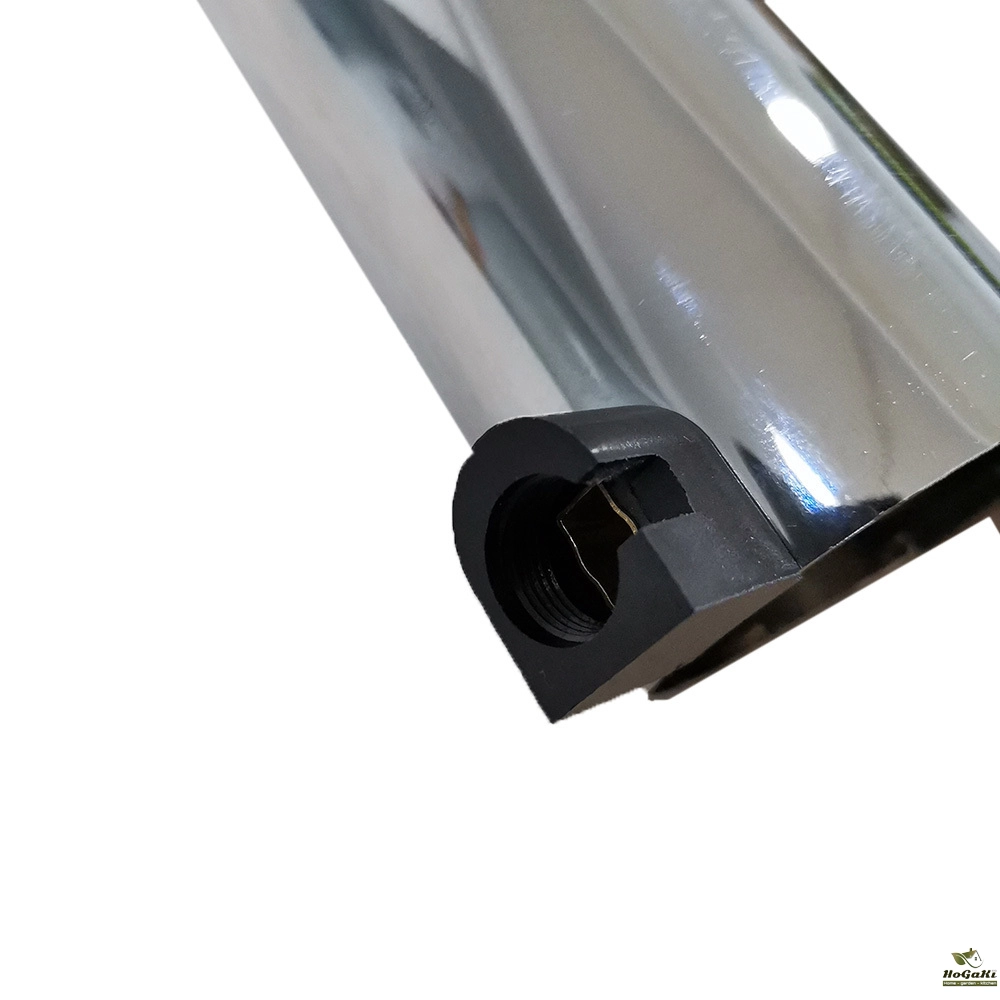

1.Air Cooled Spindle:
Size:52mm
Power:800W
Maximum Torque:0.79Nm
Runout off:0.01mm-0.03mm
work Voltage:110VDC
Speed:5000-20000rpm
ER11 collet (3.175mm)

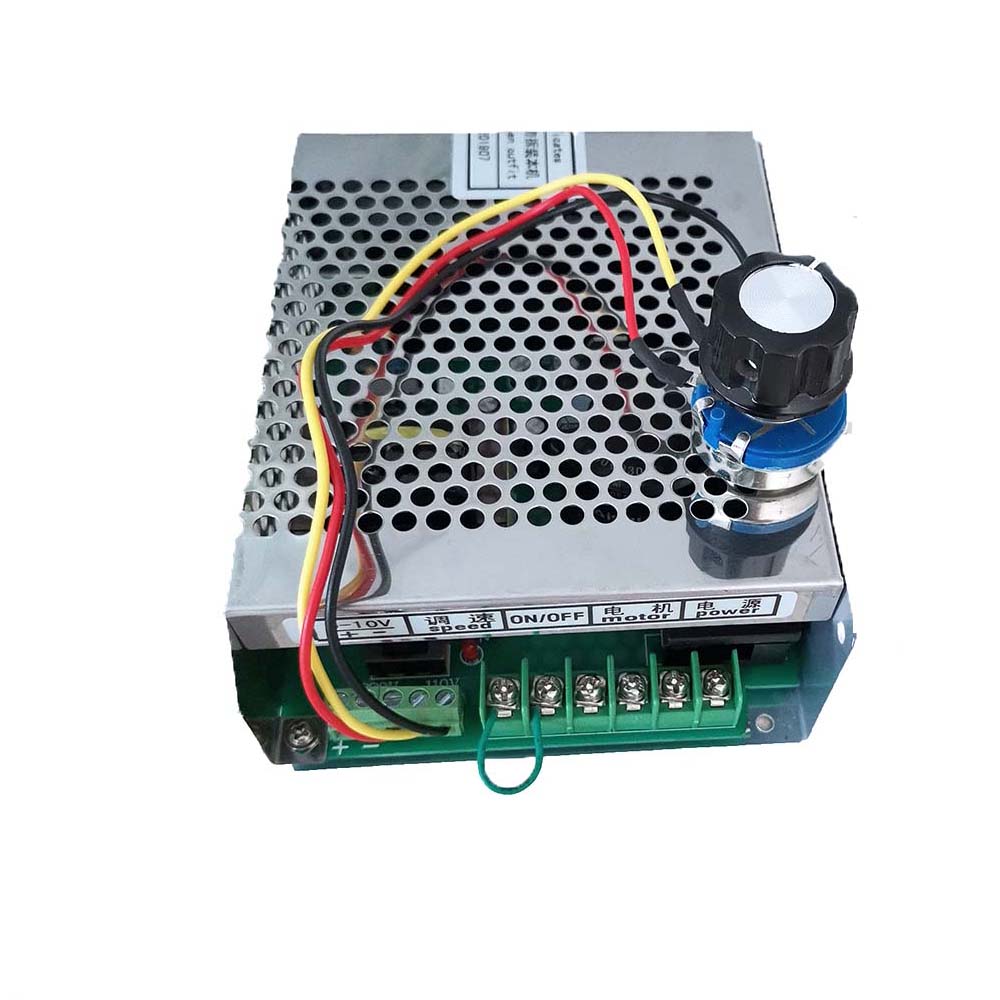

2.power supply:
Power Supply with speed governor:(Manual speed regulation)
Input:AC220V ± 10%50/60Hz
Adapter power:800W

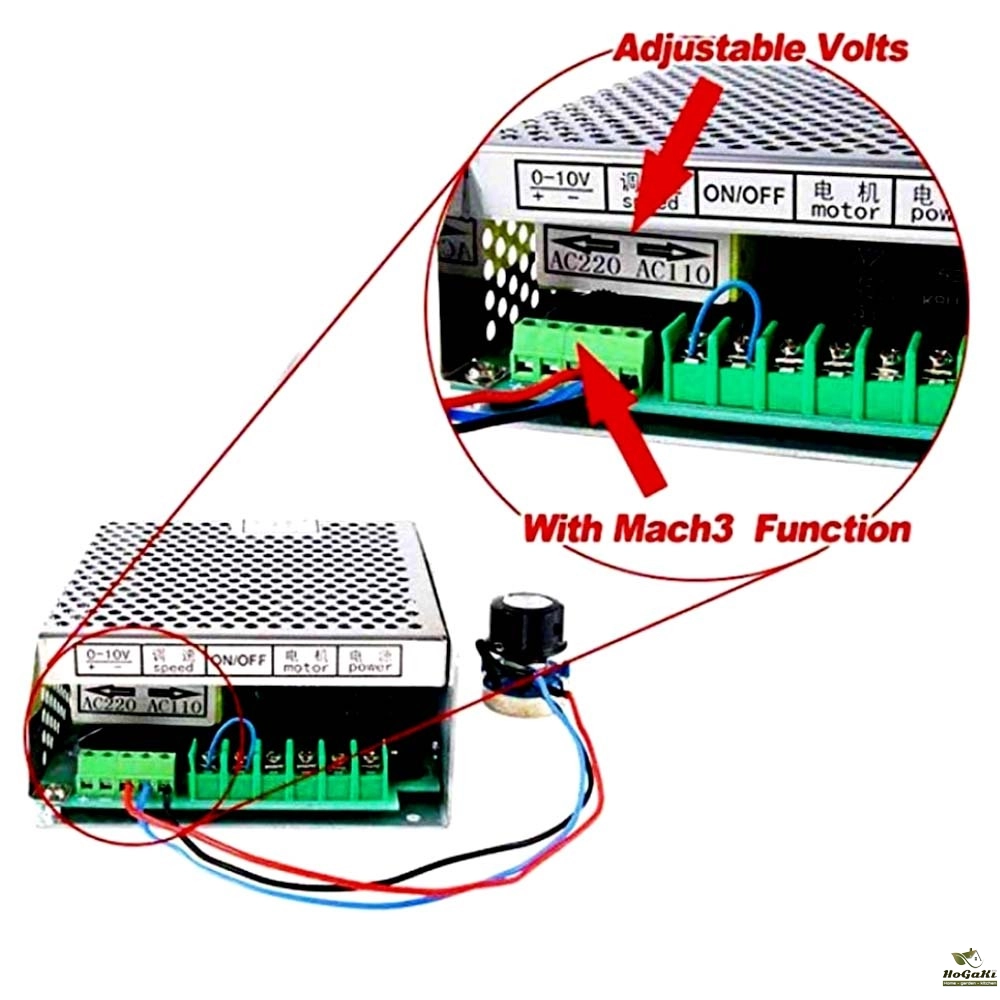

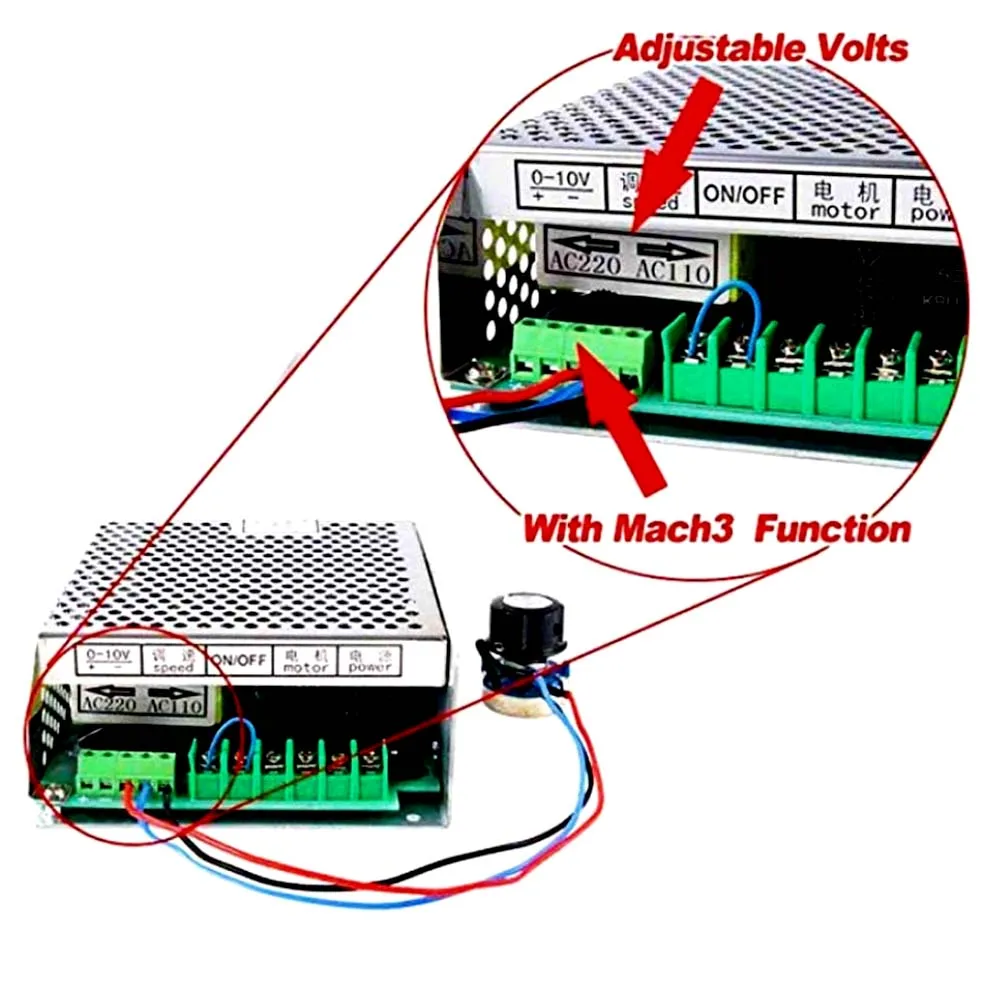

Support mach3 function

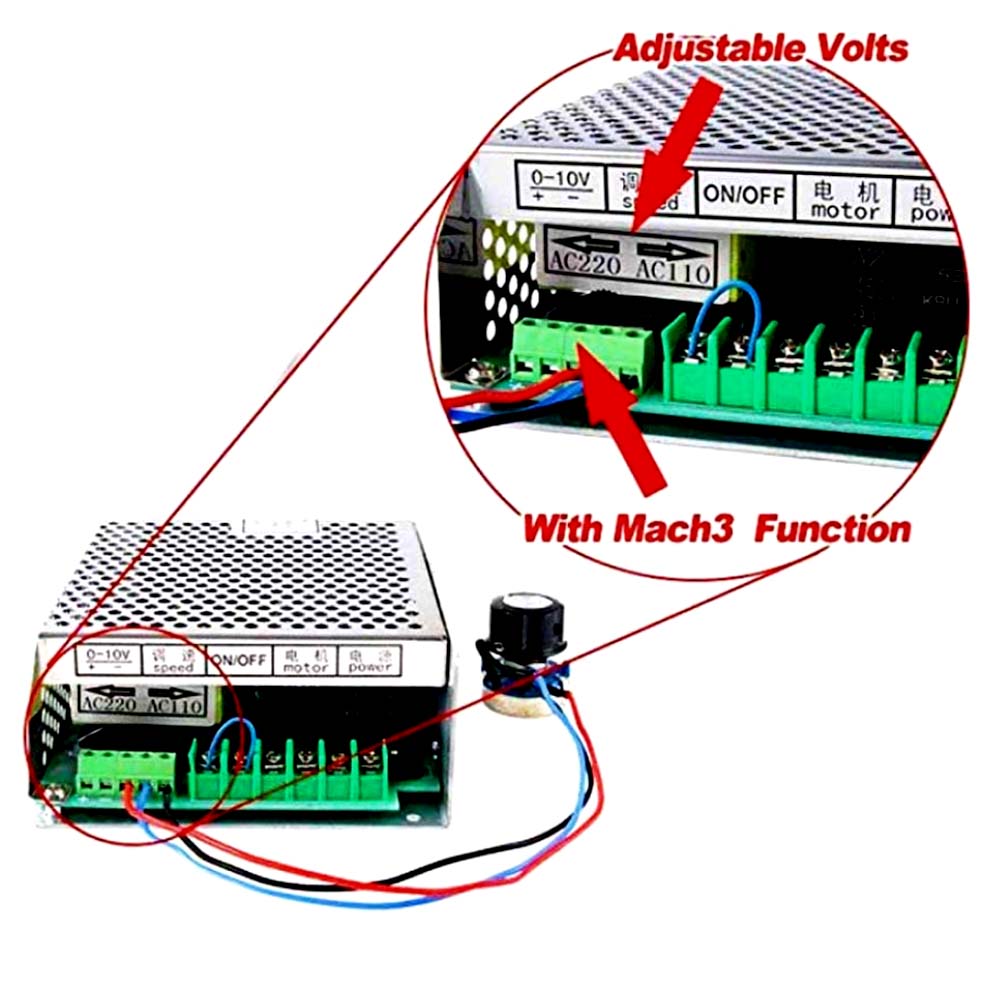

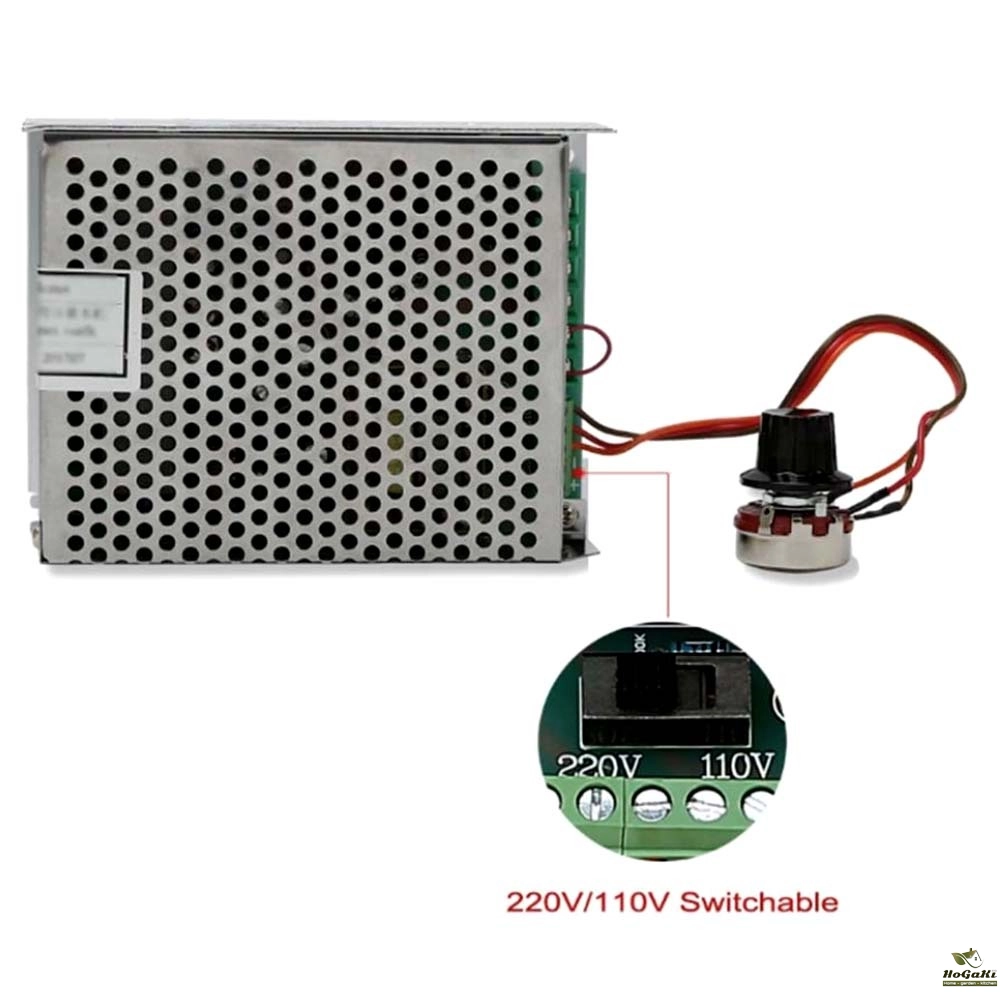

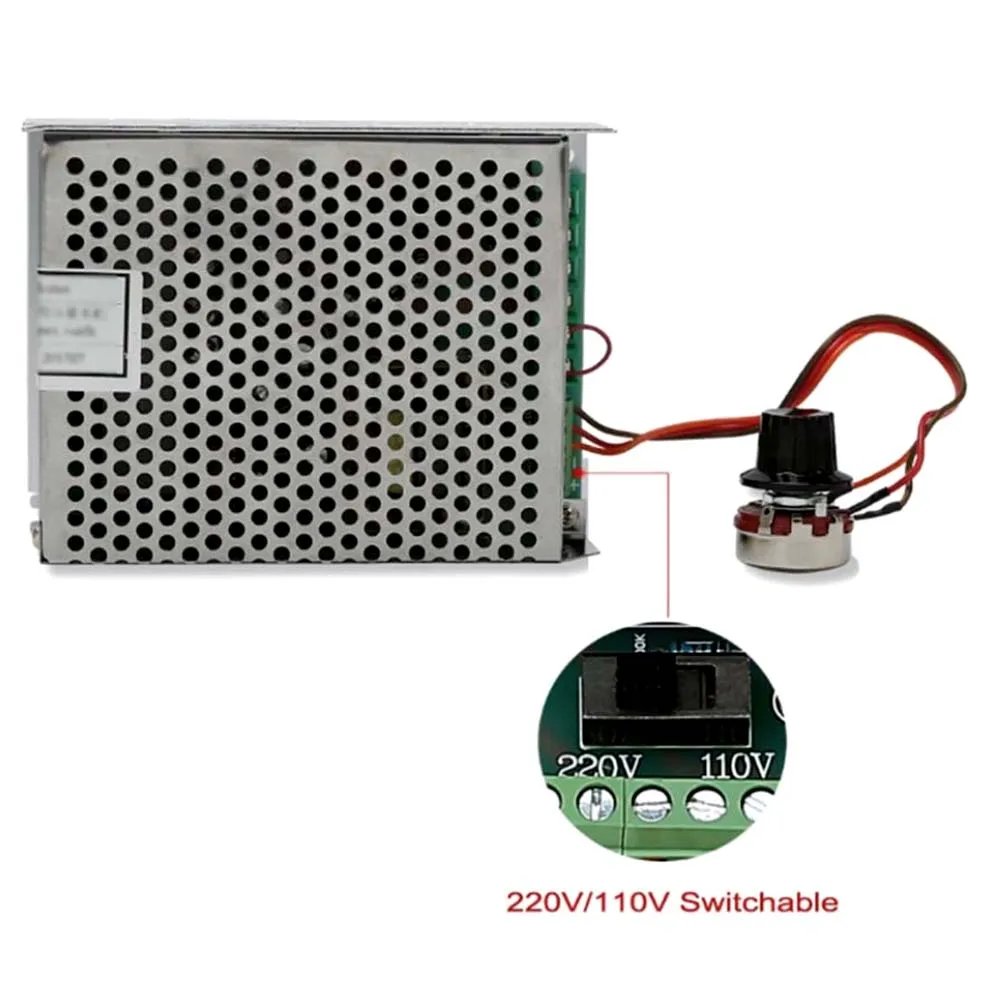

this power regulator can adjust 110/220v according to customers' needs

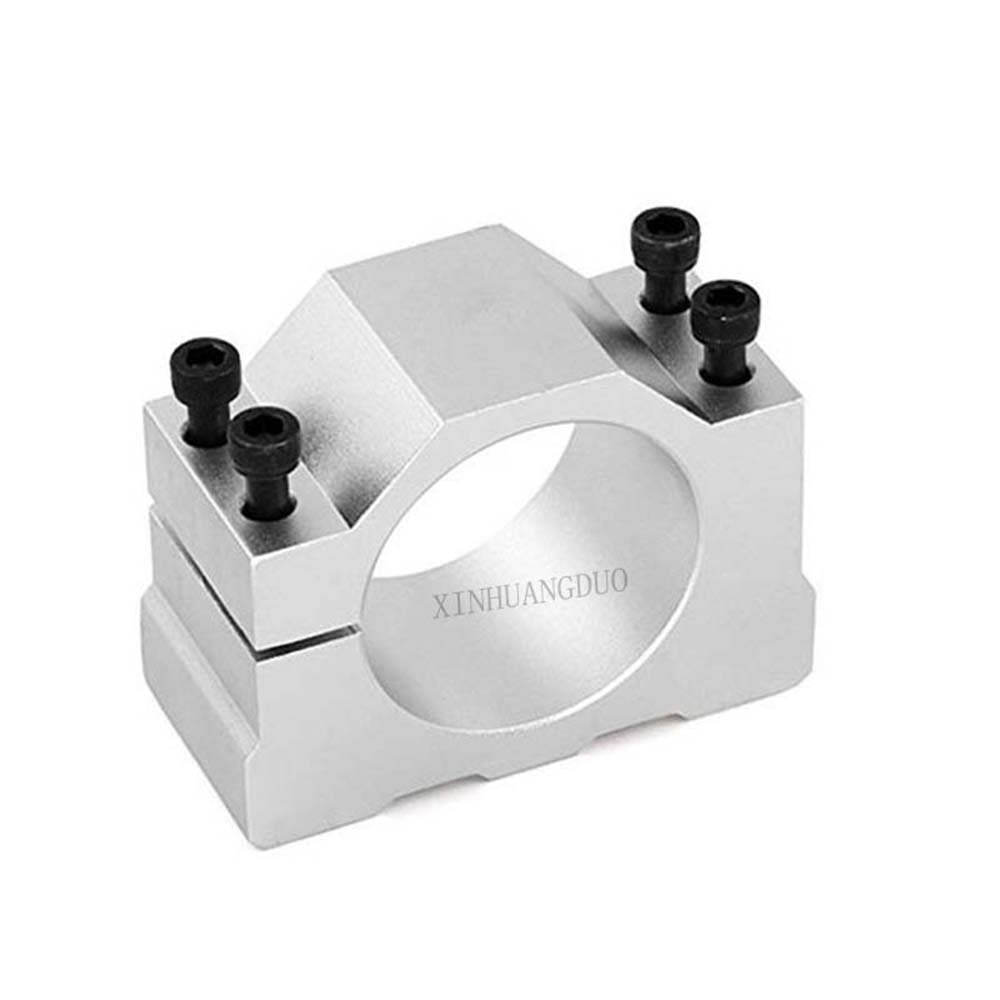

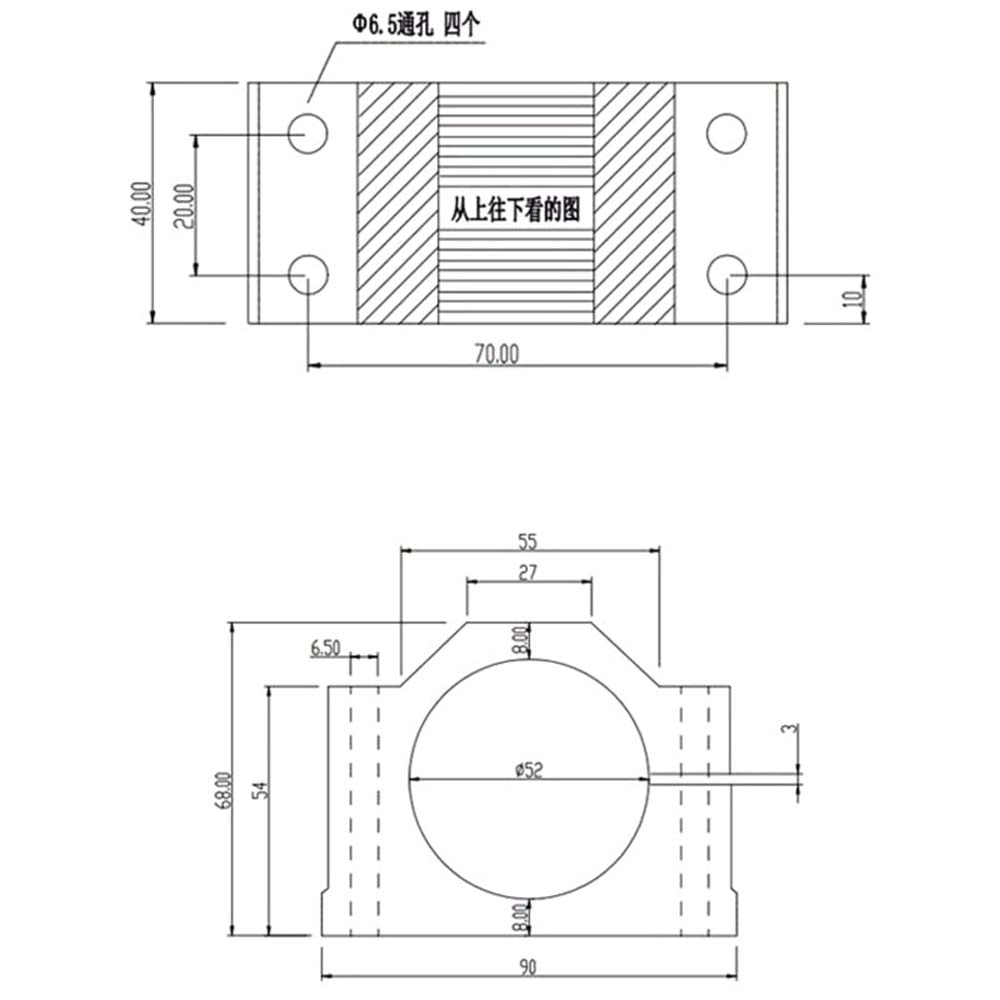

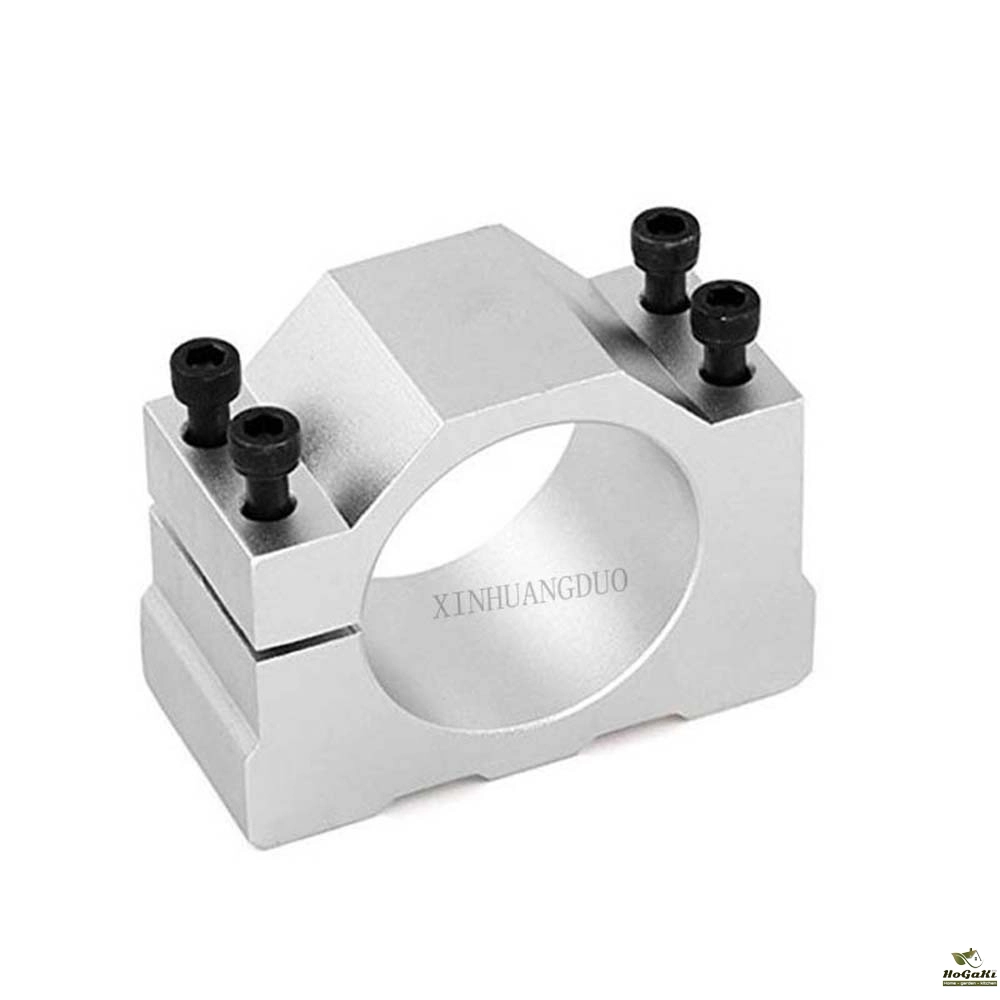

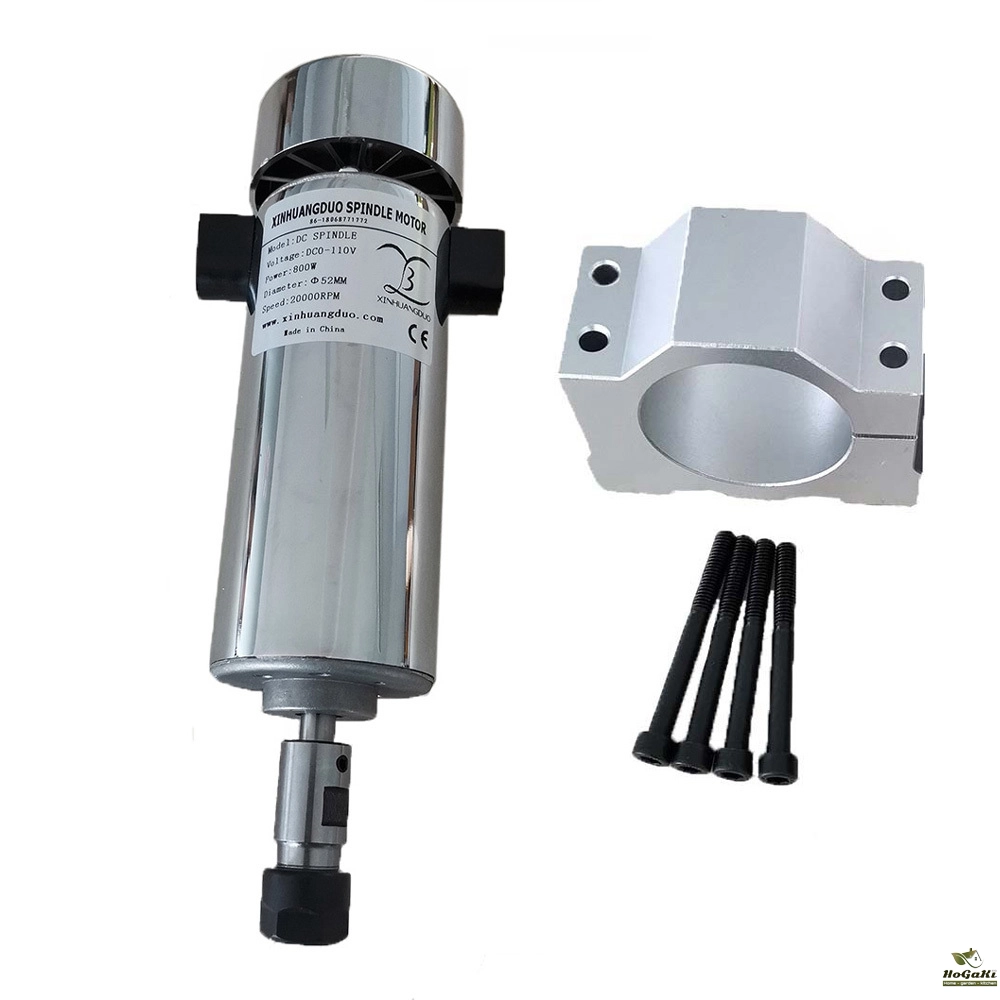

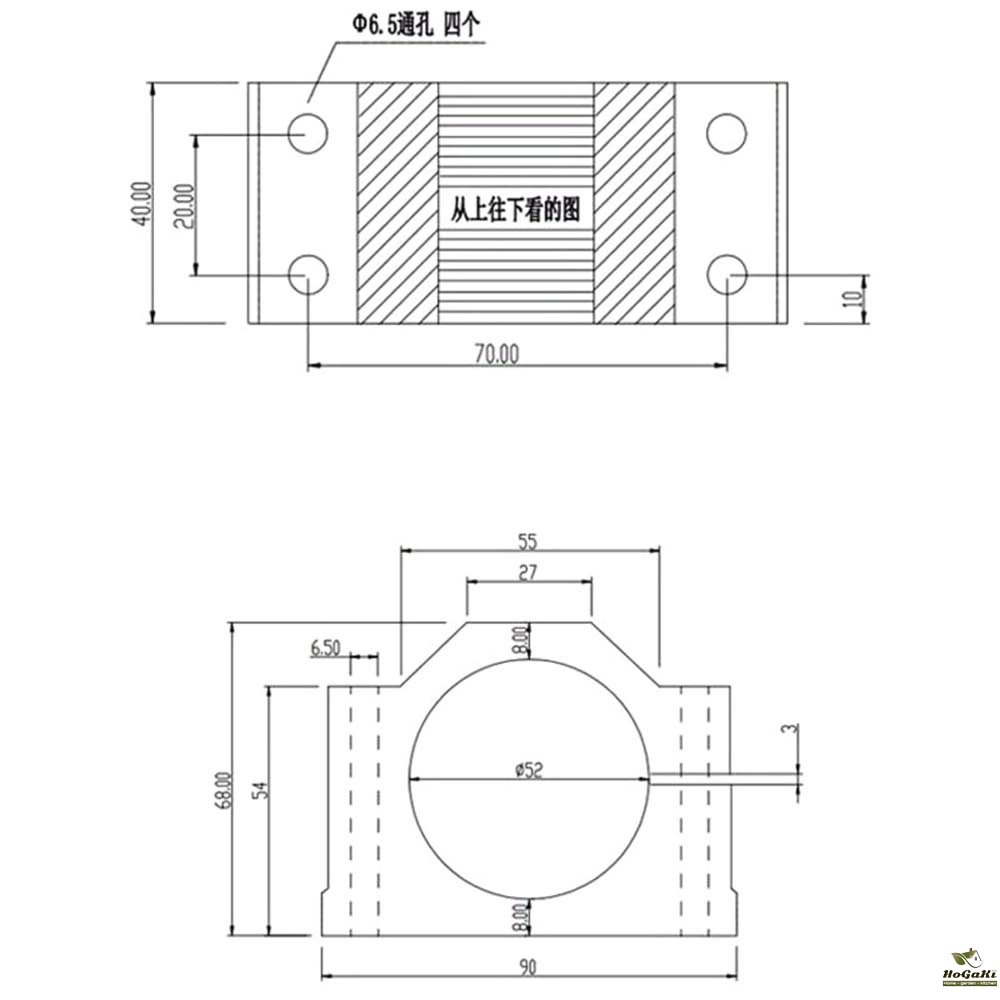

3.52mm clamp :
1x 52mm Mount Bracket+4x Screws
Applicable to:300w 400w 500w spindle motor
Model: 52mm Spindle motor mount bracket
Diameter: 52mm
Material: Aluminum alloy

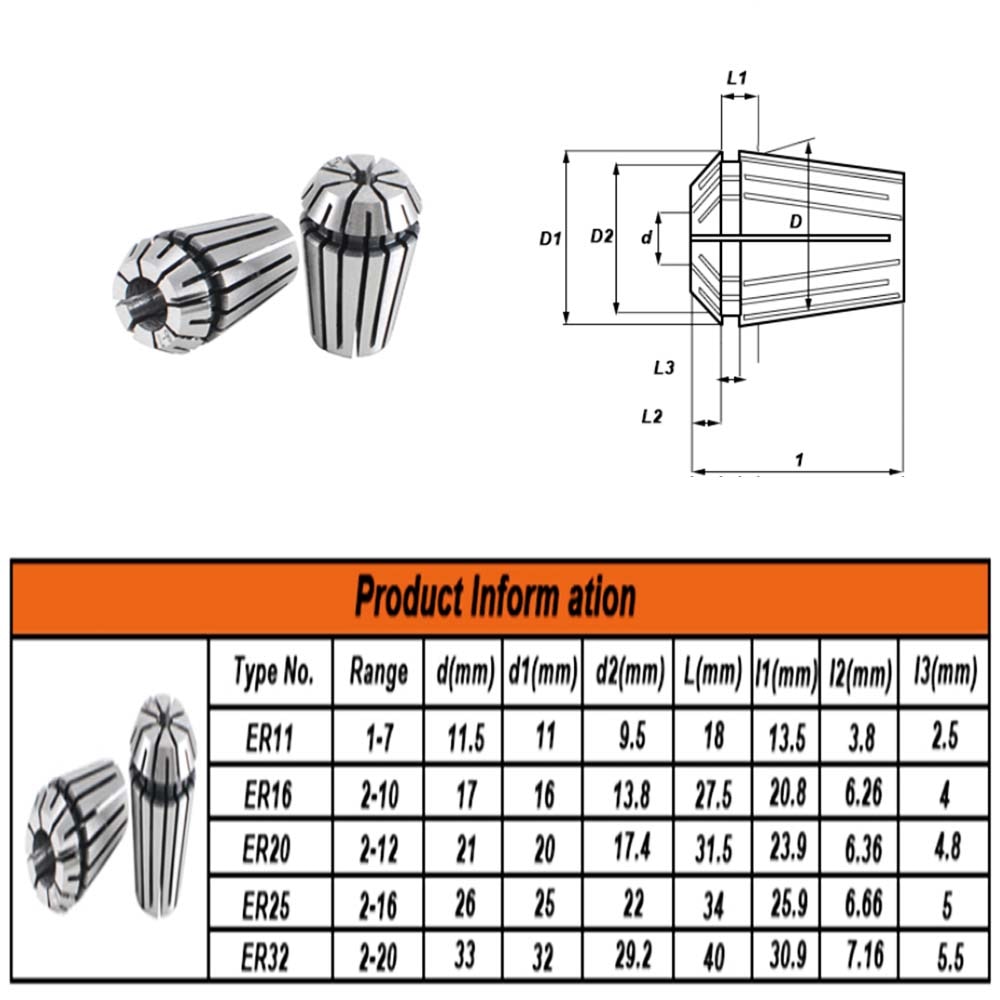

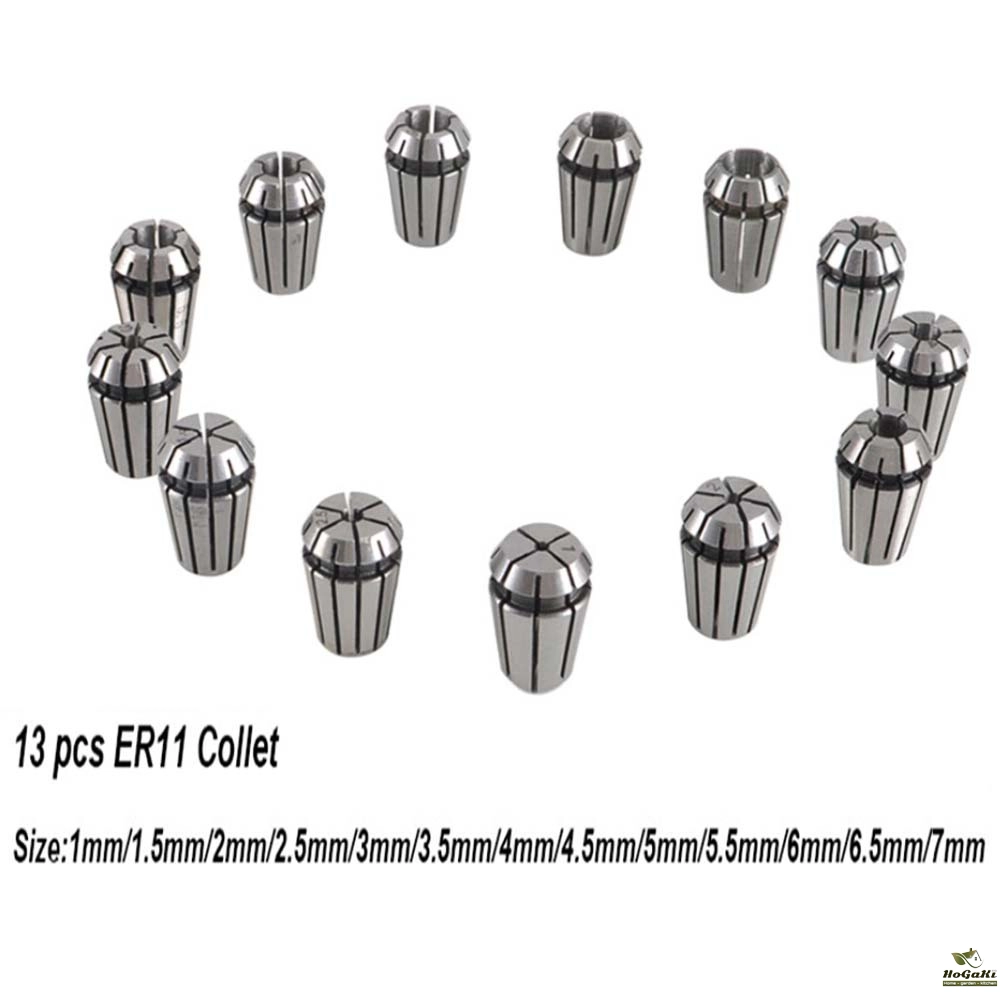

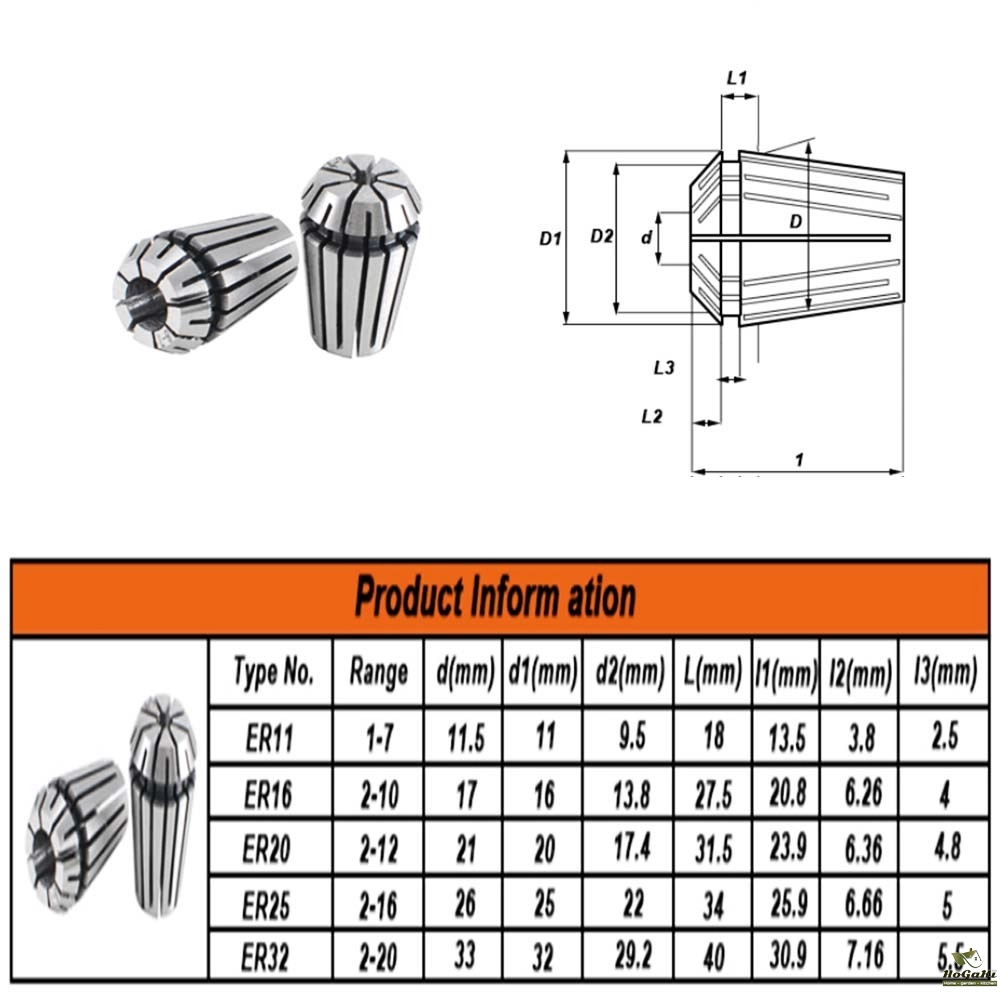

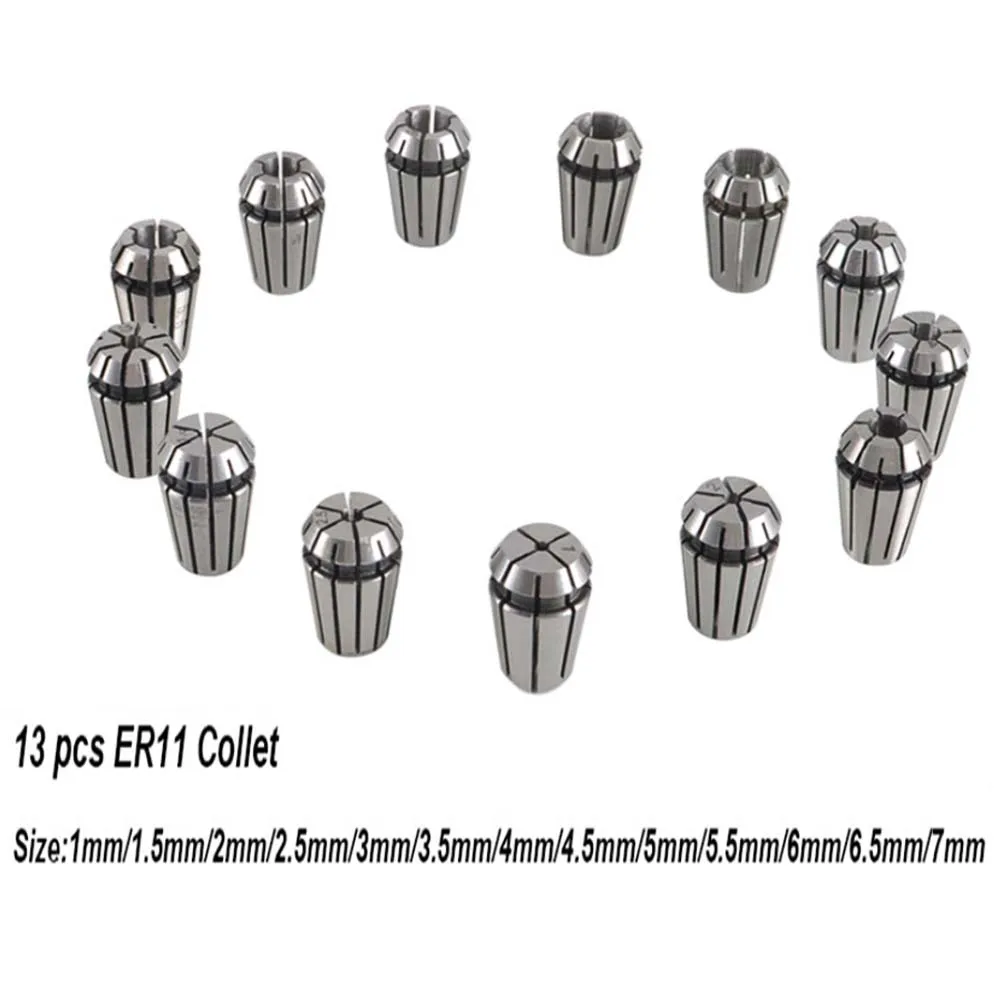

4. 13pcs ER11:
13pcs ER11 Size: 1mm / 1.5mm / 2mm / 2.5mm / 3mm / 3.5mm / 4mm / 4.5mm/ 5mm / 5.5mm / 6mm / 6.5mm / 7mm

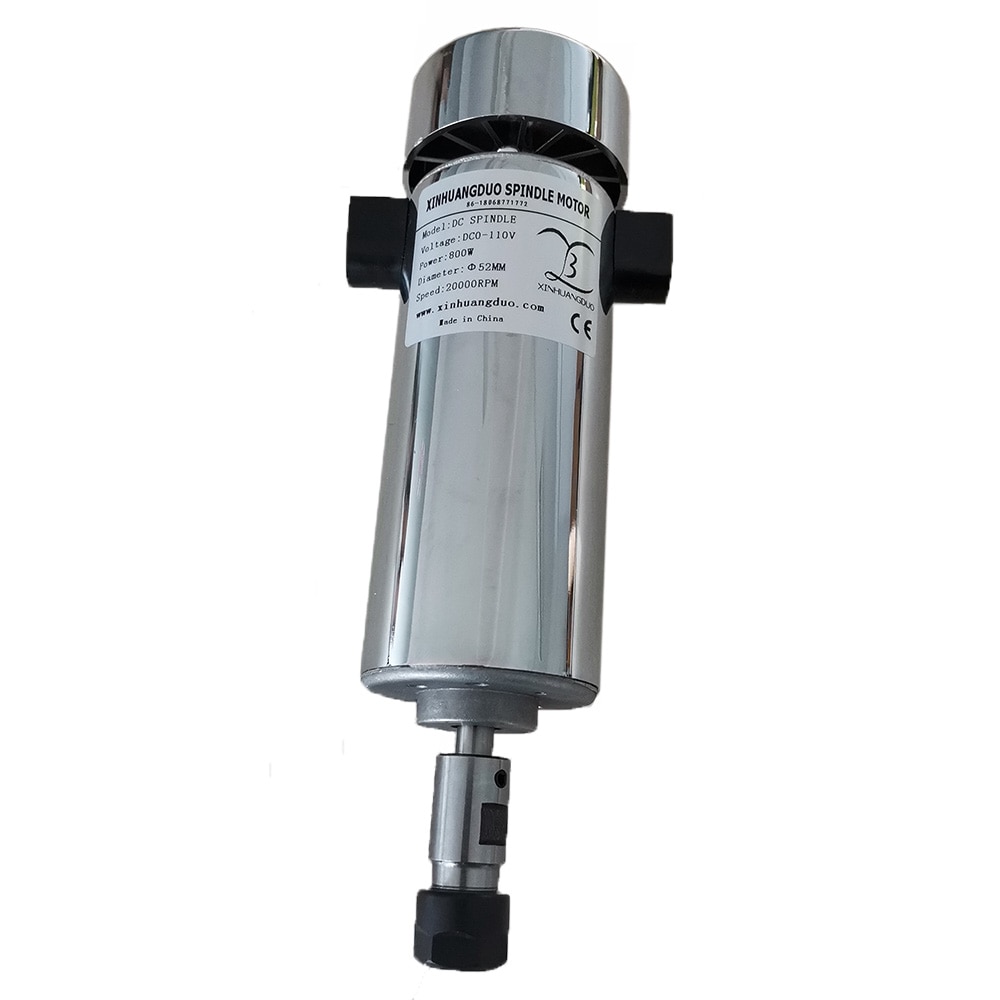

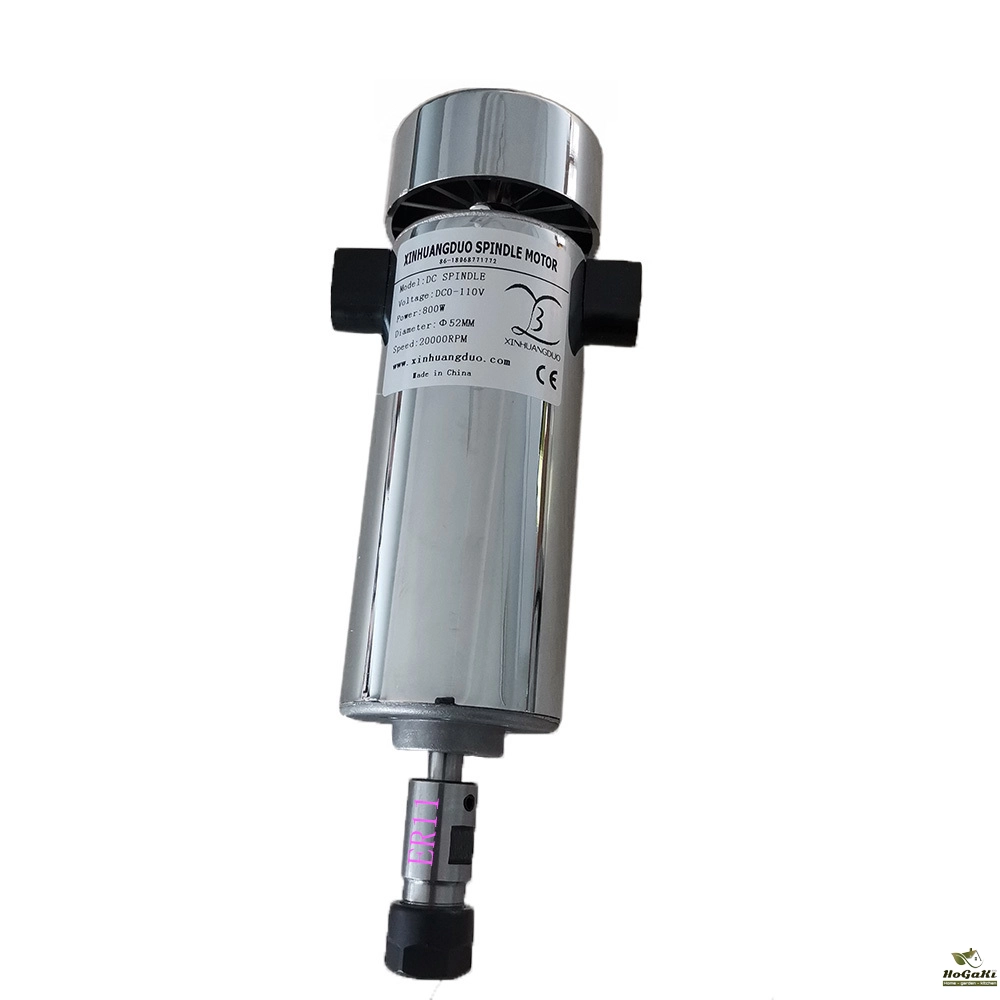

Spindle Motor Parameter:
Work voltage: 0-110VDC
Rotation speed: 5000-20000r/min
Power: 800W
Torque:0.79NM
Insulation resistance:>2Megohm
Dielectric strength:500V

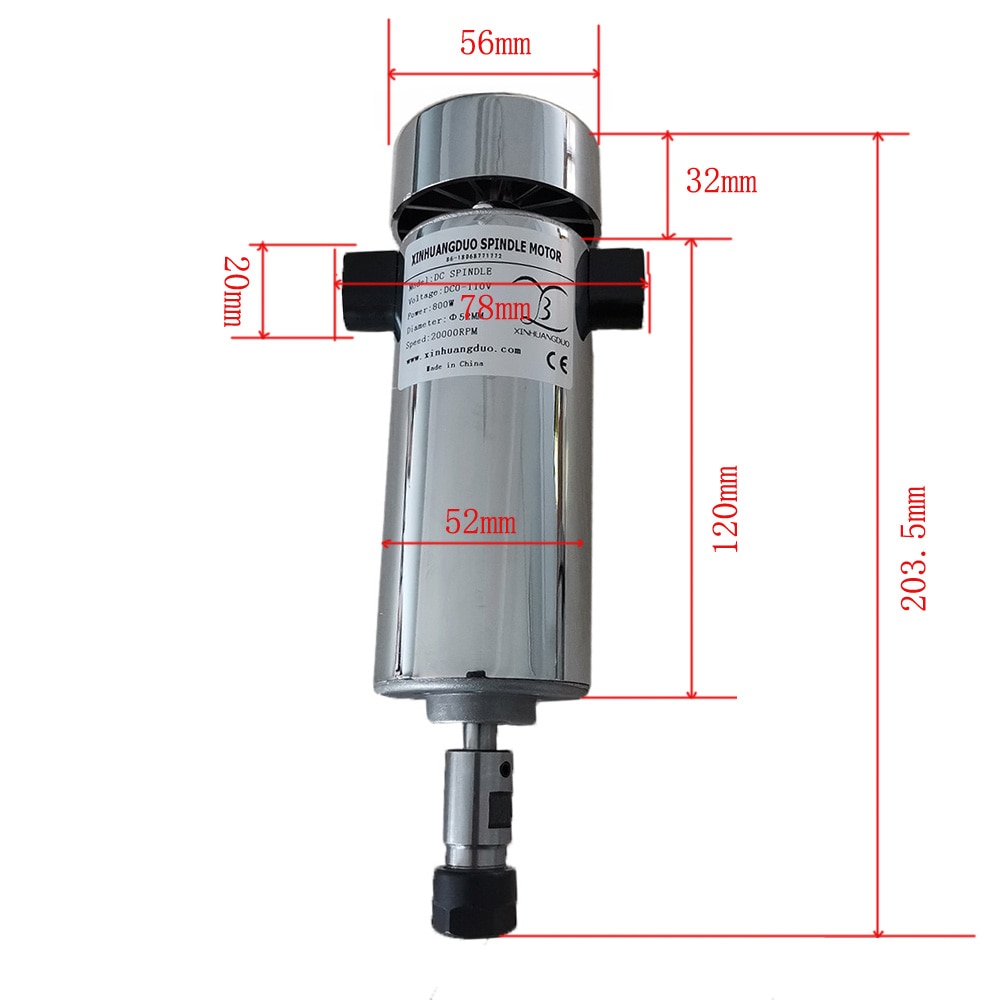

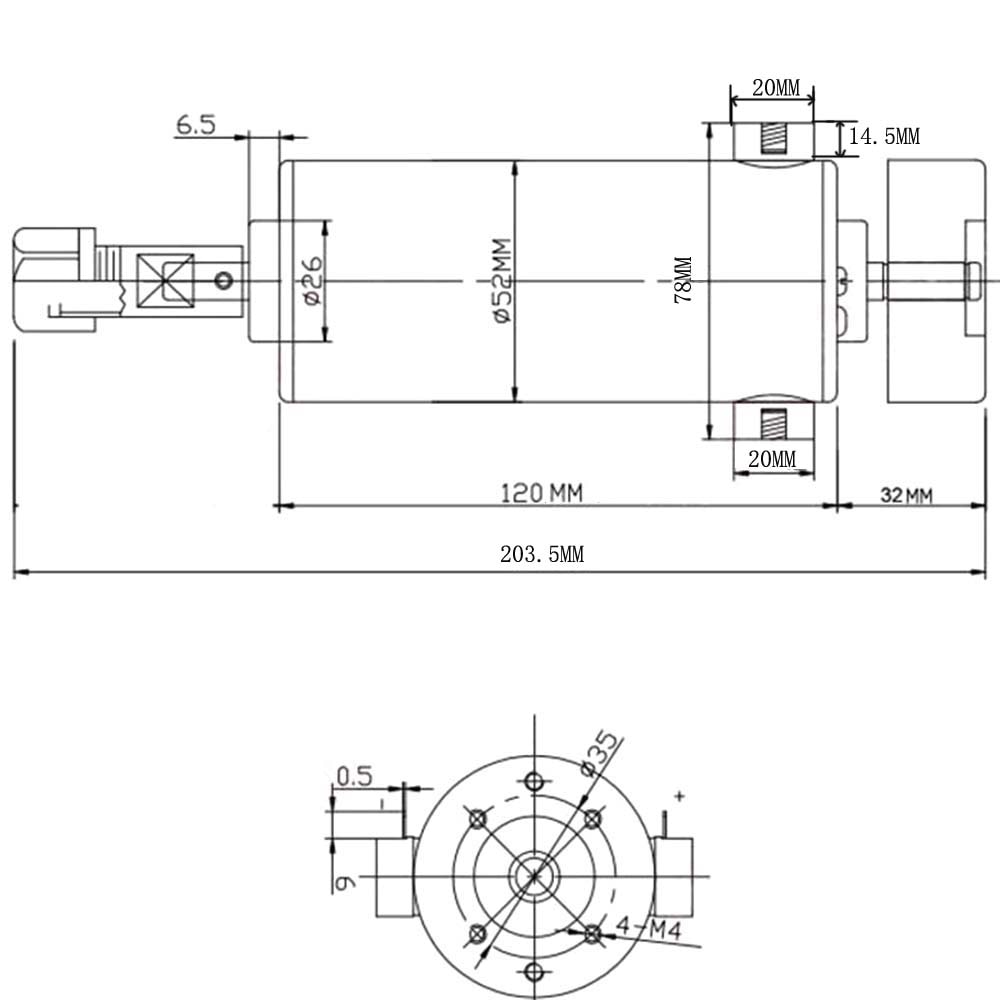

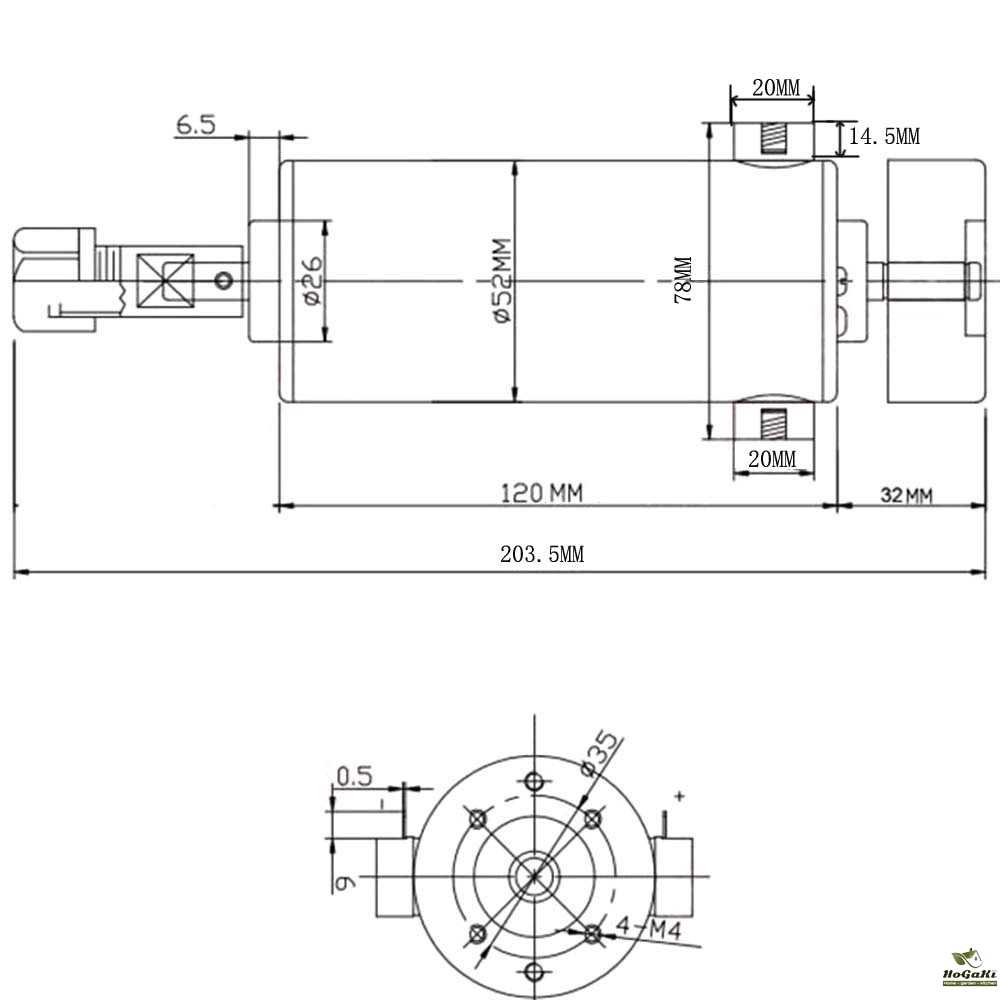

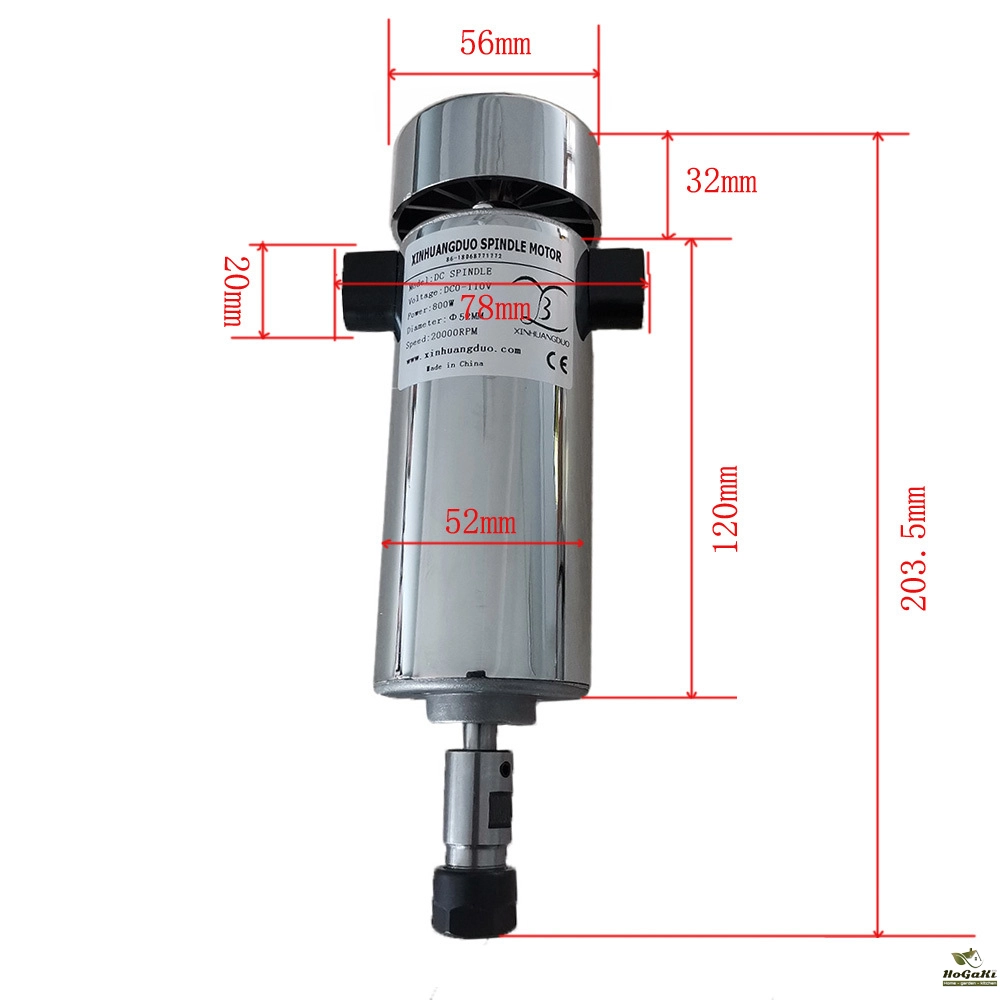

Total length: 203.5mm
Diameter:52mm
Axis collet Length: 45mm
Repeat accuracy: 0.01-0.02mm

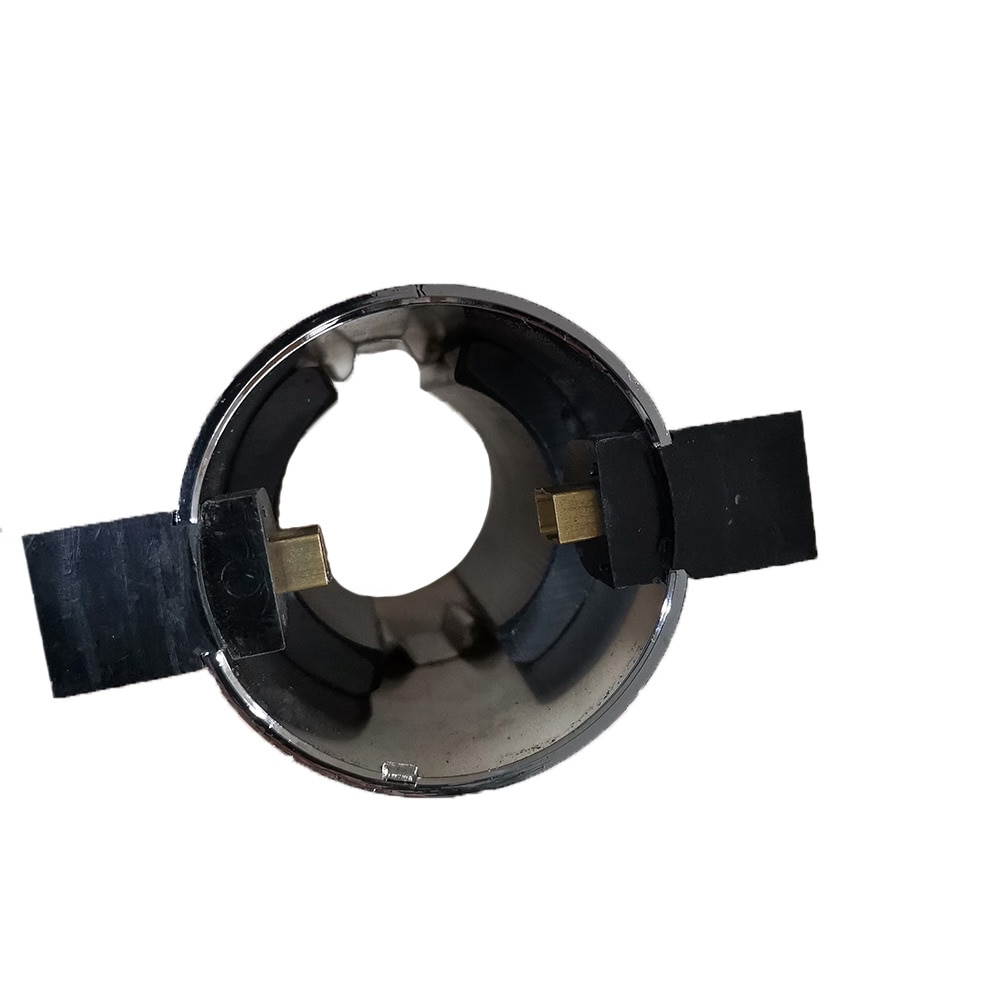

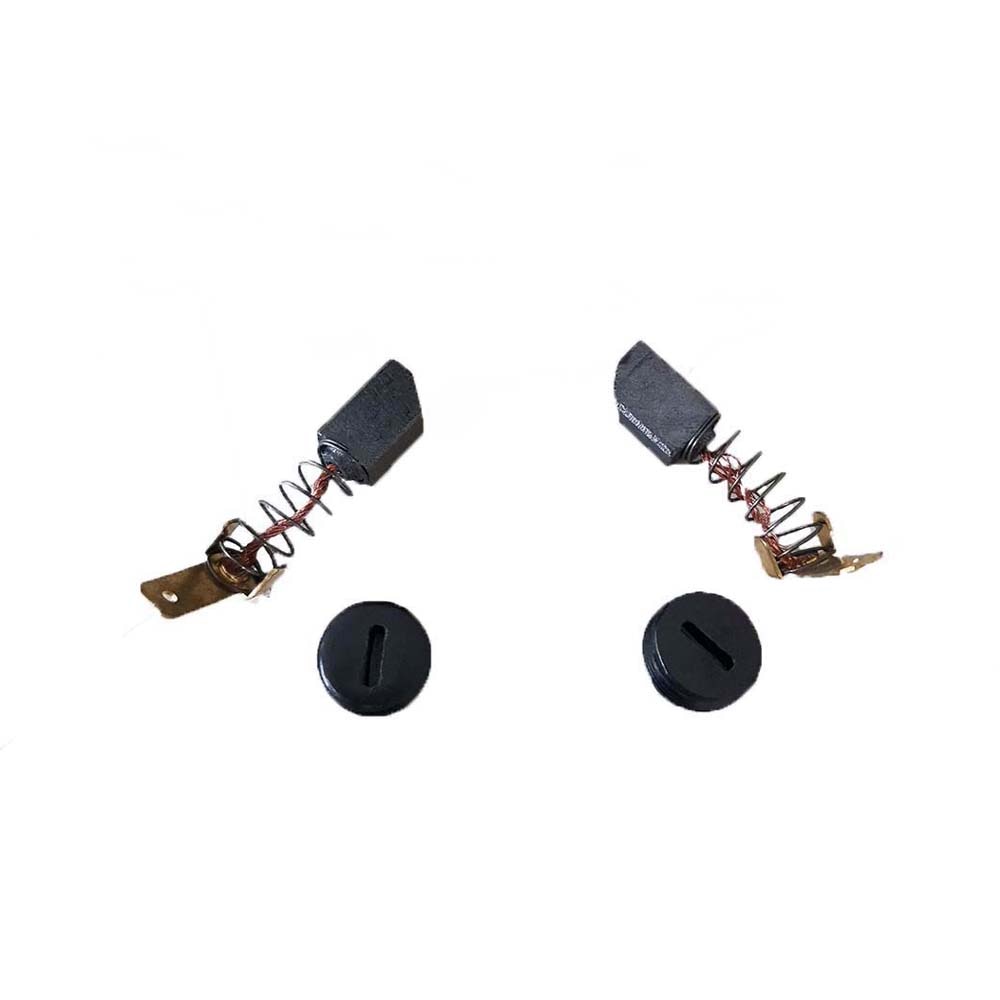

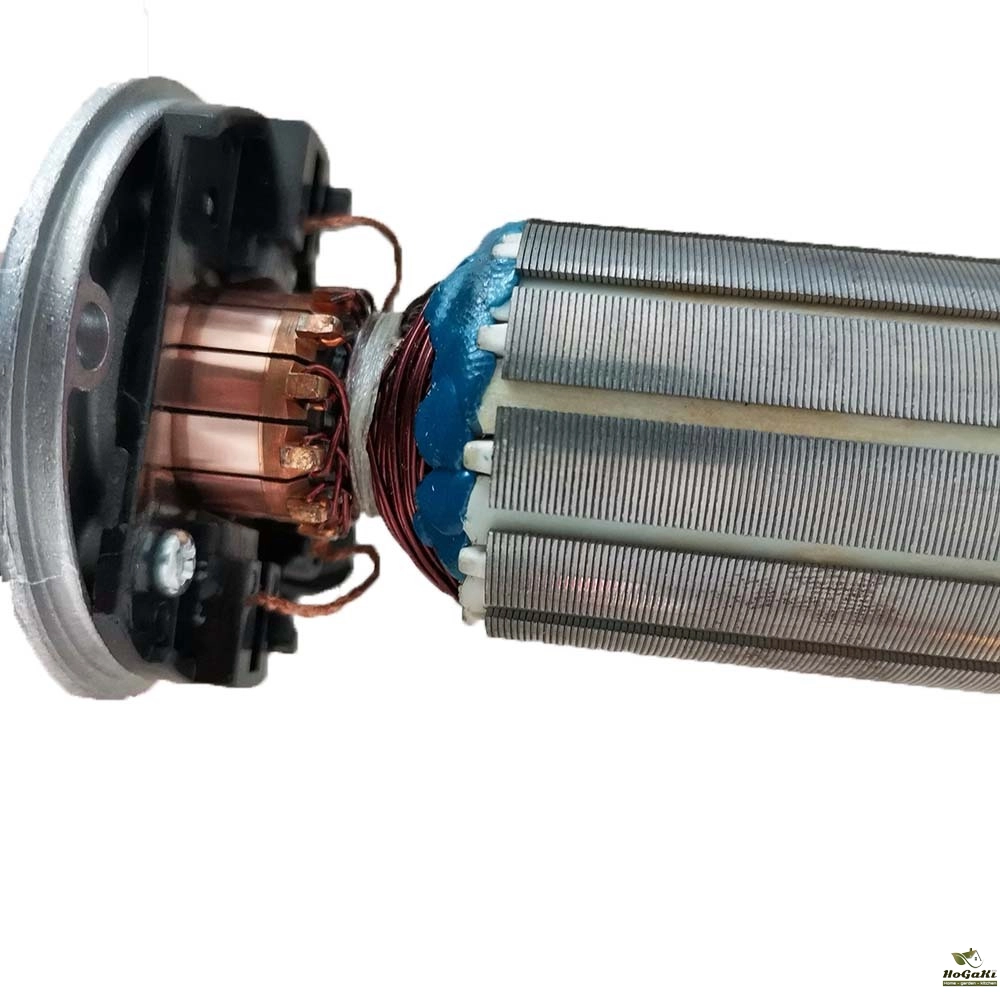

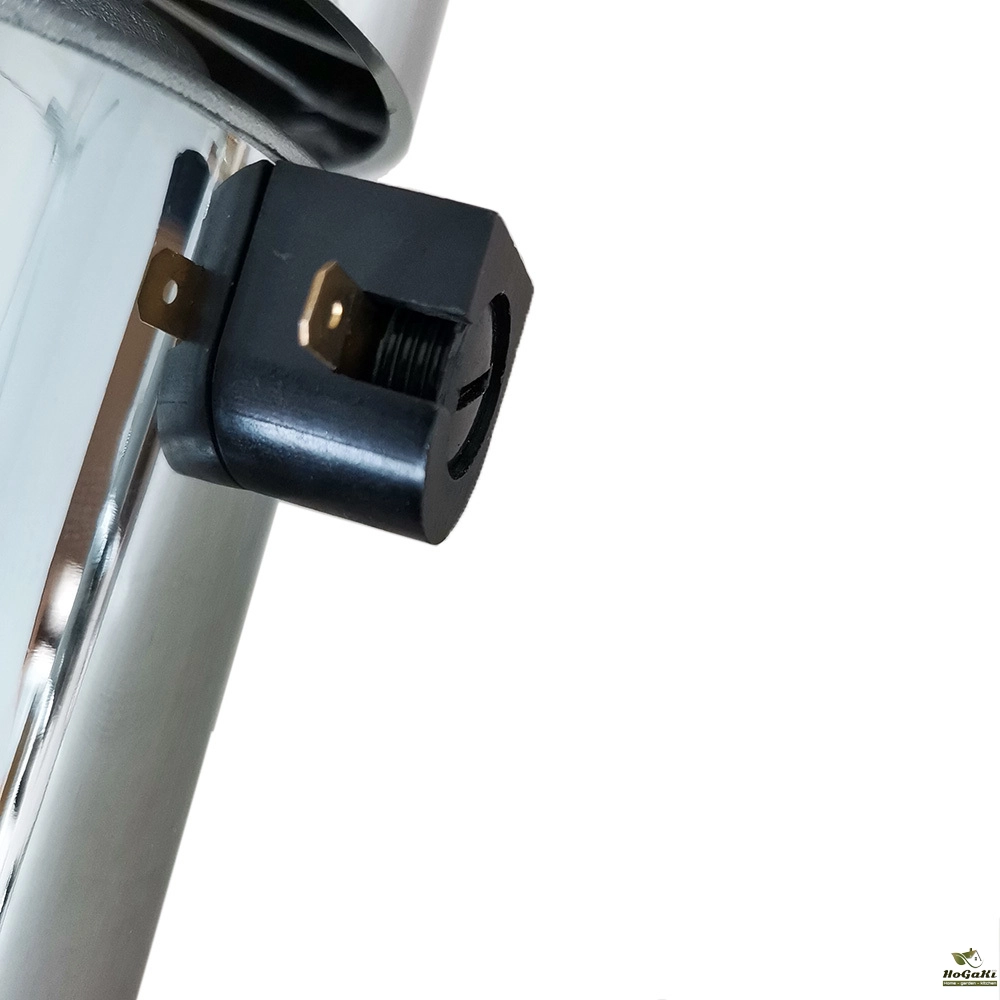

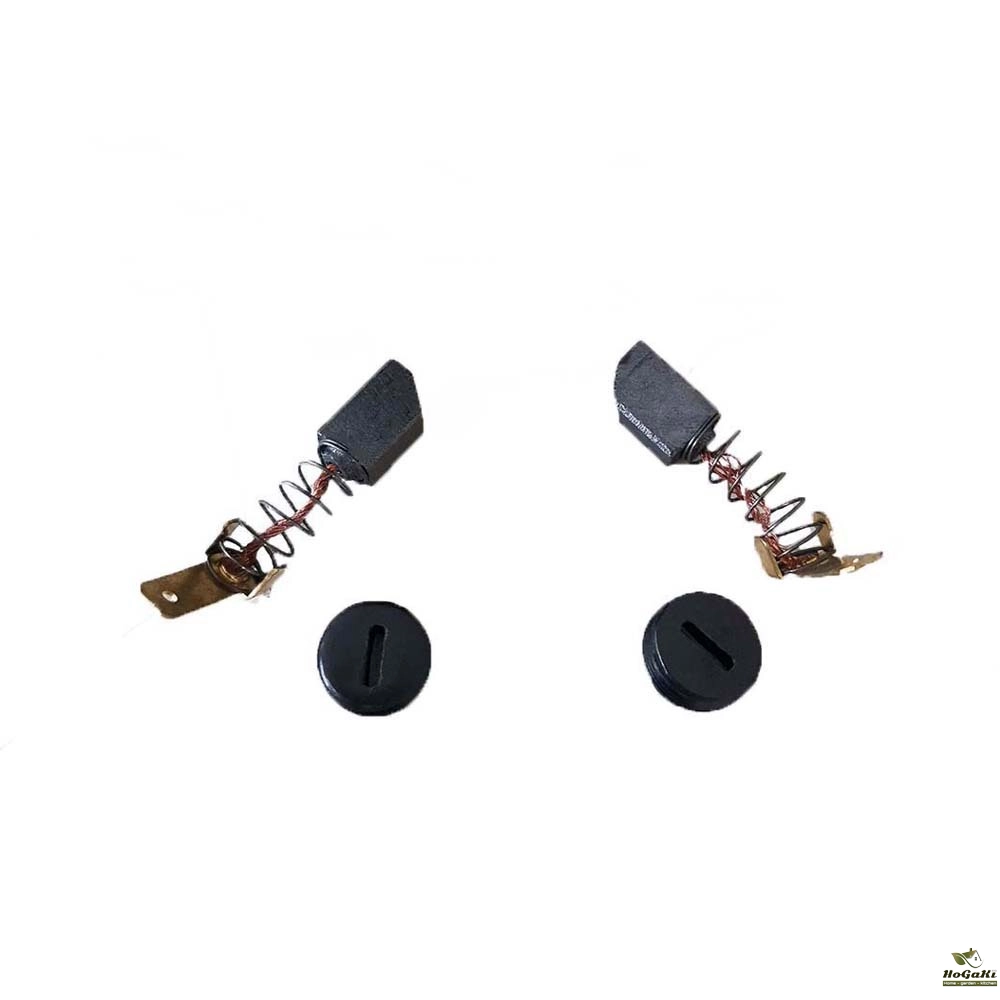

External to carbon brush, simple and convenient

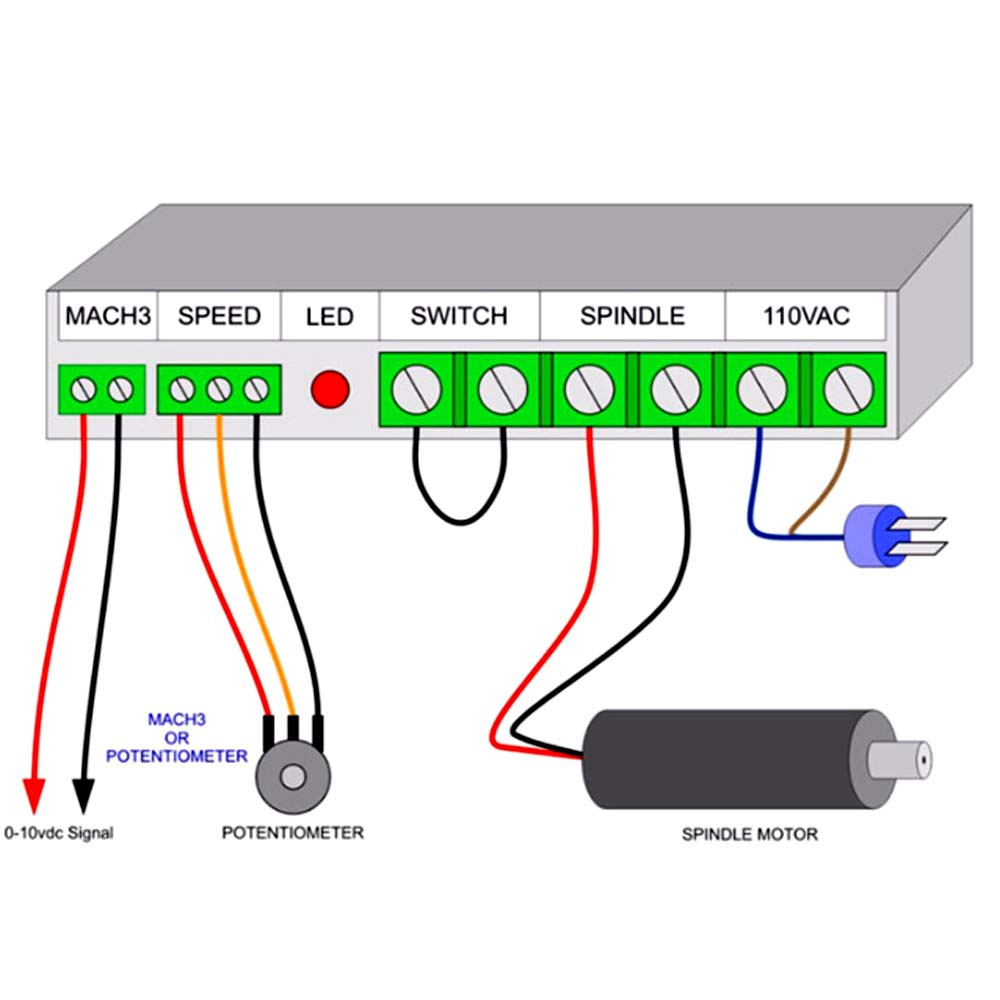

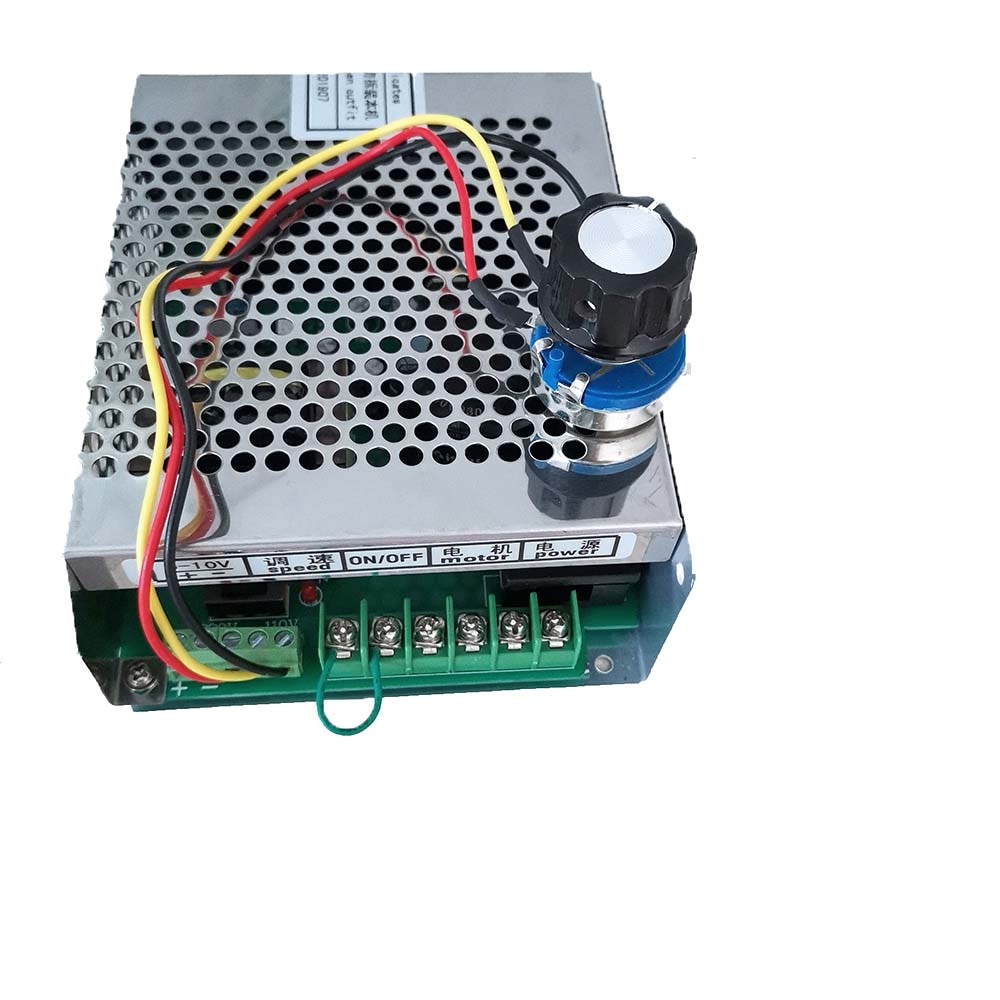

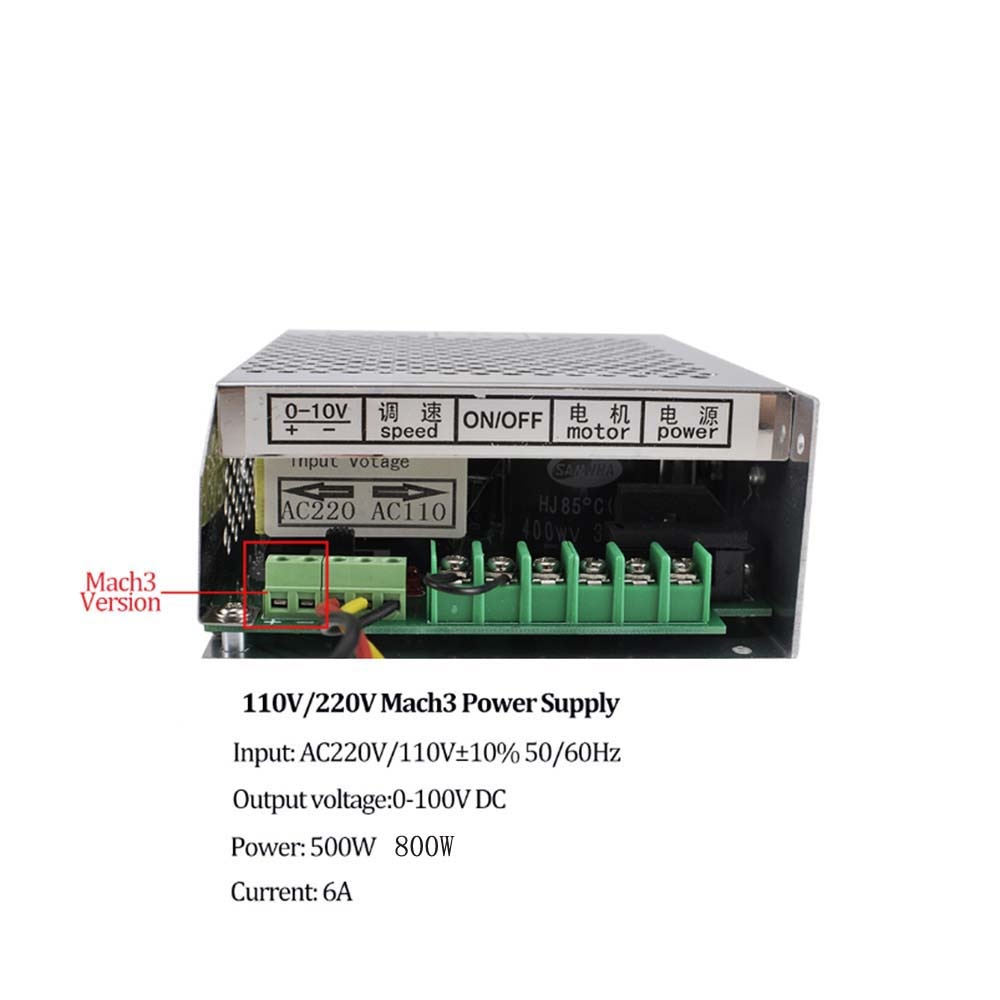

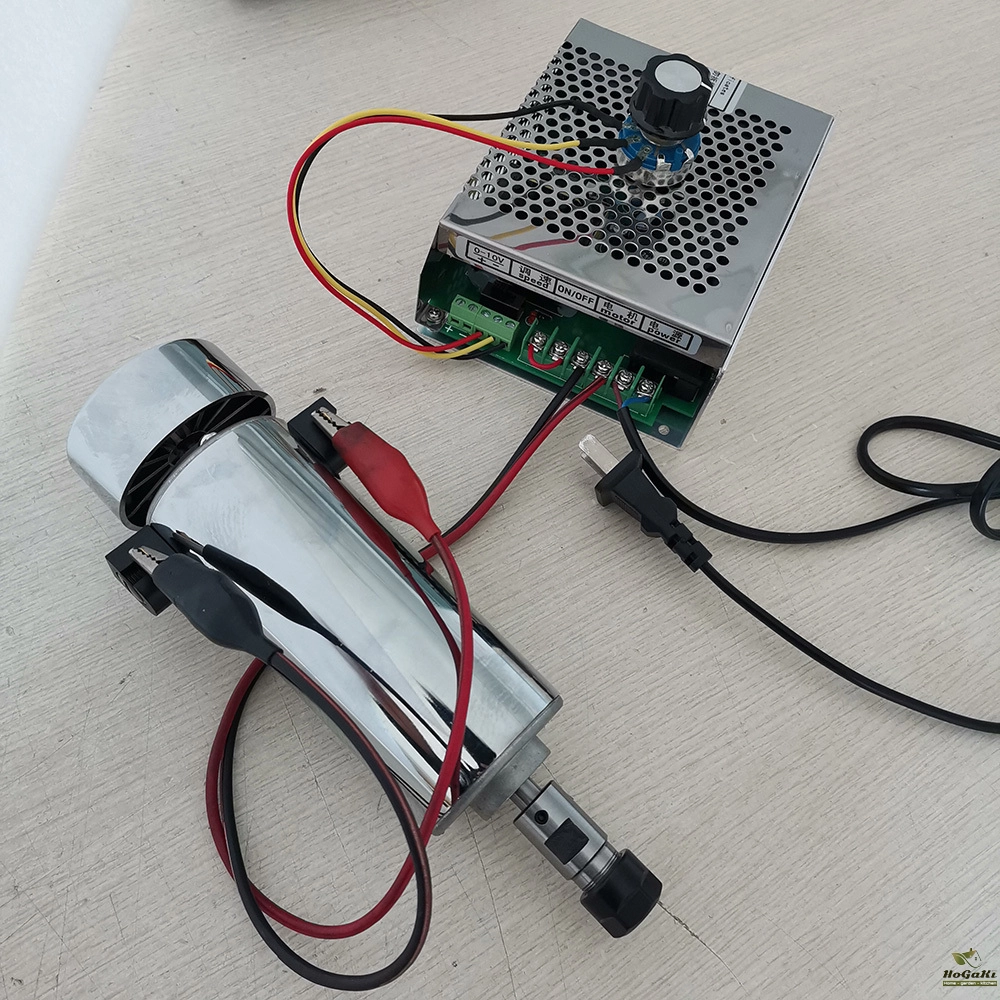

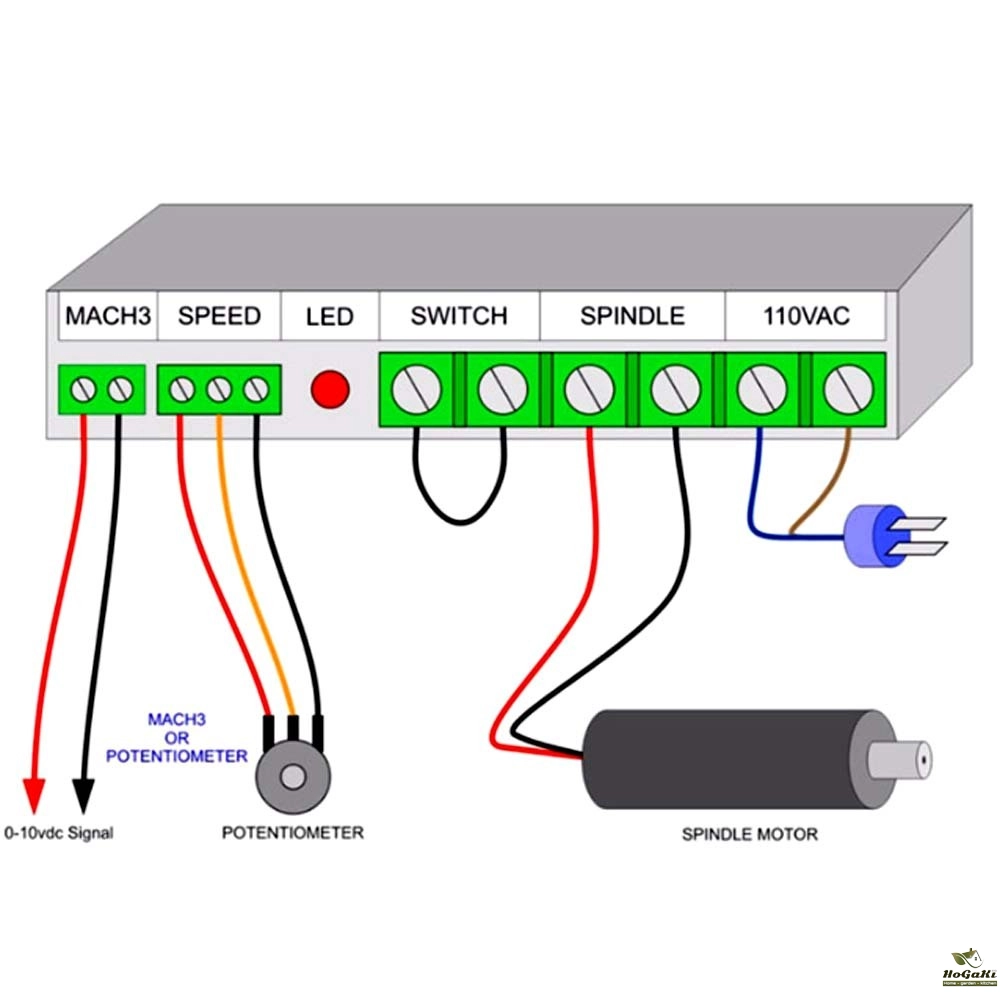

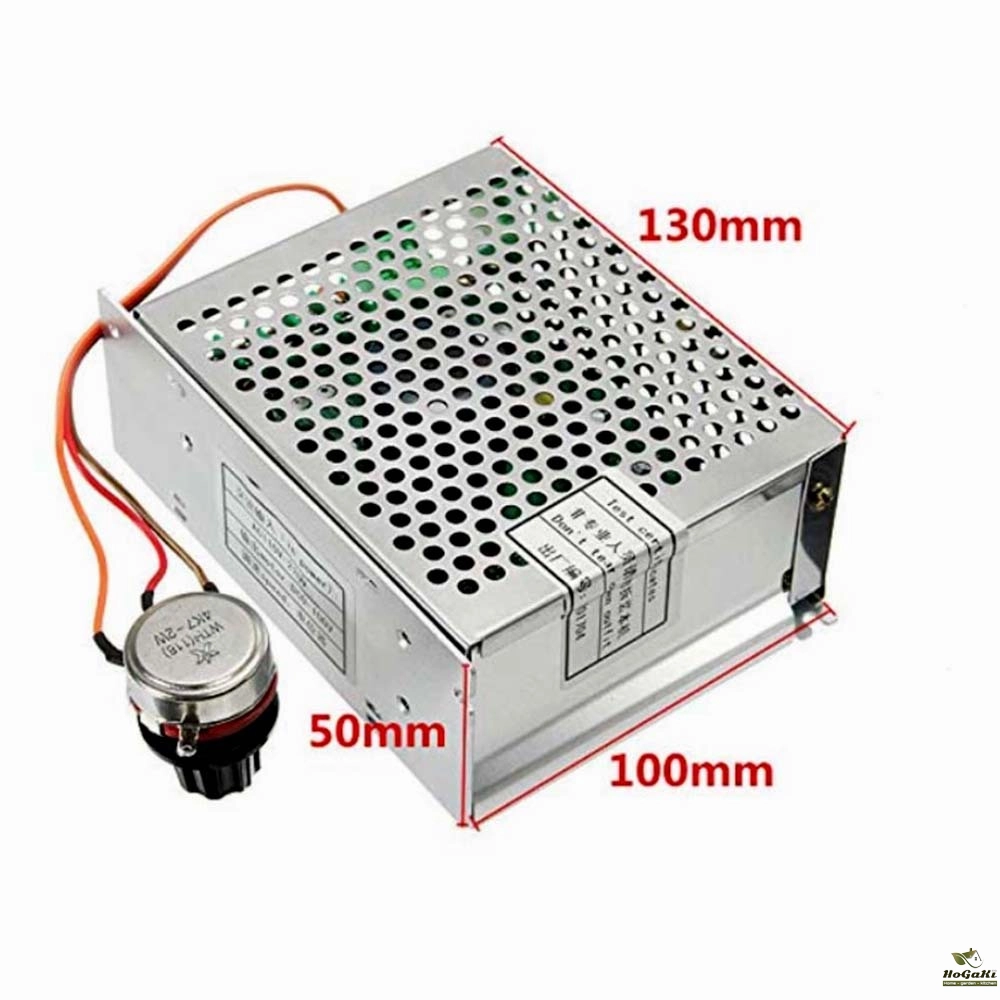

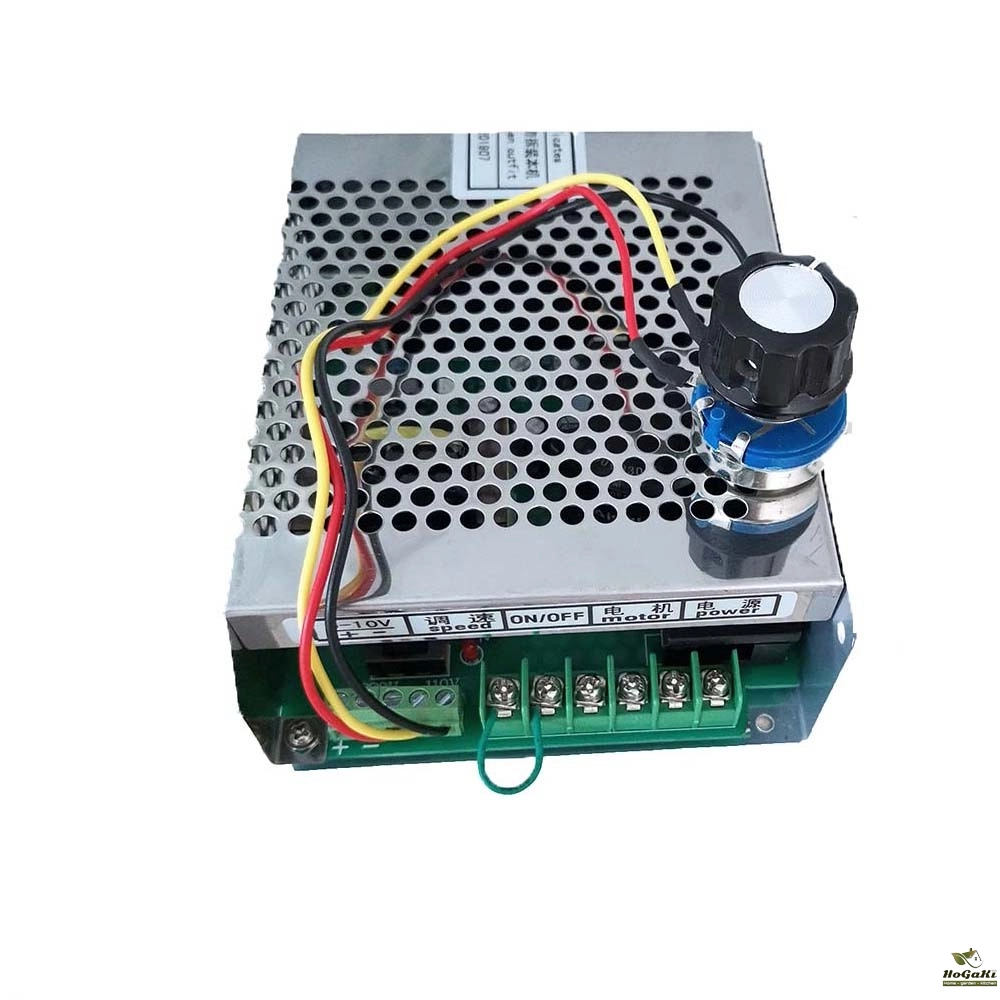

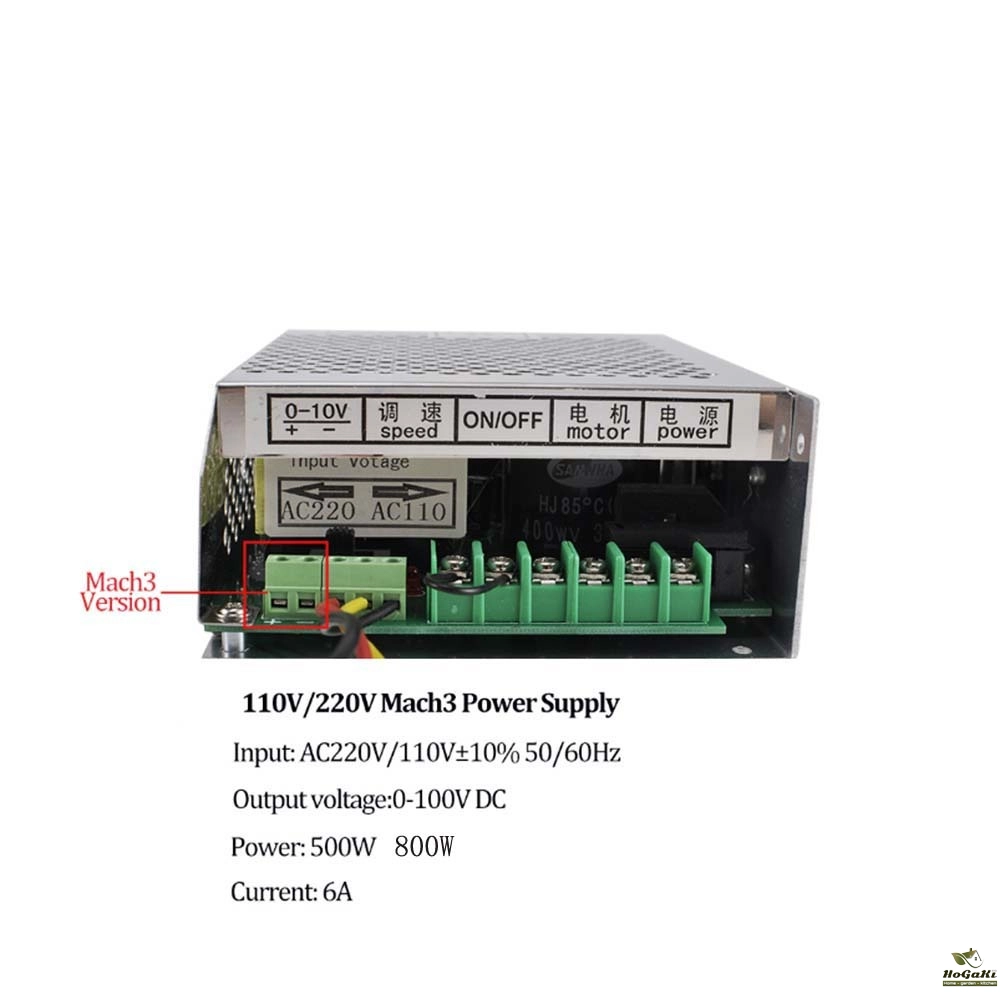

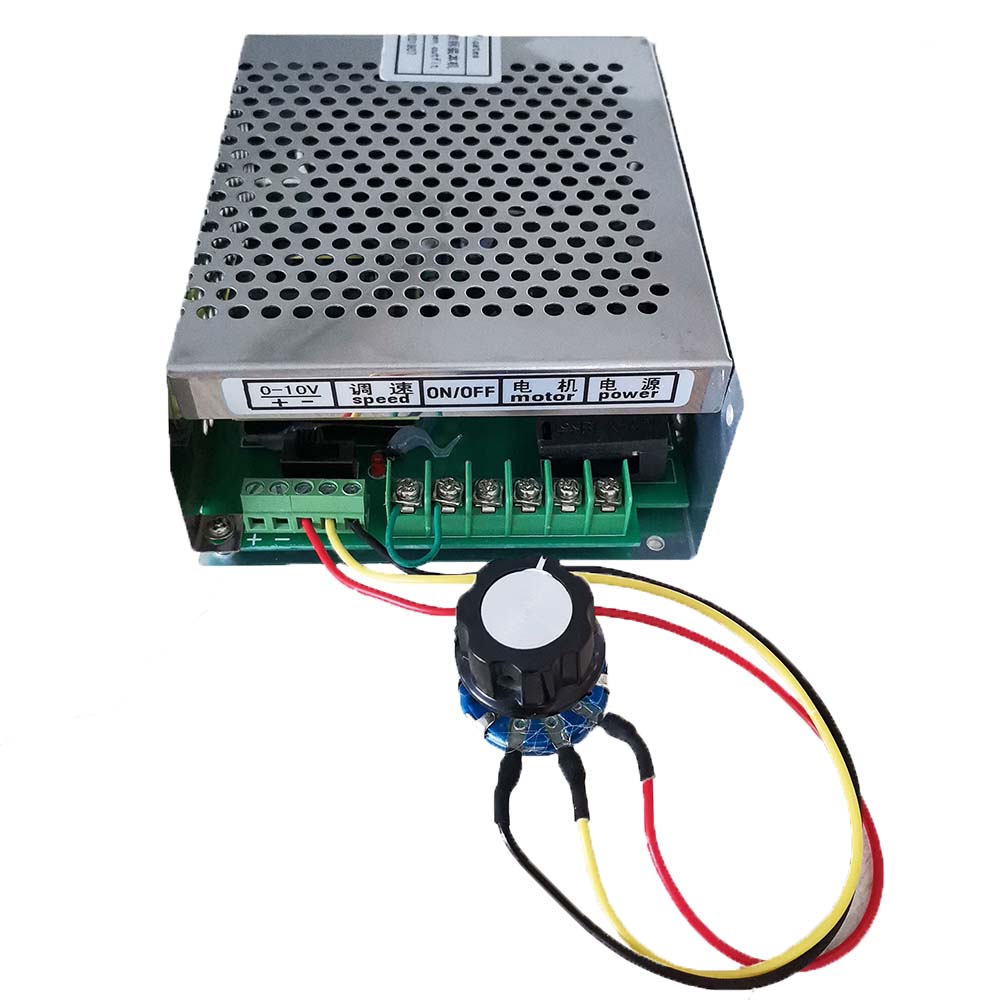

0.8KW Power Supply Speed Governor 800w Spindle Power Supply 110V/220V For DIY Engraving machine tool
Feature:
with speed governor--------------Wasy to control the speed of 800w spindle motor !
1.Input:AC220V/110V ± 10% 50/60Hz (Default )
2,Power :800W
3,Output voltage: 0-110V DC
4,Current: 6A

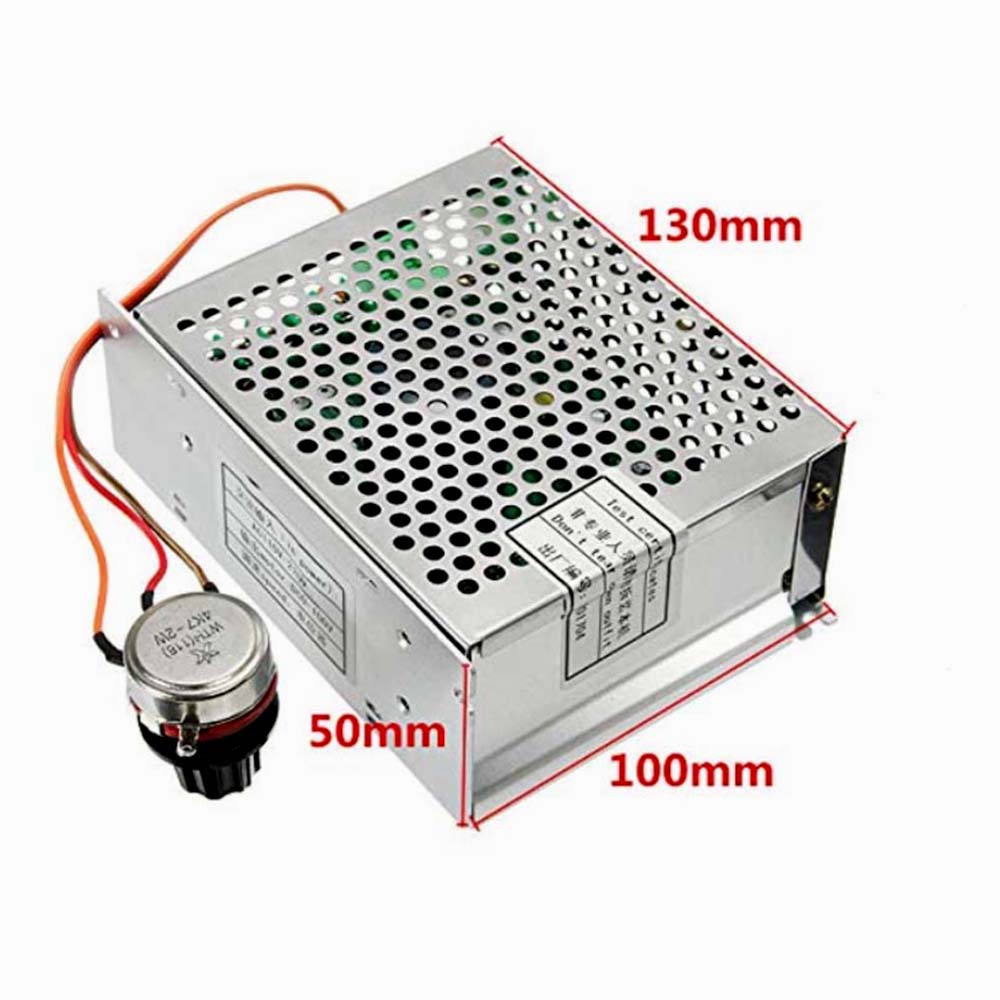

5. Dimension: L190mm × W105mm × H60mm
6. Controller: Mach3
Note: If you need 110V, please adjust the power supply to 110V. Thanks
Shipping：
Prepare package: We will ship out the items within 1~2 working days after the payment confirmed by Hogaki. We will inform you if we need more time to prepare the items.
Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed.
Payment
We accept credit card,bank TT,western union etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility
Contact us
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again
Customer’s satisfaction is very important to us.
Packaging Details
- Unit Type: piece
- Package Weight: 2.000
- Package Size: 20x10x35
- Brand Name: XINHUANGDUO
- Origin: Mainland China
- Operating Speed: 20000RPM
- Certification: CE
- Certification: RoHS
- Application: Milling
- Drive: Motor
- Model Number: 800w 110V DC
- Maximum Torque: 790mN.m
- Type: Tubular Motor
- Voltage(V): 0-110VDC
- Construction: Permanent Magnet
- Protect Feature: Drip-proof
- Output Power: 800W
