0.5kw Air Cooled Spindle Motor ER16 Chuck CNC 500W DC High Speed Spindle Motor 110VDC 12000RPM For PCB Engraving
215.80 157.58 $
ID: 153956
Quantity
0.5kw Air Cooled Spindle Motor ER16 Chuck CNC 500W DC High Speed Spindle Motor 110VDC 12000RPM For PCB Engraving
5.0 (5 votes) | 29 orders
Price:
US $215.80 - 458.13
Discount Price:
US $
157.58 -
334.78
-27%
- Color
-
-
0.5kw spindle motor Air cooled spindle 1Pcs ER16 chuck CNC 500W Spindle Motor
Package introduce:

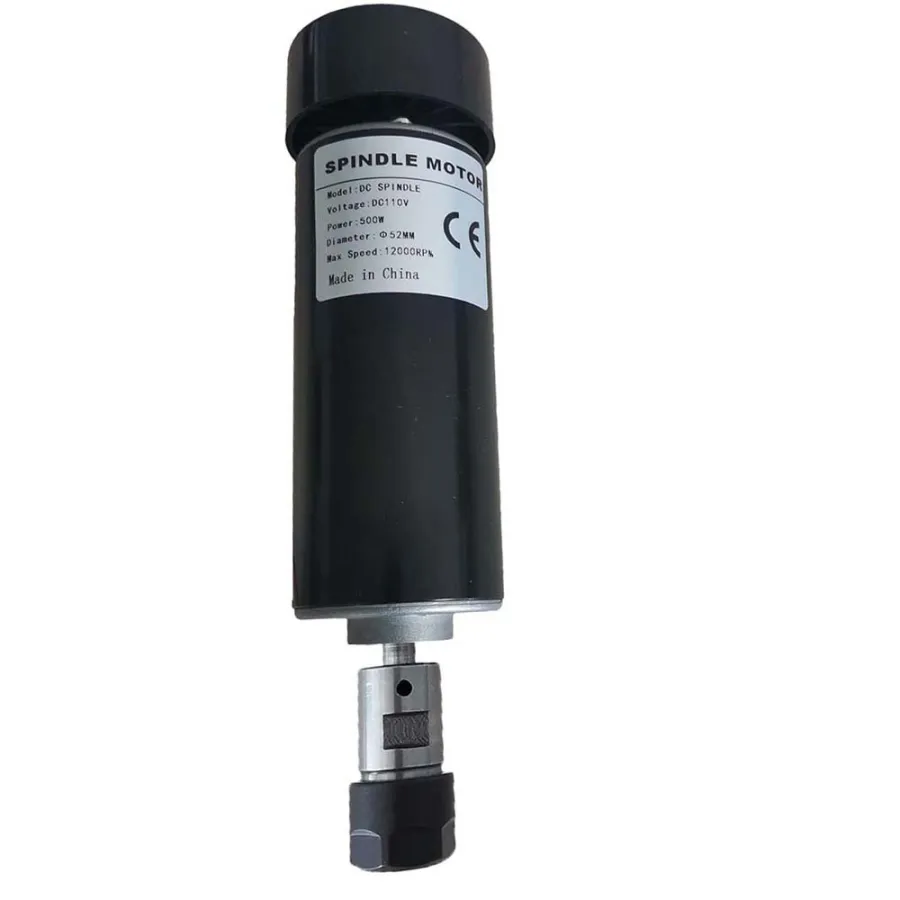

package 1: 1pcs 500wER16 spindle

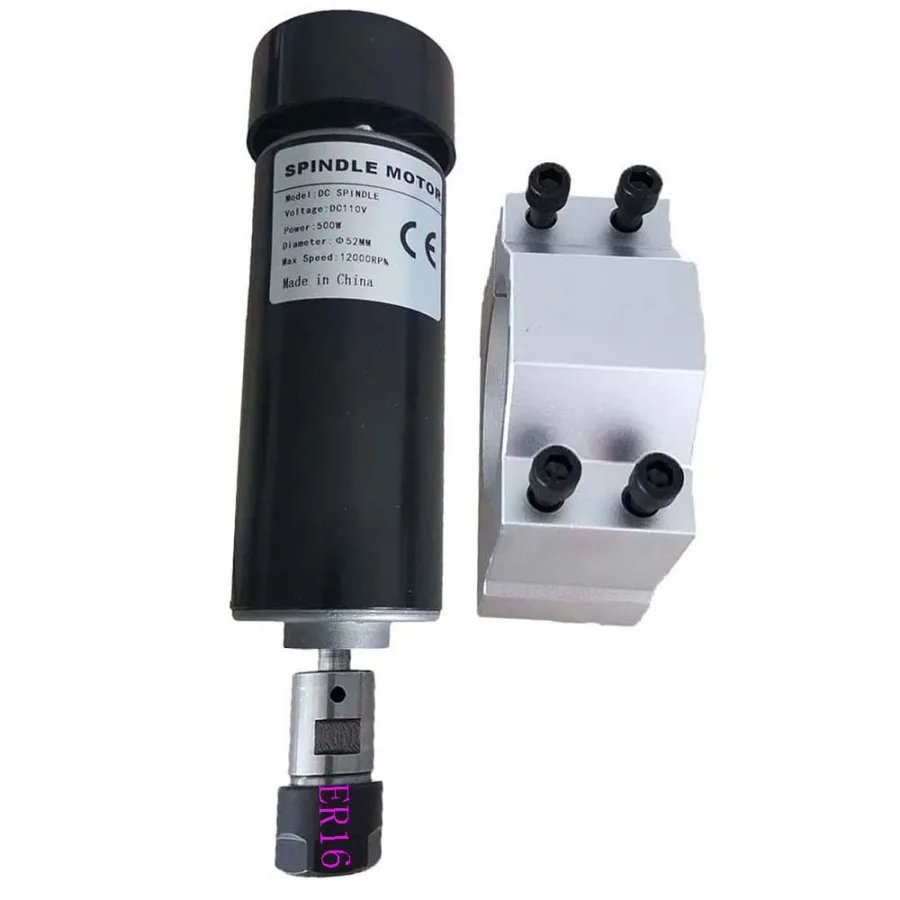

package 2: 1pcs 500wER16 spindle+1pcs 52mm clamp

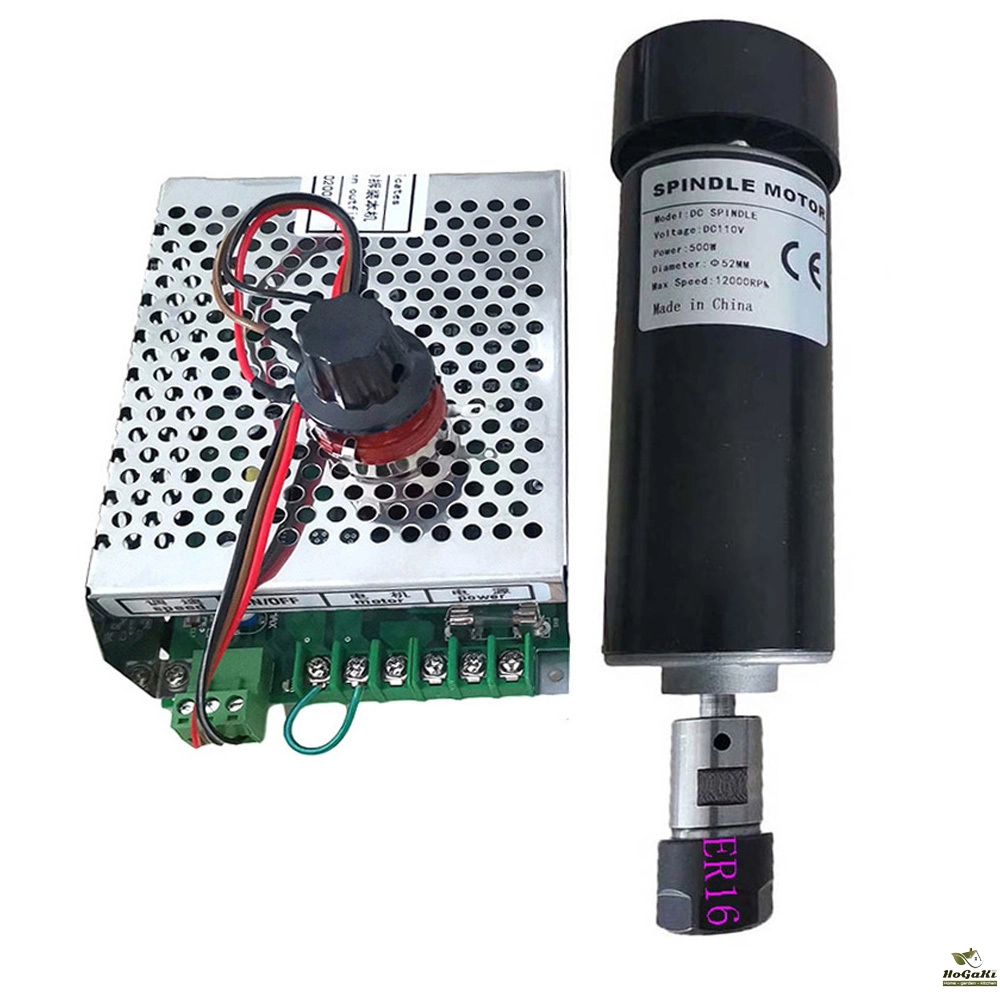

package 3: 1pcs 500w ER16spindle+1pcs 500w 220v/110v power supply

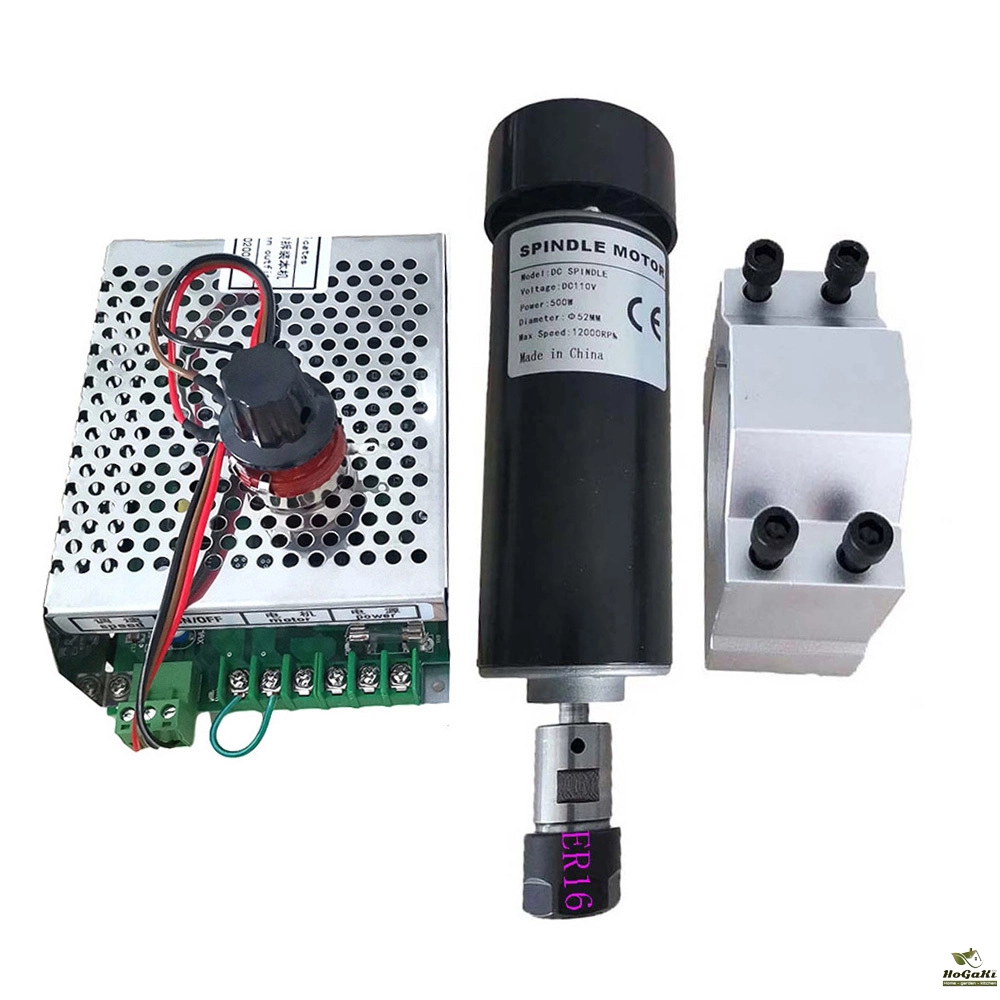

package 4: 1pcs 500wER16 spindle+1pcs 500w 220v/110v power supply+1pcs 52mm clamp

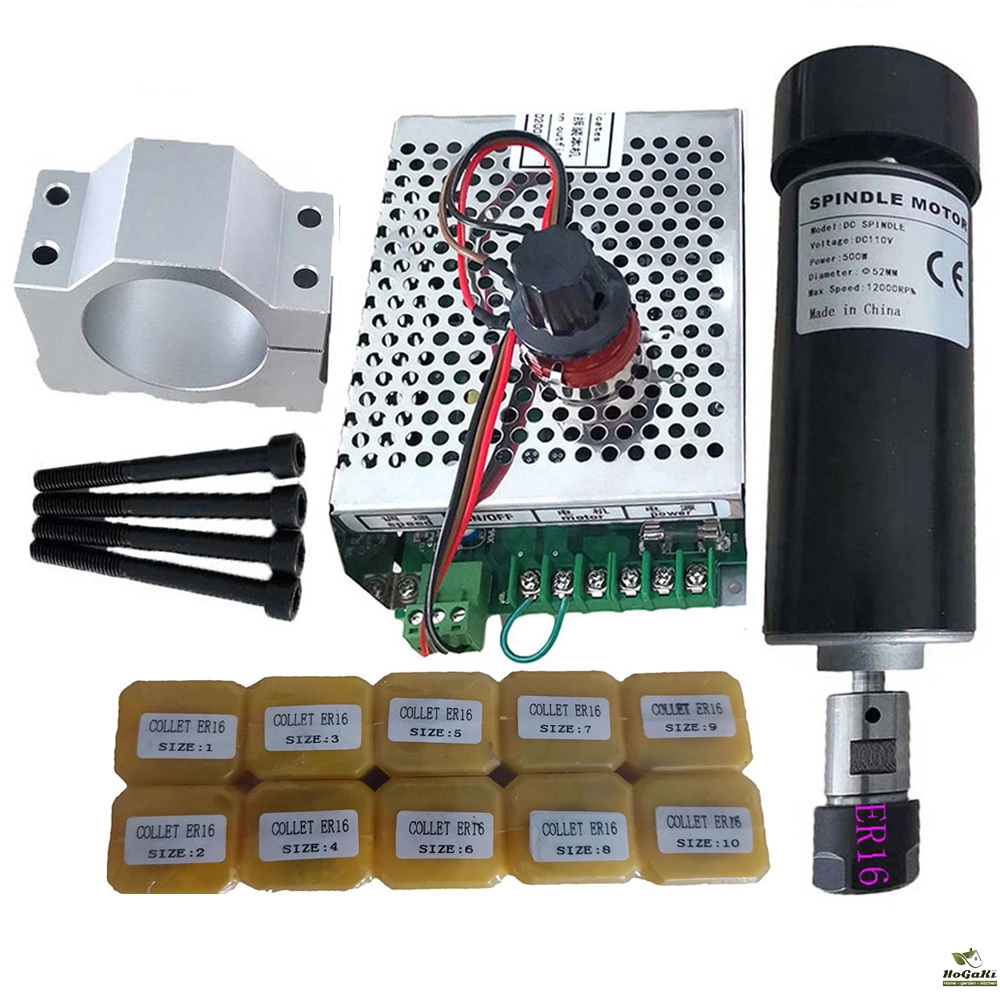

package 5: 1pcs 500wER16 spindle+1pcs 500w 220v/110v power supply+1pcs 52mm clamp+10pcs ER16 collect

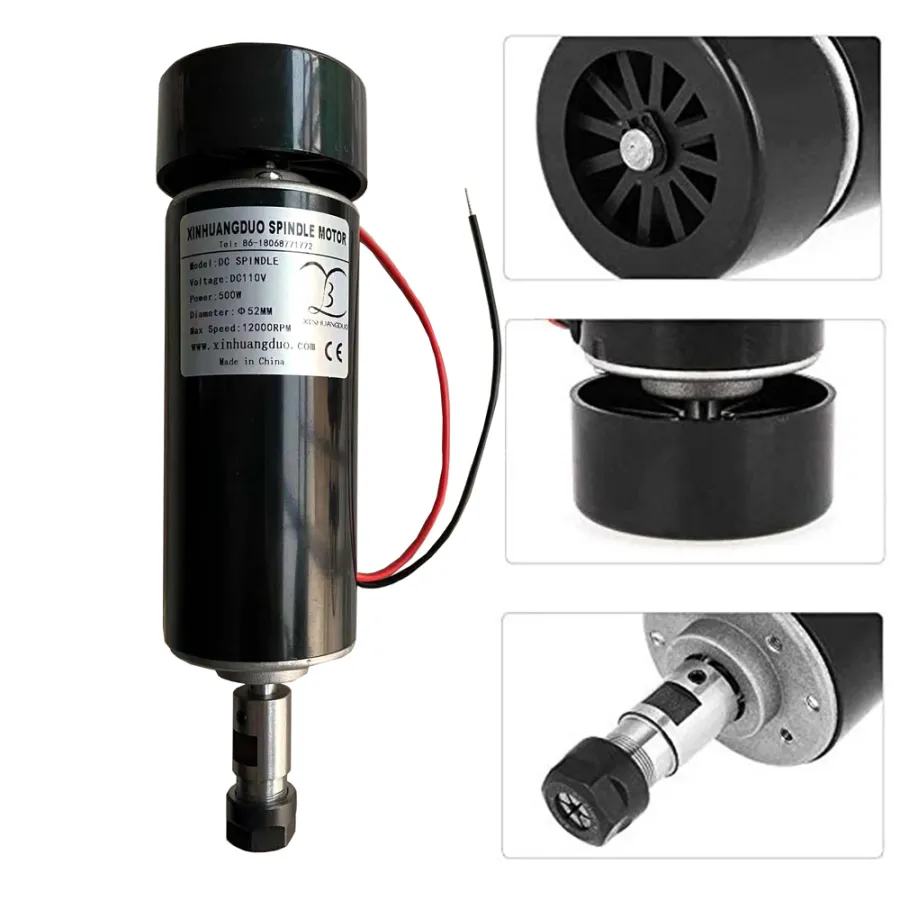

Features :
Operating voltage: 0-110VDC
Power: 500W
Speed: unload max 12,000 rpm
Torque: 0.59N.M
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm

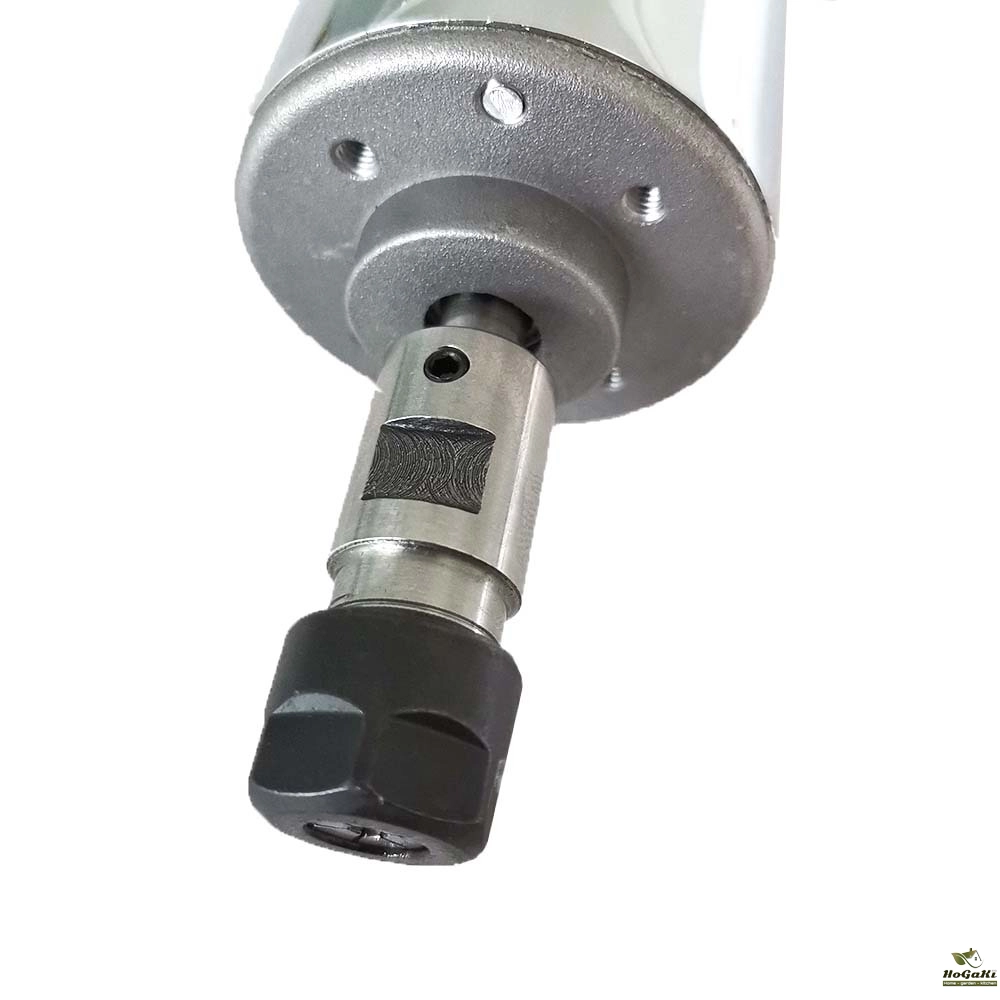

Chuck portion length: 45MM
Chuck portion diameter: 16mm
Motor Length: 200MM
High precision spindle runout 0.02-0.05

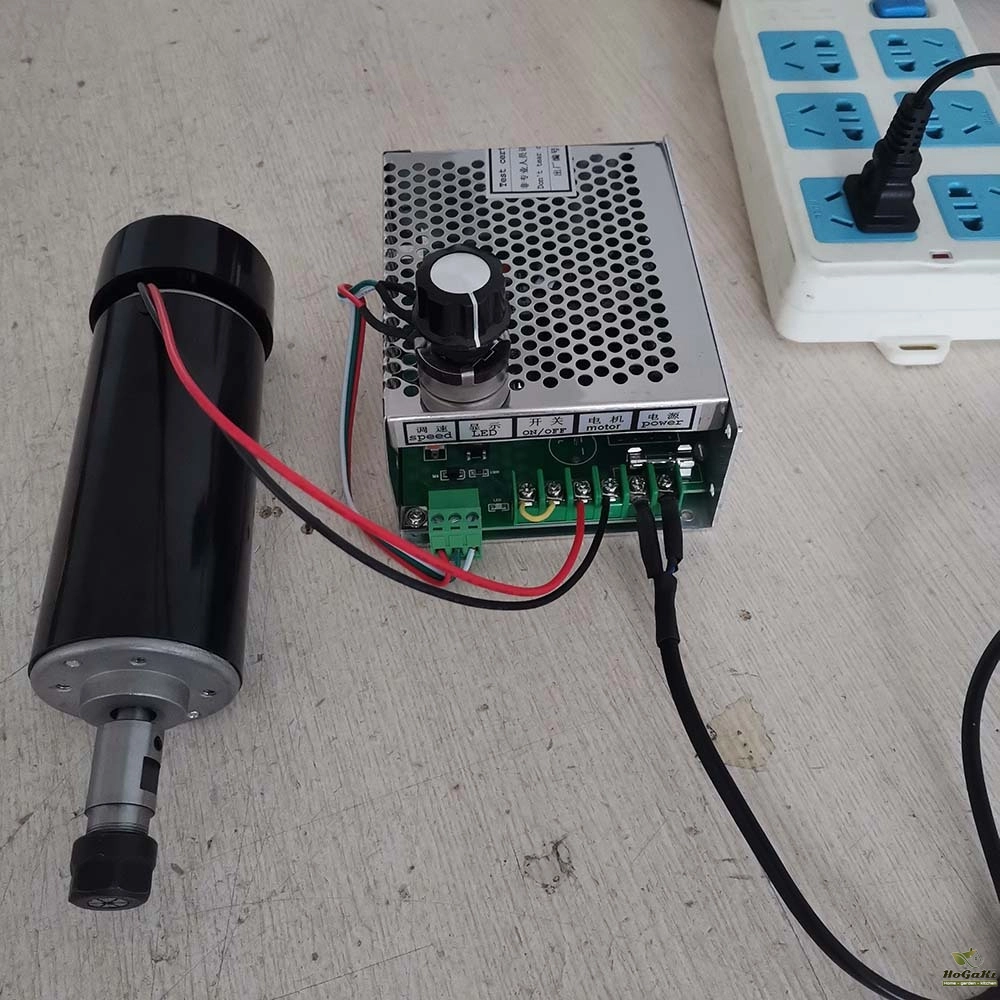

2.power supply:
Power Supply with speed governor: (Manual speed regulation)
Input:AC220V ± 10% 50/60Hz
Adapter power:500W

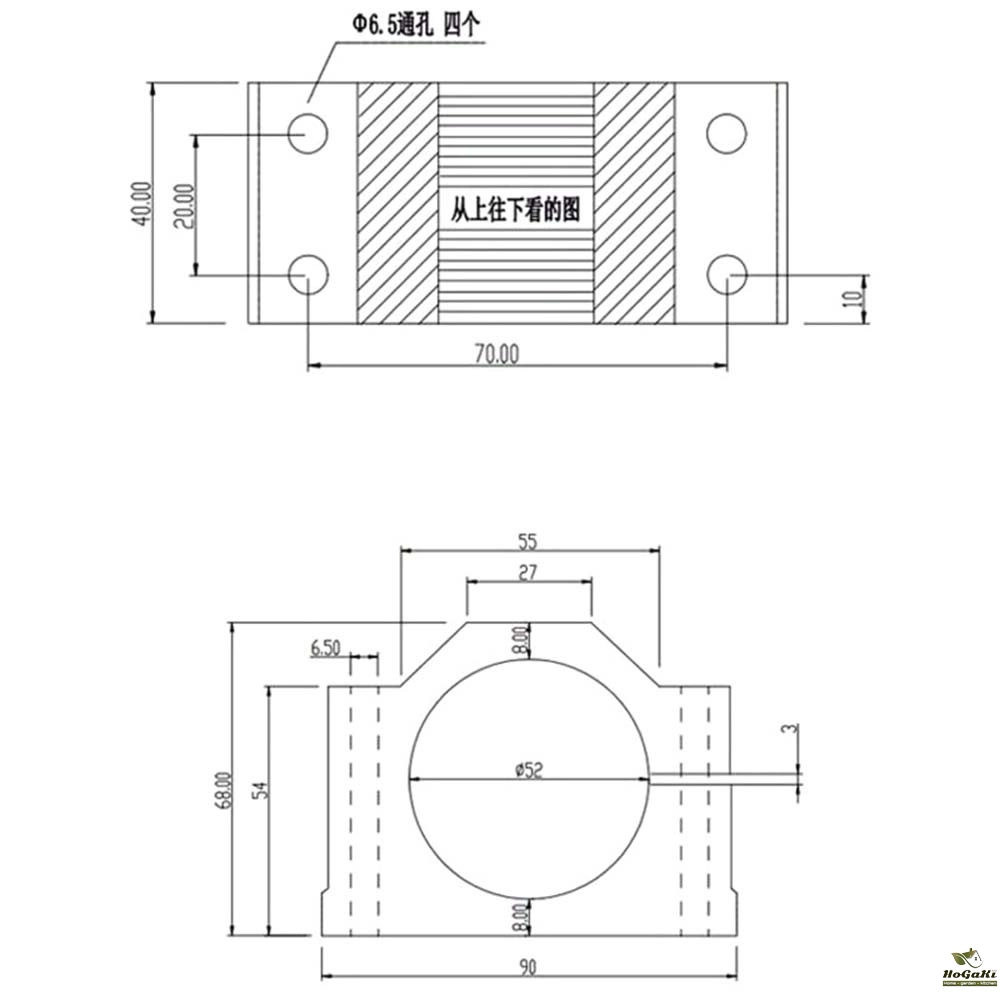

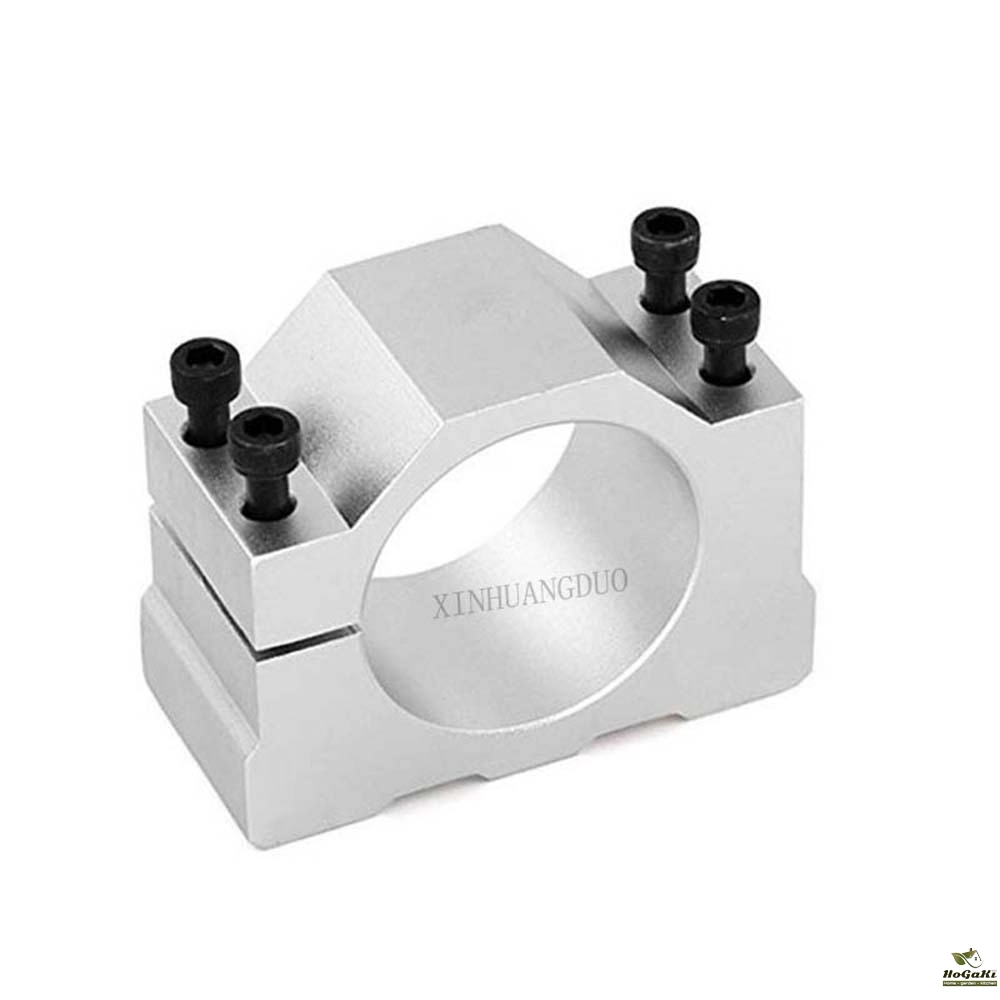

3. 52mm clamp :
1x 52mm Mount Bracket+4x Screws
Applicable to:300w 400w 500w spindle motor
Model: 52mm Spindle motor mount bracket
Diameter: 52mm
Material: Aluminum.

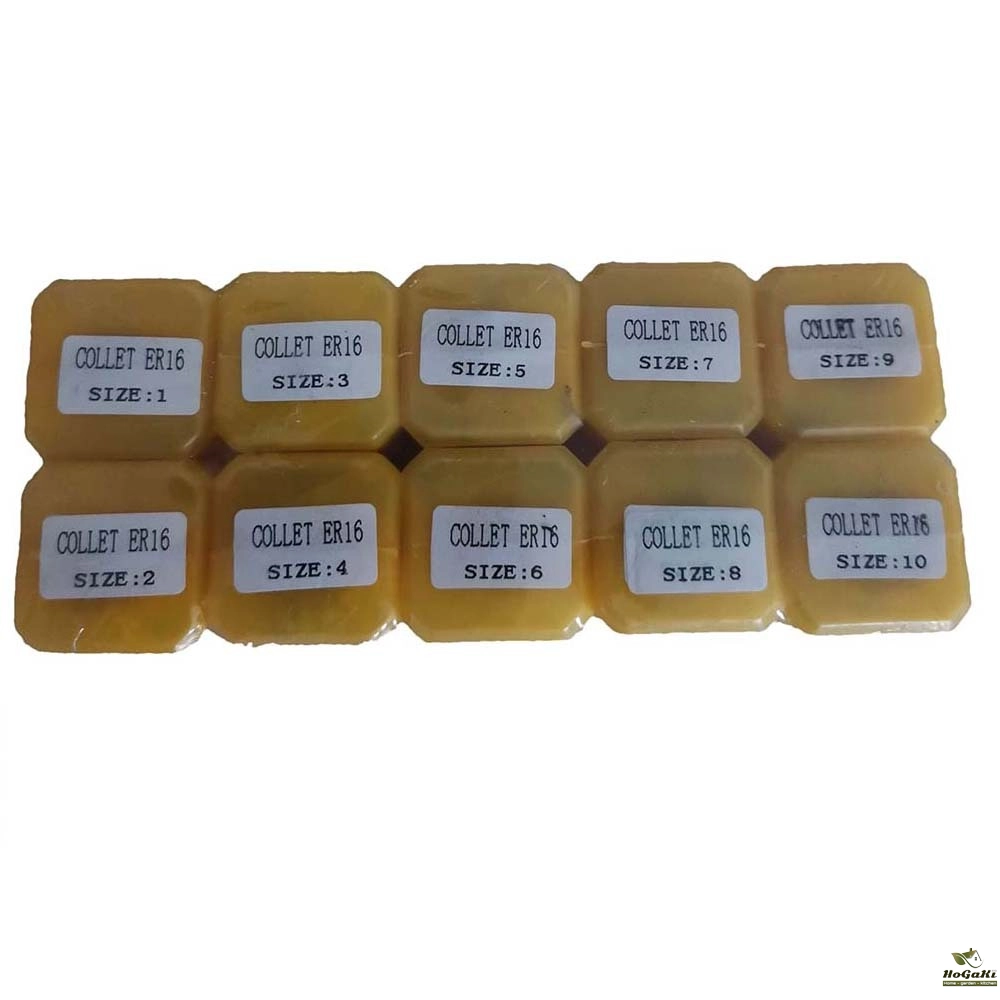

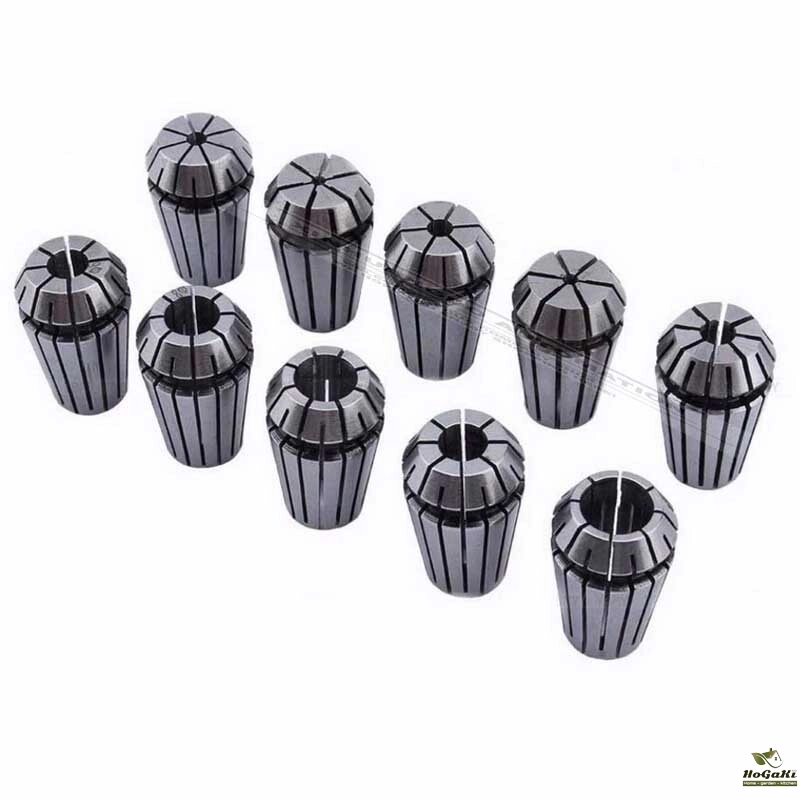

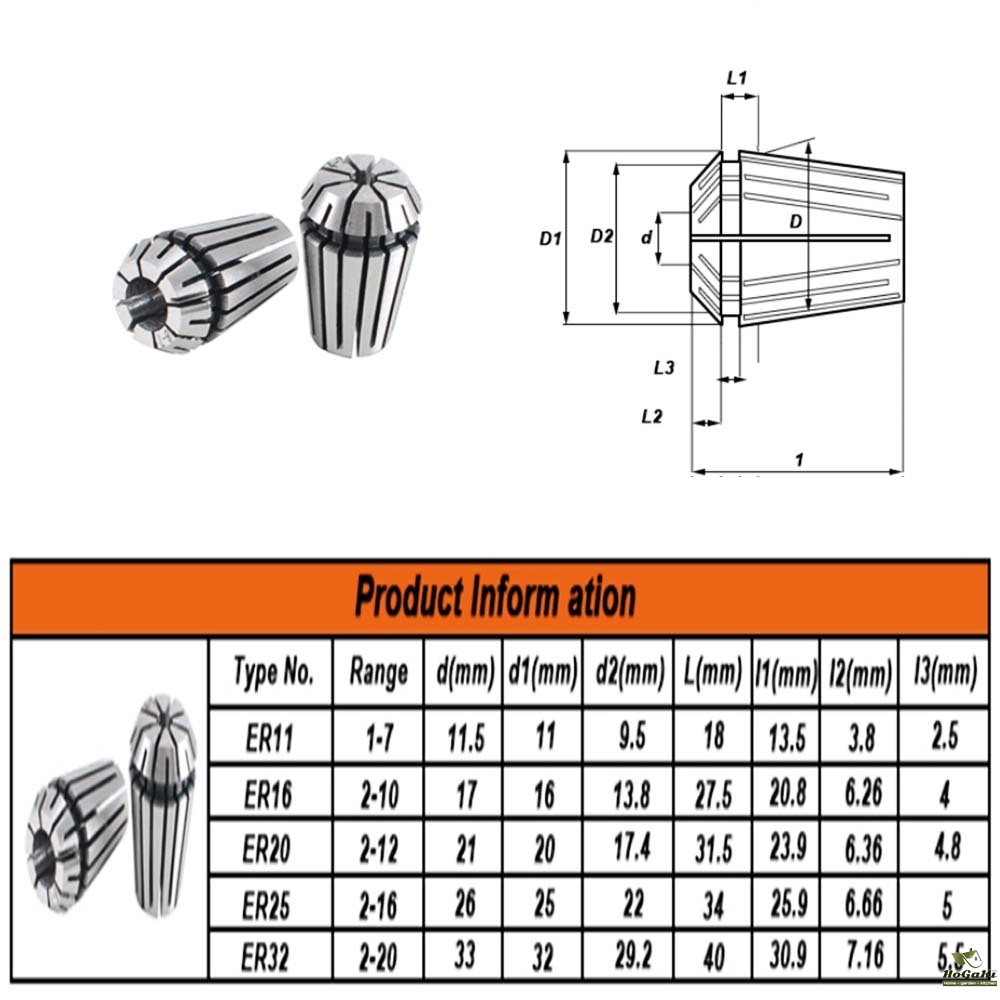

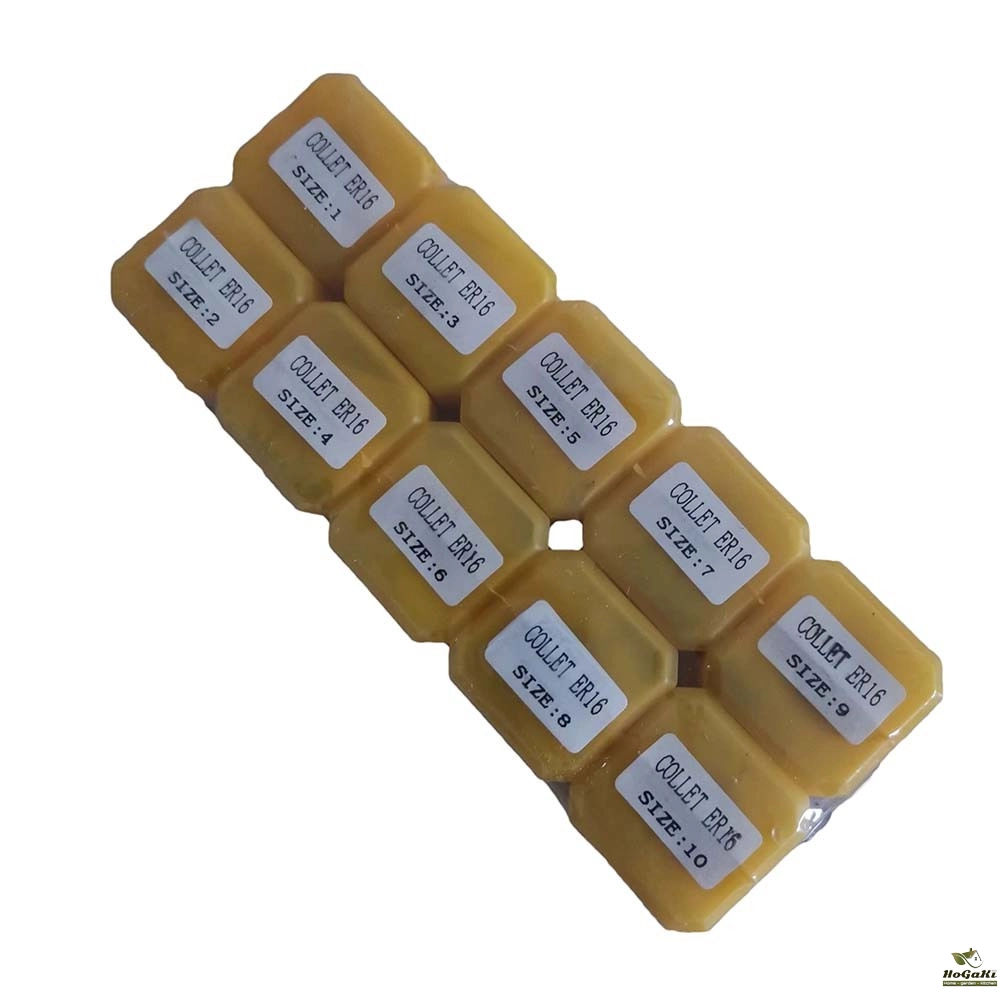

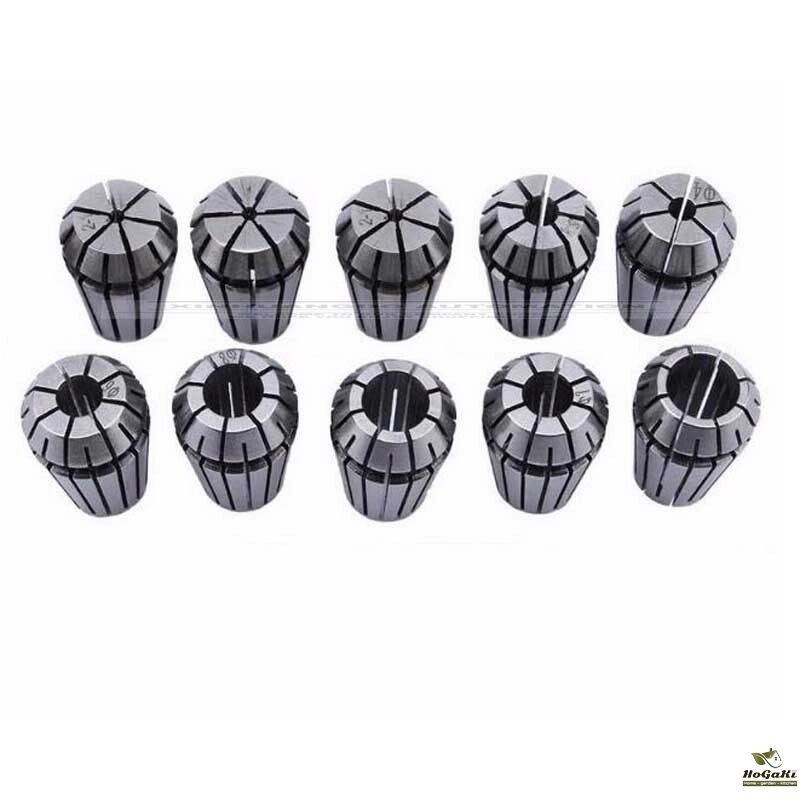

4.ER16 Collect
Size: 10pcs ER16: 1mm / 2mm 3mm / 4mm / 5mm / 6mm /7mm /8mm /9mm /10mm

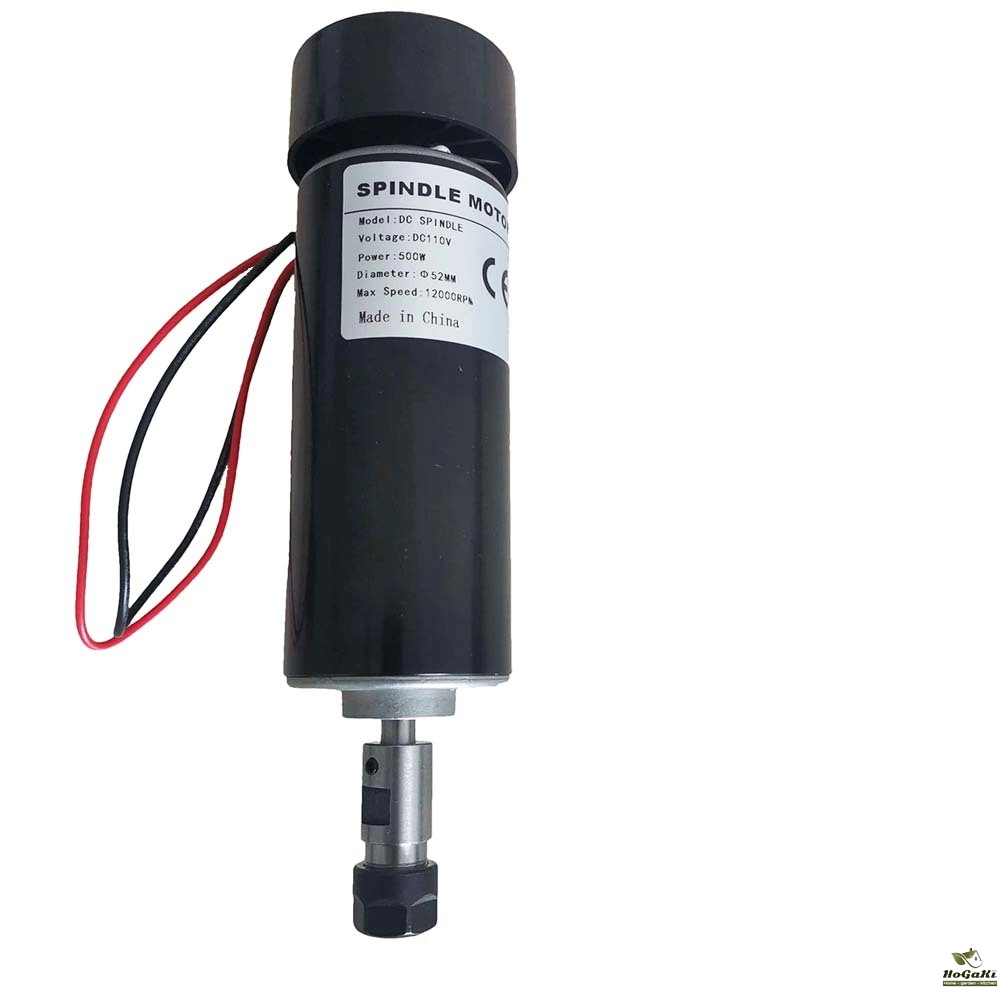

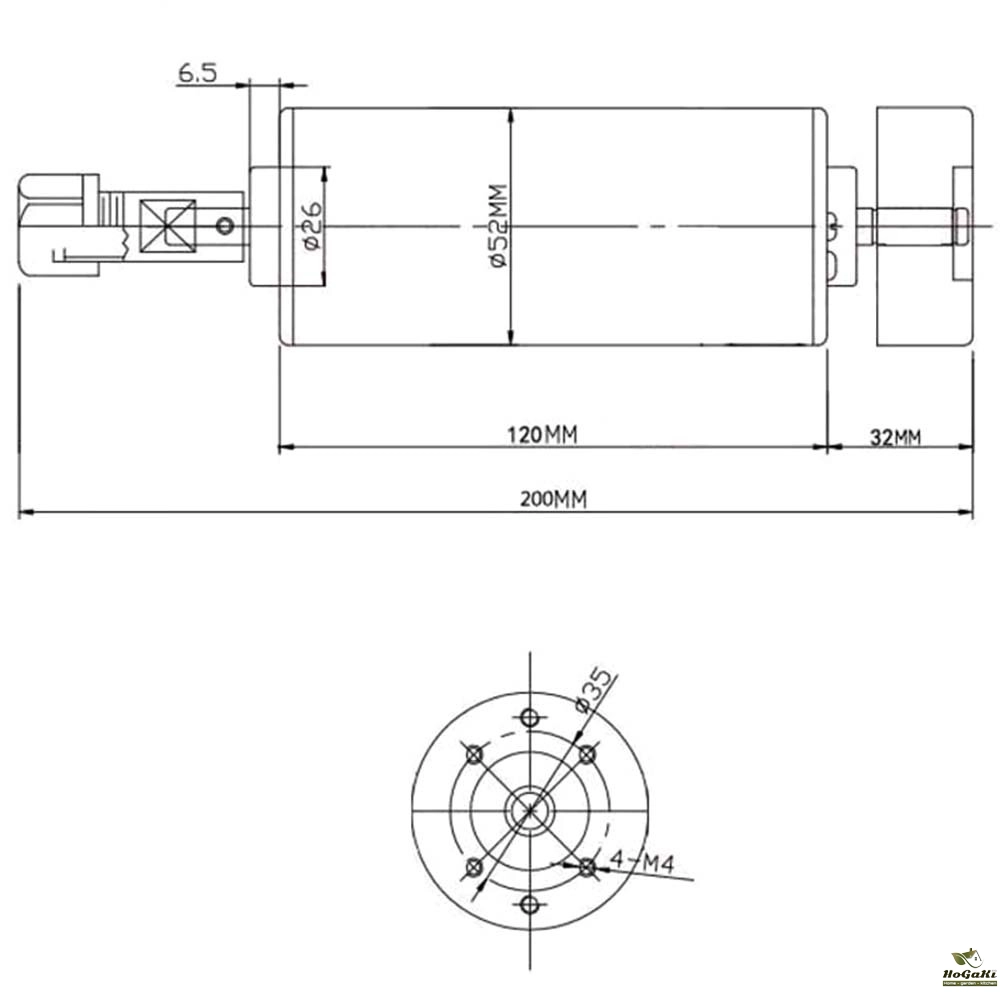

Spindle Motor Parameter:
Work voltage: 0-110VDC
Rotation speed: 0-12000r/min
Power: 500W
Torque:0.59NM
Insulation resistance:>2Megohm
Dielectric strength:400V
Total length: 200mm
Diameter:52mm
Axis collet Length: 45mm
Repeat accuracy: 0.02-0.05mm

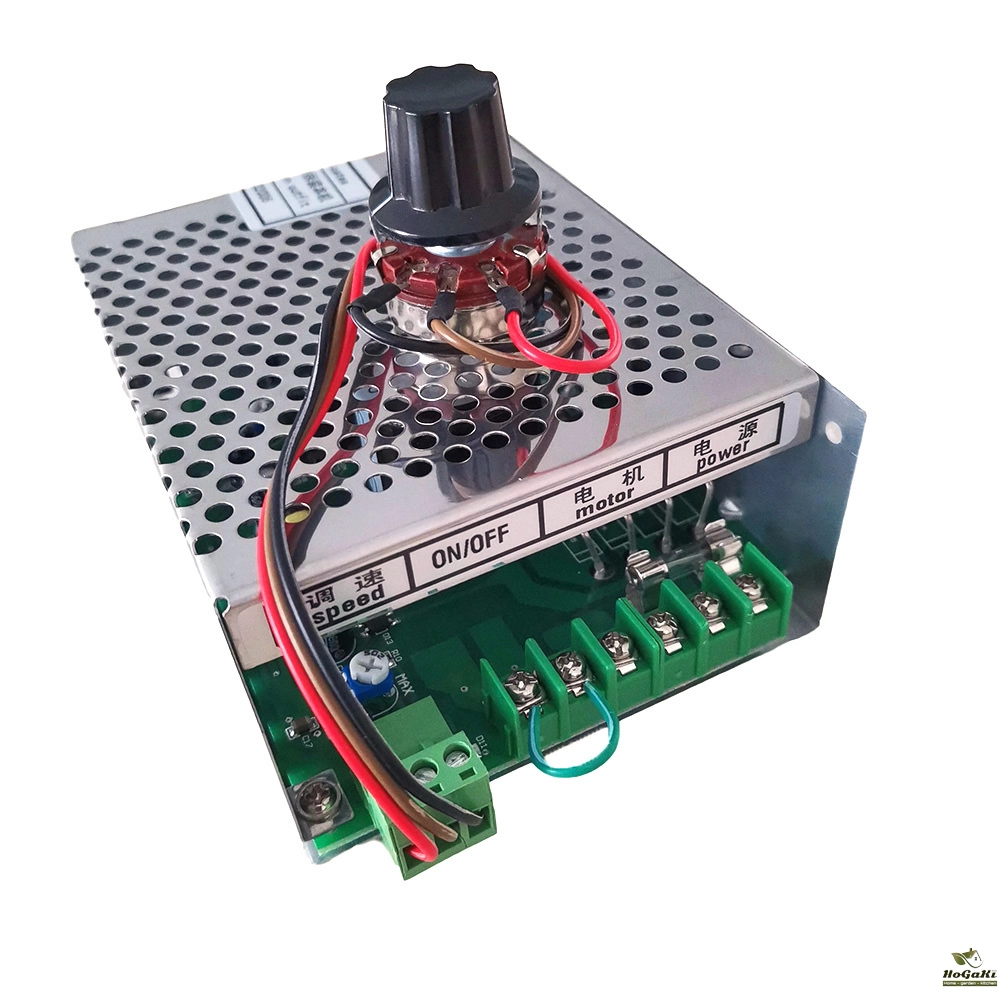

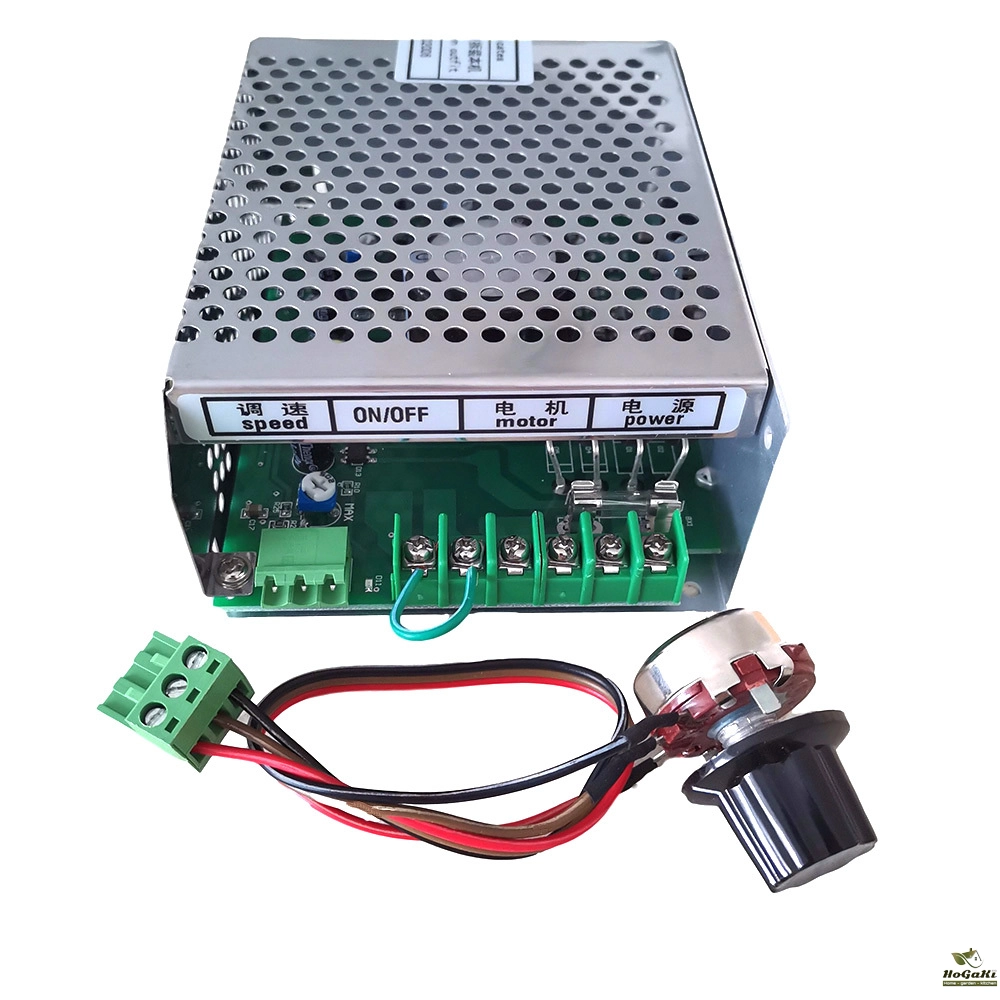

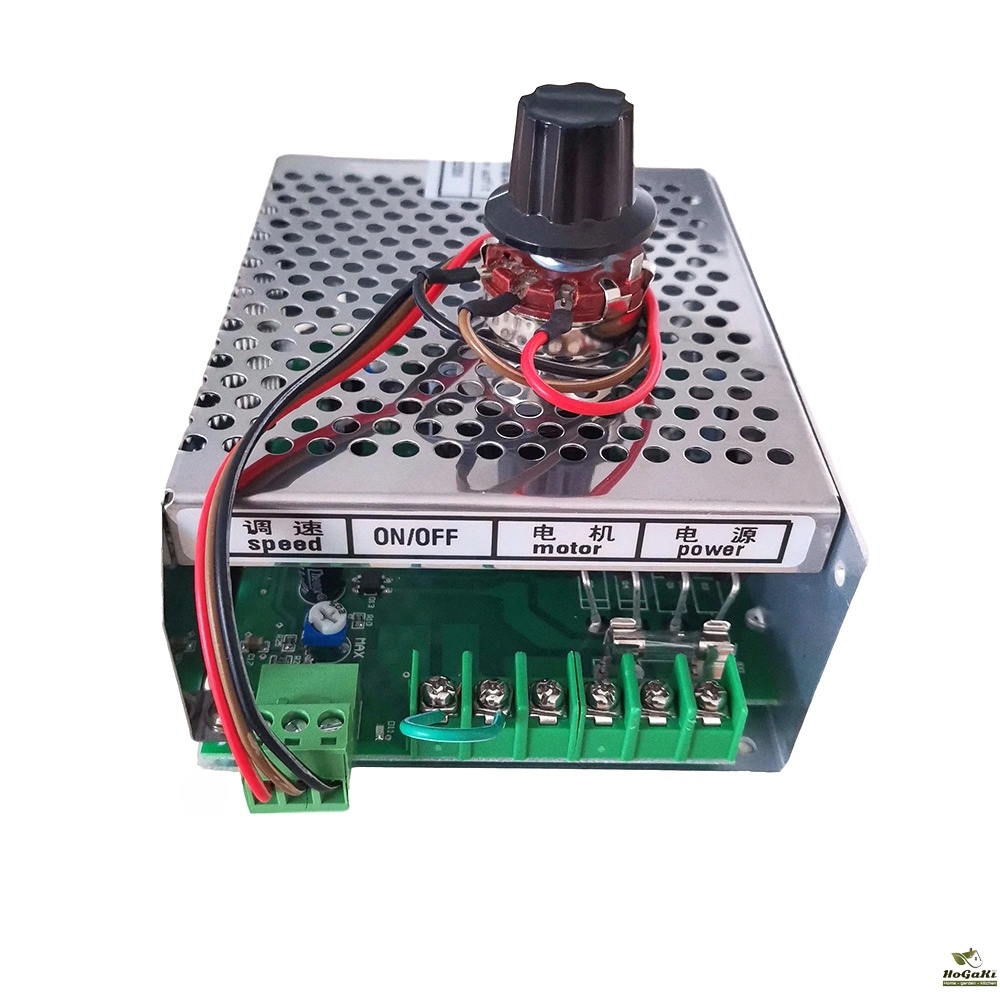

2.Detailed technical parameters of governor:
Input voltage AC110V-AC220V ± 10% global voltage 50 / 60Hz
Current limiting: 6A
Suitable motor power: 50W ~ 500W
Armature output voltage: DC 0 ～ 100V adjustable
Overall dimension: 130mm long × 100 mm wide × Height 51mm
Connection mode: terminal type (convenient and fast)
3.Working Environment:
Ambient air temperature: - 10 ~ 40 ° C
The relative humidity of the air is below 85%, and the ventilation is good
It is installed in the place with good ventilation, no severe impact, no vibration, no explosive medium and no conductive metal powder
Packaging Details
- Unit Type:
- Package Weight: 2.000
- Package Size: 20x20x30
- Brand Name: XINHUANGDUO
- Origin: Mainland China
- Hign-concerned Chemical: None
- Operating Speed: 12000RPM
- Certification: CE
- Certification: RoHS
- Application: Milling
- Drive: Motor
- Model Number: 500W
- Maximum Torque: 590mN.m
