Spindle Motor Air Cooled 1.5KW 1500W Diameter 64mm ER11 Collet Chuck For DIY CNC Router Engraving Machine
299.25 171.90 $
ID: 153962
Quantity

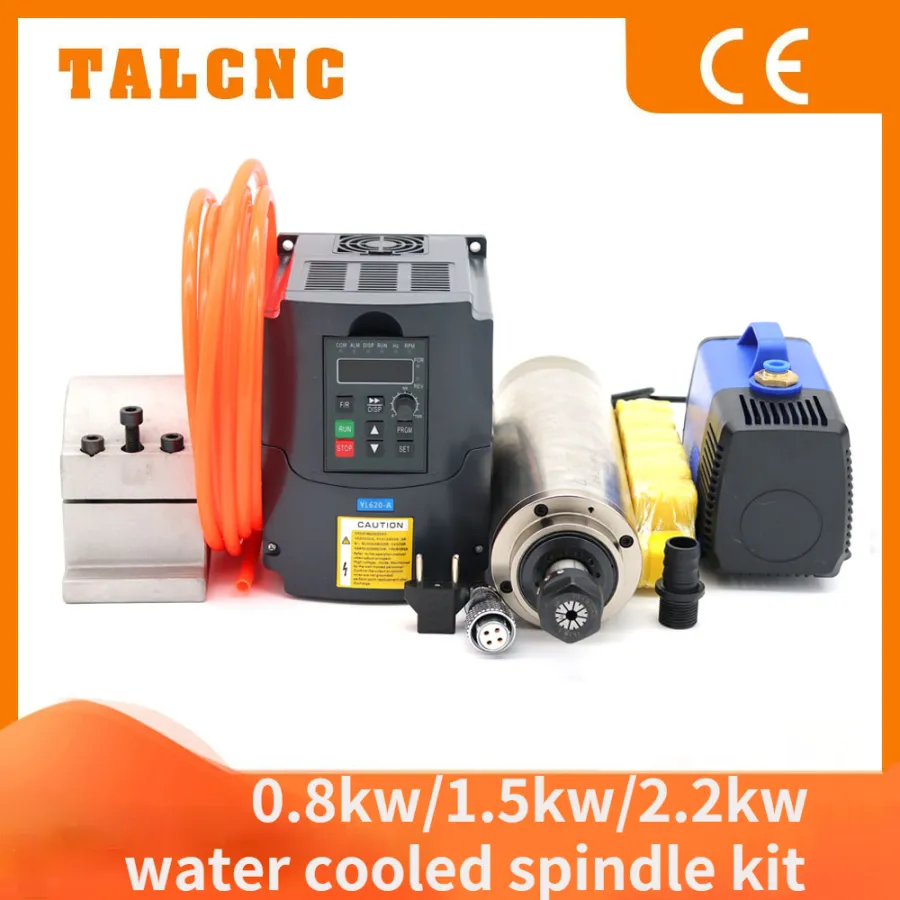

2.2KW/0.8KW/1.5KW Water Cooled Spindle Motor+Inverter VFD+ 65mm/80mm clamp + 80w water pump +13 pcs ER11/ER20 Collets
5.0 (1 votes) | 27 orders
Price:
US $1306.06 - 1743.30
Discount Price:
US $
875.06 -
1168.02
-33%
- Color
Packing Includes：
2.2kw set:
1 x 2.2KW CNC Water Cooled Spindle
1 x 2.2KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp
13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
1.5kw set:
1 x 1.5KW CNC Water Cooled Spindle
1 x 1.5KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 65mm Spindle Clamp
13 x ER11 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
or10pcs x ER16 Collet (1,2,3,4,5,6,7,8,9,10mm)
0.8kw set:
1 x 0.8KW CNC Water Cooled Spindle
1 x 1.5KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 65mm Spindle Clamp
13 x ER11 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
Fearture：

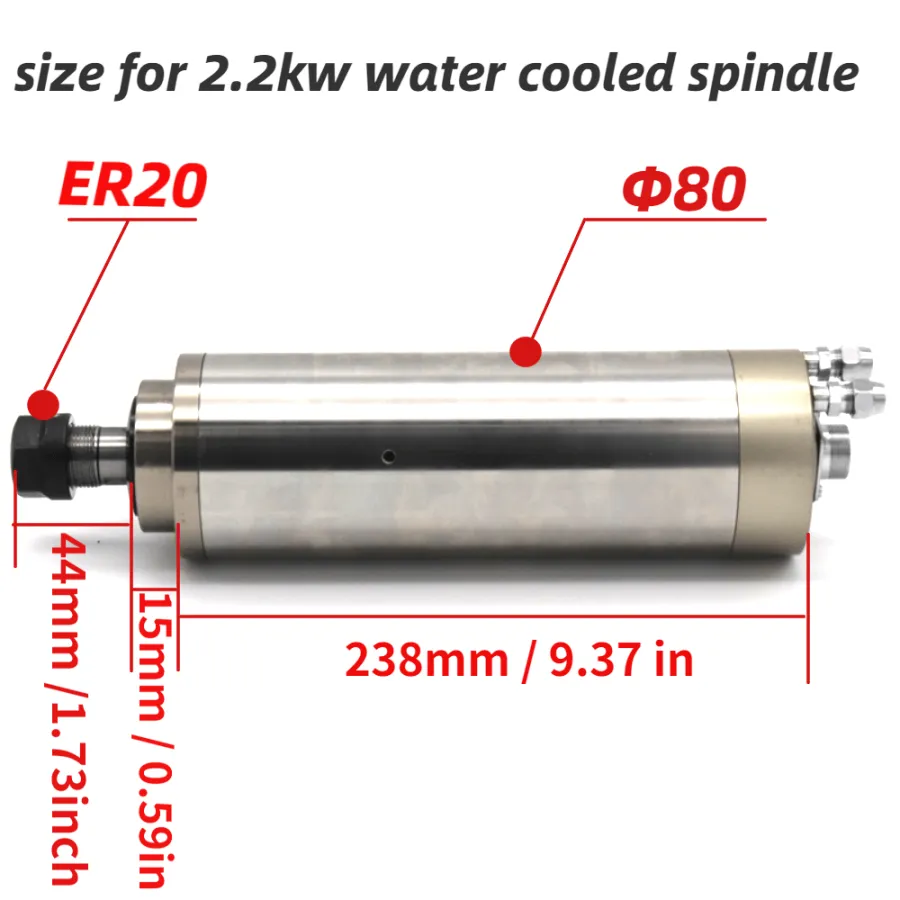

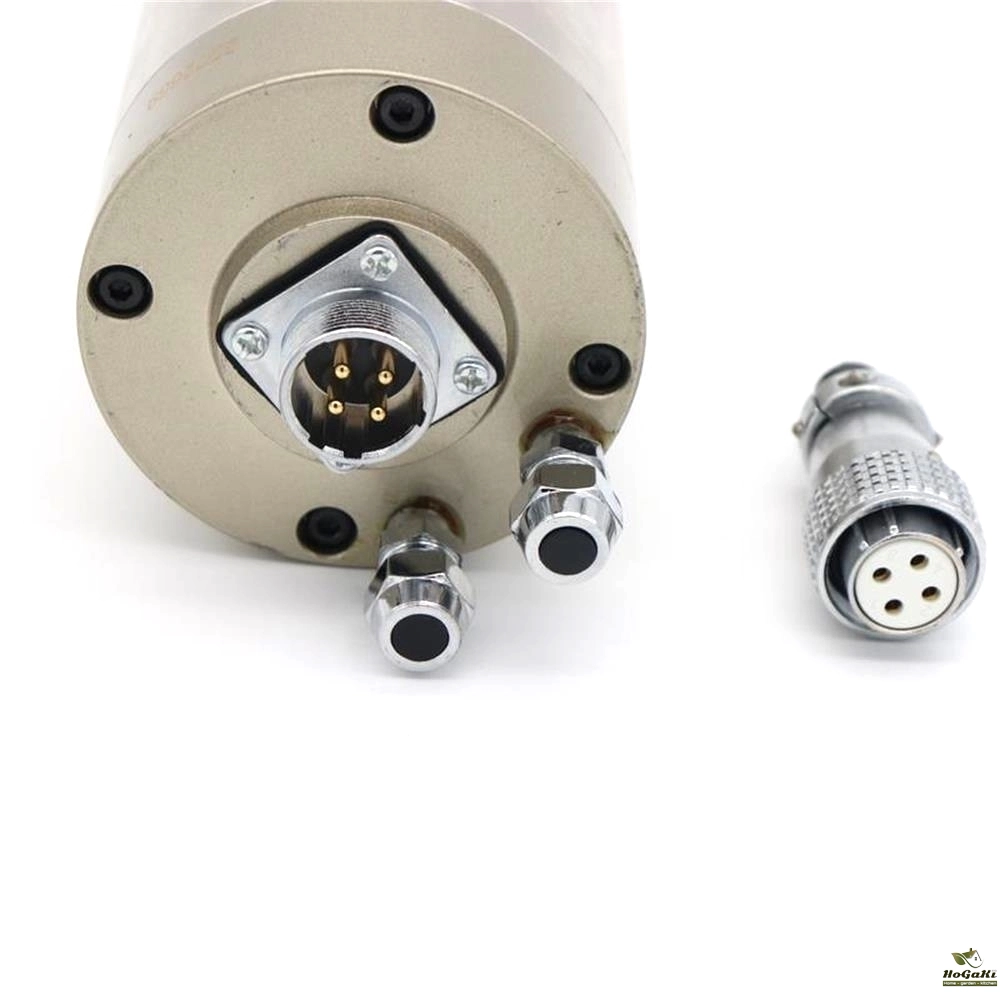

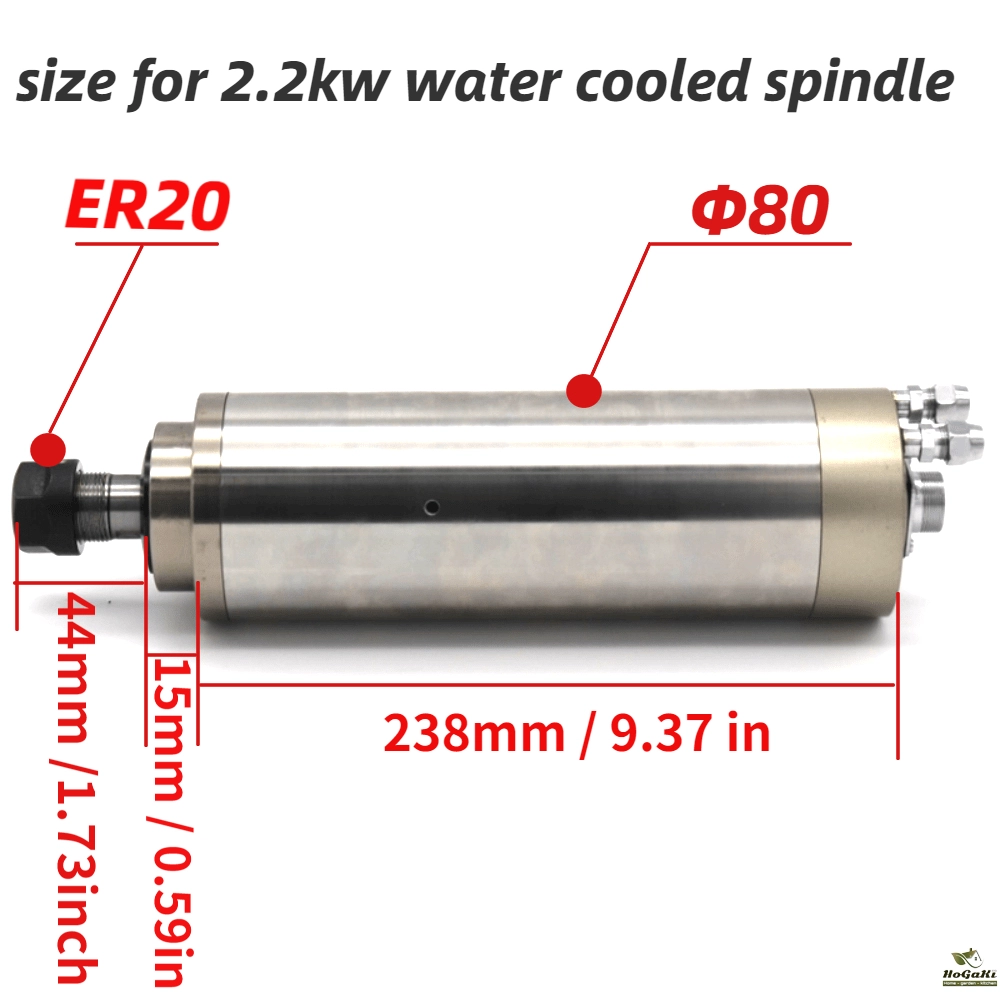

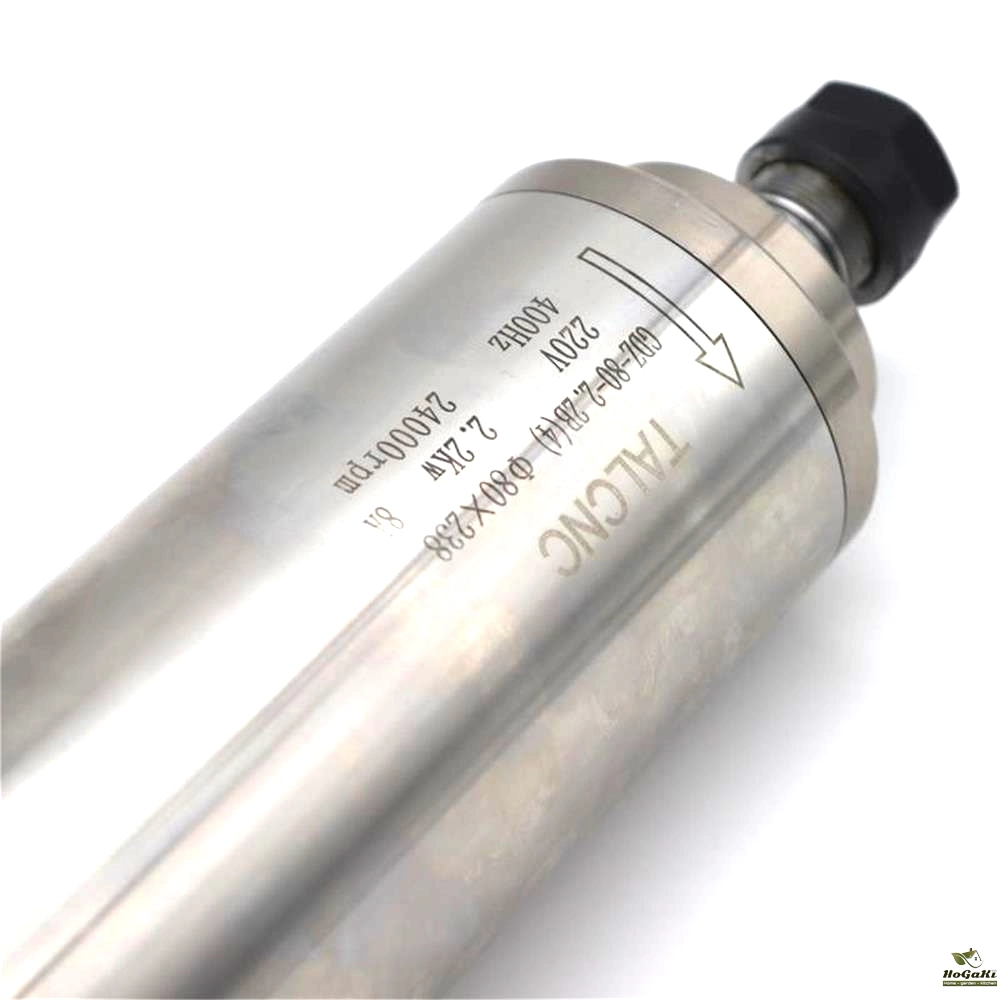

1. Water-cooled spindle motor
Size: 80mm
Power: 2200W
Voltage: 220V
Frequency: 0-400Hz
Speed: 0-24000rpm
Water Cooling ER20 collet
Runout off: less than 0.1mm

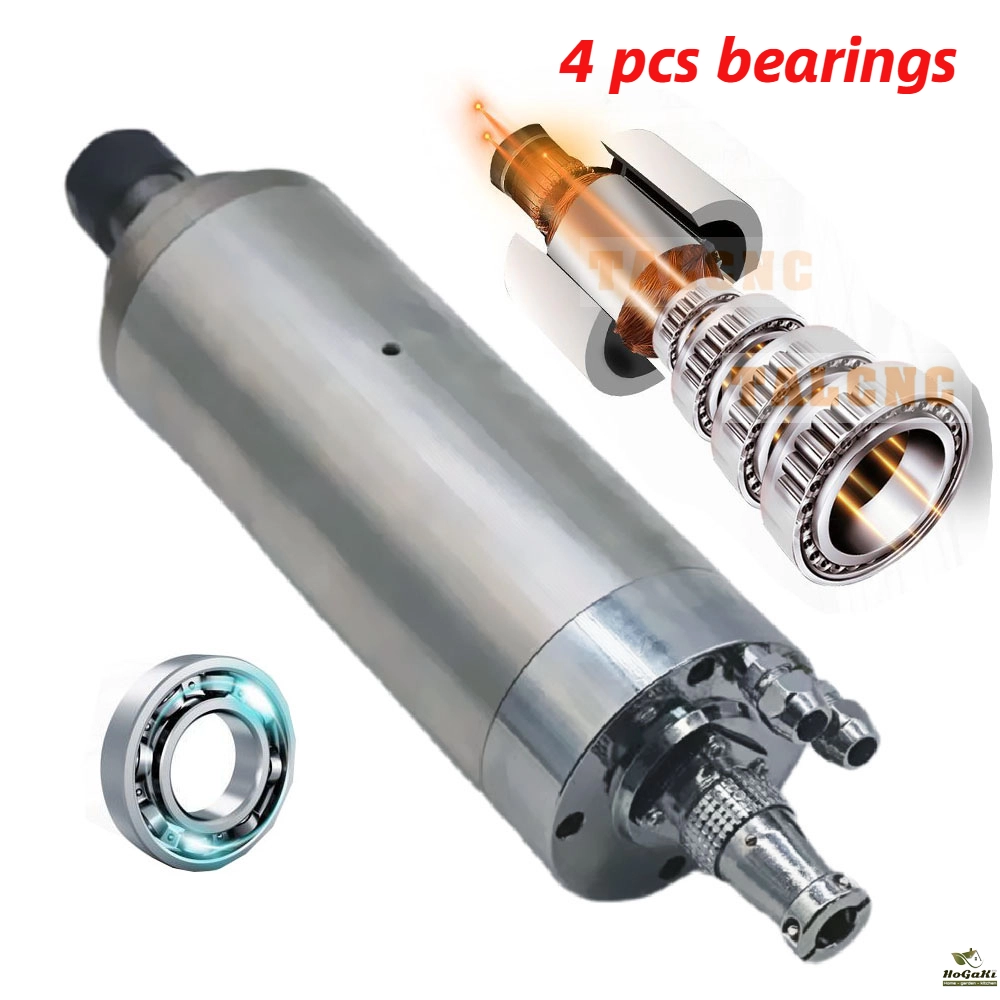

Germany SKS 4pcs bearing
Bearing type: 4pcs bearing C7005X2 C7002X2
Grease Lubrication

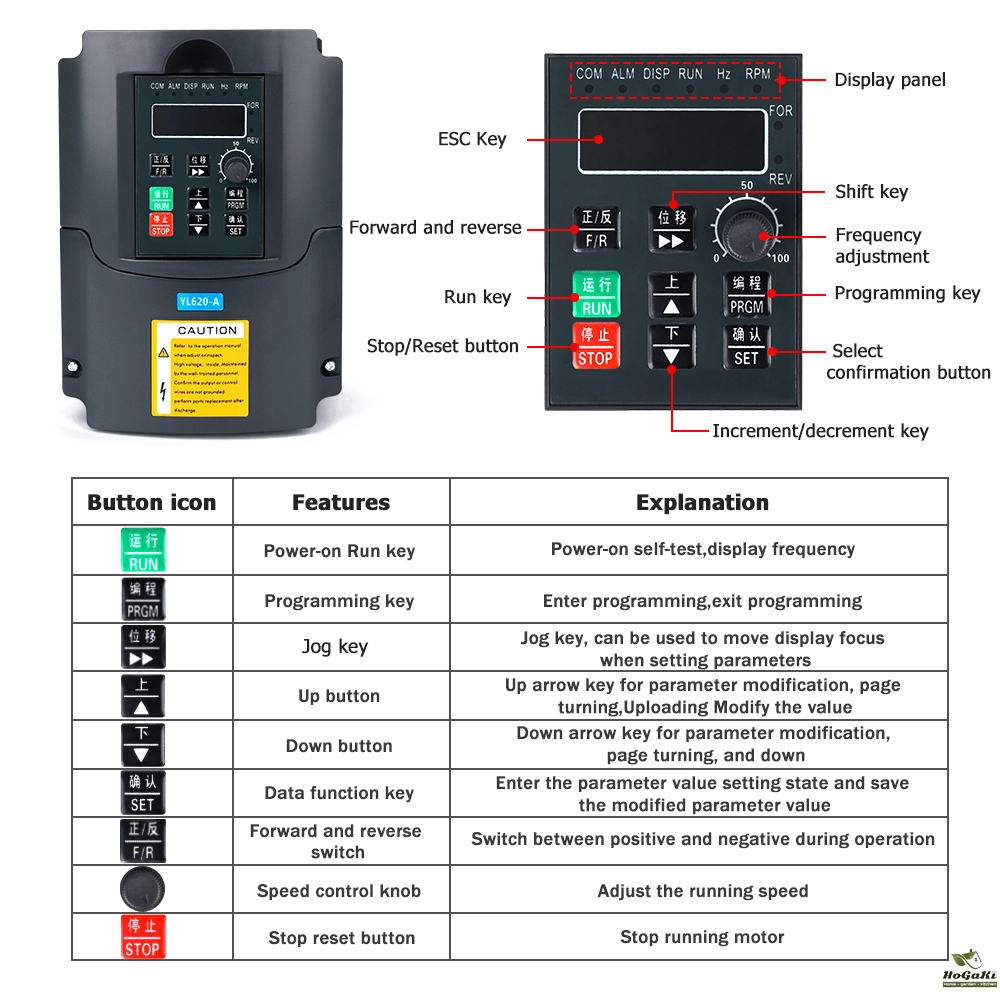

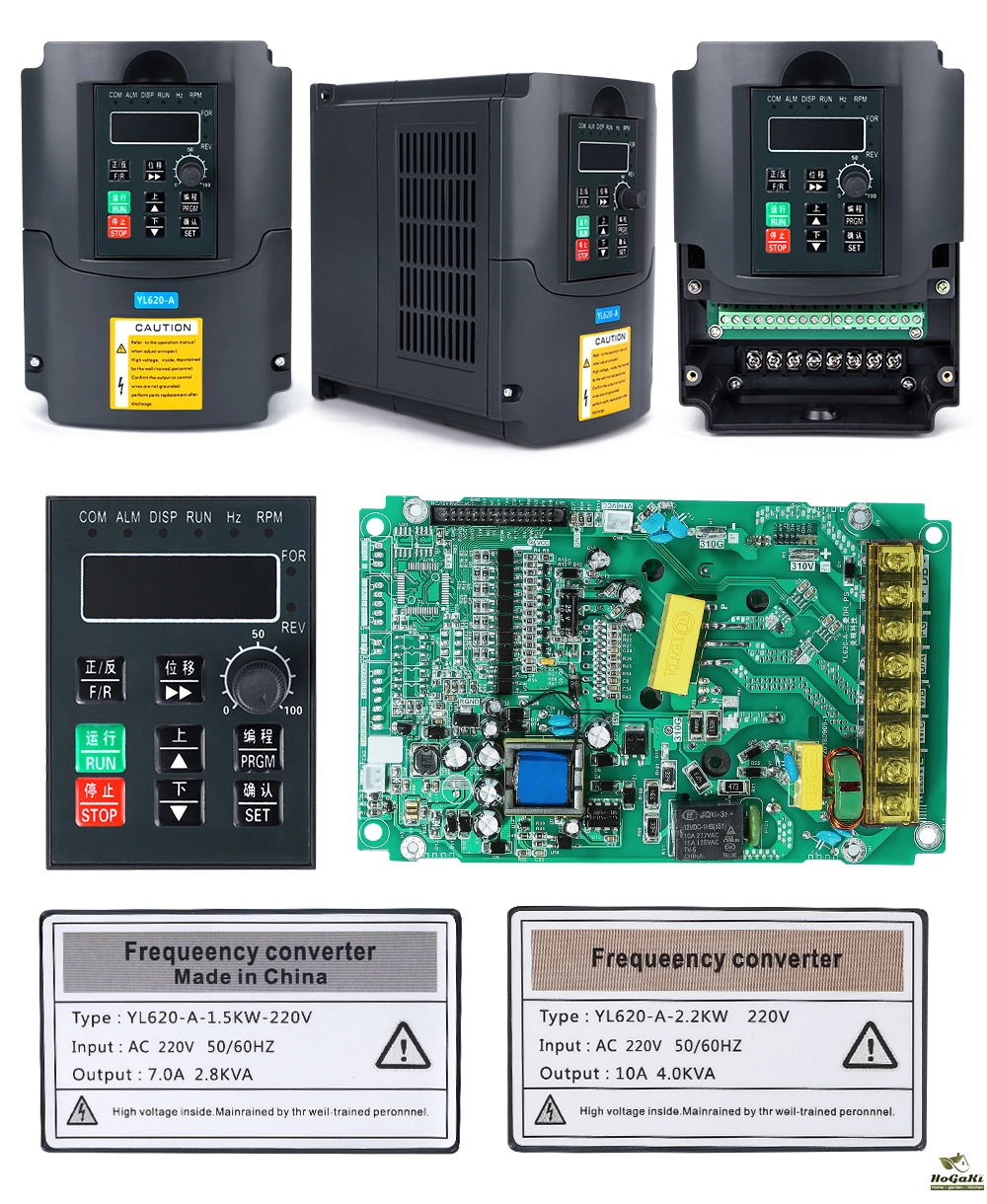

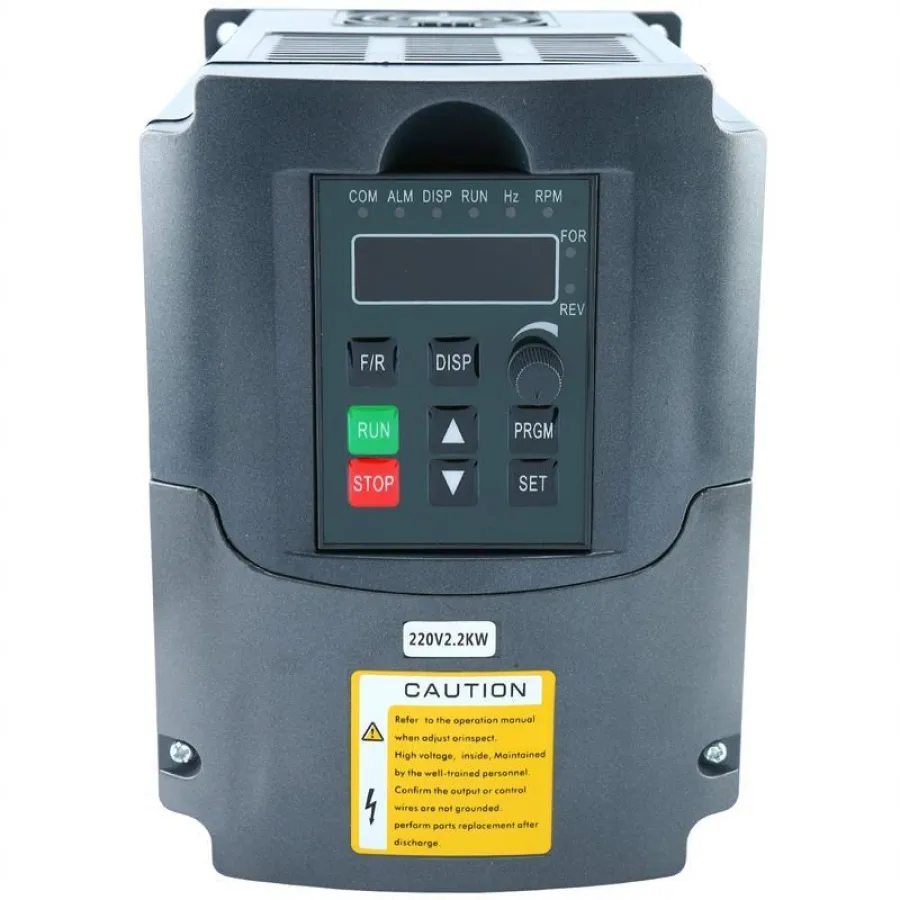

2.Inverter:
Input Voltage: 110V/0220V(+/-15%)
We also stock 380V(+/-15%), please contact us.
Output Voltage: 110V/220V AC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 or 3 phase
Output Phase: 3 phase

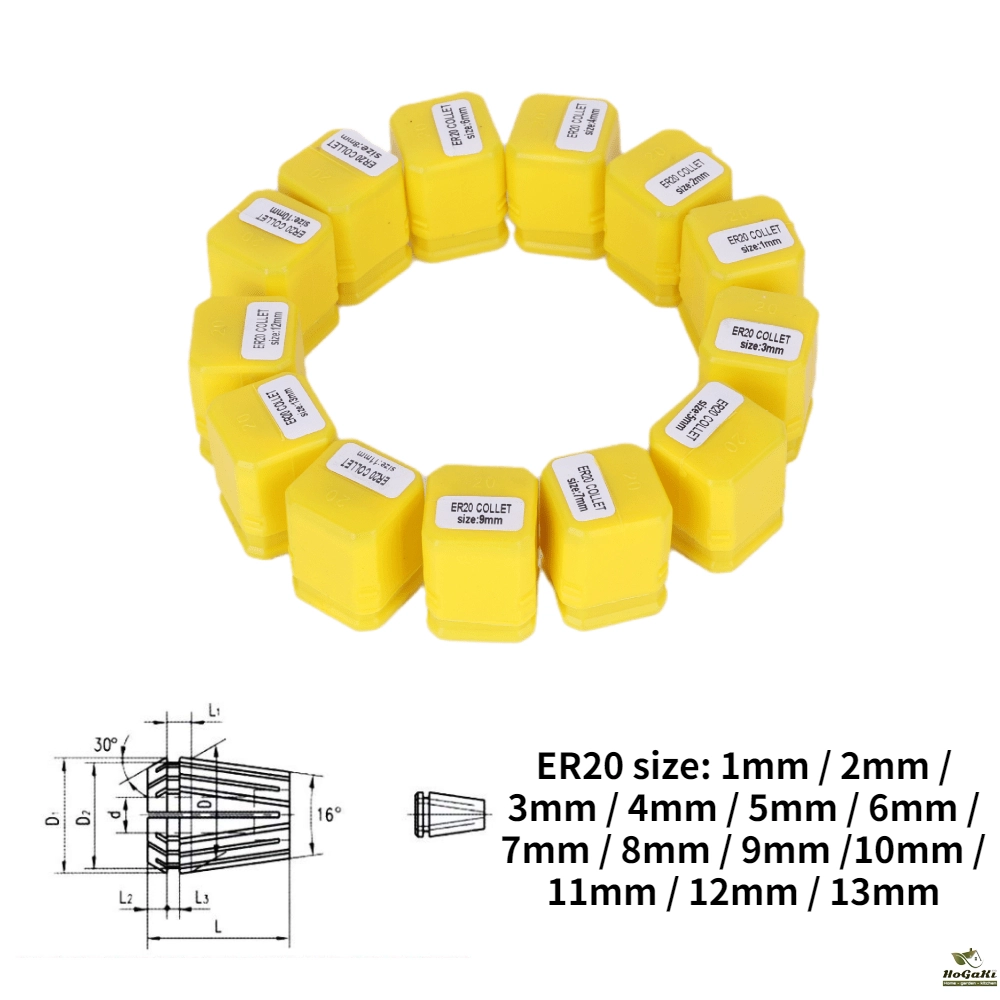

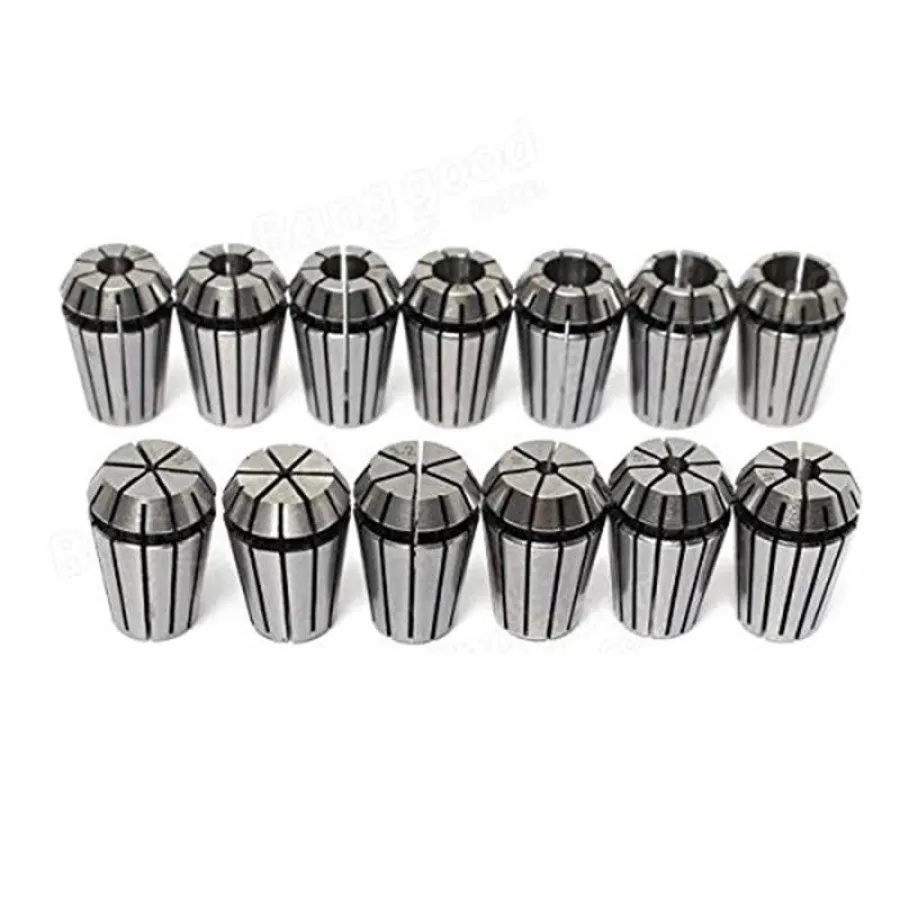

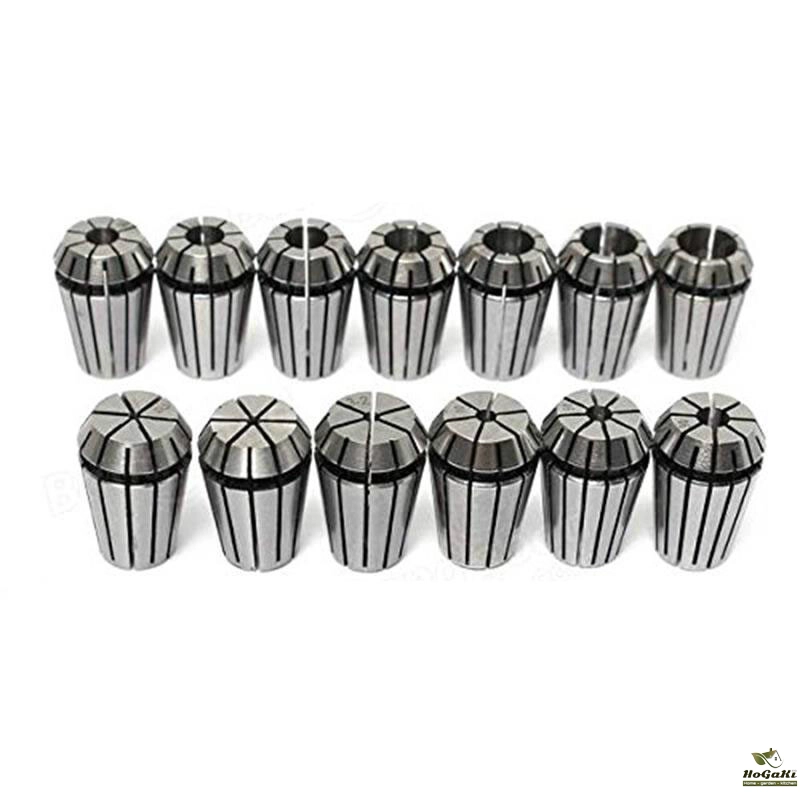

3.ER20 Collet 1 Set:
Gripping Range: 1MM to 13MM (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

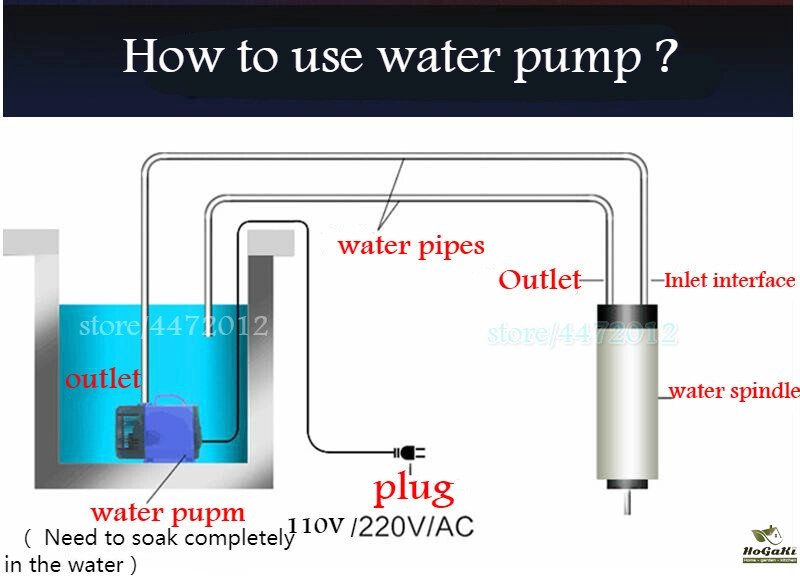

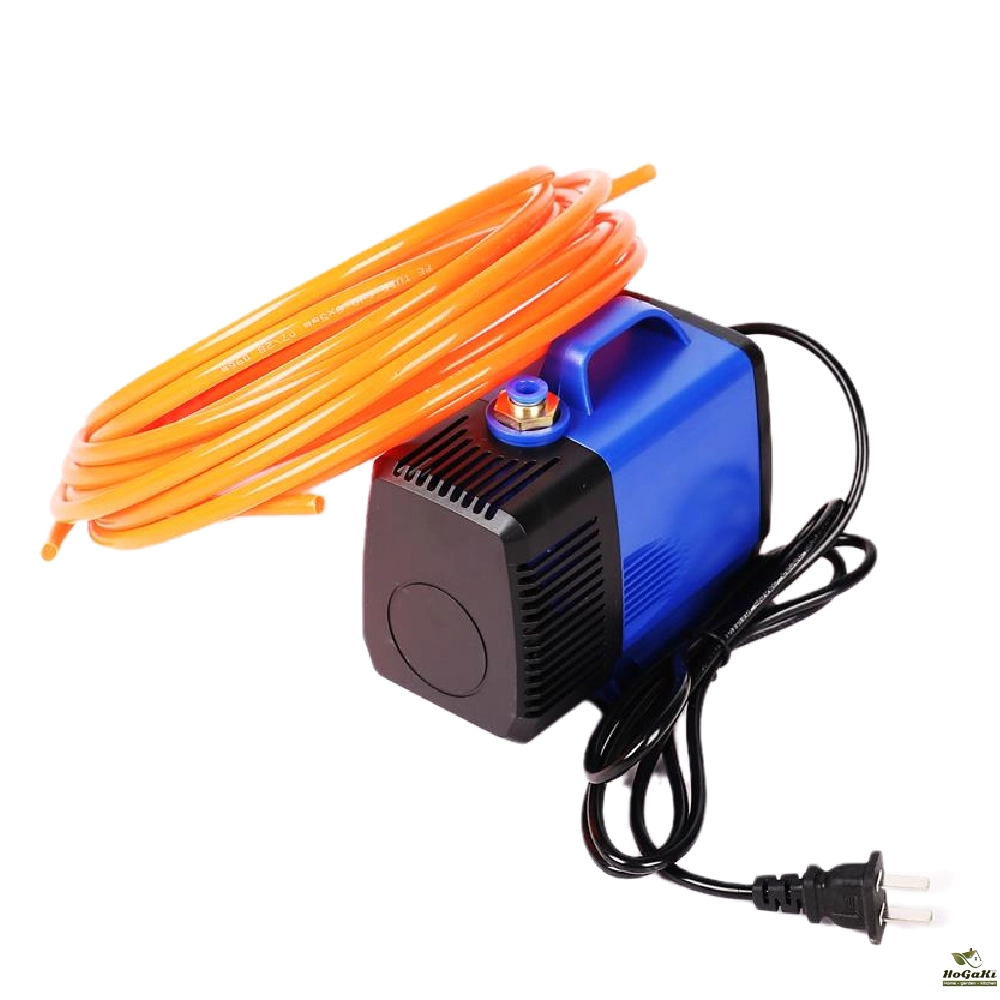

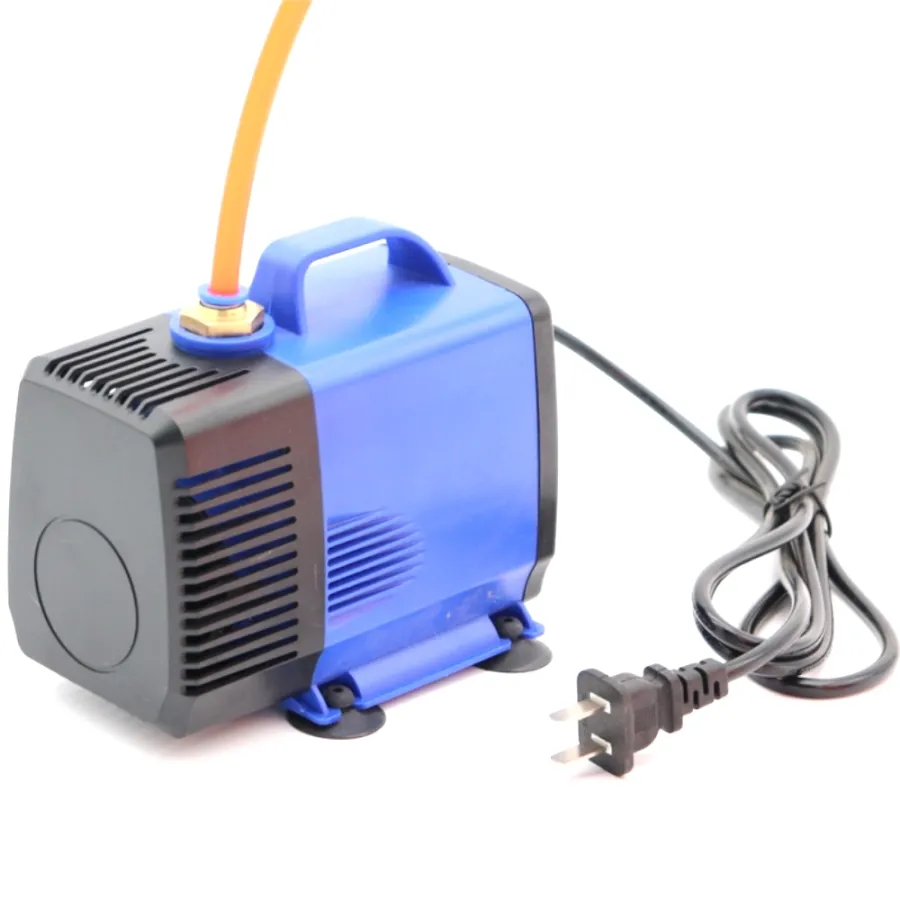

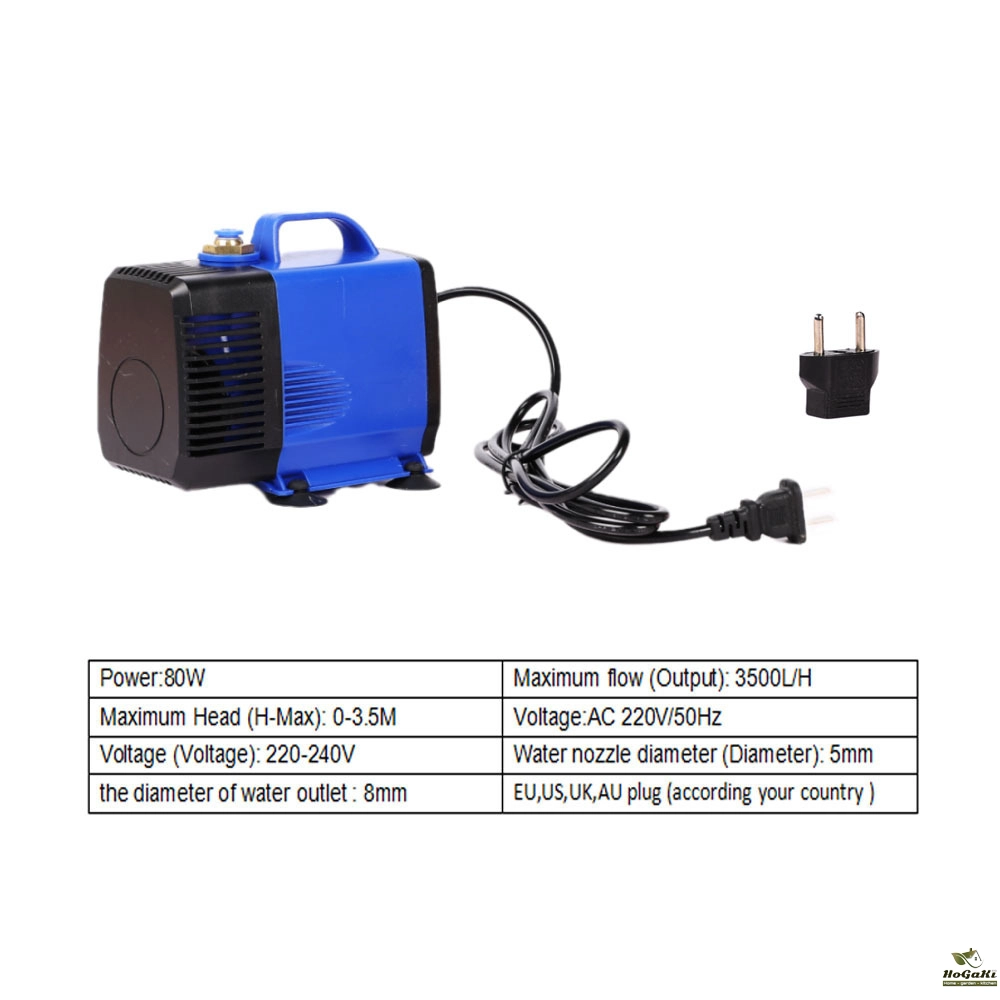

4.Water Pump:
Voltage: 220V
Structure: Single-stage Pump
Pressure: High Pressure
Application: Submersible
Usage: Water
5.5M Water Pipes:
Size:5M 6mm (ID)*8mm (OD)

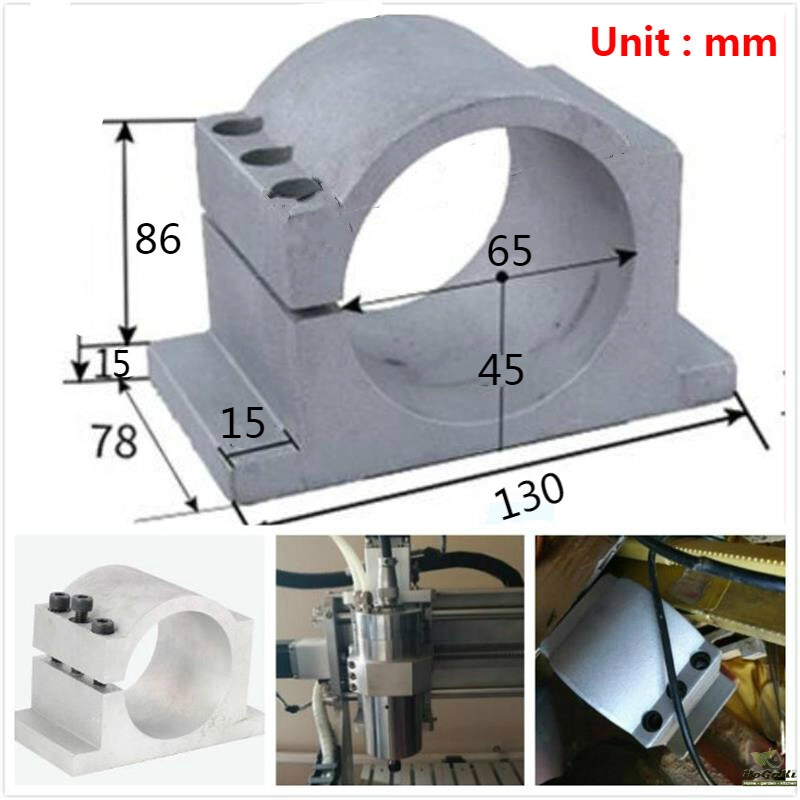

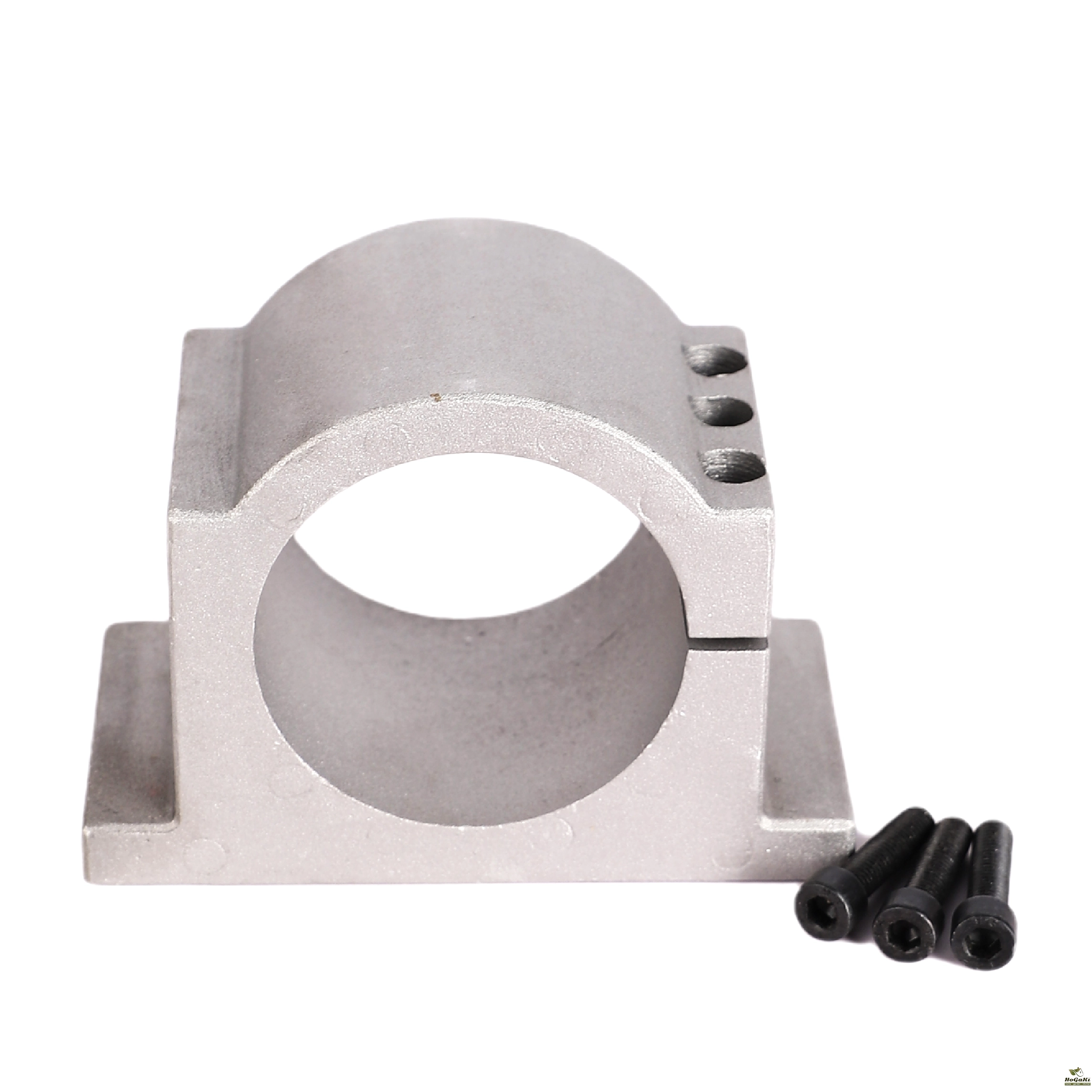

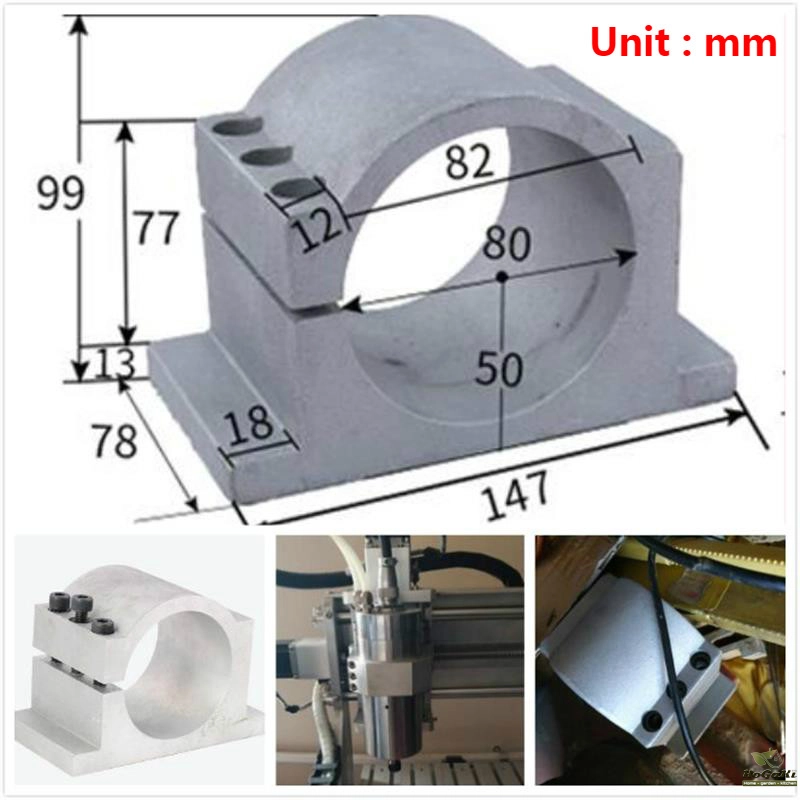

6.Spindle Motor Clamp Mount:
Diameter: 80mm
Material: Aluminum,Surface sandblasted

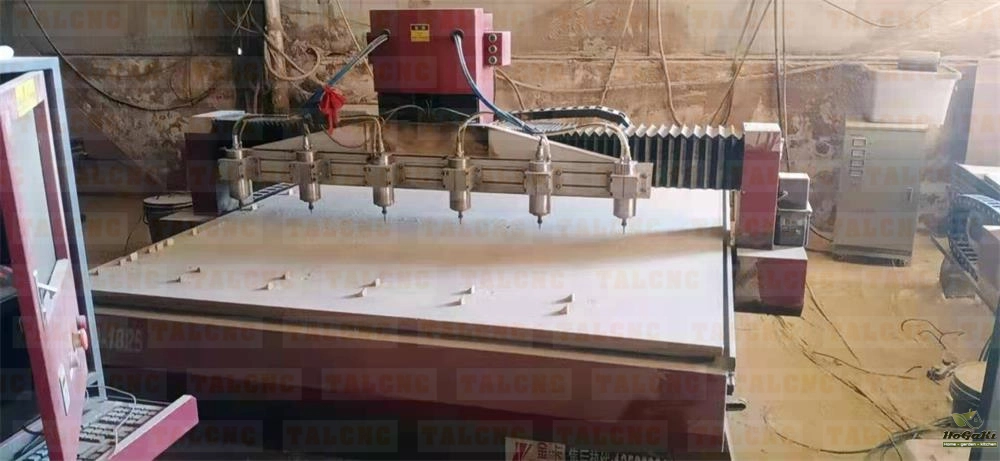

Application: Wood working industry rourter, such as wood door milling engraving and cutting, furniture producing
Noted:The hole in the middle of our clamp is not punched through. The middle screw is the jack screw. The function of the two screws on the left and right is to lock. The middle screw function is used when disassembling the spindle. Loosen the screws on both sides and tighten the middle screw, the whole fixture will be opened. the function is easy to take out the spindle.
Packaging Details
- Unit Type:
- Package Weight: 12.000
- Package Size: 25x20x25
- Brand Name: TALCNC
- Origin: Mainland China
- Hign-concerned Chemical: None
- Operating Speed: 0-24000rpm
- Certification: CE
- Application: Milling
- Drive: Motor
- Model Number: 2.2KW 80mm ER20
- Maximum Torque: --
- water pump: 3.5m 80W
- Collet: ER20 / ER11
- Input: 220 V
- Output: 0-220V 3-phase
- Clamp: 80mm or 65mm
- Power: 2.2KW/1.5kw /800w
- Application: Milling Machine
