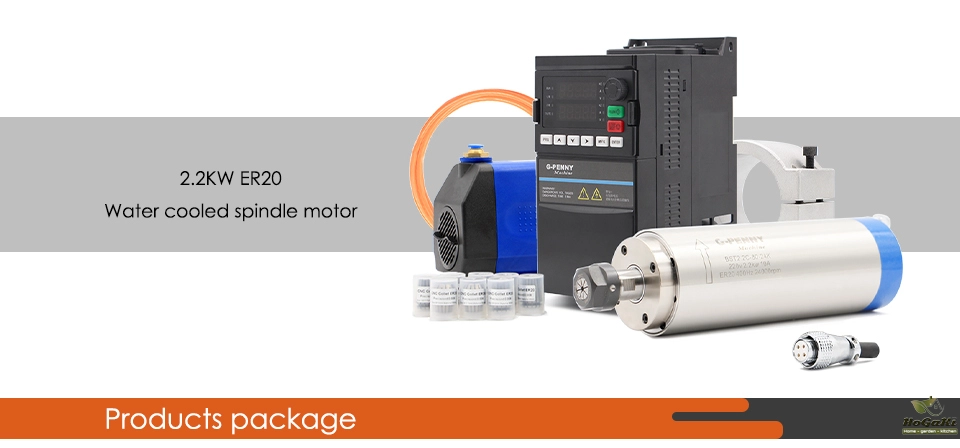

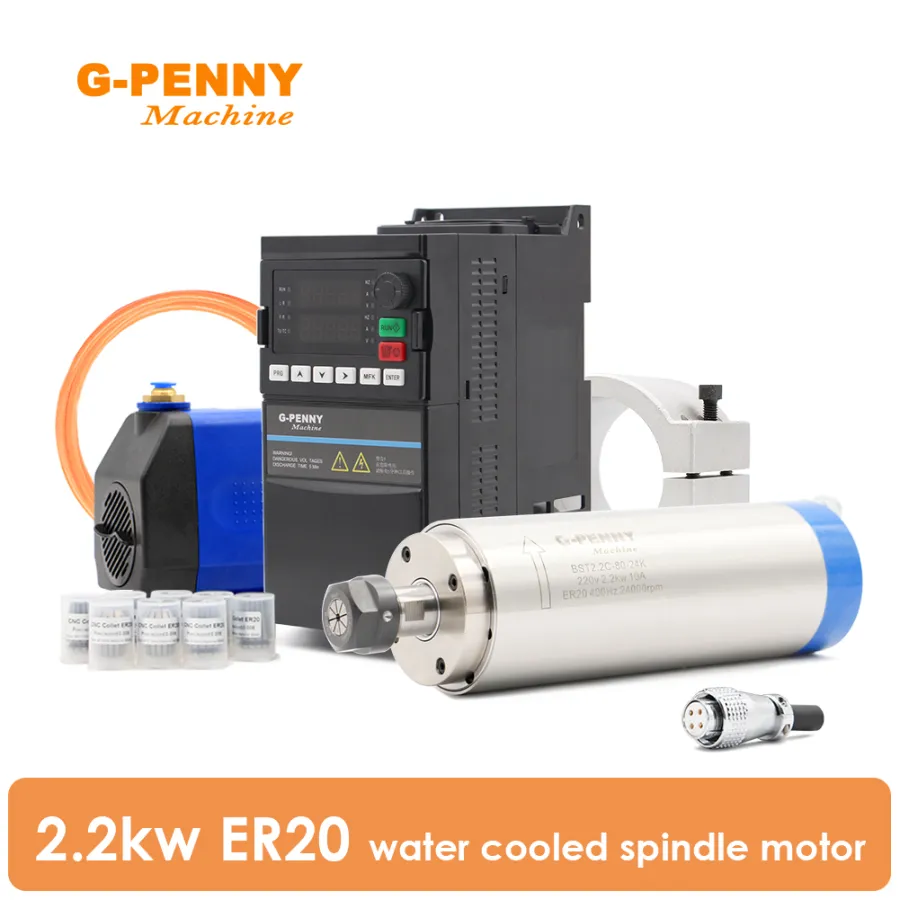

1 & 220v 2.2kw YL42 Inverter

1 & 80mm Clamping Bracket

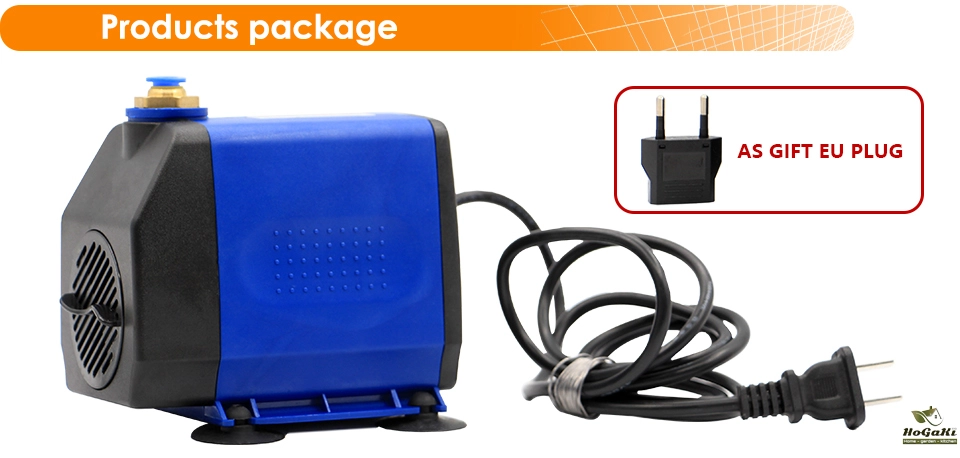

1 & 220v 75w Water Pump with 5m Tube

1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)

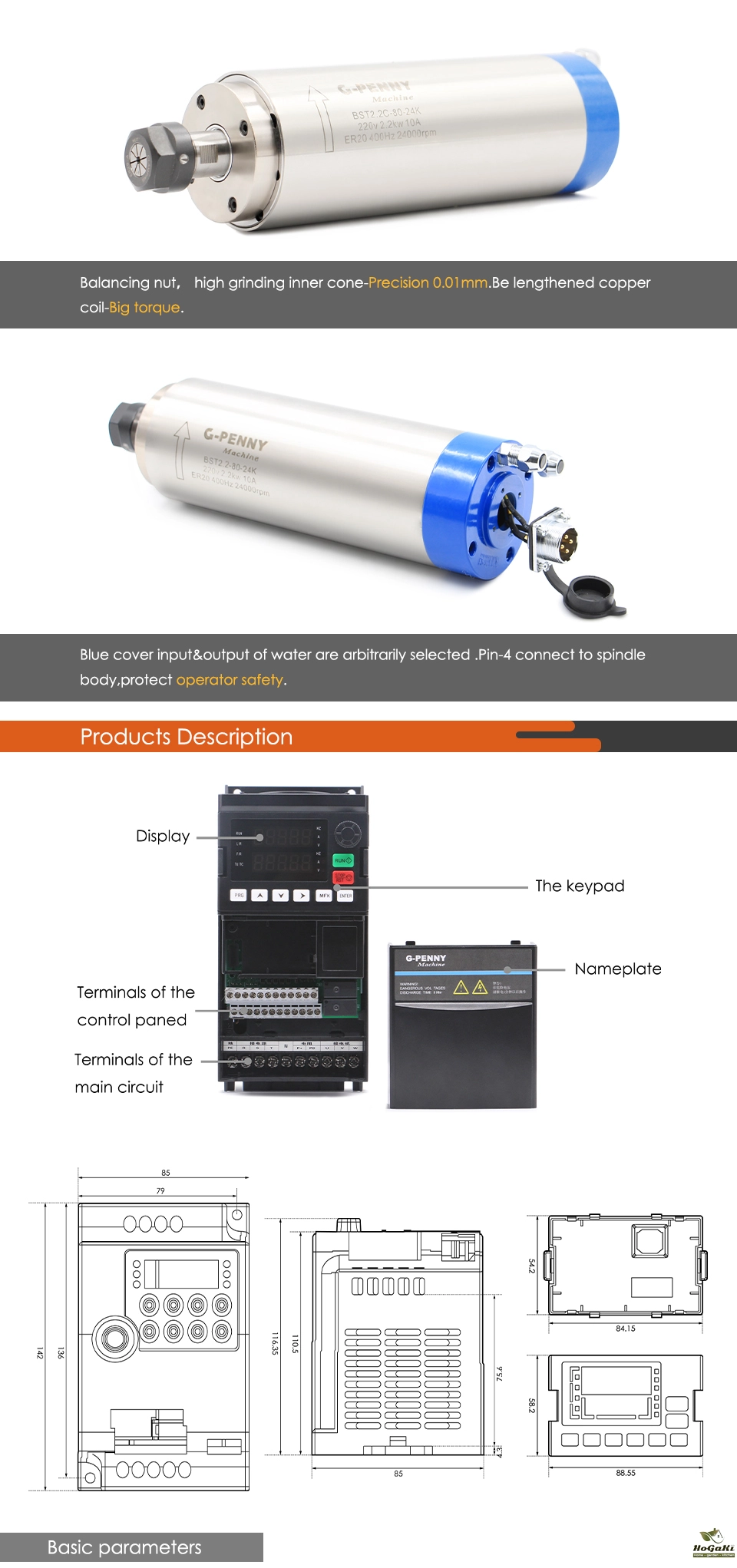

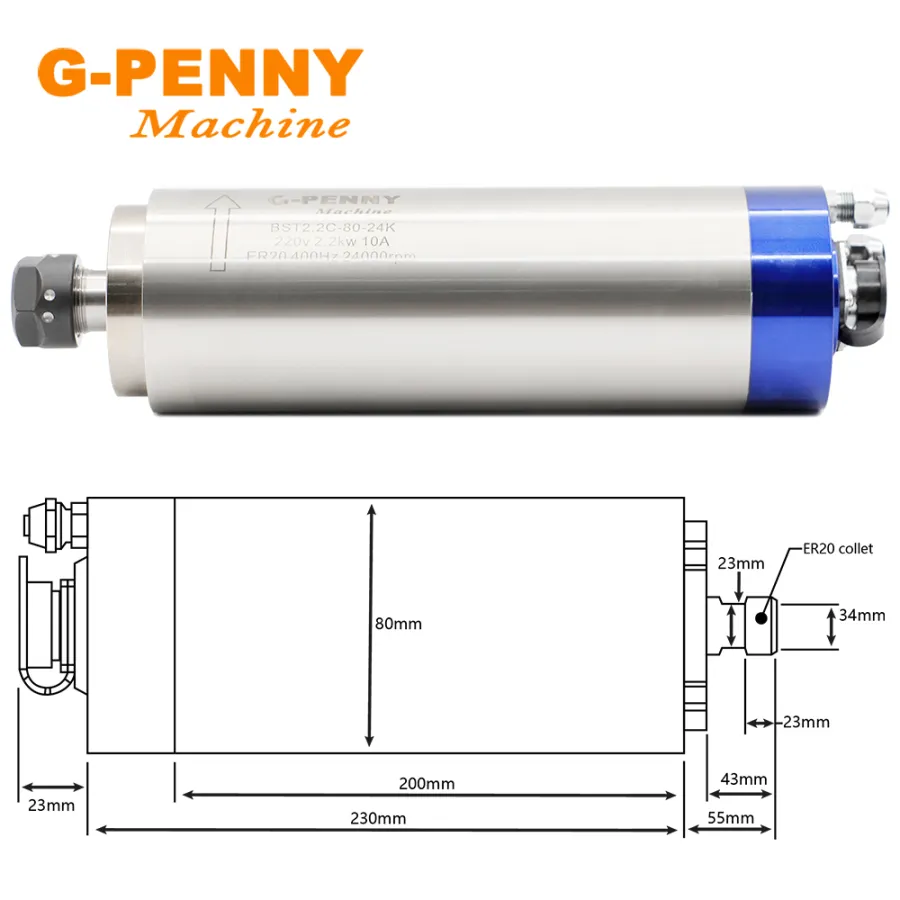

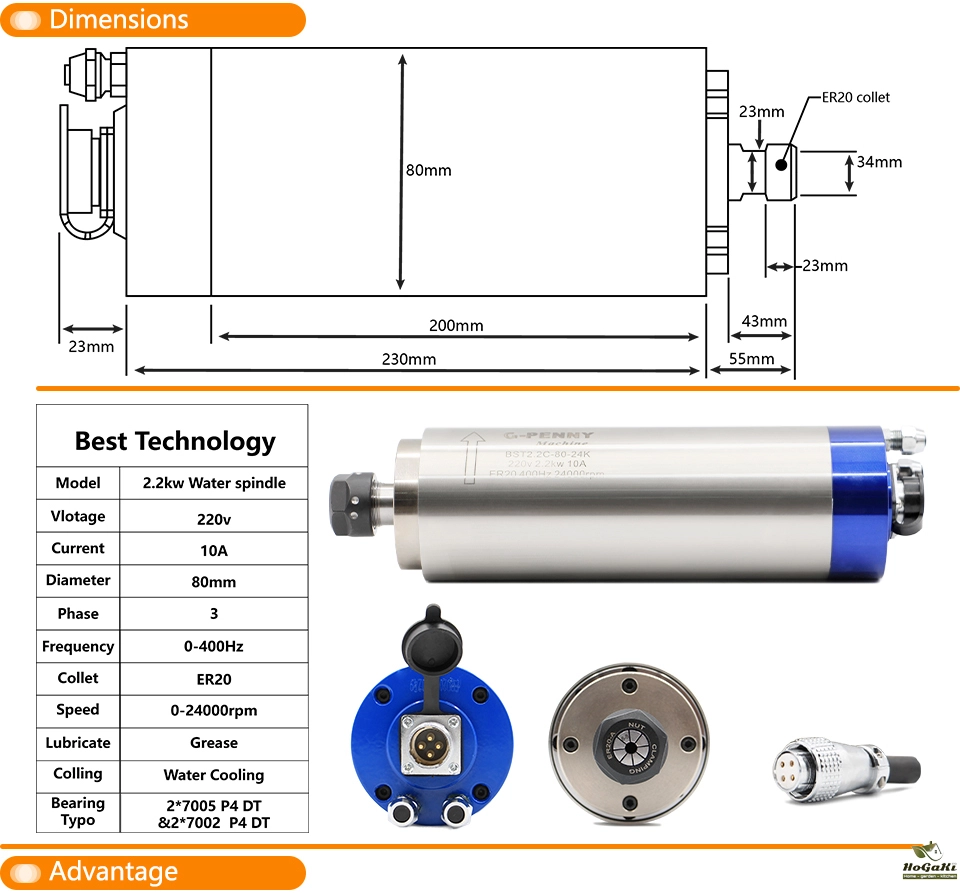

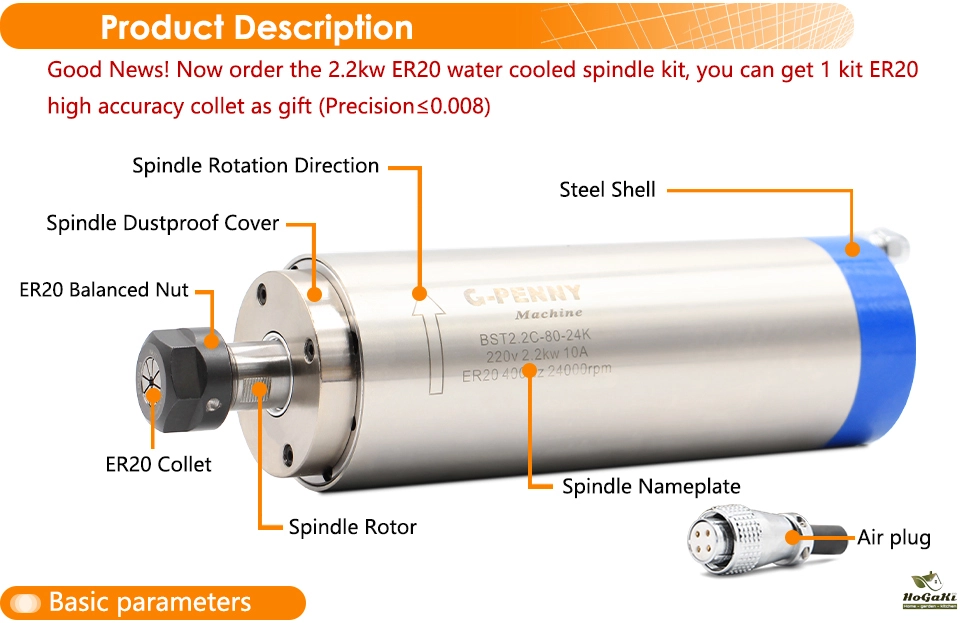

• • Size:80x230mm(Middle body diameter:80mmxLength:230mm)

  • Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

  • Cooling:Water cooling

  • Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

  • Power:2.2kw

  • Voltage:220v

  • Current:10A

  • Frequency: 0-400Hz

  • Speed: 0-24000rpm

  • Runout Off:Less than 0.01mm

  • Diameter(mm): 80

  • Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT

  • 4pcs fully sealed angular contact bearings

  • Collet: ER20

  • Water Cooling ER20 collet chunk

  • Grease Lubrication

  • Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board (ABS) and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

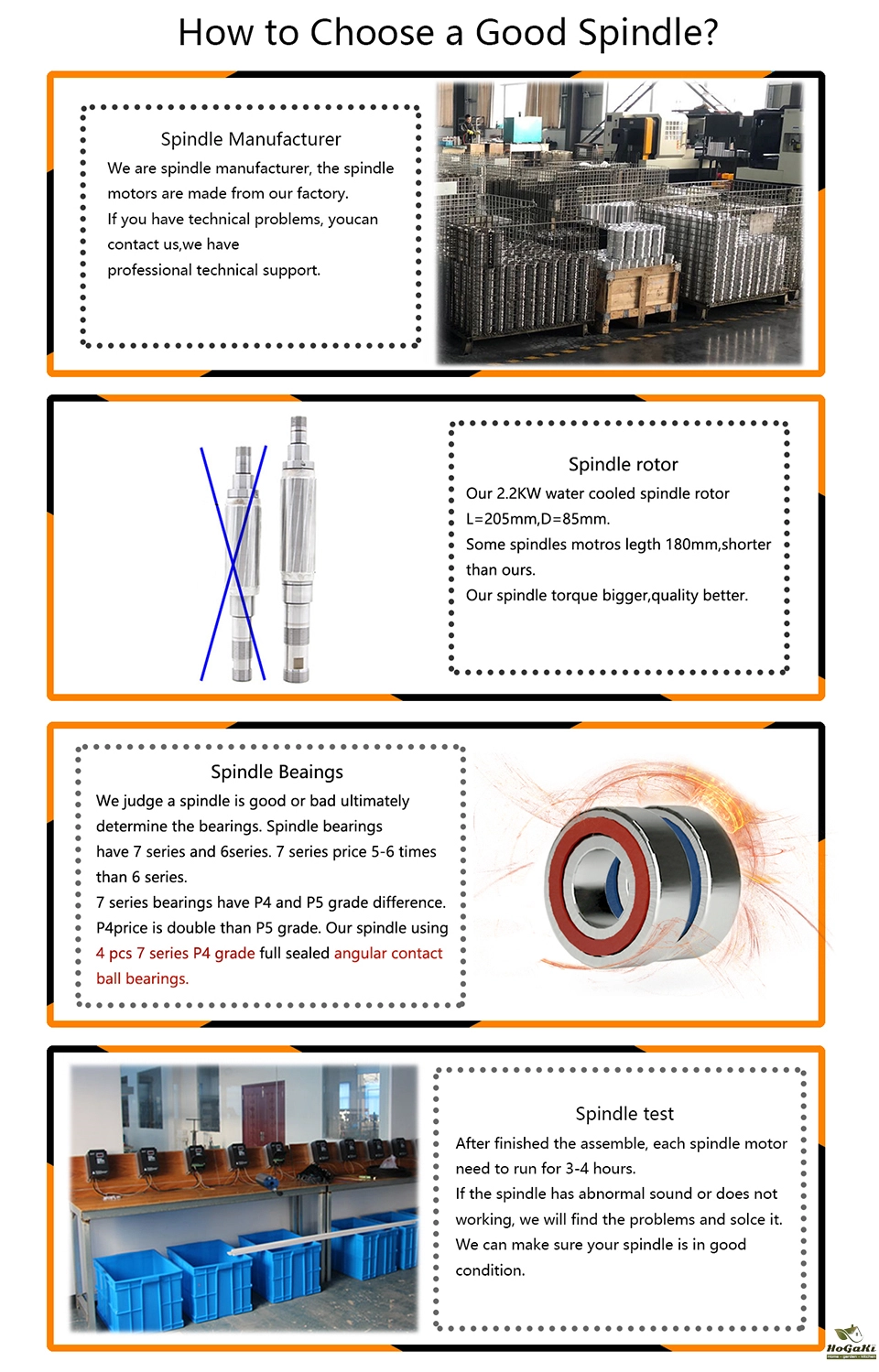

P4 fully sealed angular contact bearings ,2×7005C P4 DT &2×7002C P4 DT,increase spindle life .(We also have 4 pcs ceramic ball bearings type spindle)

Longer length make the torque bigger,more powerful.

Carefull assembly make the spindle more precisional.

Precision 0.01mm.Coaxial degree less than 0.0025mm.

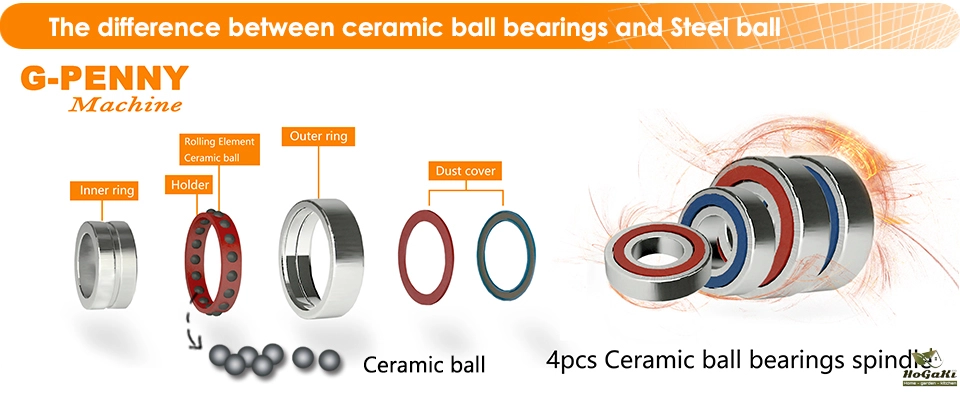

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.

2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .

3. Ceramic ball bearings have low friction, low noise and long service life.

4.If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.

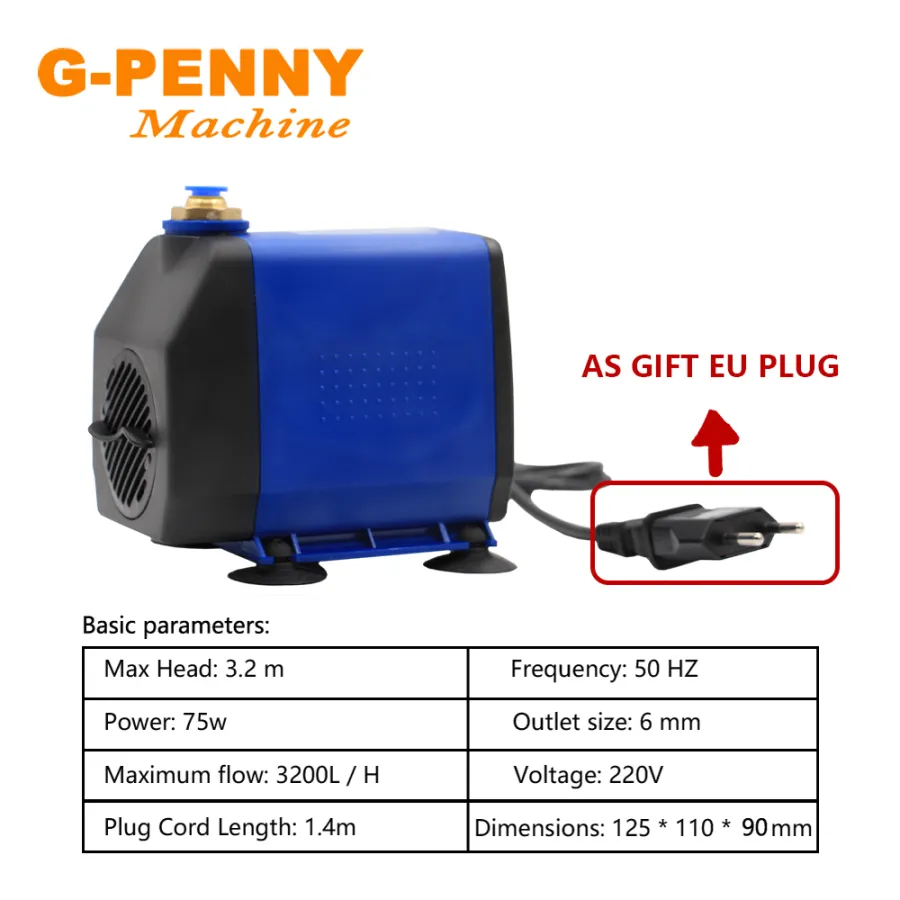

• • Max Head: 3.2 m;

    Power: 75w;

    Maximum flow: 3200L / H

    Plug Cord Length: 1.4m

    Voltage: 220V;

    Frequency: 50 HZ

    Outlet size: 8 and 5 mm;

    Dimensions: 145 * 110 * 90 mm

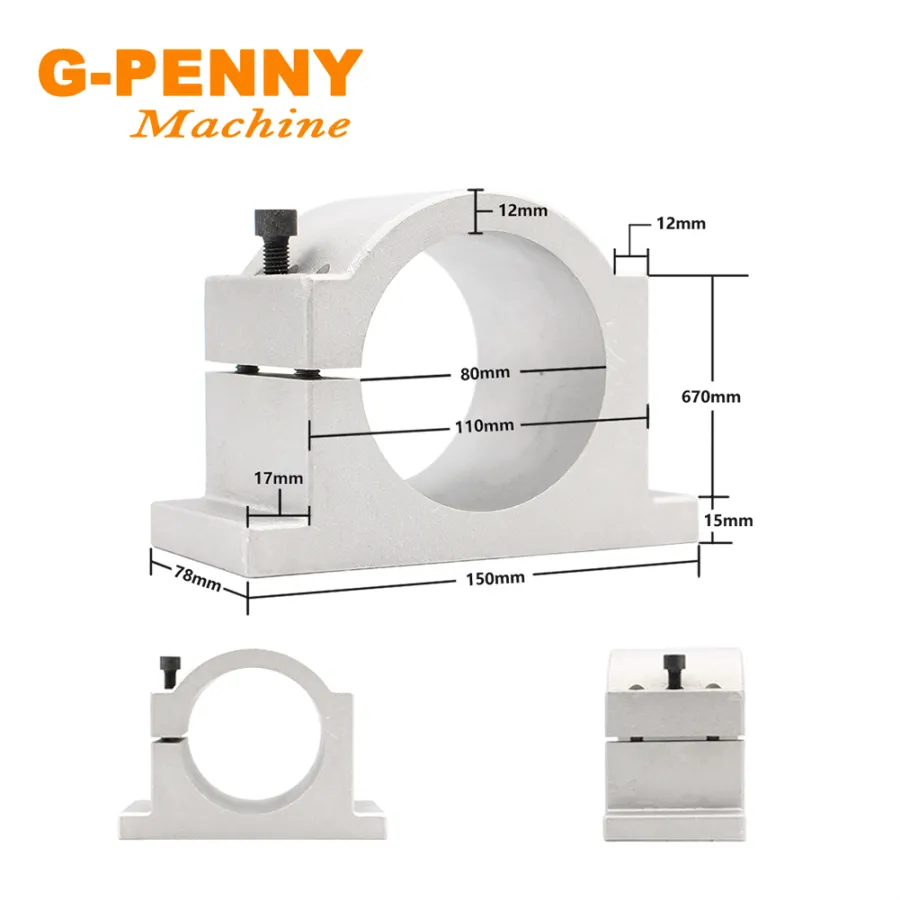

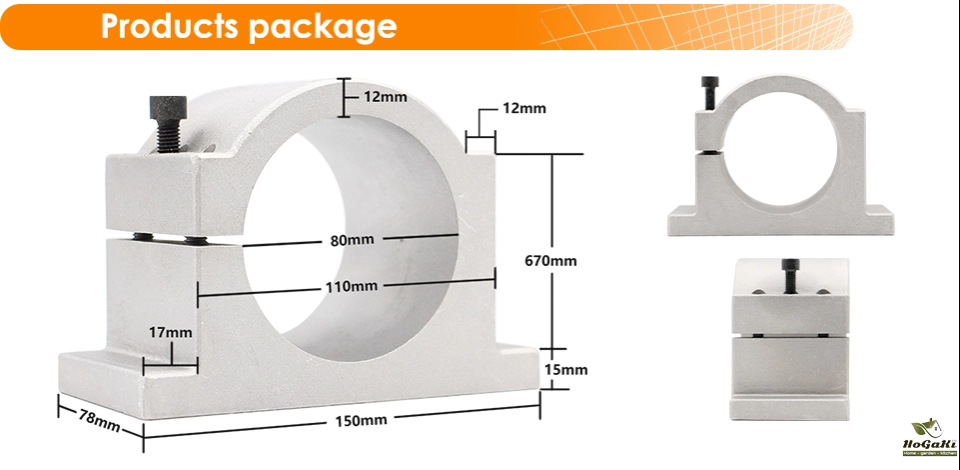

Diameter: 80mm

Material: Cast Aluminium

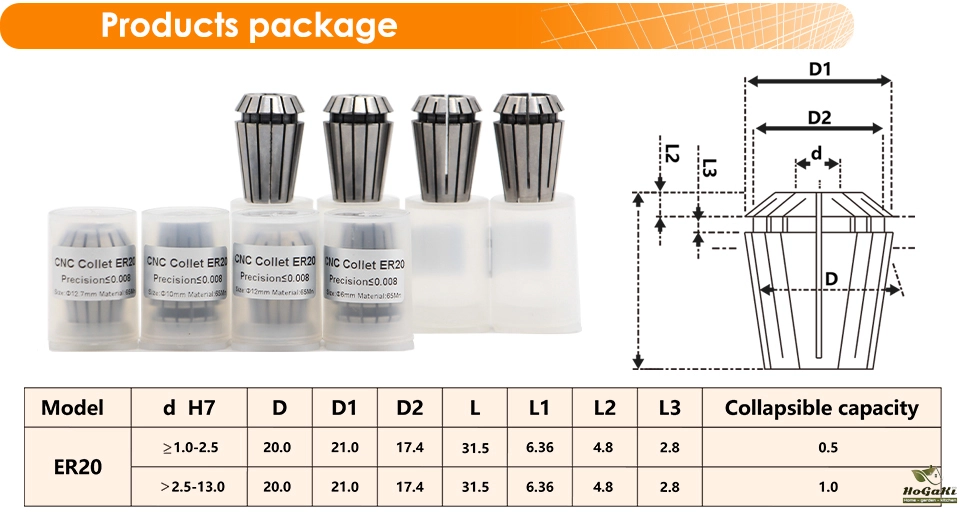

Material:65Mn Steel

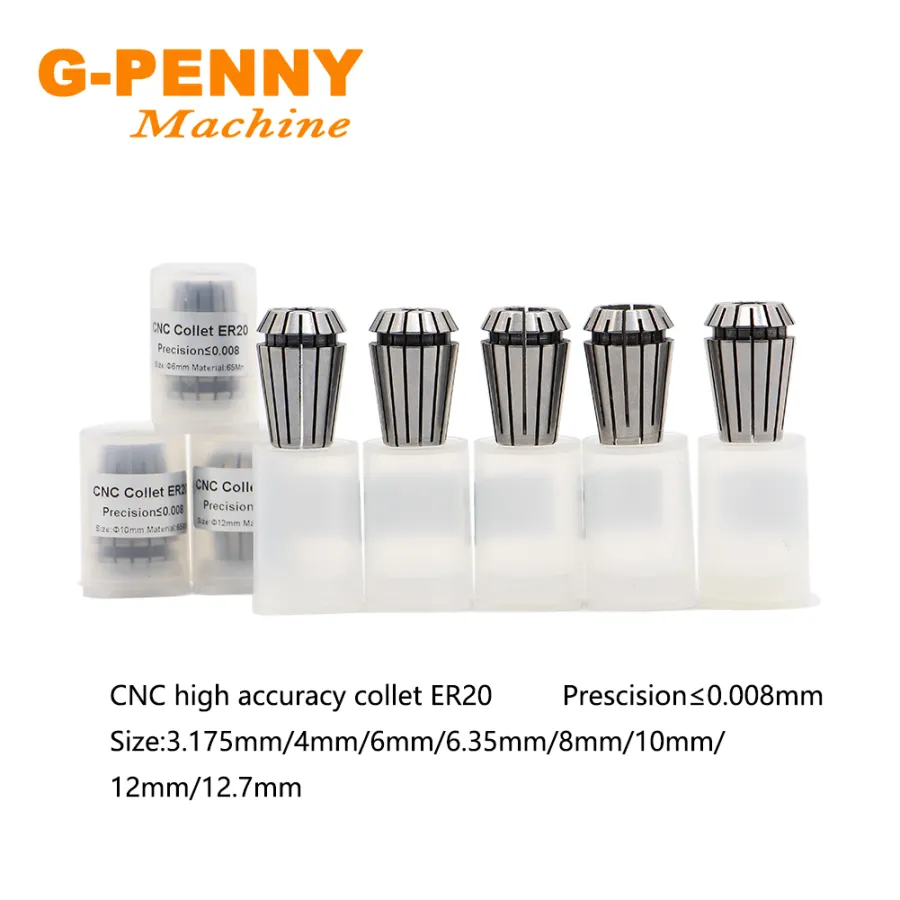

Quantity: 8 pcs (4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))

Precision ≤ 0.008mm

● Spindle working environment temperature is usually -10 ~ 40 .

● Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

• Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

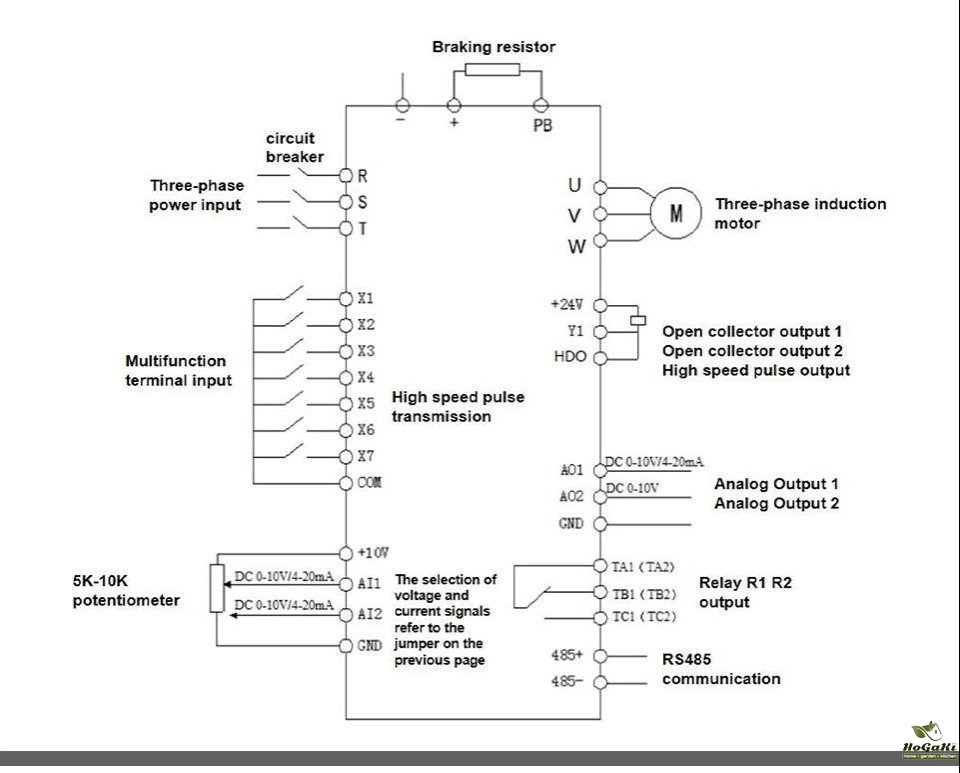

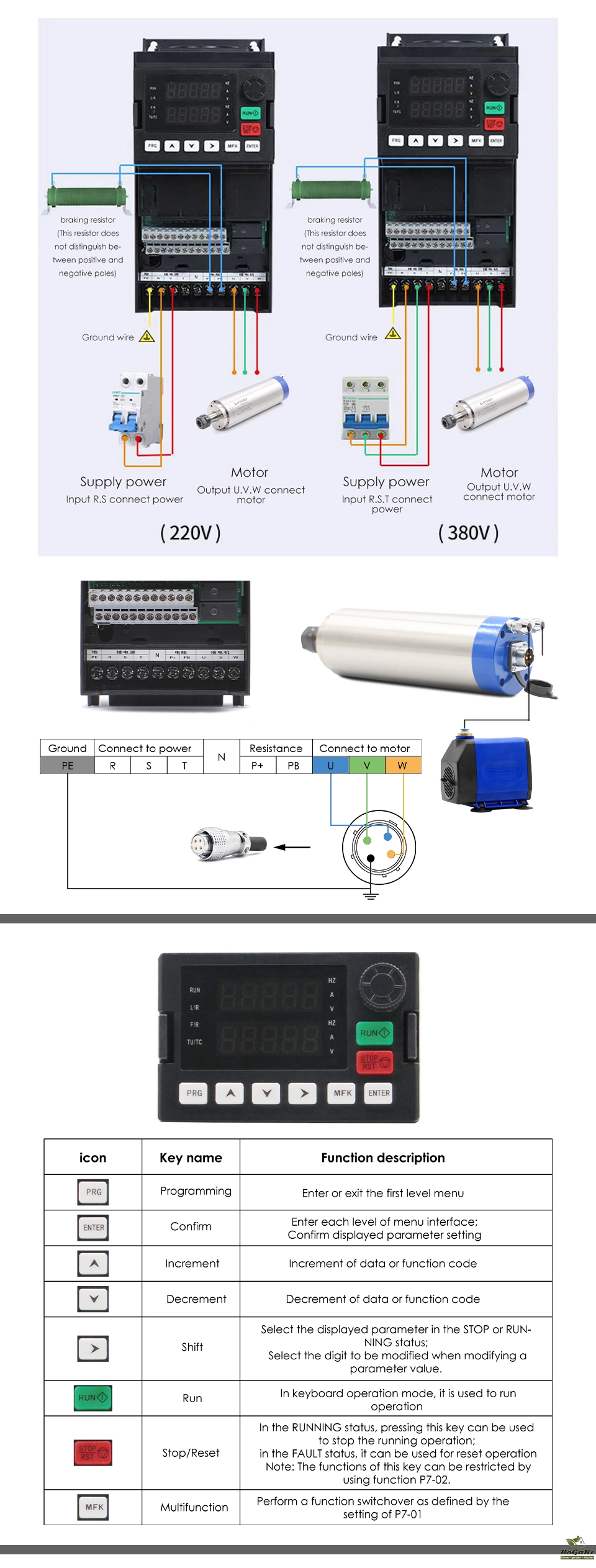

• Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

• It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

• Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.

• AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.

• When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.

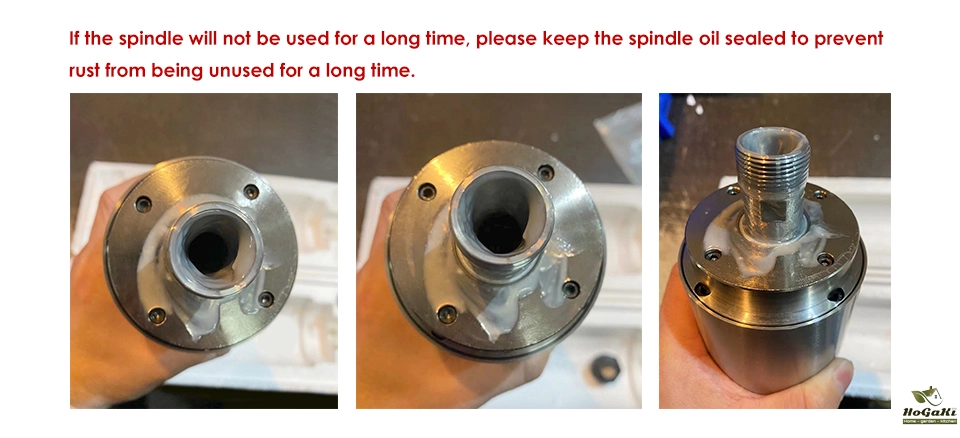

Before shipping,we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.

• We will 100% guarantee security to the hands of the guests.

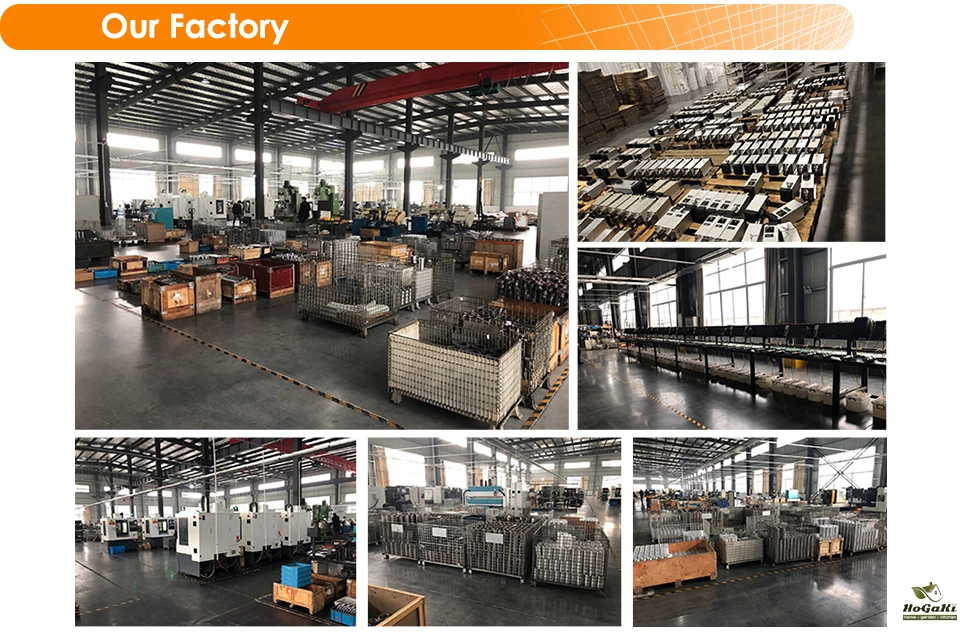

• Spindle from the production - assembly - test, and finally the perfect packaging .
