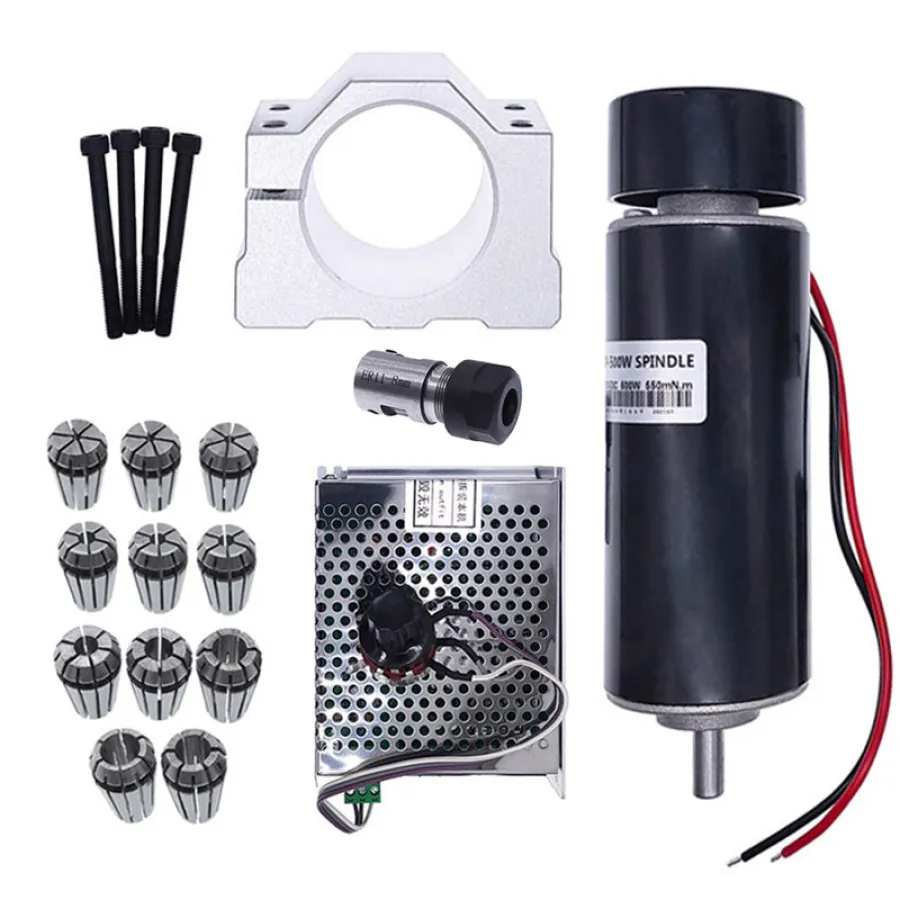

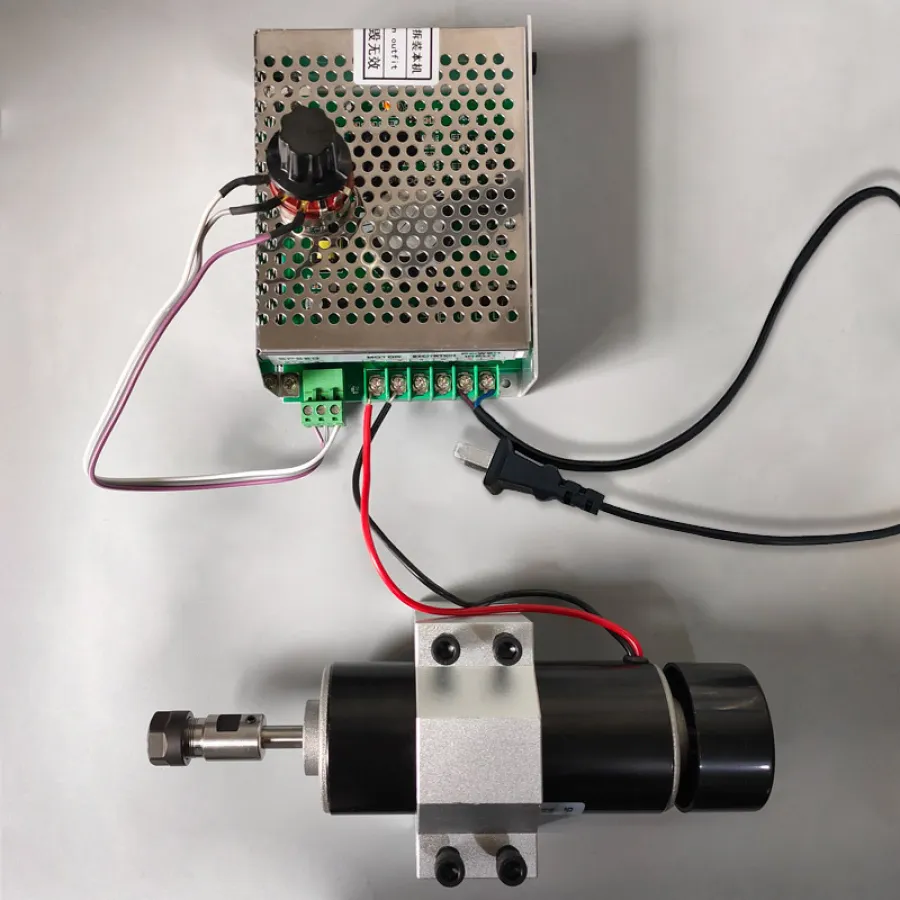

110V 500W Dc Spindle Set 0~110VDC Adjustable speed Governor Power Supply both 110VAC & 220VAC for Engraving machine
ID: 153940

110V 500W Dc Spindle Set 0~110VDC Adjustable speed Governor Power Supply both 110VAC & 220VAC for Engraving machine

4.6 (5 votes) | 28 orders
Price: US $130.48 - 321.27
Discount Price:
US $ 110.91 - 273.09
-15%
Color
Quantity

Buy Now
Add to Cart

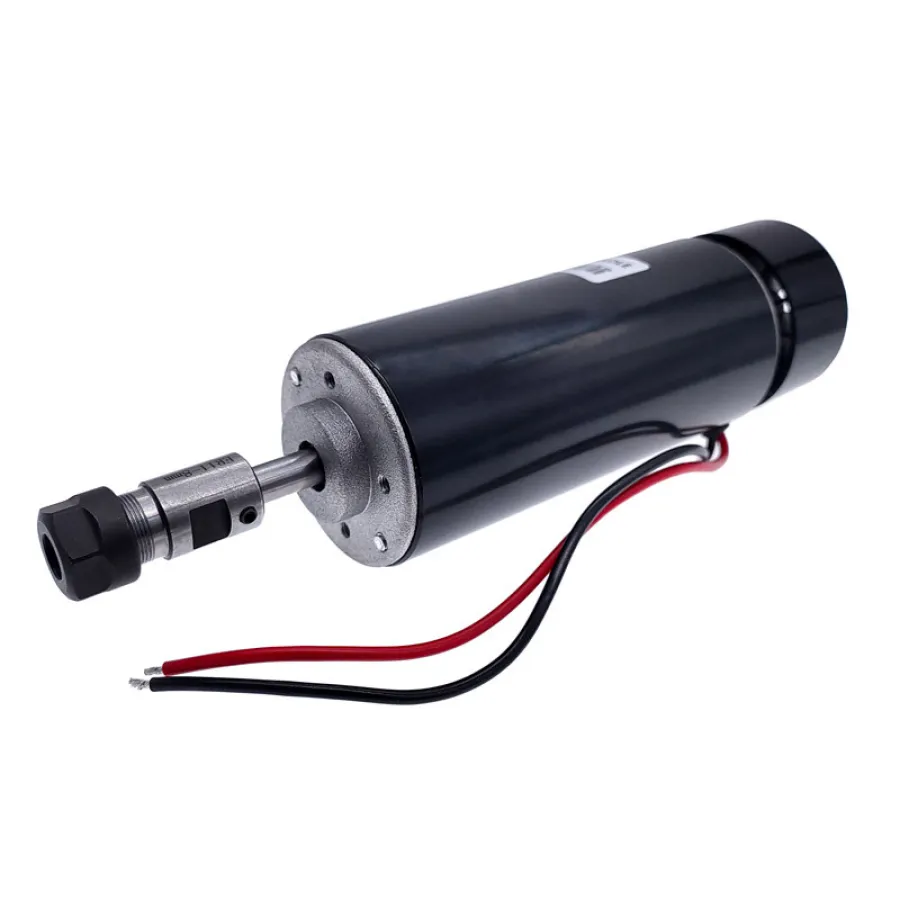

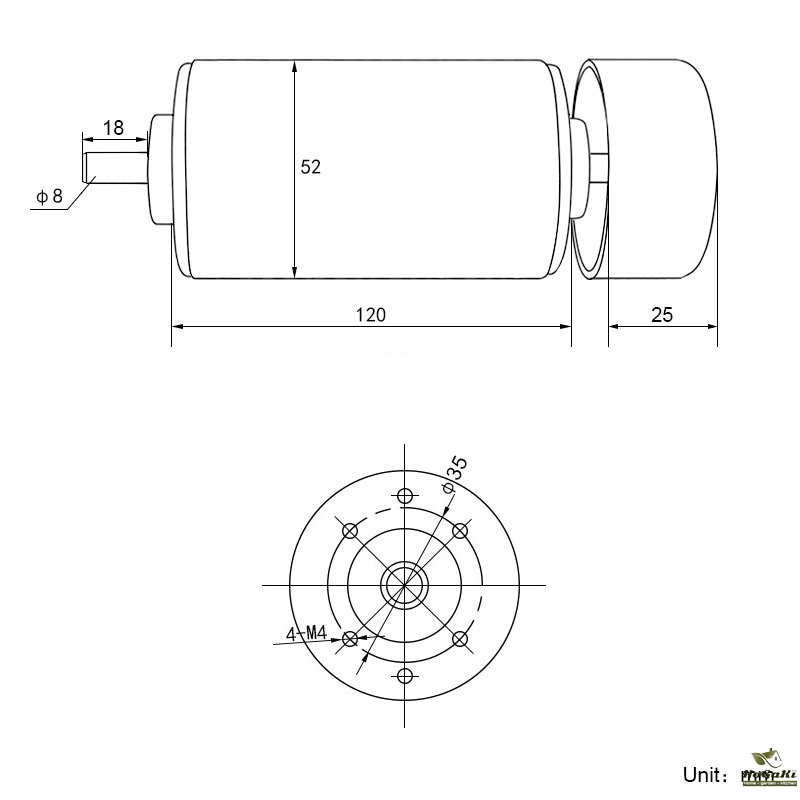

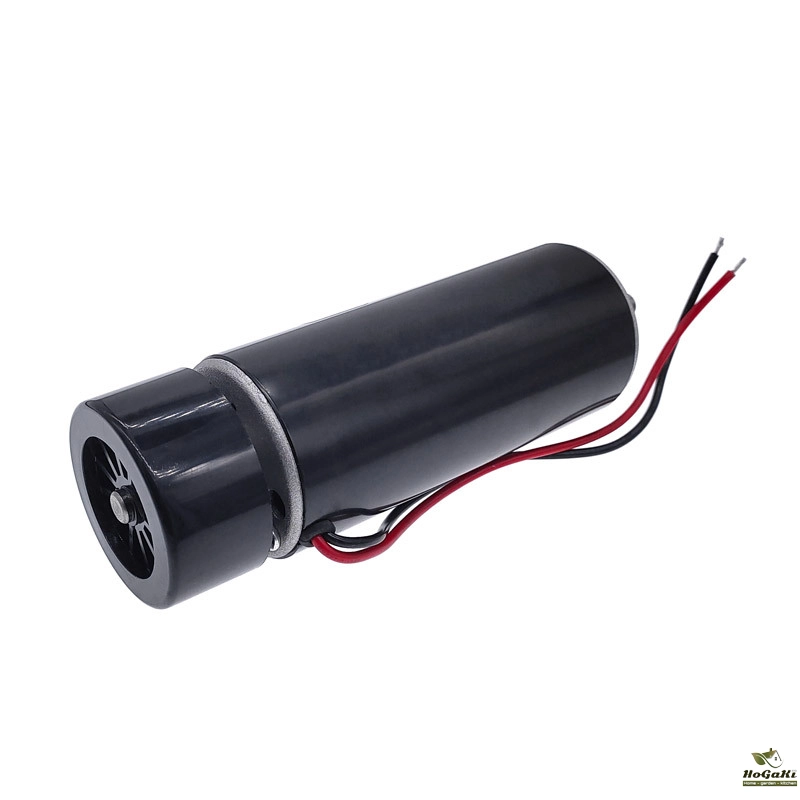

①DC SPINDLE MOTOR


Work Voltage:100VDC                  Starting Current: 5A               POWER: 500W

Toque: 550mN.m                          Speed: 12000rpm                     Diam: 52mm

Note: Pure copper wire is used in the motor

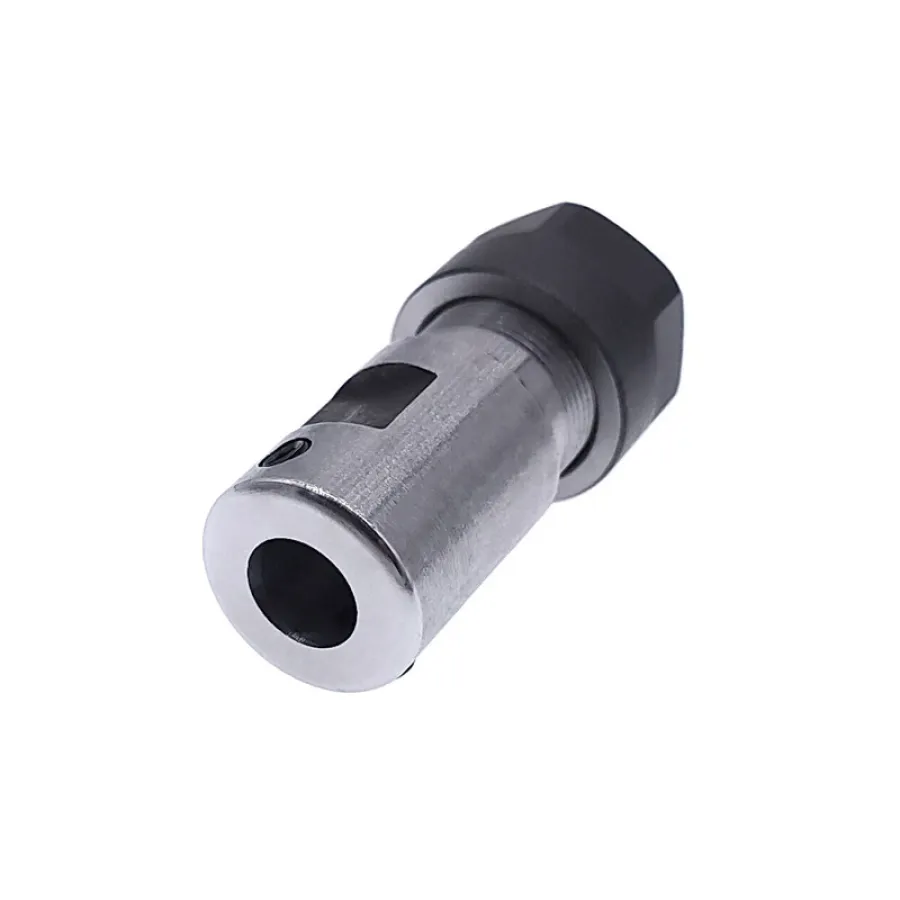

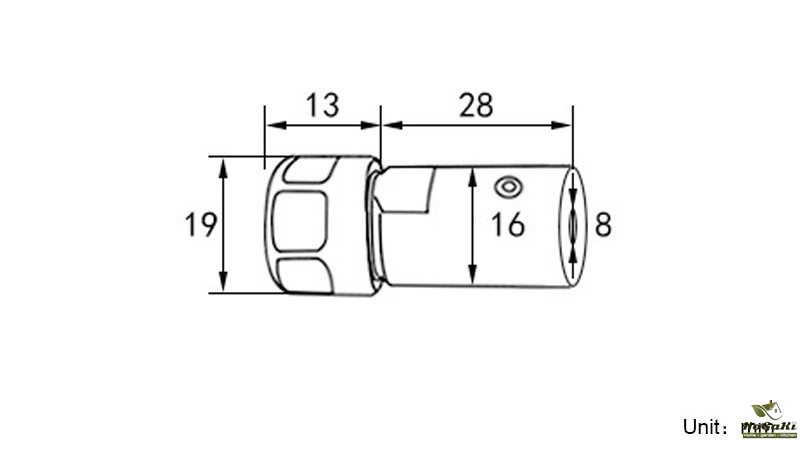

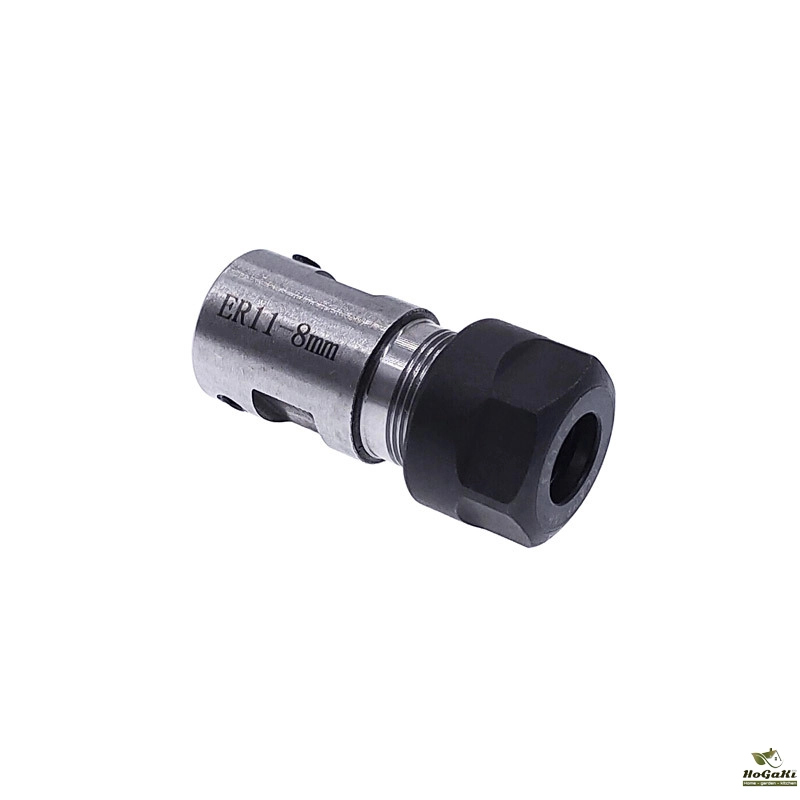

②ER11-8 CHUCK


ER11 chuck (fit for ER11 collet 1-7mm)

End aperture: 8mm (fit for φ8 motor shaft)

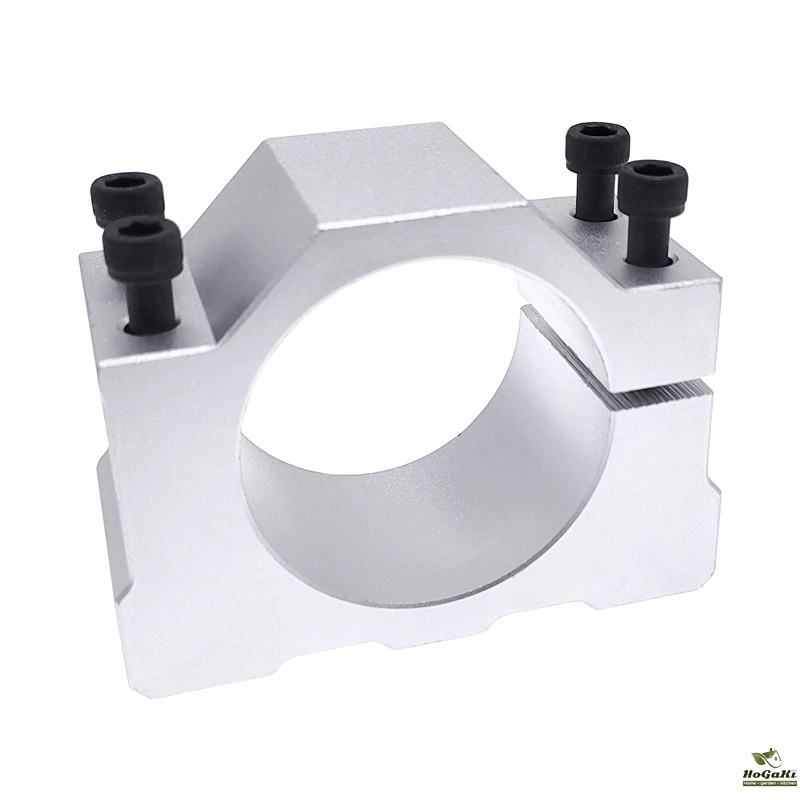

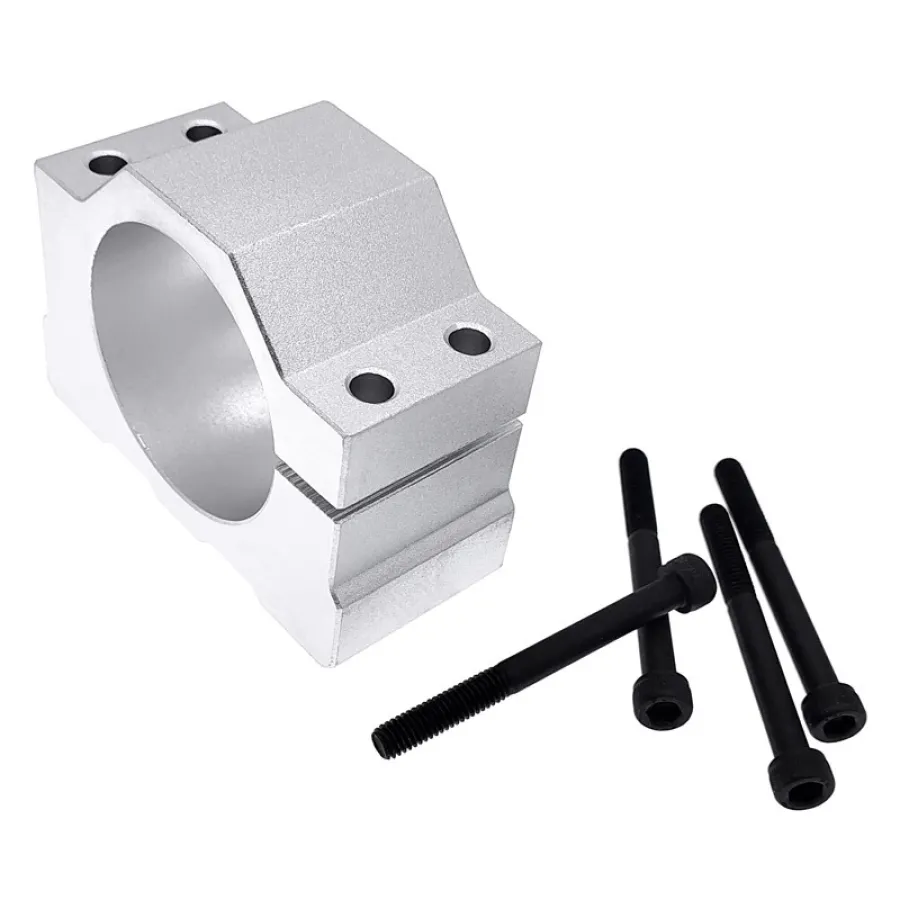

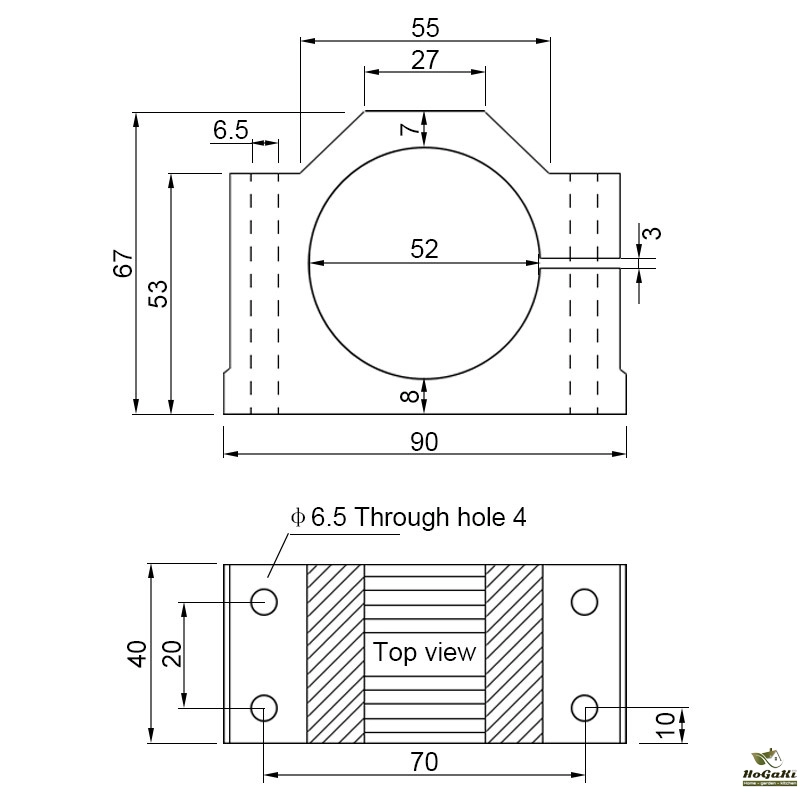

③52mm Spindle Fixed Mounting Base


Material: aluminum alloy

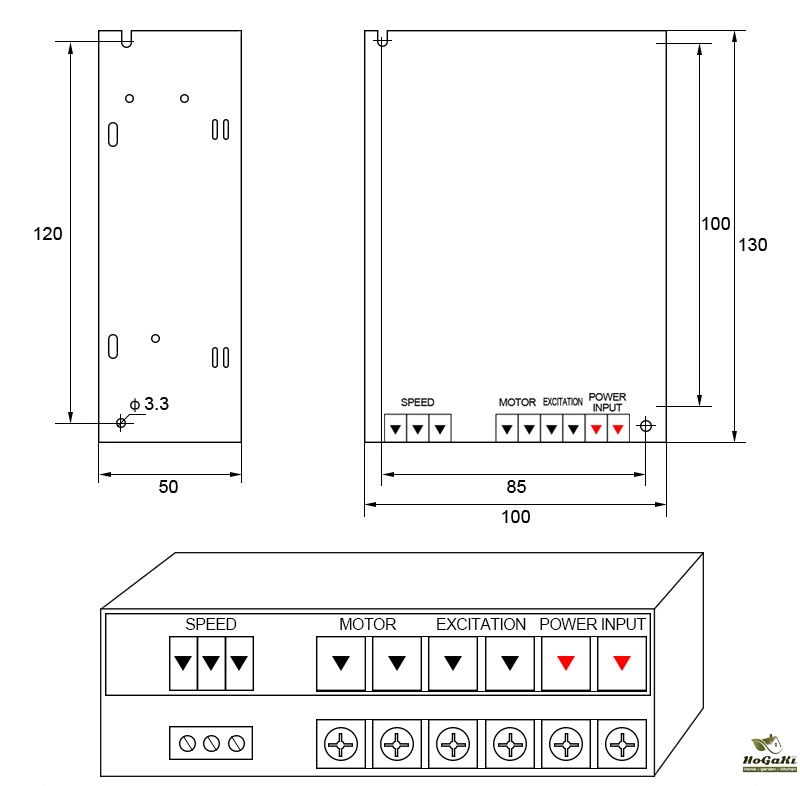

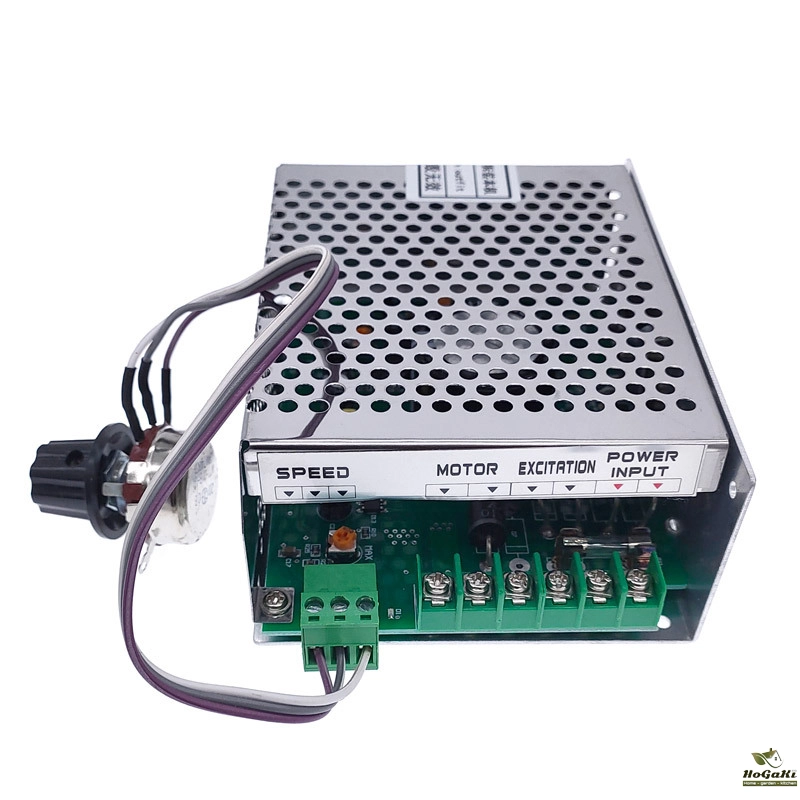

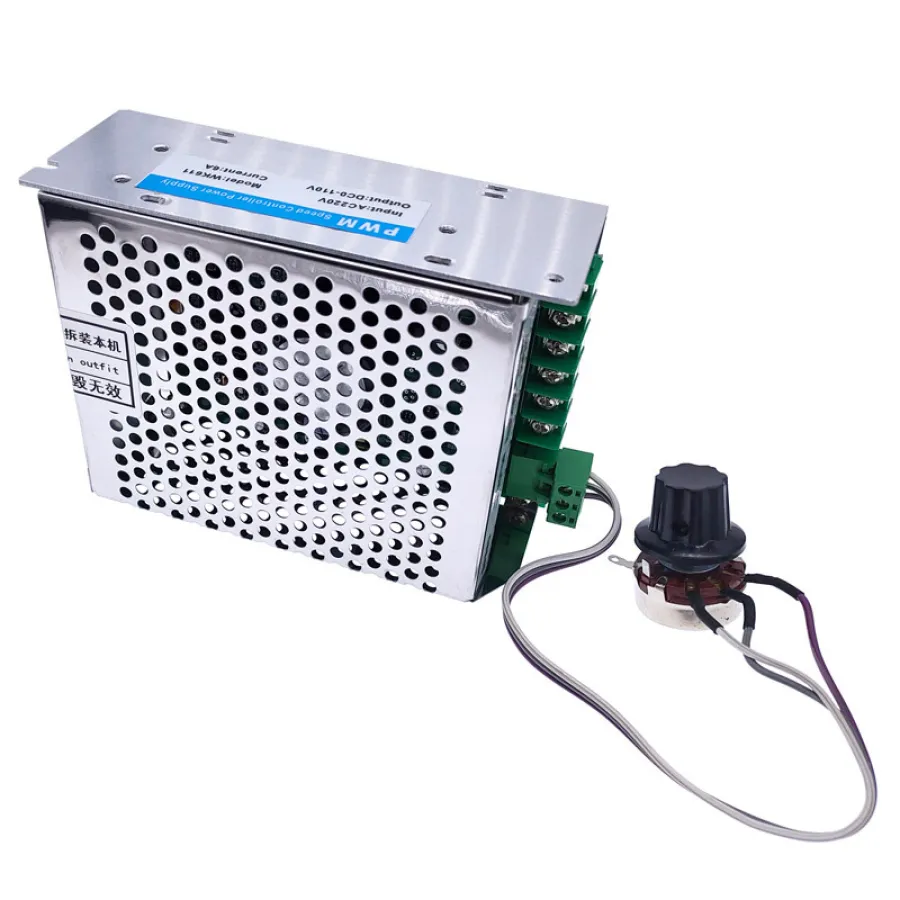

④600W Adjustable Speed Power Switch


Model : WK611                       Input voltage: 110-220VAC                     Output voltage: 0-110VDC

Current : 6A                           Excitation：1A                                         Max POWER: 600W

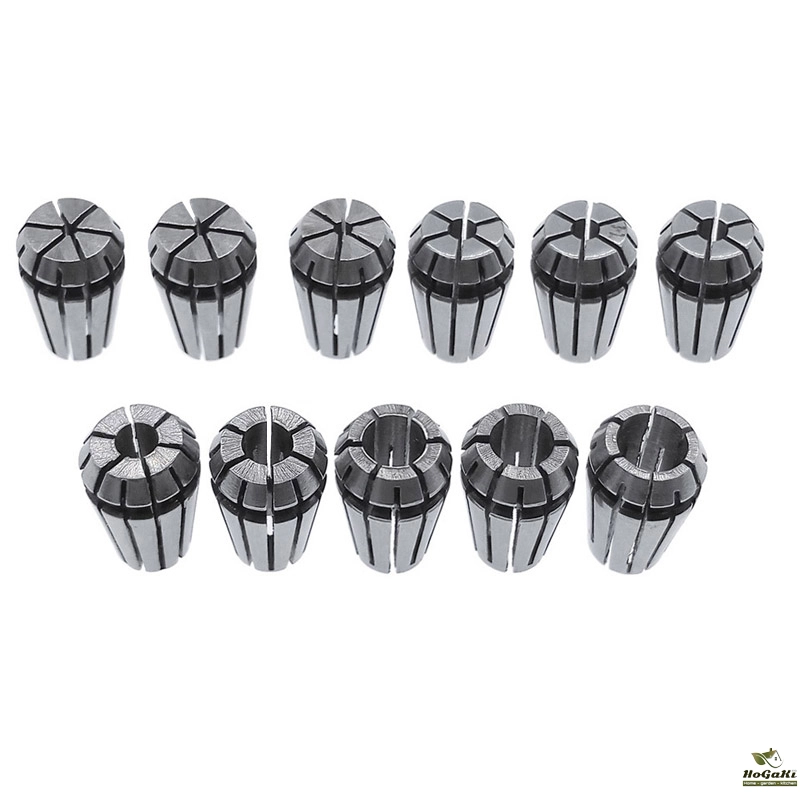

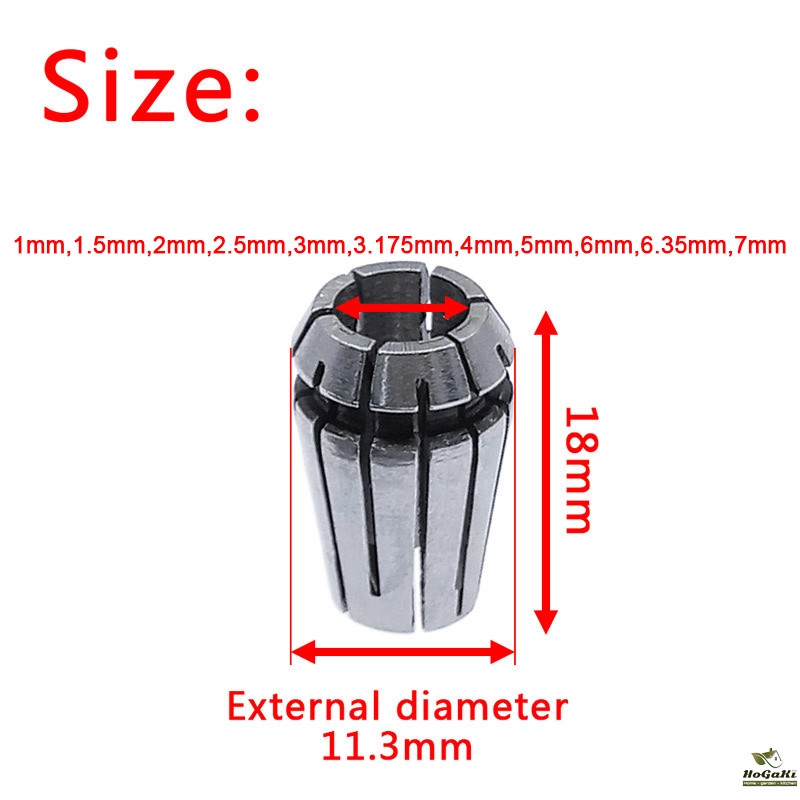

⑤ER11 Collet


ER11 collet set (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/4mm/5mm/6mm/6.35mm/7mm)

tips:3.175=1/8                     6.35=1/4



Packaging Details

  • Unit Type:
  • Package Weight: 1.910
  • Package Size: 10x10x15

  • Brand Name: CNMAWAY
  • Origin: Mainland China
  • Operating Speed: 12000rpm
  • Certification: CE
  • Application: Milling
  • Drive: Motor
  • Model Number: 500W 100V
  • Maximum Torque: 550mN. M
