2.2KW Air-Cooled Spindle Motor

Enhanced Performance with Long-Lasting Durability

Experience superior performance with our 2.2KW air-cooled spindle motor, engineered for longevity and efficiency. Featuring an ER20 collet and precision-crafted with four high-quality bearings, this spindle motor boasts a lifespan three times longer than standard models. Ideal for engraving machines, it effectively handles wood, stone, metal, and more with minimal noise and efficient heat dissipation.

• Low noise operation with effective heat dissipation Optimal for a range of materials including wood and metal ER20 standard collet for versatile applications High-performance bearings for extended lifespan

Key Features

•


• Low Noise & Effective Heat Dissipation


• The air spindle motor's dynamic balance technology significantly reduces noise. Additionally, its advanced air cooling system provides excellent heat dissipation, ensuring consistent performance.


• Versatile Use


• This CNC spindle motor is designed for a range of applications, including engraving machines and frequency converters. The air circulation cooling method ensures efficient heat management and reliable operation.


• Technical Specifications


• Diameter: 6.2 cm, Length: 26.1 cm; Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4; Frequency: 400 Hz; Speed: 24,000 RPM; Runout: <0.01 mm. Ideal for use with engraving machines or frequency converters.

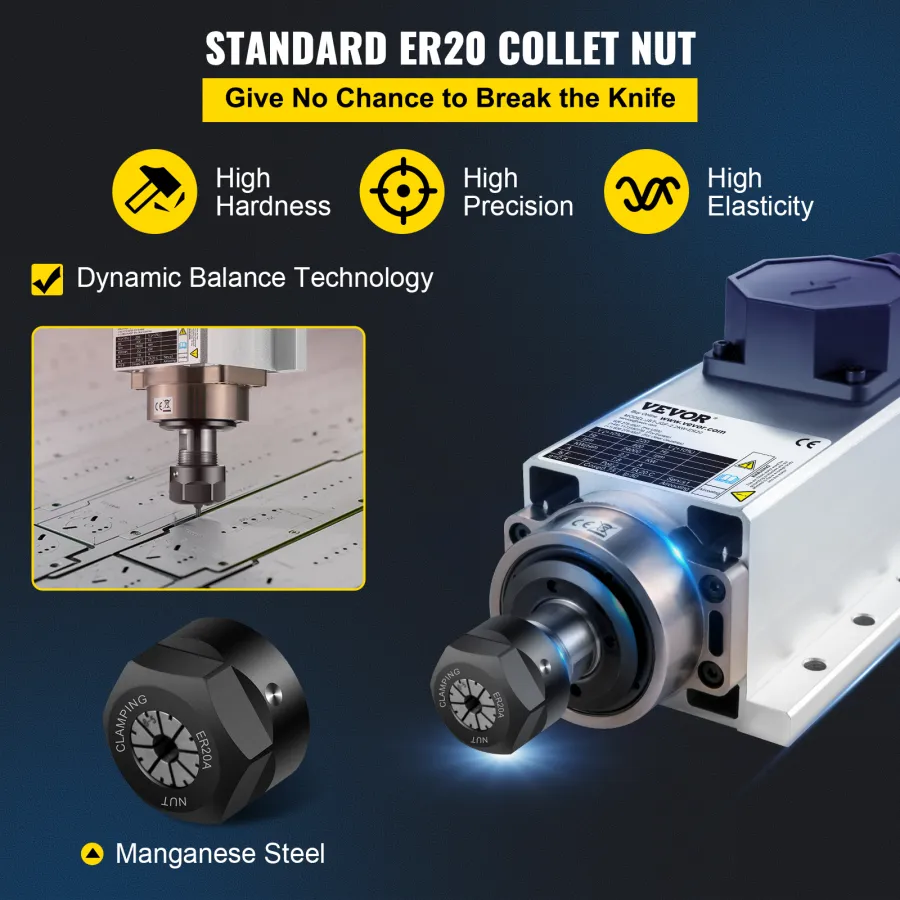

• ER20 Standard Collet


• Featuring a manganese steel collet with a runout of less than 0.01 mm, this CNC spindle ensures high precision and stability, reducing the risk of tool breakage. The dynamic balance technology also helps minimize operational noise.


• Powerful Bearing System


• The spindle motor is equipped with imported, high-precision bearings that enhance durability and resistance to rust. This contributes to improved hardness and reliability during operation.

Versatile Usage

Ideal for a range of materials including wood, stone, mold, and metal, this air-cooled motor is suitable for applications in machinery manufacturing, sheet metal processing, guardrail fabrication, factories, shipyards, home improvement, and construction.

Optimized Internal Design

Features a built-in wire box that connects directly to the wire or VFD, improving stability and smooth operation. An upgraded wrench is included for convenient handling.

Durable Construction

The motor’s aluminum body enhances power and longevity, while oxygen-free copper coils outperform standard aluminum-clad wire, ensuring superior processing and engraving results..

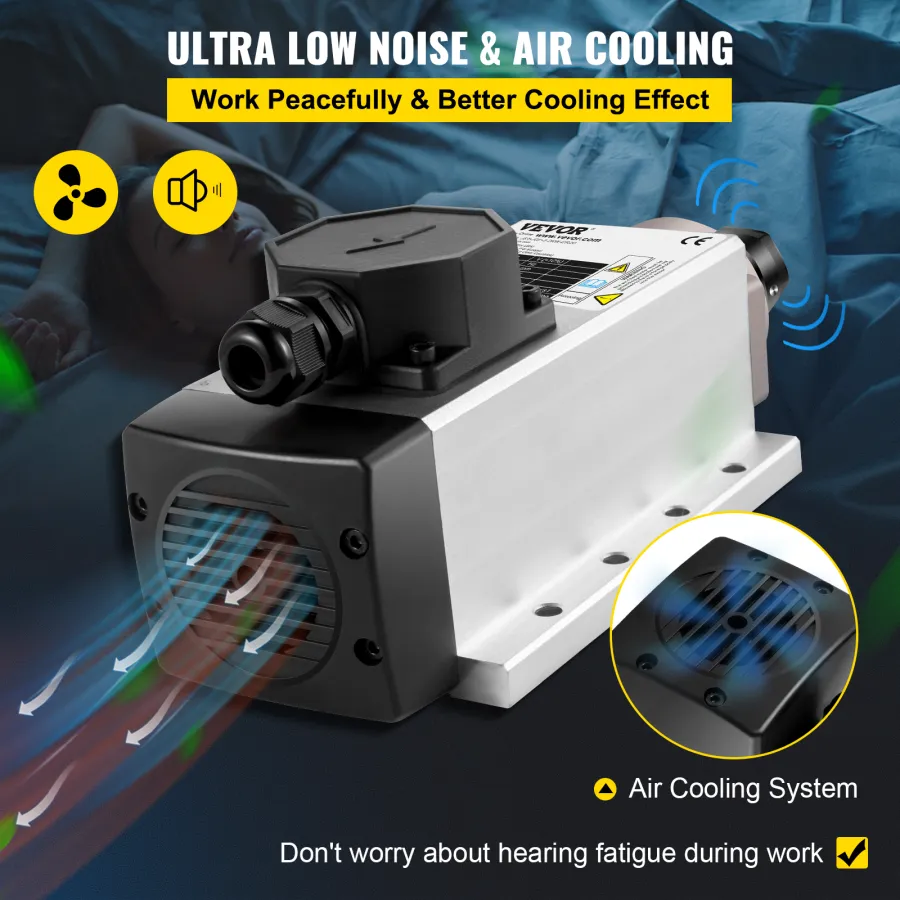

Quiet Operation with Effective Cooling

Designed for low noise operation to prevent auditory fatigue, this CNC router spindle motor uses air circulation for effective heat dissipation, ensuring optimal performance even at high speeds.

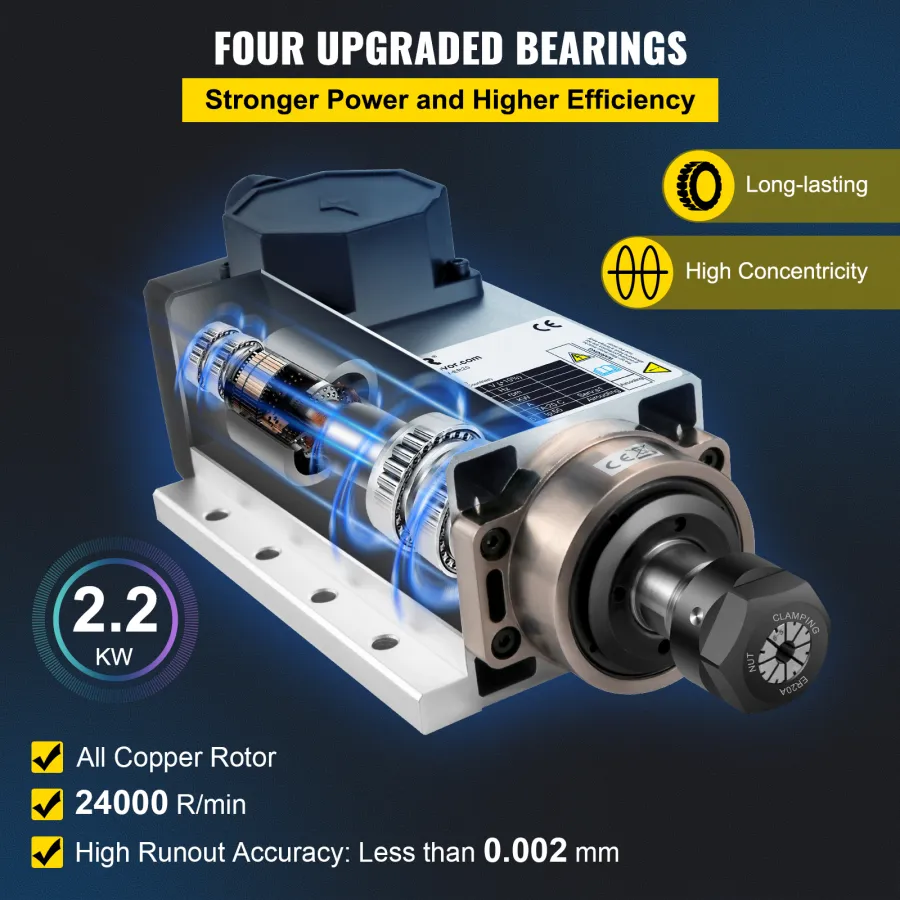

Enhanced Bearing Quality

Equipped with upgraded bearings, this spindle motor offers superior durability and resistance to rust. It operates at high speeds (up to 24,000 RPM) and delivers improved efficiency compared to previous models.

Advanced Dynamic Balance Technology

This milling spindle motor incorporates cutting-edge dynamic balancing technology, providing exceptional rigidity and precision. The ER20 standard collet features robust strength, a unique drainage system, and precise performance.

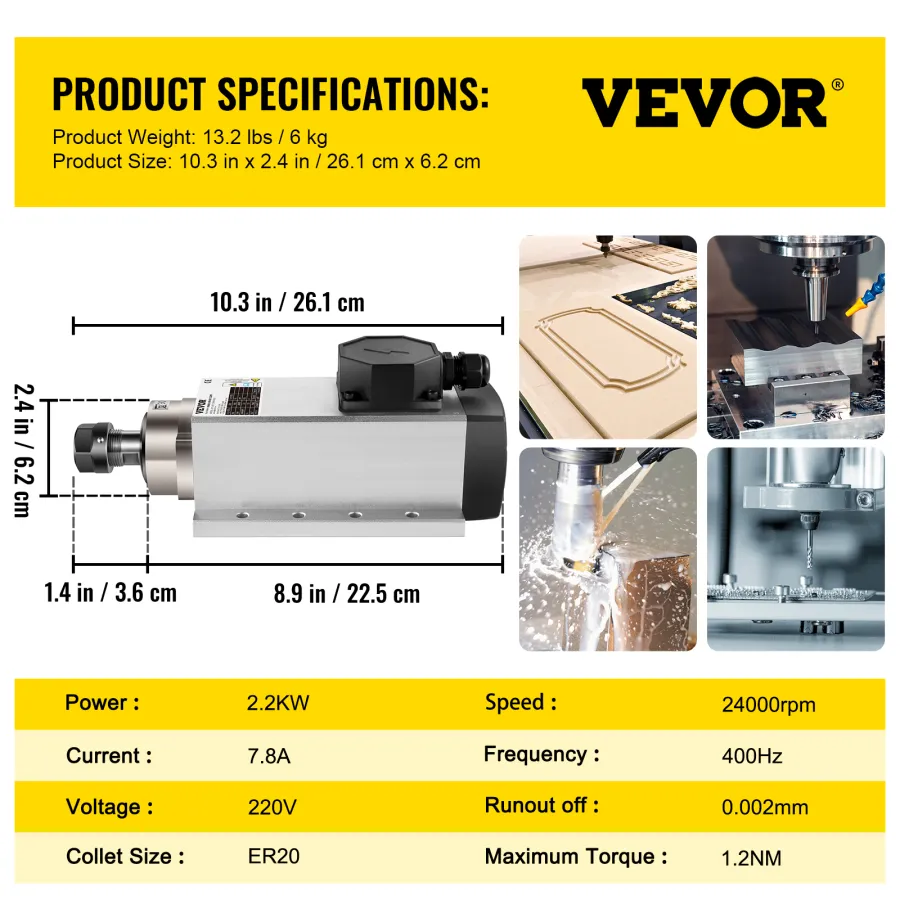

Specification

• Bearing Model: 7005 x 2, 7002 x 2 Maximum Torque: 1.2 Nm Product Dimension: 6.2 × 26.1 cm / 2.4 × 10.3 in Weight: 6 kg / 13.2 lbs Power: 2.2 kW Voltage: 220V Frequency: 400 Hz Speed: 24,000 RPM Runout: Less than 0.01 mm Collet Size (Dia.): 0.125 mm / 0.5 mm / 6 mm (0.005"" / 0.02"" / 0.24"") Connection of Spindle End: ER20, Ø 3.175 mm - 12.7 mm (0.125"" - 0.5"")/li>

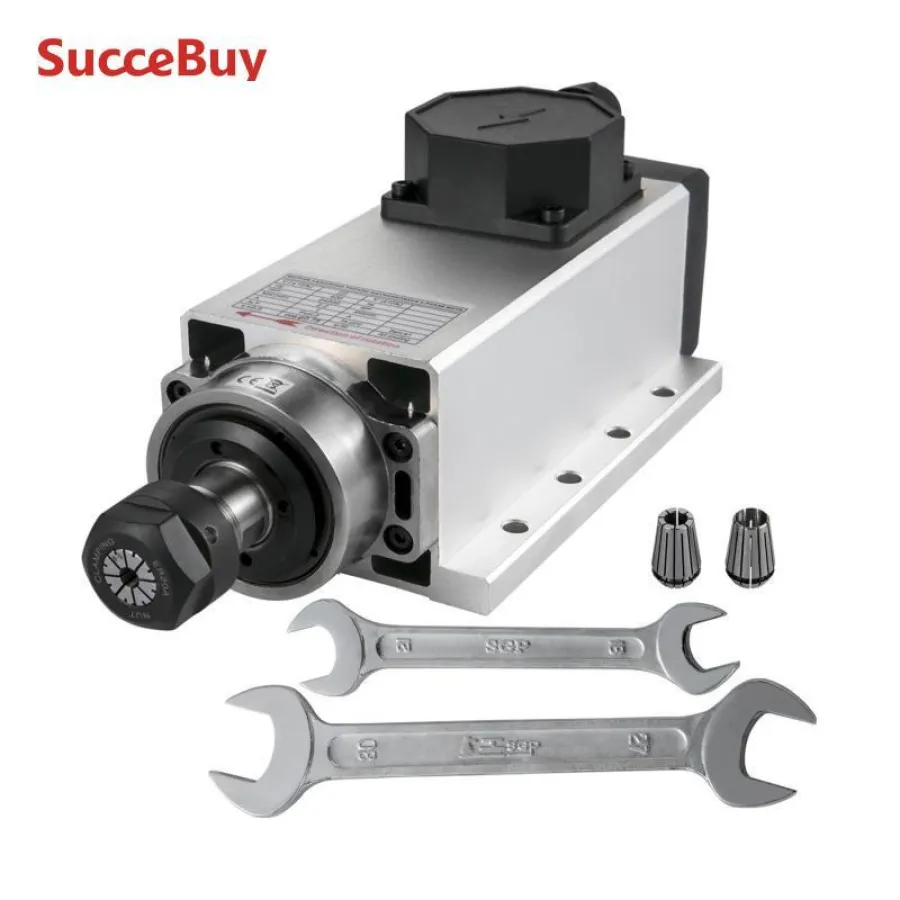

Package Content

• 2 x ER20 Collets 2 x Wrenches 1 x Air Cooled Spindle Motor
