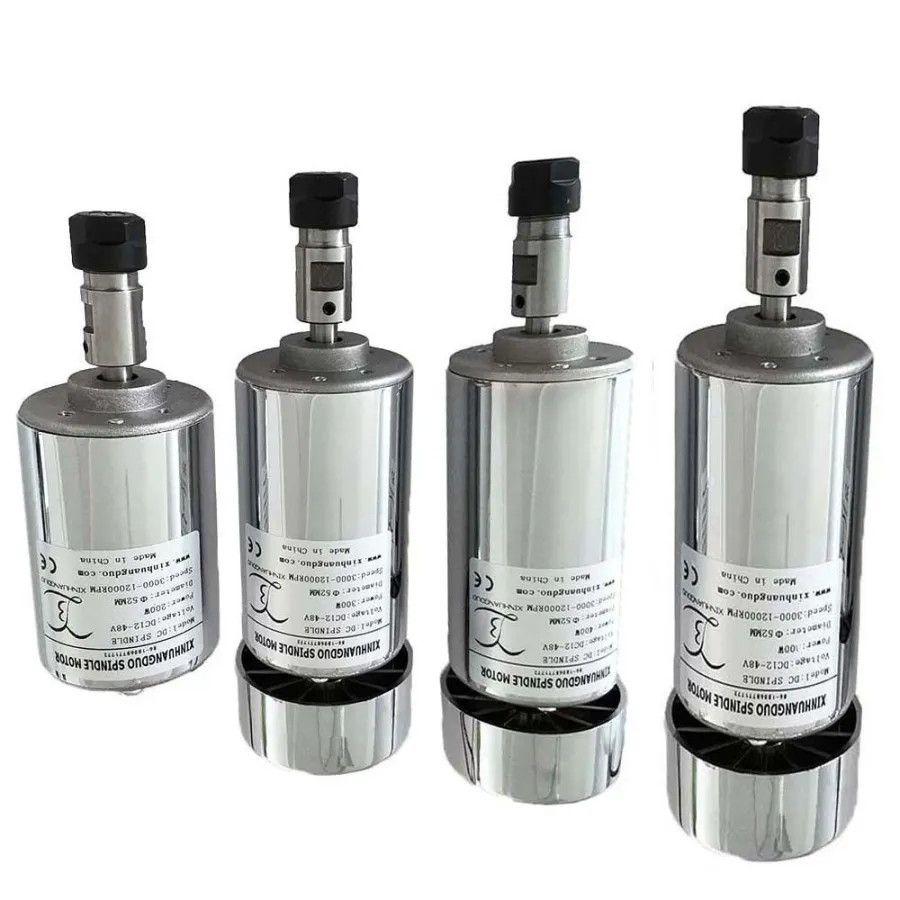

48V 200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling Spindle DC Motor CNC Engraving Machine ER11 or ER16
5.0 (5 votes) | 12 orders
Price:
US $166.02 - 210.41
Discount Price:
US $
137.46 -
165.43
-17%
- Color
-
-
Package include:

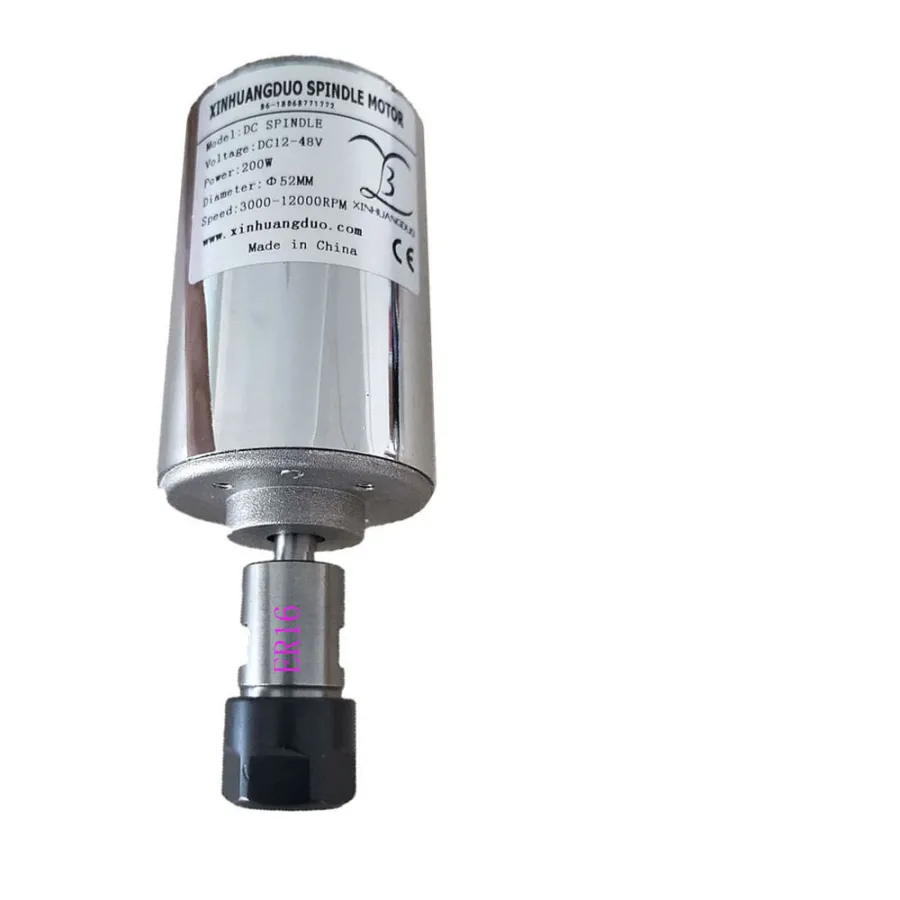

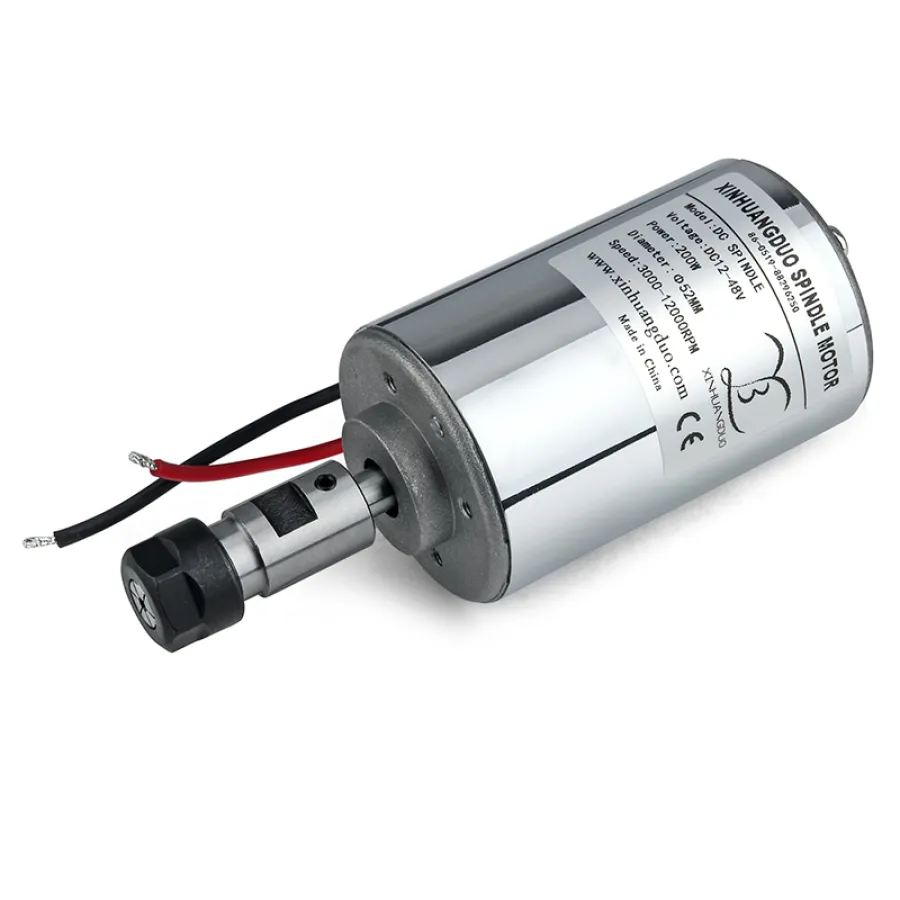

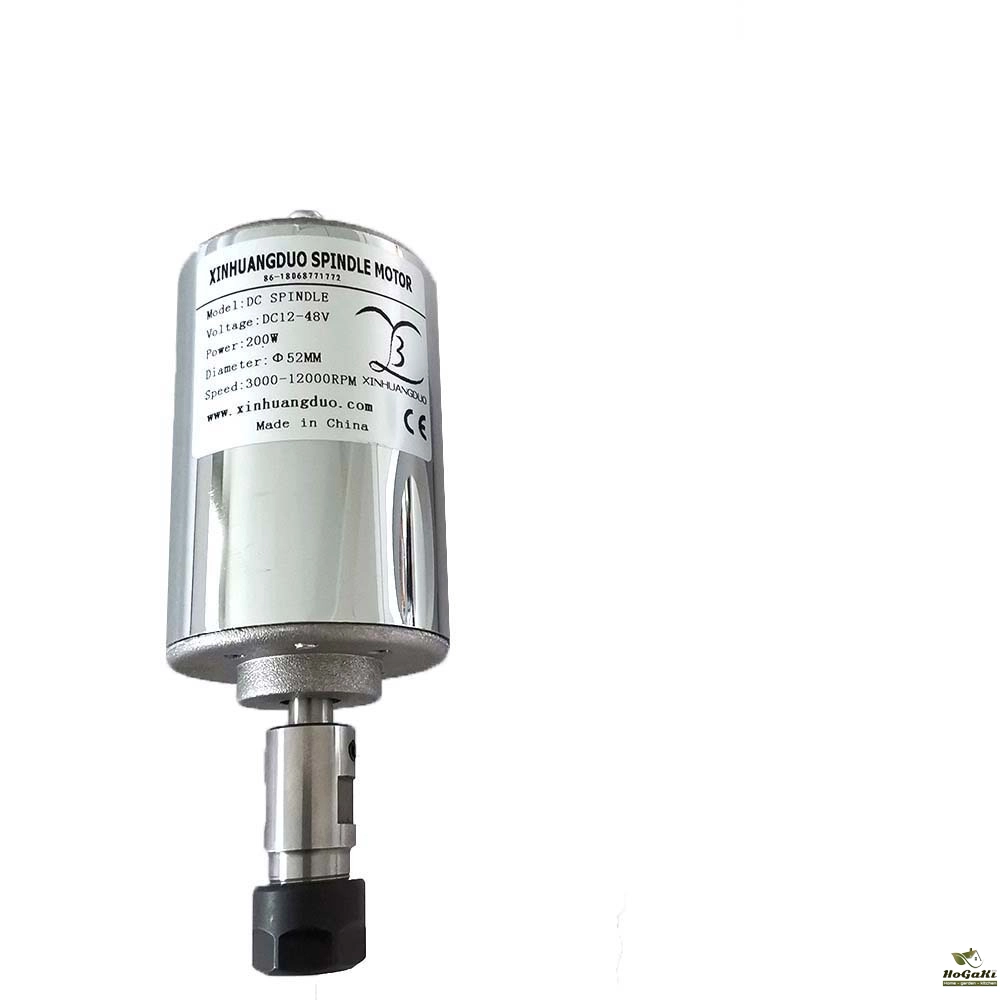

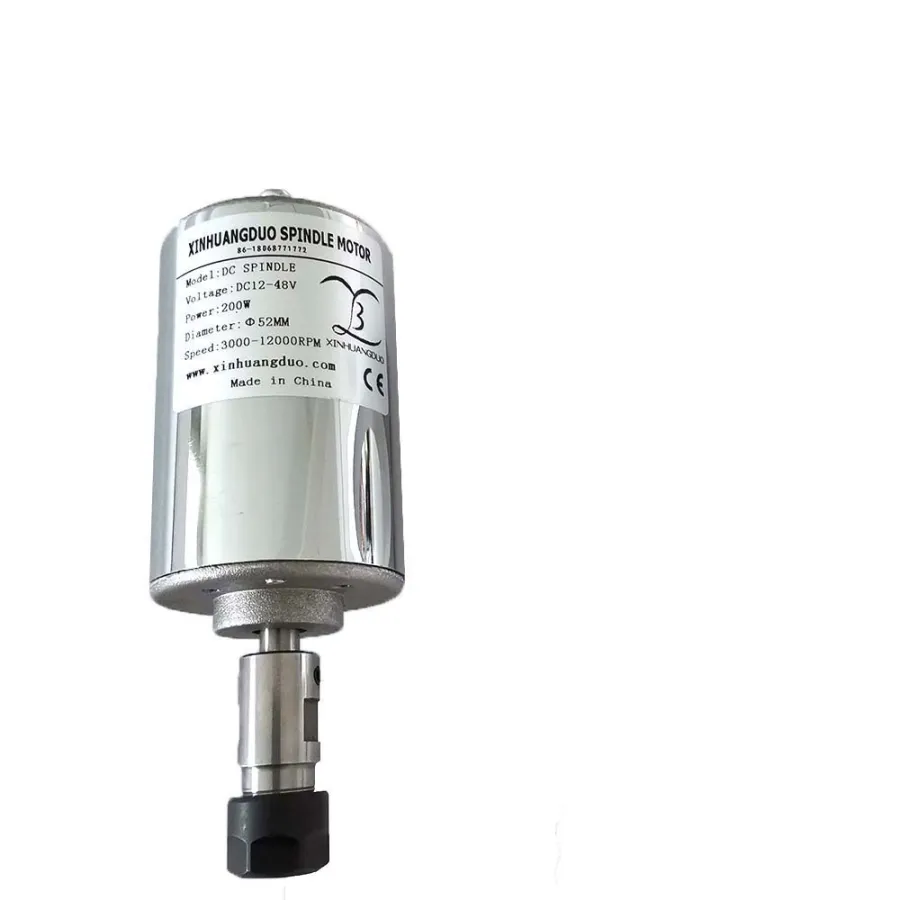

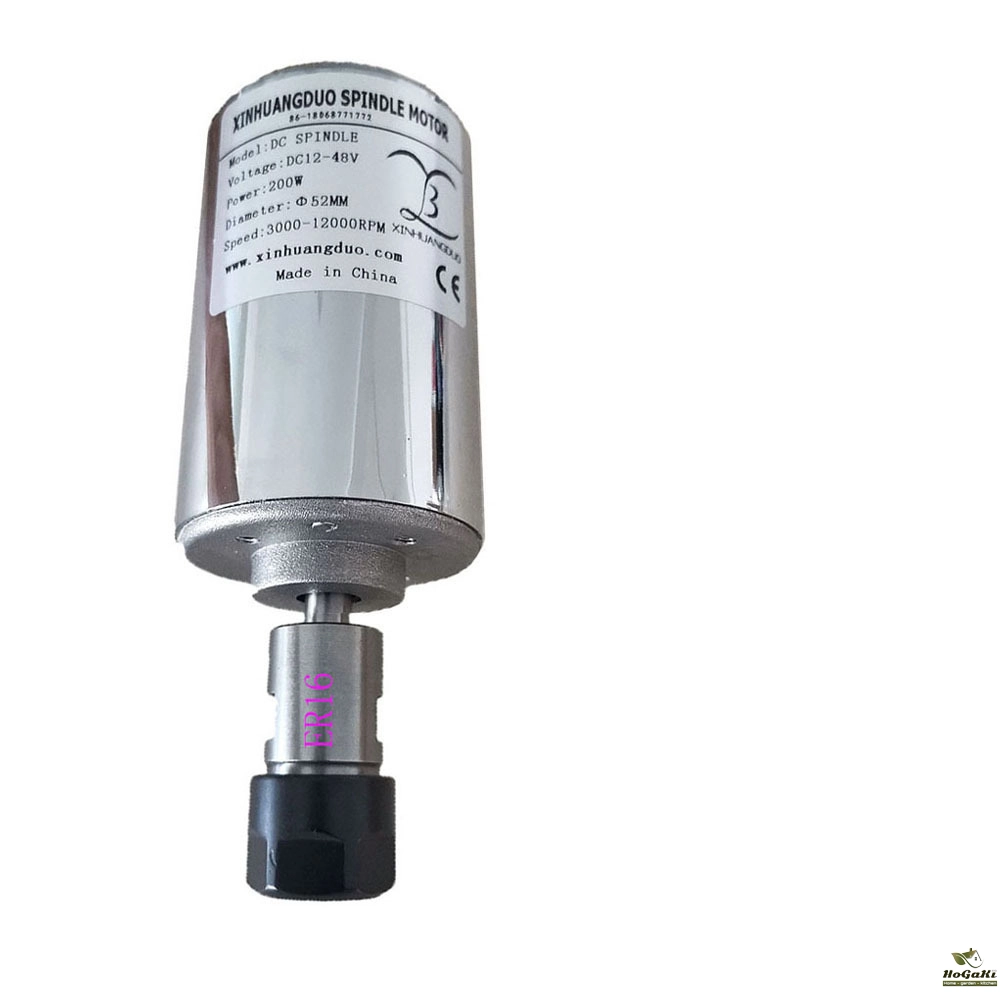

1PCS 200w spindle motor
Feature:
Spindle motor: new DC motor
Operating voltage: 48VDC
Power: 200W
Speed: 12000r/min
Torque:280mN.m
Insulation resistance: >2 Mohm
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck part length: Arbor part contains nut and sandwich 41MM
Chuck part of the diameter: 16mm (clip default with 3.175MM)

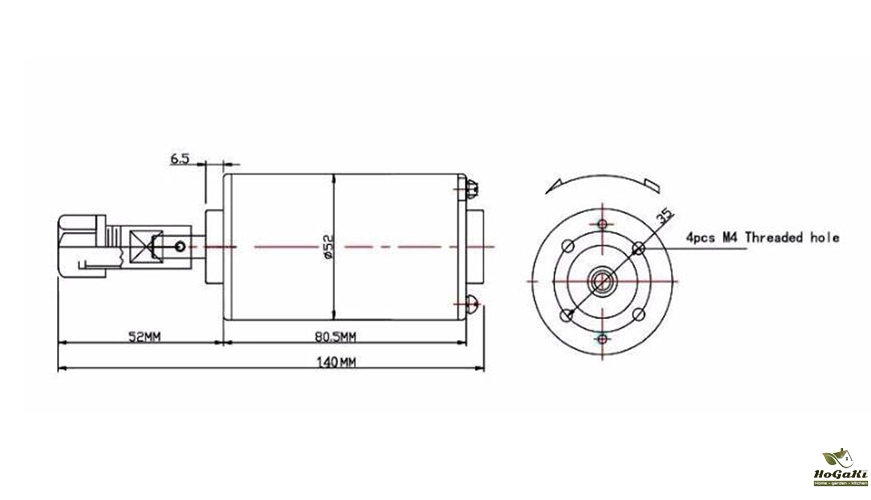

Total length of motor: 141mm (including clamping area and motor)
Package include:

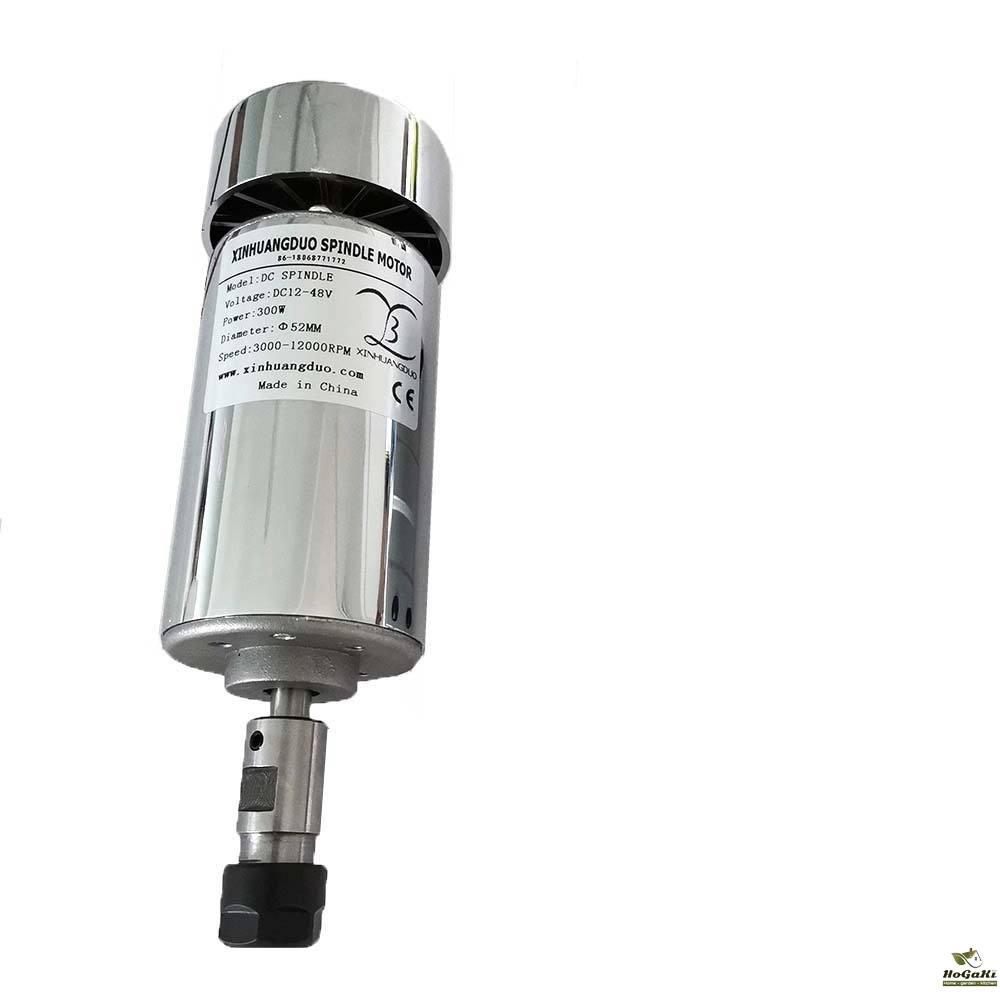

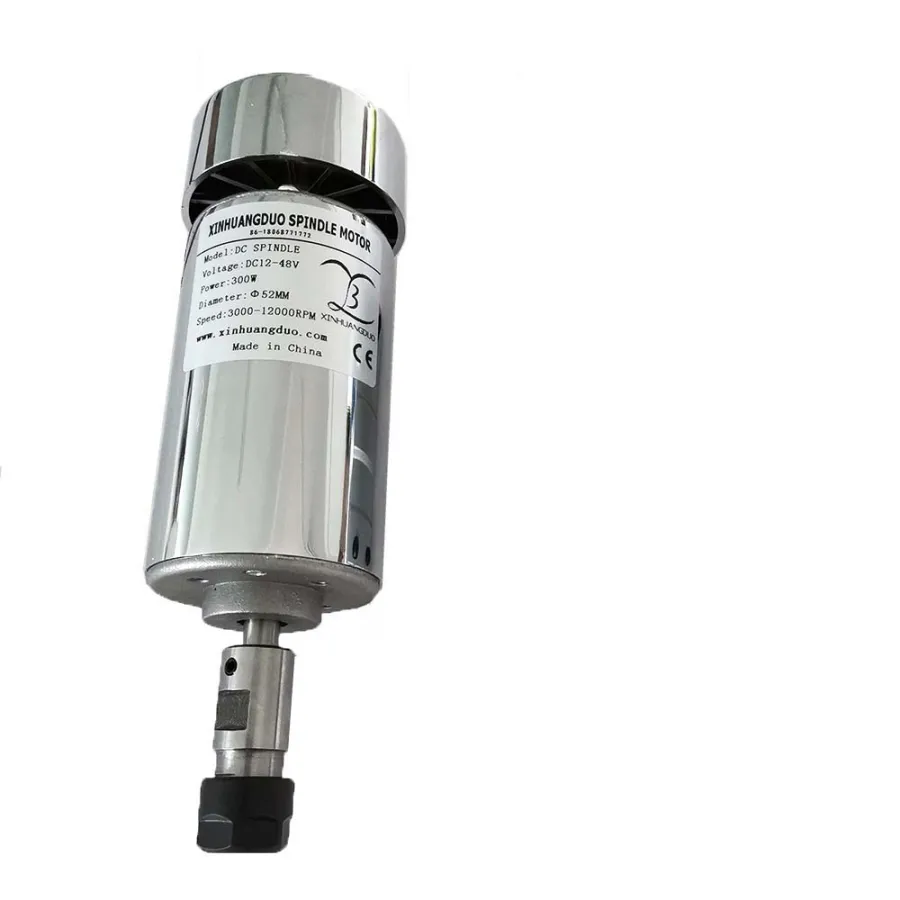

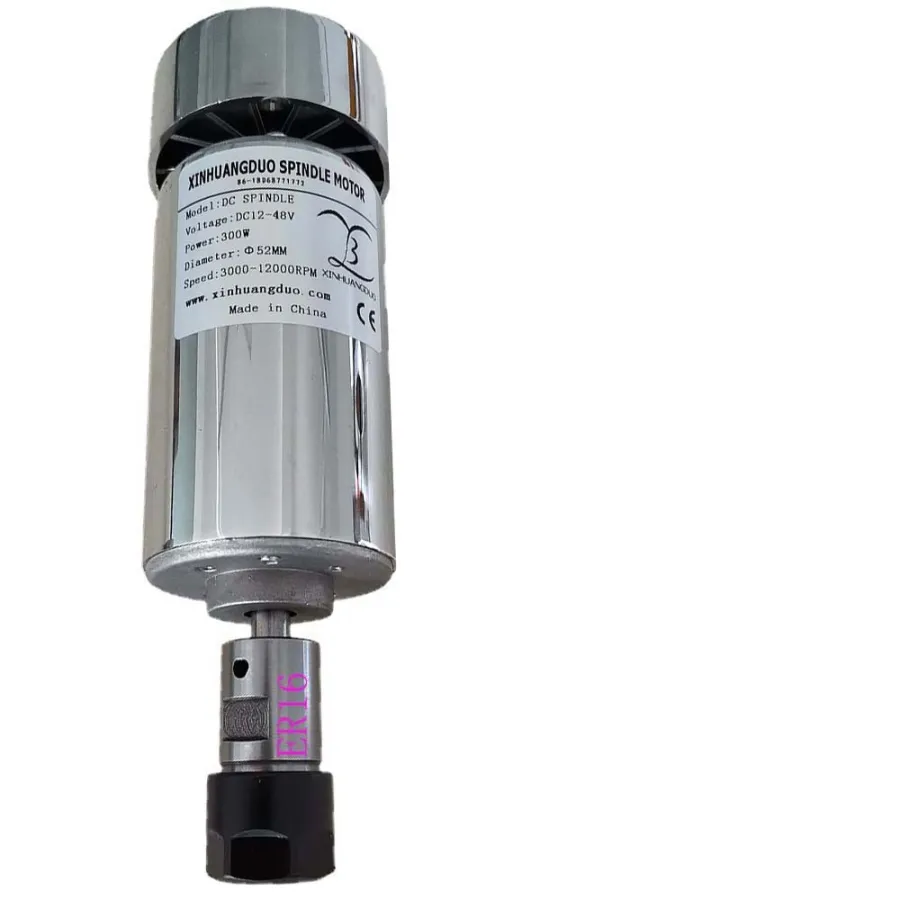

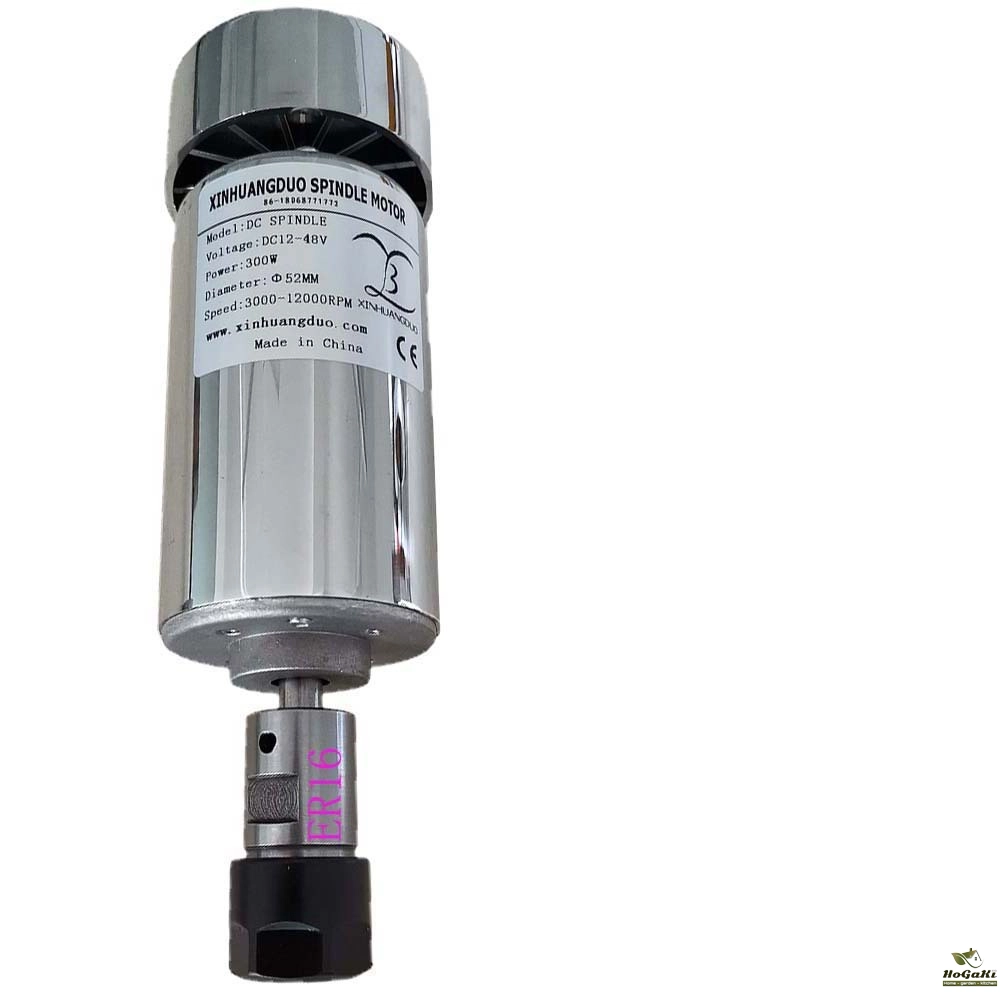

1PCS 300w spindle motor
Feature:
Spindle Motor:
Work voltage: 48VDC
Rotation speed: 12000r/min
Power: 300W
Torque:400mN.m
Insulation resistance:>2Megohm
Dielectric strength:400V

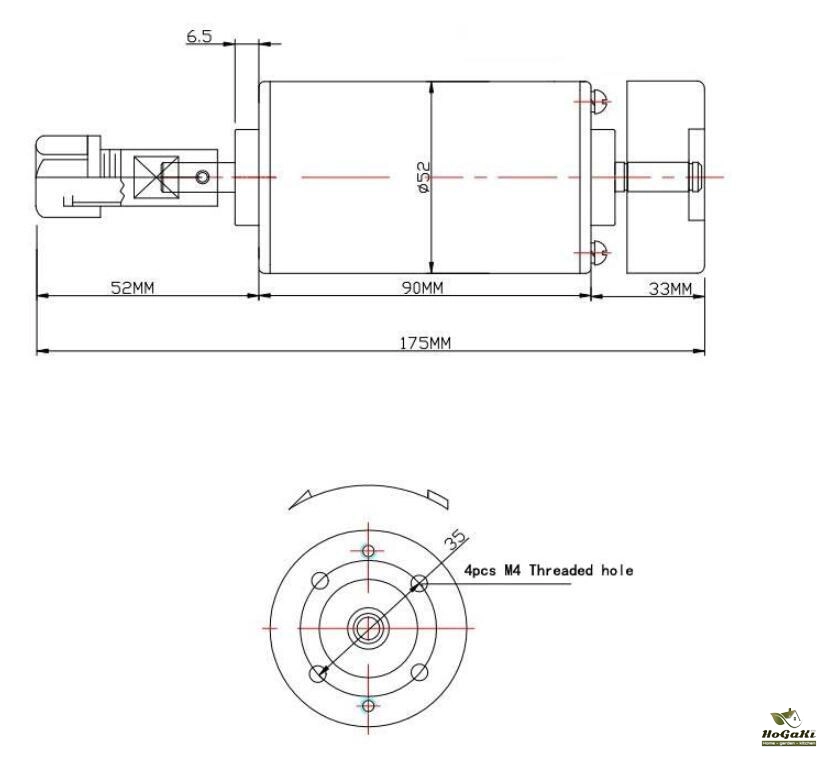

Motor Length : 175mm
Diameter:52mm
Axis collet Length: 48mm
Diameter of Axis collect holder:16mm
ER11 chuck : 3.175
Spindle radial runout is about 0.01-0.03.
Package include:

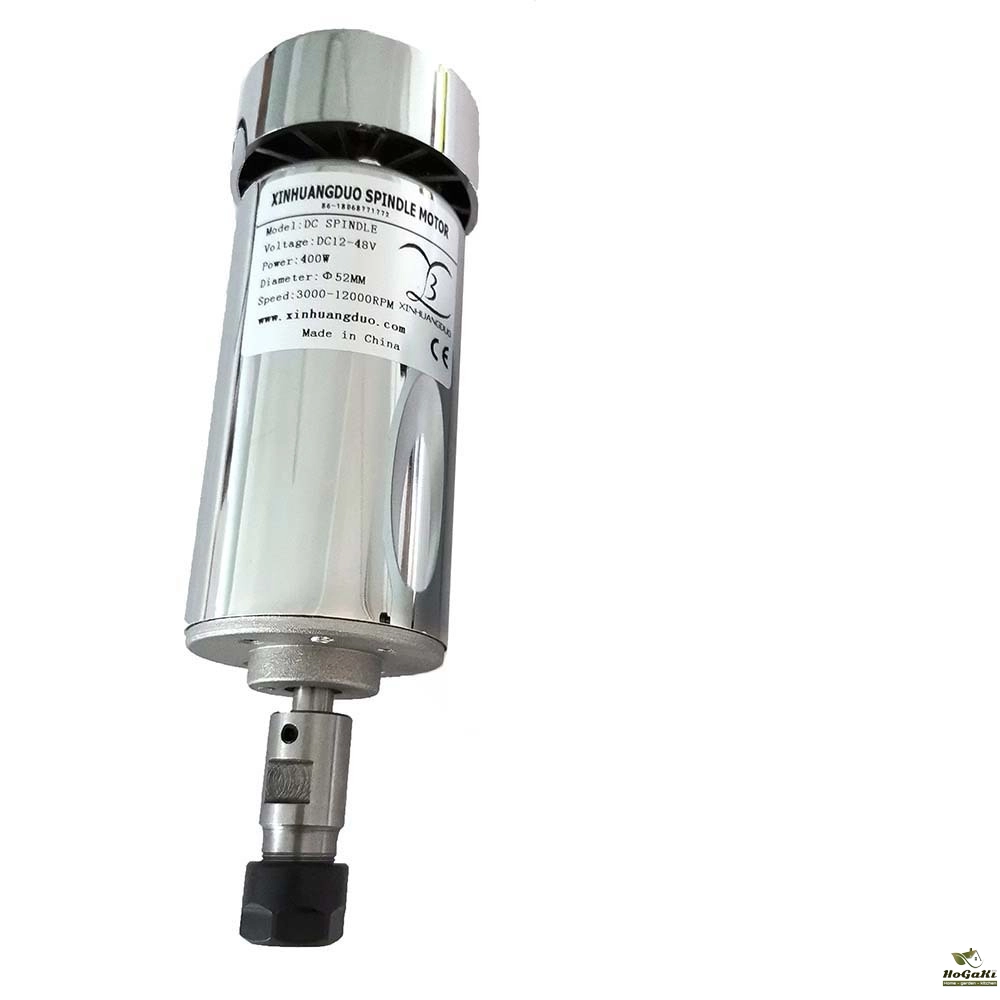

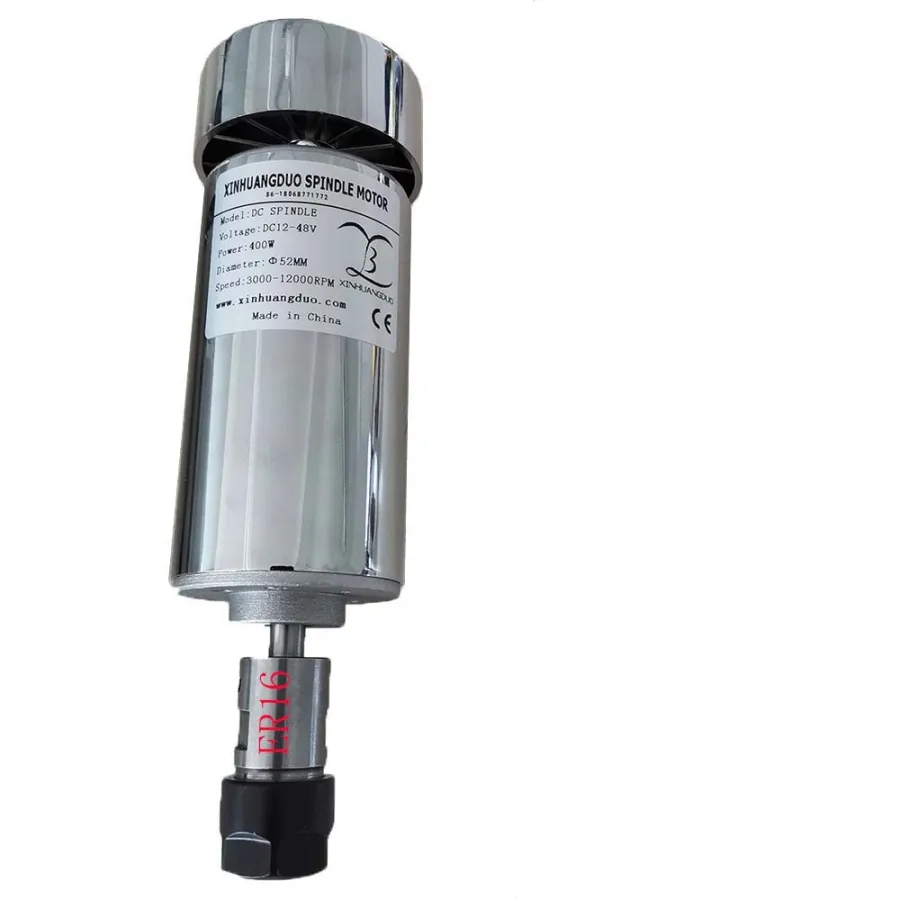

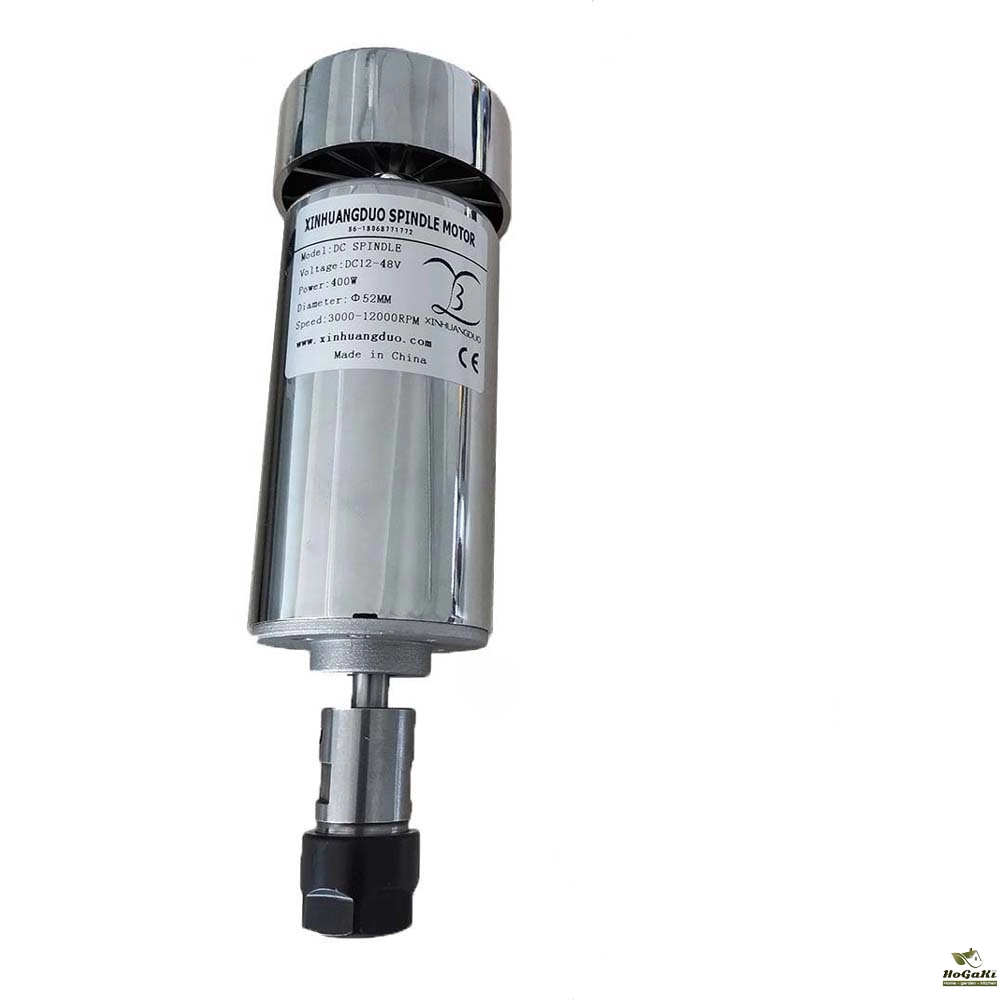

1PCS 400w spindle motor
Feature:
Spindle motor: new DC motor
Operating voltage: 48VDC
Power:400W
Speed: 12000r/min
Condition:NEW
Torque:500mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)
Part chuck diameter: 16mm

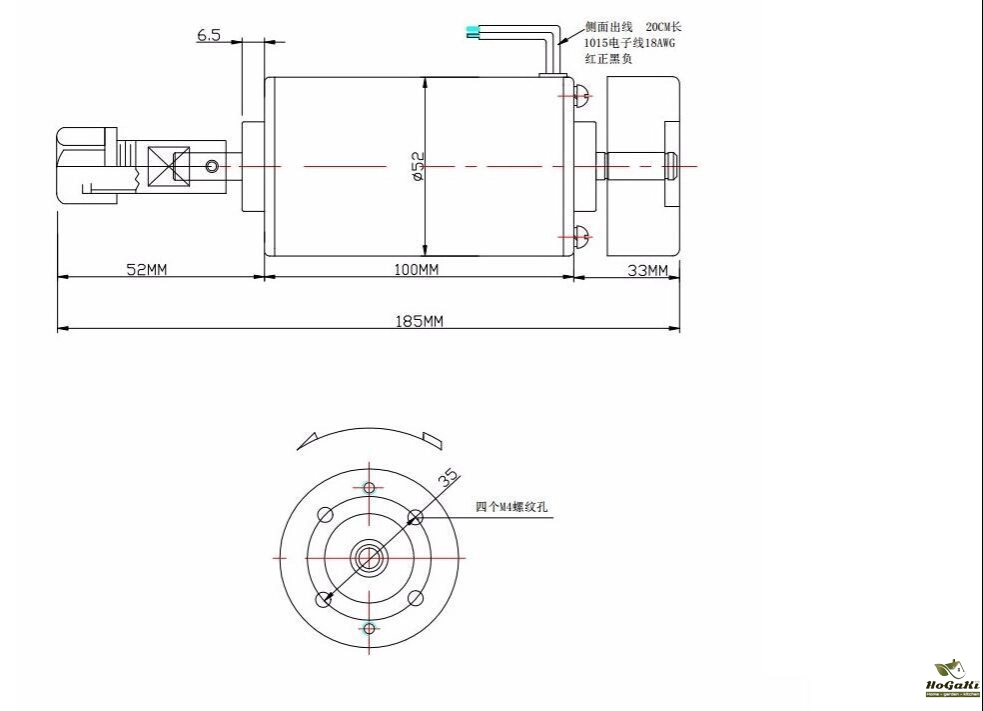

Motor length: 185mm (including gripping parts and motor)
Spindle runout of about :0.01-0.03.
Can be used for engraving metal or non-metal and other materials.
Package include:

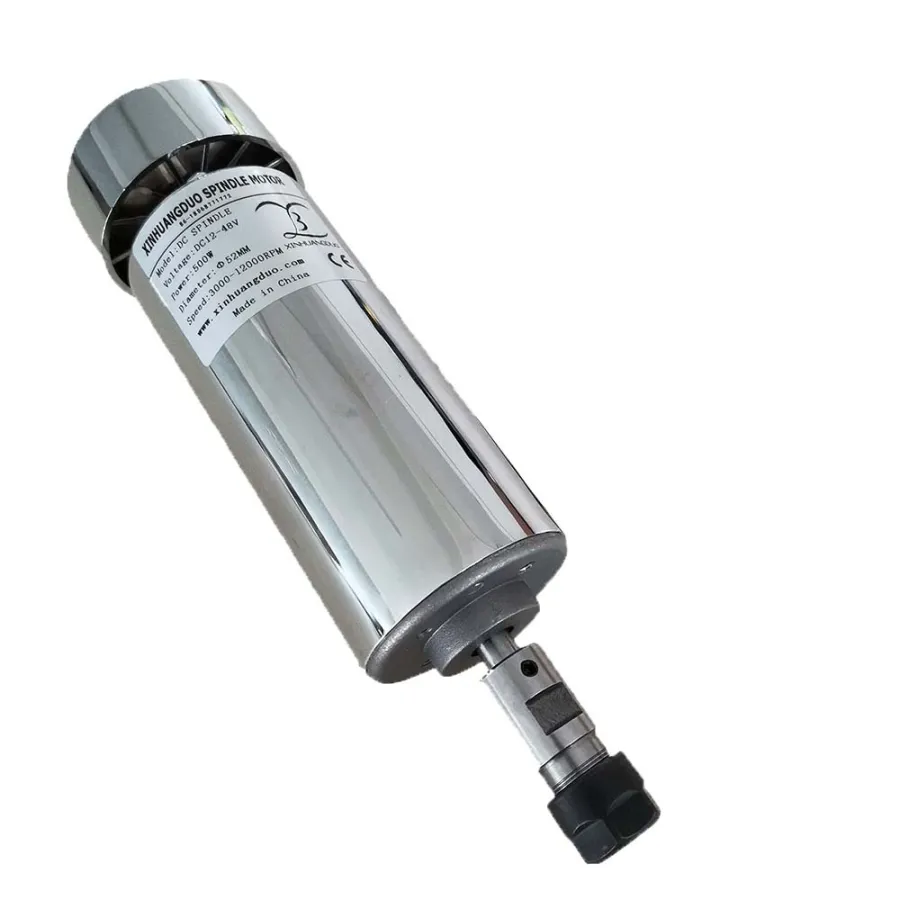

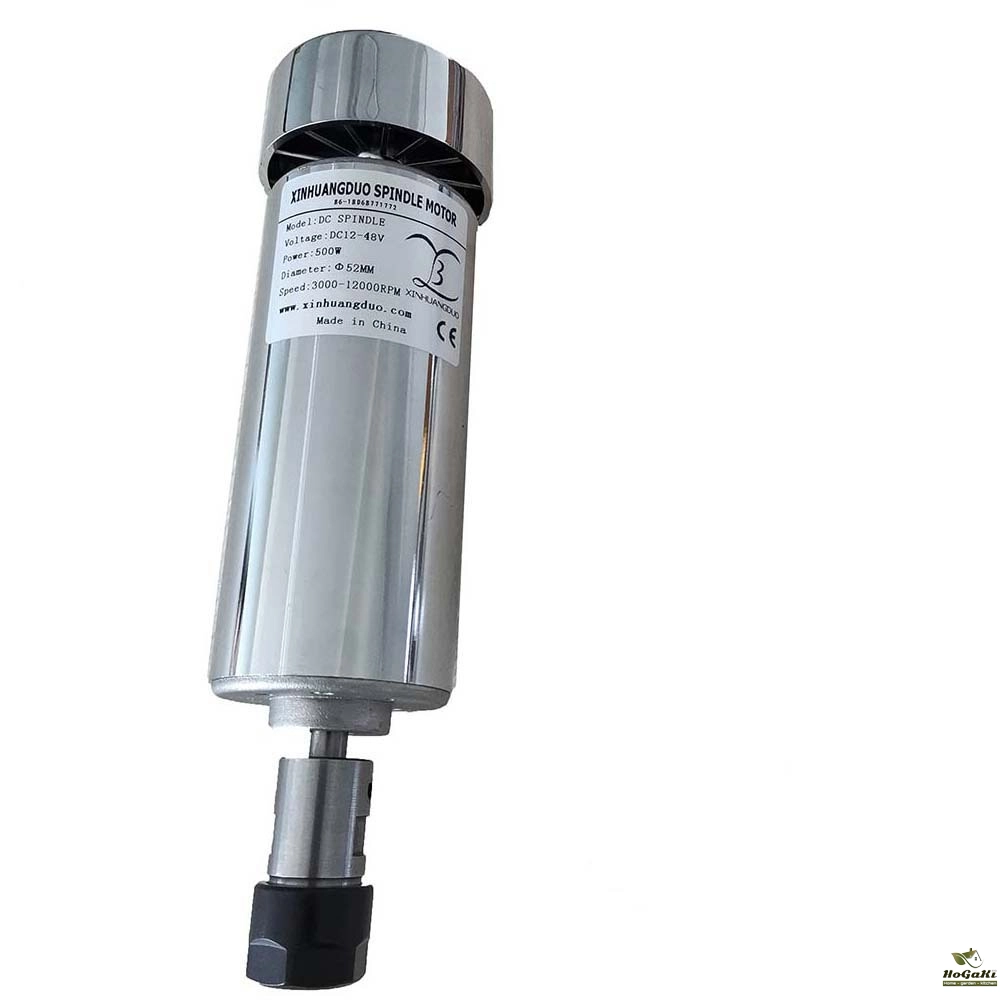

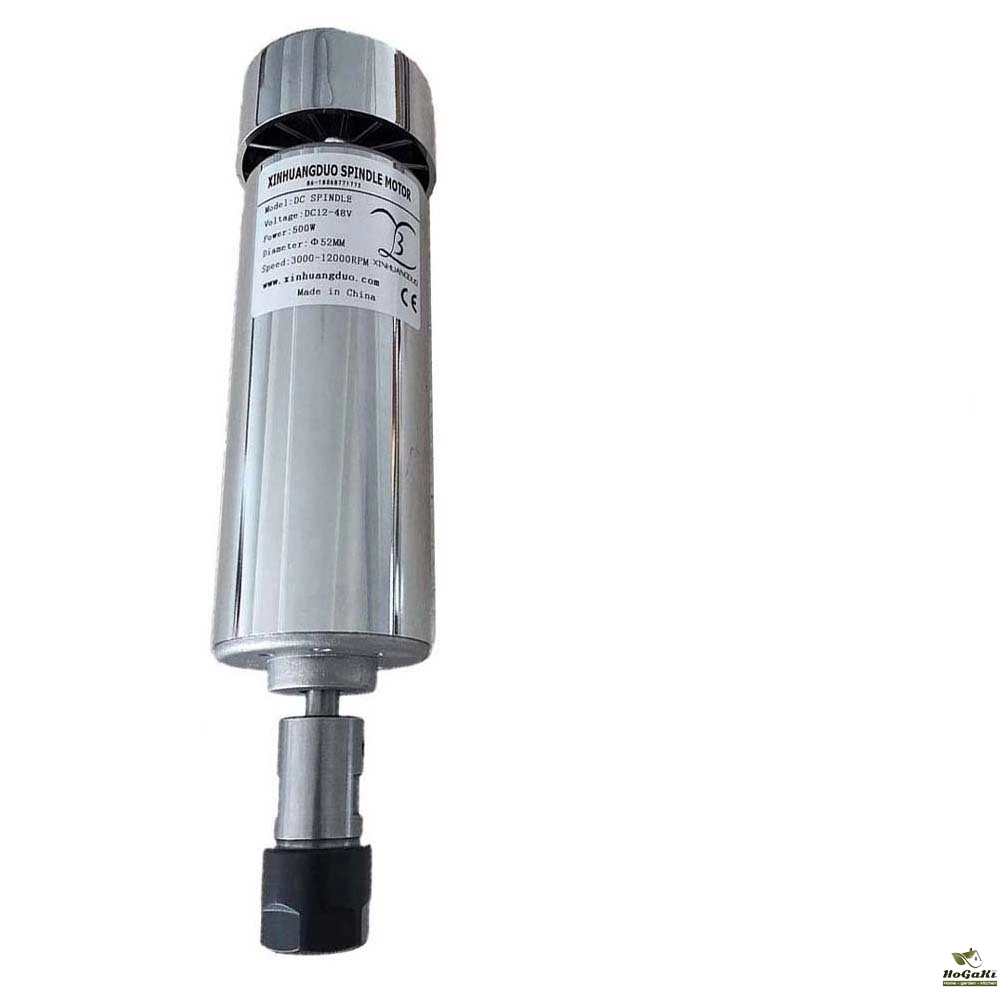

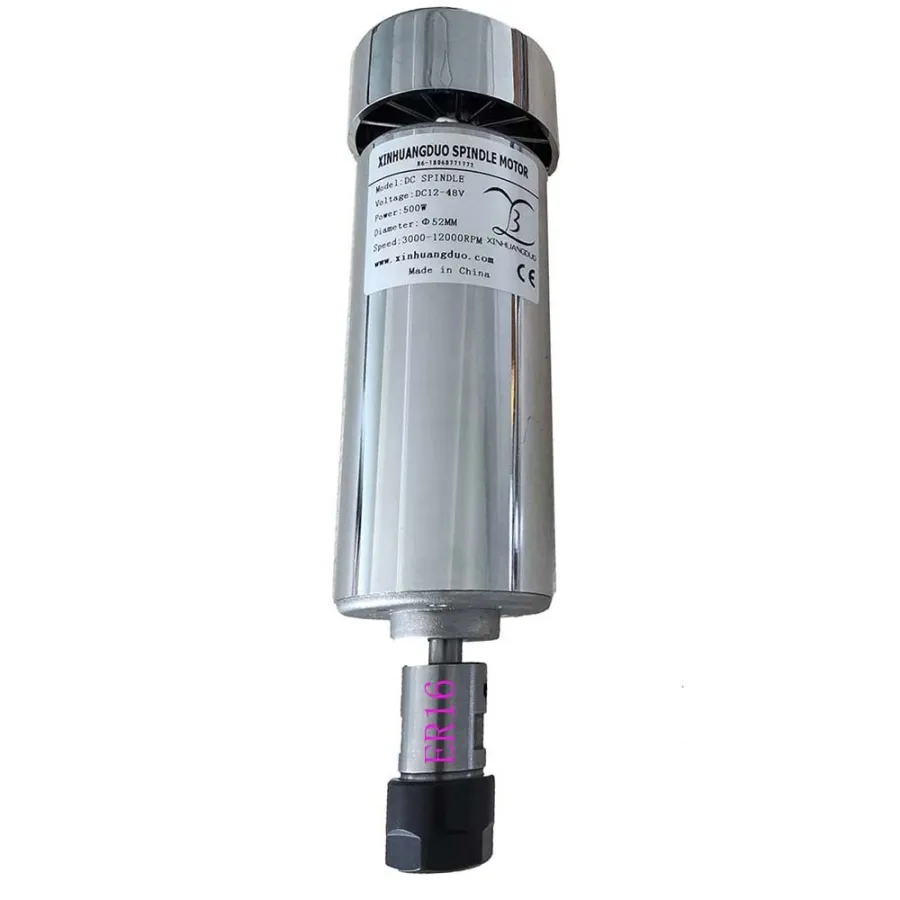

1PCS 500w spindle motor
Feature:
Spindle motor: new DC motor
Condition:NEW
Working voltage :48VDC
Power: 500W
Speed :12000RPM
Torque:550mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm

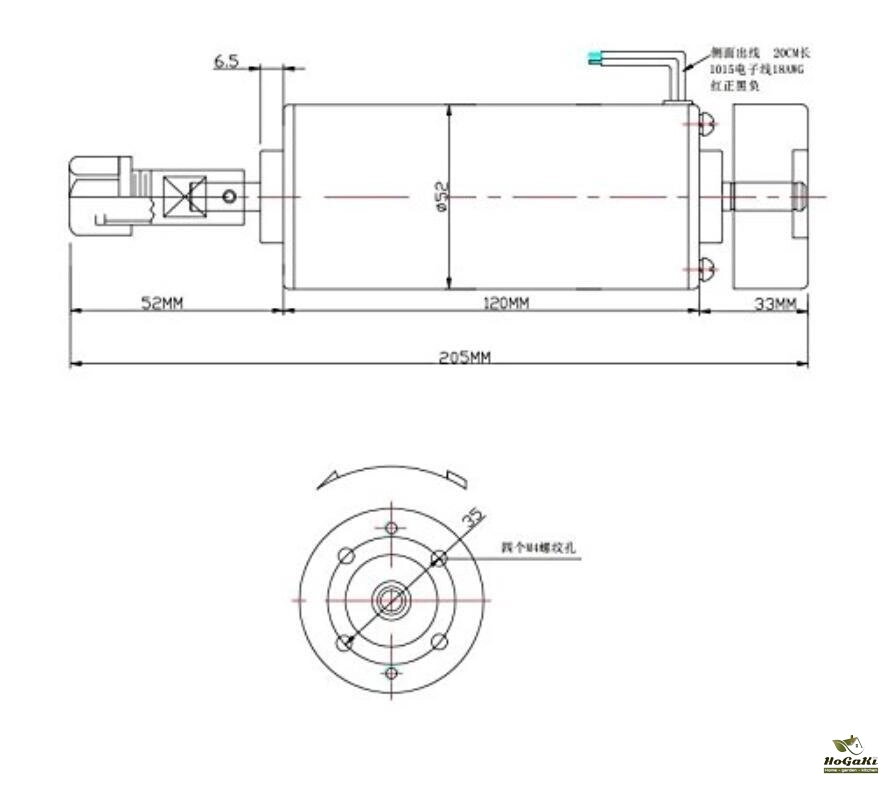

Motor length: 203mm (including gripping parts and motor)
Spindle runout of about :0.01-0.03.
Can be used for engraving metal or non-metal and other materials.
Spindle radial runout is about 0.01-0.03.
Shipping
Prepare package: We will ship out the items within 1~2 working days after the payment confirmed by Hogaki. We will inform you if we need more time to prepare the items.
Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed.
Payment
We accept credit card,bank TT,western union etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility
Contact us
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again
Customer’s satisfaction is very important to us
Packaging Details
- Unit Type:
- Package Weight: 1.001
- Package Size: 15x10x25
- Brand Name: XINHUANGDUO
- Origin: Mainland China
- Hign-concerned Chemical: None
- Operating Speed: 3000-12000r/min
- Certification: CE
- Application: Milling
- Drive: Motor
- Model Number: 200W 300W 400W 500W
- Maximum Torque: 300mN.m
