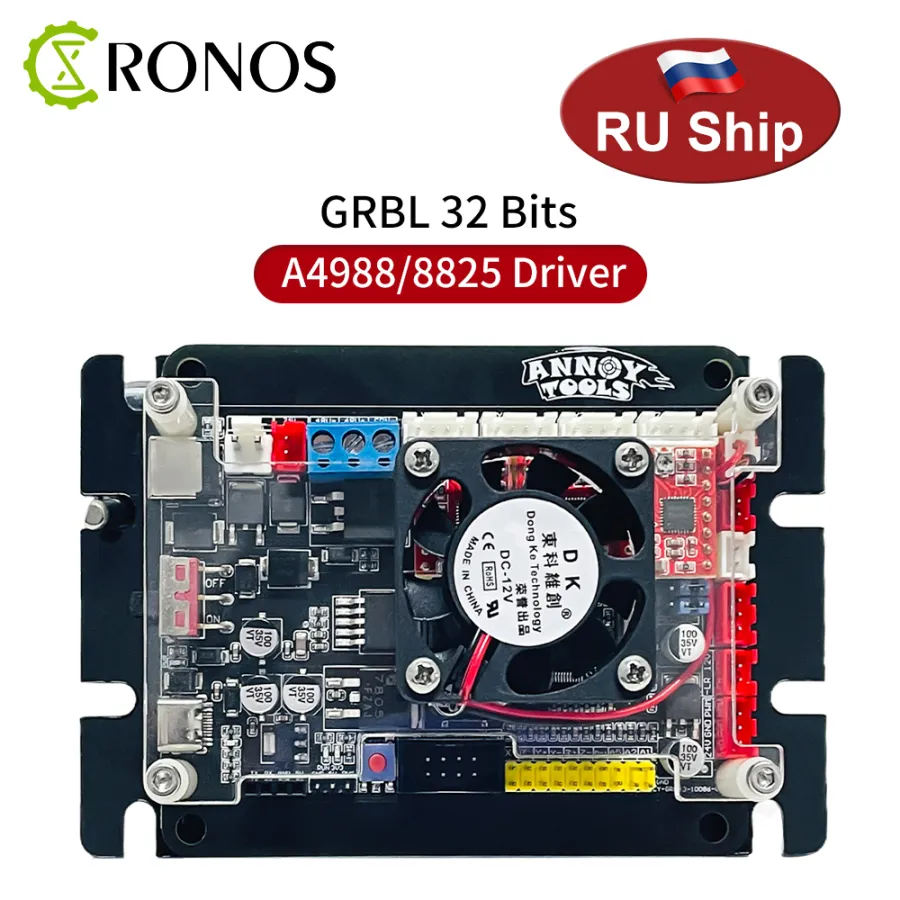

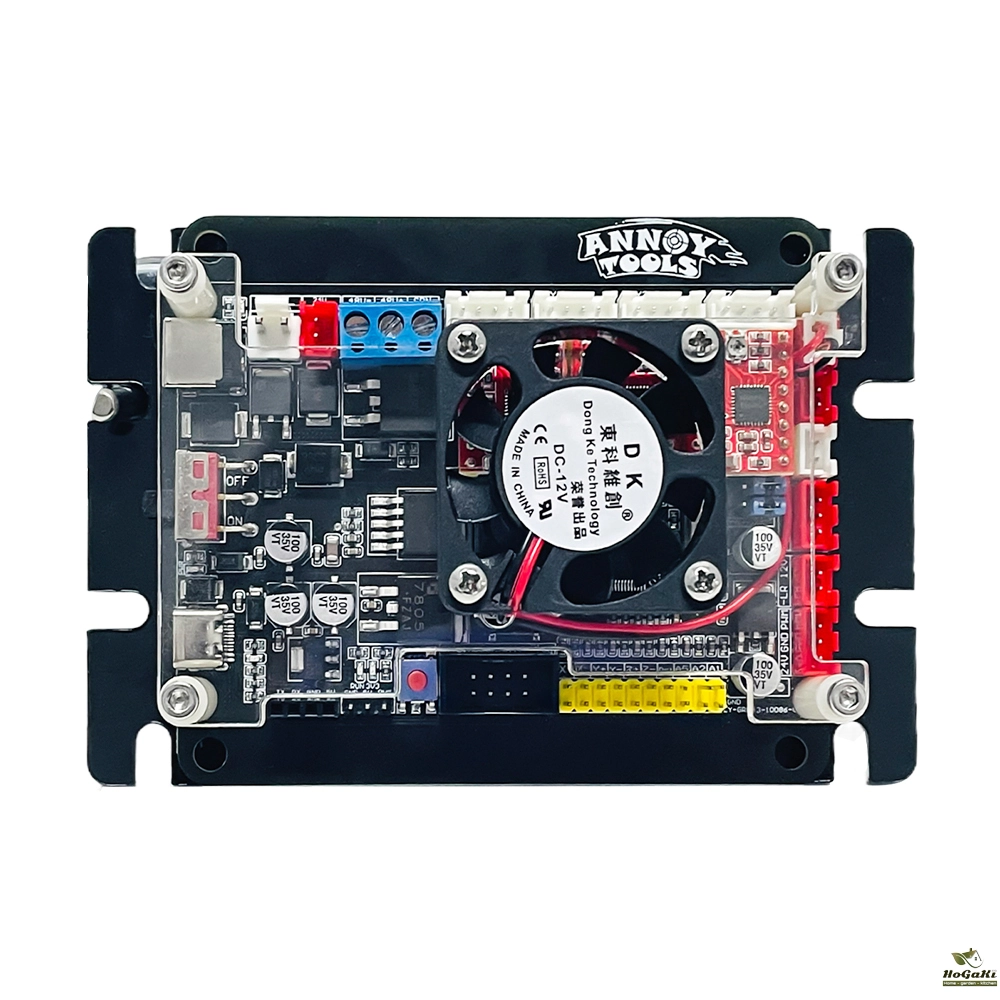

32-Bit Motherboard 2 Axis 3 Axis Control Board GRBL CNC Controller TTL PWM Signal Laser Engraver 3D Print Support Limit/Offline
ID: 154047

32-Bit Motherboard 2 Axis 3 Axis Control Board GRBL CNC Controller TTL PWM Signal Laser Engraver 3D Print Support Limit/Offline

4.0 (2 votes) | 22 orders
Price: US $110.37 - 200.05
Discount Price:
US $ 75.17 - 136.35
-32%
Quantity

Buy Now
Add to Cart

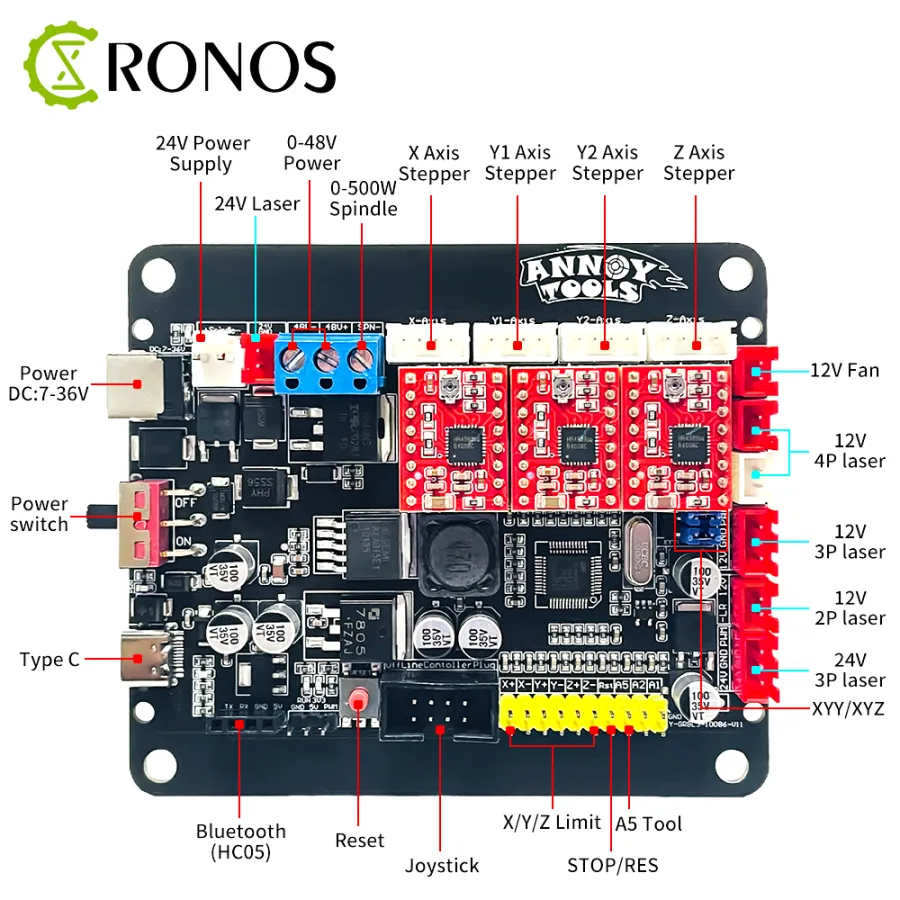

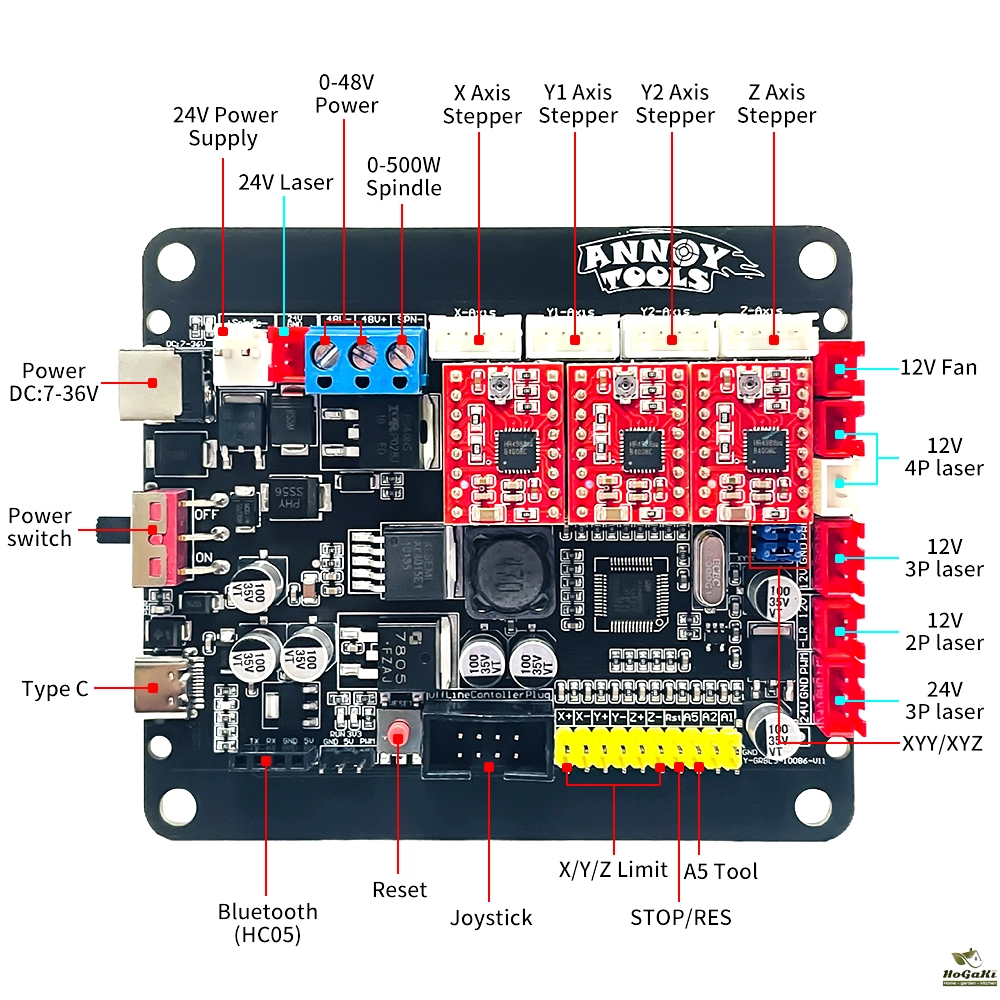

  • GRBL 32-bit, stable performance, faster speed and higher accuracy

  • Double y-axis, all-round use,XYZ or XYY.

  • Stepper drive setup subdivision.

  • Integrated 3 A4988/8825 drivers, directly connect to four wire stepper motor.

  • Support Laser or Spindle.

  • Support 24V,12V, 5V with TTL and without TTL laser.

  • Adjustable driver subdivision.

  • Support the xyz limit switch, probe interface.

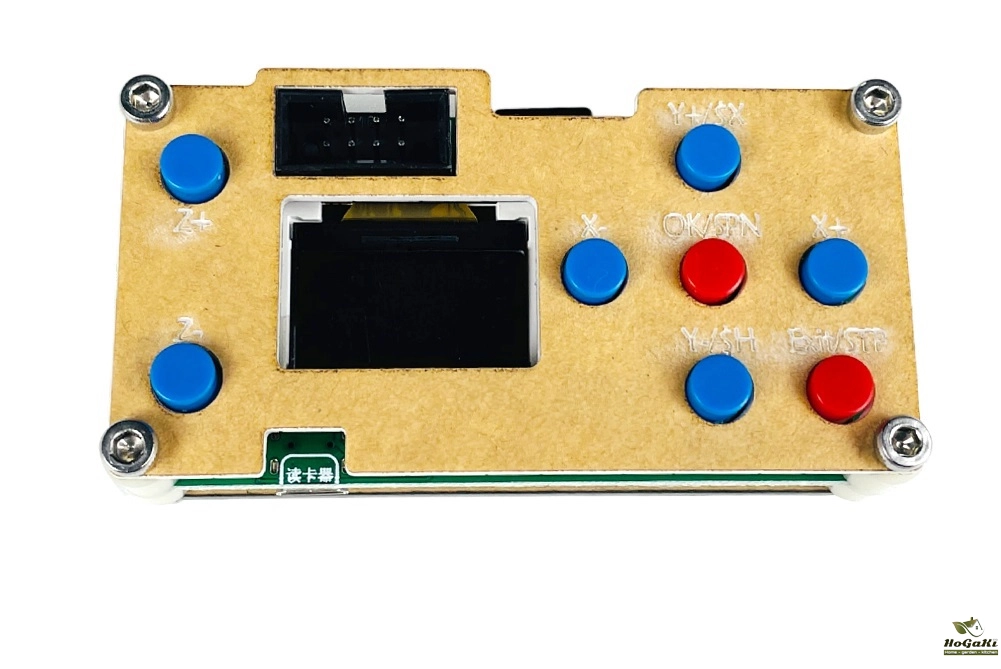

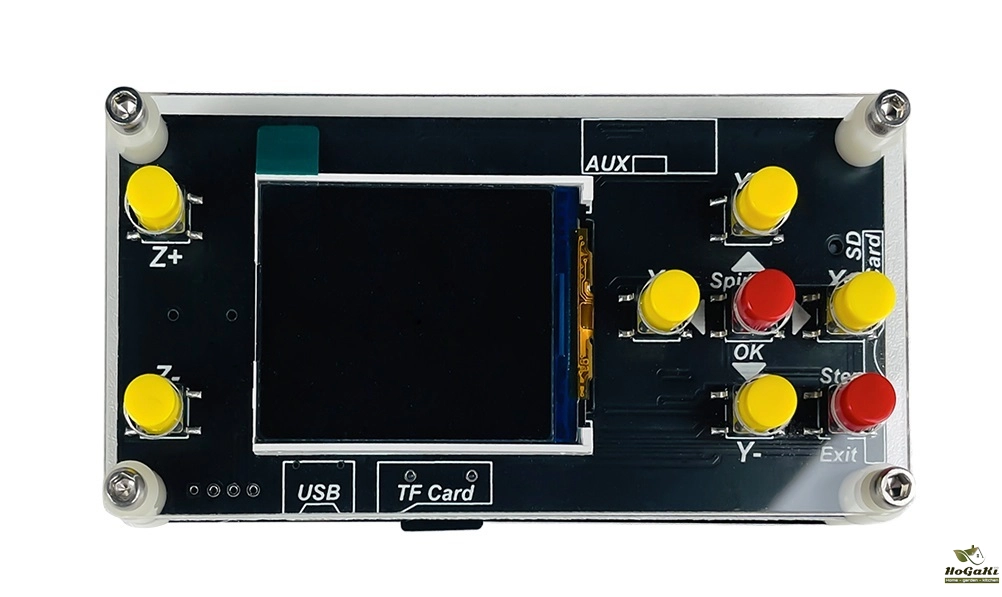

  • Support external Offline Controller(Optional).

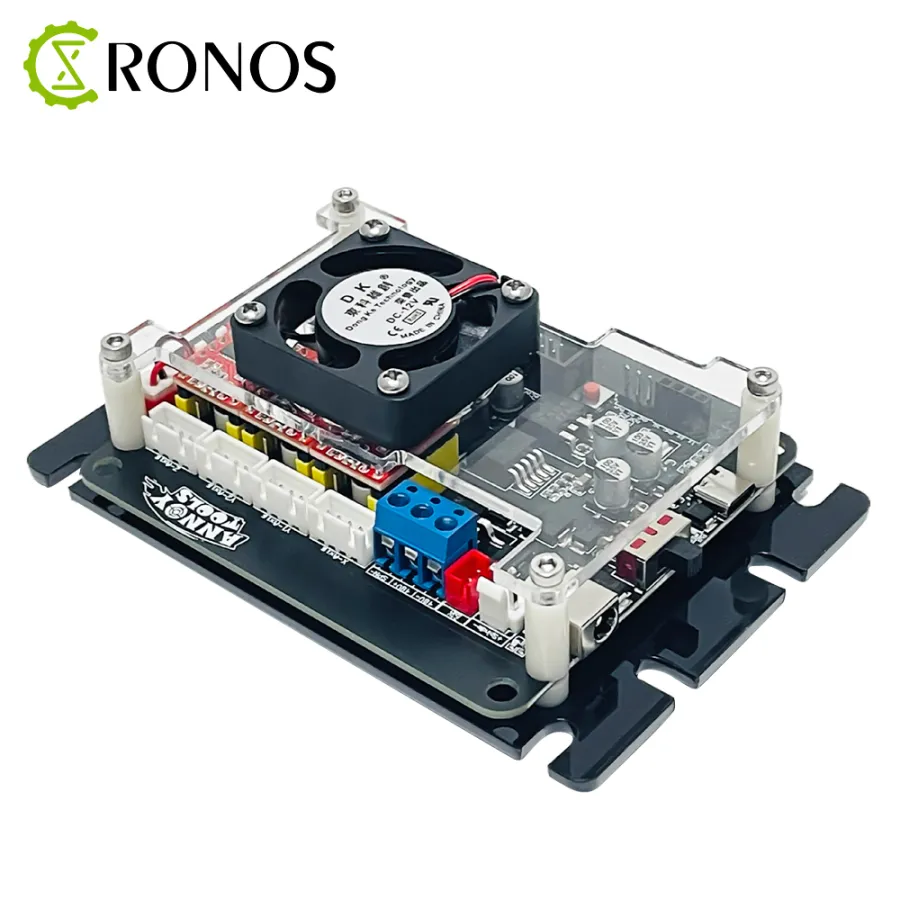

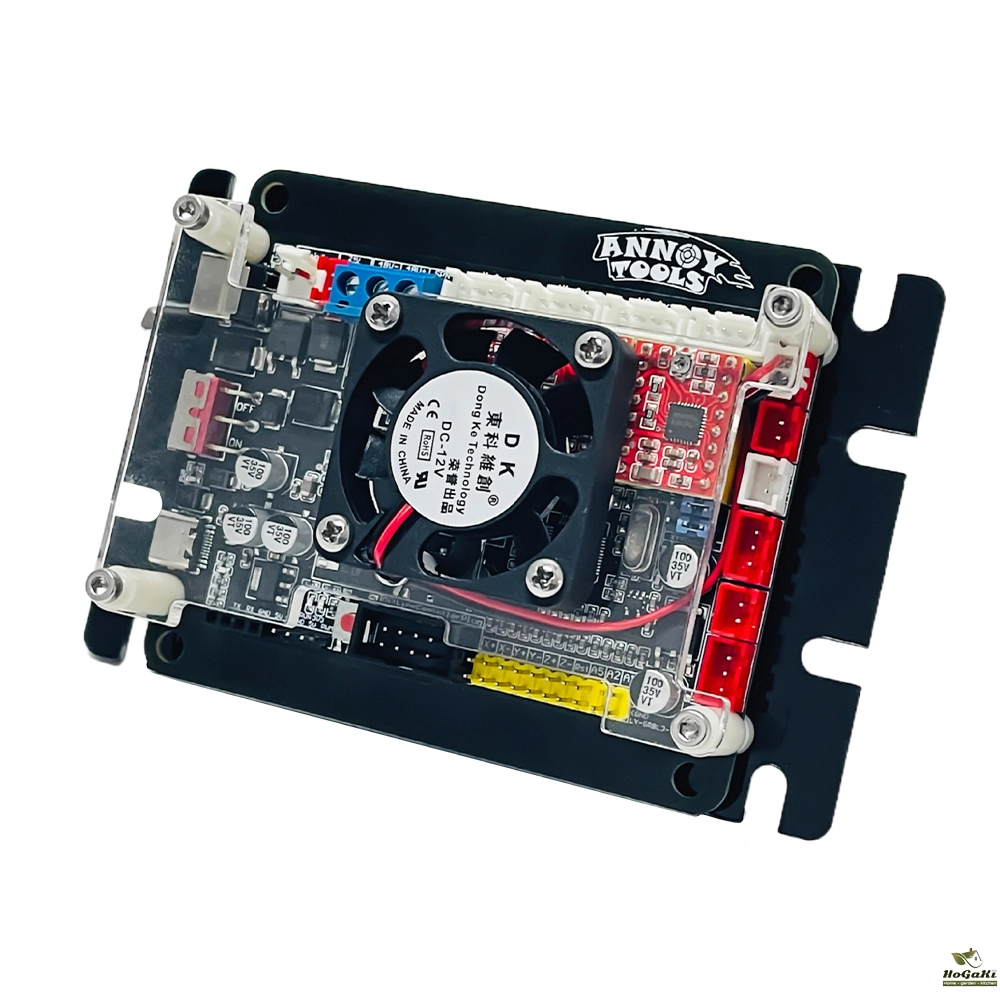

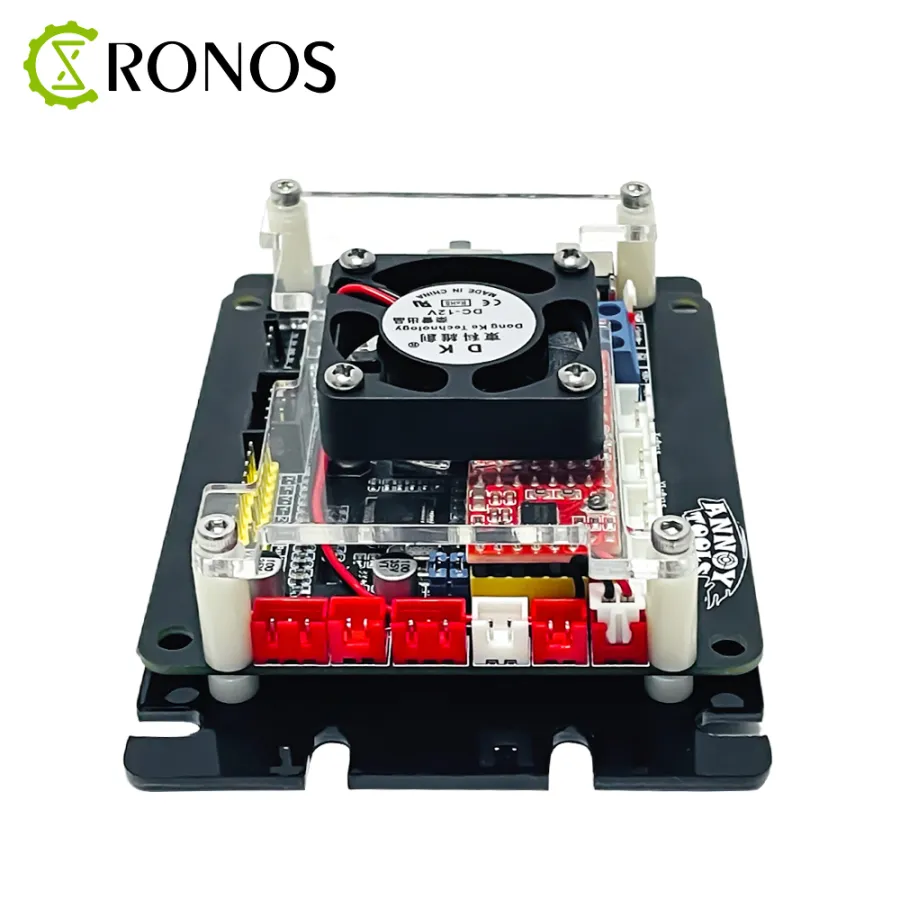

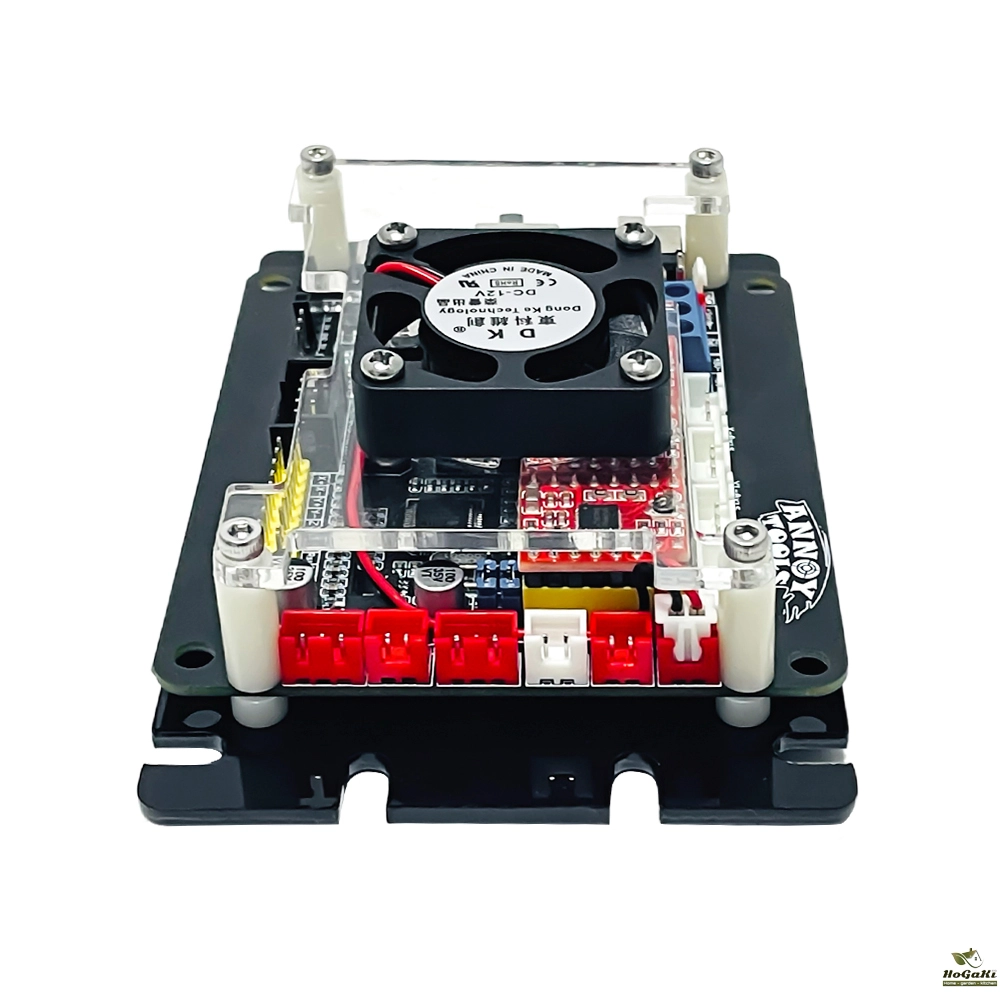

  • Add Fan and Control Board Shell

Noties:

  • Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.

  • Please note the positive and negative poles, make the right connection.It's not seller's responsibility if the fault was from this.

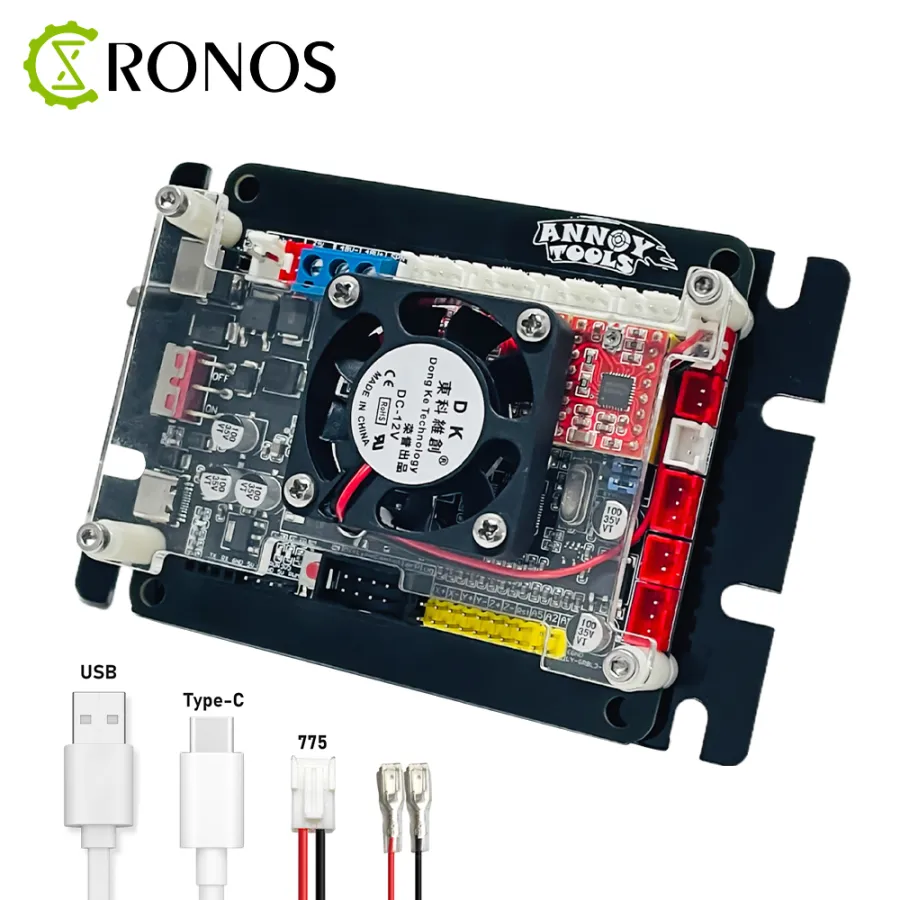

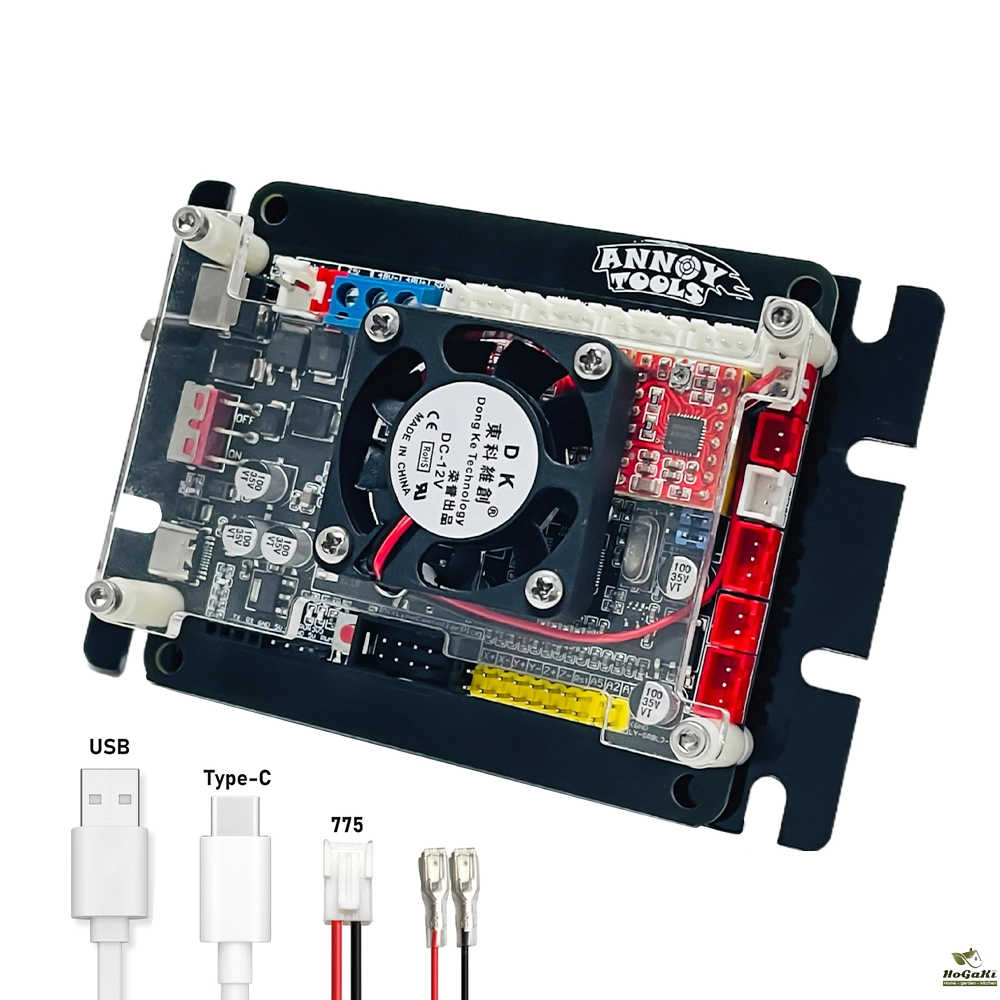

  • 1*Control board
  • 1*USB Data line (Type C)
  • 1*775 Motor Cable

A4988 Driver:

  • 1. Suitable for driving stepper motors below 8V~35V 2A;
  • 2. Only simple step and direction control interface;
  • 3. Five different stepping modes: full, half, 1/4, 1/8 and 1/16;
  • 4. The adjustable potentiometer can adjust the maximum current output, so as to obtain a higher step rate;
  • 5. Automatic current decay mode detection/selection;
  • 6. Overheat shutdown circuit, under voltage lockout, cross current protection;
  • 7. Grounding short-circuit protection and loading short-circuit protection

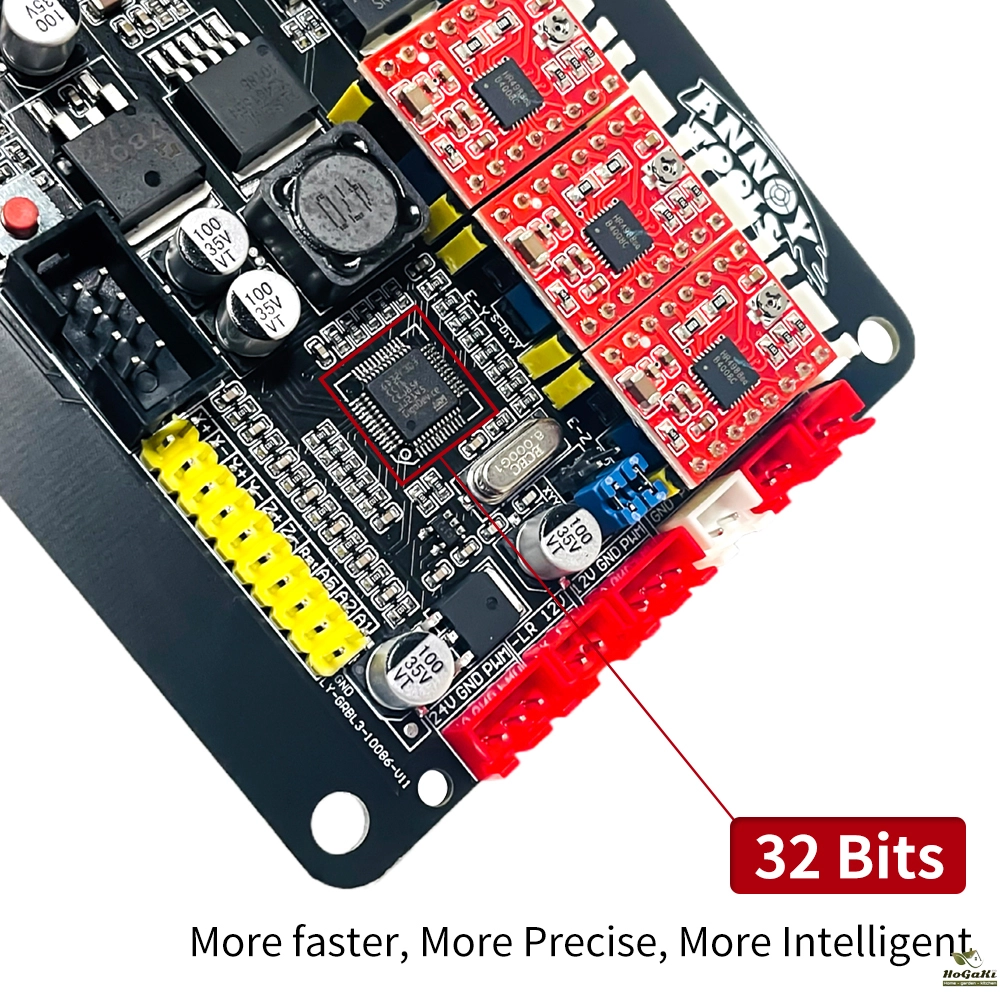

GRBL 32-bit chip technology:

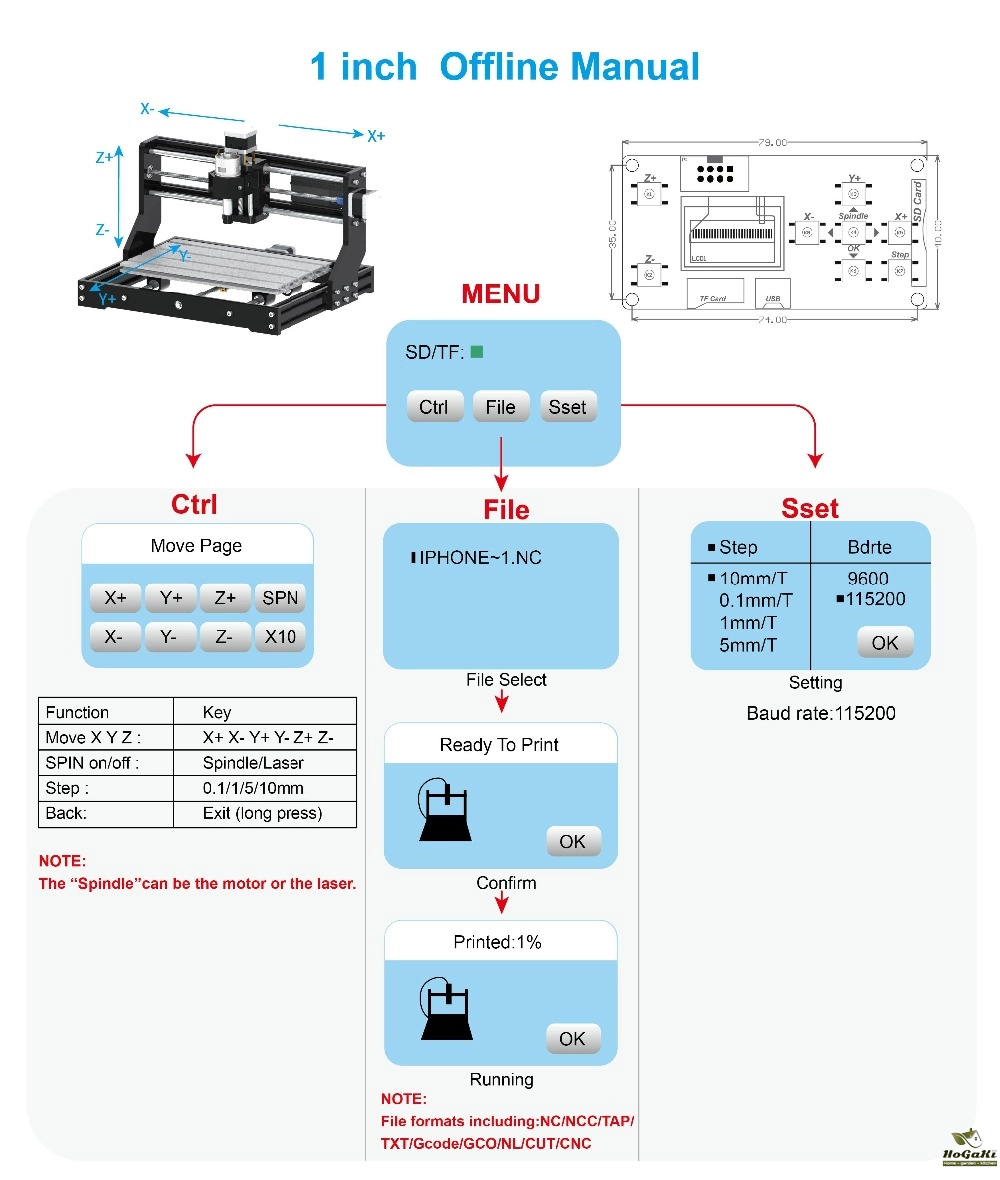

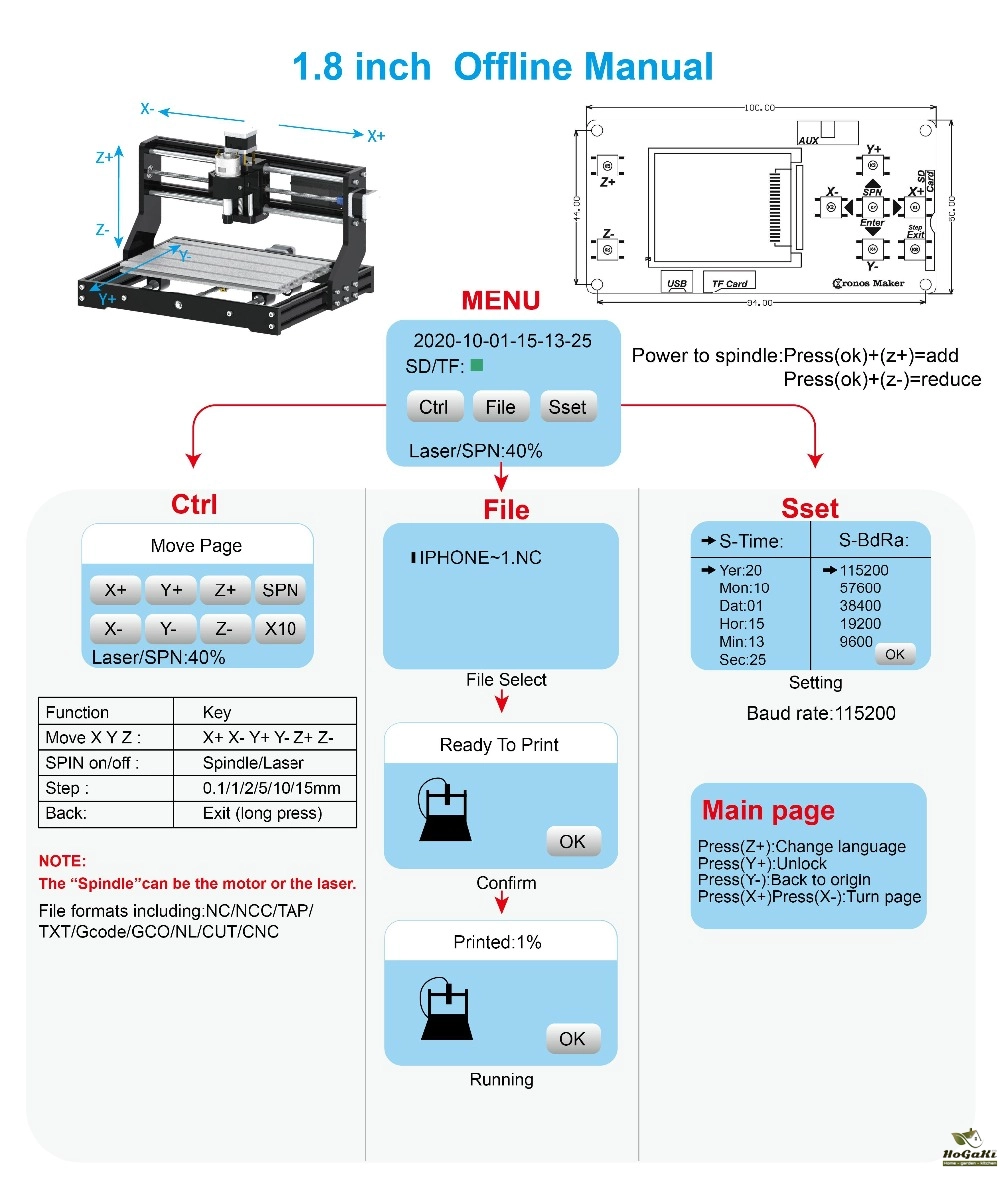

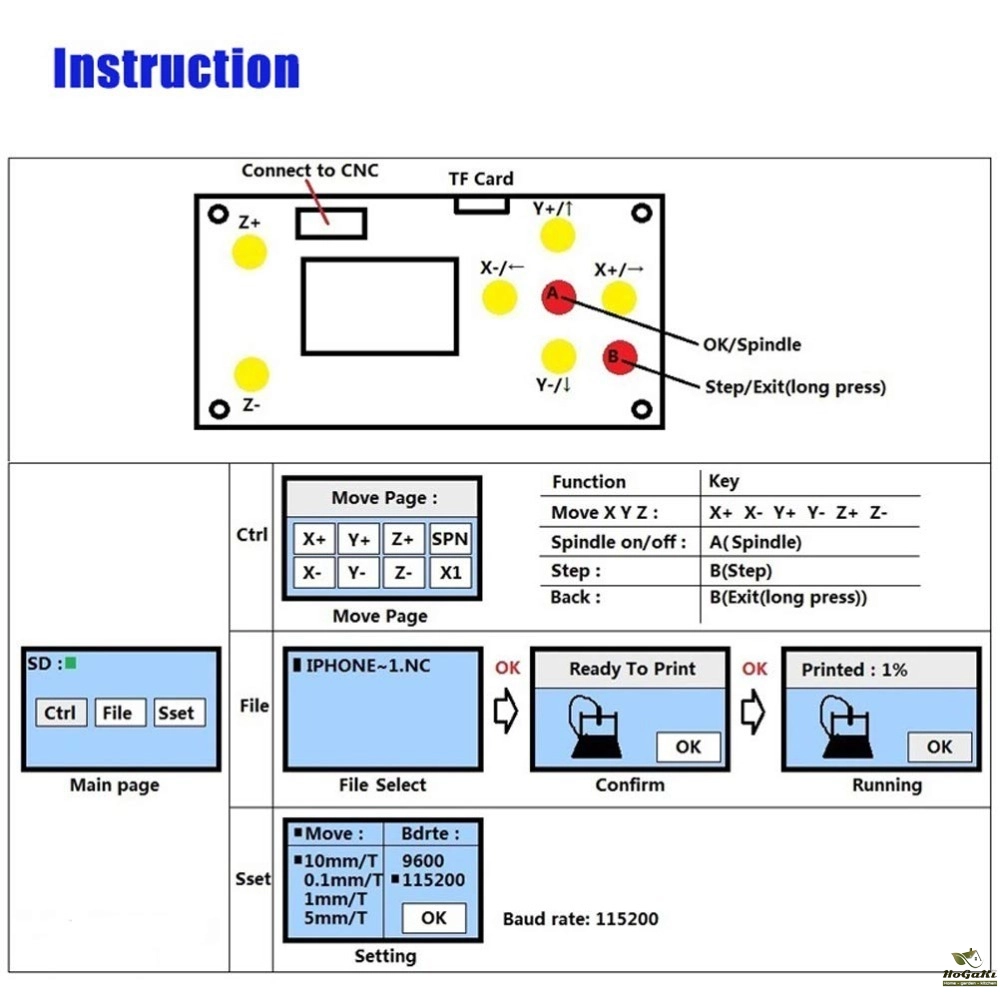

With Offline:

Chinese and English system：long press Z+ on the homepage to switch between Chinese and English！



Packaging Details

  • Unit Type:
  • Package Weight: 0.500
  • Package Size: 15x10x10

  • Brand Name: CRONOS
  • Origin: Mainland China
  • Is Smart Device: Yes
  • Certification: None
  • Application: Milling Machine
  • Model Number: 2 Axis/3 Axis
