1. Product Introduction:

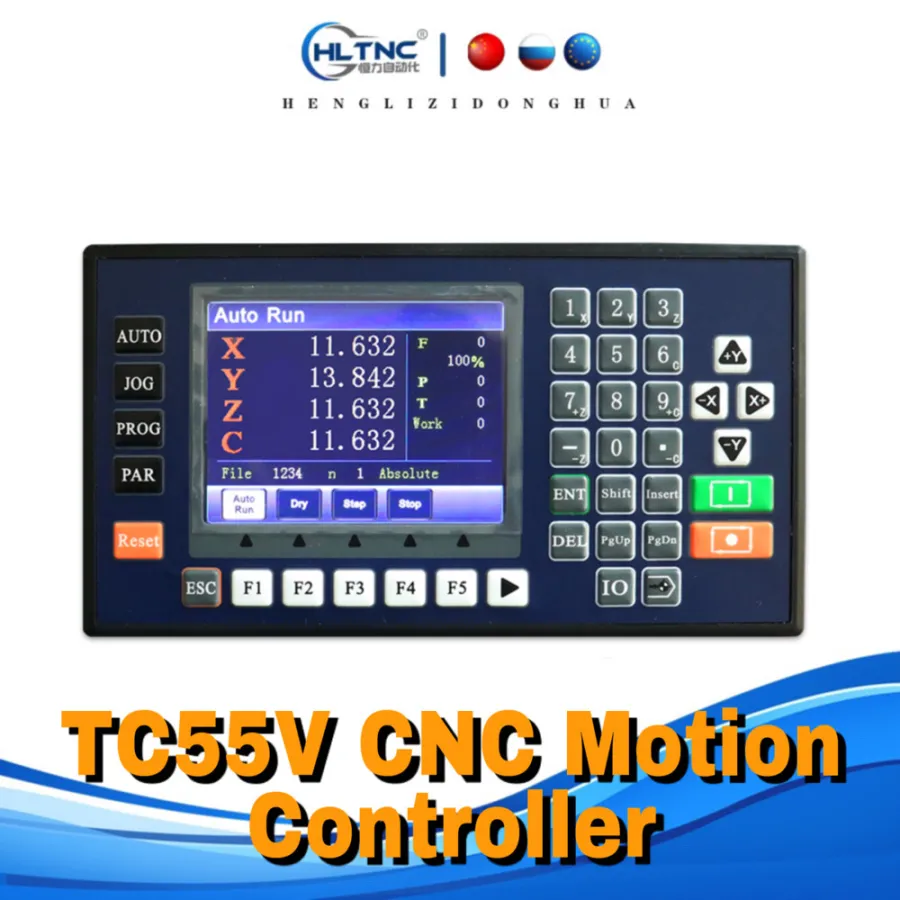

TC55V is an upgrading version of TC55. It is equipped with 3.5 inch color screen, RS 485
communication, Chinese/English Switch, and USB connection. Boot picture can be set as pictures
or company name as you will. It is highly reliable, highly accurate, low noise and easy to use.
Click here to get the electronic manual.
Click here to get the electronic manual.
2. Technical Specifications:
Model: TC55V
Minimum data unit 0.001 mm
Maximum data size ± 99999.999mm
Maximum Speed: 9000mm/min (pulse is 0.001mm)
Maximum pulse output frequency 150KHz
Axis 1-4 (X,Y, Z,C)
X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation.
Electric Gear: numerator :1-99999 denominator: 1-99999

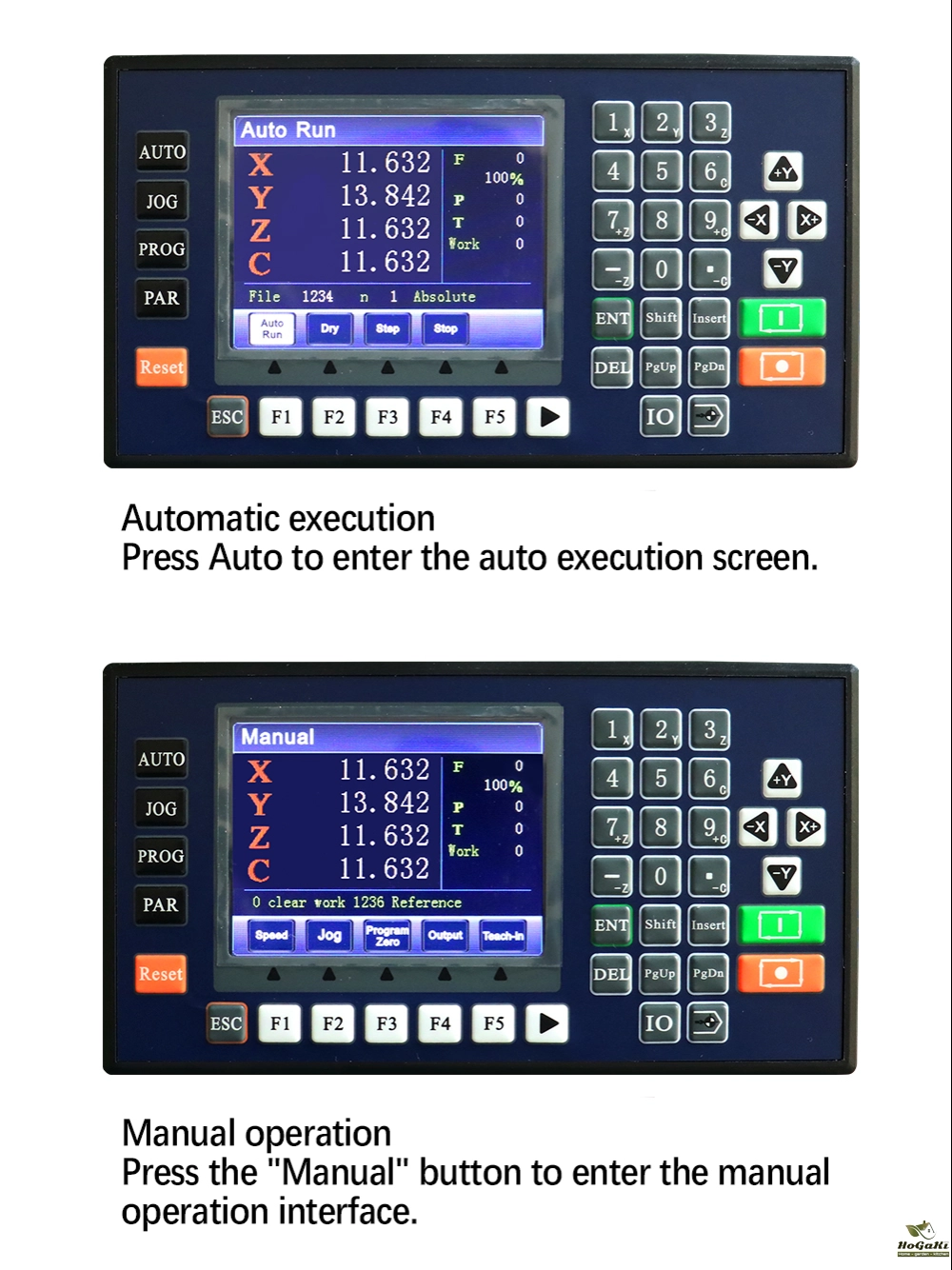

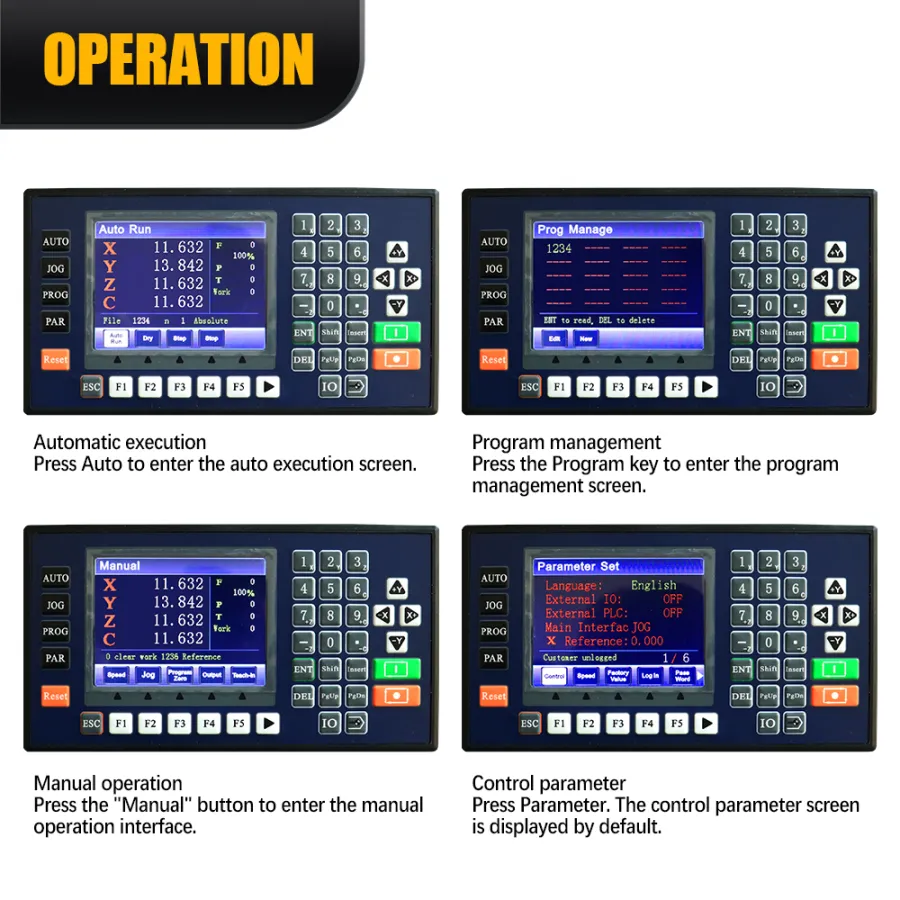

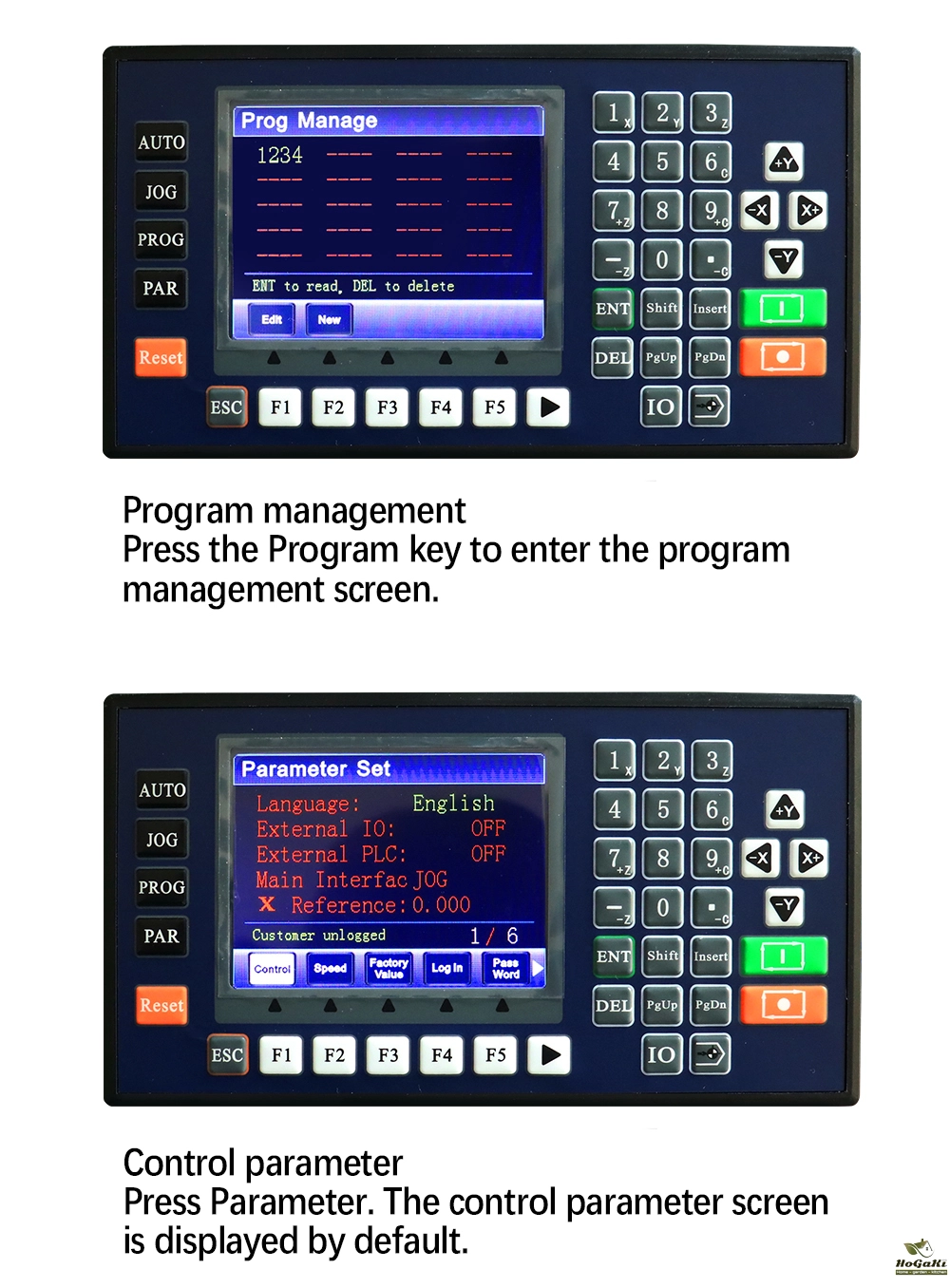

System main functions are automatic, manual, program editing, system parameters, self-check,
settings, etc.
Maximum 480 commands each program

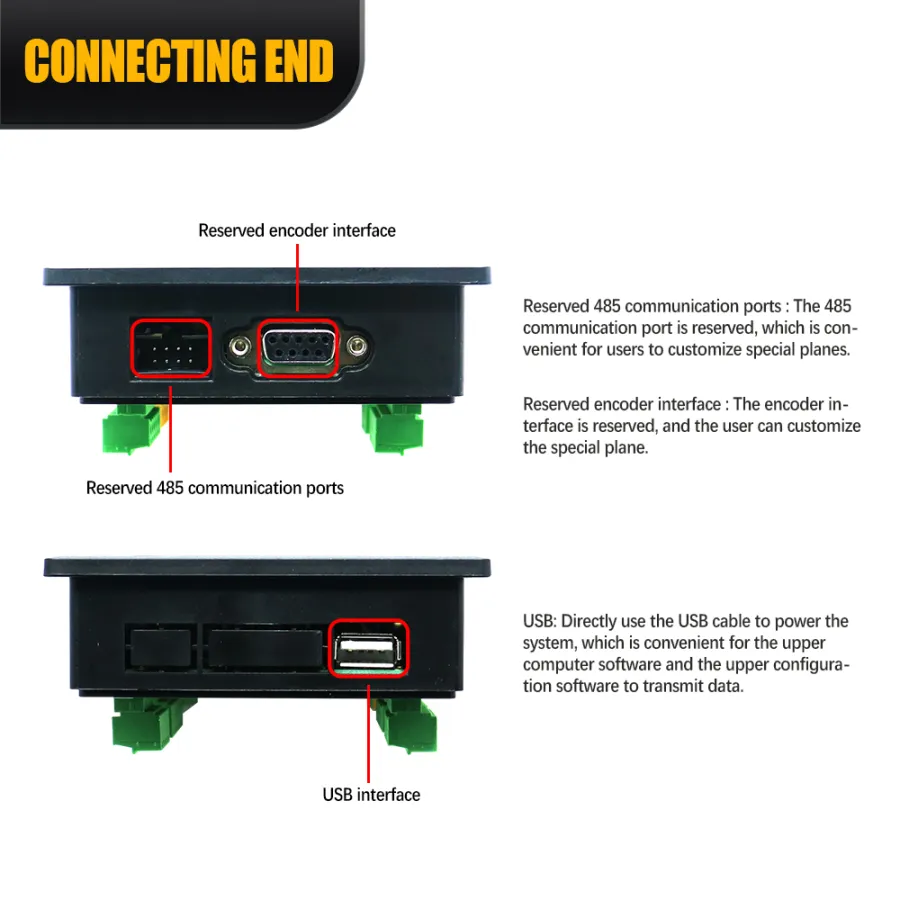

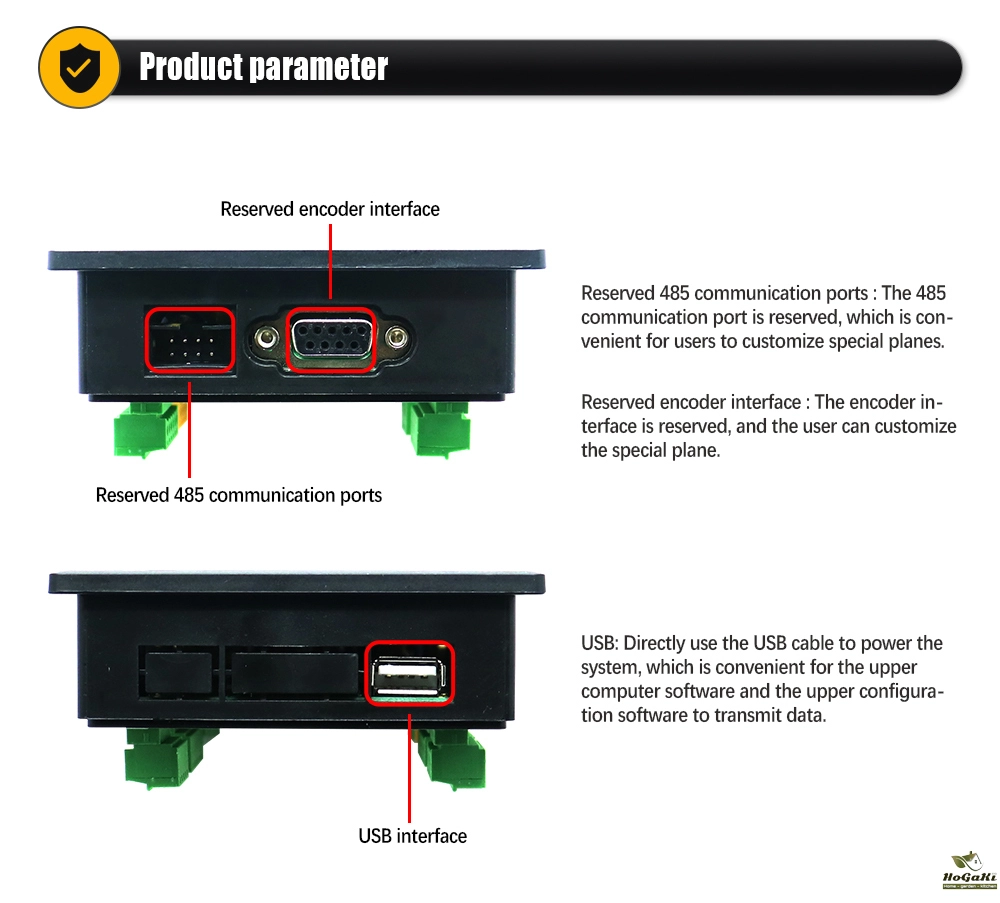

USB Connection and upgrade
Stop and Start of Spindle motor
PLC Extension
I/O Extension
16 channel 24V(photoelectric isolating) Input
8 channel 24V(Single channel 500mA) Output
8 channel 24V(Single channel 500mA) Output
Self defining of I/O port
Chinese/English panel display
Free boot picture setting
3. Programming Function Introduction:
Programming Code | Interpretation |
Incremental | Incremental Programming |
Absolute | Absolute Programming |
Pause | Pause unless certain condition is met, then skip to command called |
Output | Define on and off of output port, ex. Stop and start of spindle motor |
Repeat | Go back to command called and repeat |
Clockwise | Clockwise circular interpolation (Incremental programming) |
Counter-clockwise | Counter Clockwise interpolation(Incremental programming) |
Delay | Define the time of delay |
Judge | Judge if certain condition is met and skip to command called |
More functions | Please read the manual: click to view |
Packaging Details
- Unit Type:
- Package Weight: 0.480
- Package Size: 10x10x20
- 1 Axis: TC5510V
- 2 Axis: TC5520V
- 3 Axis: TC5530V
- 4 Axis: TC5540V
- input/output: 24v
- power: 24V dual power isolated power supply
- panel: 3.5-inch color LCD screen with a resolution of 320 * 240
- program: Maximum program lines 480
- Maximum pulse output frequency: 150khz
- Main functions of the system: automatic, manual, program, parameters, IO, etc
- rs485: controller stepper motor with rs485
- programmable: programmable motion controller
- Brand Name: HLTNC
- Model Number: TC55V
- Application: Milling Machine
- Origin: Mainland China
- Choice: yes
- semi_Choice: yes
