HLTNC DDCS V3.1 offline 3/4 Axis 500 Khz CNC Standalone Motion Controller System Support G code For Engraver Milling Router
4.9 (13 votes) | 63 orders
Price:
US $860.52 - 935.74
Discount Price:
US $
436.29 -
474.42
-49%

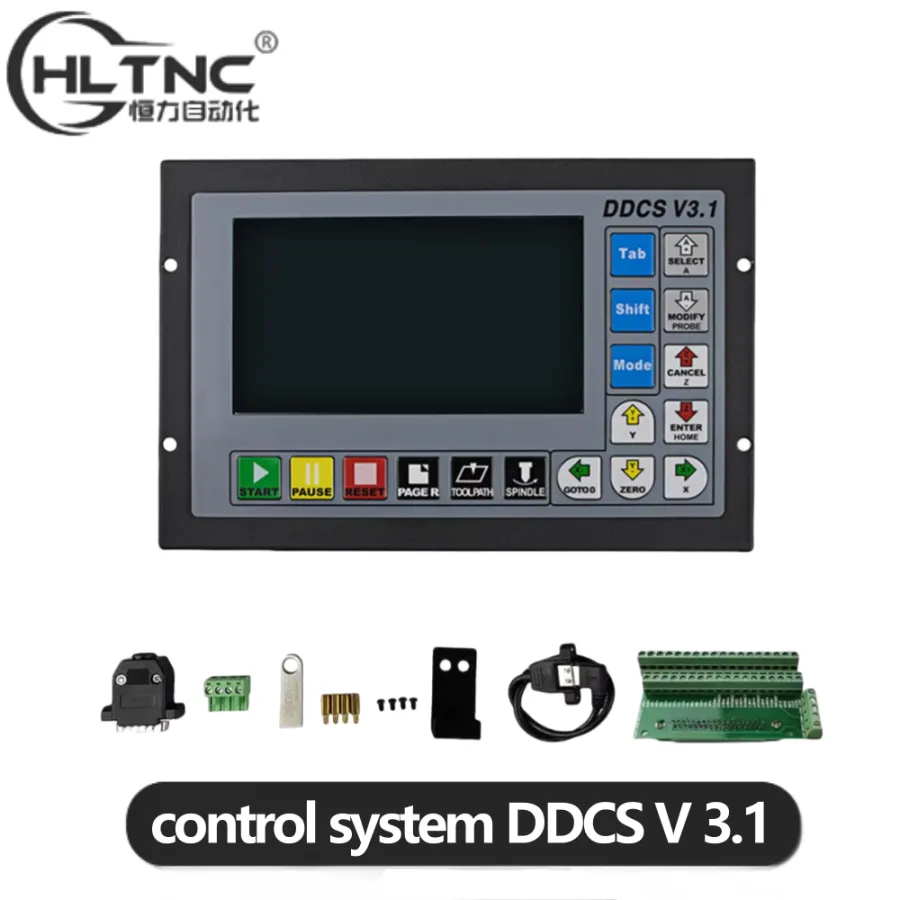

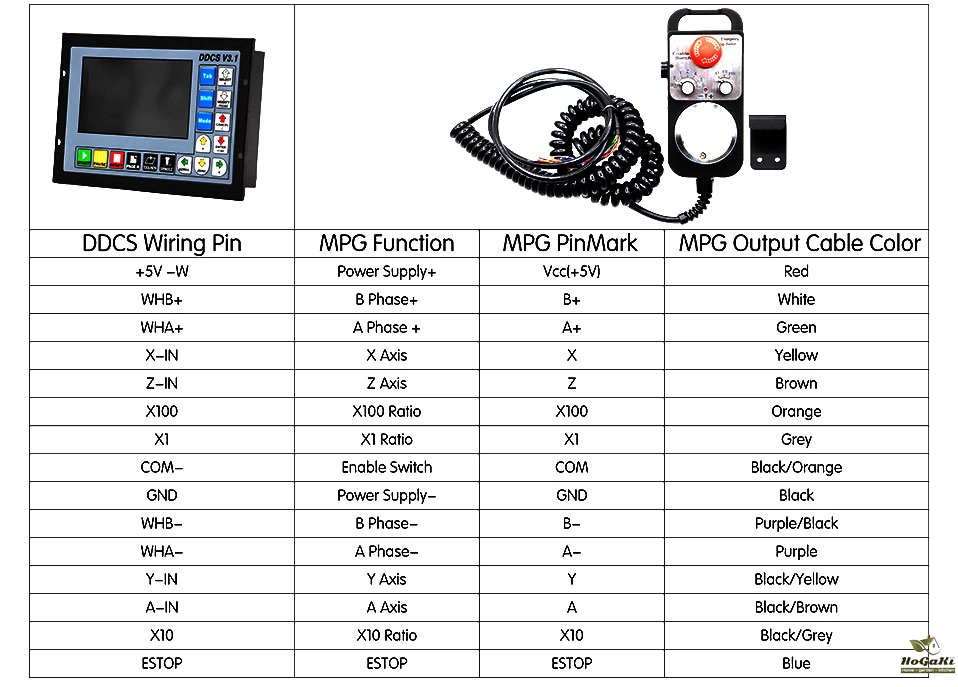

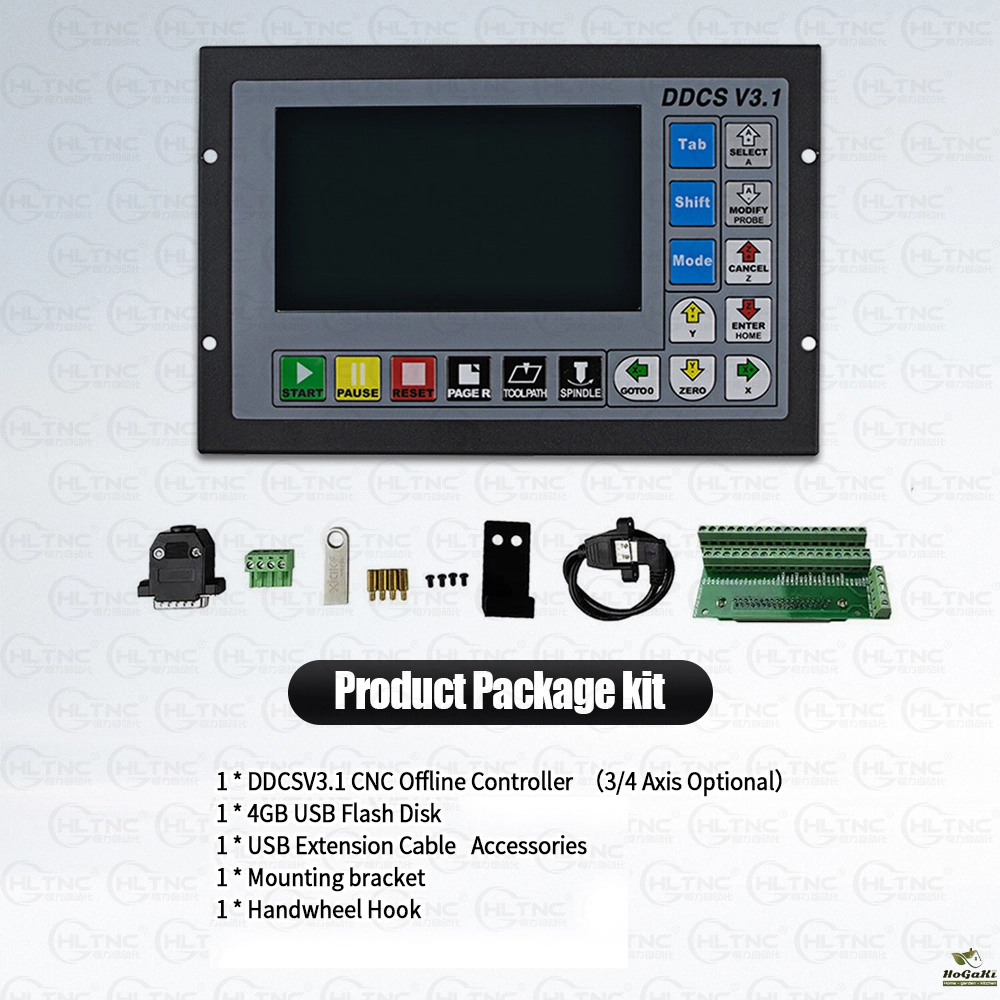

1 x Pendant Handwheel
1 x 3Axis or 4AxisCNC Motion controller
1 x 4GB USB Flash drive
1 x USBExtension Cable
Instructions will be sent to your mailbox
The DDCSV3.1 controller has a high-frequency rate of 500kHz, which means it can process commands quickly and accurately. It is a standalone controller, which means it can operate independently of a computer and can be used to control the CNC machine offline.

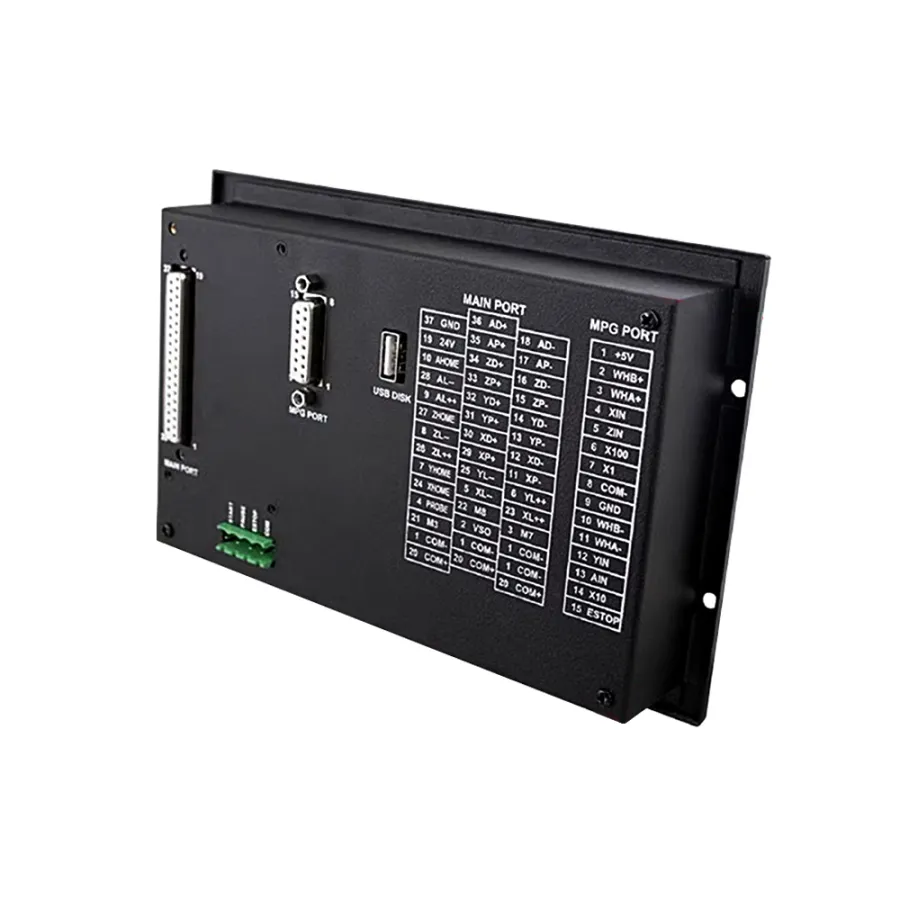

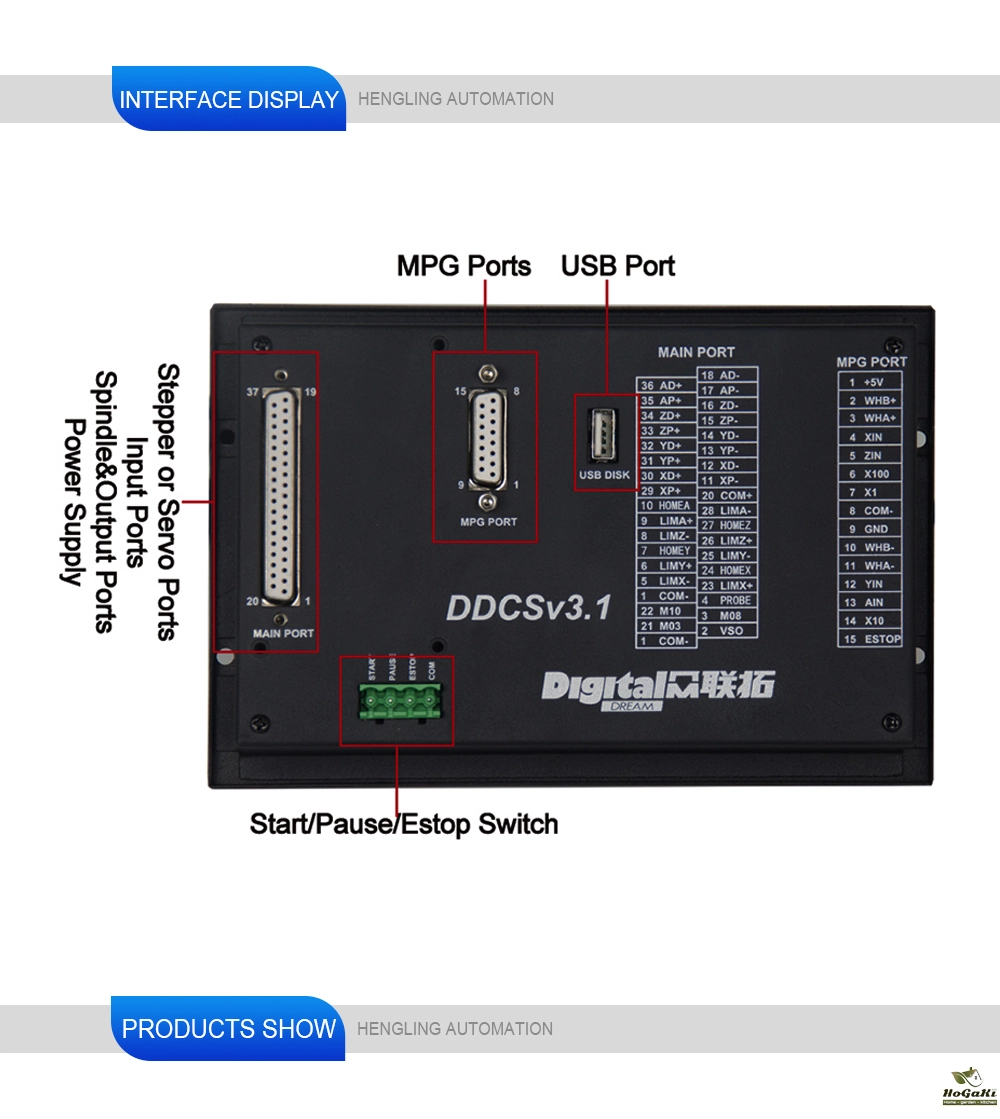

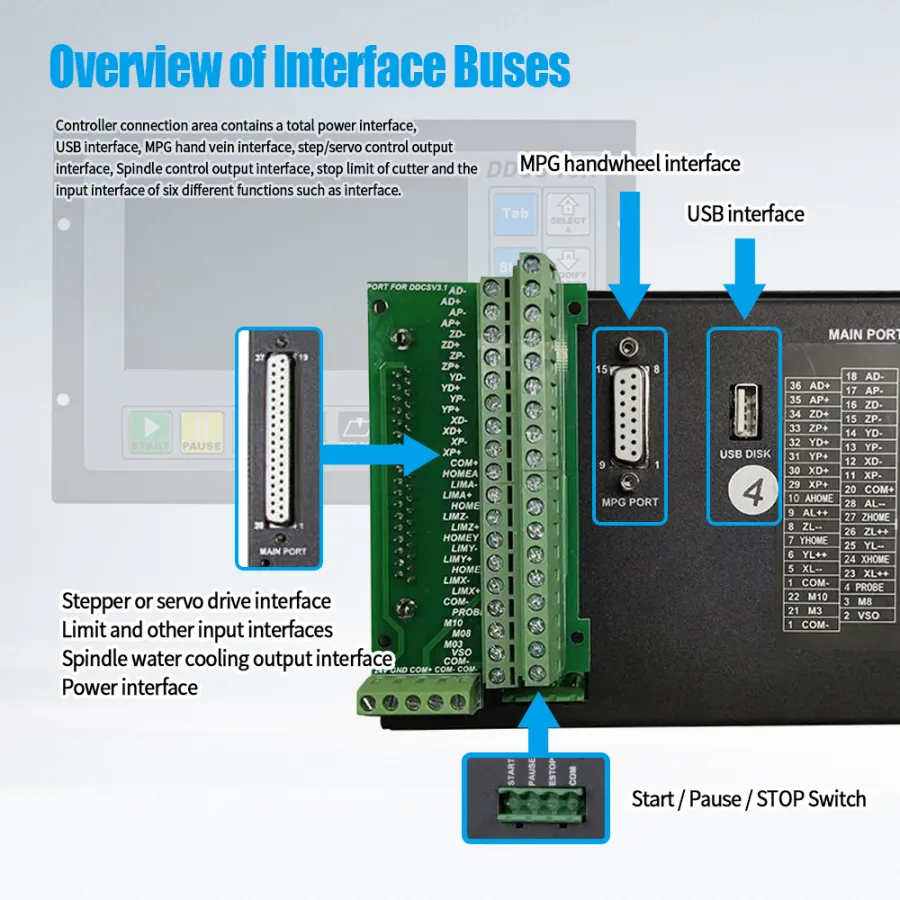

• 16 optoisolated digital inputs,3 optoisolated digital outputs; |
|
3/4 Axis 500Khz CNC Motion Controller DDCSV3.1 Offline Operate 1GB Internal G code Support USB Flash Disk for diy CNC machine
LYBGACNC Mach3 Offline Motion Controller Engraving Machine Controller CNC Machine Tool Control DDCSV3.1 updated from DDCSV2.1
DDCSV3.1 500KHz G-Code Offline Controller All Metal Cases Replace Mach3 USB CNC Controller

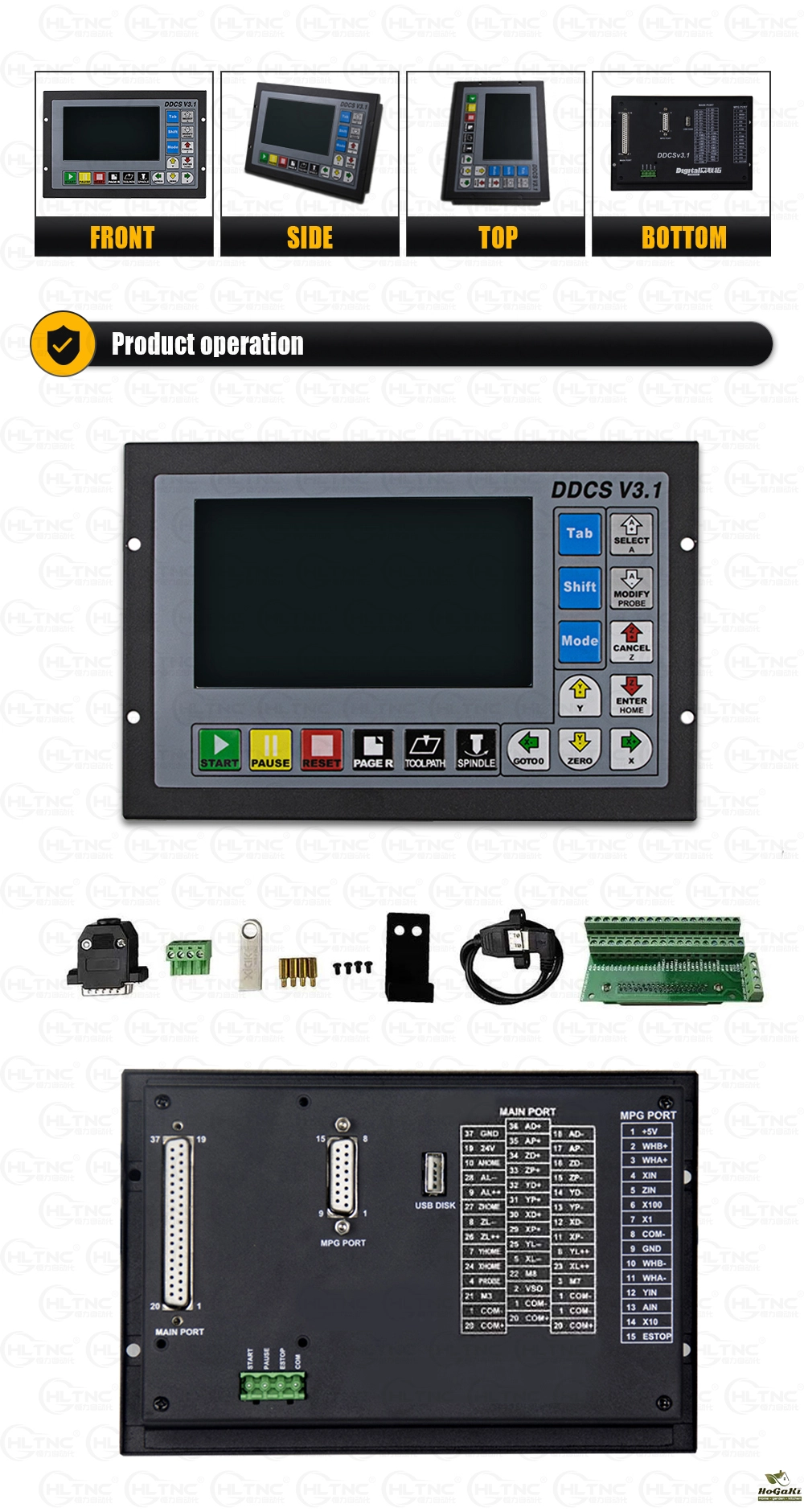

The DDCS V3.1 is updated from DDCS V2.1, which fix the bugs on software and hardare. DDCS V3.1 is a 4 axis motion controller for stepper and servo systems, the numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal
3/4 Axis 500Khz CNC Motion Controller Offline Operate 1GB Internal G code Support USB Flash Disk

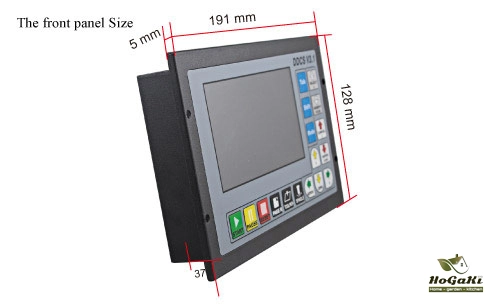

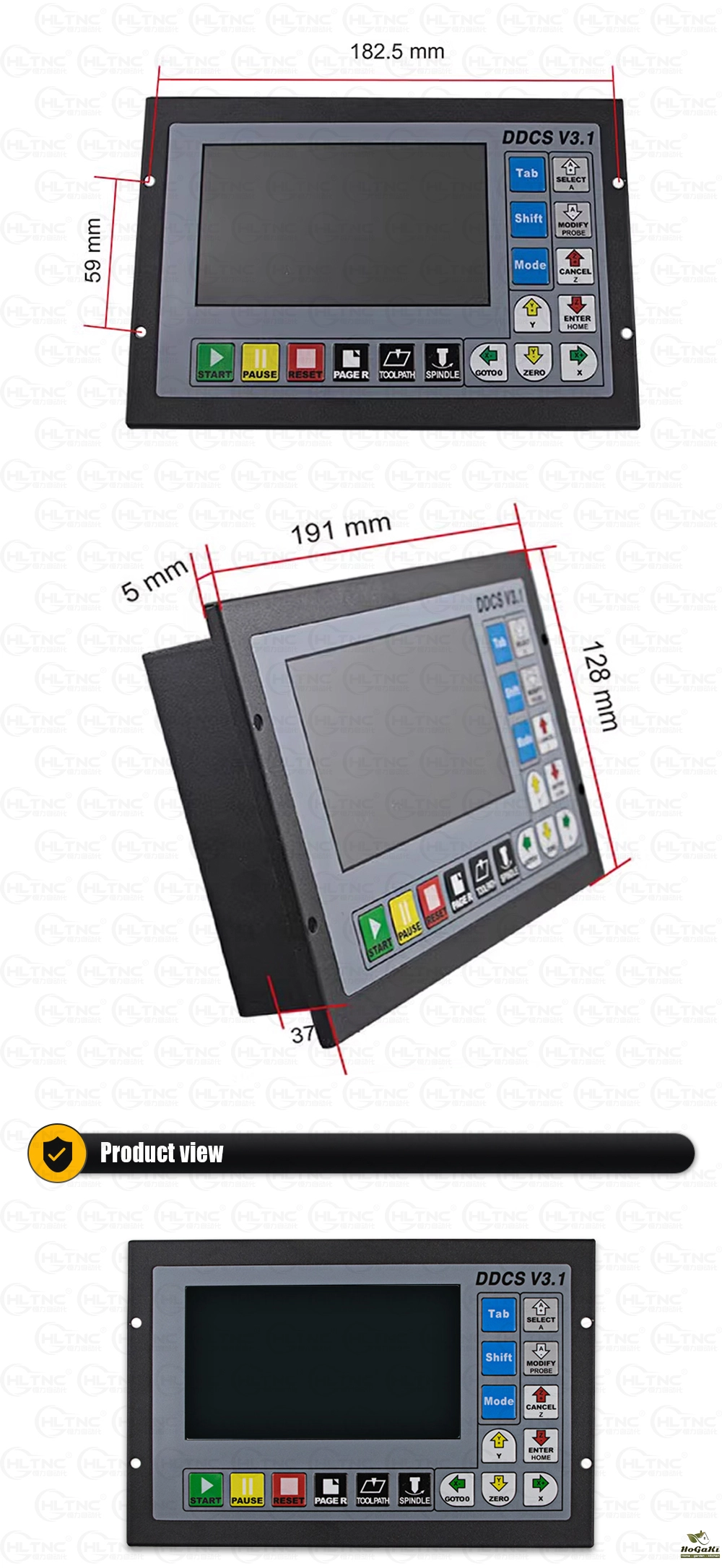

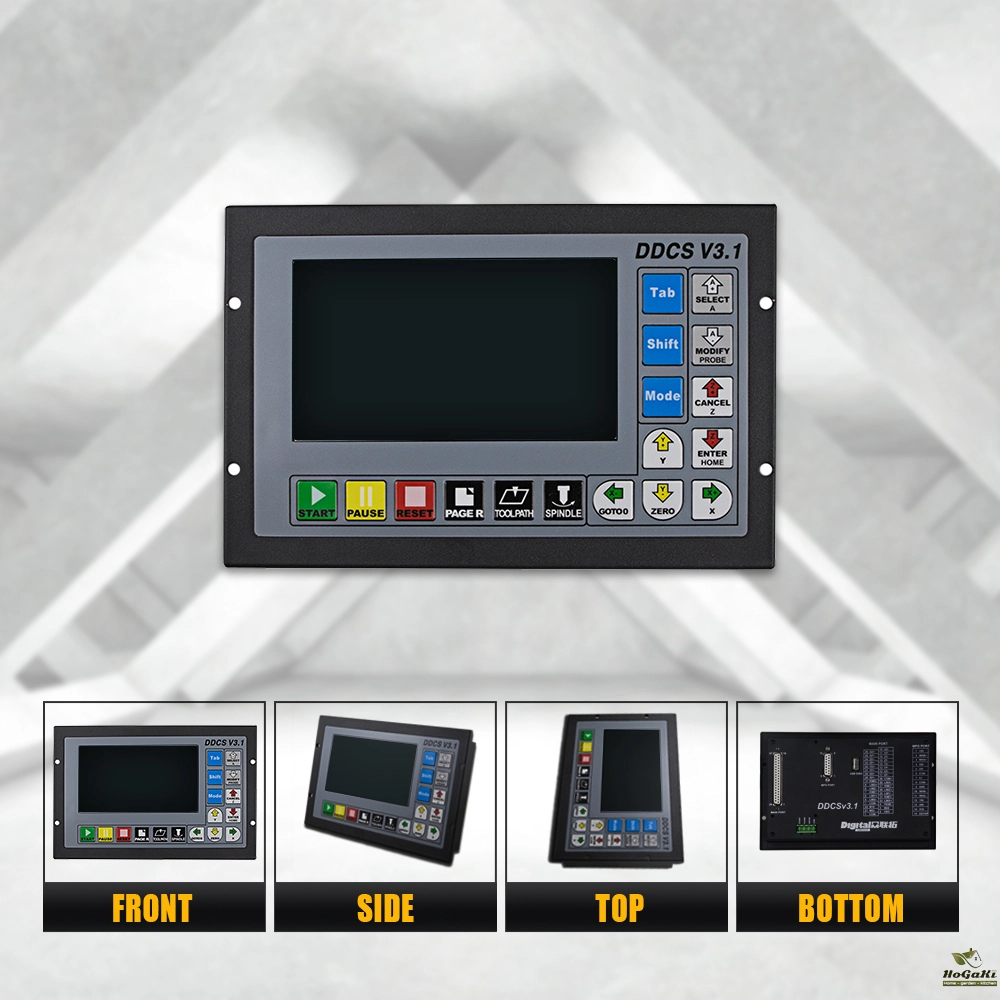

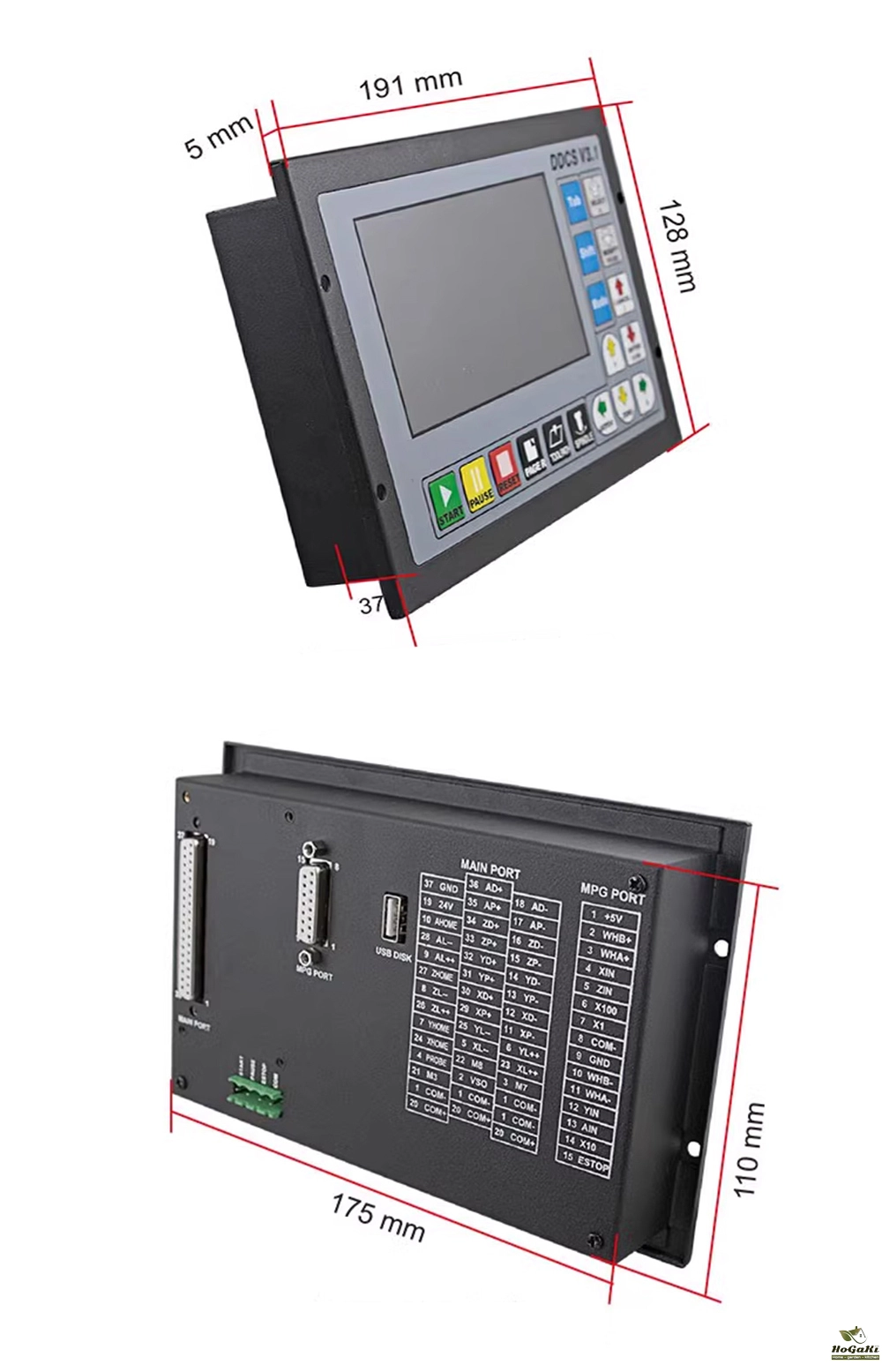

DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in picture 1-1 and picture 1-2.
The front panel is 191mm*128mm*5mm;
The main body is 191mm*128mm*37mm;

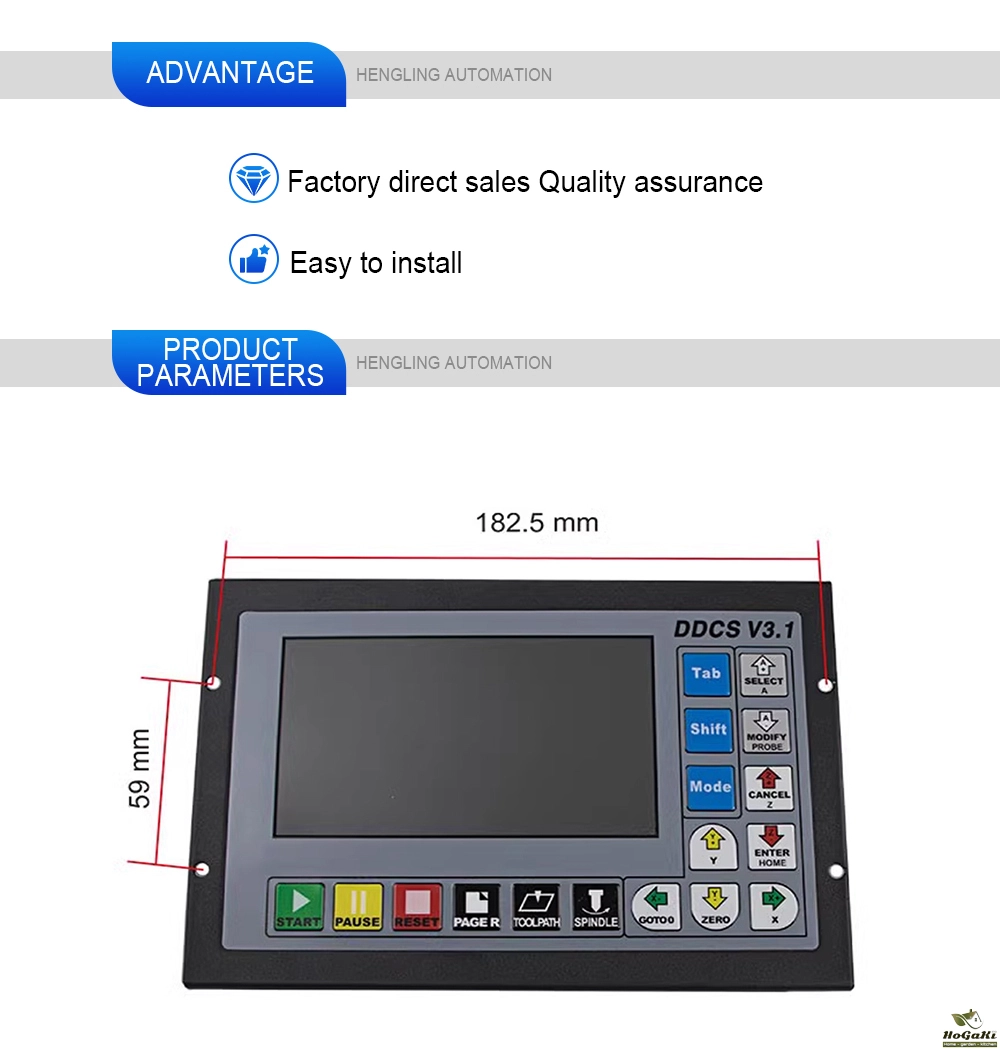

To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm
Key Highlights: |
|
Packaging Details
- Unit Type:
- Package Weight: 0.900
- Package Size: 10x20x10
- Brand Name: HLTNC
- Origin: Mainland China
- Hign-concerned Chemical: None
- Is Smart Device: No
- Certification: CE
- Certification: None
- Application: Milling Machine
- Model Number: DDCS V3.1
- output: 3 optoisolated digital outputs
- input: 16 optoisolated digital inputs

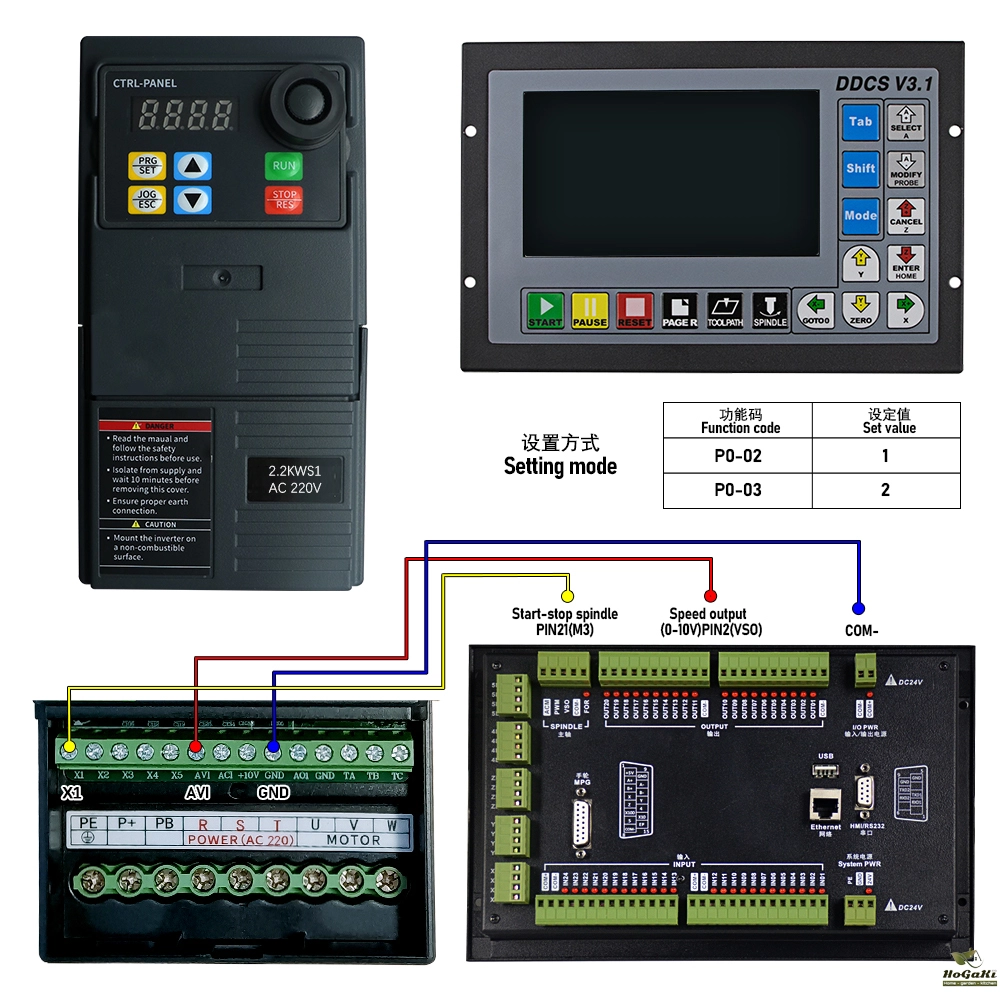

- spindle control: Analog 0-10V; PWM
- motor Control: Differential Pulse and direction
- screen: 5 inches TFT
- screen resolution: 480*272
- power input: 24VDC
- G-code: support
- Power Cut recovery: Support
- limited switch: NPN type
- compensation: Backlash and Tool
