ZigBee Wifi MmWave Human Presence Motion Sensor With Luminance/Distance Detection 5/110/220V Tuya Smart Life Home Automation
54.00 28.90 $
ID: 152872
Quantity
ZigBee Wifi 24G MmWave Radar Human Presence Motion Sensor With Luminosity/Distance Detection 5/110/220V Tuya Smart Life Home DIY
4.6 (56 votes) | 458 orders
Price:
US $65.57 - 74.25
Discount Price:
US $
31.84 -
36.04
-51%
- Color
-
-
ZigBee Wifi 24G MmWave Radar Human Presence Motion Sensor With Luminance/Distance Detection 5/110/220V Tuya Smart Life Home Automation
Main Features:

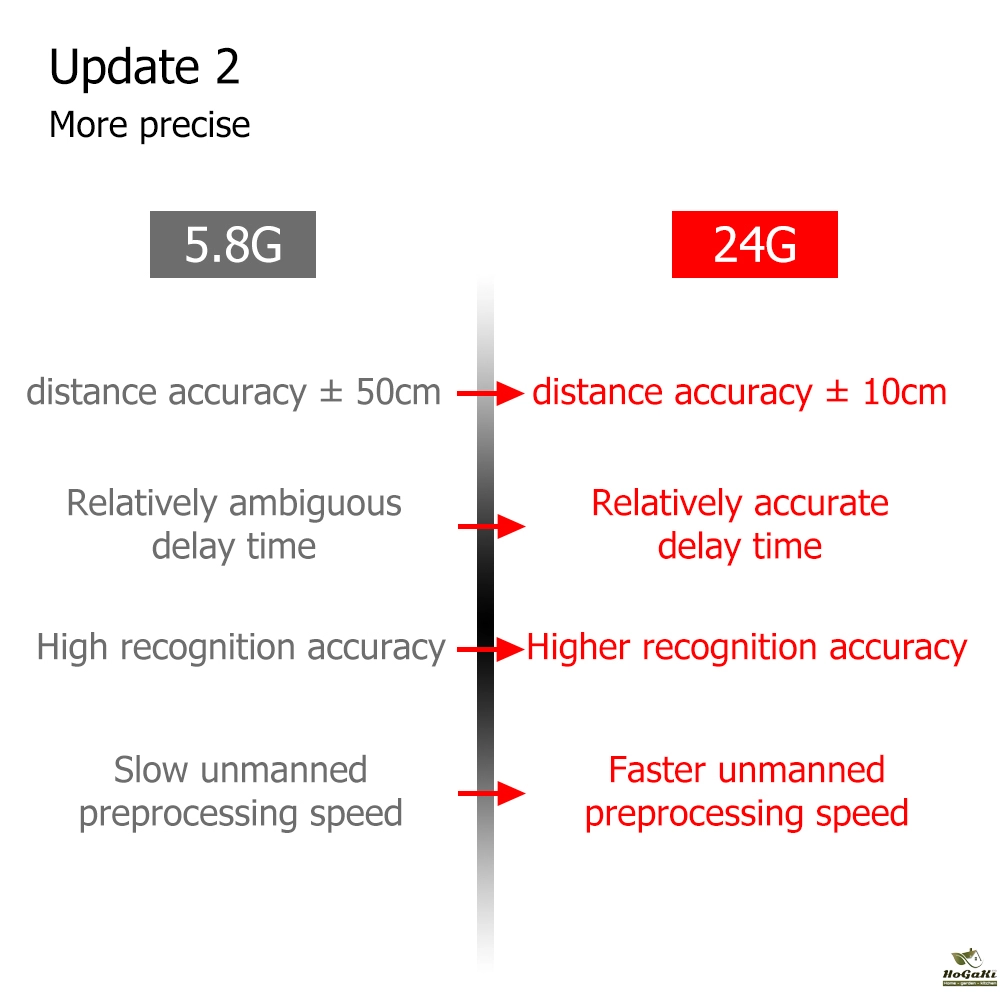

1.Updated 24G radar for more accurate detection..
Compared to 5.8G radar, 24G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.
2.Functional ZigBee Smart Human Presence Sensor
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
3. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

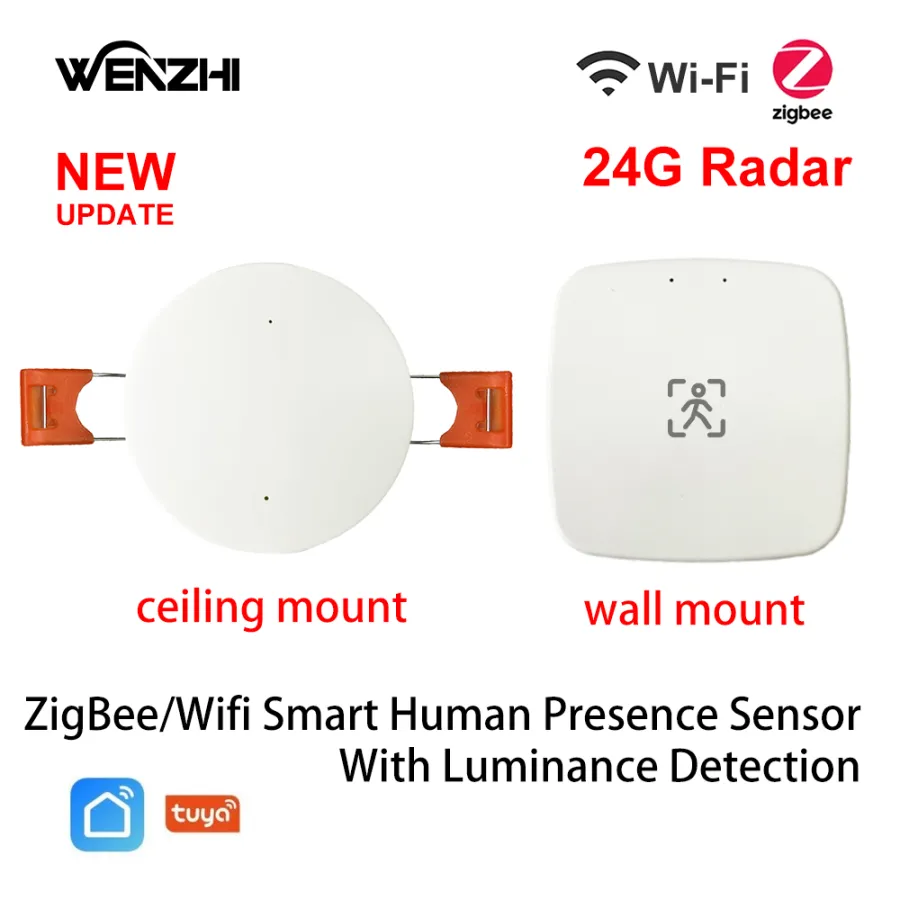

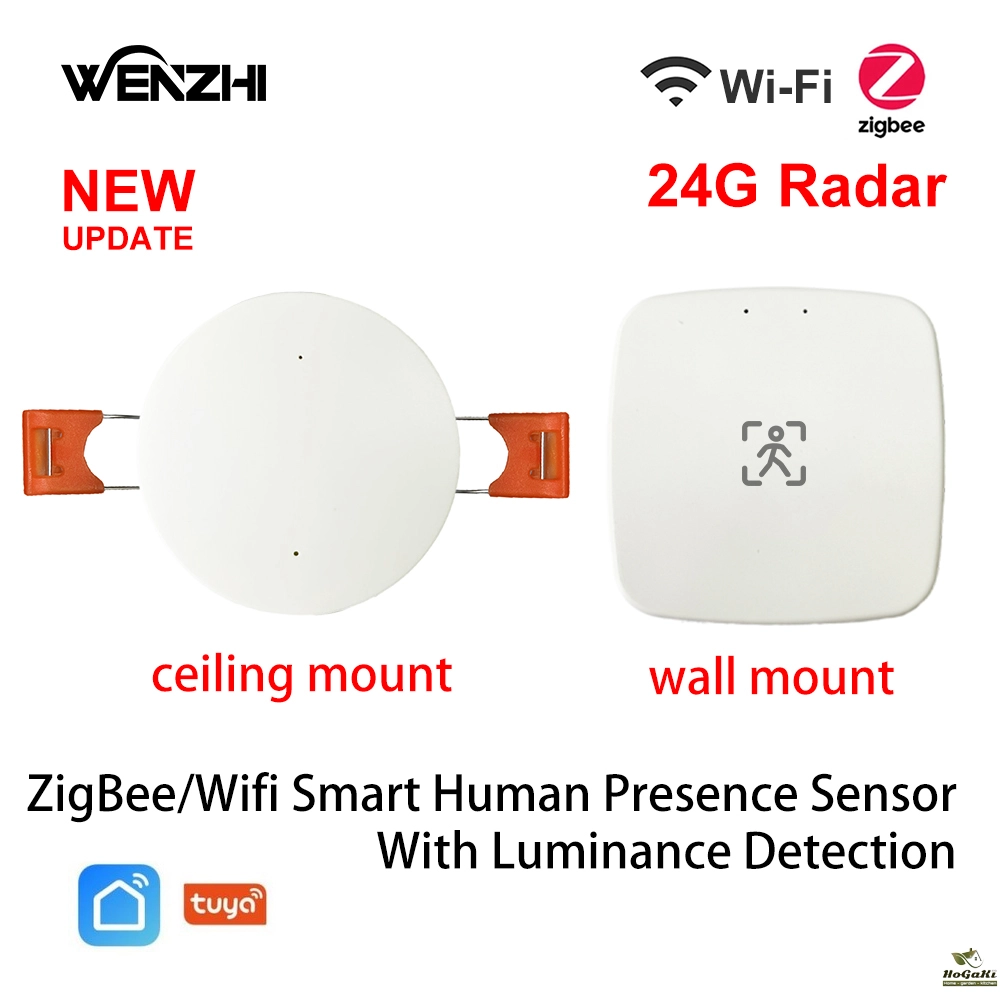

4.Two Models Are Available

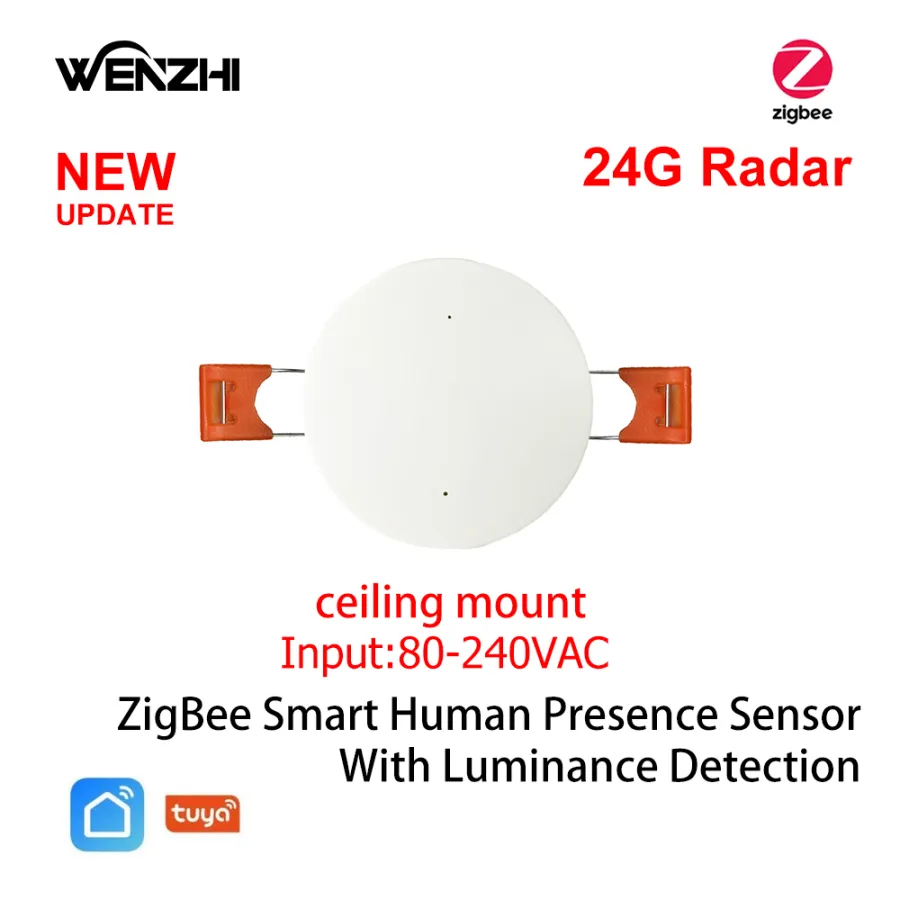

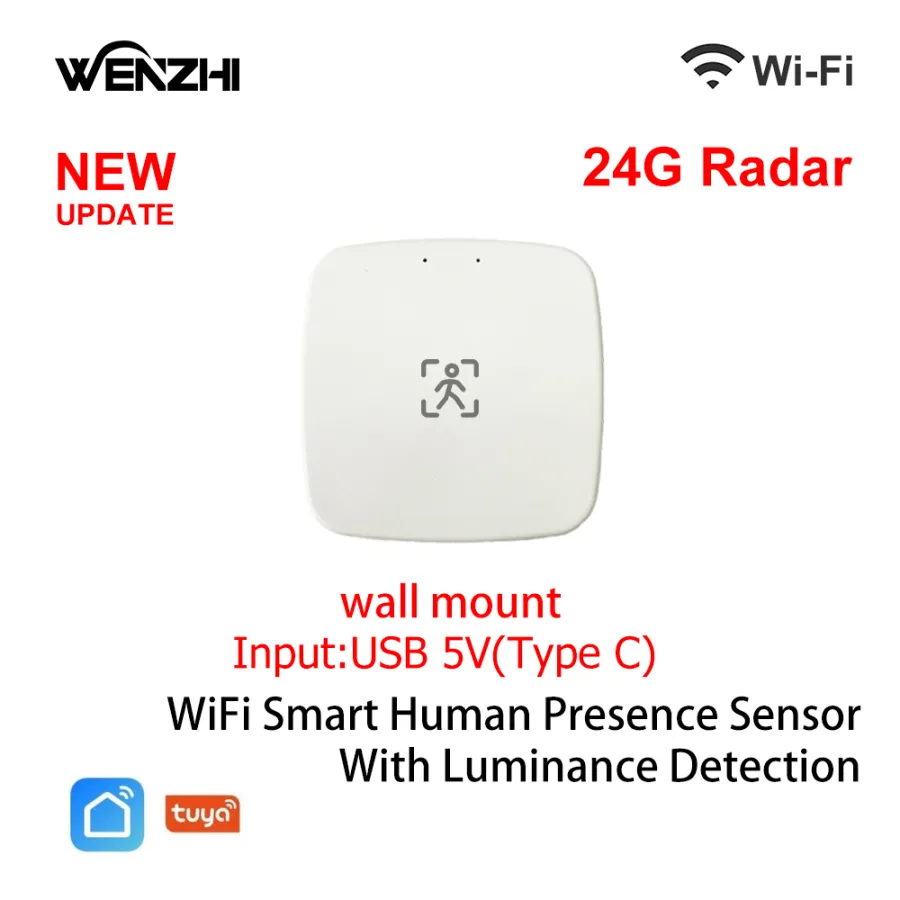

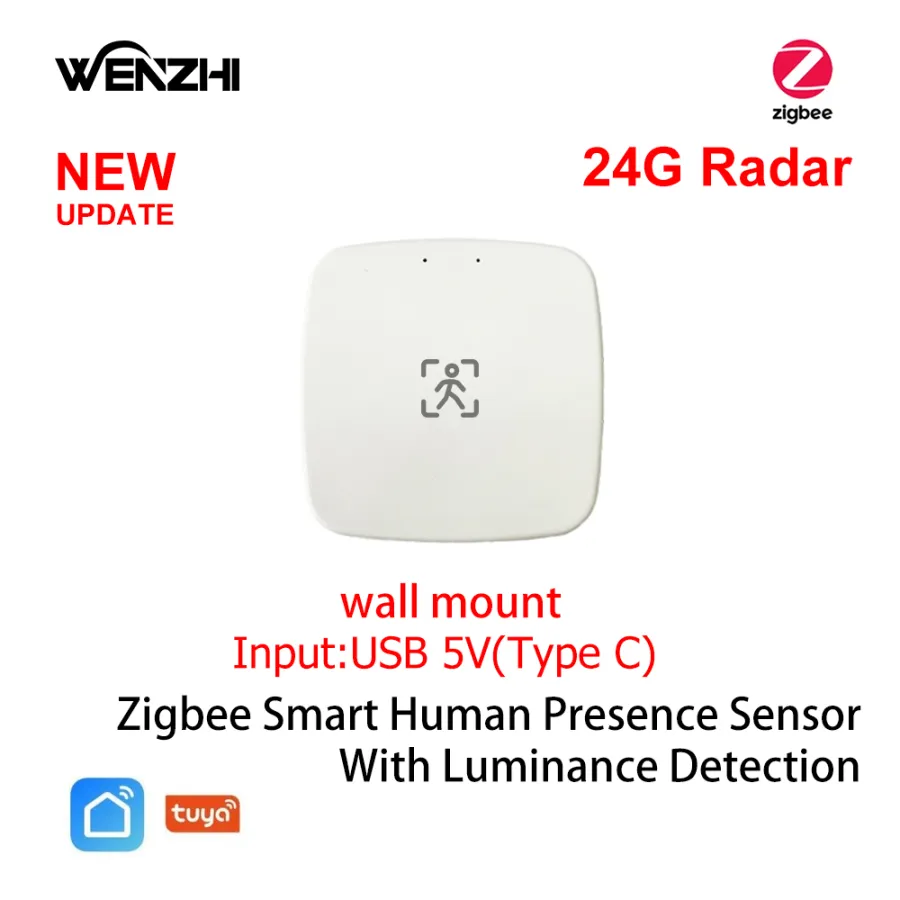

The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
5. Advanced New Design with Multiple Settings
Set the sensitivity from 1-5to your own need,together with Longest distance as 5.5m for flexible detection demand.Meanwhile,it is designed with delay time set as 0-1500s.There are four preset parameter settings available in the Smart Life App for your reference.

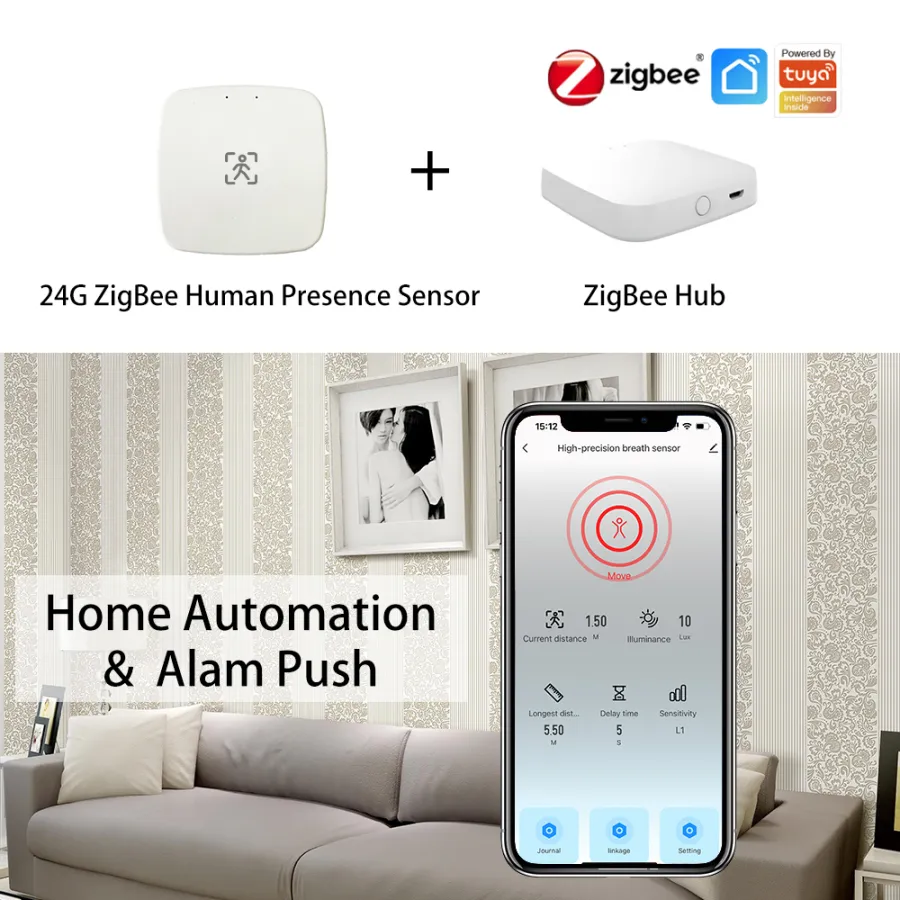

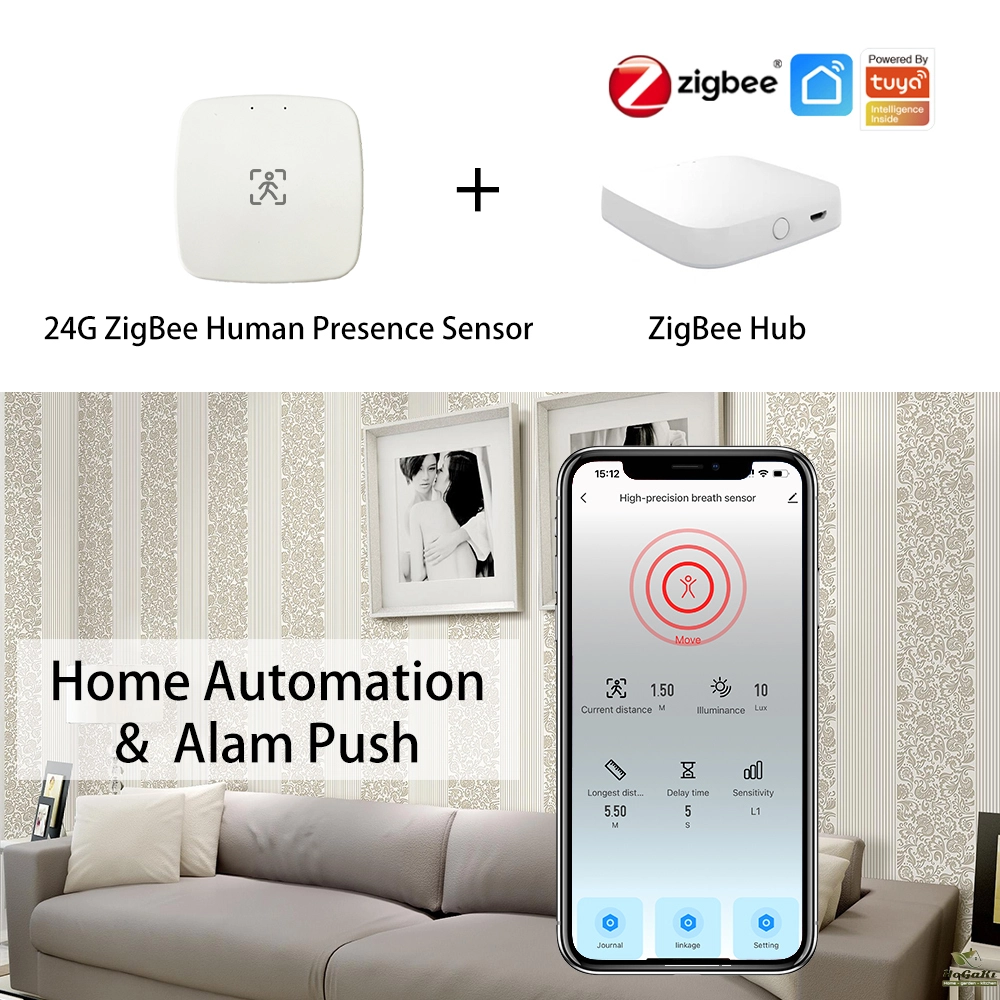

5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)
Specifications:
Network: ZigBee / Wifi.
Working Frequency:24GHz

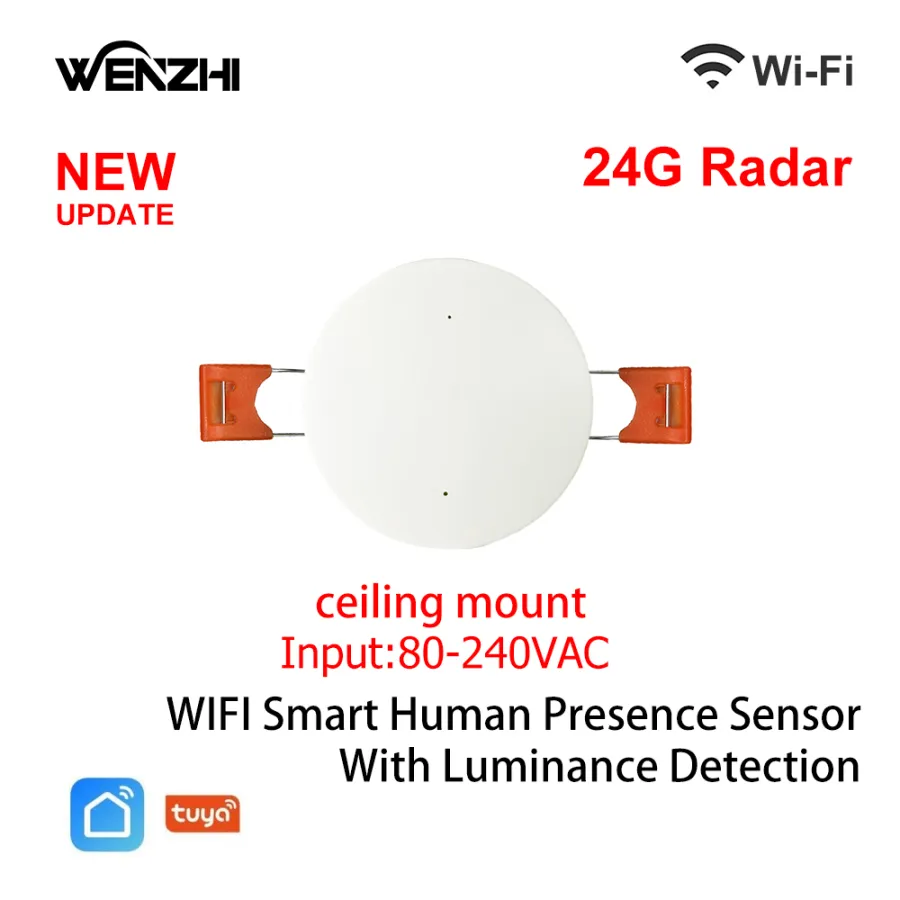

Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V（Type C）.
Working temperature: -20℃~+70℃
Sensitivity: 1-5
Wall mount sensor sensing distance: Max 5m.
Celling mount sensor sensing radius: Max 5m.
Illuminance Sensor: 0-2000 LUX.
Target disappearance delay time:0-1500s.

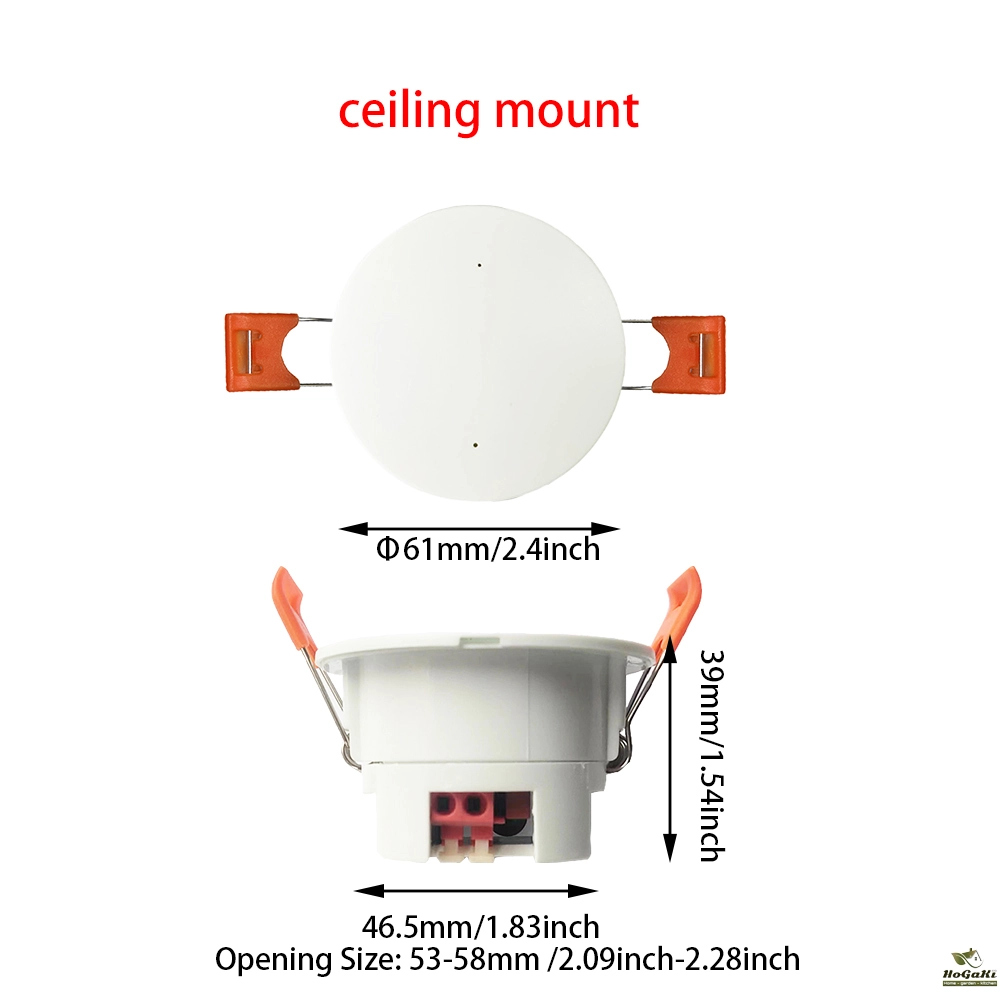

Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm

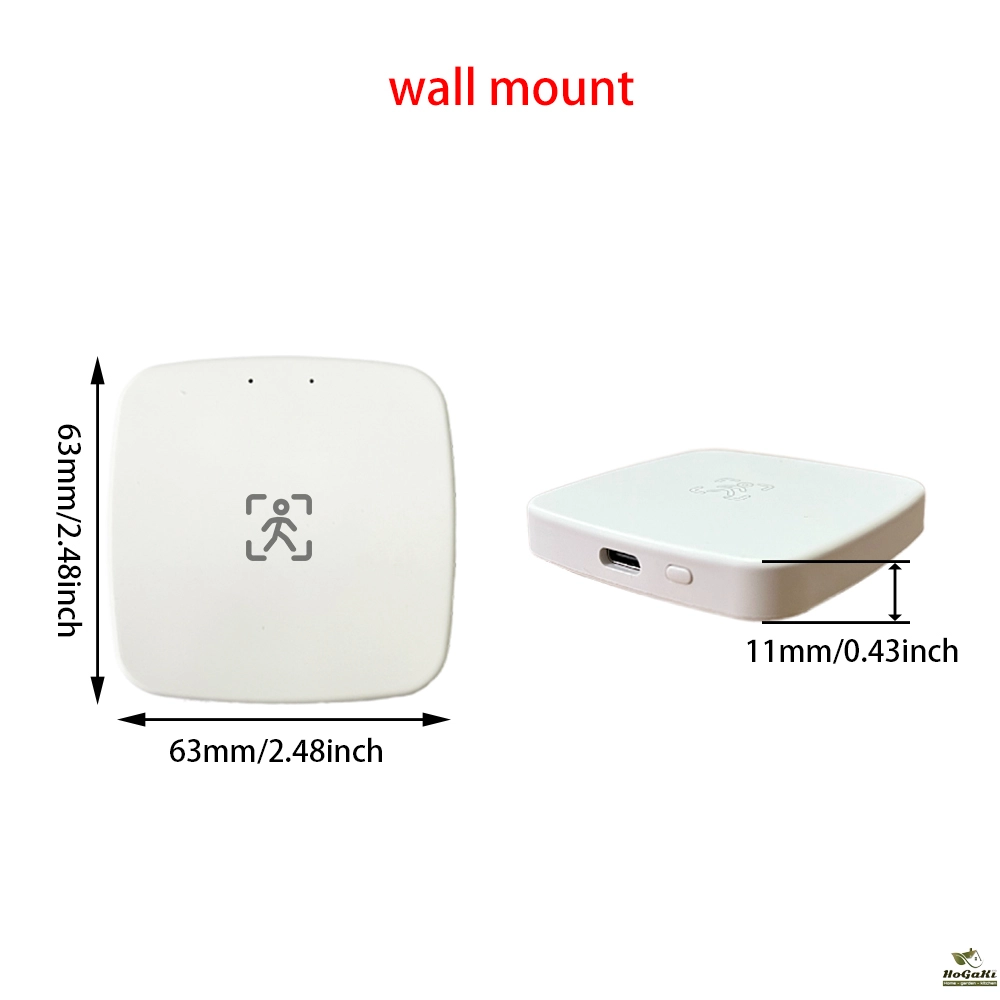

Wall Mount Size: 58mm*58mm*11mm
Package list:
Human presence sensor*1
User manual*1
USB Cable*1（Wall Mount）
Various Detection Functions
1. Fretting Detection: It can detect small movements such as tilting the head, waving, raising the hand, flicking the body, playing with the mobile phone, turning over the book, etc.
2. Presence Detection:It can detect the human body in the stationary state.
3.Motion Detection: It can detect walking, trotting, fast running, circling, jumping and other movements.
4. Distance measurement: The target distance measurement function can accurately filter targets outside the area.

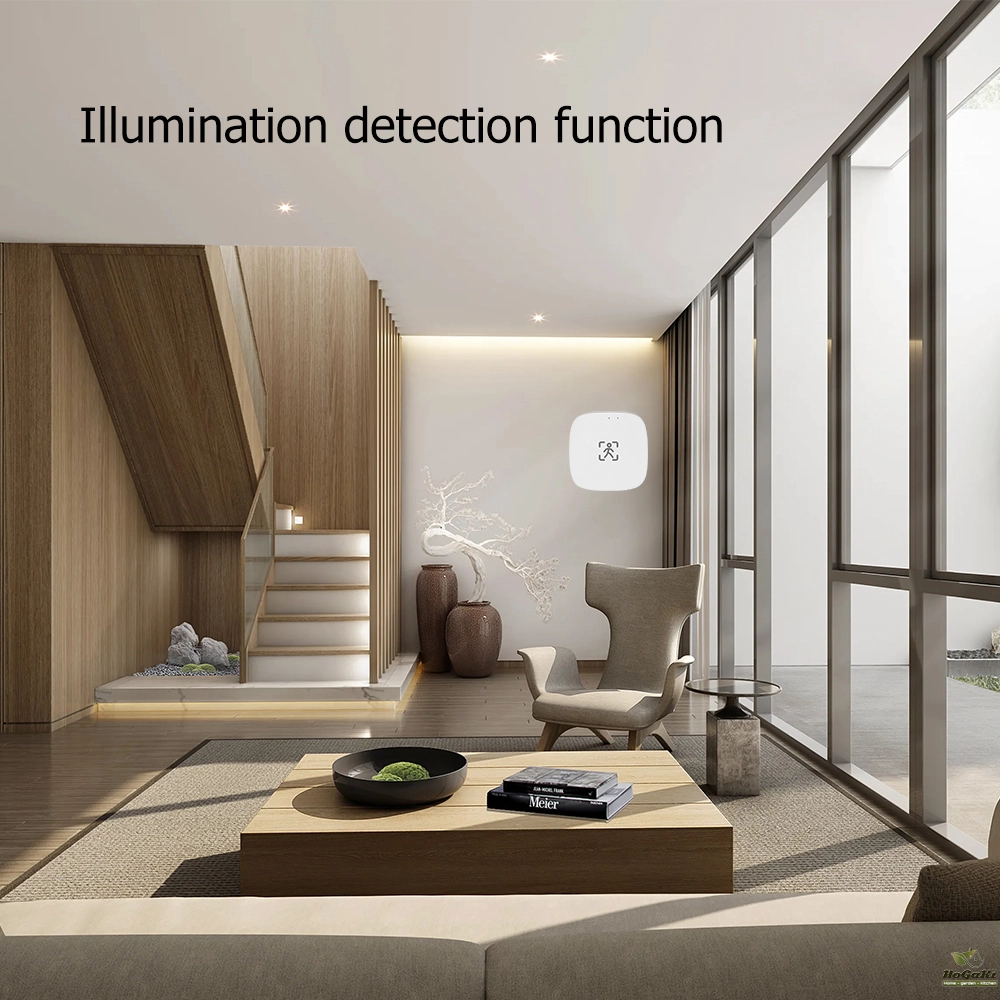

Illuminance detection
Detectable illuminance value

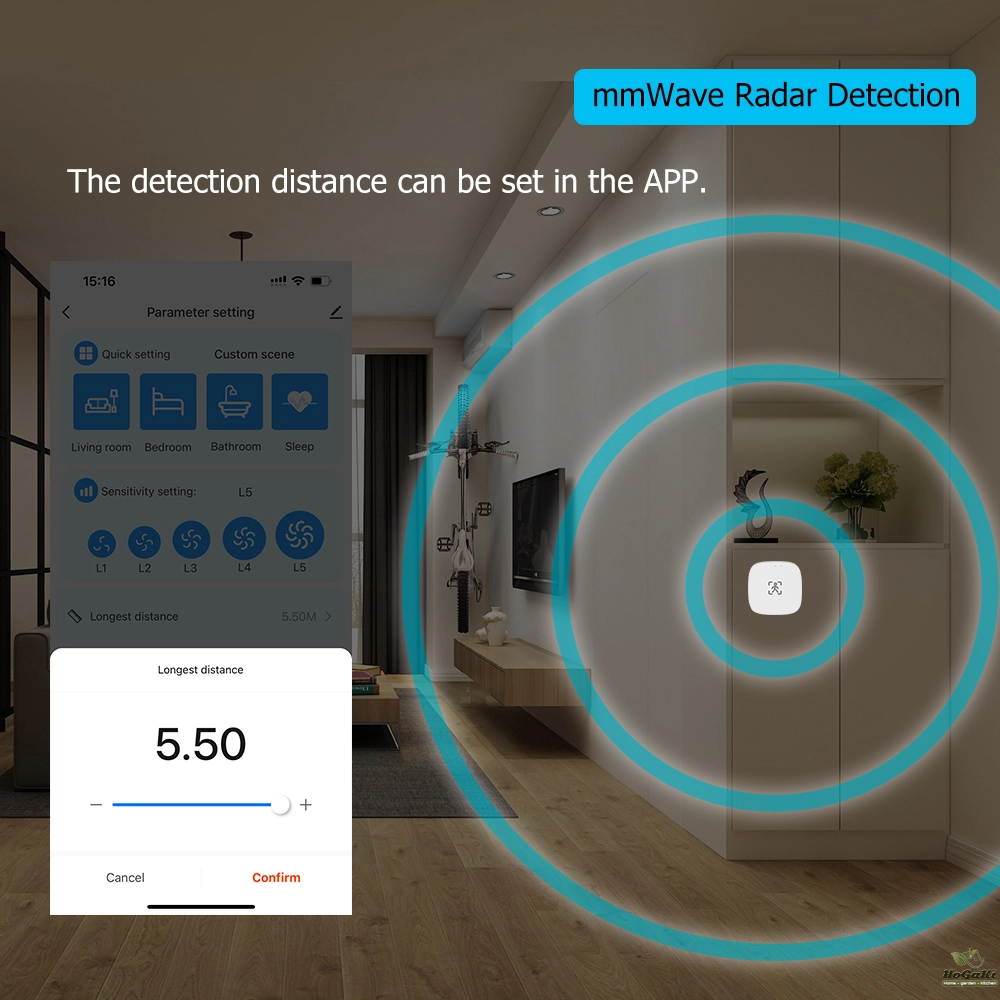

Detection distance setting

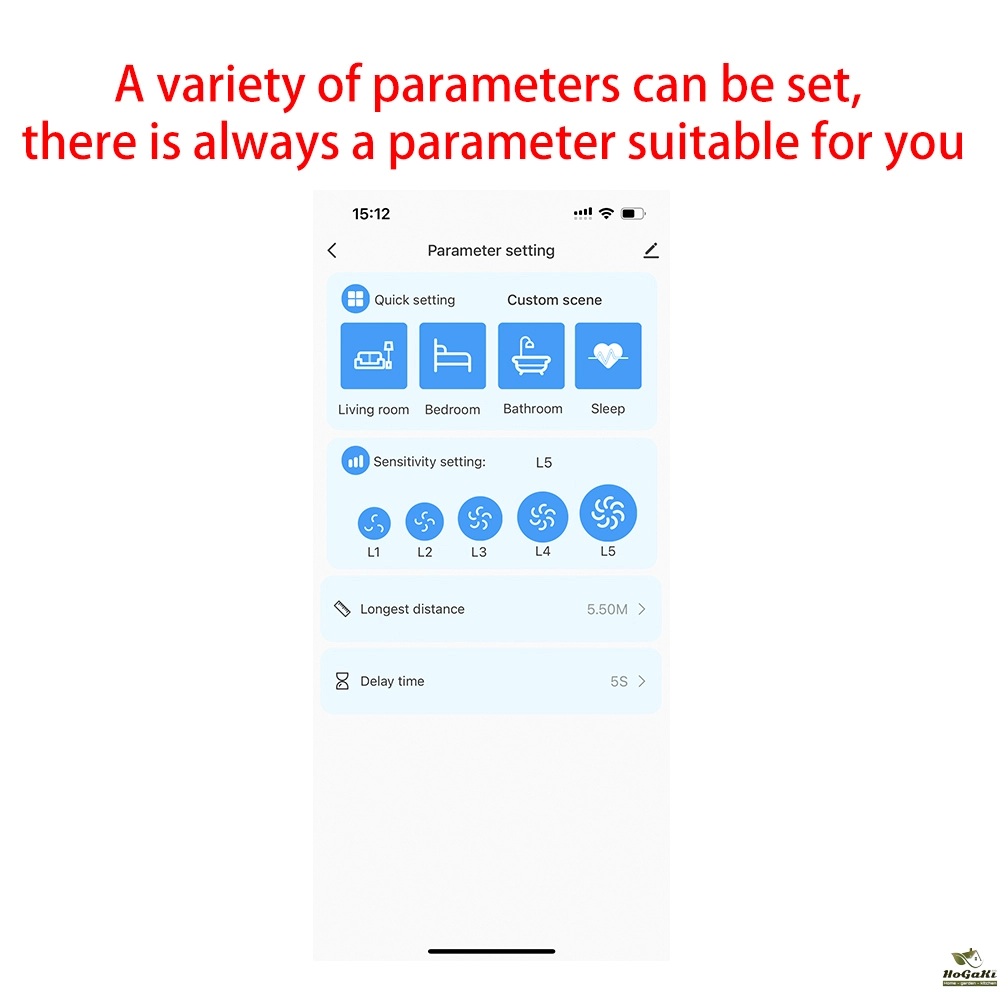

Adjustable Parameters
Various parameters such as detection distance can be set through app.
Packaging Details
- Unit Type:
- Package Weight: 0.063
- Package Size: 9x4x9
- Brand Name: wenzhi
- Origin: Mainland China
- Model Number: WZ-M10024
- Certification: CE
- Detection Range: 0-5.5m
- Detection Angle: 110°
- Choice: yes
