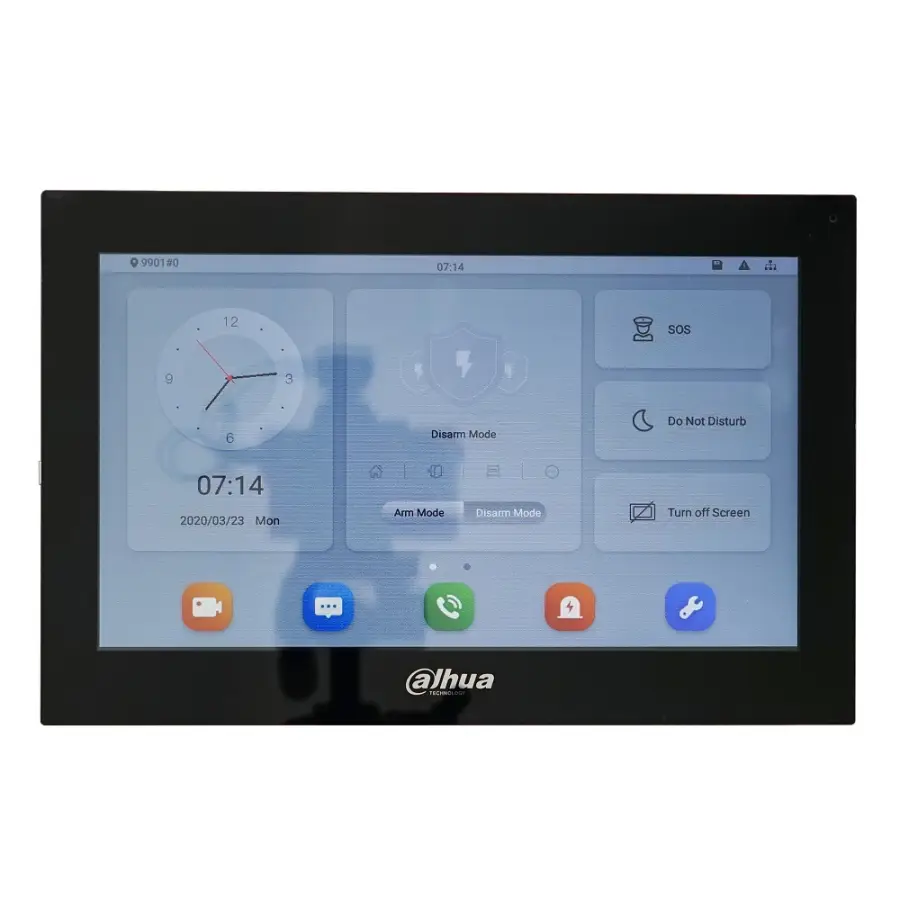

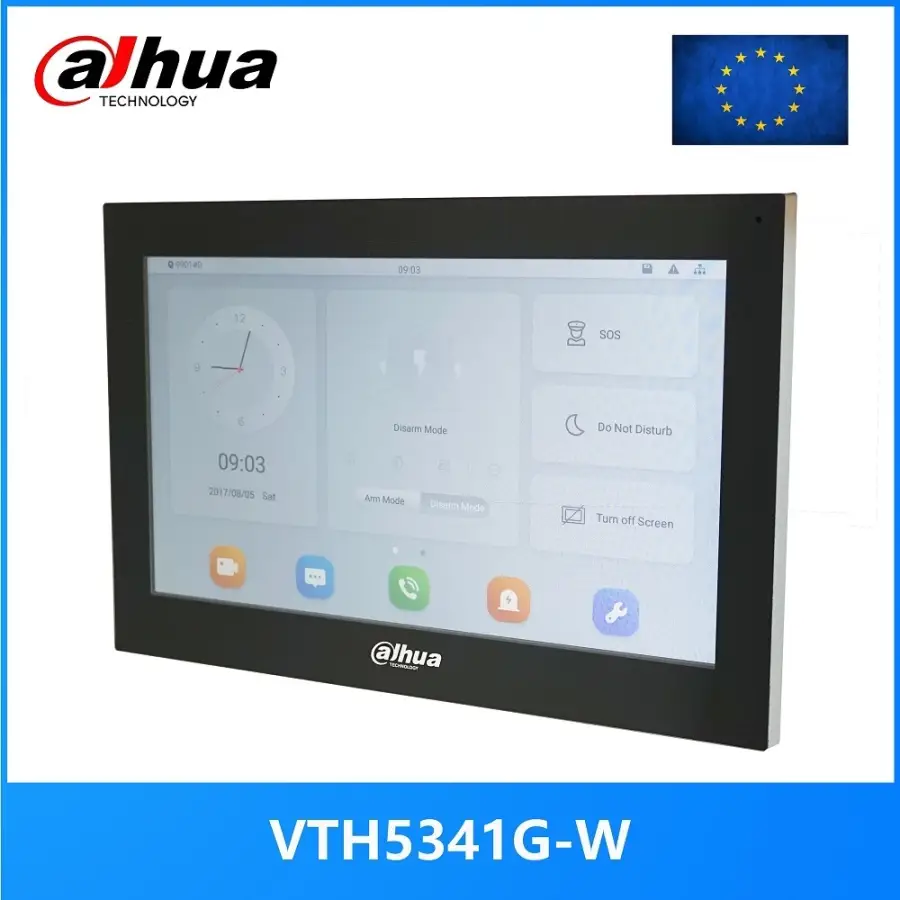

Dahua VTH5341G-W PoE(802.3af) Android 10-inch digital indoor monitor, Video Intercom monitor,wired doorbell monitor
ID: 161880

Dahua VTH5341G-W PoE(802.3af) Android 10-inch digital indoor monitor, Video Intercom monitor,wired doorbell monitor

0.0 ( votes) | 2 orders
Price:
US $ 604.50
Quantity

Buy Now
Add to Cart



Important:

If you have any questions about EU Tax, Please chat with me


Note: This link only includes indoor display screen, not includes outdoor doorbell and PoE switch

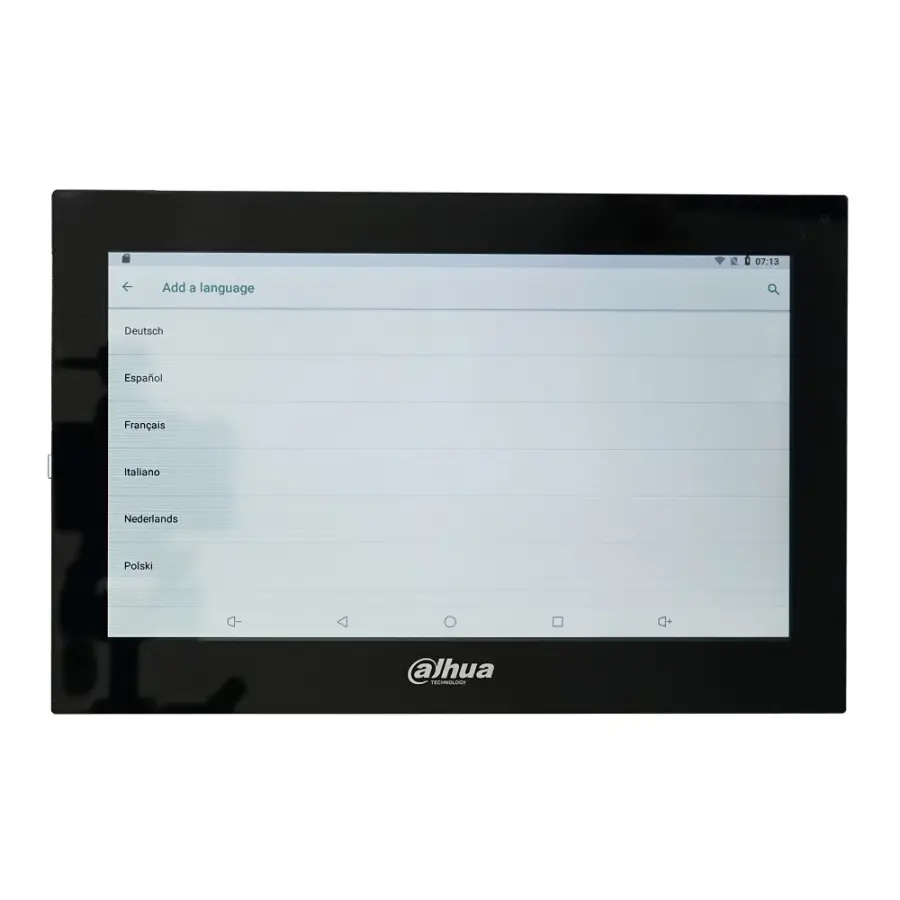

Support Language:
English,Russian,Ukraine,Italian,French,Germany,Dutch,Spanish,Portuguese,Polish,Turkey

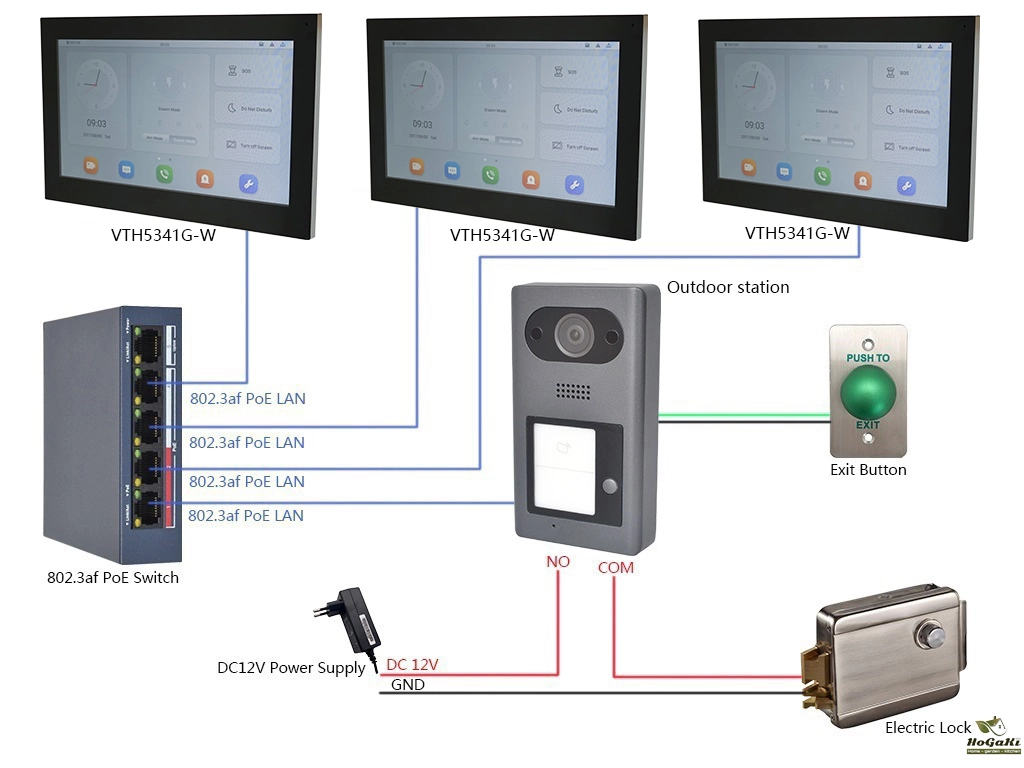

Scenes 1: multiple monitors

If you need a compatible PoE switch, press this photo to buy:


System

Main Processor

Embedded processor

Operating System

Android 8.1

Network Protocol

IPv4, TCP, SIP, UDP, RTSP

Basic

Screen Type

Capacitive screen

Display Screen

10 inch TFT LCD

Resolution

1024×600

Video Compression

H.264

Audio Compression

PCM

Audio Input

1 omnidirectional microphone

Audio Output

Built-in 1.5W speaker

Audio Mode

Two-way voice call

Audio Enhancement

Echo suppression/DNR

Audio Bit Rate

16KHz, 16Bit

Function

Information Release

Text announcements released by the management center can be viewed

Communication Mode

Full digital

Elevator Control

You can control the elevator through the indoor monitor

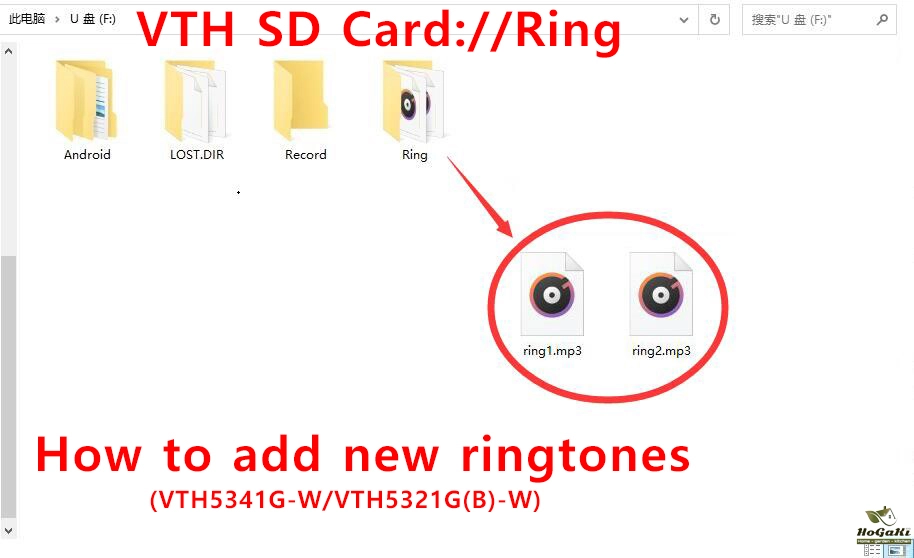

Leave Videos or Text Messages

Yes (SD card is needed)

DND Mode

Do not disturb period can be set.

Extension Number

Villa: 4

Apartment: 9

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Wireless Security-Encryption

64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Storage

Micro SD storage, the maximum space is 256GB

Port

RS-485

1

Alarm Input

8

Alarm Output

1

Power Output

1 12V/100mA

Door Bell

Yes, use alarm input port

Network Port

1 10M/100M Ethernet

Alarm

SOS

Yes

Performance

Housing Material

PC+ABS

Regular

Color

Black

Power Supply

12V DC 1A

Standard POE

Installation

Surface mount

Certifications

CE

FCC

Accessory

Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided

Product Dimensions

260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH (Non-condensing)

Operating Altitude

Less than 3,000 meters (9842.52 ft)

Power Consumption

≤1.5W (standby), ≤7W (working)

Net Weight

770g (1.70lb)

Gross Weight

1.1kg (2.43lb)




















Packaging Details

  • Unit Type:
  • Package Weight: 1.300
  • Package Size: 20x7x30

  • Brand Name: NoEnName_Null
  • Connection Method: Wired
  • Camera Sensor type: CMOS
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Answering Mode: Hands-free
  • Display Screen Size(inch): 10
  • Display Screen Type: Color Touch Screen
  • Zone Input: 8
  • Type: Indoor Machine
  • Waterproof: No
  • Material: Plastic
  • Smart home platform: Other
  • IP Camera Interface: Yes
  • Samrt Home Interface: No
  • Installation: Surface
  • Resolution: 1024*600
  • Connection Type: Wired
  • Plug Type: EU Plug
  • Plug Type: US Plug
  • Plug Type: AU Plug
  • Plug Type: UK Plug
  • Certification: CE
  • Certification: FCC
  • Power: DC 12V /PoE(802.3af)
  • Model Number: VTH5341G-W
  • Power (W): ≤7W
  • Technology: DIGITAL
  • Size: 260mm*170mm*28mm
  • Doorbell: Yes
