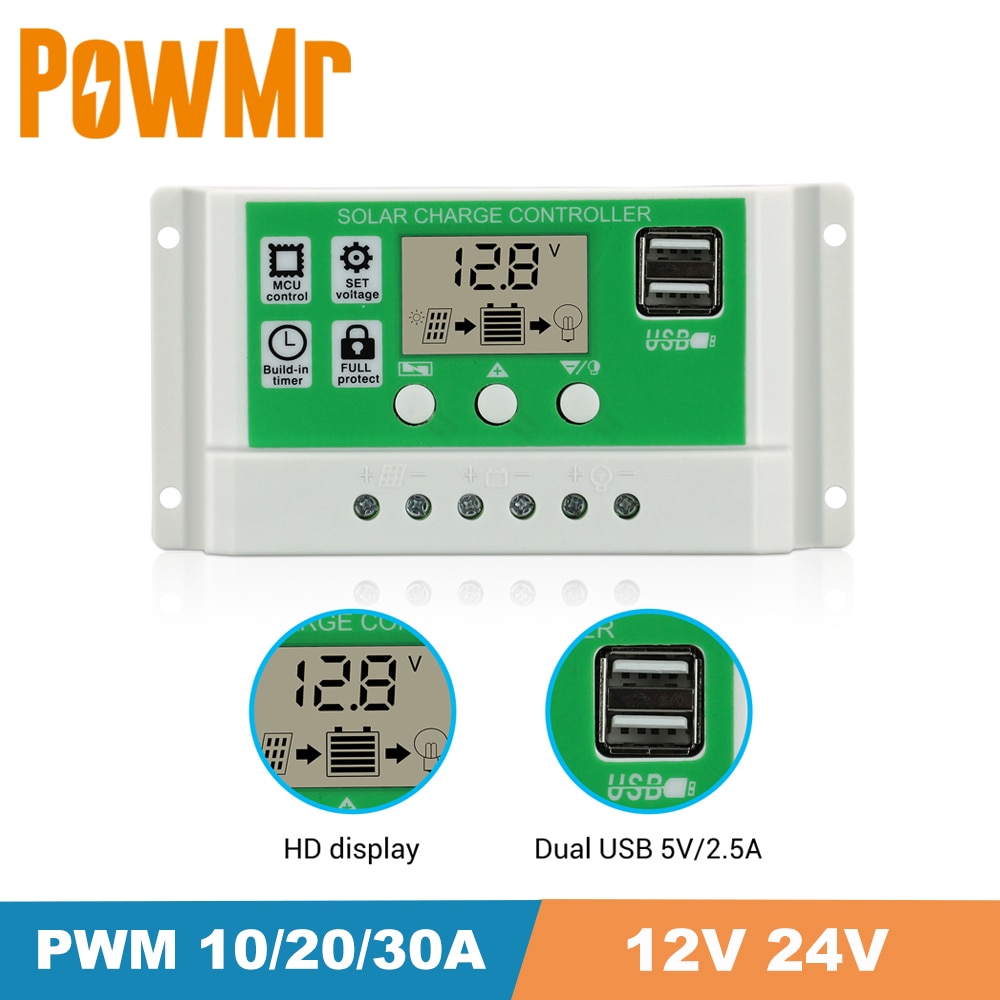

Solar Charge Controller 12V/24V 10/20/30A Auto PWM 5V Output Solar Panel Battery Controller Regulator With Dual USB LCD Display
28.90 22.29 $
SALE
ID: 74479
Quantity
Y-SOLAR 30A 20A 10A PWM Solar Charge Controller Lithium Battery Lead Acid Battery 12V 24V Auto With Dual USB Solar Regulator New
4.8 (11 votes) | 33 orders
Price:
US $27.26 - 30.36
/ piece
Discount Price:
US $
13.63 -
15.58
/ piece
-50%
Y-SOLAR 30A 20A 10A PWM Solar Charge Controller Lithium Battery Lead Acid Battery 12V 24V Auto With Dual USB Solar Regulator New
This 30A 20A 10A PWM Solar Charge Controller is suitable for 12V 24V lead acid battery,Lithium-ion battery(3 strings of 11.1V lithium batteries);Lithium iron phosphate batteries(4 string of 12.8V).
1. Build-in industrial micro controller.

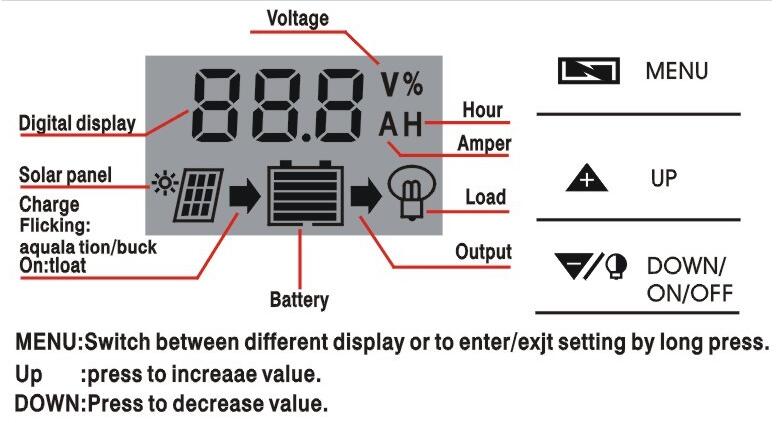

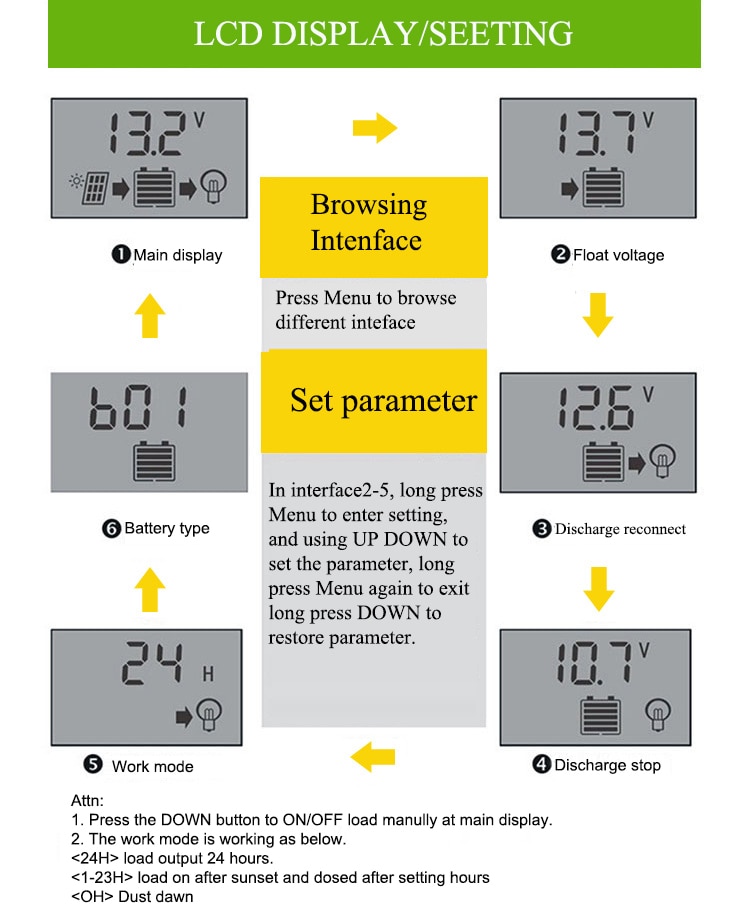

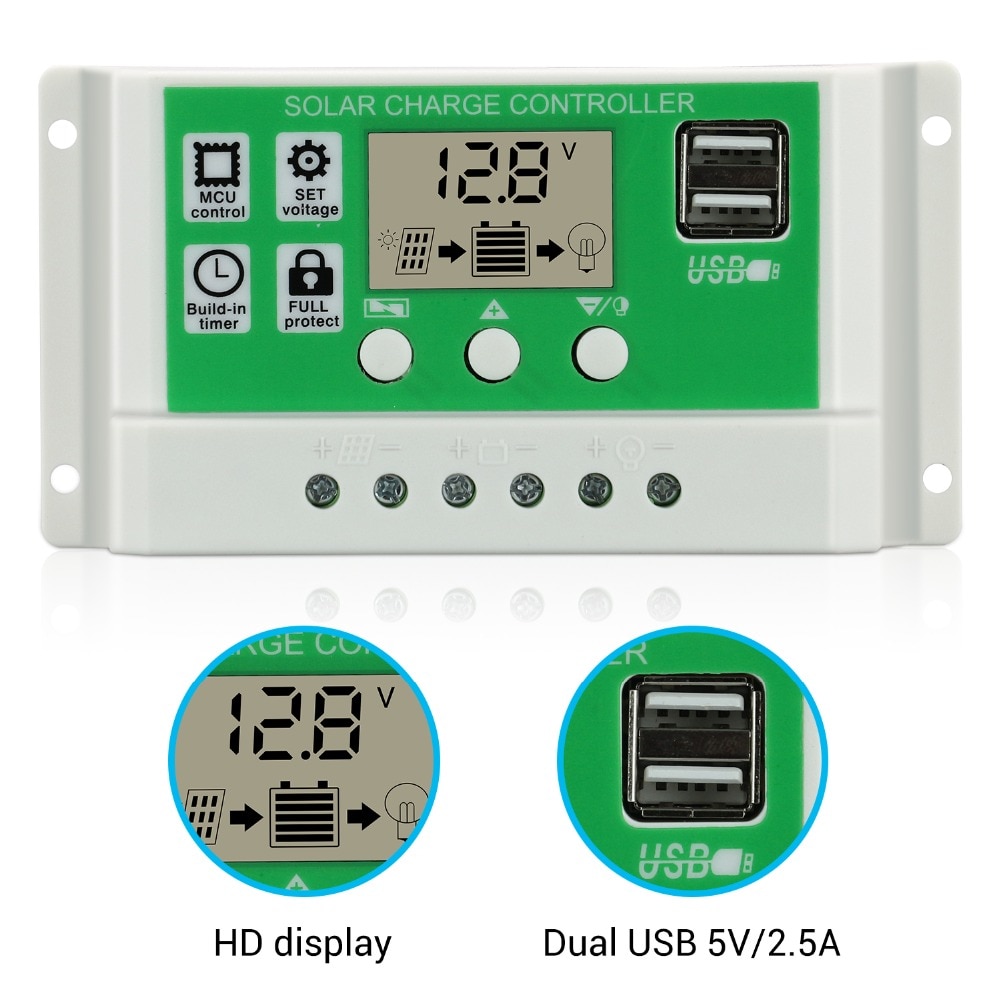

2. Big LCD display,all adjustable parameter.
3. Fully 3-stage PWM charge management.
4. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual USB 5V output ,max current can be 2.5A
6. Dual mosfet Reverse current protection ,low heat production.
Model Name | RBL-10A-Li | RBL-20A-Li | RBL-30A-Li |
Charge Current | 10A | 20A | 30A |
Discharge Current | 10A | 10A | 10A |
Max Solar Input | 12V battery, the highest is 23V | ||
24V battery , The highest is 46V | |||
Battery type | B1 =Lead acid battery 12V/24Vauto | ||
B2=Lithium-ion battery (lithium battery) 3 strings 3.7V=11.1V | |||
B3=Lithium iron phosphate battery 4 strings 3.2V= 12.8V | |||
Equalization | 14.4V(B1) 12.6V(B2) 14.6V(B3) | ||
Discharge stop | 10.7V(B01) 9V(B2) 10V(B3) | ||
Discharge reconnect | 12.6V(B1) 10.5(B2) 12V(B3) | ||
Voltage of open light | Solar panel 8V(Light lights delay) | ||
Voltage of close light | Solar panel 8V(Light off delay) | ||
USB output | 2 way USB output. 5V/2.5A(MAX) | ||
Self-consume | <10mA | ||
Operating temperature | -35℃ - +60℃ | ||

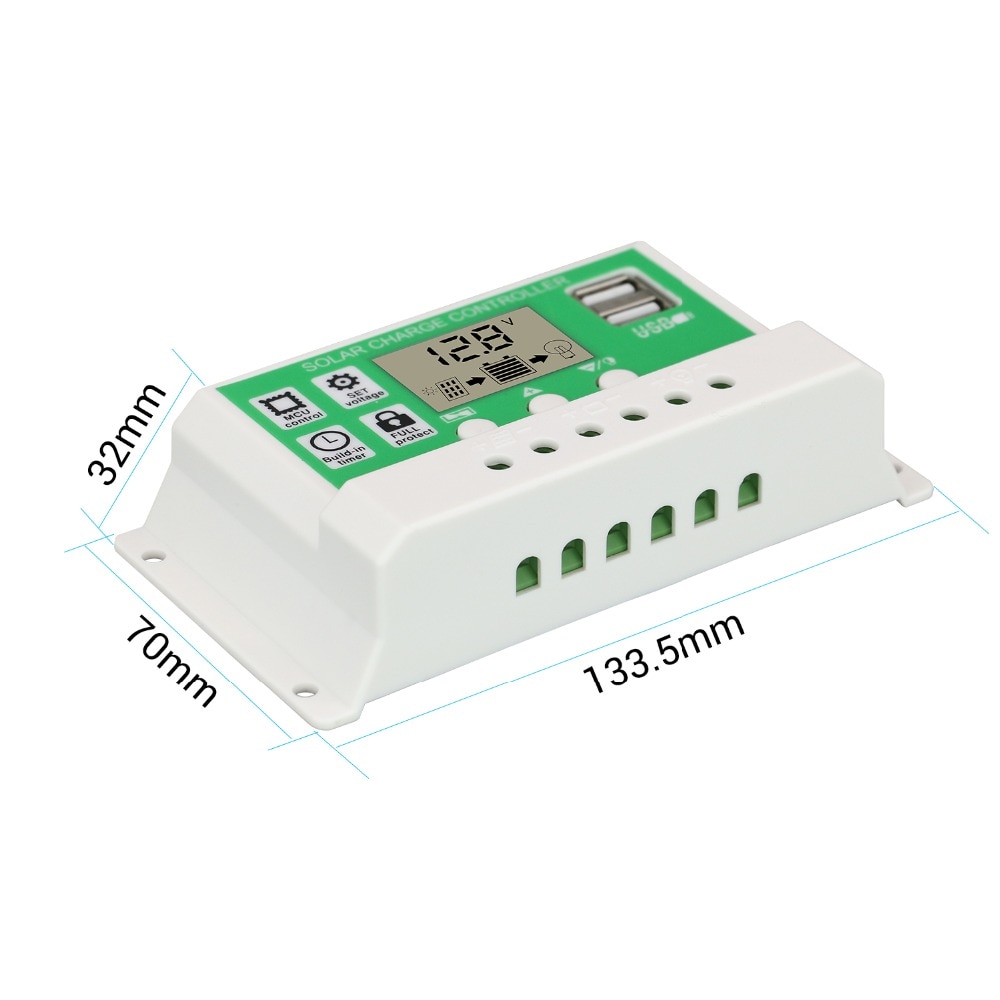

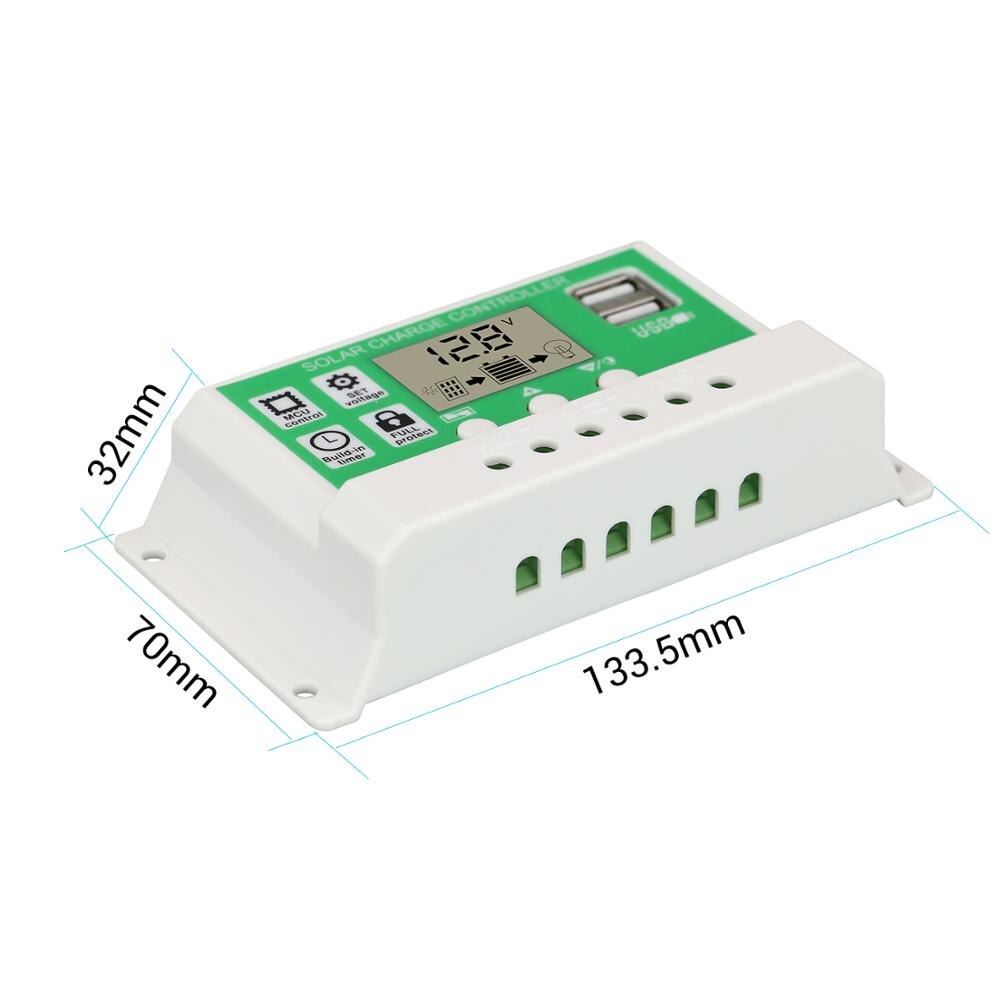

Size/weight | 133.5*70 *35mm / 165g | ||
- is_customized: Yes
- Maximum Current: 30A 20A 10A
- Model Number: RBL-30A 20A 10A Li
- Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
- Origin: Mainland China
- Certification: CE
- Battery Type: Lead Acid battery/Lithium Battery
- Battery Voltage: 12V~24V
- Charge Current: 30A 20A 10A
- Discharge Current: 10A
- Dual USB output: 5V 2.5A(Max)
- Size/weight: 133.5*70 *35mm / 165g
- Product: PWM Solar Charge Controller Lithium Battery
