EPever Solar Charge Controller MPPT 40A 30A 20A Blacklight LCD Solar Regulator 12V 24V Auto Tracer1210AN 2210AN 3210AN 4210AN
4.8 (28 votes) | 233 orders
Price:
US $139.49 - 350.09
/ piece
Discount Price:
US $
93.81 -
227.56
/ piece
-33%
- Ships From
- Current
- Rated Voltage

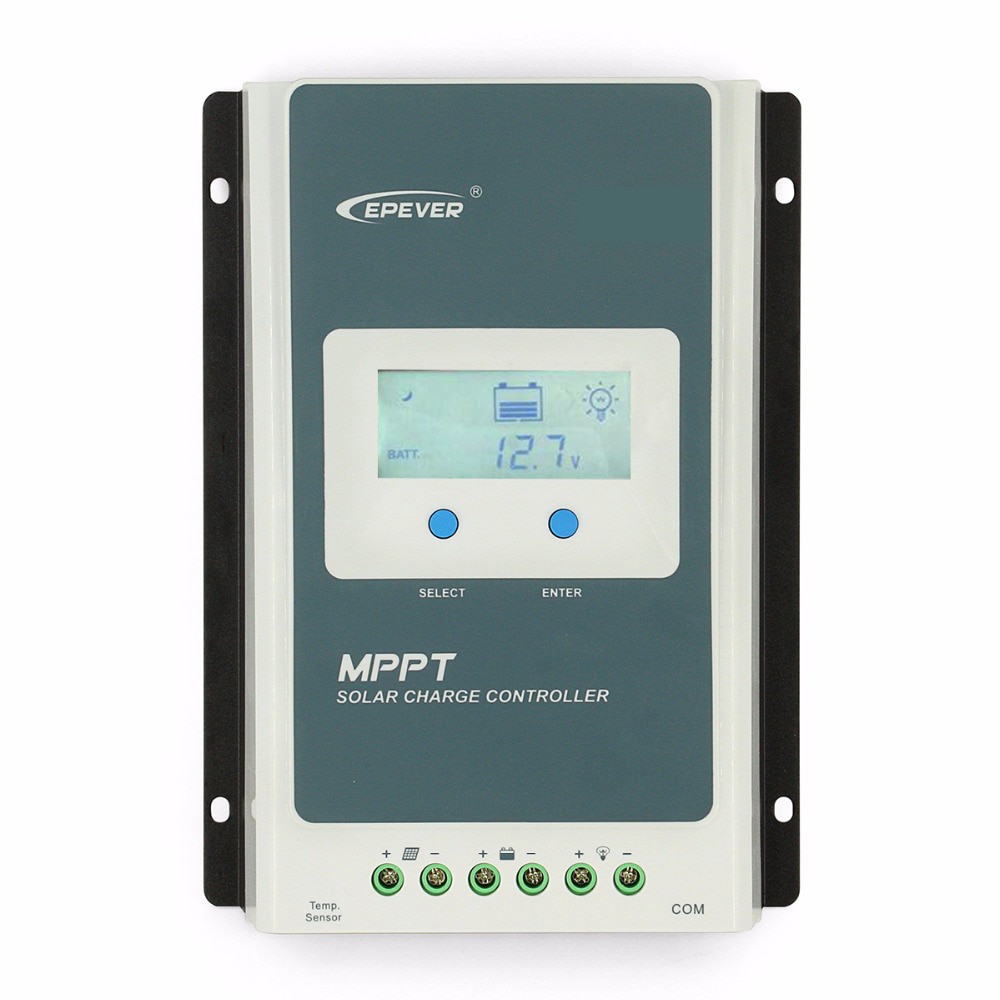

EPever Solar Charge Controller 10A 20A 30A 40A Blacklight LCD Solar Regulator 12V 24V Auto Tracer1210AN 2210AN 3210AN 4210AN TOP
Overview:
The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.
Features：
Advanced MPPT technology, with efficiency no less than 99.5%\Ultra-fast tracking speed and guaranteed tracking efficiency
Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
Wide MPP operating voltage range
High quality components, perfecting system performance, with maximum conversion efficiency of 98%
Accurate recognition and tracking of multiple-peaks maximum power point
International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
Charging power and current limitation function
Compatible with lead-acid and lithium-ion batteries
Battery temperature compensation function
Real-time energy statistics function
Overheating power reduction function
Multiple load work modes
The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Monitor and set the parameters via mobile phone APP or PC software
Full-load operation without any drop in capacity within the range of working environment temperature
Extensive electronic protection
Note：
There are accessory links and collocations at the bottom,
which can be combined and matched freely ☟☟☟☟☟☟☟
Technical Specifications:
Item | Tracer 1206AN | Tracer 2206AN | Tracer 1210AN | Tracer 2210AN | Tracer 3210AN | Tracer 4210AN |
System nominal voltage | 12V/24VDC Auto | |||||
Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A |
Rated discharge current | 10A | 20A | 10A | 20A | 30A | 40A |
Battery voltage range | 8~32V | |||||
Max. PV open circuit voltage | 46V | 92V | ||||
MPP voltage range | (Battery voltage +2V)~36V | (Battery voltage +2V)~72V | ||||
Max. PV input power | 130W/12V | 260W/12V | 130W/12V | 260W/12V | 390W/12V | 520W/12V |
Self-consumption | <=12mA | |||||
Discharge circuit voltage drop | <=0.23V | |||||
Temperature compensate coefficient | -3mV/°C/2V (Default) | |||||
Grounding | Common negative | |||||
RS485 interface | 5VDC/100mA | |||||
LCD backlight time | 60S (Default) | |||||
Environmental Parameters | ||||||
Working environment temperature | -25°C~+50°C(100% input and output) | |||||
Storage temperature range | -20°C~+70°C | |||||
Relative humidity | <=95%, N.C. | |||||
Enclosure | IP30 | |||||
Dimension | 172x139 x 44mm | 220x154x 52mm | 172x139 x 44mm | 220x154x 52mm | 228x164x55mm | 252x180x63mm |
Mounting dimension | 130x130mm | 170x145mm | 130x130mm | 170x145mm | 170x164mm | 210x171mm |
Terminal | 12AWG(4mm 2 ) | 6AWG(16mm 2 ) | 12AWG(4mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 |
Recommended cable | 12AWG(4mm 2 ) | 10AWG(6mm 2 ) | 12AWG(4mm 2 ) | 10AWG(6mm 2 ) | 8AWG(10mm 2 ) | 6AWG(16mm 2 ) |
Weight | 0.57kg | 0.94kg | 0.57kg | 0.94kg | 1.26kg | 1.65kg |
SET | ||||||
Accessories (optional):
Remote Temperature Sensor (RTS300R47K3.81A) | Acquisition of battery temperature for undertaking temperature compensation of controlparameters, the standard length of the cable is 3m (length can be customized). The RTS300R47K3.81A connects to the port (4th) on the controller. NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25°C | ||
USB to RS485 cable CC-USB-RS485-150U | USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software. The length of cable is 1.5m. TheCC-USB-RS485-150U connects to the RS-485 Port on the controller. | ||

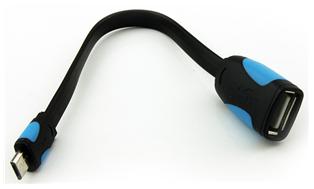

OTG cable OTG-12CM |
| Used to connect a mobile communication cable and able to achieve real-time monitoring of the controller and modification of the parameters by using mobile APP software. | |
Remote Meter MT50 |
| MT50 can display various operating data and fault of the system. The information can be displayed on a backlit LCD screen, the buttons are easy-to-operate, and the numeric display is readable. | |
WIFI Serial Adapter eBox-WIFI-01 |
| After the controller is connected with the eBox-WIFI-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through WIFI signals. | |
RS485 to Bluetooth Adapter eBox-BLE-01 |
| After the controller is connected with the eBox-BLE-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through Bluetooth signals. |

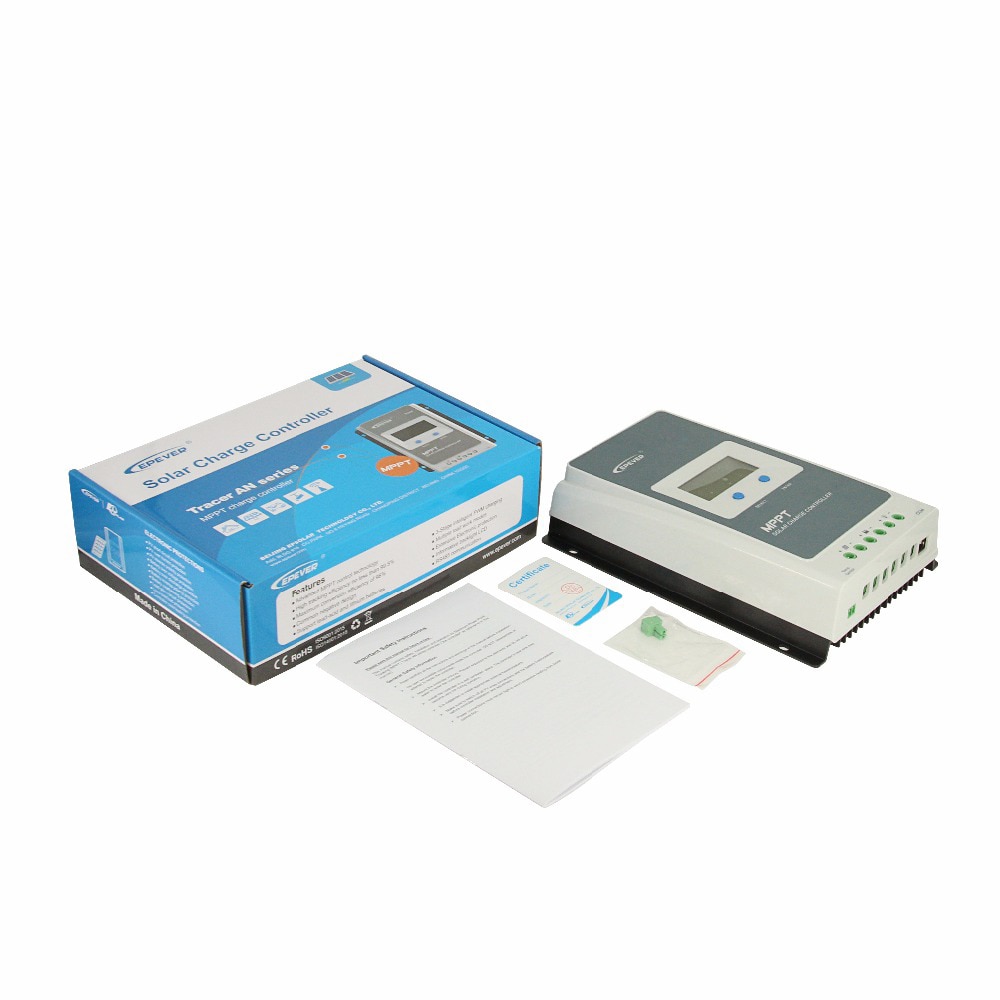

Photo:
- Is Smart Device: YES
- is_customized: Yes
- Maximum Current: 40A/30A/20A/10A
- Model Number: Tracer AN series
- Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- Battery voltage range: 8~32V
- Self-consumption: <12mA
- Grounding: Common negative
- LCD back-light time: 60S (Default)
- Max. PV open circuit voltag: 100V
- System nominal voltage: 12V 24V Auto
- Charging: MPPT
- Battery types: lead-acid and lithium-ion batteries
- Interface: RS485
- Certification: CE IEC62109
- Type: mppt solar charge controller
- Type1: MPPT 40A 30A 20A 10A
- Type2: solar charge controller
- Type3: MPPT solar charge controller
- Type4: controlador de carga mppt
- Type5: tracer 40a 30a 20a 10a
