Solar Charger Controller 10A 20A 30A 40A 12V/24V Auto Battery Regulator Charger LCD Dual Timer Control T10A T20A T30A T40A
54.09 43.04 $
SALE
ID: 9792
Quantity
T40 Solar Charger Regulator Fit for Street Light System with 12V 24V Auto LCD Display Controller with Load Dual Timer Control
4.8 (30 votes) | 94 orders
Price:
US $56.75 - 78.48
/ piece
Discount Price:
US $
52.73 -
69.07
/ piece
-7%
T40 Solar Charger Regulator Fit for Street Light System with 12V 24V Auto LCD Display Controller with Load Dual Timer Control
Note:
It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Please contact us for checking more details if needed.
Thank you.

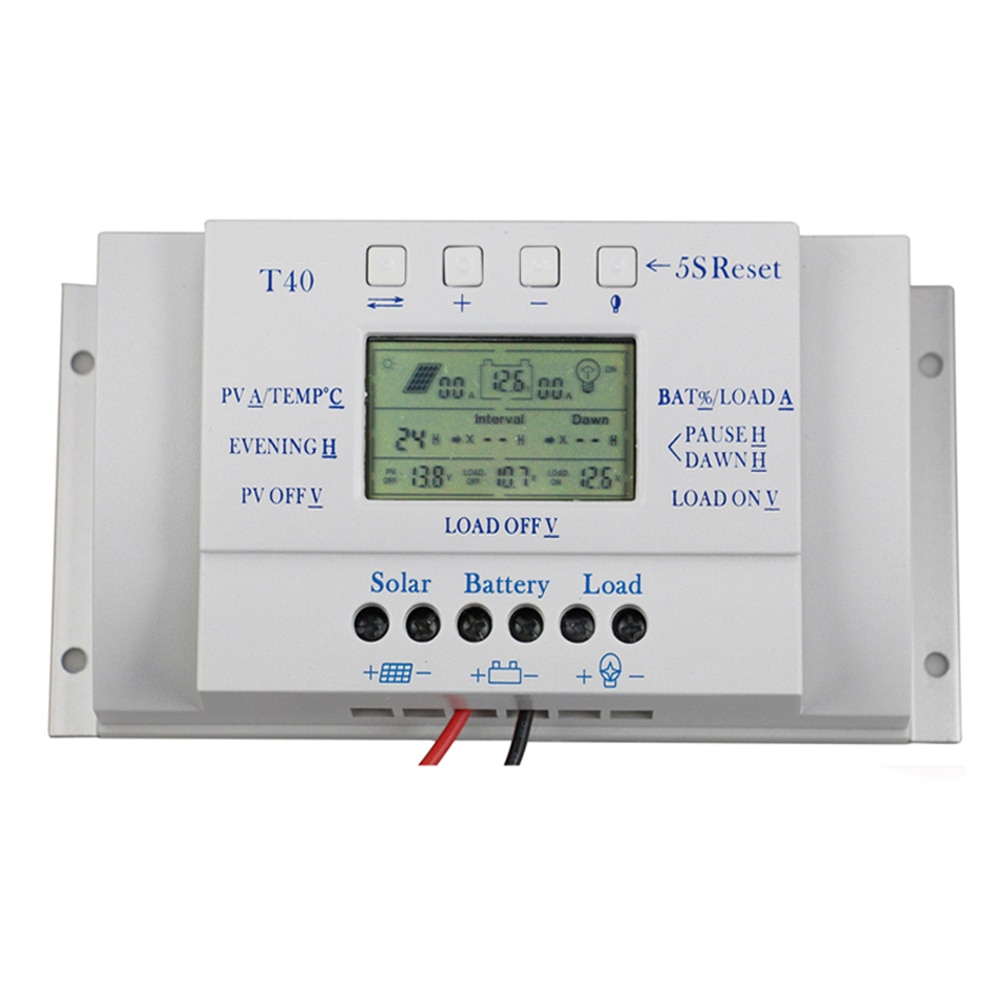

40A T40Solar Charge Controller Dual timer

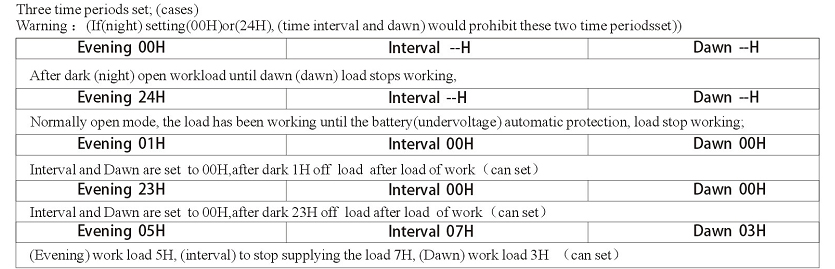

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time.
A:time(evening working) B:time(pause working) C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.

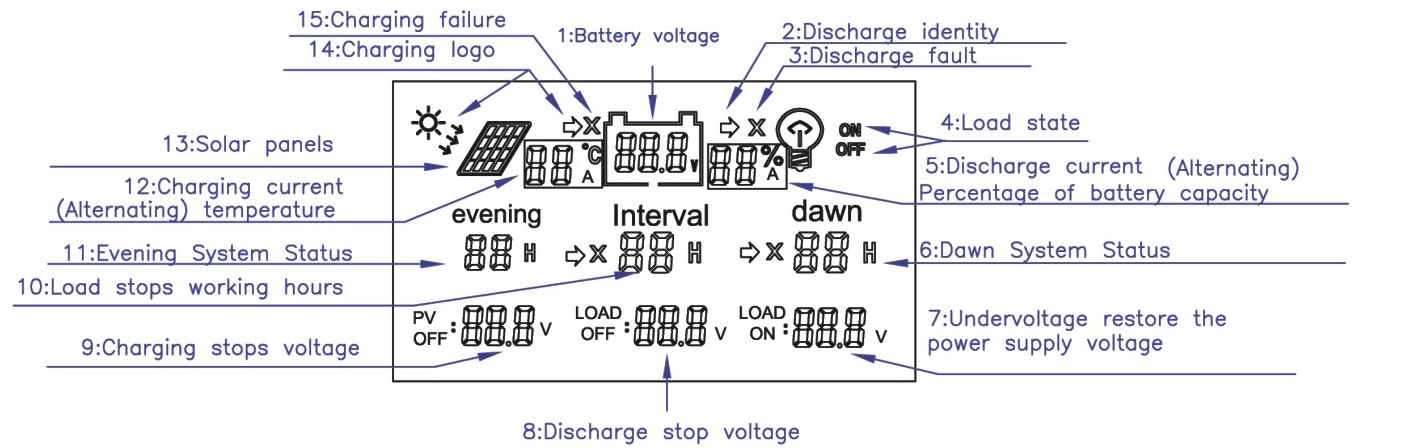

LCD screen display | Battery reverse discharge protection |
Easy operation interface | Battery reverse polarity protection |
MPPT+ PWM charging mode | Battery under voltage protection |
Parameter user can reset Overload | Short-circuit protection |
A key to restore the factory settings | USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone |
A key to open and close the load | Automatic temperature compensation function |
For Wholesale,please feel free to contact us via Hogaki message!!!()
Package list
1. 1x 40A solar controller T40
2. 1x user manual
3. 1x temp sensor
White:
Silver:
Parameters / Model | T10 | T20 | T30 | T40 | ||
Maximum power current | 12A | 20A | 30A | 40A | ||
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 | ||
Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) | ||
Weight | 280g | 300g | 475g | 480g | ||
Dimensions | 143×89×46(mm) | 187*97*61(mm) | ||||
System load loss | ≤13mA | |||||
Loop Buck | ≤100mV | |||||
Battery float voltage | 13.8V(12V system)/27.6V(24V system) | |||||
Battery (under voltage) protection | 10.6V(12V system)/21.2V(24V system) | |||||
Battery (under voltage) recovery voltage | 12.6V(12V system)/25.2V(24V system) | |||||
Charge mode | MPPT+PWM MODE | |||||
Operating Temperature | -10°C~60°C | |||||
Storage Temperature | -30°C~70°C | |||||
Humidity requirements | ≤90%, No condensation | |||||
Temperature compensation | -4mV/Cell/°C | |||||
Temperature Probe (built components) | NTC 100K thermistats | |||||
Maximum open circuit voltage of the solar panel | 18V-24V(12V system)36V-48V(24V system) | |||||
Solar panels maximum open circuit voltage (V) | ≤48V | |||||
(Cases) 12V system standard configuration
- is_customized: Yes
- Maximum Current: 40A
- Model Number: MPPT T40
- Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station,Lighting Controller,Thermal Controller,PV system
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- Work for: Solar panel system
- Max input power: 480W(12V) 960W(24V)
- Installation Lin(mm2): 12mm2
- Installation Line(AWG): 6(AWG)
- Indicator: Big LCD display
- Load Control mode: Dual Timer
- Battery float voltage: 13.8V(12V system)/27.6V(24V system)
- Battery (under voltage) protection: 10.6V(12V system)/21.2V(24V system)
- Battery (under voltage) recovery voltage: 12.6V(12V system)/25.2V(24V system)
- Voltage: 12V 24V auto work
