80A 60A Solar Panel Charge Controller 12V 24V Auto LCD USB Solar Battery Charger High Efficiency Solar 60 Solar80 PWM Regulator

Overview:

This is High Efficiency Solar charge Controller 60A and 80A , it can be used to charging 12V 24V Lead Acid,Gel ,AGM ,Flood ,Sealed Batteries ,ect.

About Solar60 60A , if your battery is 12V , you can use max 720W 25V Solar Panel ;if your battery is 24V ,you can use Max 1440W 50V Solar Panel

About Solar80 80A , if your battery is 12V , you can use max 960W 25V Solar Panel ;if your battery is 24V ,you can use Max 1920W 50V Solar Panel

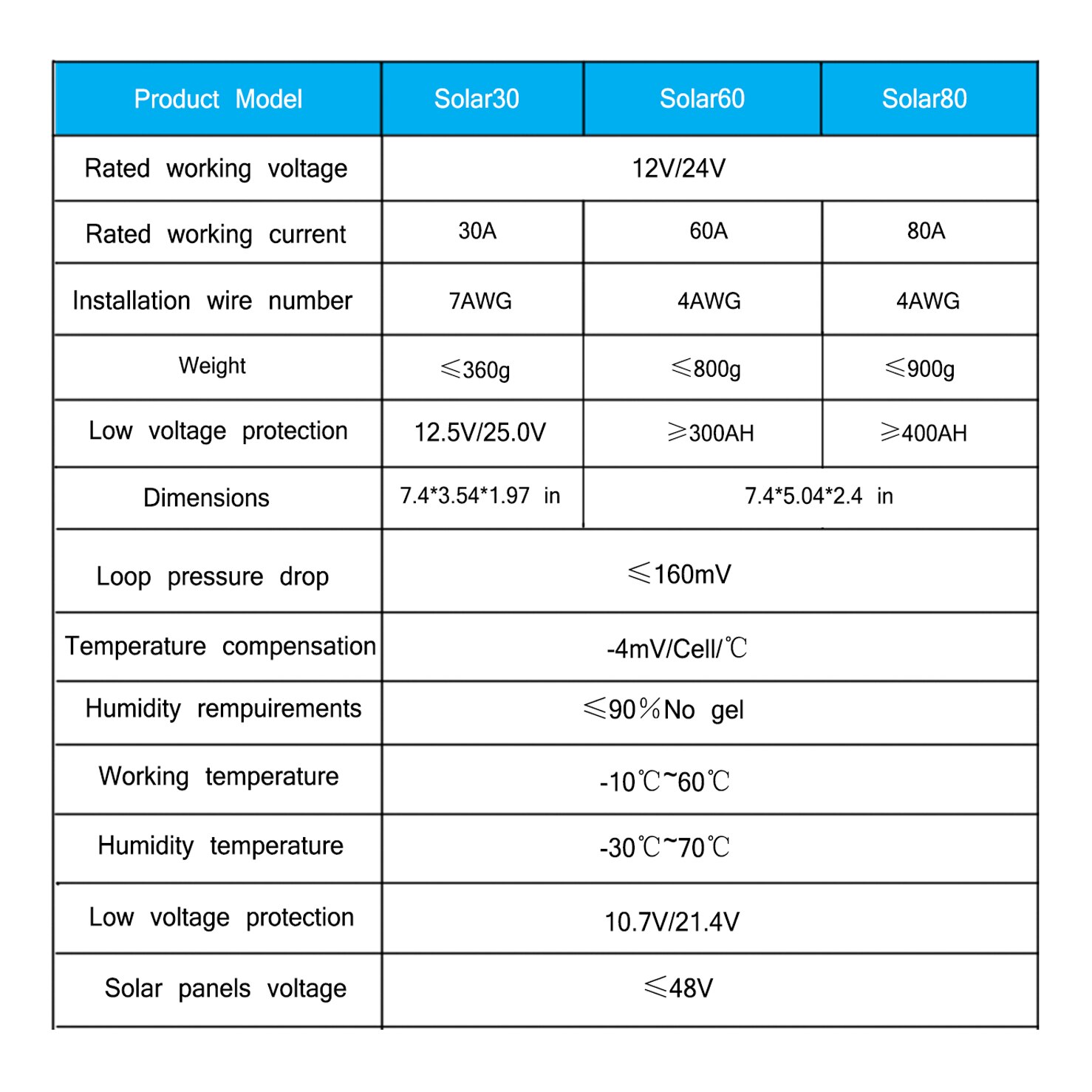

Working Parameter:

Model:Solar60 60A
System voltage: 12V 24V Auto
Max Charging Current:60A
Max. PV open circuit voltage:50V(24V System):25V(12V System,)
Max. PV input power:1440W(24V System);720W(12V System)

Model:Solar80 80A
System voltage: 12V 24V Auto
Max Charging Current:80A
Max. PV open circuit voltage:50V(24V System):25V(12V System,)
Max. PV input power:1920W(24V System);960W(12V System)

Float charging voltage:13.8V/27.6V(settable)
Low voltage protection:10.7V/21.4V (settable)
Low voltage recovery:12.5V/25.0V(settable)
No-load loss:≤25mA
Loop pressure drop:≤160mV
Temperature compensation:-4mV/Cell/°C
No-load loss:≤25mA
Loop pressure drop:≤160mV
Temperature compensation:-4mV/Cell/°C

Note:please contact the seller to get more detailed information if you have any questions !

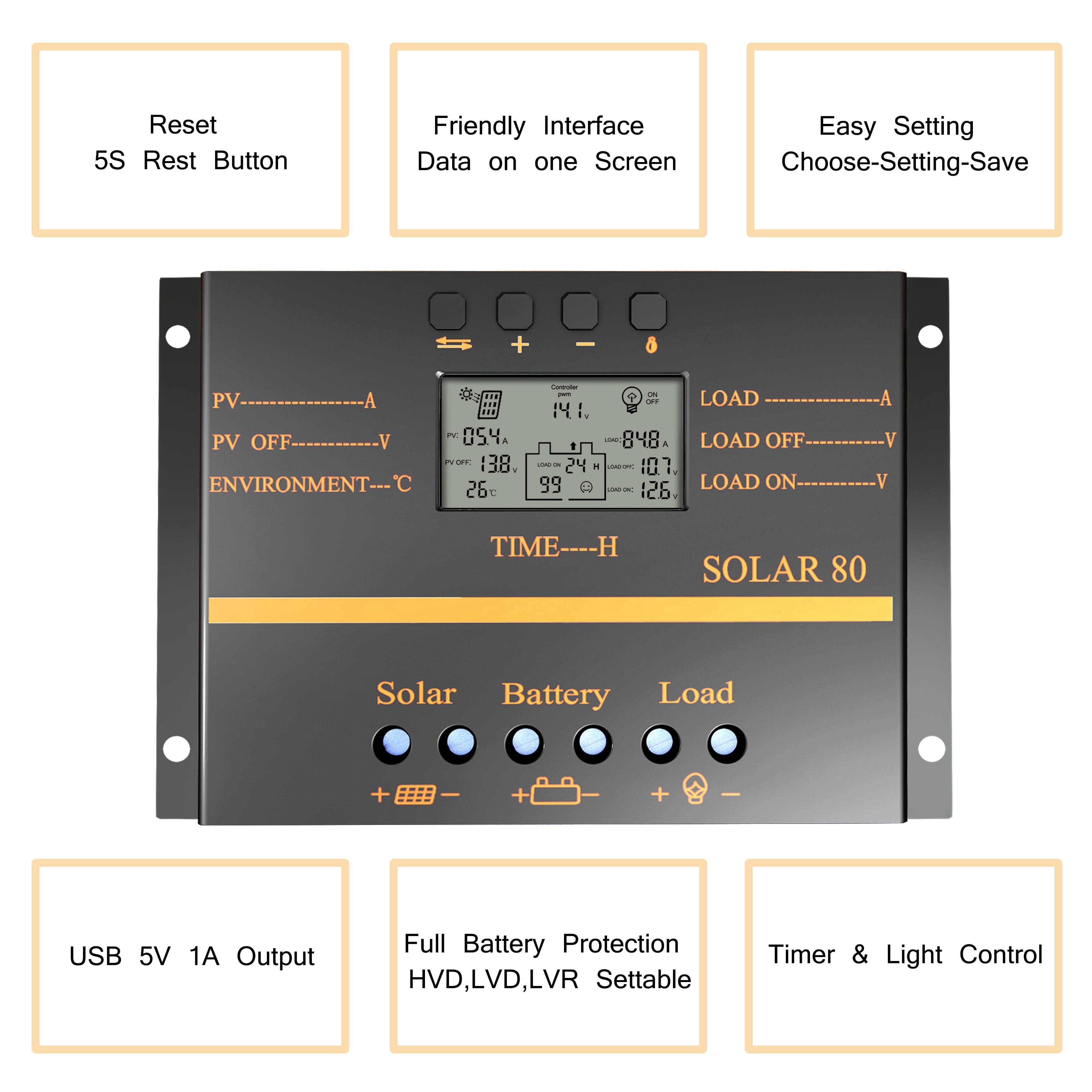

Features:

multipurpose solar charge and discharge controller

LCD screen display

Easy operation interface

PWM charging mode

Parameter user can reset,

A key to open and close the load,

A key to restore the factory settings,

Battery reverse discharge protection,

Battery reverse polarity protection

Battery under voltage protection,

Overload, short-circuit protection,

Automatic temperature compensation function,

USB 5V charging for mobile phone

Protection:

PV Over Current Protection
PV Short Circuit Protection
PV Reverse Polarity Protection
Battery Over Voltage Protection
Battery Over Discharge Protection
Battery Overheating Protection
Load Short Circuit Protection
Load Overload Protection
Controller Overheating Protection

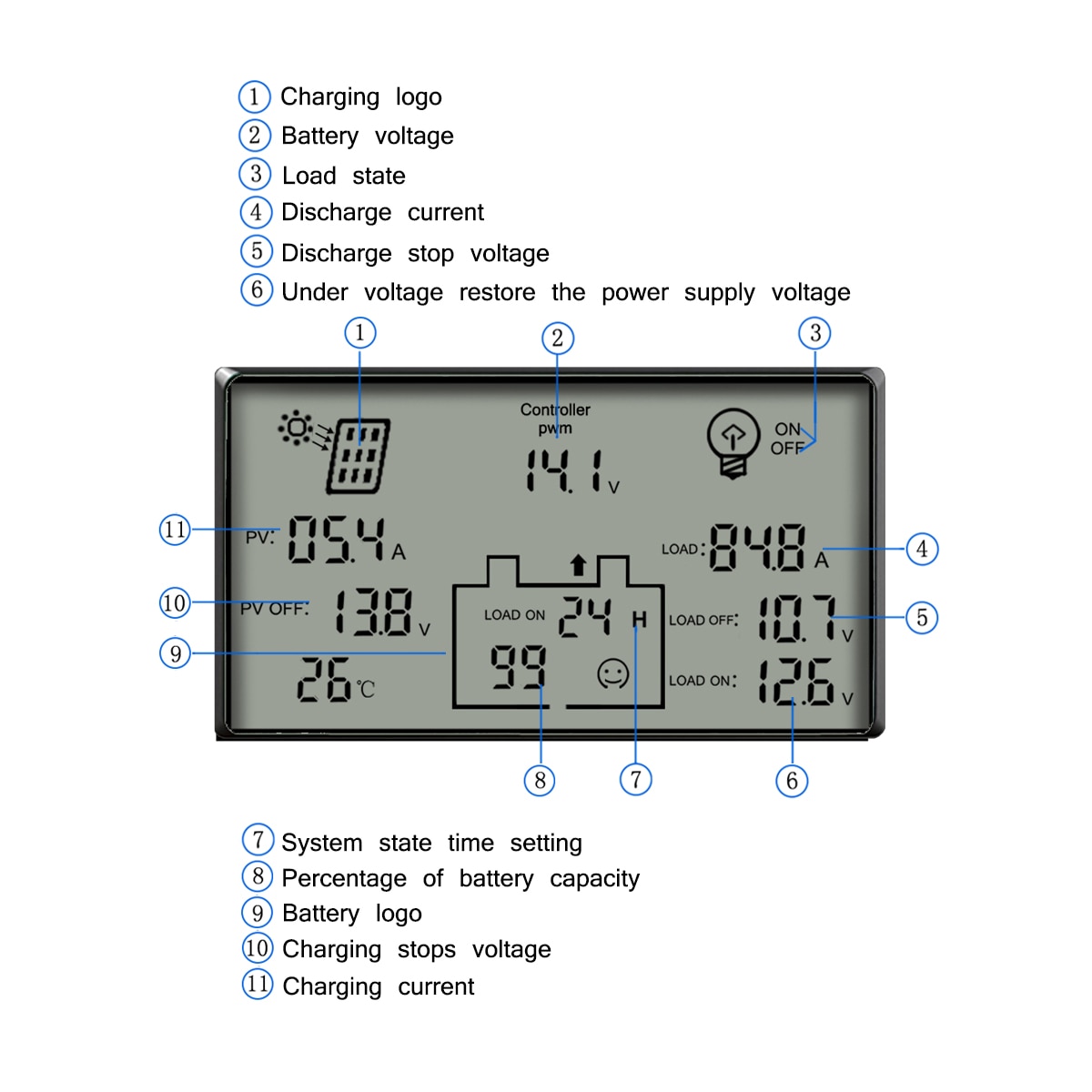

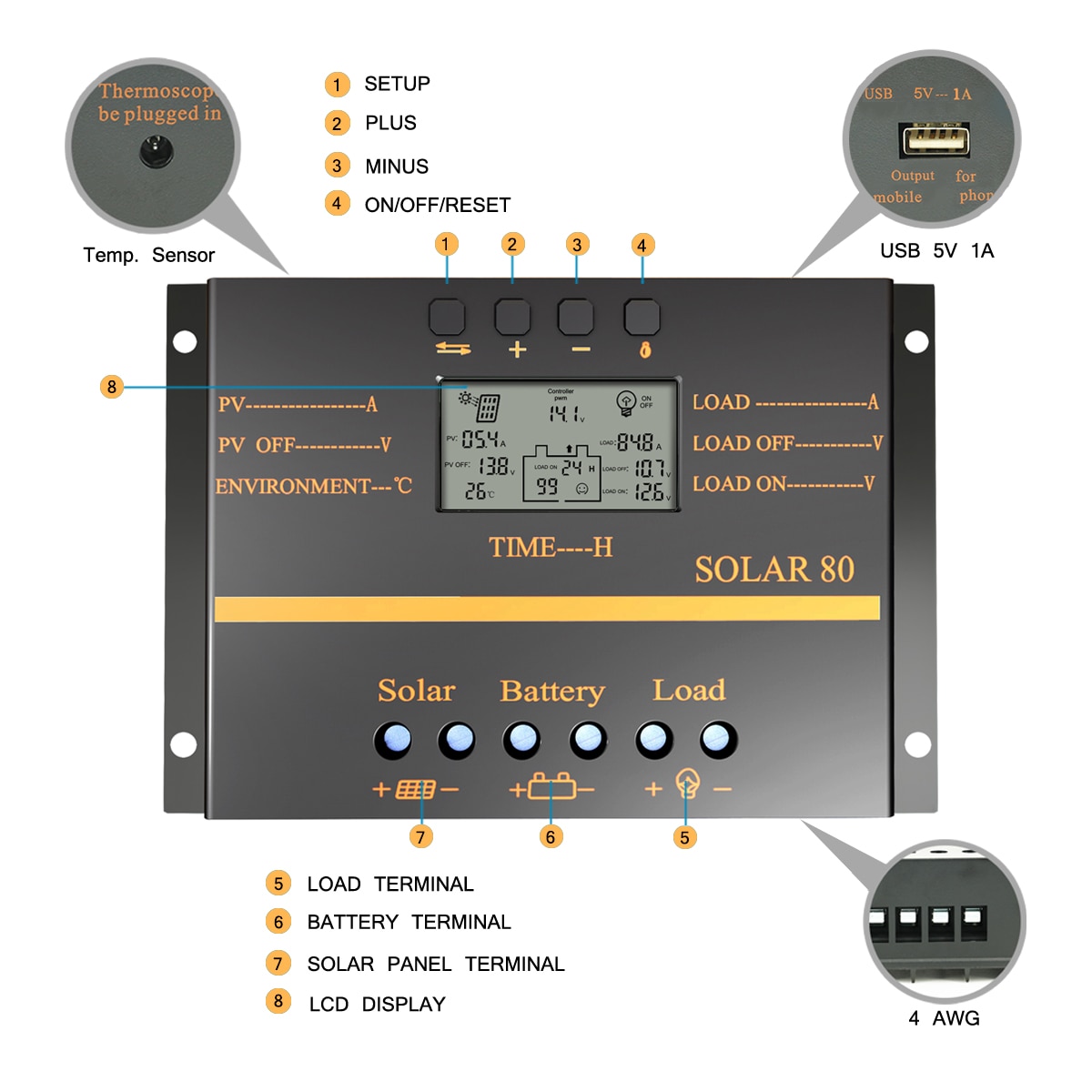

Display:

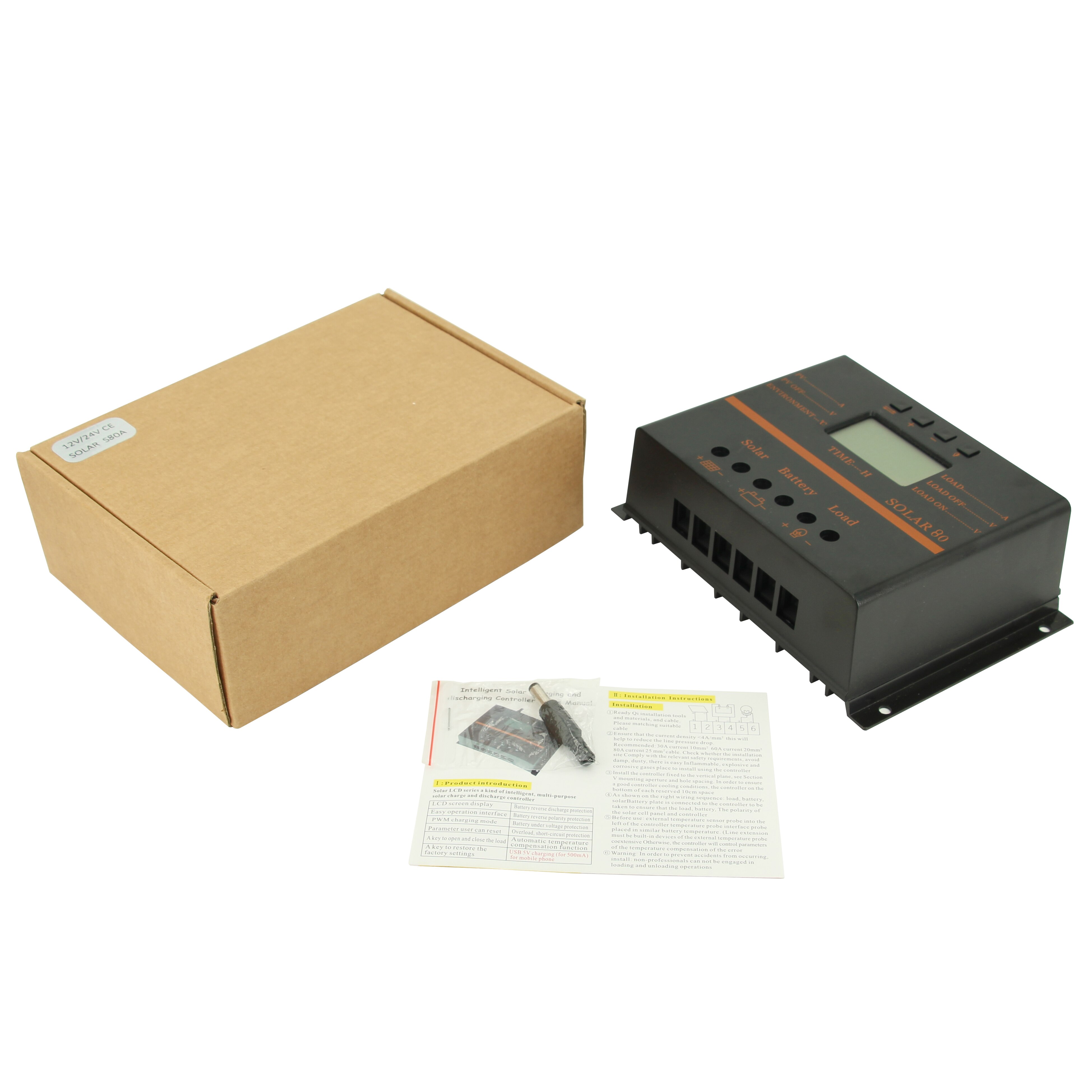

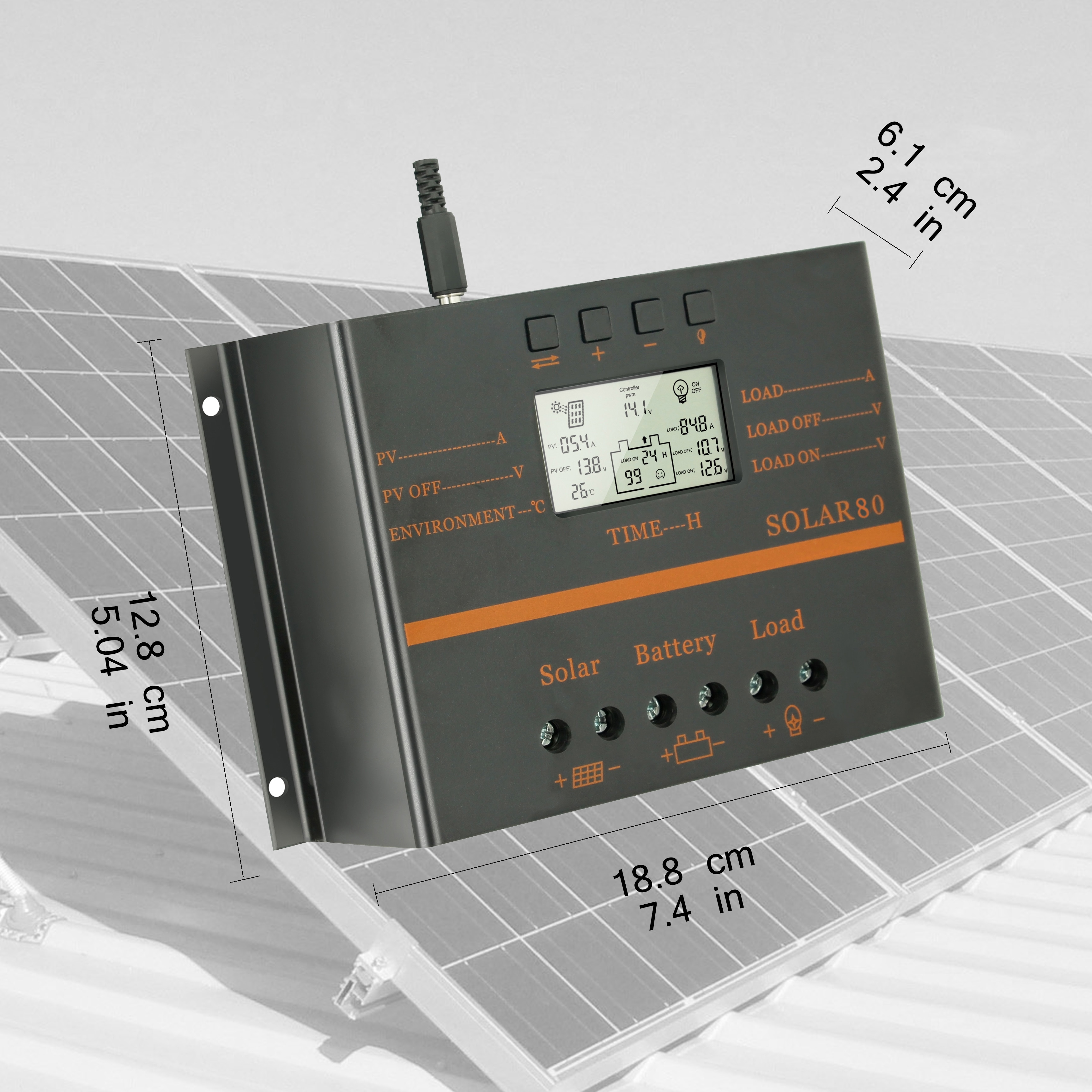

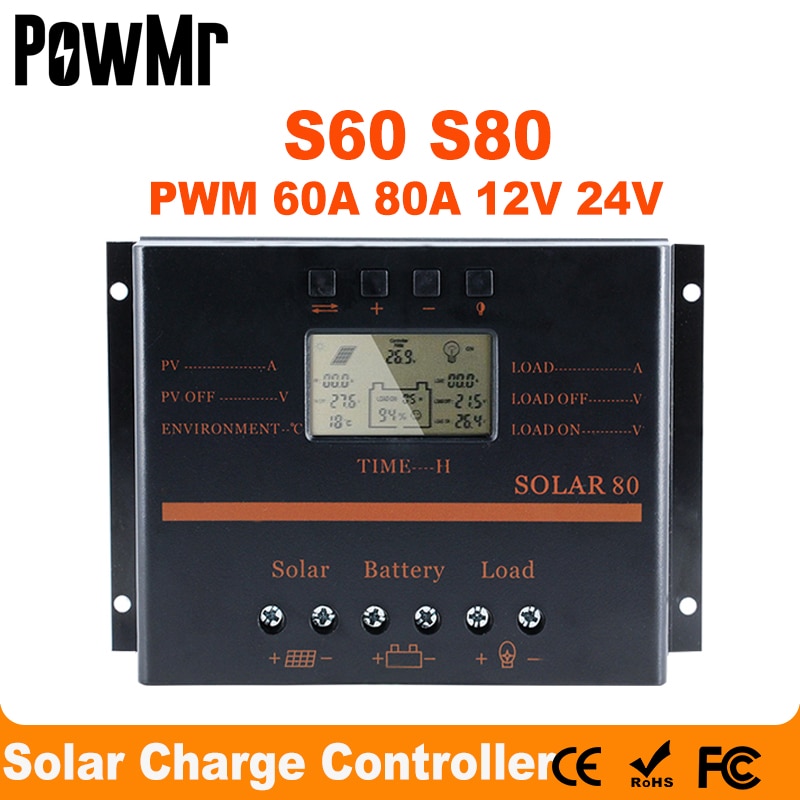

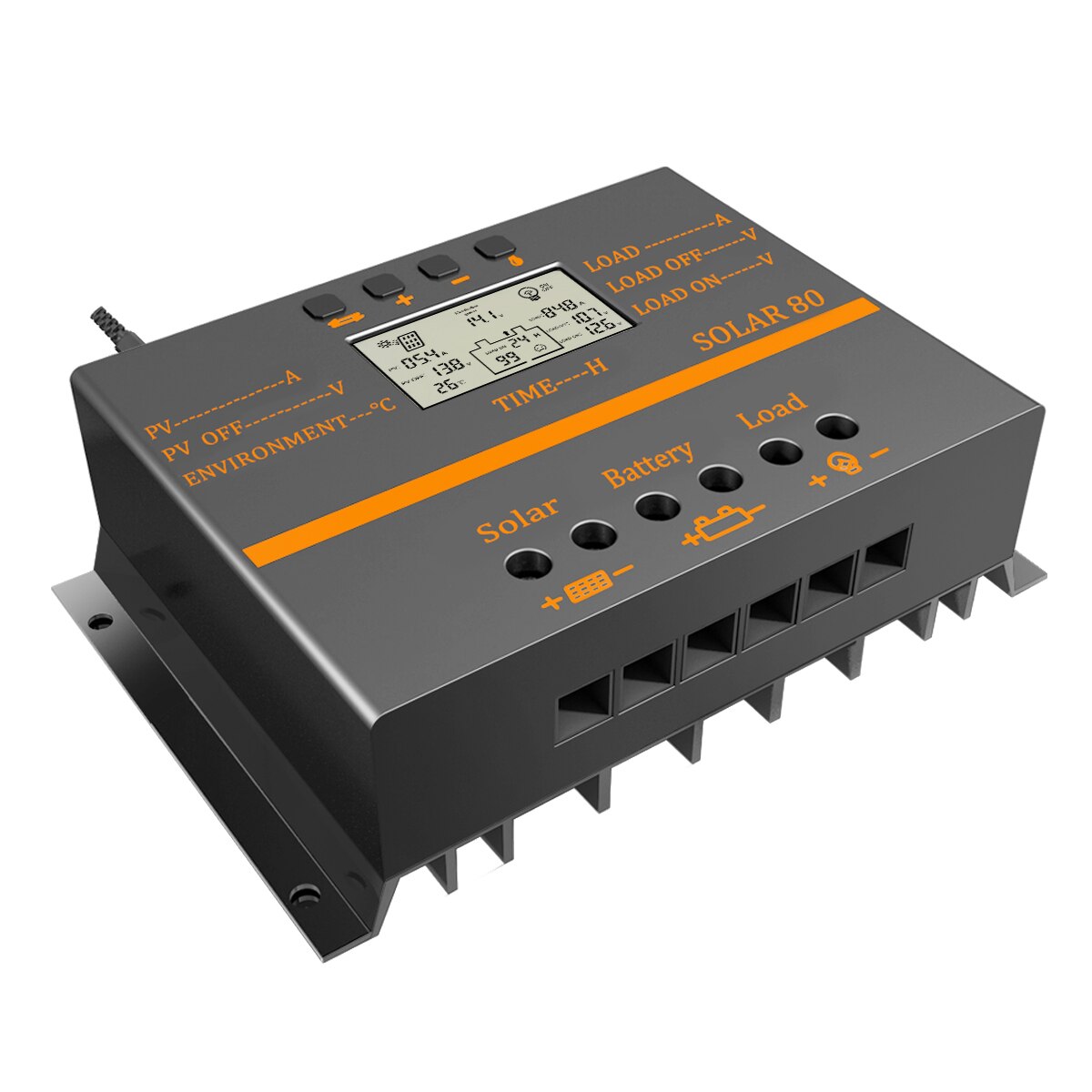

Photo:

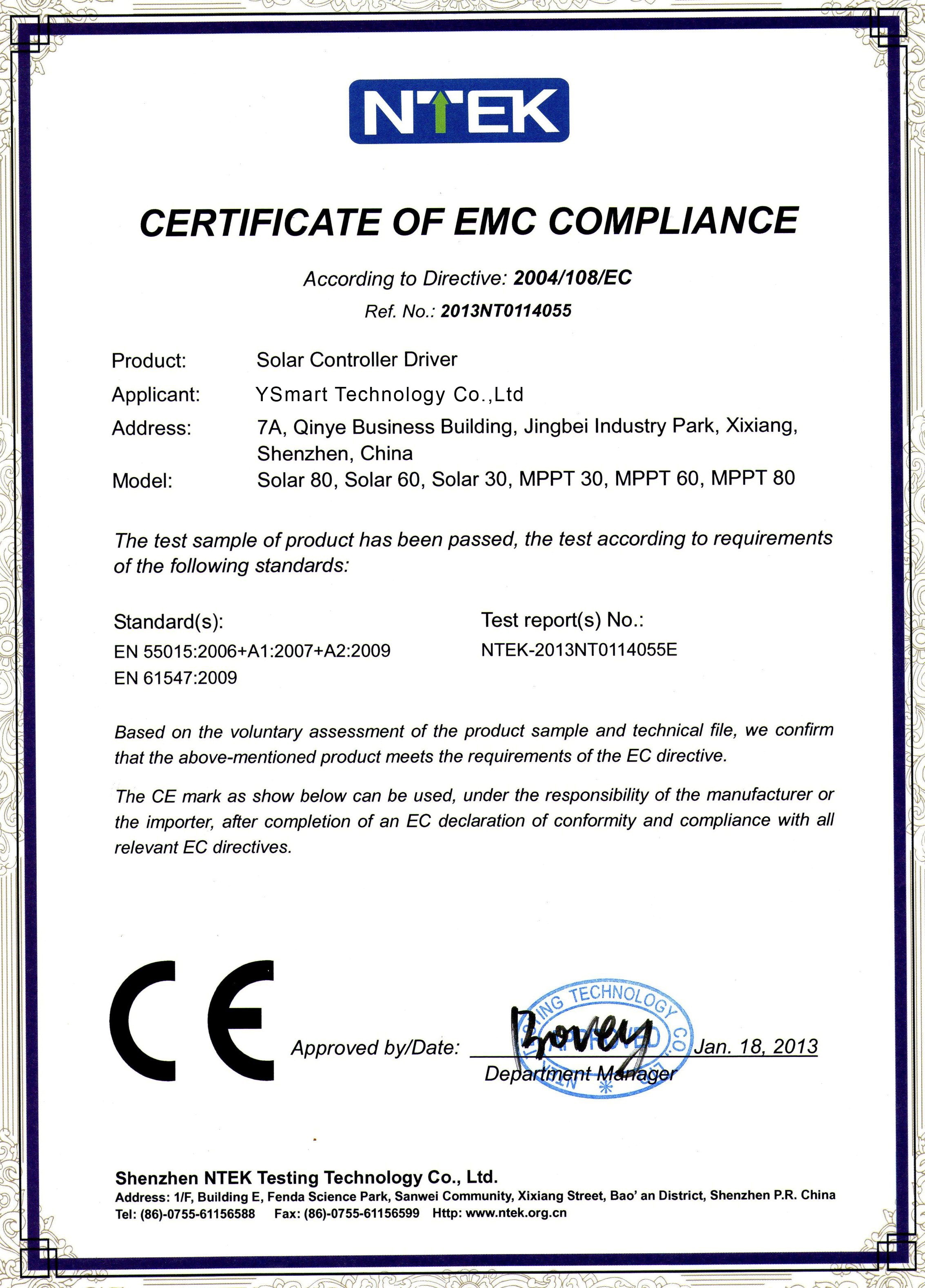

Certification:




  • is_customized: Yes
  • Maximum Current: 80A 60A
  • Model Number: Solar60 Solar80
  • Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
  • Brand Name: PowMr
  • Origin: Mainland China
  • Certification: CE
  • Battery Voltage: 12V 24V Auto
  • Max. PV open circuit voltage: 50V Solar Panel (24V System) 25V (12V System)
  • Max. PV input power: 2000W(80A) 1500W(60A)
  • USB: 5V
  • Item: 80A 60A Solar Panel Charge Controller
  • Product: Solar Battery Charger 60A 80A
  • Feature: All data in one display (convenient)
  • Parameter: Settable
  • Display: Big LCD Controller
  • type: pwm solar charge controller
  • type1: pwm 80a 60a
