Solar Panel Charge Controller Regulator Collector 30A 20A 10A 12V-24V Auto 5V Dual USB Display for Lead Acid Batteries LCD

5.0 (22 votes) | 236 orders
Price: US $324.18 - 2173.98 / piece
Discount Price:
US $ 239.40 - 1589.94 / piece
-26%
Current
Rated Voltage
Quantity

Contact us directly for wholesale price.

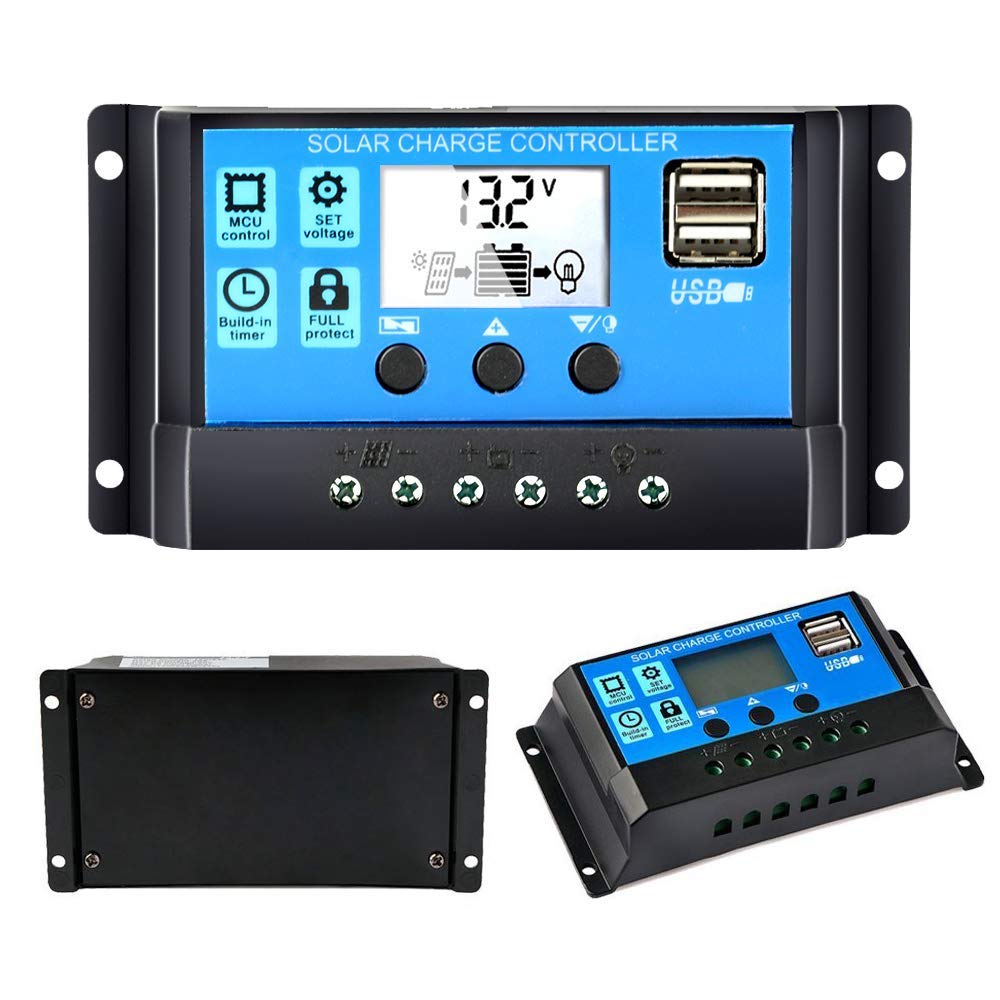

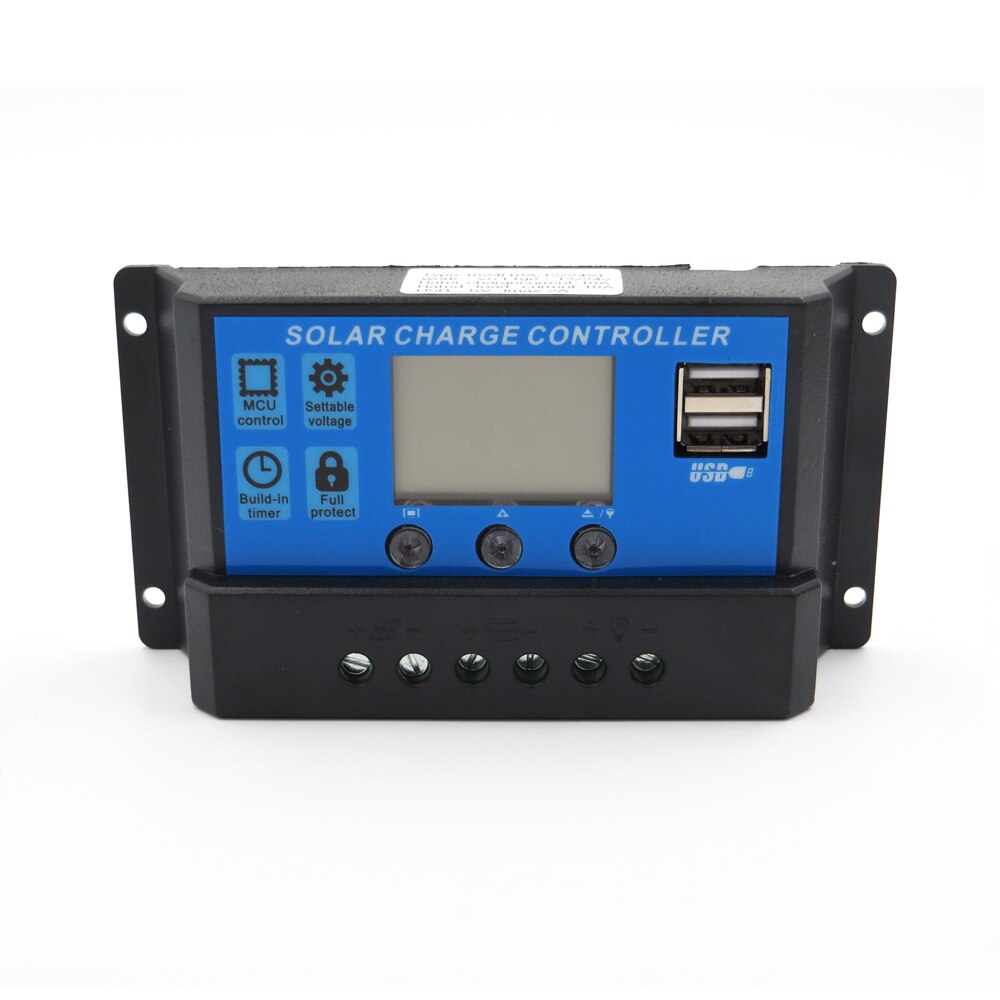

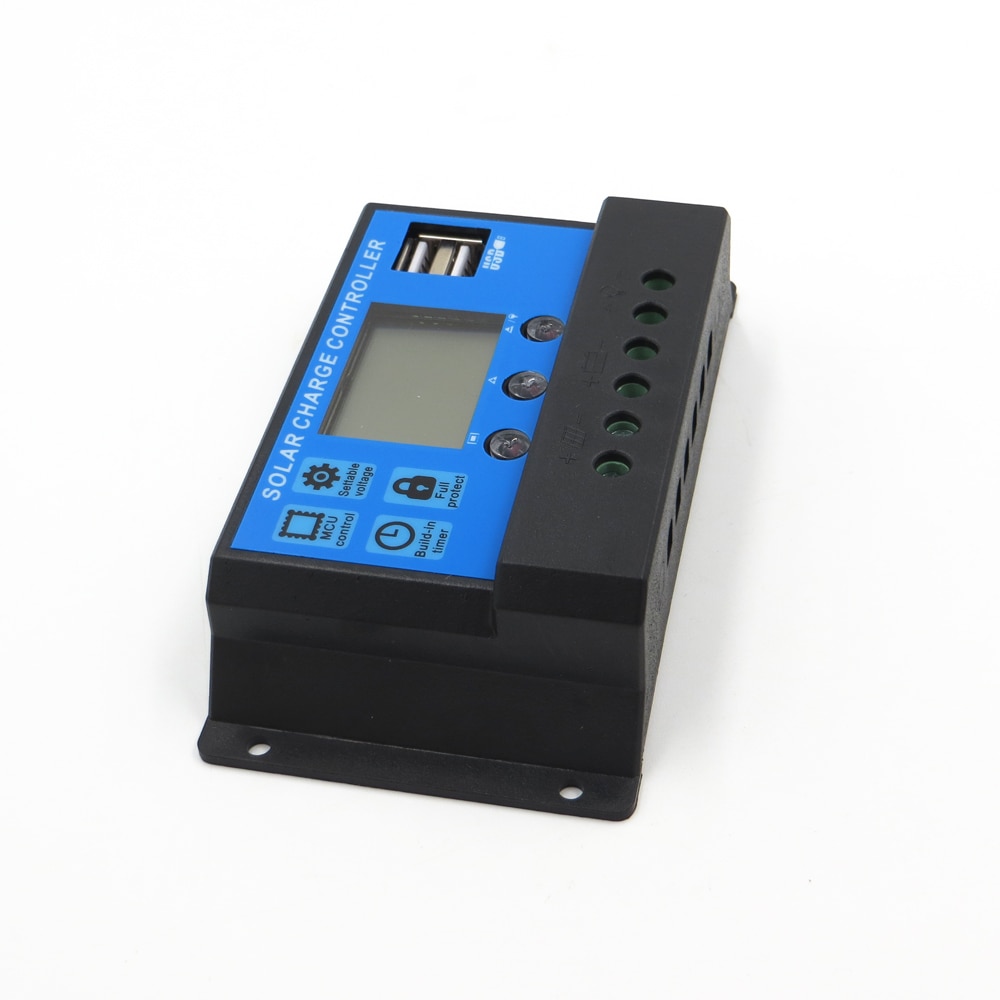

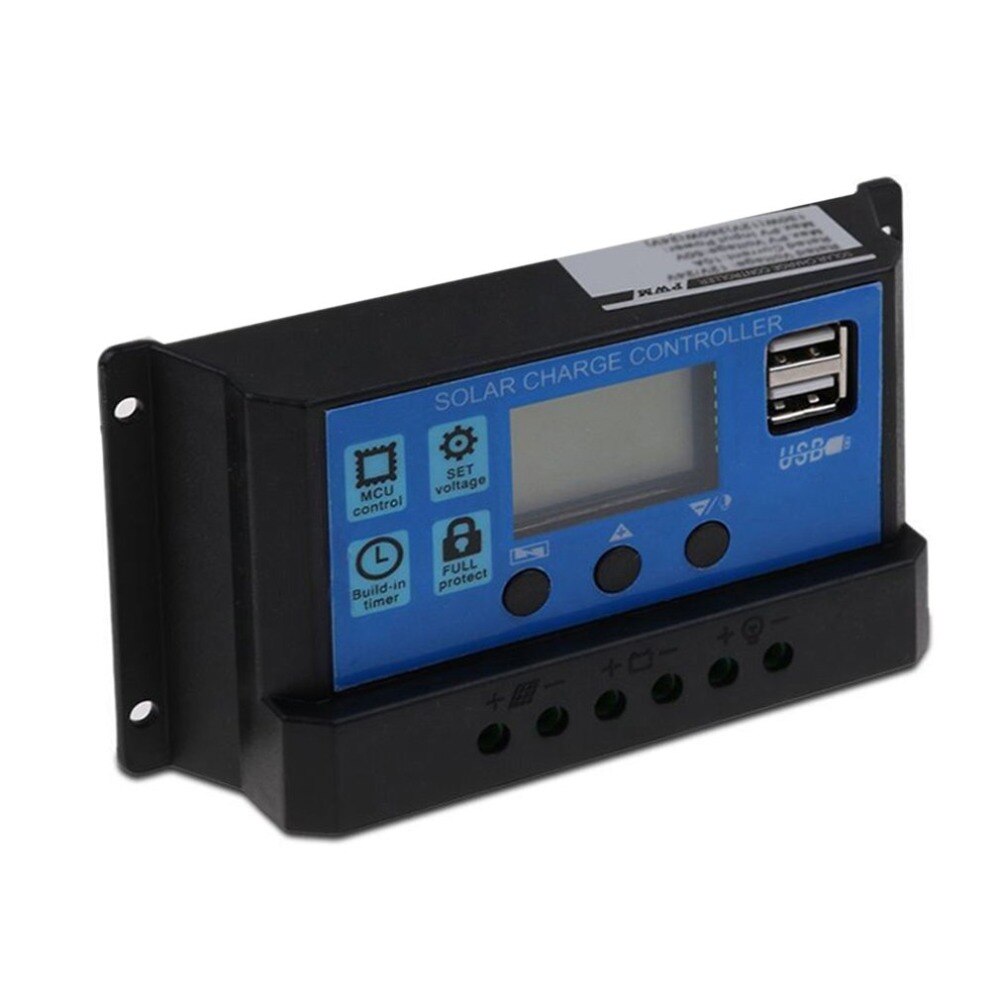

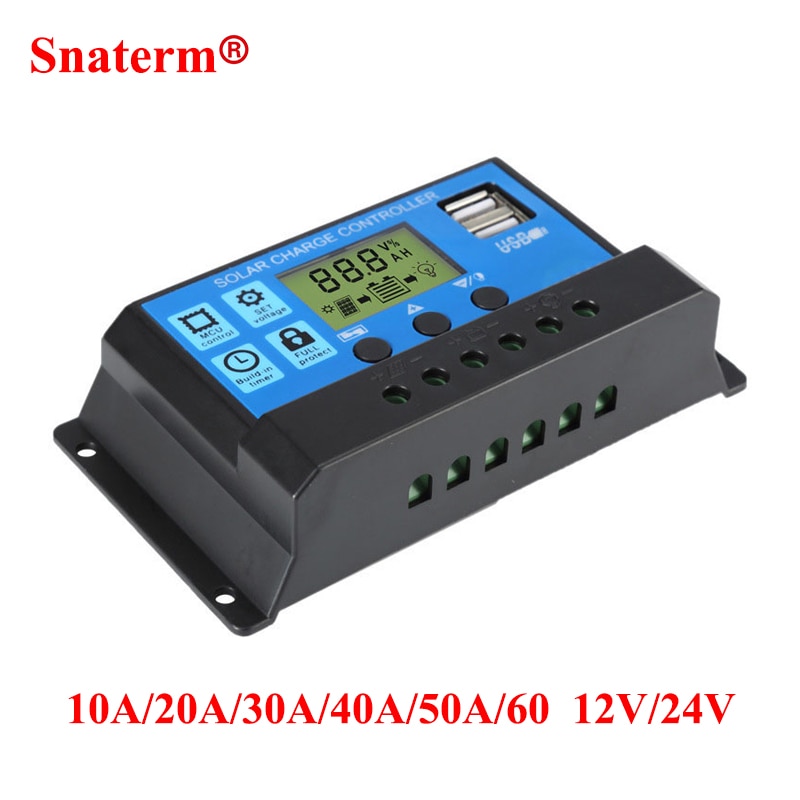

PWM 10/20/30A Dual USB Solar Panel Battery Regulator Charge Controller 12/24V LCD

This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

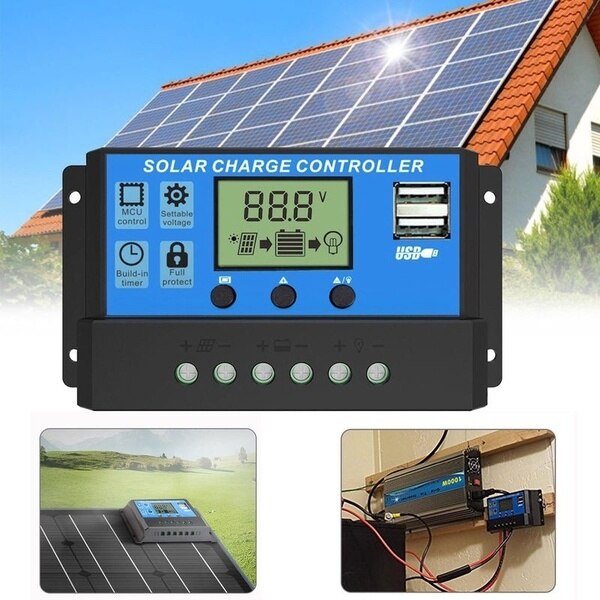

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V Lead acid ,Gel battery automatically.

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

if your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

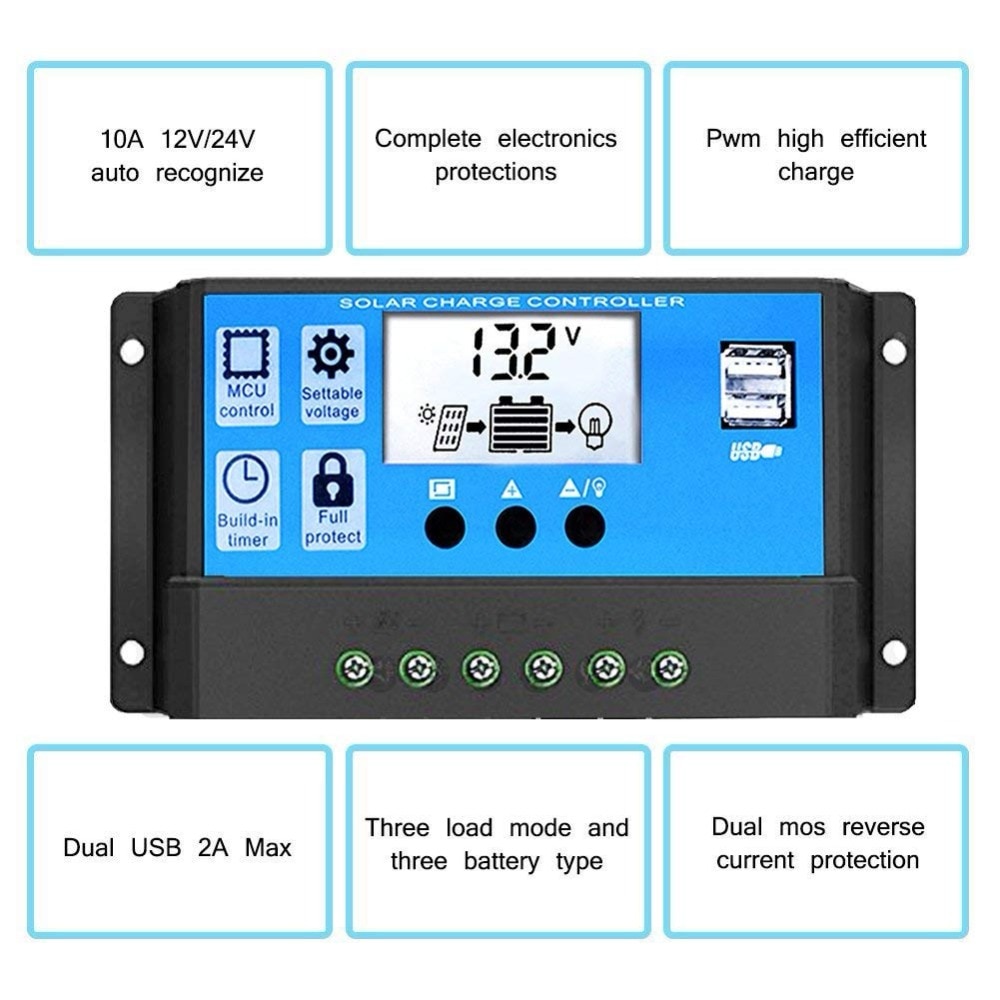

Features:

1.Build-in industrial micro controller.

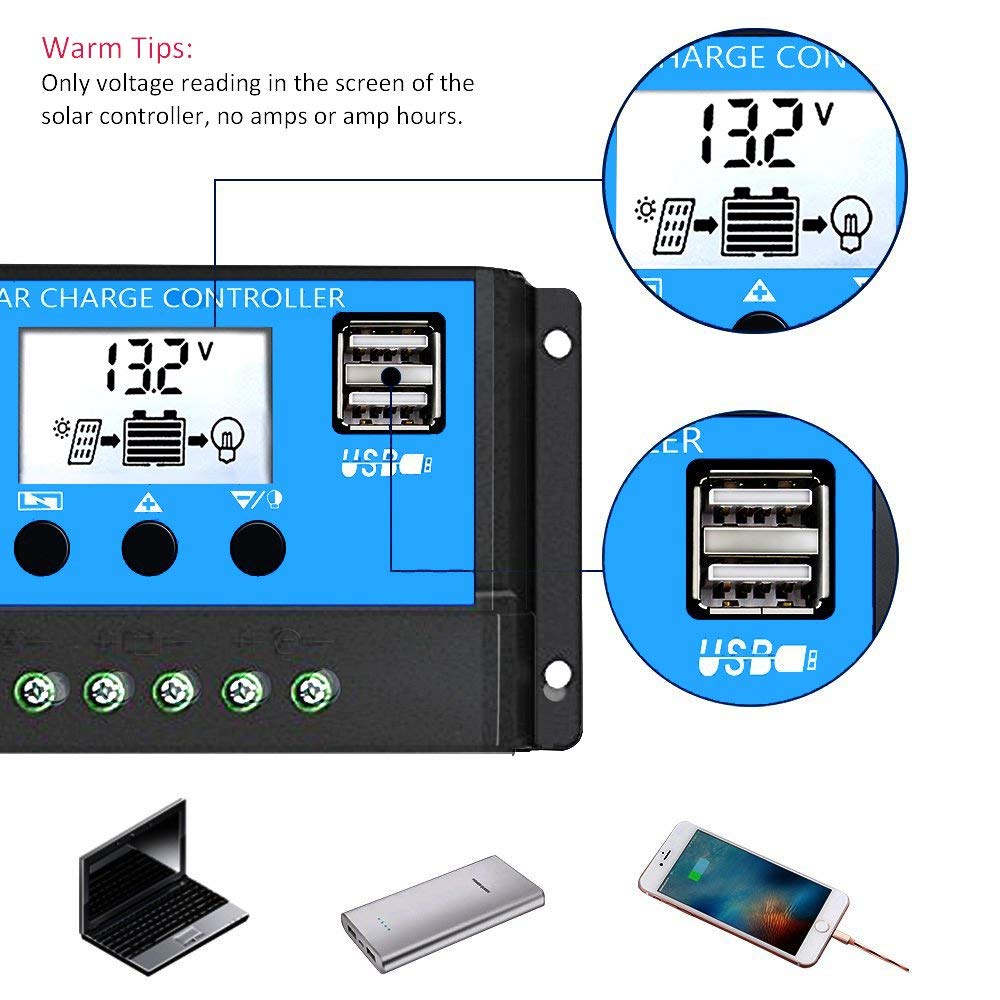

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Parameter:

MODEL

PWM 10A

PWM 20A

PWM 30A

PWM 40A

PWM 50A

PWM 60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

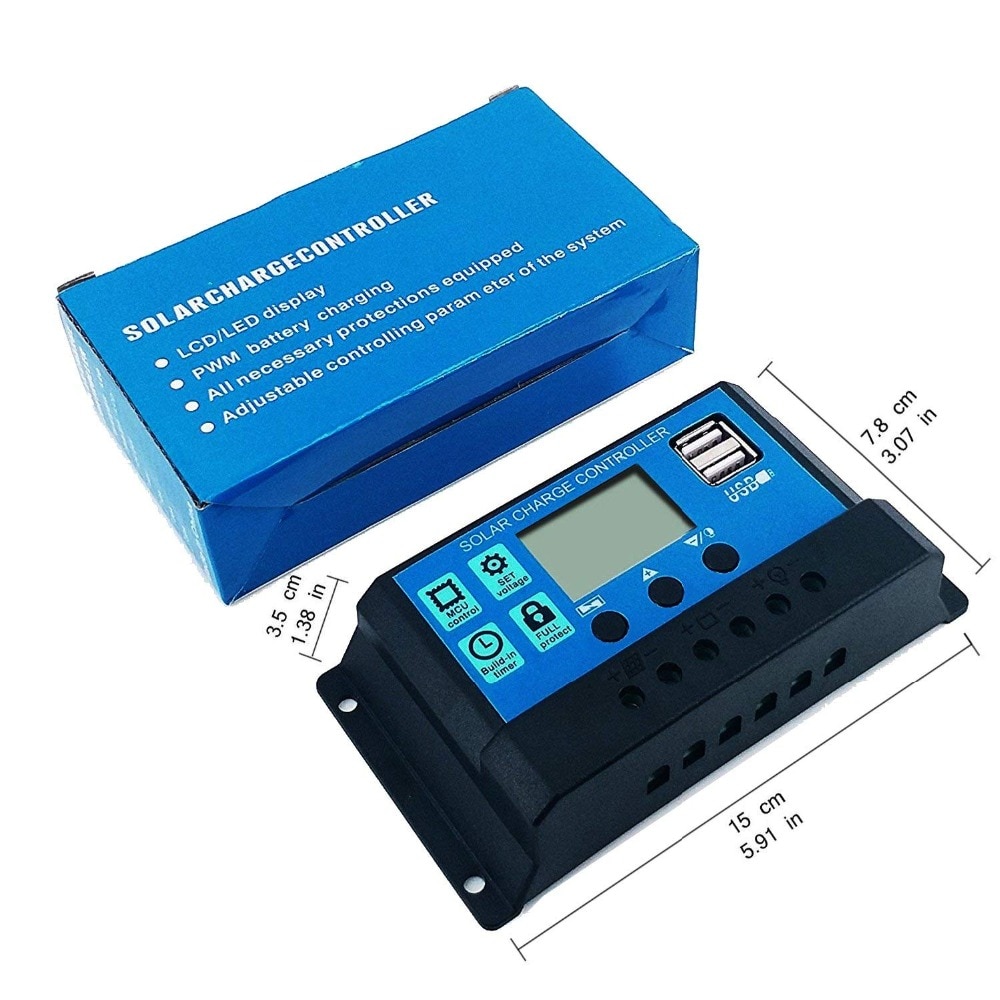

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.

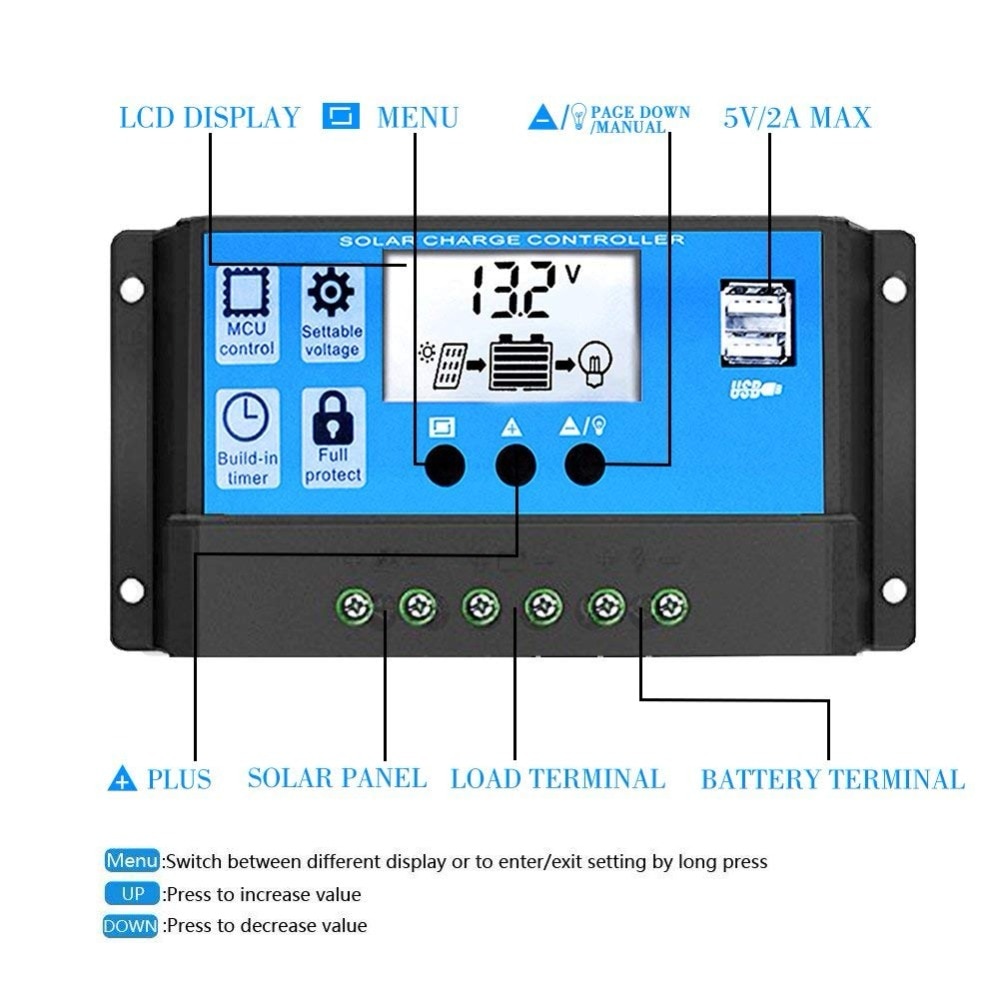

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!





1.  Orders processed within 5 working days after the payment verification.( not included holiday or weekend ).

2.  We only ship to confirmed order addresses. Your order address must match your Shipping address.

3.  If you have not received your order after 30 days from payment, please contact us. We will trace your order and get back to you asap.

4.  All products on Hogaki.com are guaranteed to be delivered within 60 days (90 days for deliveries to Brazil). you are protected if you don't receive your order on time.

5.  Delivery Time ( Main Countries for Reference ) :

Country

Estimated Delivery Time

Seller Guarantee Delivery time

United States

19-39 days

60 days

United Kingdom

30-50 days

60 days

Australia

24-49 days

60 days

Russian Federation

35-58 days

60 days

Belarus

26-48 days

60 days

France

22-40 days

60 days

Spain

29-49 days

60 days

Ukraine

30-55 days

60 days

Israel

29-52 days

60 days

Netherlands

19-36 days

60 days

Brazil

40-60 days

90 days



1.  When you receive a product that was bought and paid for on our store, and you find it is not as described or is of low quality, you can contact us to resolve these problems.

2.  You will get a full refund if your order does not arrive within the Guarantee delivery time promised by the seller.

3.  Returns accepted if product not as described, buyer pays return shipping fee.Or keep the item and get a partial refund.



1.  With Domestic Returns you get an extra 15 days, on top of the order completion date, to decide if you want to keep or return the item.if you have any problem,please contact us for help.

2.  Defective items must be reported and returned within the warranty period.



1.  5 star review = more discount by next order.

2.  Please contact us before you open dispute,we will resolve your problem.

3.  Please contact us before you decide to leave negative feedback.We will give you best solution.





  • is_customized: Yes
  • Maximum Current: 10A 20A 30A
  • Model Number: PWM 10A/20A/30A
  • Application: Charger Controller
  • Origin: Mainland China
  • Certification: CE
  • Rated Voltage: 12V/24V Auto Switch
  • USB output: 5V
  • Application: Charger Controller,Lighting Controller
  • Charging current: 10a 20a 30a 40a 50a 60a
  • Max Solar input: 50V(24V battery) 25V(12V battery)
  • Float charge: 13.7V(defaul,adjustable)
  • Low voltage reconnect voltage: 12.6V(defaul,adjustable)
  • Low voltage disconnect voltage: 10.7V(defaul,adjustable)
  • voltag: 12v 24v
