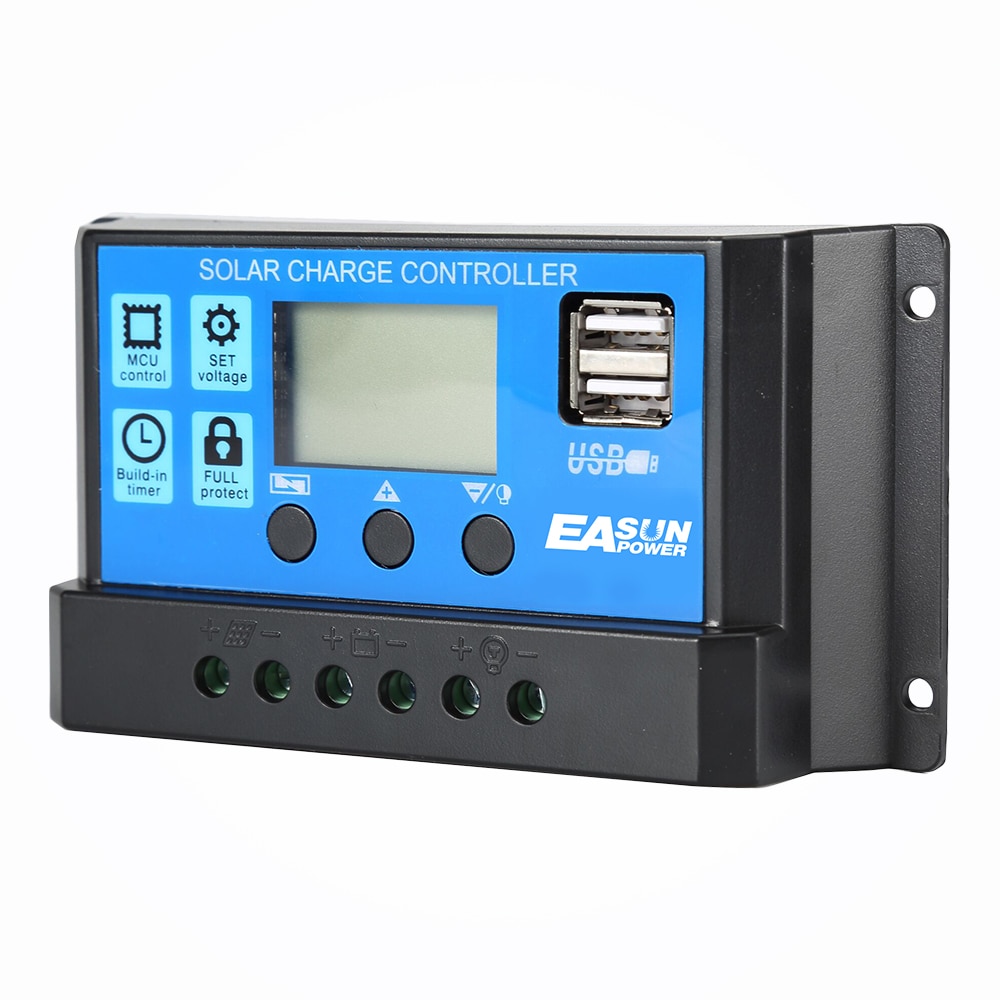

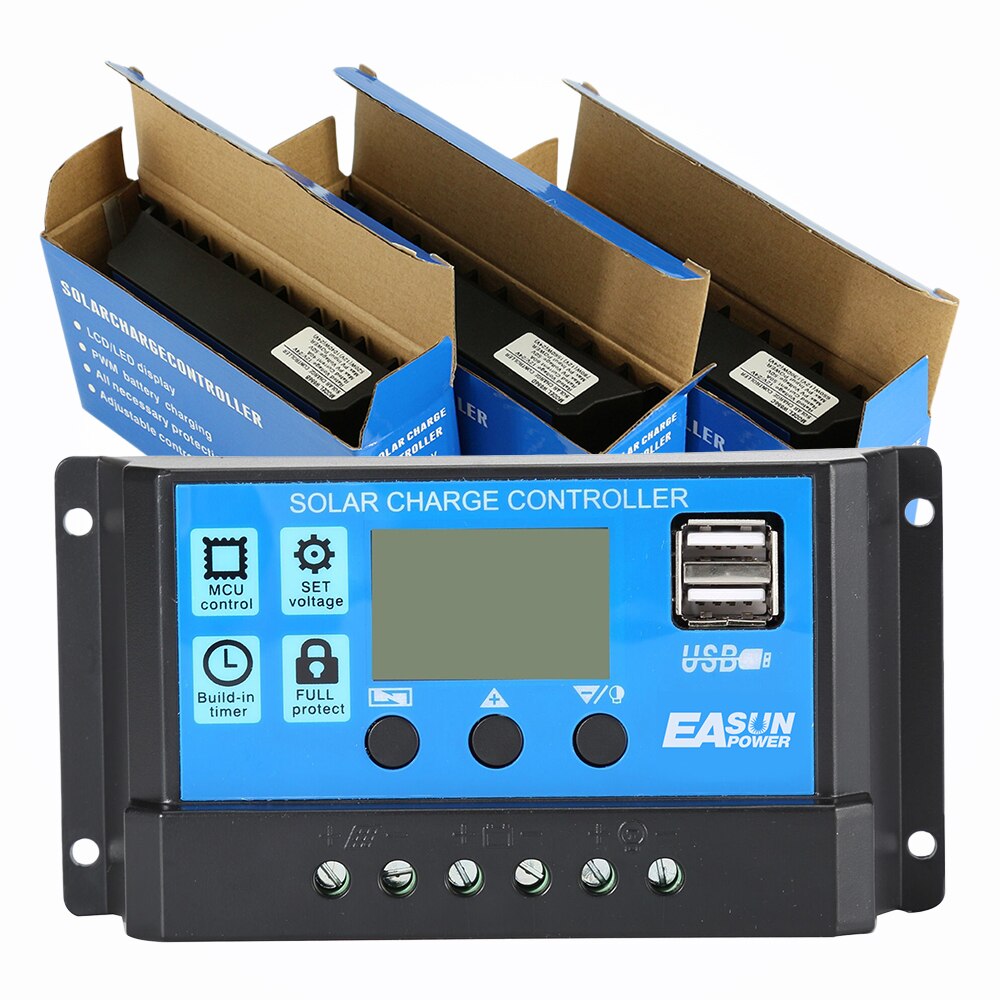

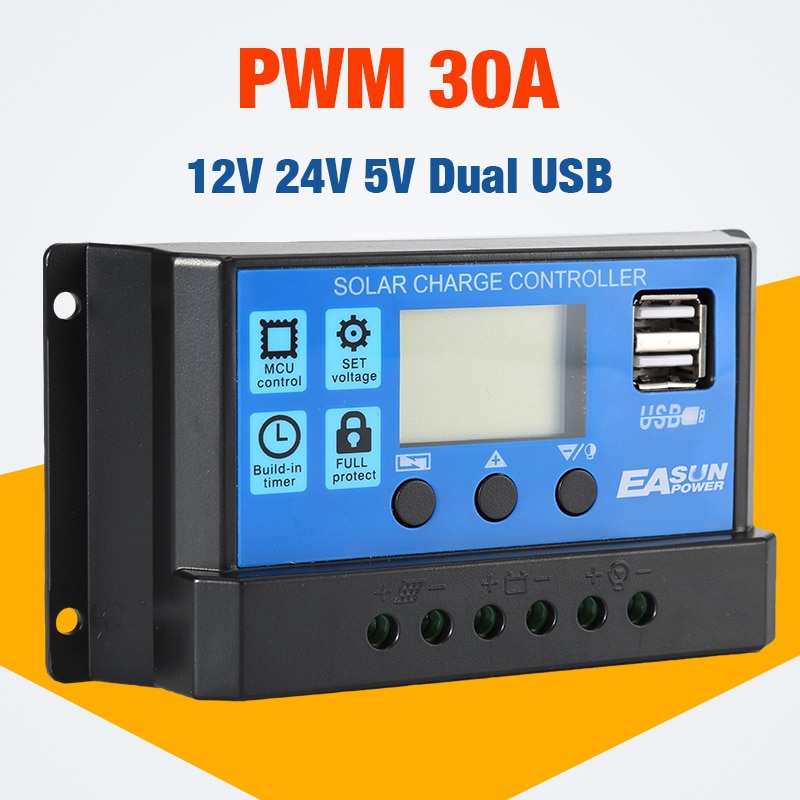

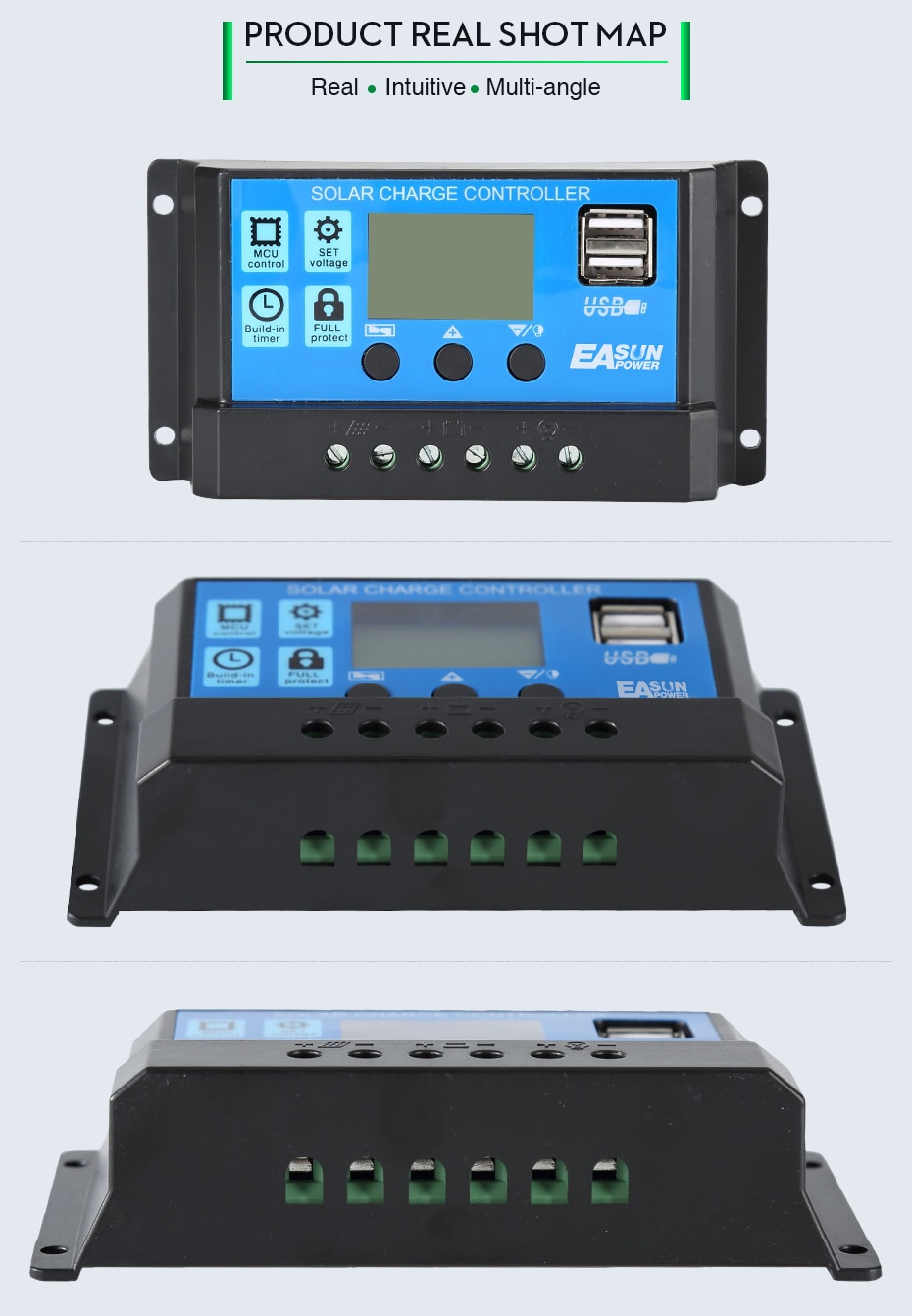

Solar controller 30A 12V 24V Auto Solar Charge Controller PWM With LCD Dual USB 5V Output Solar Cell Panel Regulator PV Home

0.0 ( votes) | 8 orders
Price: US $37.77 / piece
Discount Price:
US $ 26.66 / piece
-29%
Current

Sorry! This item is out of stock

Solar controller 30A 12V 24V  PWM Auto Solar Charge Controller 5V Output Solar Cell Panel Regulator PV Home With LCD Dual USB

SYSTEM CONNECTION
1. Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

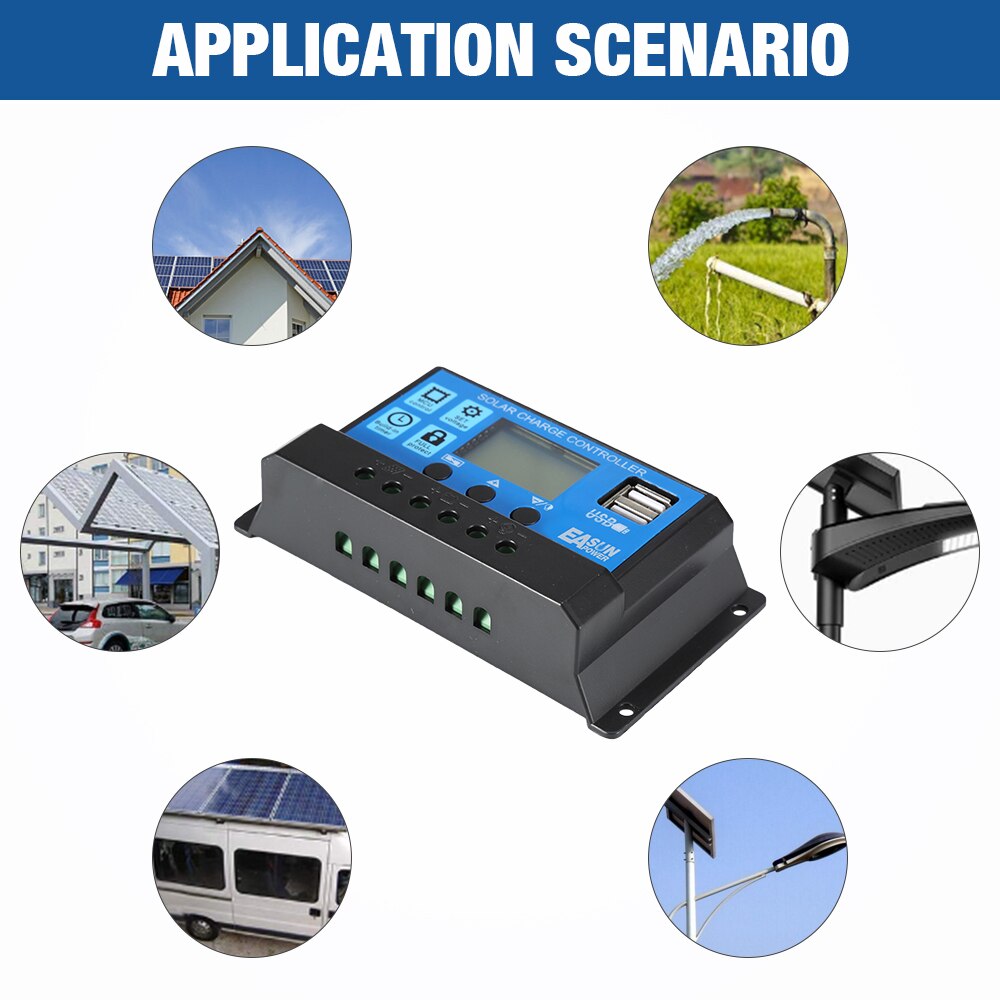

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.


MODEL

ICharger PWM 10A ICharger PWM 20A ICharger PWM 30A
Battery Voltage 12V 24V Auto
Charging Current 10A 20A 30A
Discharging Current 10A 20A 30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

*all red color voltage X2 ,while using 24V system.

30AC10A-20A_02C10A-20A_03C10A-20A_04


CM20K-40A 3CM20K-40A 4

MENU:switch between different display,or to enter/exit setting by long press.

UP:   press to increase value.

DOWN:presss to decrease value.



Setting:






C10A-20A_06


WARRANTY/QUALITY:

  • CE certified.
  • 100% QC before shipment.
  • Standard 1 year product warranty
  • Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable
  • Contact us directly for warranty issue

  • Brand Name: EASUN POWER
  • Model Number: ICharger PWM 30A-1
  • is_customized: Yes
  • Application: Charger Controller,Voltage Controller,Lighting Controller
  • Maximum Current: 30A
  • Charging current: 30A
  • Max Solar input: 50V(24V battery) 25V(12V battery)
  • Float charge: 13.7V(defaul,adjustable)
  • Discharge reconnect: 12.6V(defaul,adjustable)
  • Discharge stop: 10.7V(defaul,adjustable)
  • USB output: Dual 5V
  • Self-consume: Less than 10mA
