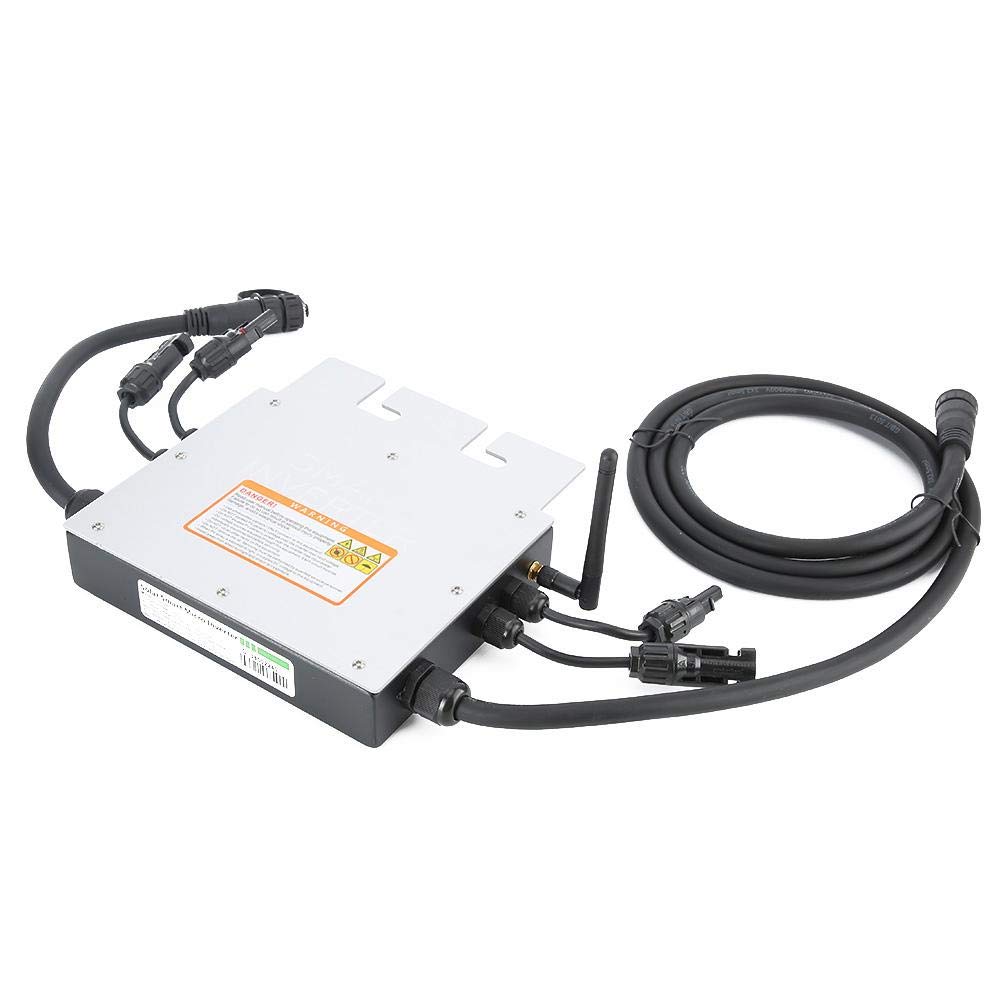

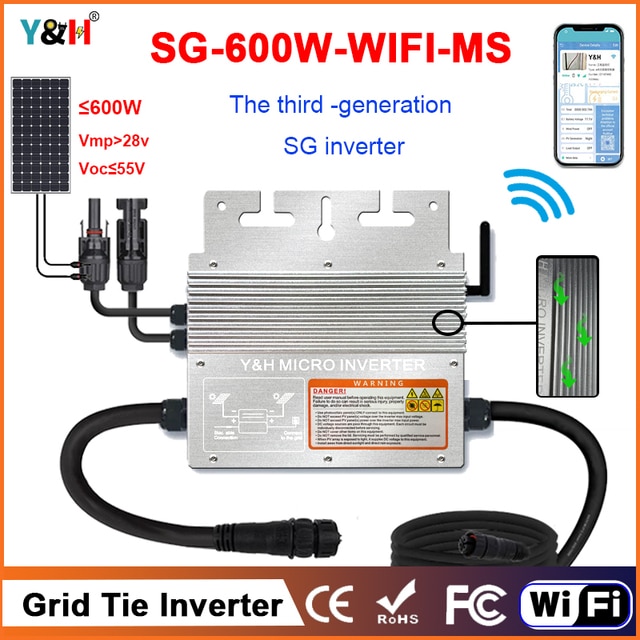

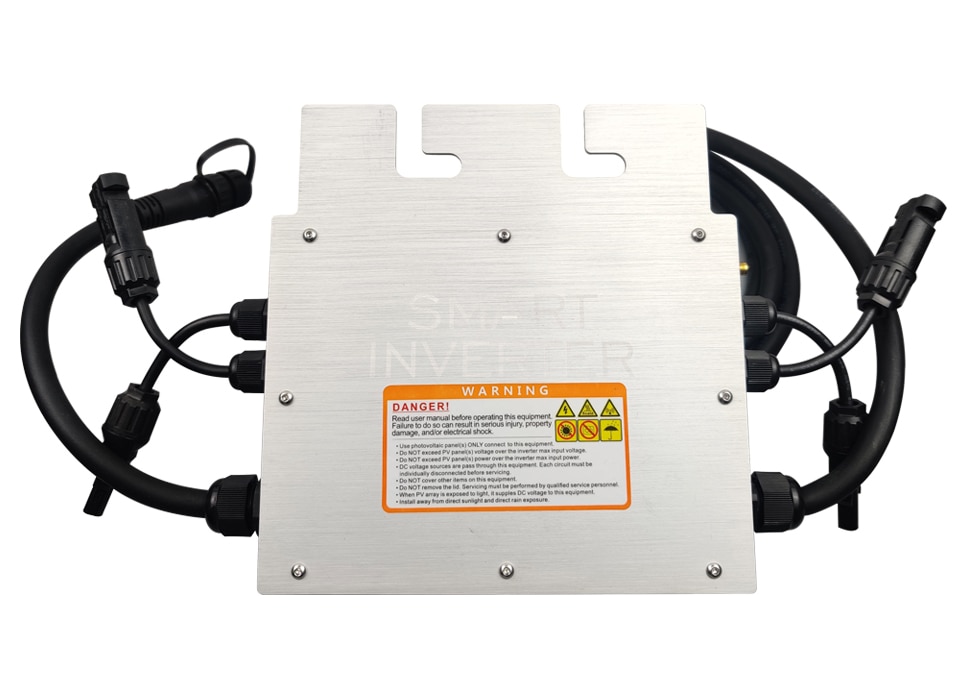

600W 700w Smart Microinverter Pure Sine Wave Power Solar Micro On Grid Tie inverter 24V 36V DC to 110v 220V AC for Solar Panel

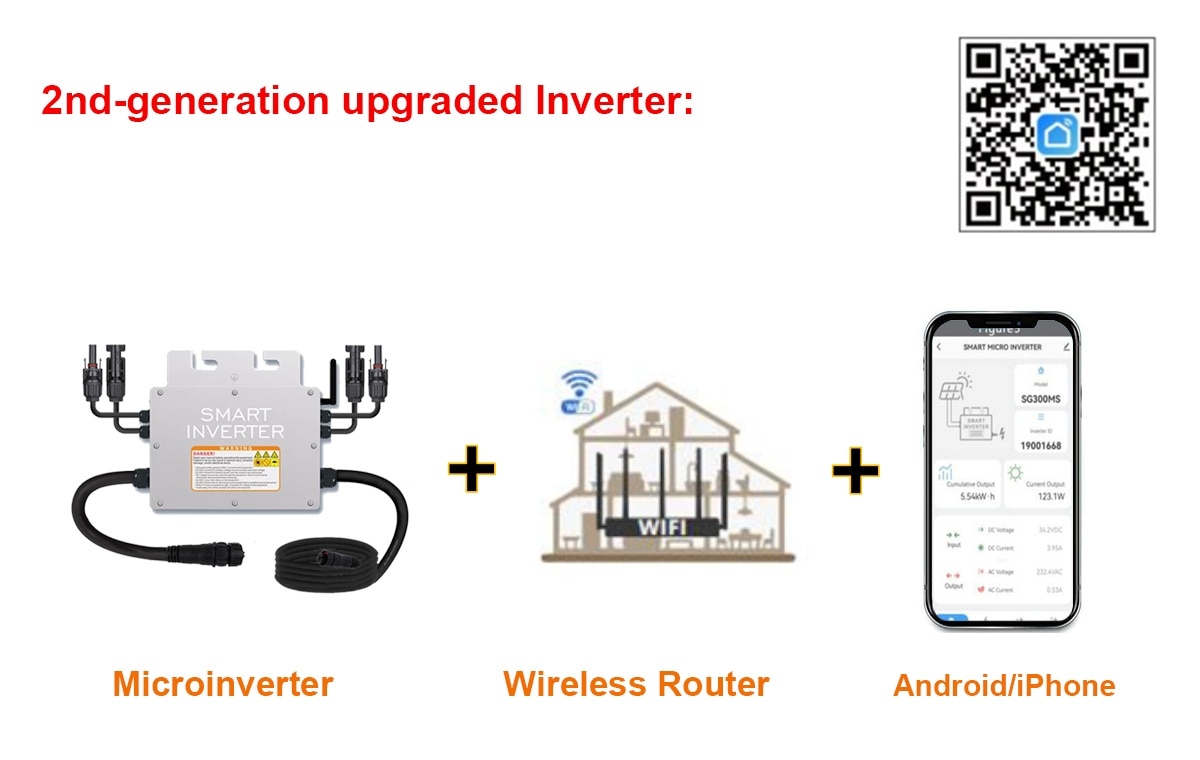

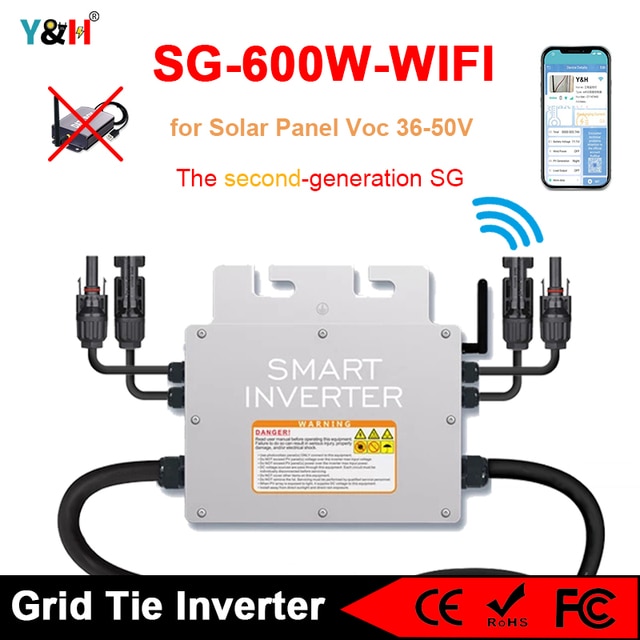

The second-generation SG micro-inverter adds mobile phone communication function, Let you monitor the working status of your inverter anytime and anywhere.This Smart On Grid system improves safety; maximizes solar energy harvest; increases system reliability, and simplifies solar system design, installation, maintenance , and management.
Notice:
SG300-700W version. You can buy our AC cord accessories, 700W or higher, it is recommended to use them according to the instructions. Because of the high power, a circuit breaker is required.

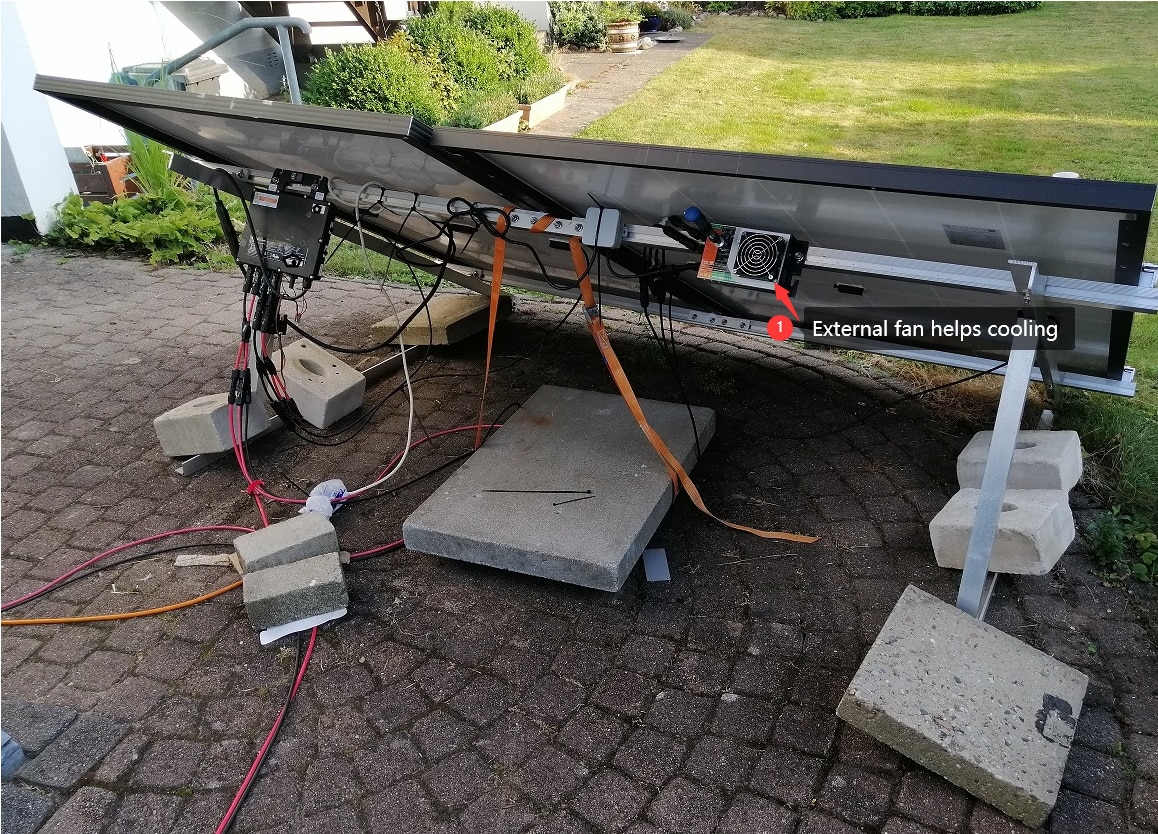

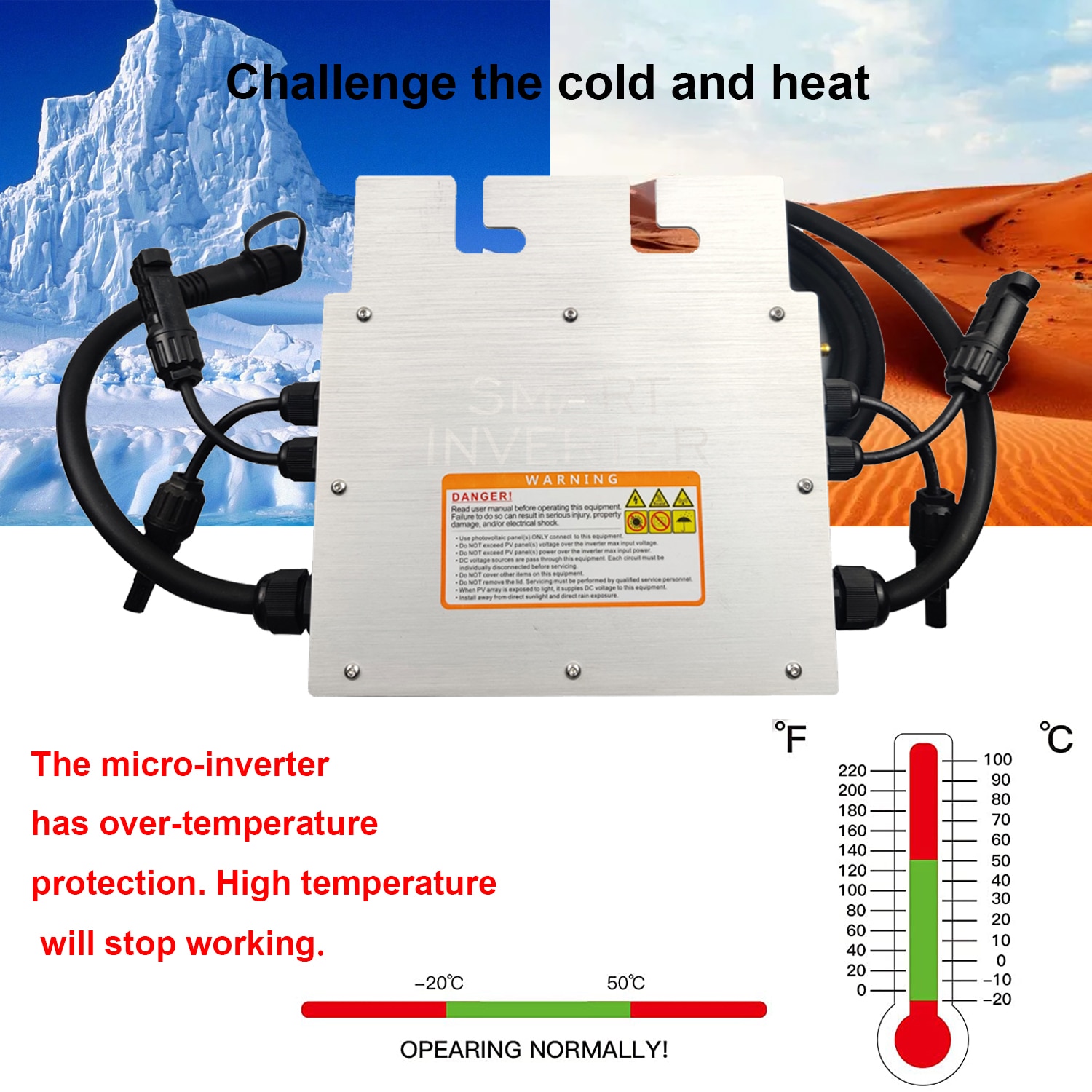

Regarding the heating problem of the inverter:
this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
About inverter repair:(This is a common problem of micro-inverters)
After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.

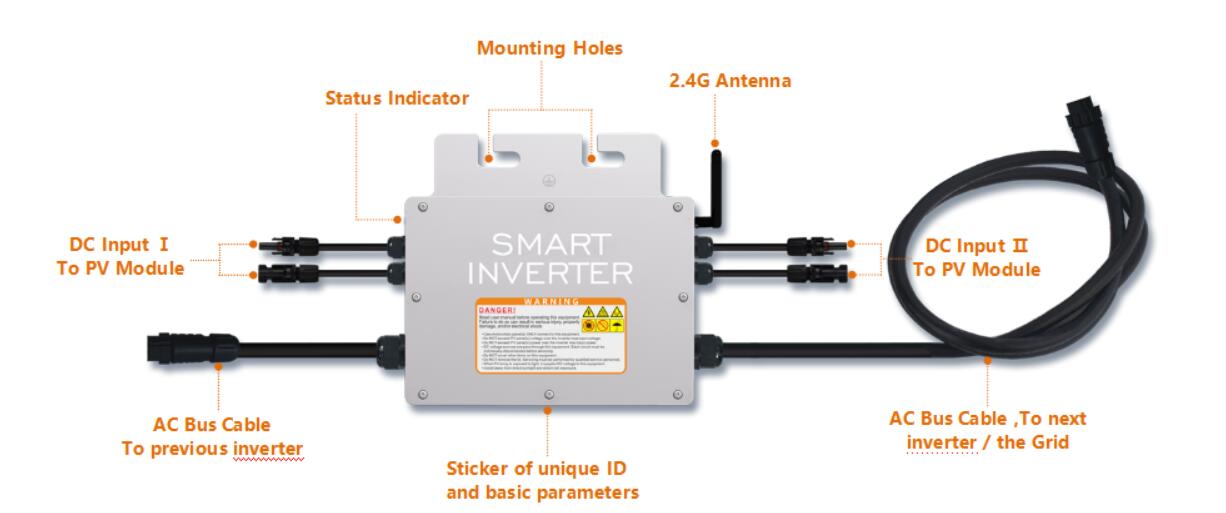

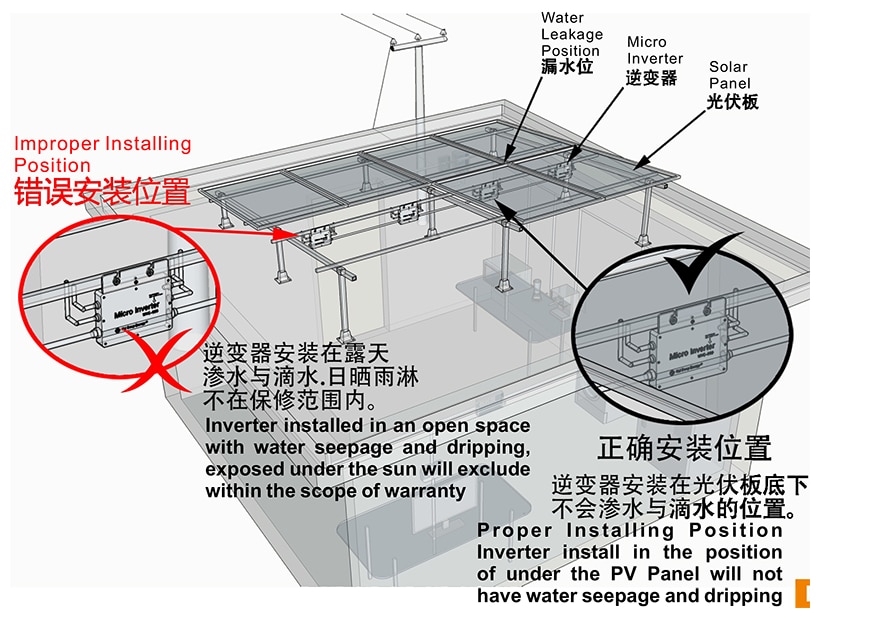

Grid Tie Inverter Using IP65 waterproof streamline design,Can effectively prevent rainwater on the surface erosion.High performance Maximum Power Point TraCKING(MPPT) and Autolock maximum Power Point (APL) Please do not install outdoors, avoid rain. You can install it in a ventilated, dry, cool place.
1.Single unit connects to one PV module
2.On Grid Tie Inversor Maximum 600W AC output power

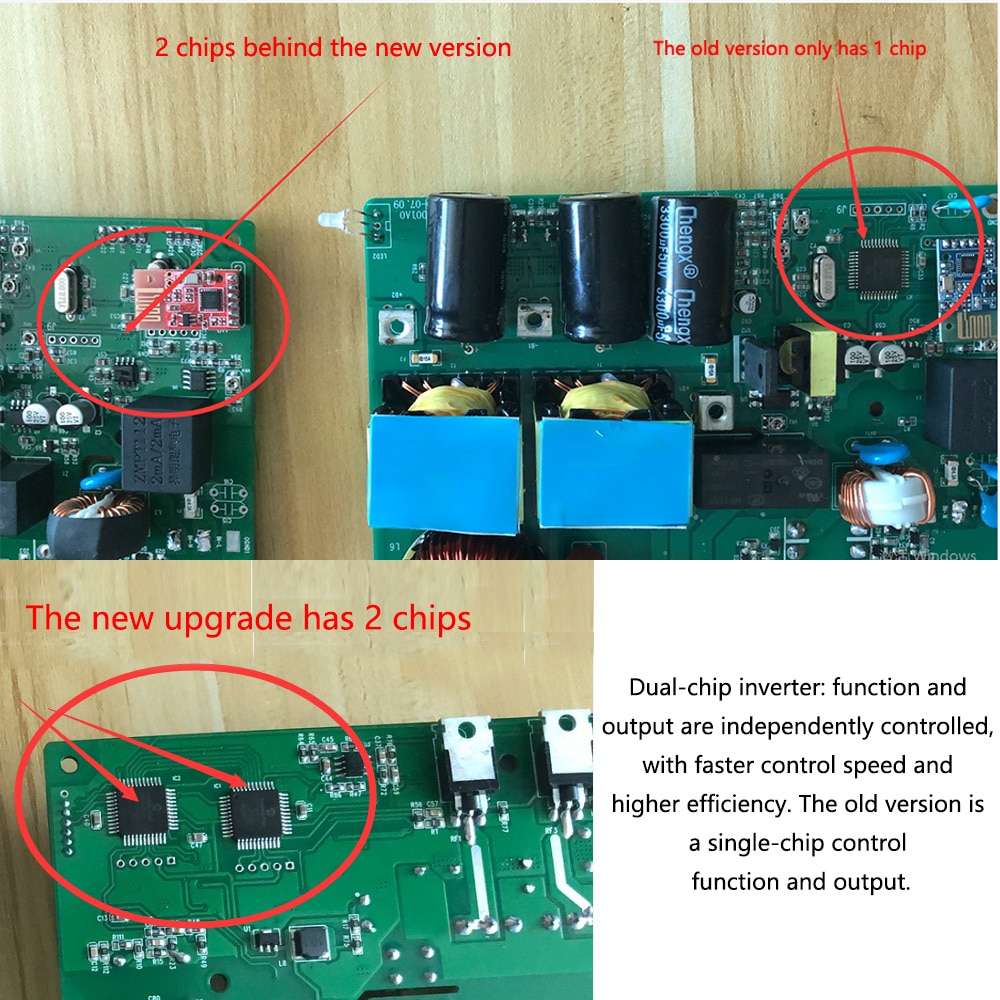

Notice: SG-600W/SG-700W internal upgrade
Dual-chip inverter: function and output are independently controlled with faster control speed and higher efficiency. The old version is a single-chip control function and output.
Product Series | SG600 Series | ||
Model | SG600MD (Regular) | SG600HD (Custom-made) | SG600TD (Custom-made) |
Input Data(DC,PV) | |||
Number of Input MC4 Connector | 2 set | 2 set | 2 set |
MPPT Voltage Range | 24V-40V | 36V-60V | 80V-115V |
Operation Voltage Range | 18V-50V | 30V-70V | 70V-120V |
Maximum Input Voltage | 50V | 70V | 120V |
Startup Voltage | 18V | 30V | 70V |
Maximum Input Power | 2*300W | 2*300W | 2*300W |
Maximum Input Current | 2*12A | 2*8.3A | 2*3.7A |
Output Data(AC) | |||
Single-Phase Grid Type | 120V & 230V | ||
Smart Microinverter Rated Output Power | 590W | ||
Maximum Output Power | 600W | ||
Nominal Output Current | @120VAC : 5A / @230VAC : 2.6A | ||
Nominal Output Voltage | 120VAC / 230VAC | ||
Default Output Voltage Range | @120VAC : 80V-160V / @230VAC : 180V-280V | ||
Nominal Output Frequency | 50Hz / 60Hz | ||
Default Output Frequency Range | @50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz | ||
Pure Sine Wave inverter Power Factor | >0.99 | ||
Total Harmonic Distortion | THD <5% | ||
Maximum Units per Branch | @120VAC : 4 units / @230VAC : 8 units | ||
Efficiency | |||
PV Solar Micro Inverter Peak Efficiency | 95% | ||
CEC Weighted Efficiency | @120VAC : 92.5% / @230VAC : 93.5% | ||
Nominal MPPT Efficiency | 99.9% | ||
Night Power Consumption | <700mW | ||
Mechanical Data | |||
Operating Ambient Temperature Range | -40°C to +65°C | ||
Storage Temperature Range | -40°C to +85°C | ||
Solar PV inverter Dimensions (W x H x D) | 185mm x 180mm x 38.5mm (not include connectors and cable) | ||
Weight | 1.5kg | ||
Max Current of AC Bus Cable | 20A | ||
Waterproof Grade | IP65 | ||
Micro solar Smart Inverter Cooling Mode | Natural Convection - No Fans | ||
OtherFeatures | |||
Communication(Inverter to DataBox) | 2.4G Wireless | ||
Transformer Design | High Frequency Transformers, Galvanically Isolated | ||
Integrated Ground | Equipment ground is provided by the PE in the AC cable. No additional ground is required. | ||
Protection Functions | Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. | ||
Product Series | SG700 Series | ||
Model | SG700MD | SG700HD | SG700TD |
(Regular) | (Custom-made) | (Custom-made) | |
Input Data(DC,PV) | |||
Number of Input MC4 Connector | 2 set | 2 set | 2 set |
MPPT Voltage Range | 24V-40V | 36V-60V | 80V-115V |
Operation Voltage Range | 18V-50V | 30V-70V | 70V-120V |
Maximum Input Voltage | 50V | 70V | 120V |
Startup Voltage | 18V | 30V | 70V |
Maximum Input Power | 2*350W | 2*350W | 2*350W |
Maximum Input Current | 2*14A | 2*9.7A | 2*4.3A |
Output Data(AC) | |||
Single-Phase Grid Type | 120V & 230V | ||
Rated Output Power | 650W | ||
Maximum Output Power | 700W | ||
Nominal Output Current | @120VAC : 5.4A / @230VAC : 2.8A | ||
Nominal Output Voltage | 120VAC / 230VAC | ||
Default Output Voltage Range | @120VAC : 80V-160V / @230VAC : 180V-280V | ||
Nominal Output Frequency | 50Hz / 60Hz | ||
Default Output Frequency Range | @50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz | ||
Power Factor | >0.99 | ||
Total Harmonic Distortion | THD <5% | ||
Maximum Units per Branch | @120VAC : 4 units / @230VAC : 7 units | ||
Efficiency | |||
Peak Efficiency | 95% | ||
CEC Weighted Efficiency | @120VAC : 92.5% / @230VAC : 93.5% | ||
Nominal MPPT Efficiency | 99.90% | ||
Night Power Consumption | <700mW | ||
Mechanical Data | |||
Operating Ambient Temperature Range | -40°C to +65°C | ||
Storage Temperature Range | -40°C to +85°C | ||
Dimensions (W x H x D) | 185mm x 180mm x 38.5mm (not include connectors and cable) | ||
Weight | 1.5kg | ||
Max Current of AC Bus Cable | 20A | ||
Waterproof Grade | IP65 | ||
Cooling Mode | Natural Convection - No Fans | ||
Other Features | |||
Communication(Inverter to DataBox) | 2.4G Wireless | ||
Transformer Design | High Frequency Transformers, Galvanically Isolated | ||
Integrated Ground | Equipment ground is provided by the PE in the AC cable. No additional ground is required. | ||
Protection Functions | Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. | ||

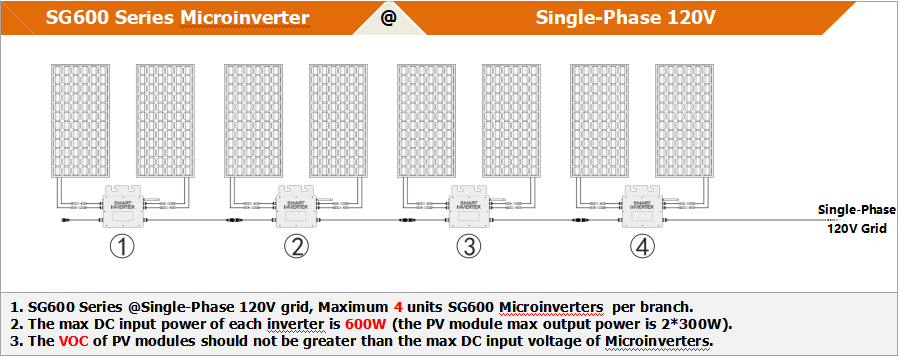

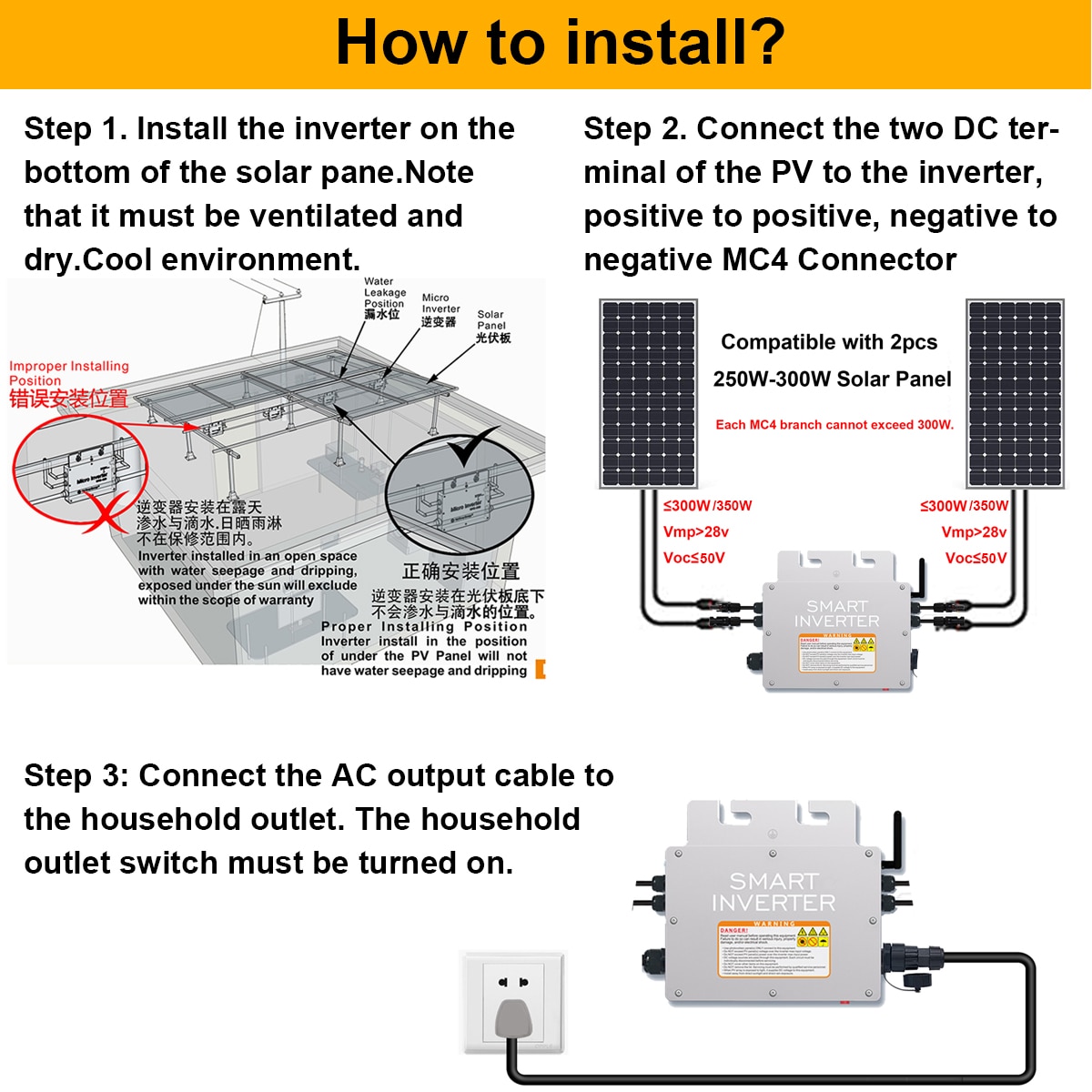

Installation Schematic For SG600

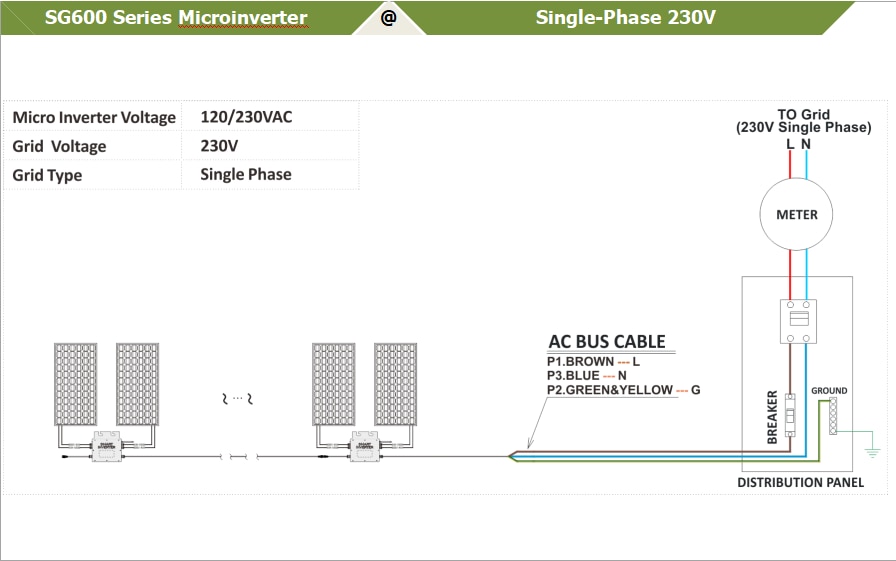

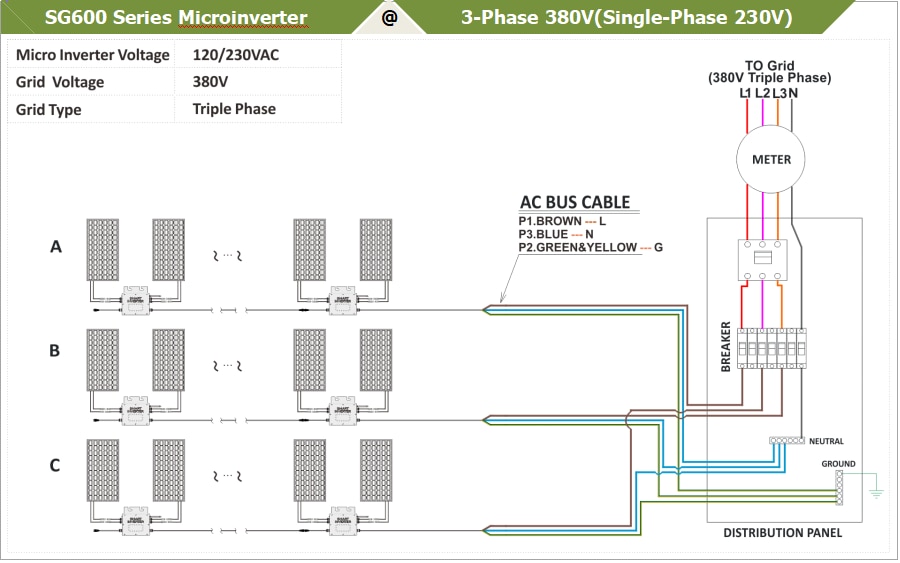

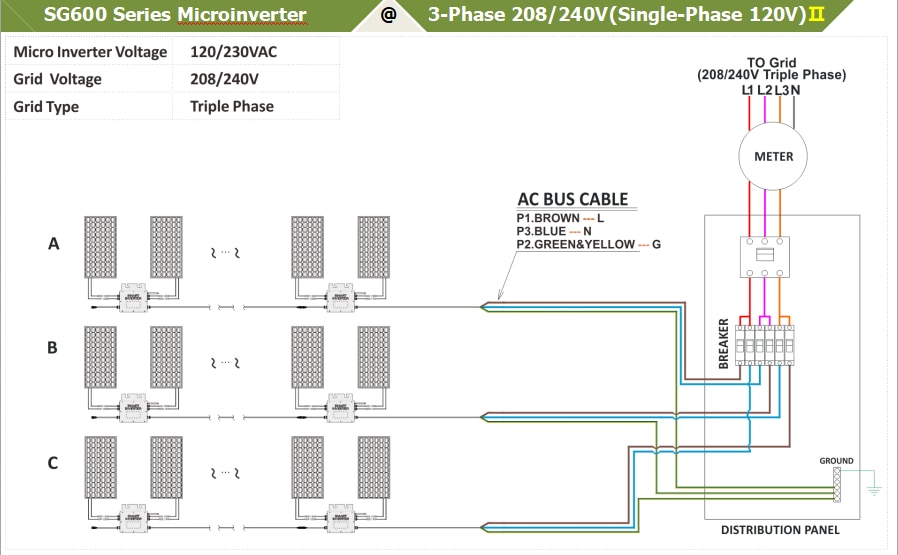

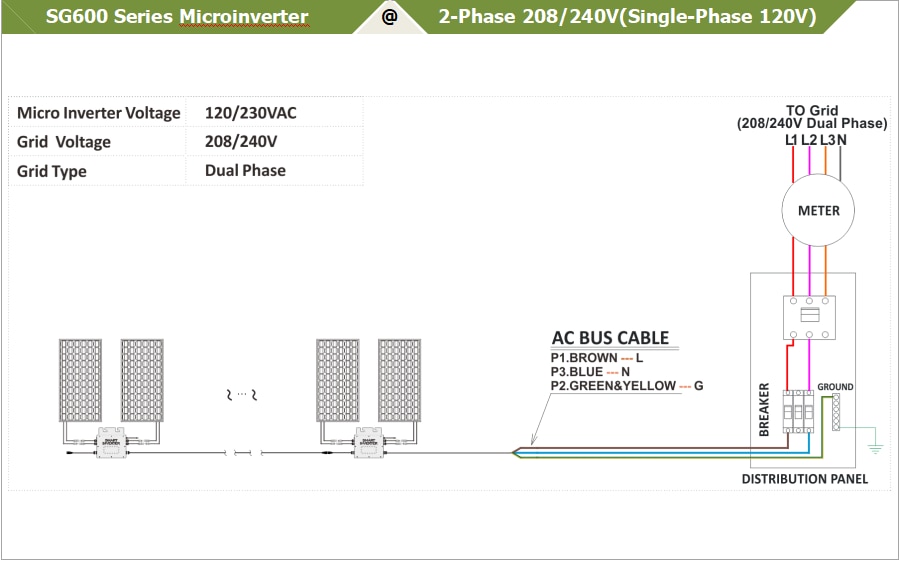

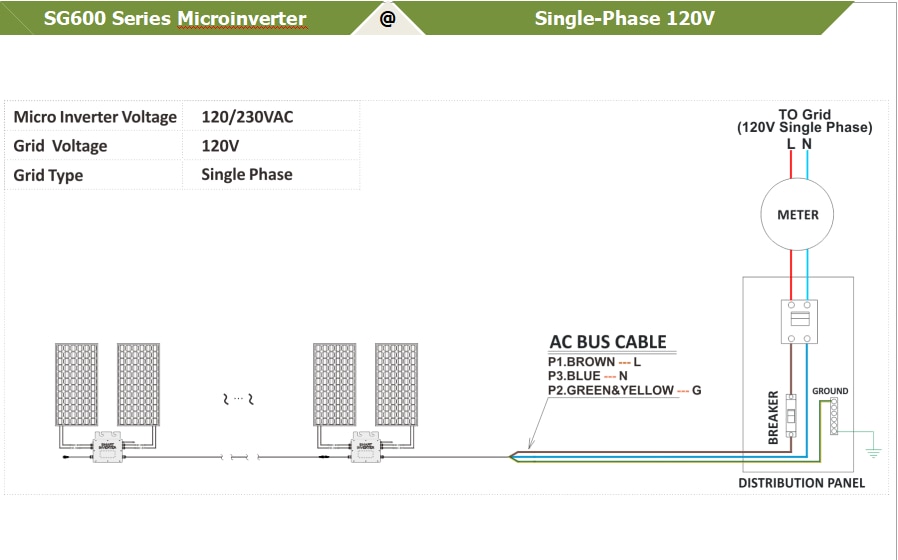

Wiring Schematic For SG600

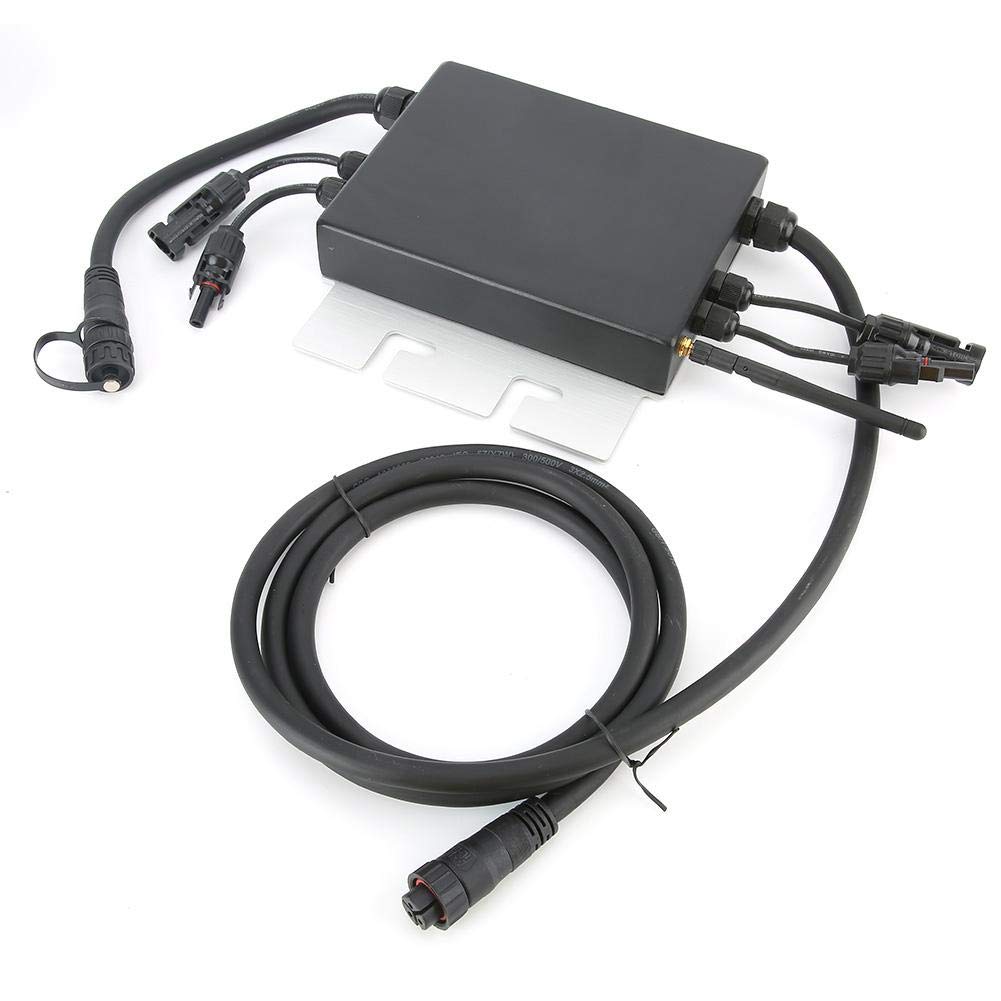

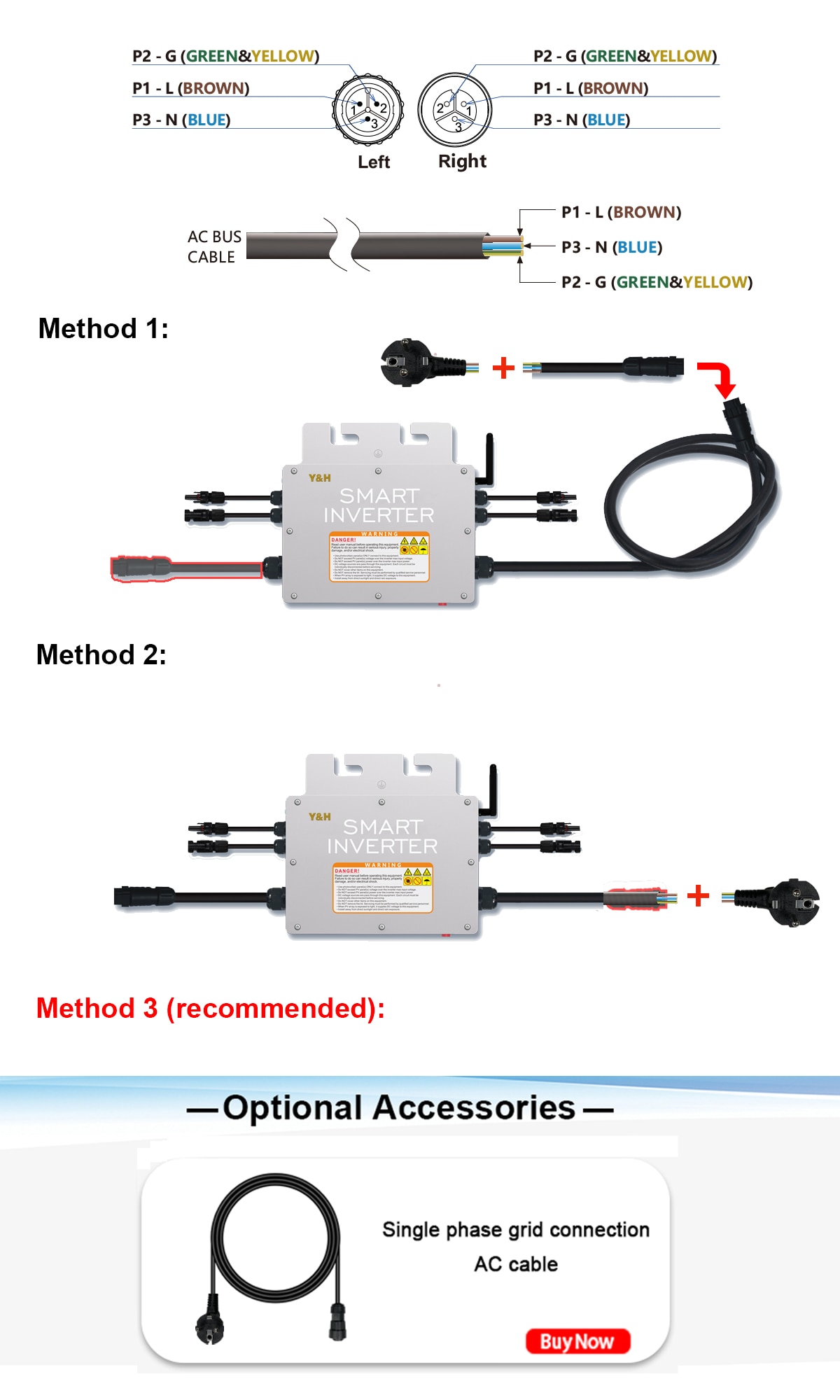

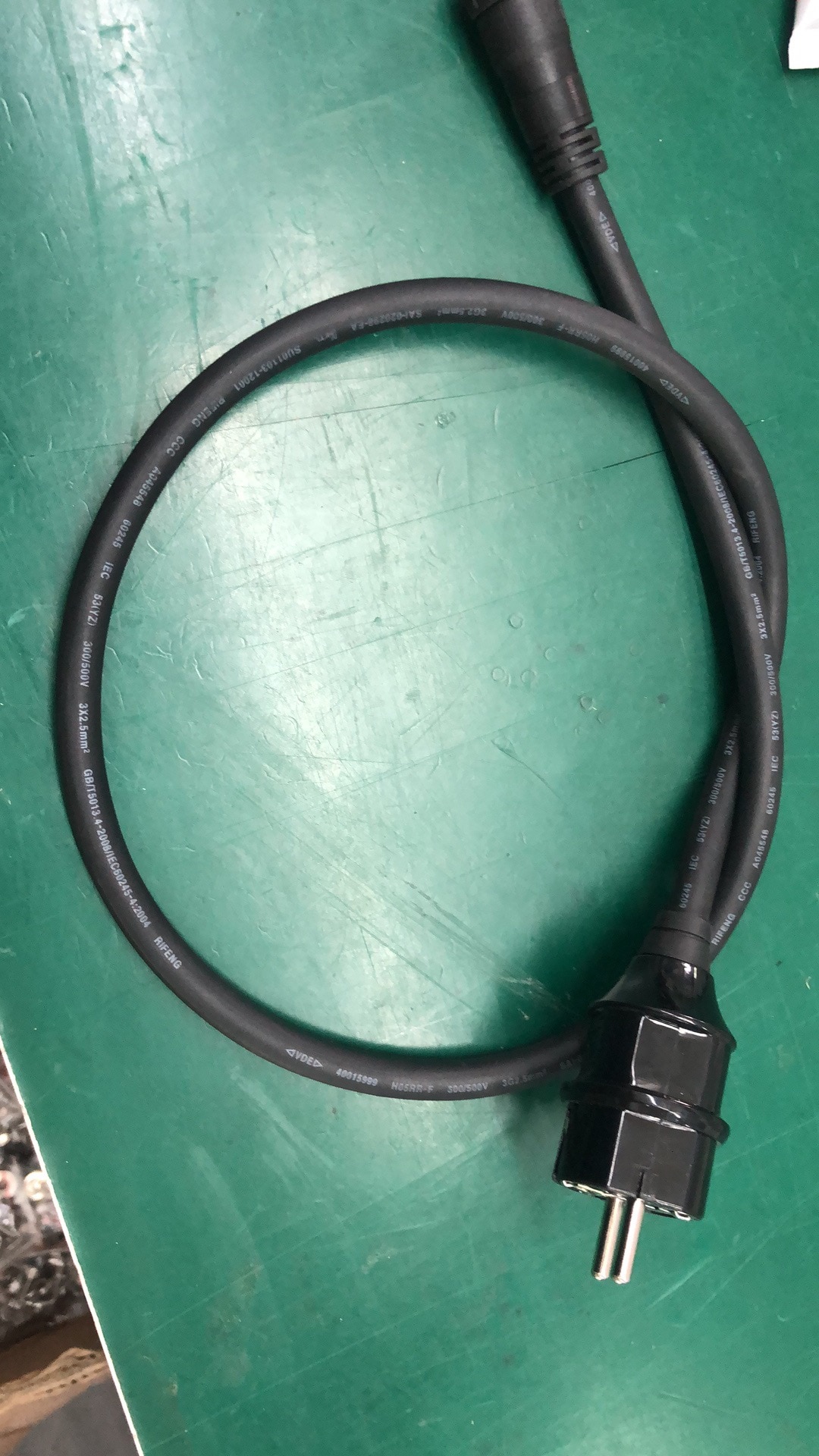

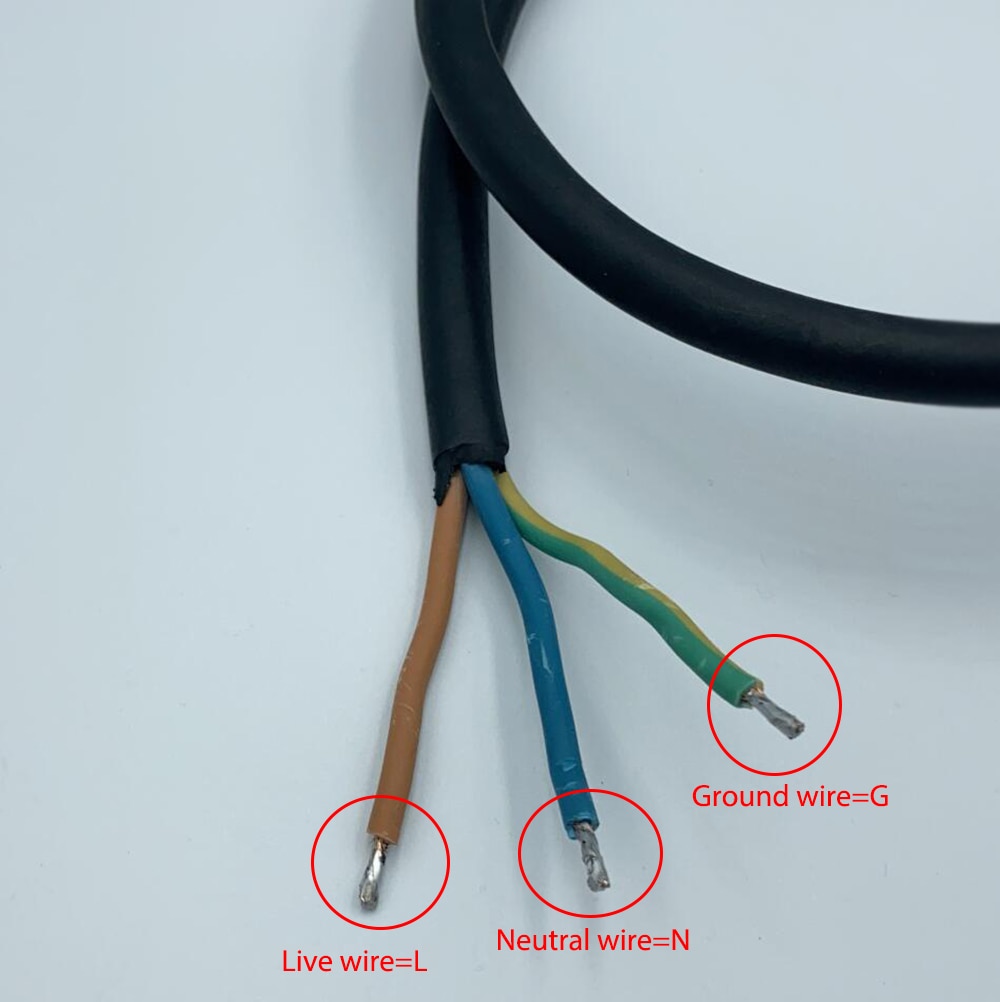

SG-AC Cable Description:
1: Length 2m
2: AC power cord can only be used for 1PCS inverter.

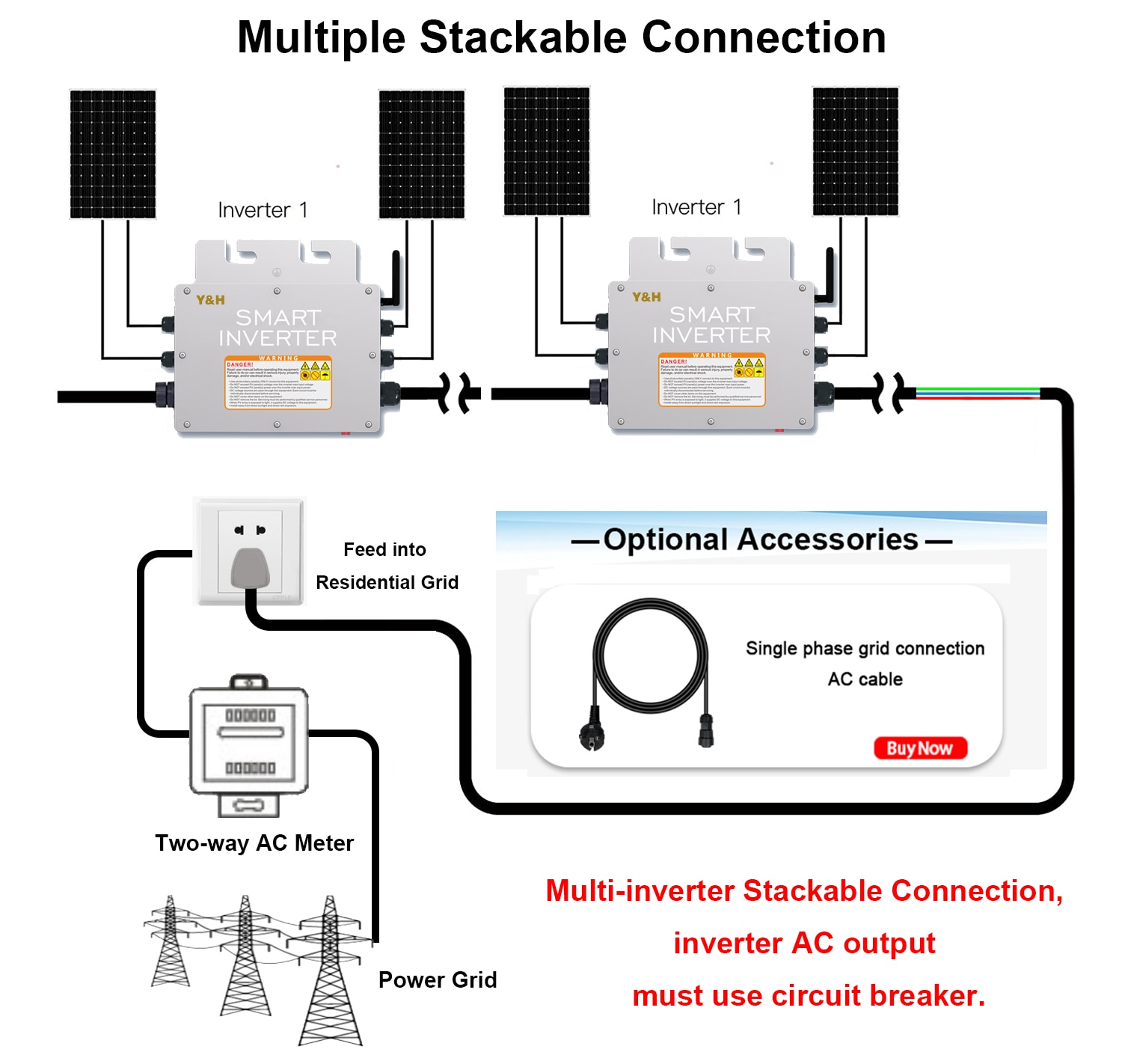

3: If multiple inverters are connected in parallel, a circuit breaker must be used. Connect to the grid in accordance with L, N, G.
4: Can only be used for SG series 300W-700W.
5: Cannot be used for SG serie 1000W 1200W 1400W.
6: Note that the ground wire cannot be connected incorrectly!
7:Please check the youtube installation tutorial: https://youtu.be/gncUpwVjr9A
