Pegatah CCTV Tester Camera Mini Monitor HDMI VGA Video Camera Tester Ccfv IPC 4K Portable Monitor Security Lan Cable Testing
796.22 465.80 $
5 in 1 version:Analog+IP camera(H.2654K)+AHD4.0+CVI4.0+TVI4.0 +POE+UTP
IP:4K H265/H264/MPEG4
AHD: 720p25/30/50/60fps 1080p25/30fps
2048×1536/18/25/30fps 2688×1520/15fps 2560×1944/12.5/20fps
2592×1944/12.5/20fps
CVI: 720p25/30/50/60fps 1080p25/30fps
2560×1440/25/30fps
TVI:720p25/30/50/60fps 1080p25/30fps
2048×1536/18/25/30fps 2688×1520/15fps 2560×1944/12.5/20fps
2592×1944/12.5/20fps 3840×2160/15fps
UTP Cable tester+ RJ45 TDR function+Hikvision SADP+Video recording playback 8GB SD card(not including TF card)
Please note that this link does not have
Overview:

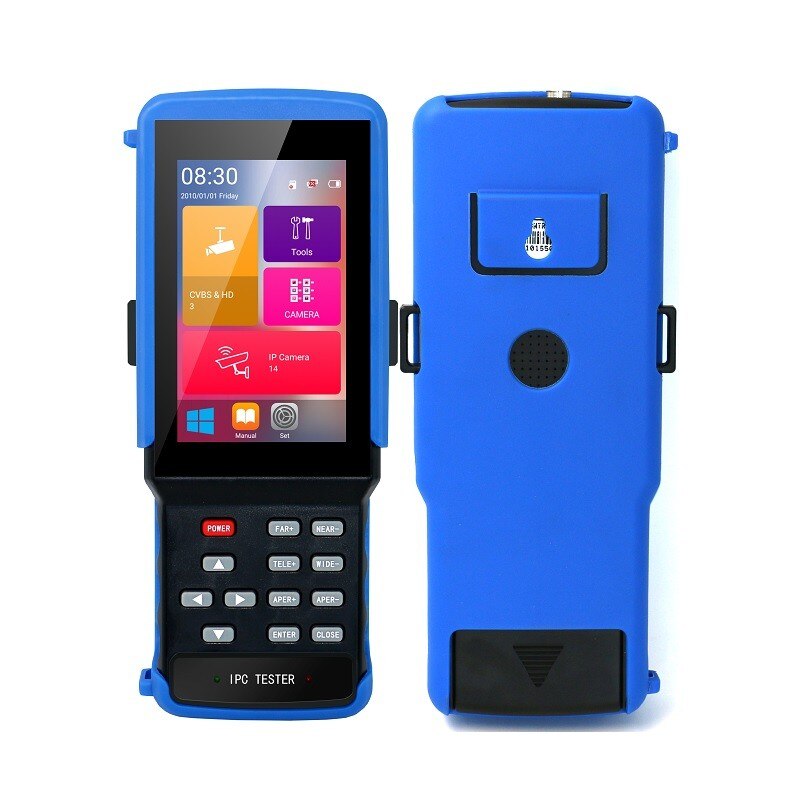

IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras. It is protable, low-power consumption high quality and durable, with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24W PoE power output, camera video snapshot and record, various network test tools such as PING, IP address discovery, port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Main Features:

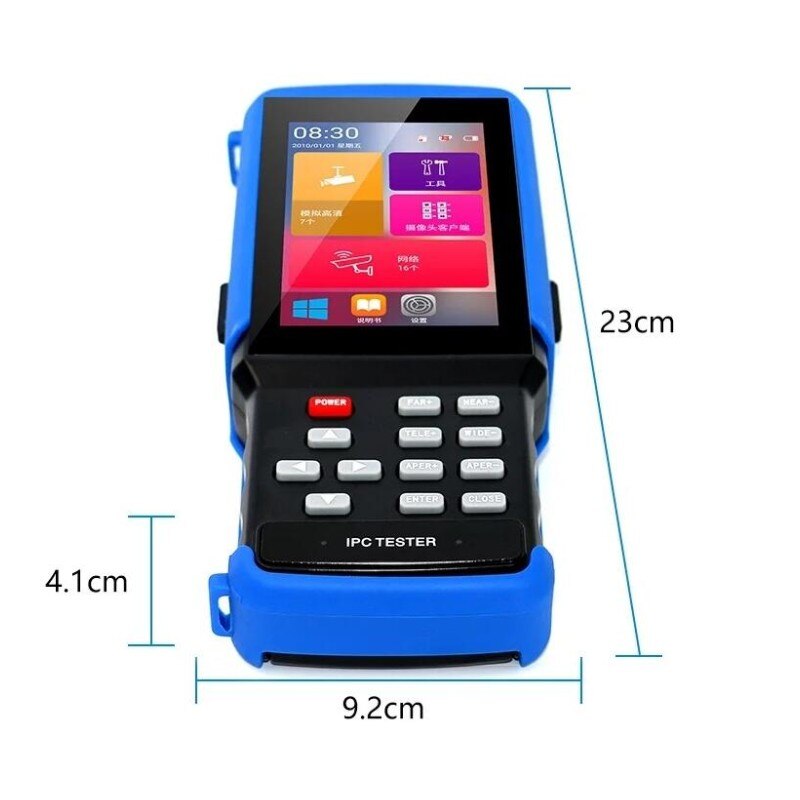

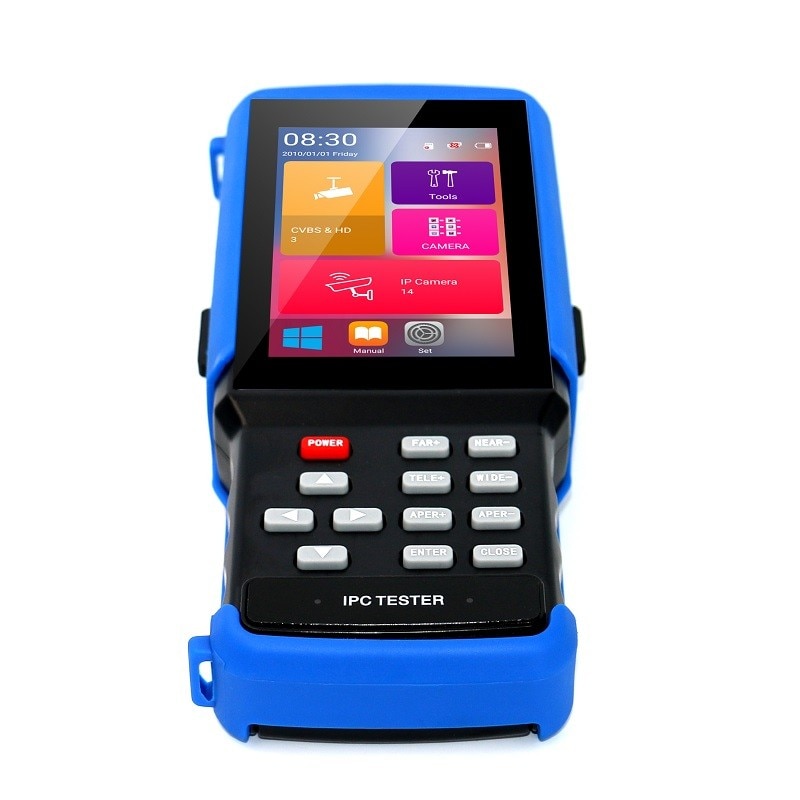

1. 4.3 inch full view IPS HD screen, resolution of 800 × 480, PPI up to 216
2. Adjustable display backlight brightness, up to 500cd, display contrast 800:1
3. G + G structure capacitive touch screen, hard and wear-resistant, corrosion-resistant, high transmittance
4. 7.4V 3200mAh high-capacity polymer lithium battery, low consumption, auto screen sleep, once fully charged work continually for 10 hours
5. Standard 48V/24W PoE power output for PoE camera testing, support PSE voltage test, DC12V/3A power output, short-circuit protection, supply temporary power for all kinds of cameras including PTZ
6. Support Chinese, English, Spanish and other more than 10 kinds of languages

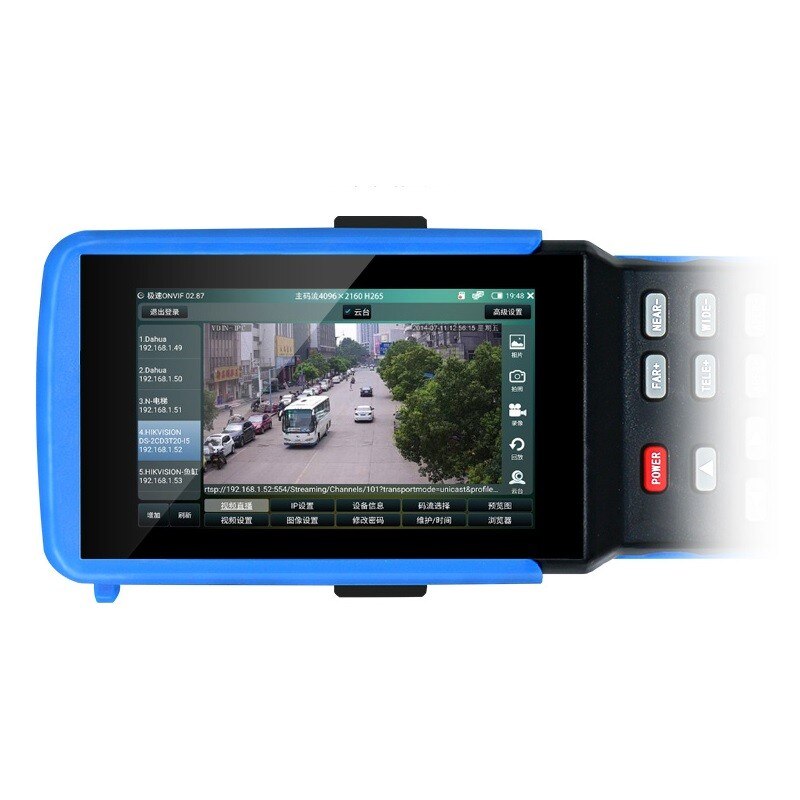

7. 4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback
8. BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display
9. ONVIF parameter modification, support HIKVISION, DAHUA, ACTI, NCR, SUMSUNG more than 30 manufacturer private protocols, can be customized to add, support mobile client installation
10. Support PELCO-P, PELCO-D, SAMSUNG and other more than 30 kinds of PTZ control protocols
11. Built-in explorer, RTSP player and other Android applications
12. FTP tool, transfer files in LAN freely without SD card reader
13. 10/100/1000M Ethernet interface, built-in 150M wireless WIFI, support WIFI hotspot
14. IP address scan tool, rapidly search out camera IP address, PING tool and port flicker tools for network test
15. Network cable TDR quality test, check cable breakpoint and short-circuit, test cable length, attenuation, impedance, reflectivity and delay skew parameters, UTP cable test, check cable connection status and sequence of each copper core
16. Bright white LED lamp, easy to work in dark area
Applications:
-CCTV system installation and maintenance
-Finding out the other end of the cable in security maintenance and network cabling
Parameters:
Product Model | IPC9310 HD video monitor tester |
Touch Screen | 4.3 inch G + G structure capacitive touch screen |
LCD Screen | 4.3 inch resolution of 800 × 480 Full View IPS HD screen |

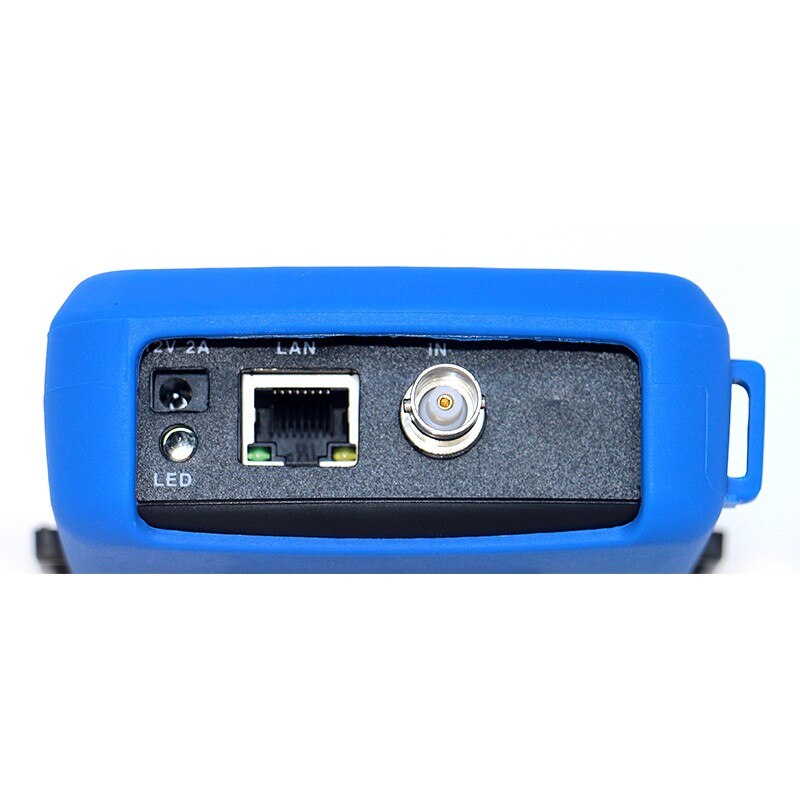

Ethernet Port | 10 / 100 / 1000M adaptive |
WIFI | Built-in wireless WIFI, speed 150M, support WIFI hotspot |
IP Camera test | 4K H264 / H265 / MJPEG / MPEG4 format max 1080P video image display, ONVIF IP and other parameter modification, PTZ control |
CVBS Analog test | 1 channel CVBS analog input, support PAL / NTSC format self-adaption |
Coaxial HD camera | Support coaxial HD TVI 8MP, CVI 8MP, AHD 5MP |
IP Scan | Full-segment IP detection, rapidly search camera IP address |
HIKVISION SADP tool | HIKVISION camera batch activation, batch IP modification, be able to modify username and password |
DAHUA test tool | DAHUA camera batch activation, batch IP modification, cross network segment IP modification, username and password modification |
Video image zoom | Video image magnification max 8 times |
PTZ control | Support PELCO-D/P, Samsung, Panasonic and more than 30 kinds of protocols |
Cable TDR test | Test network cable pair status, length, attenuation, quality, impedance, delay skew and many other parameters |
UTP network cable test | Test connection status and sequence of any 2 network cables |

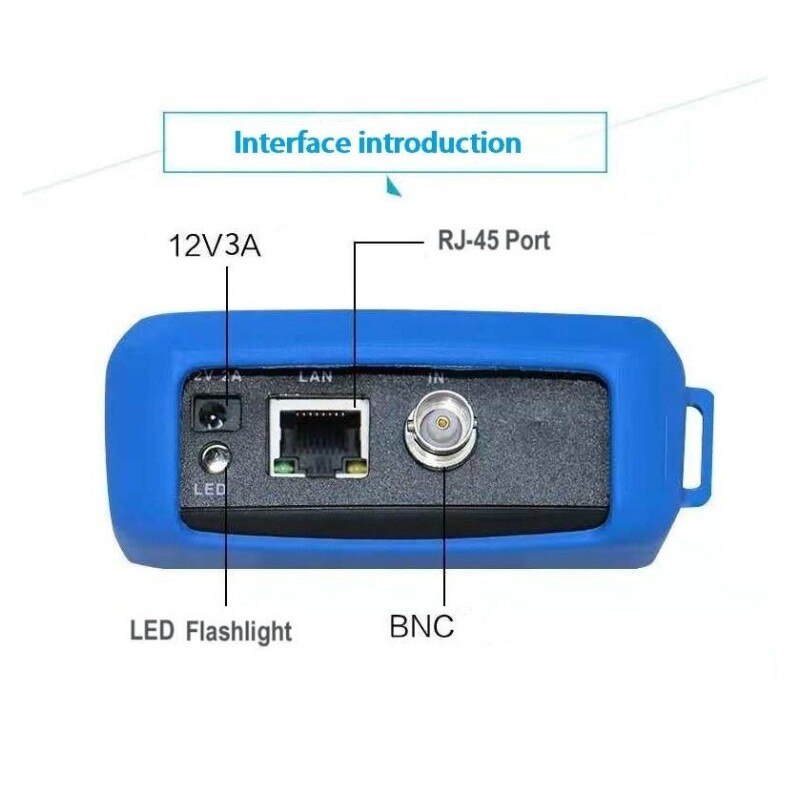

DC12V power output | DC12V output max current 3A, supply temporary power for cameras |
PoE power output | 48V / 24W standard PoE power output |
PSE voltage test | Display PSE device voltage and circuit connection status |

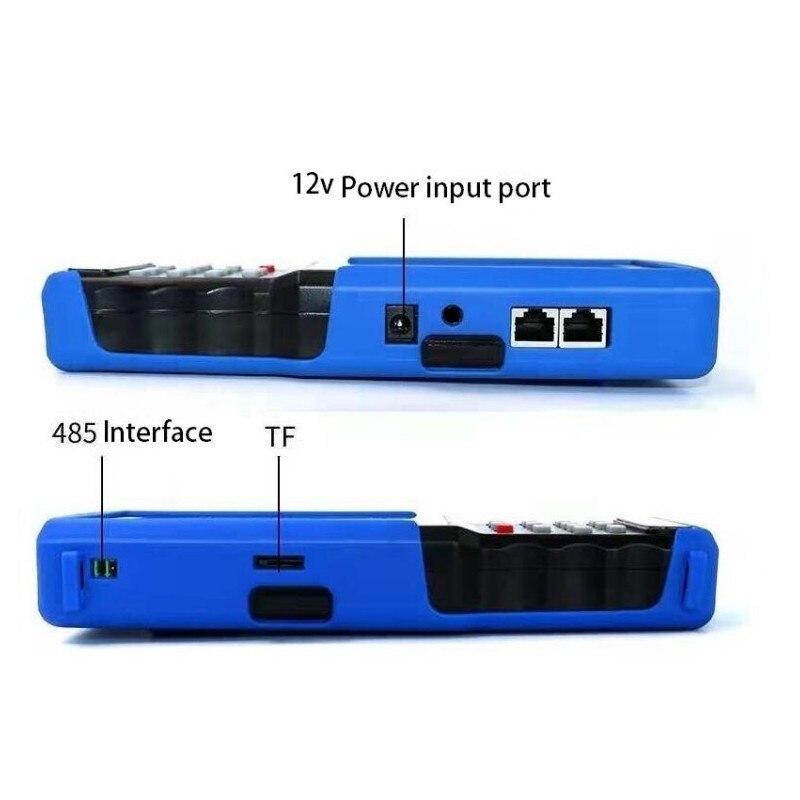

RS485 serial port tool | Be able to send or receive any data or hex data |
Charger | DC12V / 2A, Support US / EU standard |
Battery | Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours |
Language | Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages |

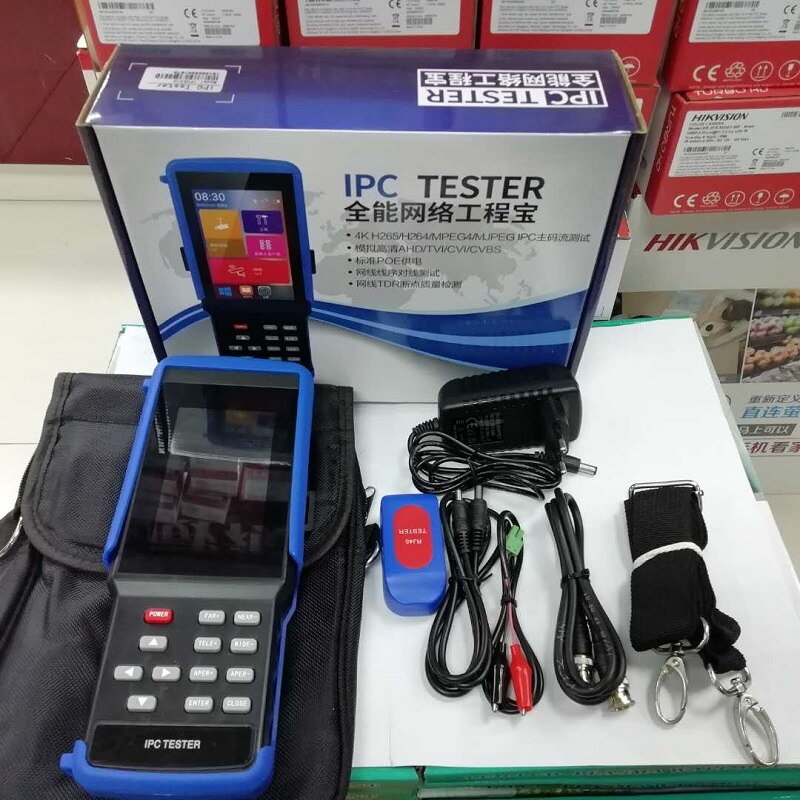

Tester + Accessories Details :

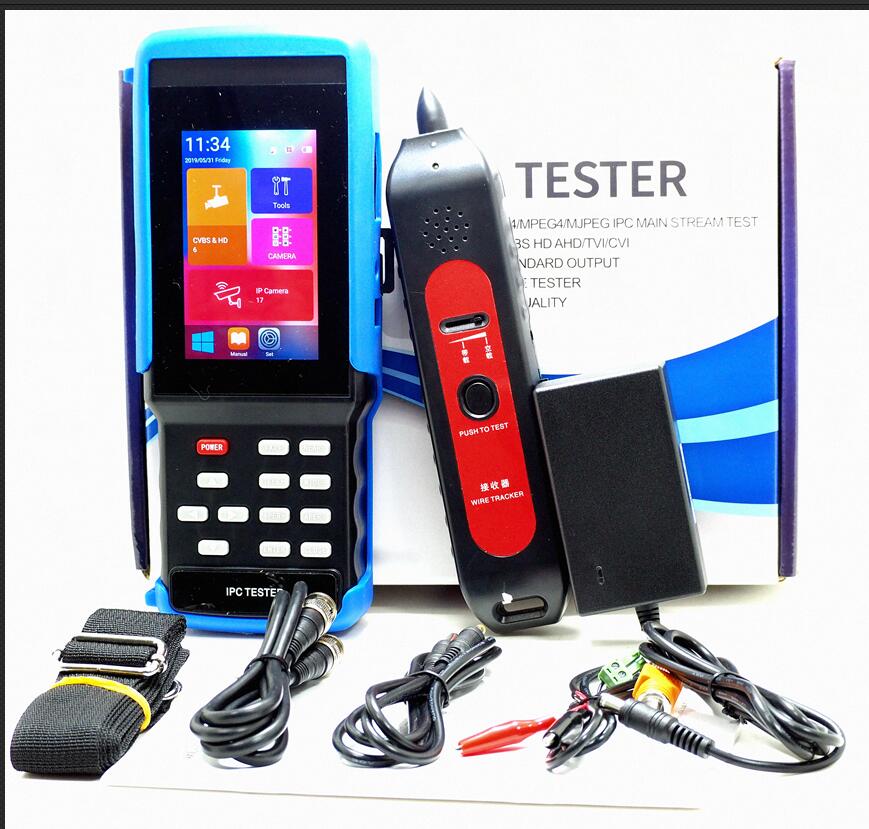

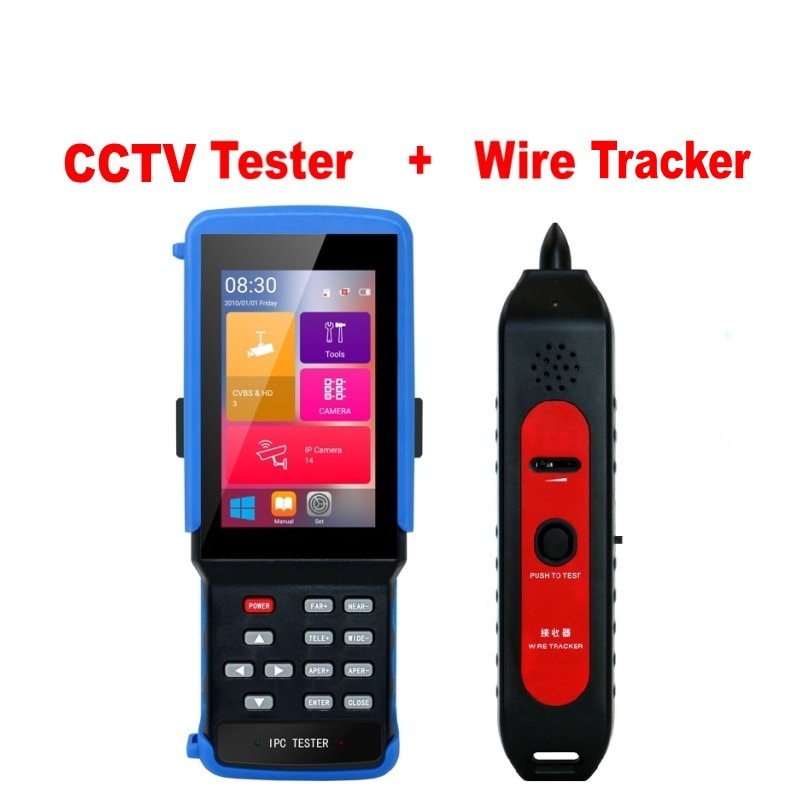

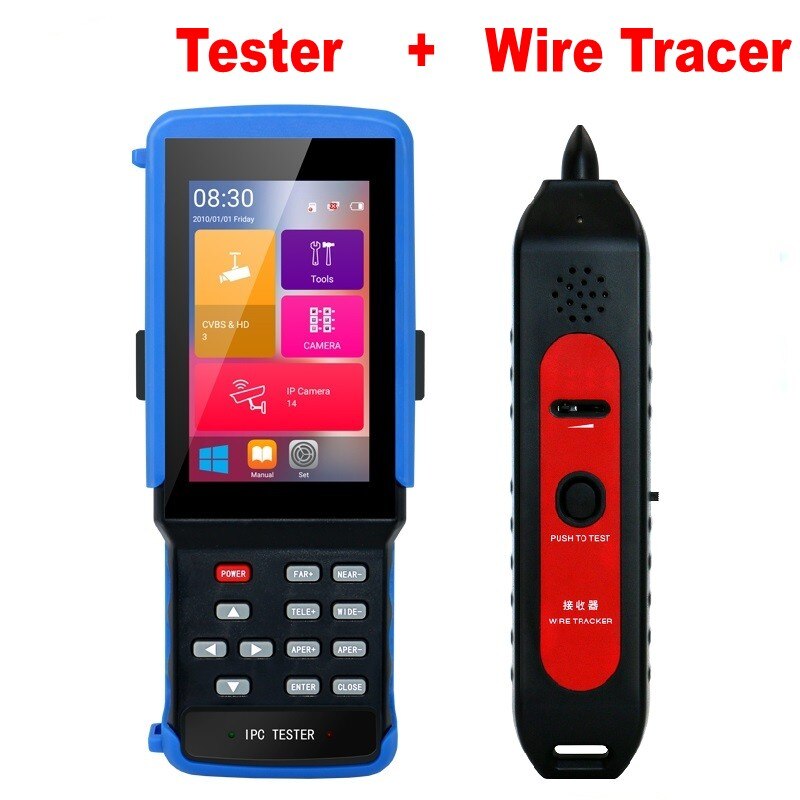

Tester +Wire tracker + Accessories Details :
