Reci Laser Source 1000W FSC1000 1500 2000 3000 Single-Mode FSC Series High Power Fiber Laser Cutting Metal Welding Power Supply
12,796.10 10,864.10 $
ID: 46469
Quantity
Raycus fiber laser power source 500W RFL-C500
0.0 ( votes)
Price:
US $
10186.44
/ piece
Raycus fiber laser power source 500W RFL-C500
1.High efficiency
2.Excellent beam quality
3.CW or modulated mode
4.QCS/QBH beam delivery cable
5.Maintenance free
2.Excellent beam quality
3.CW or modulated mode
4.QCS/QBH beam delivery cable
5.Maintenance free
| Specifications | |||||
| Mode | BCX-p51 | BCX-p52 | BCX-p53 | BCX-p54 | BCX-p55 |
| Optical Properties | |||||
| Nominal Output Power | 50 | 100 | 200 | 300 | 500 |
| Output Power Tunability | 10-100 | ||||
| Wavelength | 1064 | ||||
| Operating Mode | CW/Modulated | ||||
| Output Power Stability | <3% | ||||
| Max.Modulation Frequency | 50 | ||||
| Beam Quality | <1.2 | ||||
| Polarization State | Random | ||||
| Delivery Cable Length | (15/20 Optional) | ||||
| Pilot Red Laser | Yes | ||||
| Beam Delivery Optics | QBH Optional | ||||
| Electrical Characteristics | |||||
| Power Supply | AC 220V,Single phase,50/60Hz | ||||
| Control Mode | Ext.RS232/Ext.AD/Hyper terminal | ||||
| Max.Power Consumption | 300 | 500 | 900 | 1200 | 2000 |
| Other Characteristics | |||||

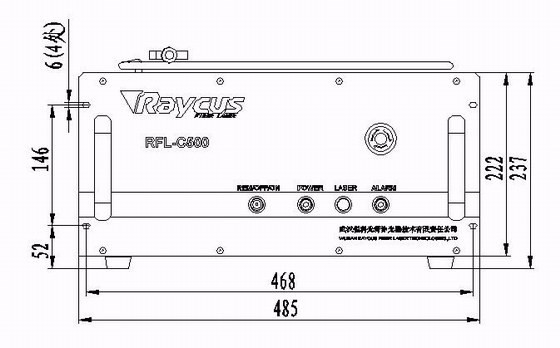

| Dimensions | 485×237×663(ins.handles) | ||||
| Weight | <50 | ||||
| Cooling | Forced Air/water cooling | water cooling | |||
| Operating Temperature Range | 10-40 | ||||
| Attention:You can contact us if you want to know more about our products. | |||||

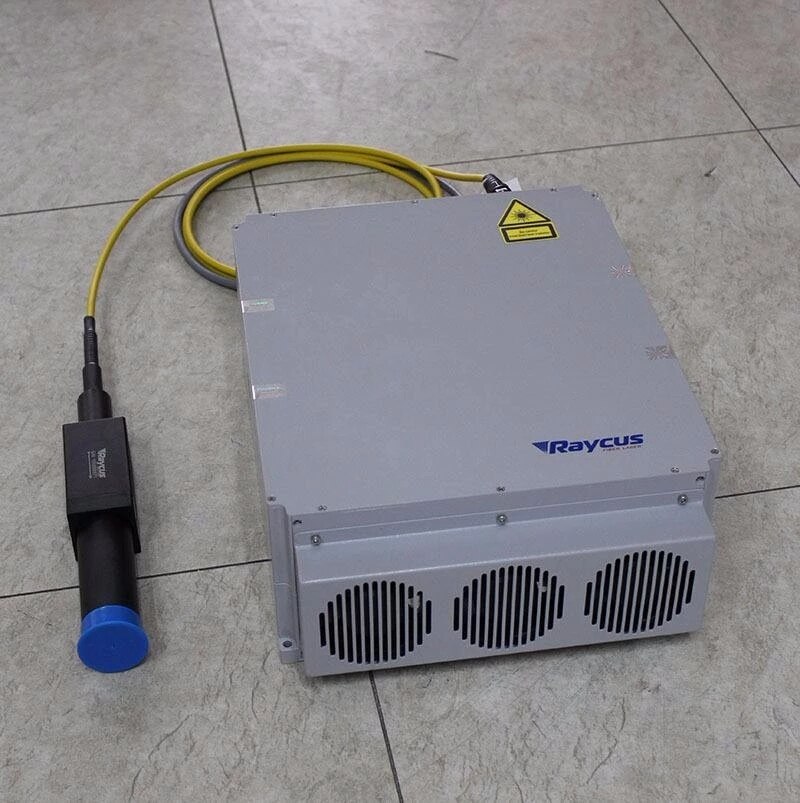

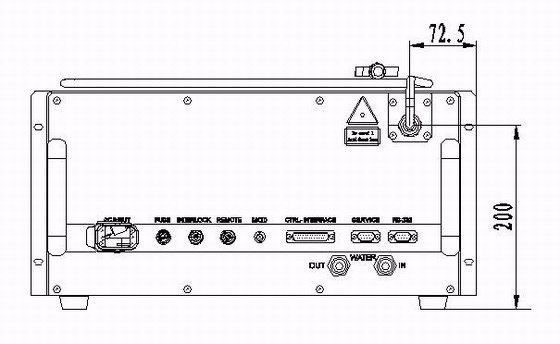

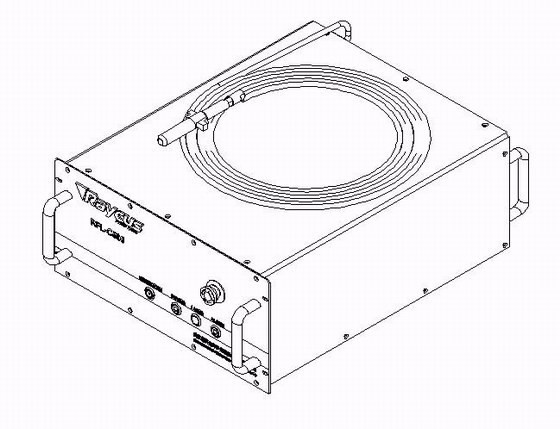

Detailed Images
- Model Number: RFL-C500
- Usage: Fiber laser cutting
