200W jewelry laser welding machine for gold, silver, titanium, glasses frame, stainless steel
9,400.00 $
ID: 46494
Quantity
Hand held 500W 800W 1000W fiber laser welding machine
0.0 ( votes)
Price:
US $
16600.04
/ piece

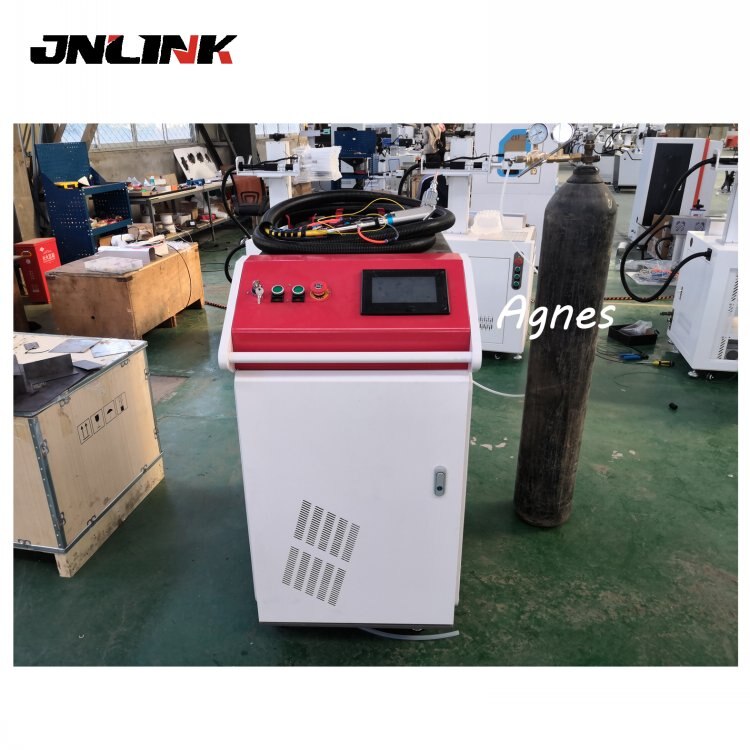

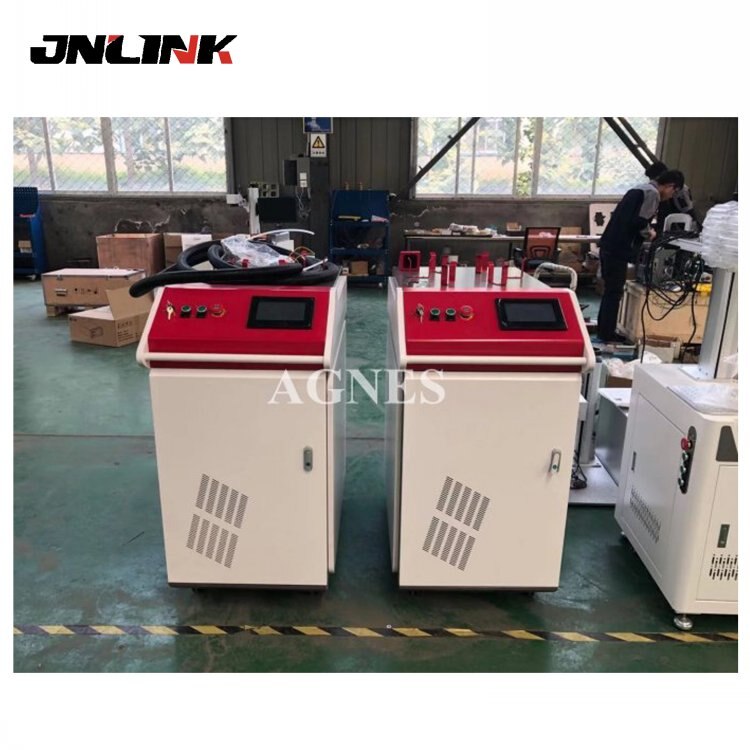

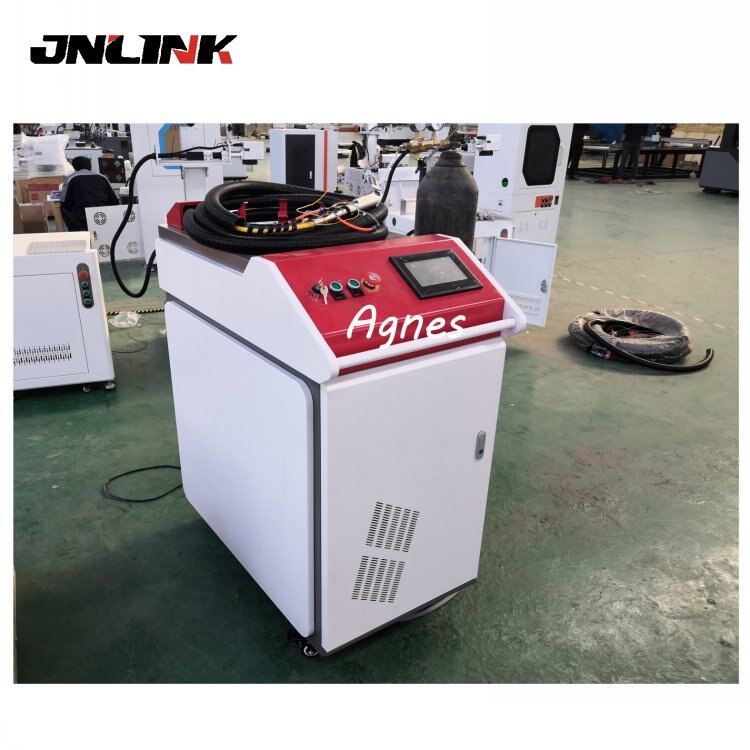

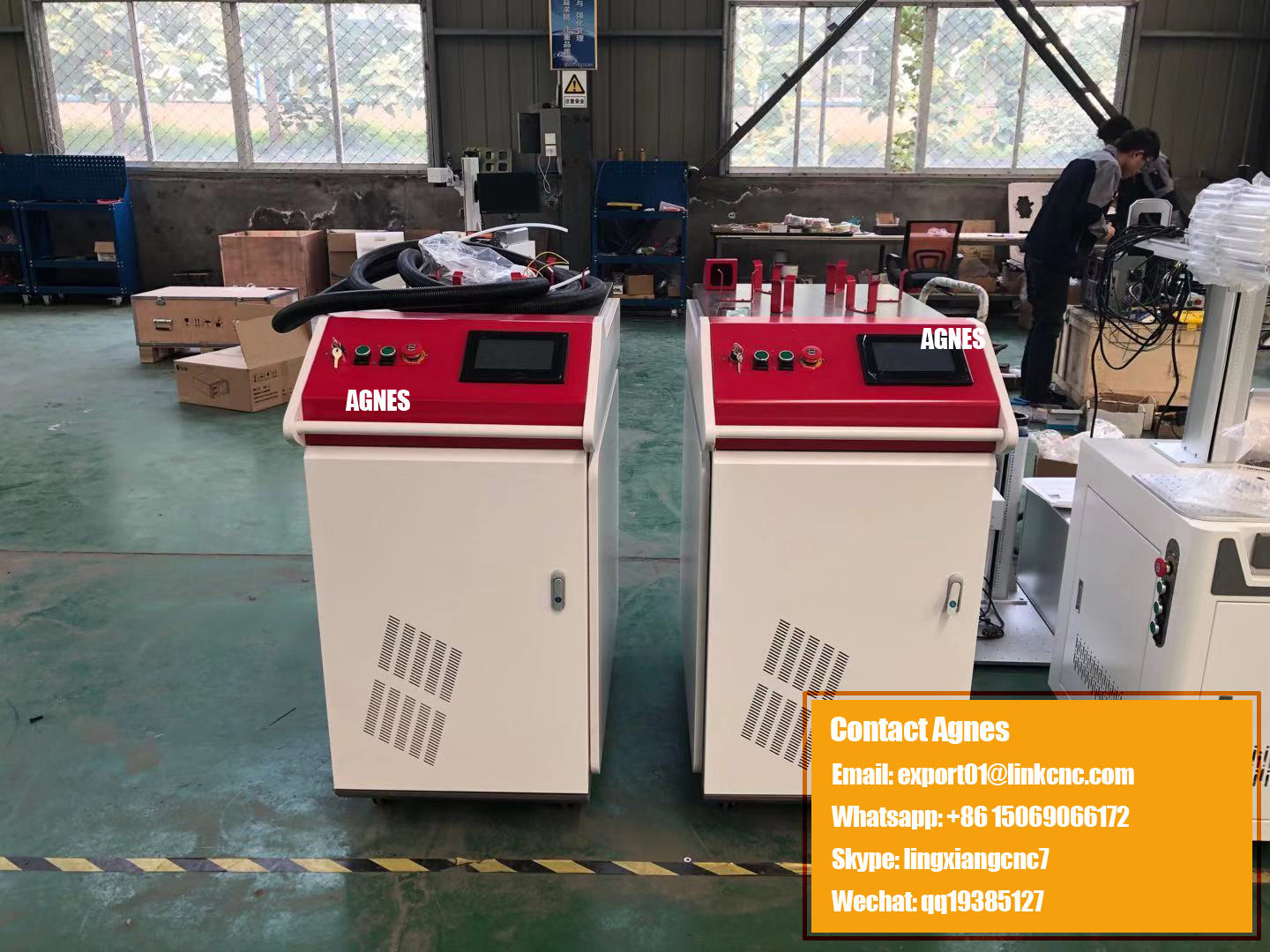

Hand held 500W 800W 1000W fiber laser welding machine
Machine desicription
|
|
|
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep. 2.High cooling rate, which can weld fine weld structure and good joint performance. 3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency. 4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful. 5.No consumables, flexible processing, low operating and maintenance costs. 6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot. |

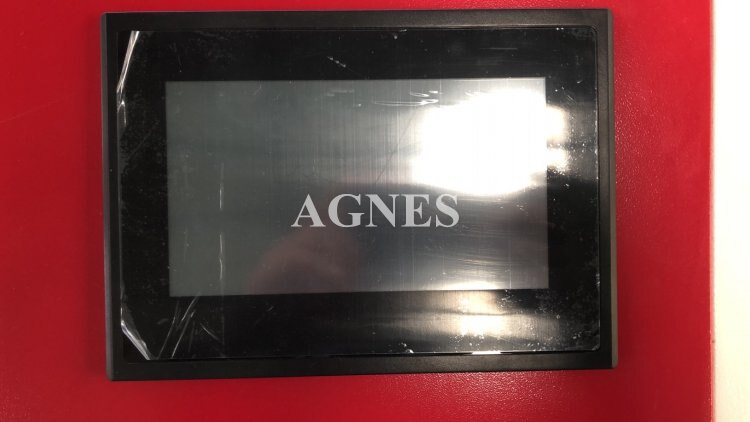

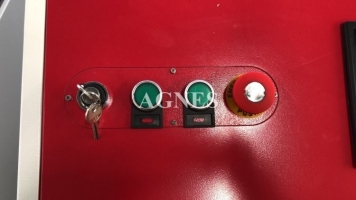

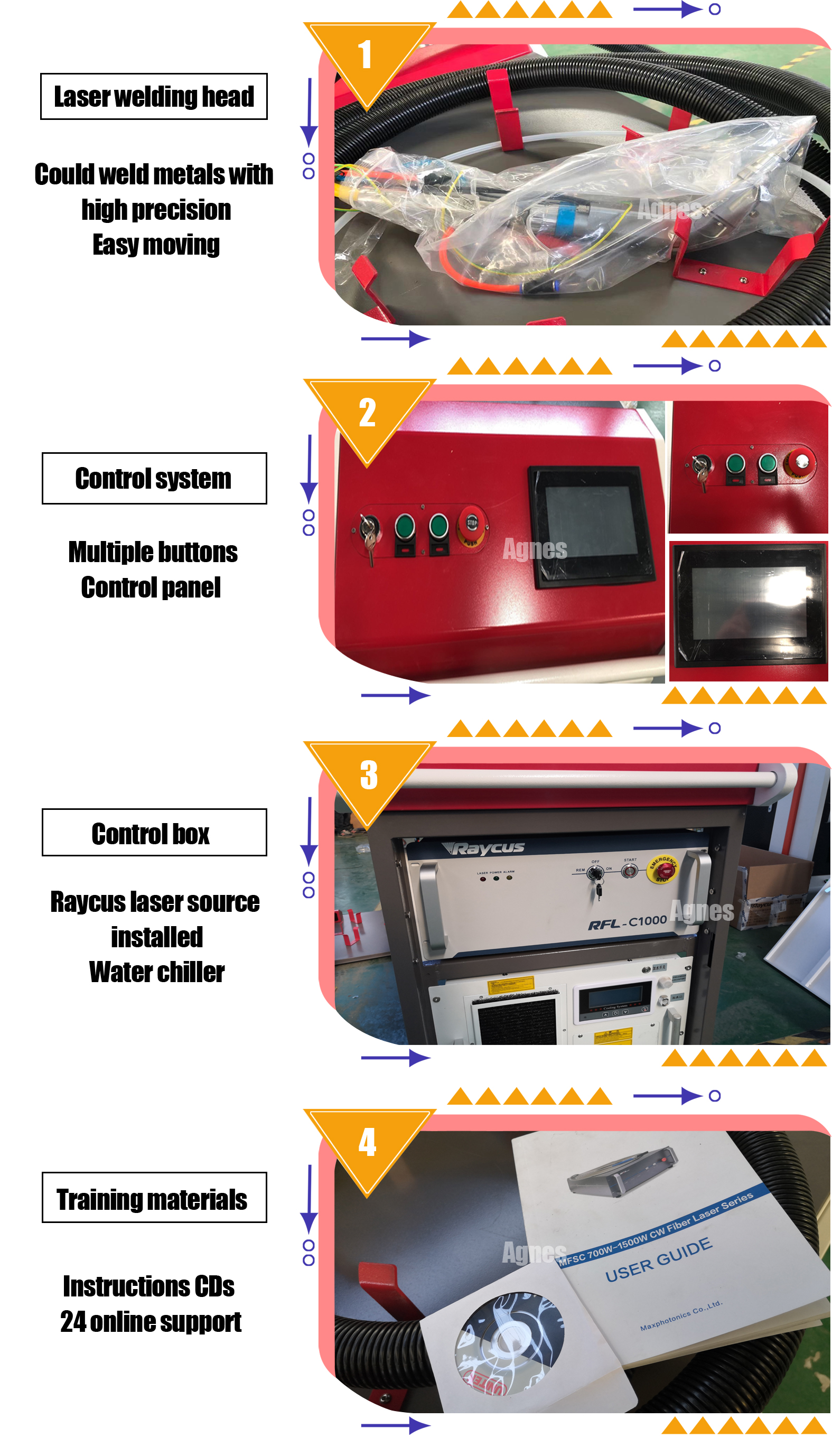

>>>>>>>Machine parts
>>>>>>>Technical parameter
|
Laser power |
LXW-500/1000W |
|
Center wavelength |
1070+-5nm |
|
Output power stability |
<2% |
|
Laser frequency |
50Hz-5KHz |
|
Adjustable power range |
5-95% |
|
Beam quality |
1.1 |
|
Optimal operating environment |
Temperature 10-35 ° C, humidity 20% -80% |
|
Electricity demand |
AC220V |
|
Output fiber length |
5/10/15m (Optional) |
|
Cooling method |
Water Cooling |
|
Dimensions |
93*60*88cm |
|
Weight |
200kg |
|
Cooling water temperature |
20-25 ° C |
|
2000/4000W |
Sample pictures
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
About us
 |
|
>>>>>>Our service 1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. 2. Lifetime maintenance free of charge. 3. Free training course at our plant. 4. 18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine. 5. Machine has been tested and adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship. 6. Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket. 7. If you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved. |
Contact Information
|
Contact Agnes by Email: export01/at/linkcnc.com Whatsapp: +86 15069066172 Skype: lingxiangcnc7 Wechat: qq19385127 |
 |
- Dimensions: 75*75mm
- Max. Output Power: 500W
- Focal Spot Diameter: 1mm
- Wavelength: 1064nm
- Pulse Width: 20ms
- Single Pulse Energy: 1000J
- Model Number: LXW-500W
- Usage: Fiber laser welding
- Product name: Laser welding LXW-500W
