DMK Qilin BWT20 Handheld Fiber Laser Welding Gun Soldering Cutting Iron Welding Head
SALE
ID: 100300

DMK Qilin BWT20 Handheld Fiber Laser Welding Gun Soldering Cutting Iron Welding Head

5.0 (1 votes)
Price: US $3740.00 / piece
Discount Price:
US $ 3141.60 / piece
-16%
Quantity

Buy Now
Add to Cart

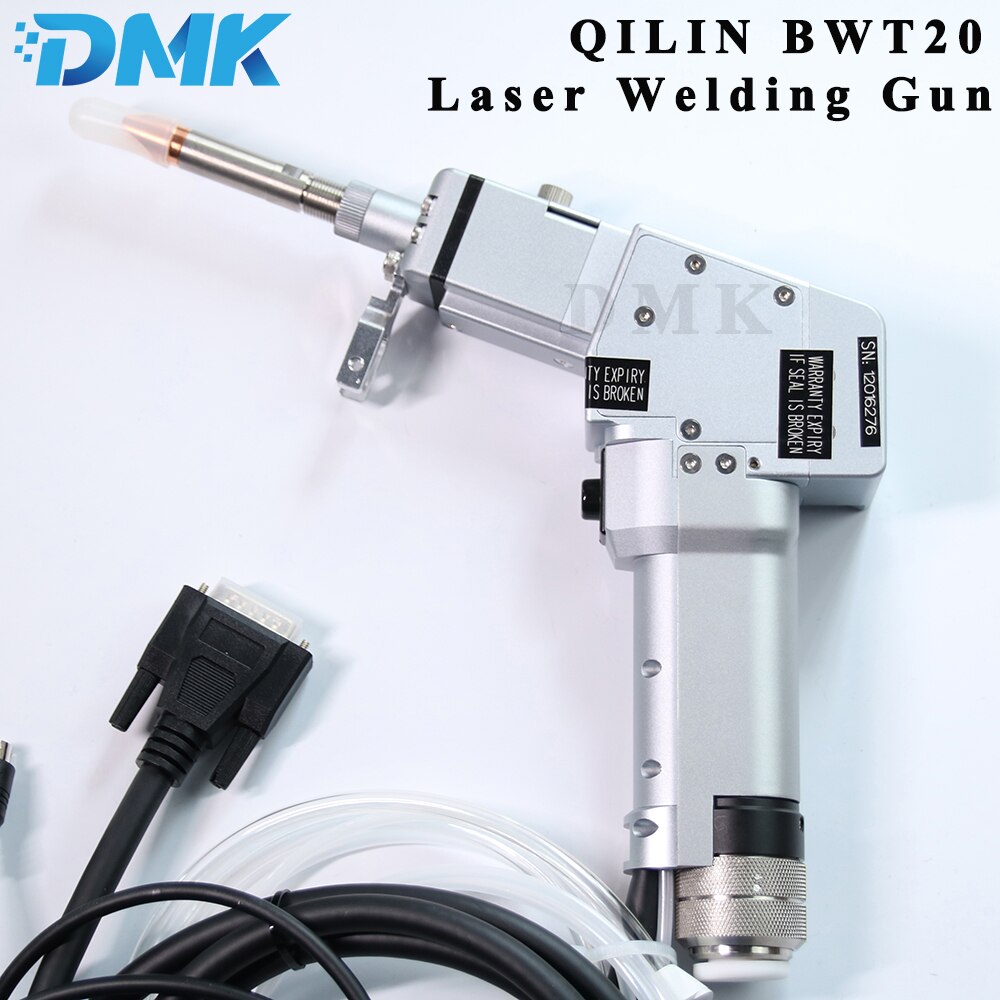

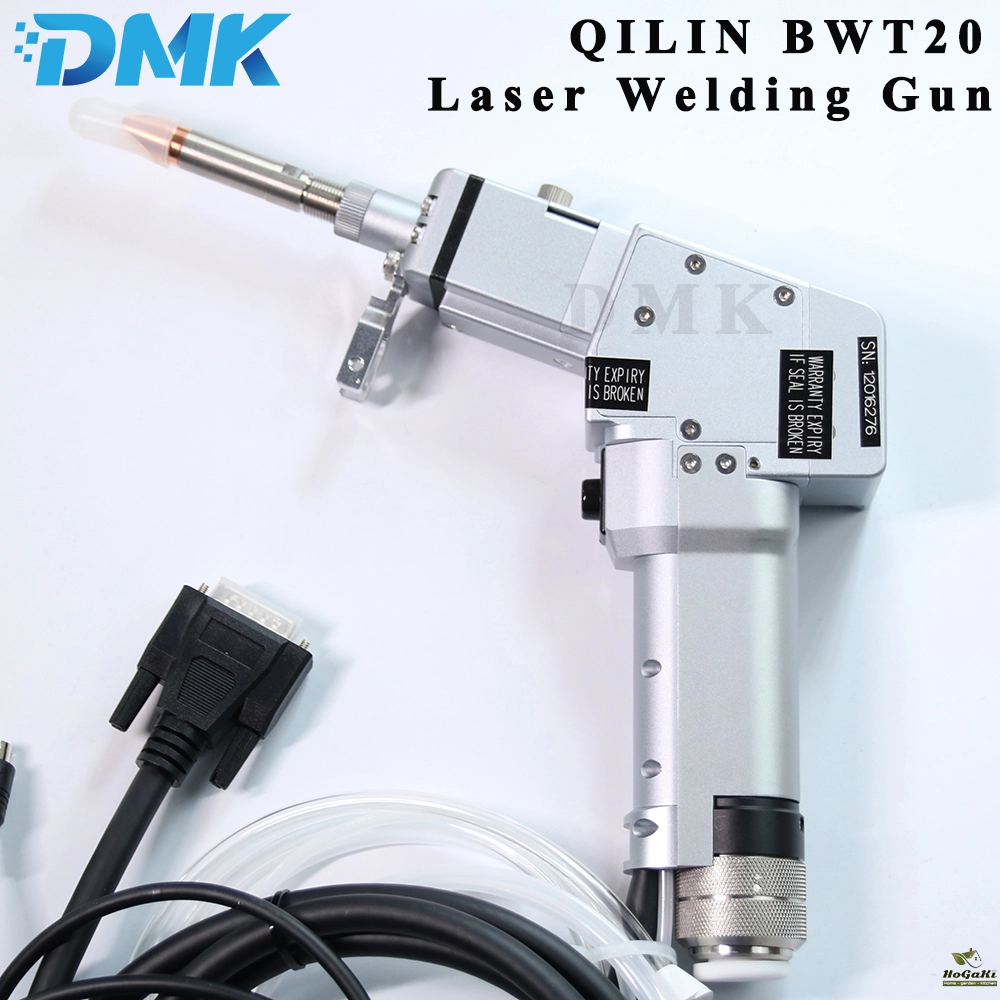

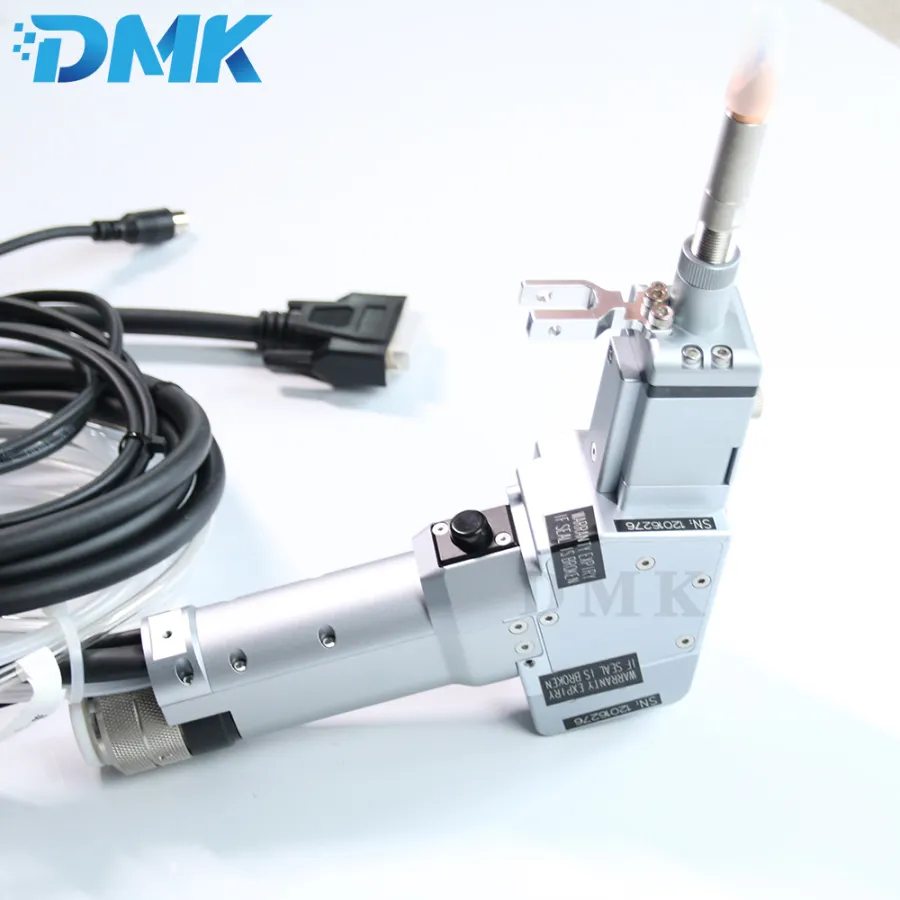

Laser Welding Head Qilin BWT20

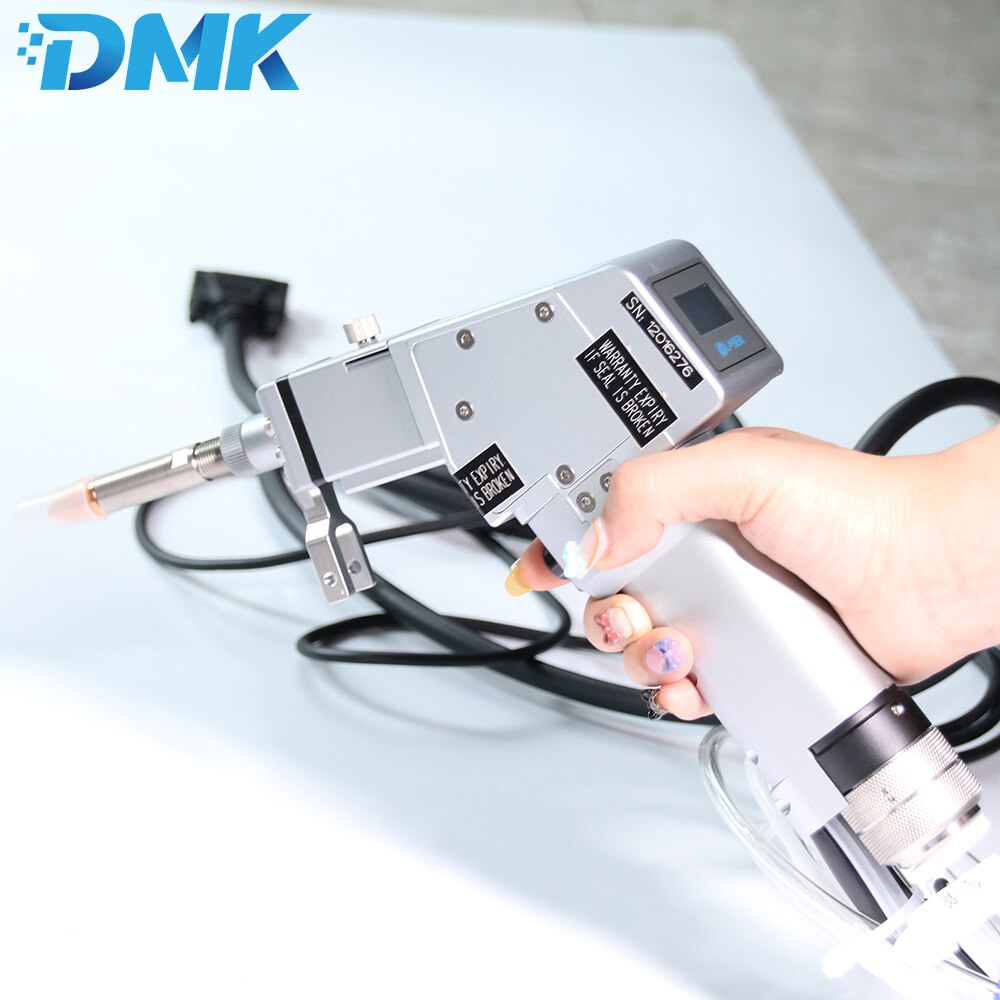

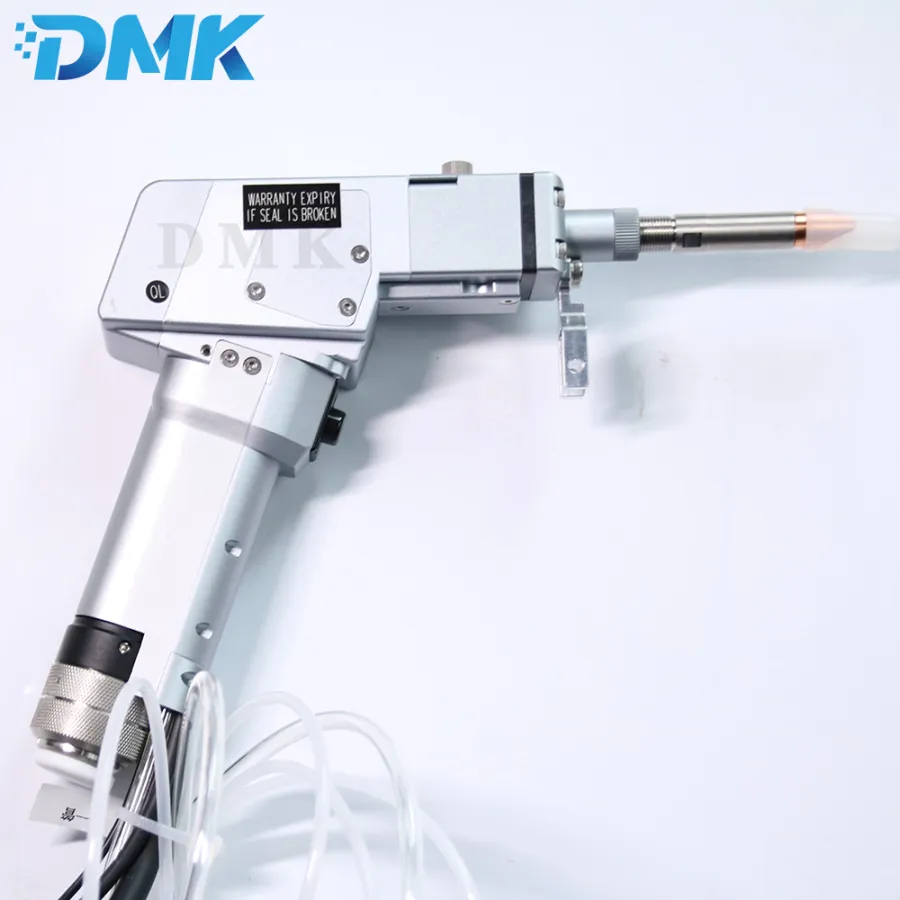

Qilin Handheld Welding Head
Qilin Handheld laser welding machine which can realize welding, butt welding, welding, sealing welding, etc., stack depth width ratio is high, the weld width is small, small heat affected zone, small deformation, welding speed, welding seam smooth, beautiful, without processing or simply processing after welding, welding quality is high, no pores, can accurate control, focusing on small points of light, high positioning accuracy, easy to realize automation.

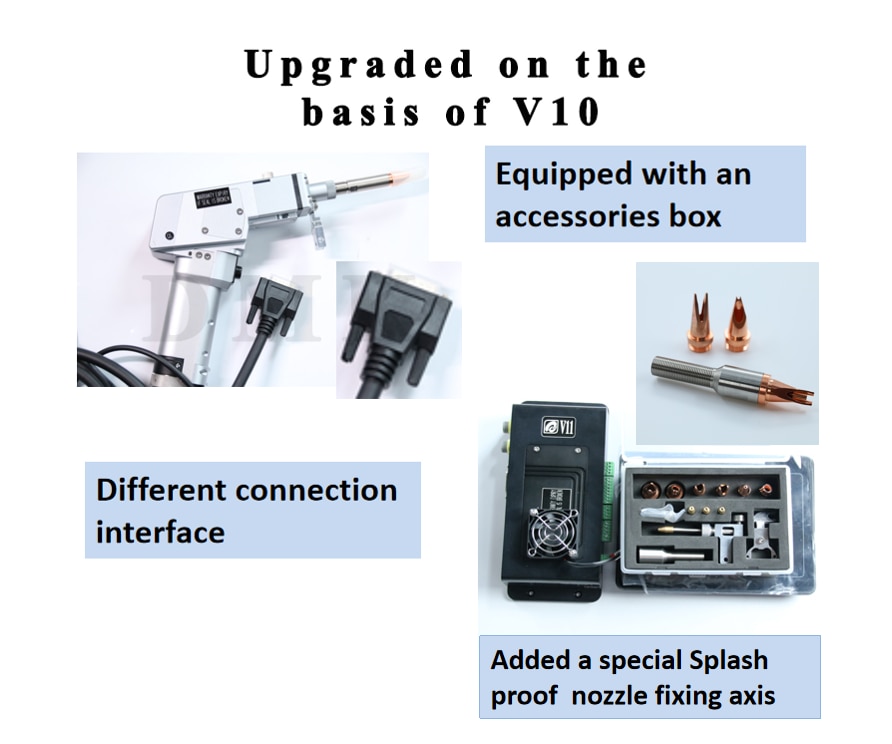

Qilin BWT20 in 2022 is upgraded on the basis of Qilin V10.
Operating Instruction

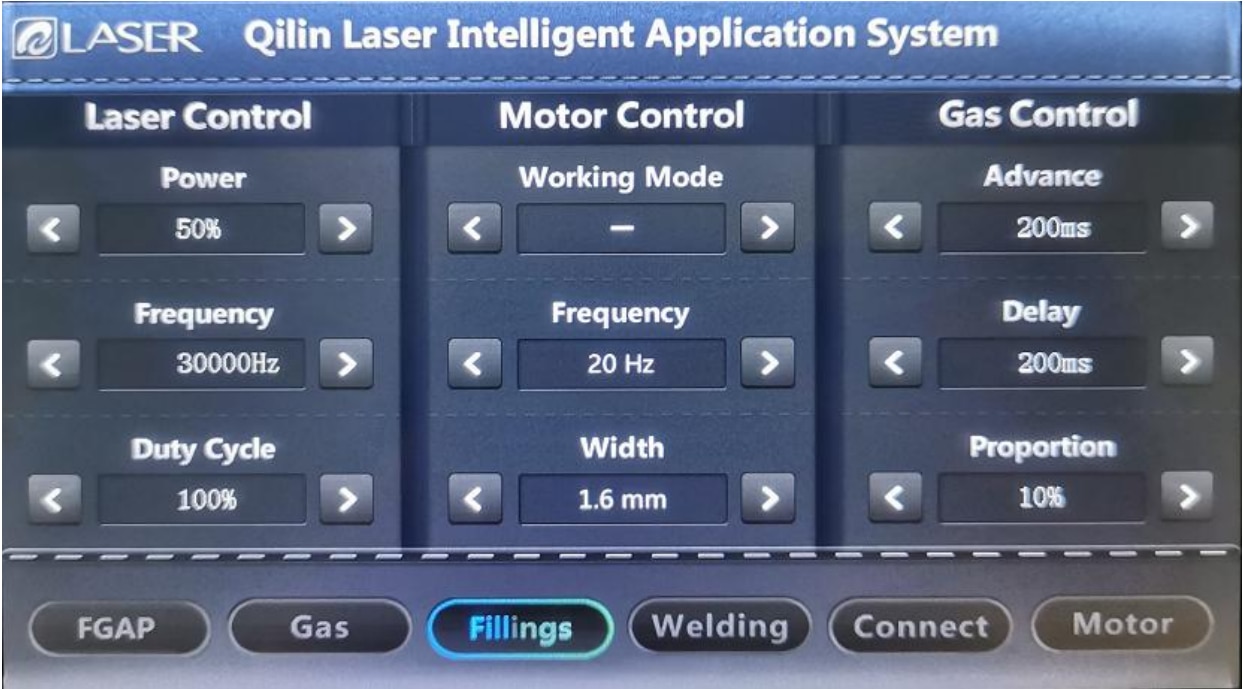

The signal status is displayed in the page: FGAP、Gas 、Fillings、Welding、Connect、Motor.

FGAP: Control of laser switch. When in normal use, turn on FGAP button to connect laser light signal. ( Connection of laser source will be cut down after 15 minutes of no working)

Gas: For gas control, install proportional valve, effective percentage control.

Fillings: Control of feeder feeding, switch of feeding function.

Welding: The display of the trigger button of welding head. The WELDING button is on when the trigger button pressed by user.

Connect: It is the indicating of loop signal of head to the metal. When the gun head touches the metal plate which with alligator clip, the CONNECT button is on. This button is for protective of laser light. Short connection is prohibited.

Motor: Refers to the state of the laser head motor. The light is on when the motor is normally connected, and when the motor is not working, the MOTOR button is off and the LCD screen of welding head shows the alarm signal E, it means the laser light signal is locked and the triggle button of welding is invalid.

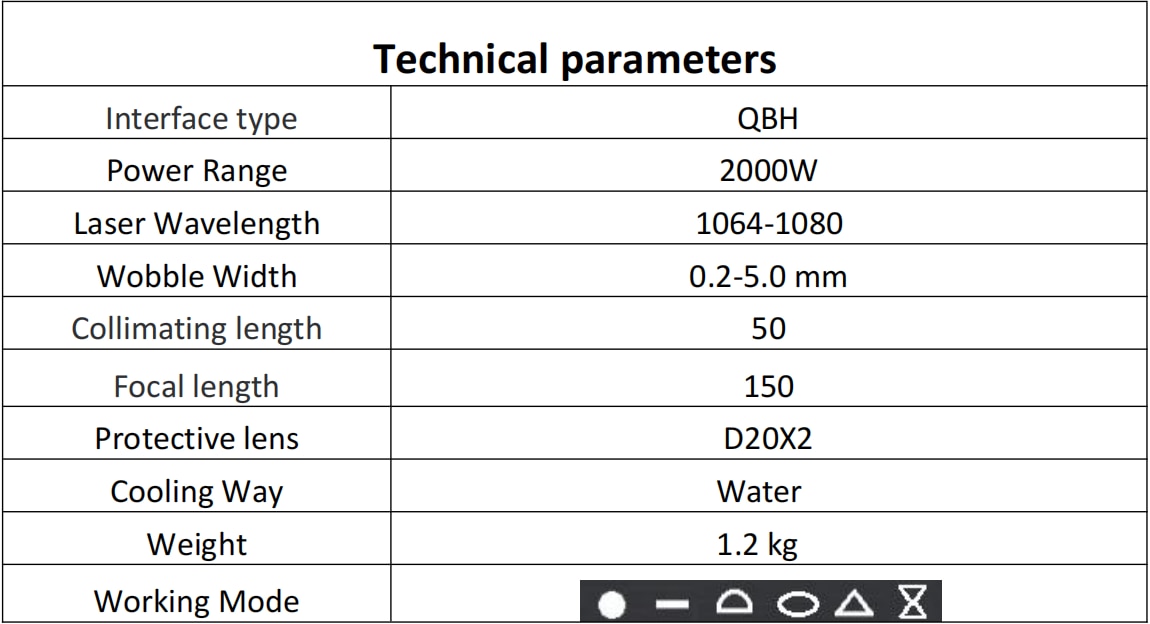

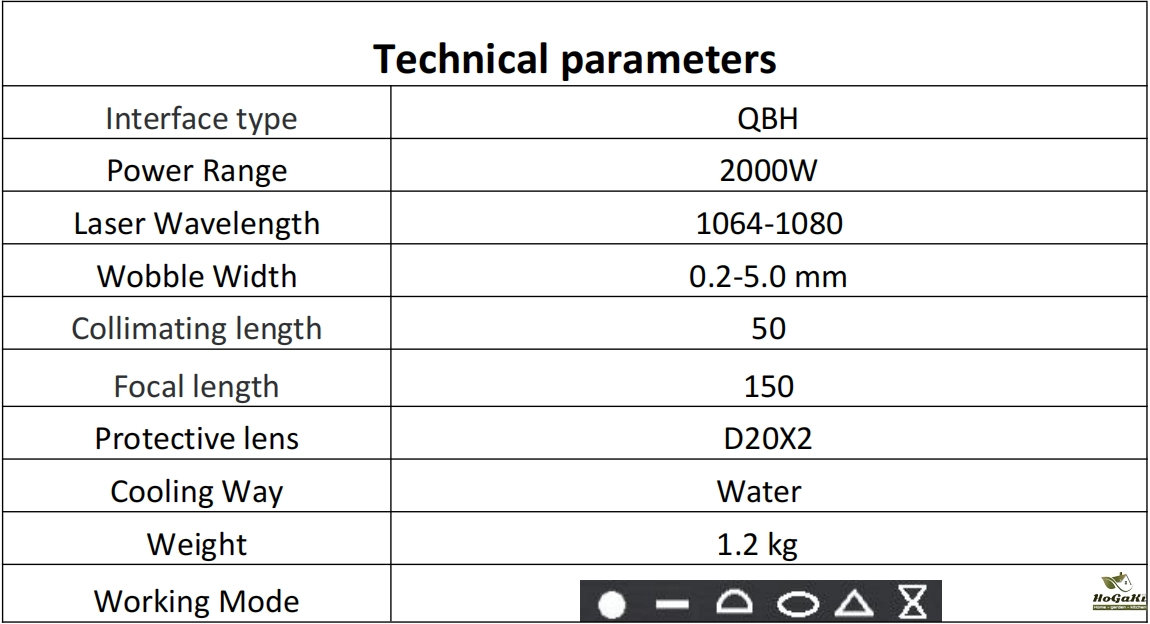

Quick Details
     Condition: New
     Max. Output Power: 2000
     Usage: metal welding
     Place of Origin: China
     Brand Name: Qilin
     Single Pulse Energy: 80-120J
     Pulse Width: 0.1-10ms
     Wavelength: 1064nm
     Focal Spot Diameter: 0.2-2mm
     Dimensions: 1000*550*1150mm
     Warranty: 1 Year
     Laser Source Brand: Raycus
     Weight (KG): 8.6 KG
     Key Selling Points: Easy to Operate
     Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops,                Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company, Other
     Showroom Location: None
     Machinery Test Report: Provided
     Video outgoing-inspection: Provided
     Marketing Type: Hot Product 2022
     Warranty of core components: 1 Year
     Core Components: Bearing, Gear
     Certification: ce, ISO
     After-sales Service Provided: Online support, Video technical support
     After Warranty Service: Video technical support, Online support
     Local Service Location: None

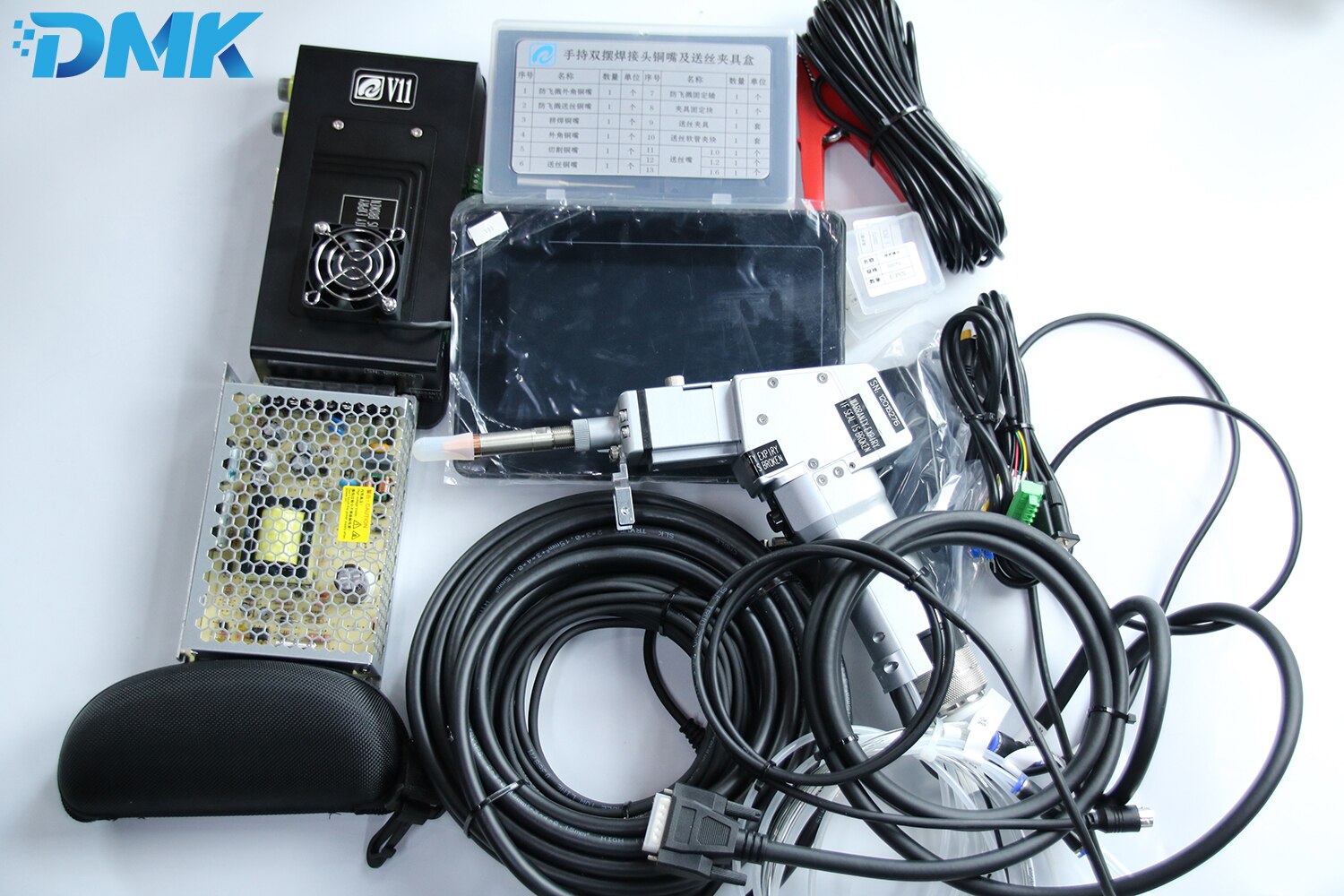

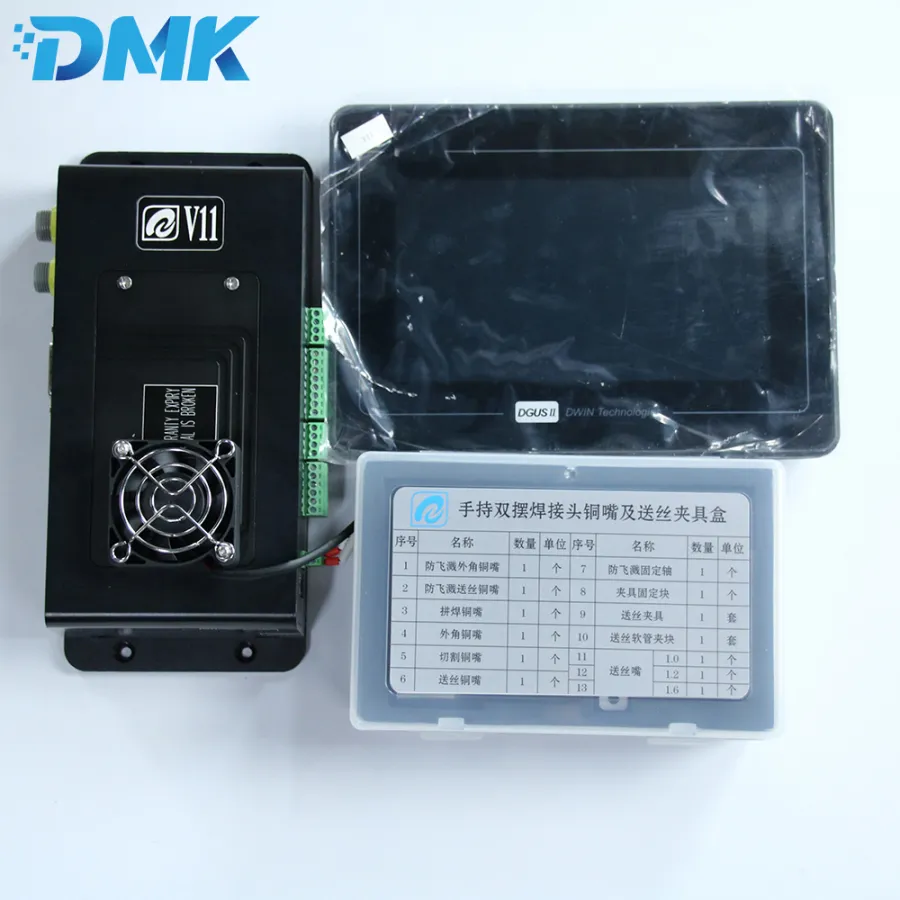

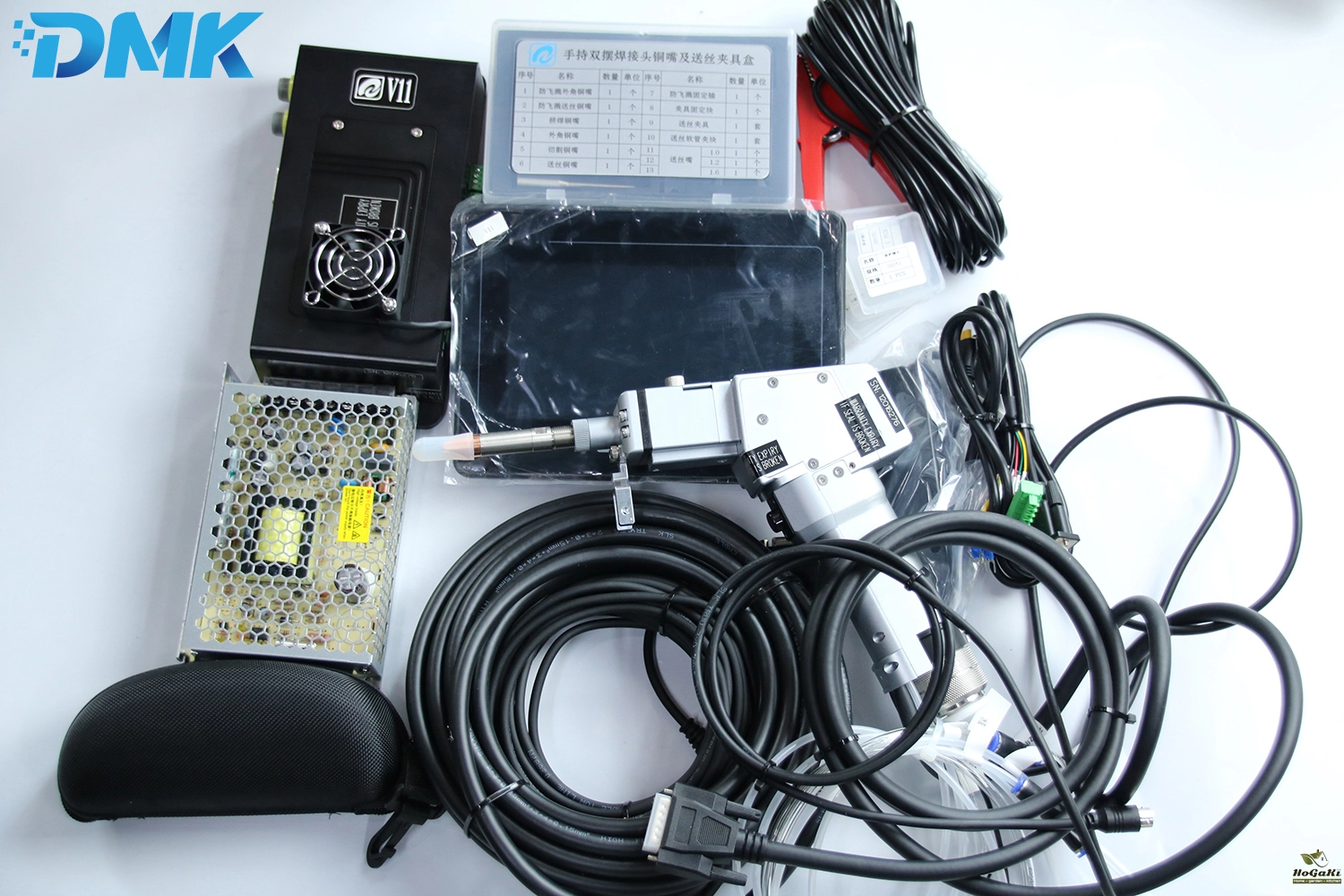

Complete set of detailed accessories




Application


Widely used in the bathroom industry, glasses industry, hardware industry, automobile industry. Automobile industry, medical industry, electronic industry, home furnishing, Kitchenware and bathroom. And gradually replace the traditional welding methods.

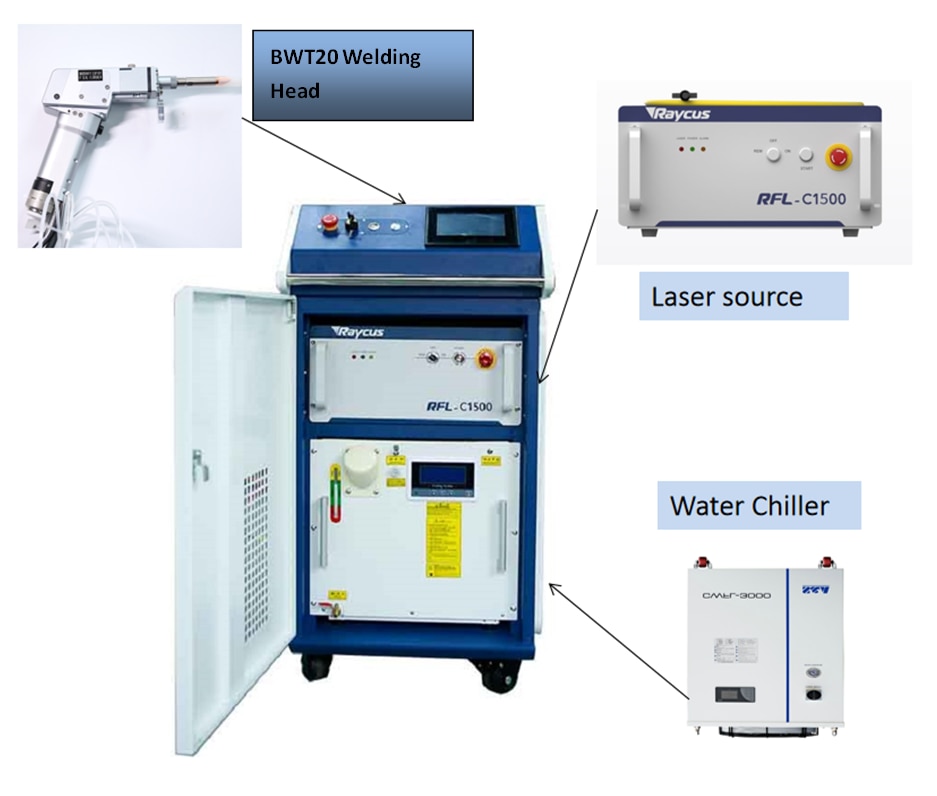

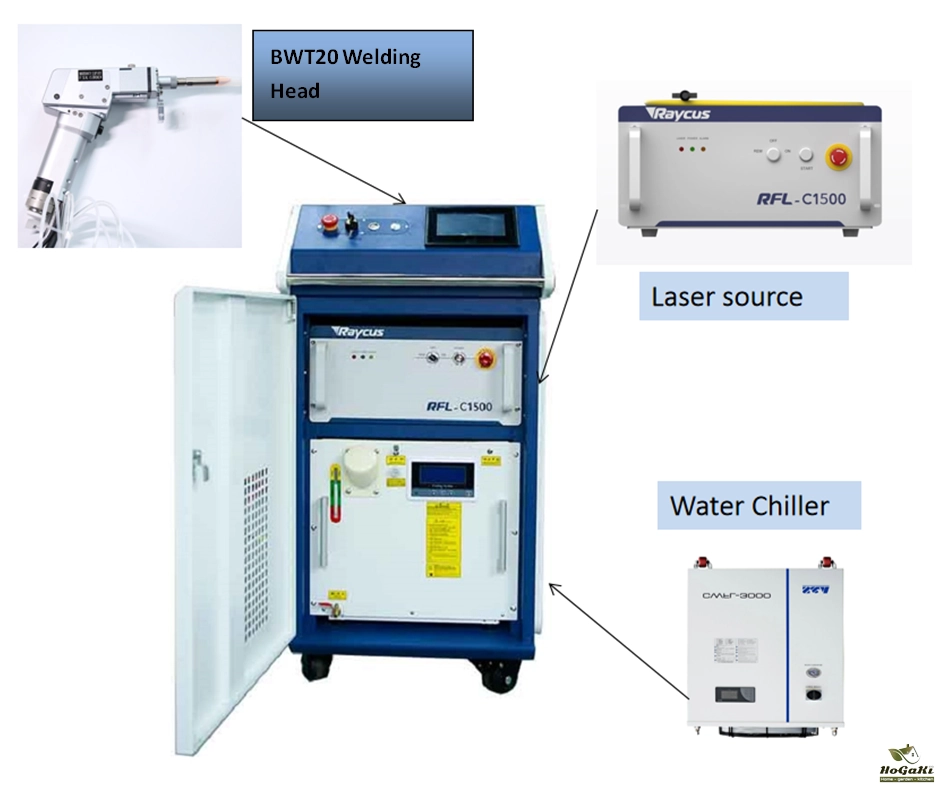

BWT20 is only a fiber laser welding head, it should work together with a laser source and a water chiller.
