5 x CNC Milling Engraving Machine Pressing Plate Clamp Fixture T-Slot Parts
32.11 26.54 $
Cooling Pipe Length:300MM / 11.811Inches
PU Tube Length:1.5M / 4.9212Inches
Oil Outlet Port Size:4MM / 0.15748Inches
Air Inlet Port Size:8MM / 0.31496Inches
Material:Metal

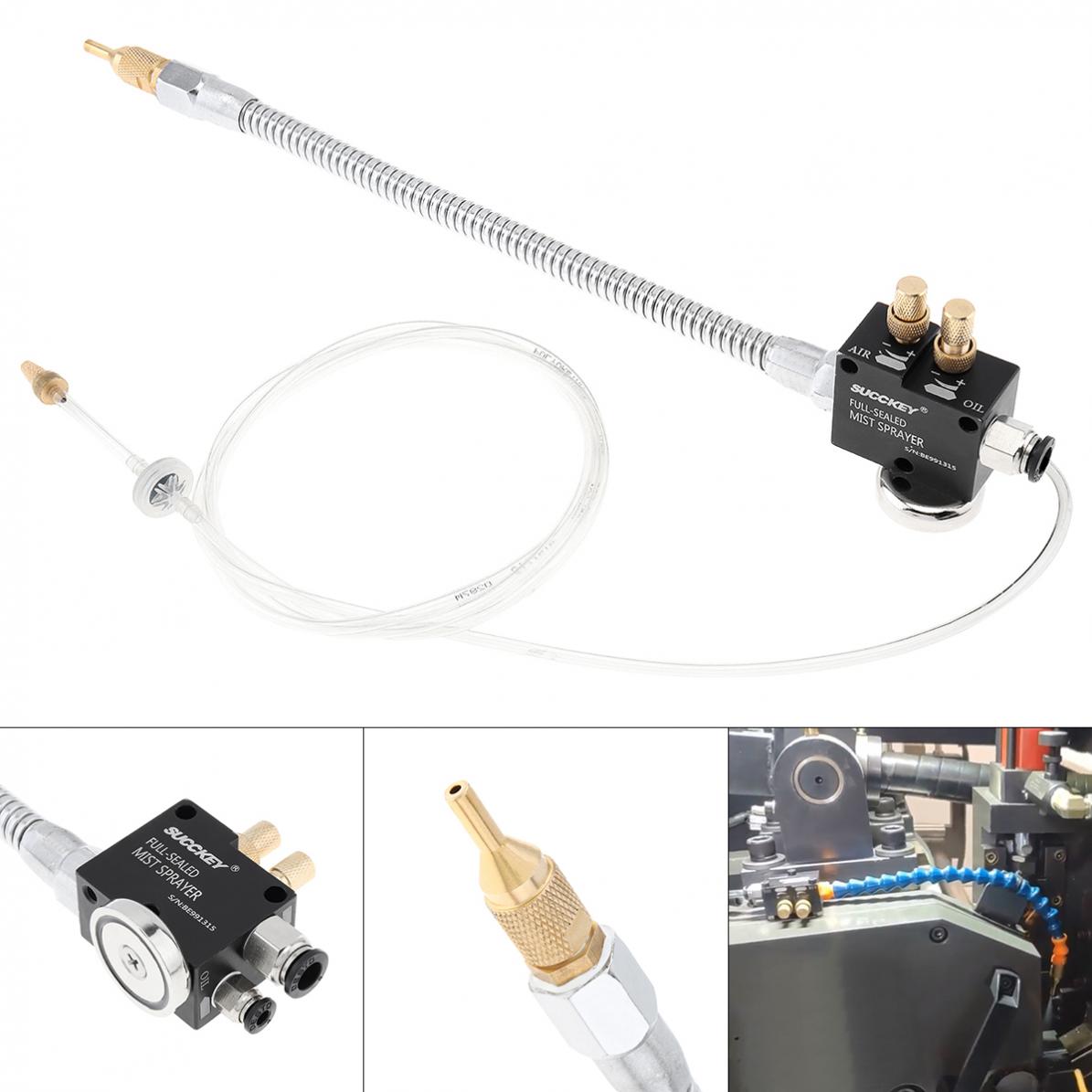

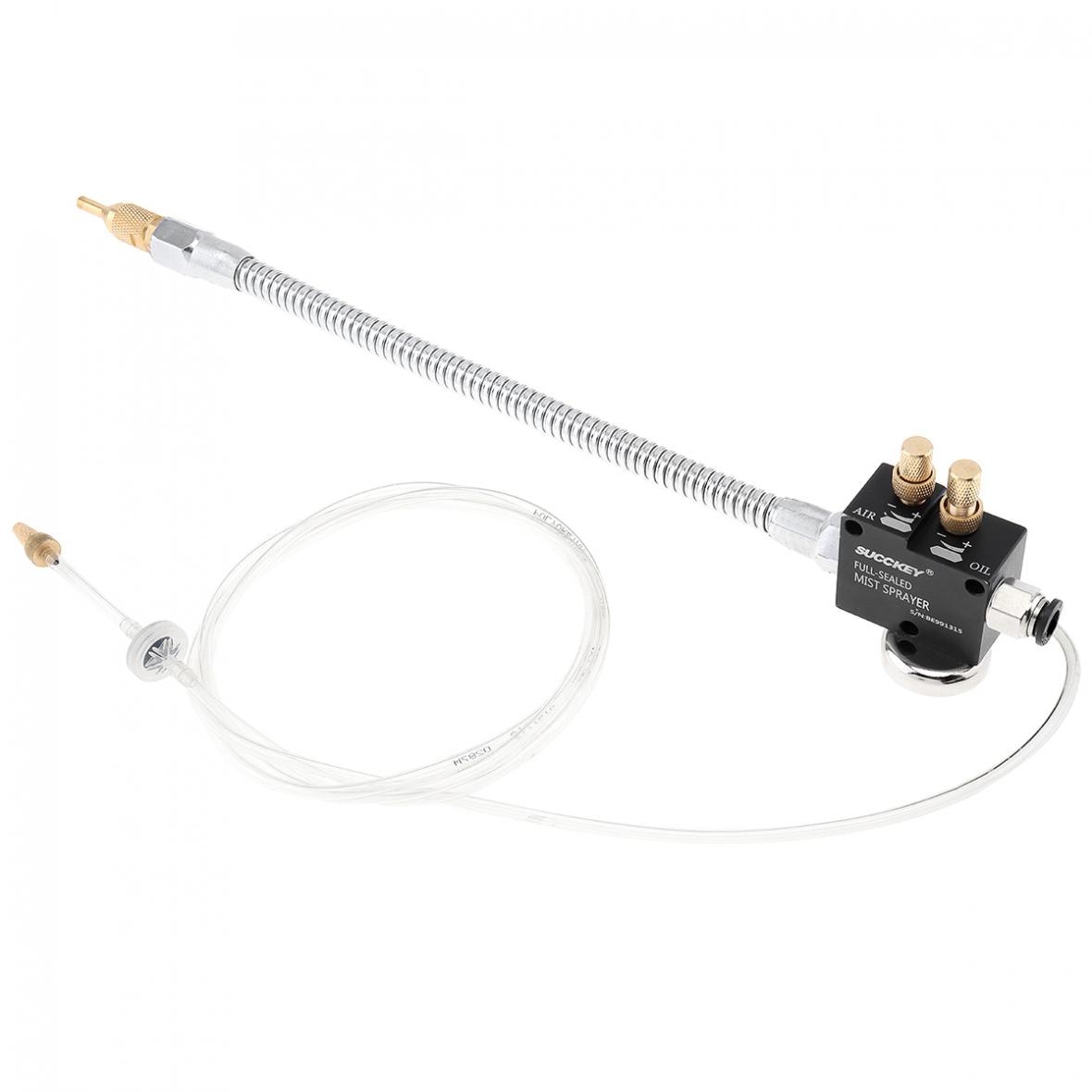

Product Name: Mist Coolant Lubrication Spray System
Model: SKBM-M-30-8-4-1.5
Material: Stainless Steel + Metal + Brass
Air Pressure: 5-7kgt/cm⊃2; (the atomization effect is related to gas volume and oxygen pressure)
Applicable Liquid Viscosity: 0-68cSt

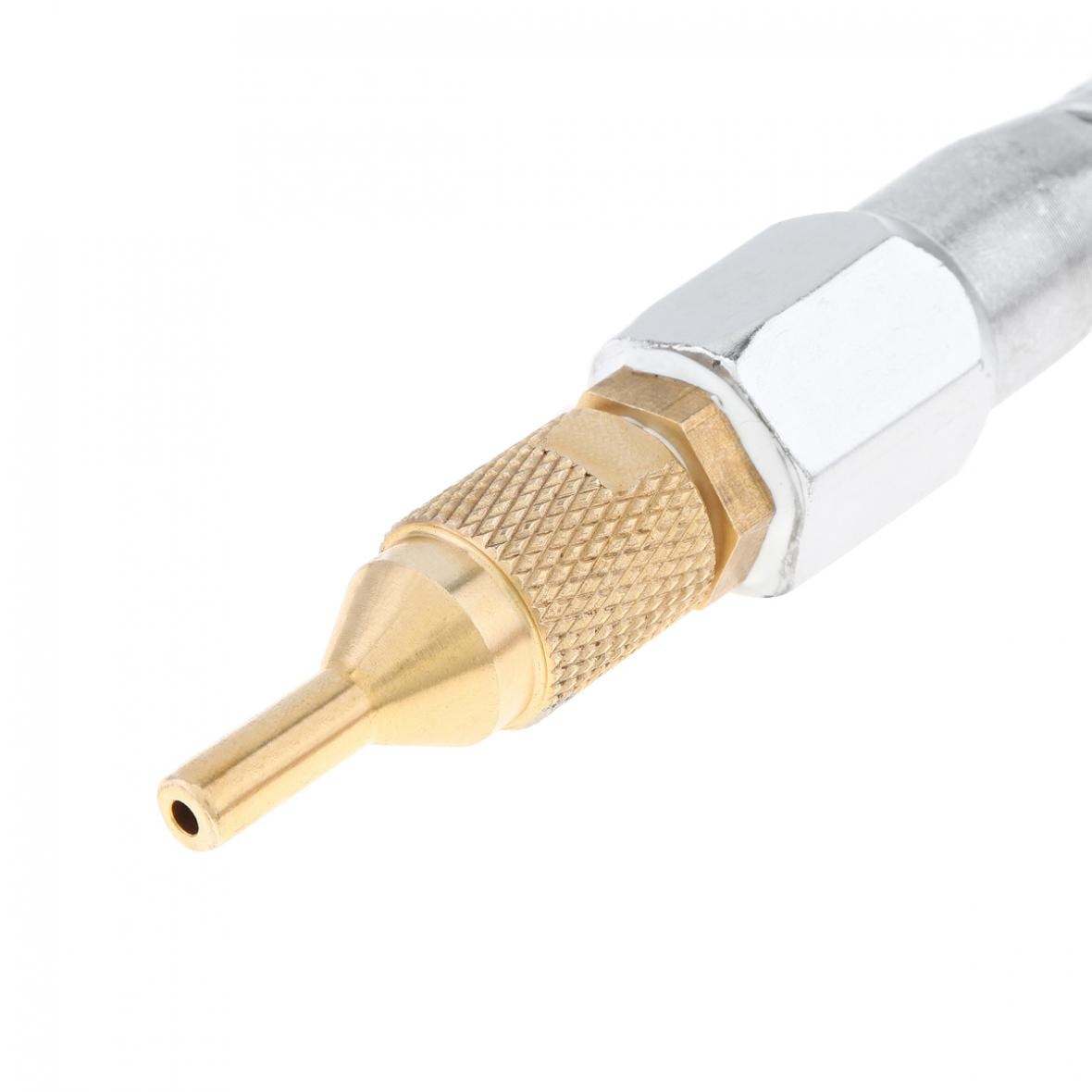

Copper Nozzle Inner Diameter: 2.12mm
Internal Spray Nozzle Inner Diameter: 1mm
Air Inlet Port Size: 8mm
Oil Outlet Port Size: 4mm
Cooling Pipe Length: 300mm
PU Tube Length: 1.5m
Installation Method: Internal Thread Connection
Application: Lathe, drilling machine, milling machine, grinder, tapping machine, tool grinder, CNC machine tool, weighing machine, sawing machine, woodworking machinery, feeding machine, etc.
Feature:
- Cooling, lubricating and blowing out the iron layer can be completed at one time during the processing.
- It can increase processing speed, save processing time and cost, and reduce tool wear.
- It is helpful to ensure the processing-quality and the best use effect of cutting tools.
- Processing alloys or superhard materials can also achieve a smooth and high-precision surface.
- Increasing the sealing method can avoid internal leakage and prolong the service life.

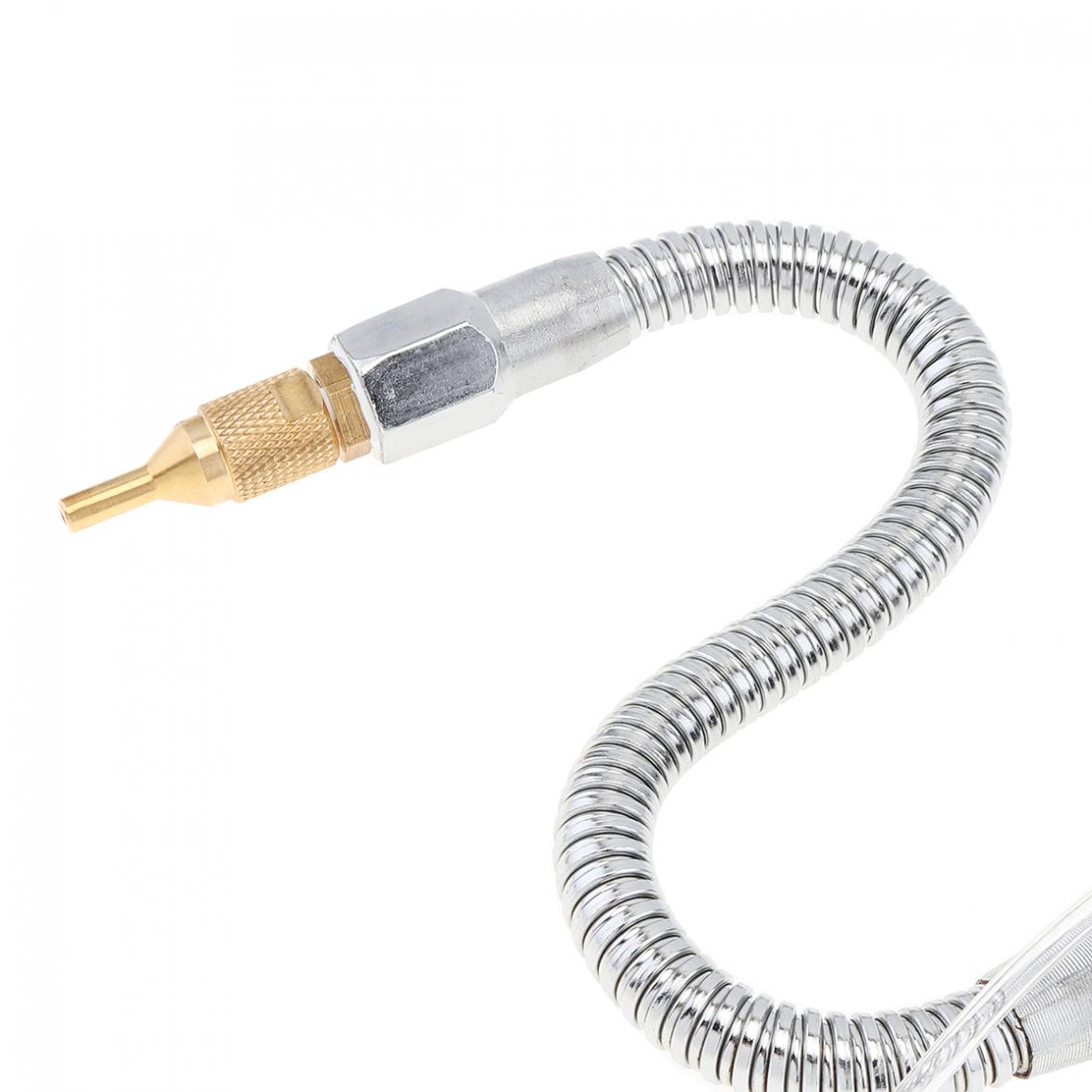

- Stainless Steel Flexible Pipe is more resistant to high temperatures.
- Save 60-80% lubricants compared with the oldest lubrication tube.
- Different fittings can be selected for different fixing modes.
- If it is necessary to fix the sprayer, as long as the place of adsorption is flat, it is steel or iron, the magnetic seat is easy to adsorb, and the adsorption position can be easily moved.
Steps of Operation:
- Insert the liquid tube.
- Insert the air tube.
- Put the filter into liquid.
- Open the air sourceBy using two valve toadjust inlet air/liquidflow rate toget suitableoutlet mist andimpulsive force.
Note:
- Clean liquid must be used.
- Do not use corrosive liquids.
1 x Mist Coolant Lubrication Spray System
