Mini lathe machine DIY 6 in 1 Multifunctional metal wood lathe CNC tool Jigsaw Grinder Driller Plastic Lathe Drilling Sanding EU

2.8 (4 votes) | 10 orders
Price: US $563.00 / piece
Discount Price:
US $ 362.39 / piece
-36%
Ships From
Quantity

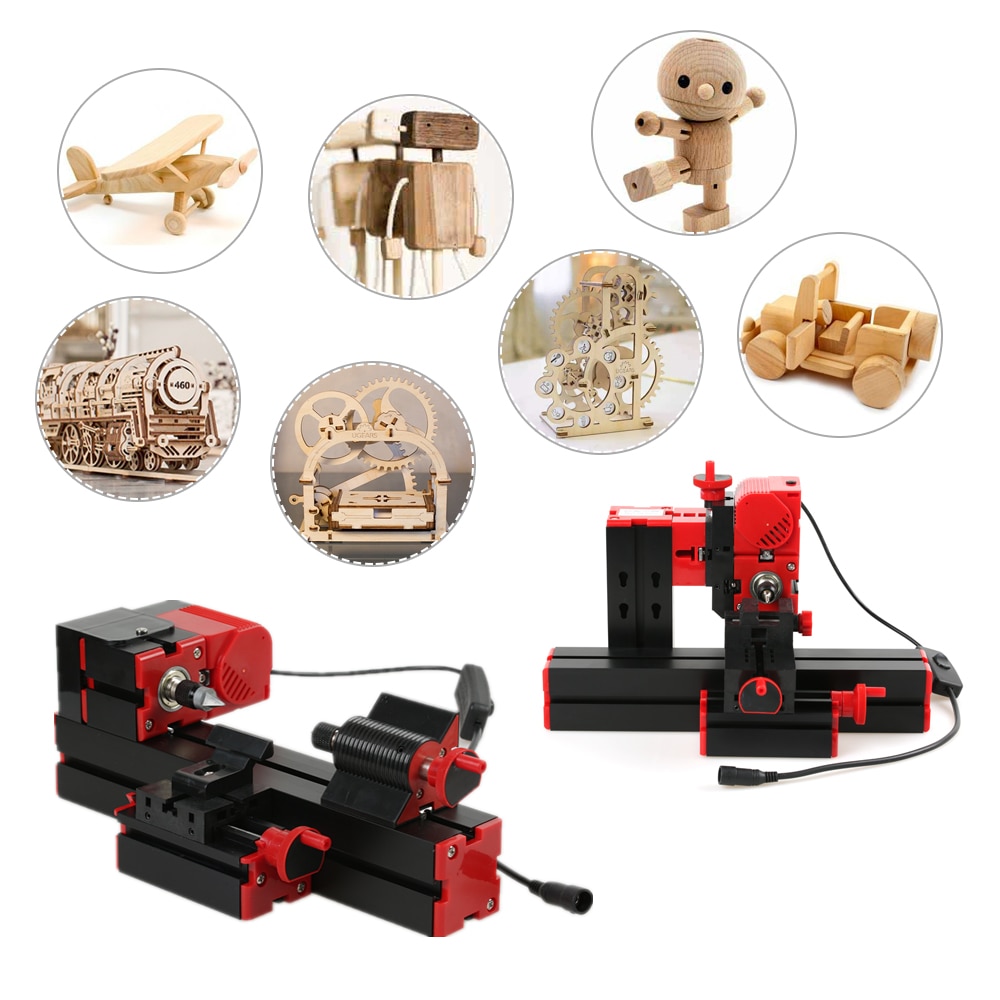

Need to make molds or samples, create products and DIY process soft metals? Being curious about making crafts? Try this professional 6 in 1 motorized jigsaw, grinder, driller, miller, metal lathe, wood lathe. It's perfect for processing plastic, models, soft metal and wood.

Features:
Mini 6 in 1 lathe machine for DIY assembly of sawing machine, grinder, driller, wood lathe, metal lathe, miller.

Great handcraft tool kit for DIY, hobby, model making, crafts, students, small parts processing, etc.
Made of advanced aluminum alloy, durable and non-deformable for usage.
Interesting to install and use, perfect gift for lathe DIY enthusiasts.

This mini multipurpose machine can be assembled into 6 kinds of different lathes, but you can use only one kind of these lathes at the same time.

Specifications:
Material: Aluminum Alloy + ABS
Color: Black + Red
Power: 48W
Motor Speed: 20000rpm
Plug Type: EU Plug
Voltage: 100-240V 50/60Hz
Output: 12V 4A

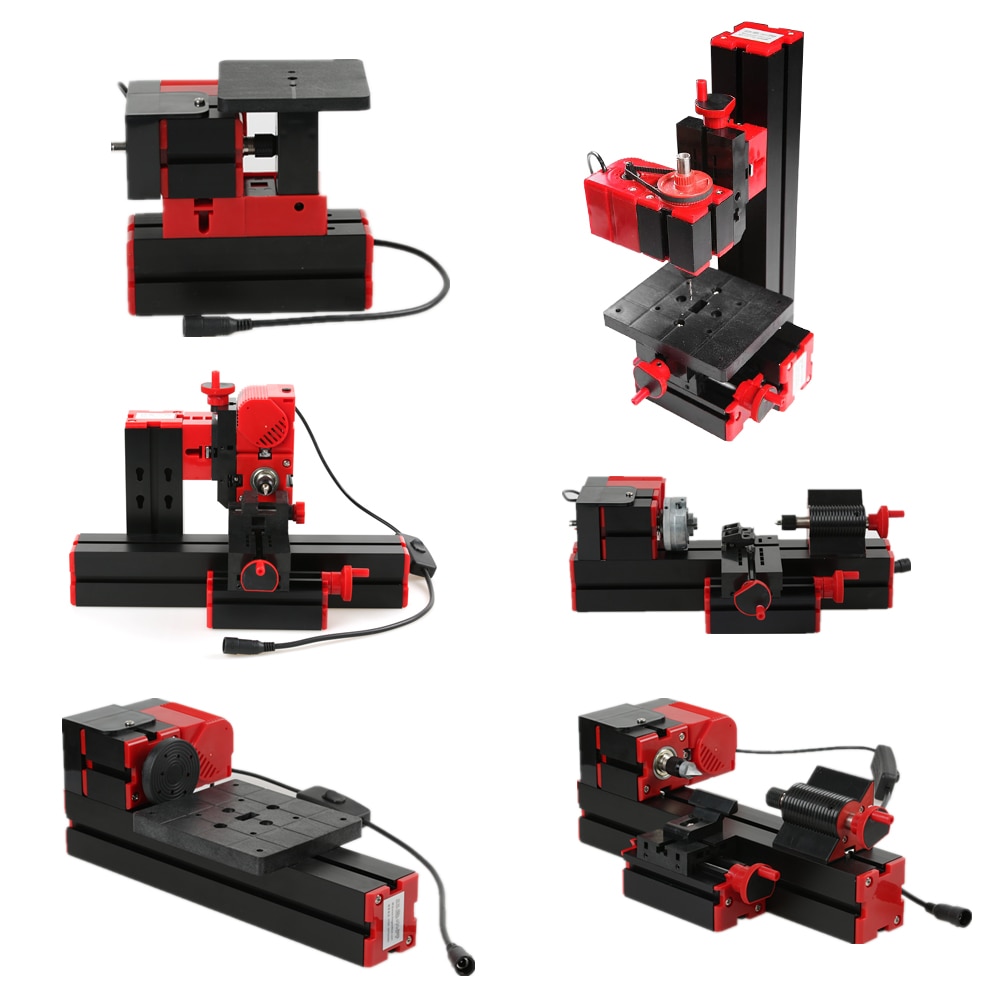

Can Assemble Machine: Jigsaw, Grinder, Driller, Wood Lathe, Metal Lathe, Miller
6-in-1 Functions: Drilling, Sanding, Turning Lathe, Milling, Sawing, Wood Turning Lathe
Can Process Objects: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.) Acrylic, PCB, etc.
Package Size: 47.5 * 36 * 10cm / 18.70 * 14.17 * 3.94in
Package Weight: 3.2kg / 7.05 lb

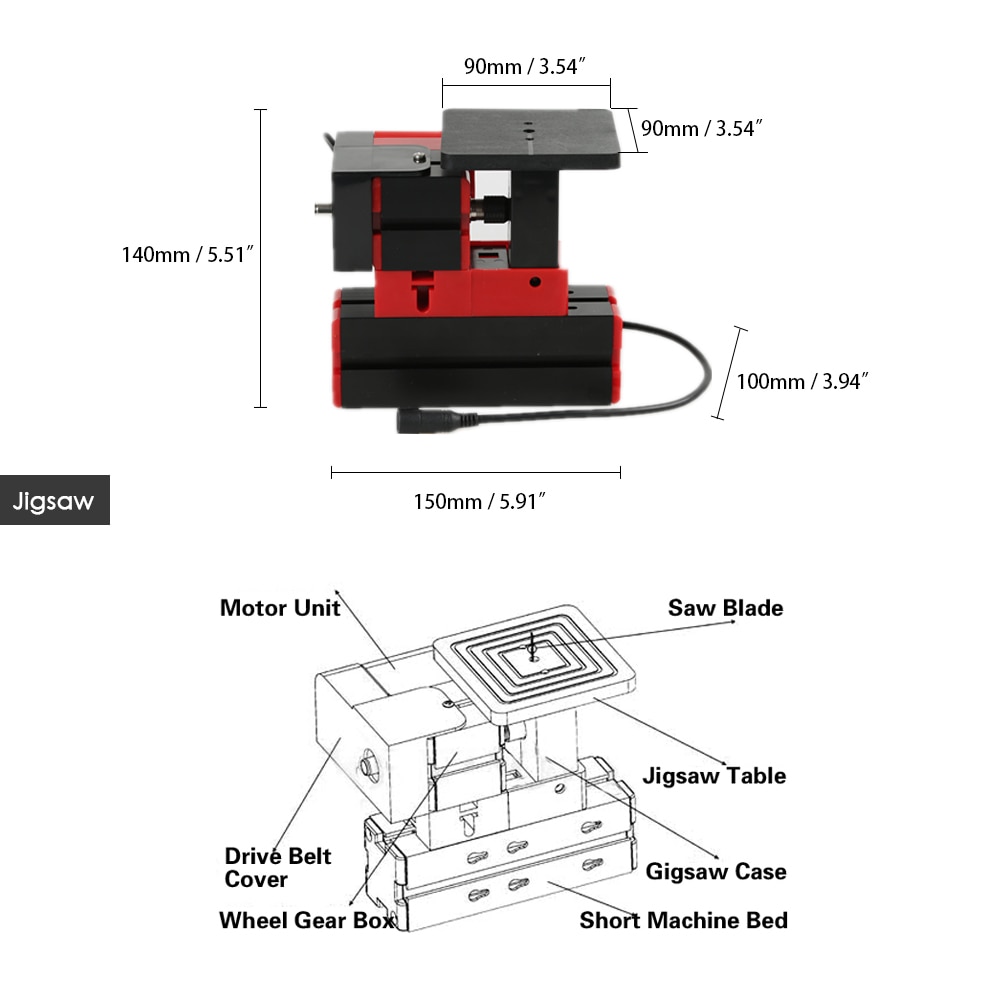

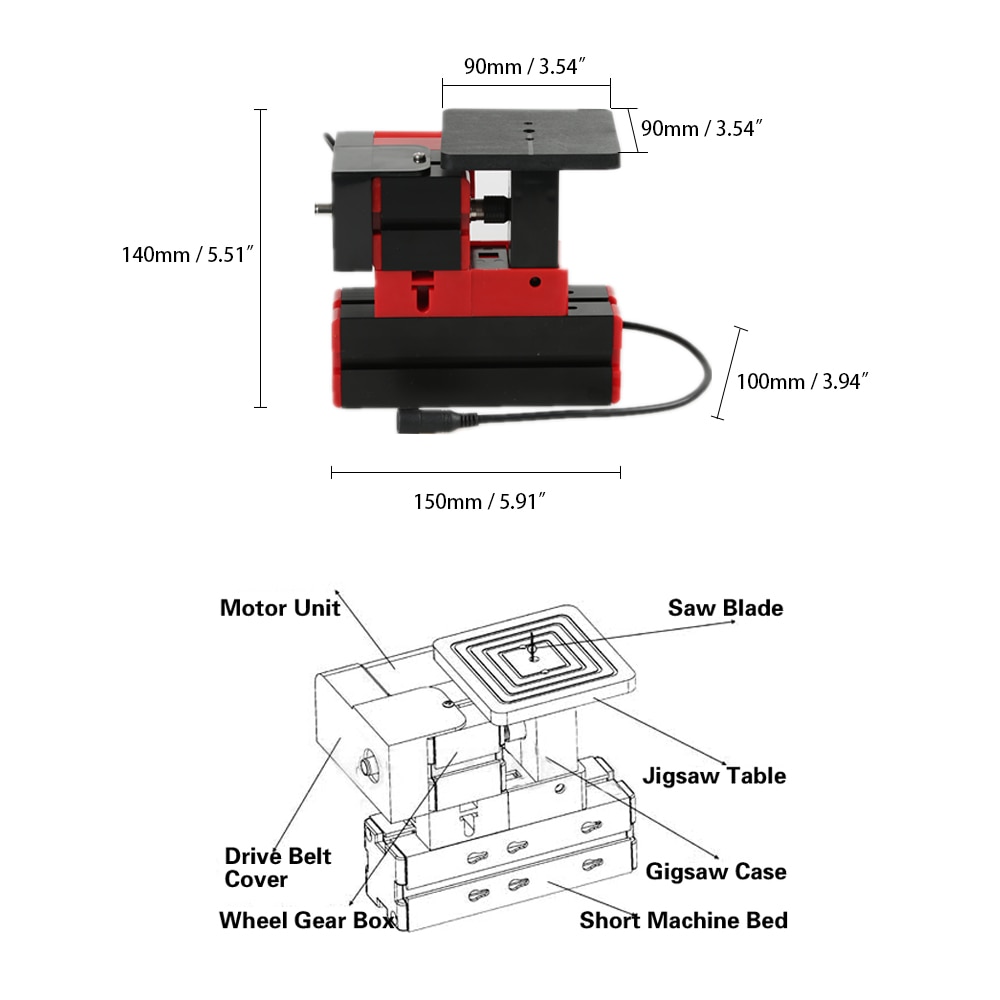

Technique Data of Jigsaw:
Operating Space: 90 * 90mm / 3.54 * 3.54in
Maximum Cutting Saw Depth: 4mm Hardwood, 7mm Triply Wood, 18mm Softwood, 0.5mm Aluminium Flakes, 2mm Organic Glass
Jigsaw Weight: 0.72kg / 1.59lb
Jigsaw Size: 15 * 10 * 14cm / 5.91 * 3.94 * 5.51in

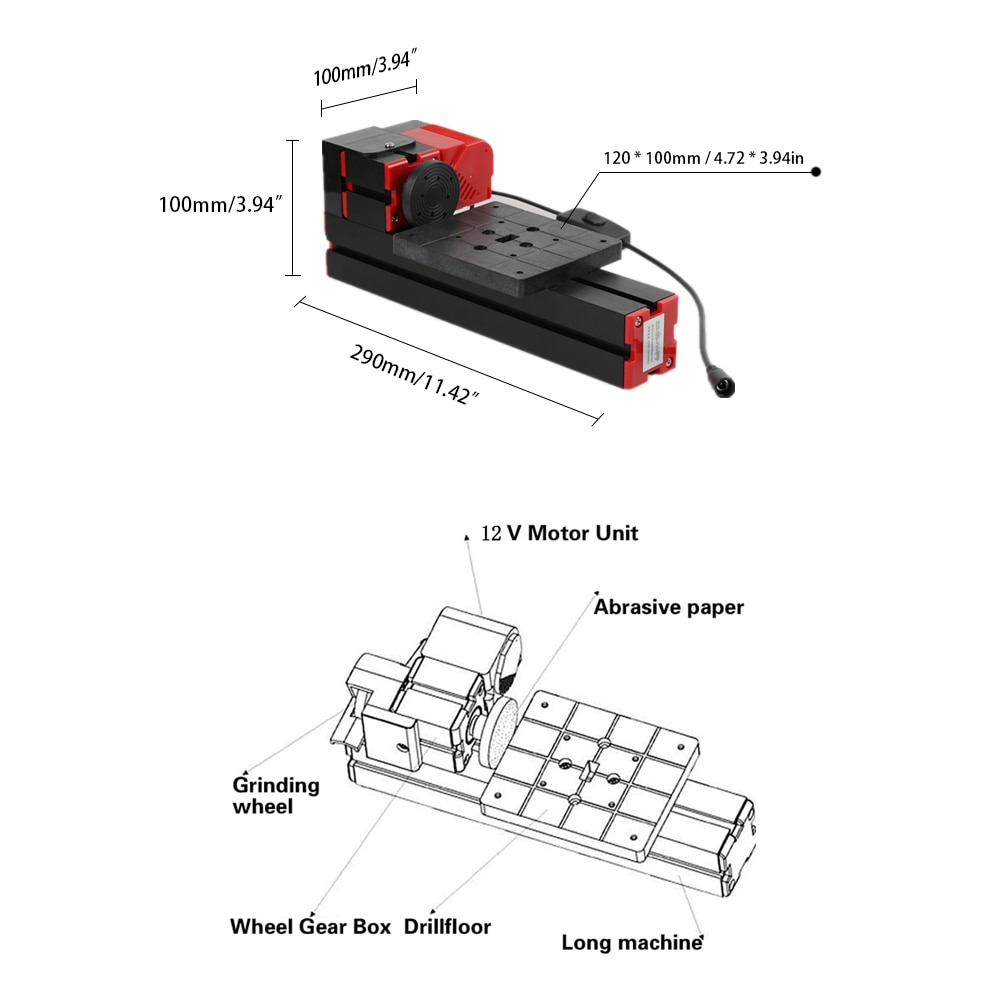

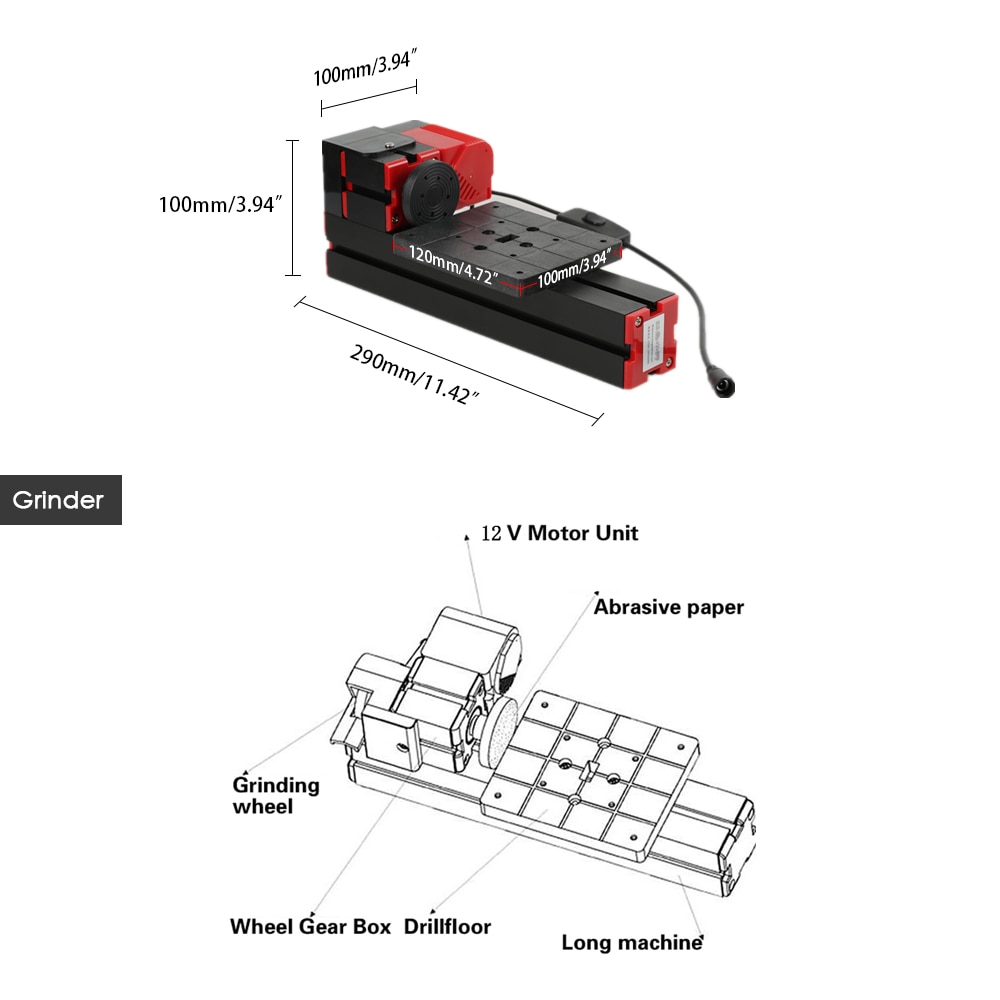

Technique Data of Grinder:
Operating Space: 120 * 100mm / 4.72 * 3.94in
Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Grinder Weight: 0.75kg / 1.65lb
Grinder Size: 29 * 10 * 10cm / 11.42 * 3.94 * 3.94in

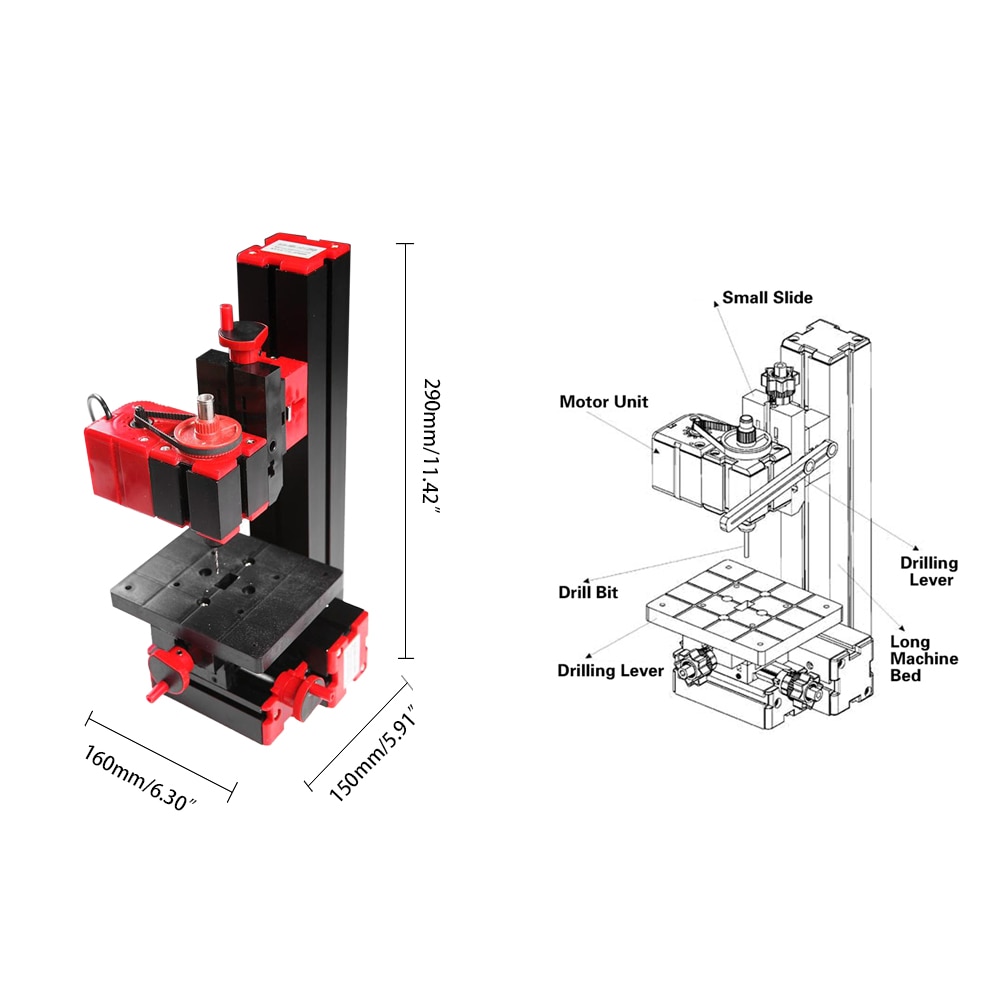

Technique Data of Driller:
Operating Space: 120 * 100mm / 4.72 * 3.94in
Slide Stroke: 30-50mm

Collets Size: 1-6mm
Clamping Size of Vice Clamp: 0-35mm
Driller Weight: 1.46kg / 3.22lb
Driller Size: 16 * 29 * 15cm / 6.30 * 11.42 * 5.91in

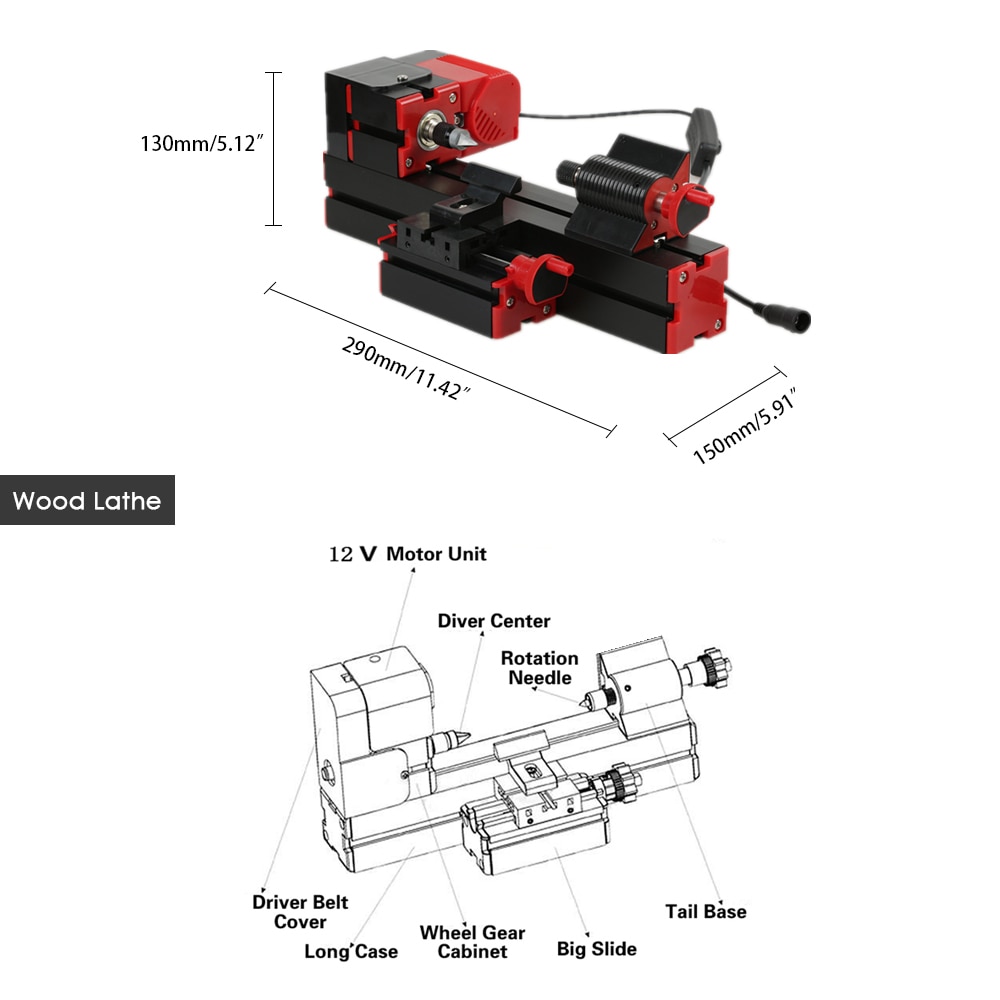

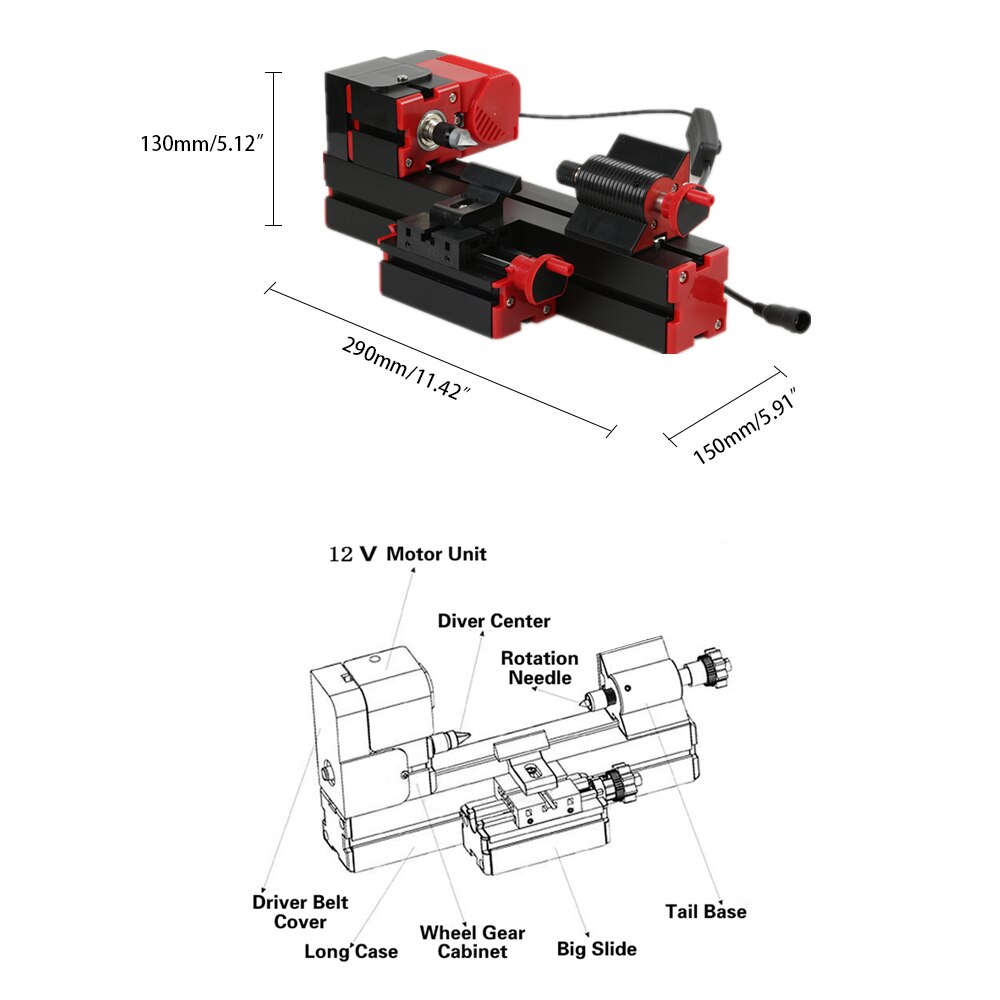

Technique Data of Wood Lathe:

Maximum Processing Diameter: 45mm
Processing Length: 135mm
Grinding Materials: Wood, Plastics
Wood Lathe Weight: 1.28kg / 2.82lb
Wood Lathe Size: 29 * 15 * 13cm / 11.42 * 5.91 * 5.12in

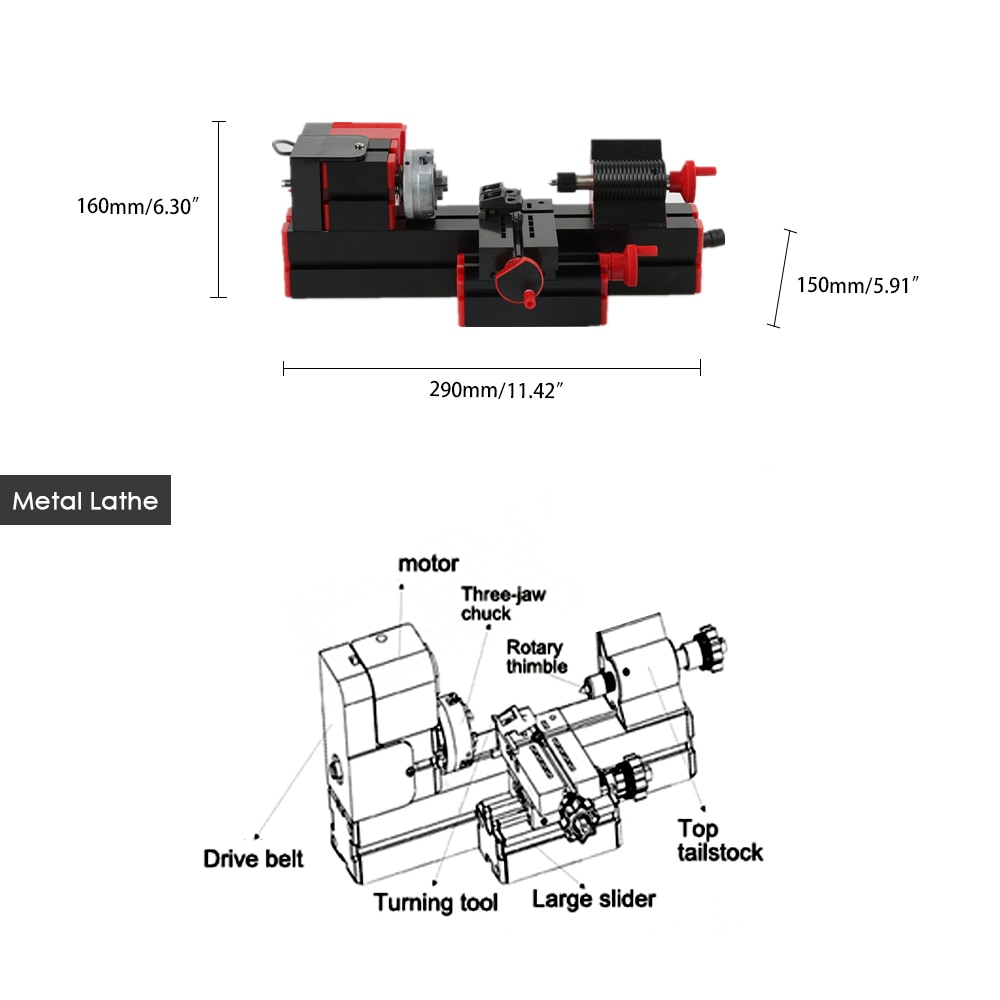

Technique Data of Metal Lathe:

Maximum Processing Diameter: 45mm
Processing Length: 135mm
Grinding Materials: Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Metal Lathe Weight: 1.35kg / 2.98lb
Metal Lathe Size: 29 * 15 * 16cm / 11.42 * 5.91 * 6.30in

Technique Data of Miller:
Slide Stroke: 30-50mm

Collets Size: 1-6mm
Clamping Size of Vice Clamp: 0-35mm
Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Metal Lathe Weight: 1.45kg / 3.20lb
Metal Lathe Size: 29 * 16 * 20cm / 11.42 * 6.30 * 7.87in

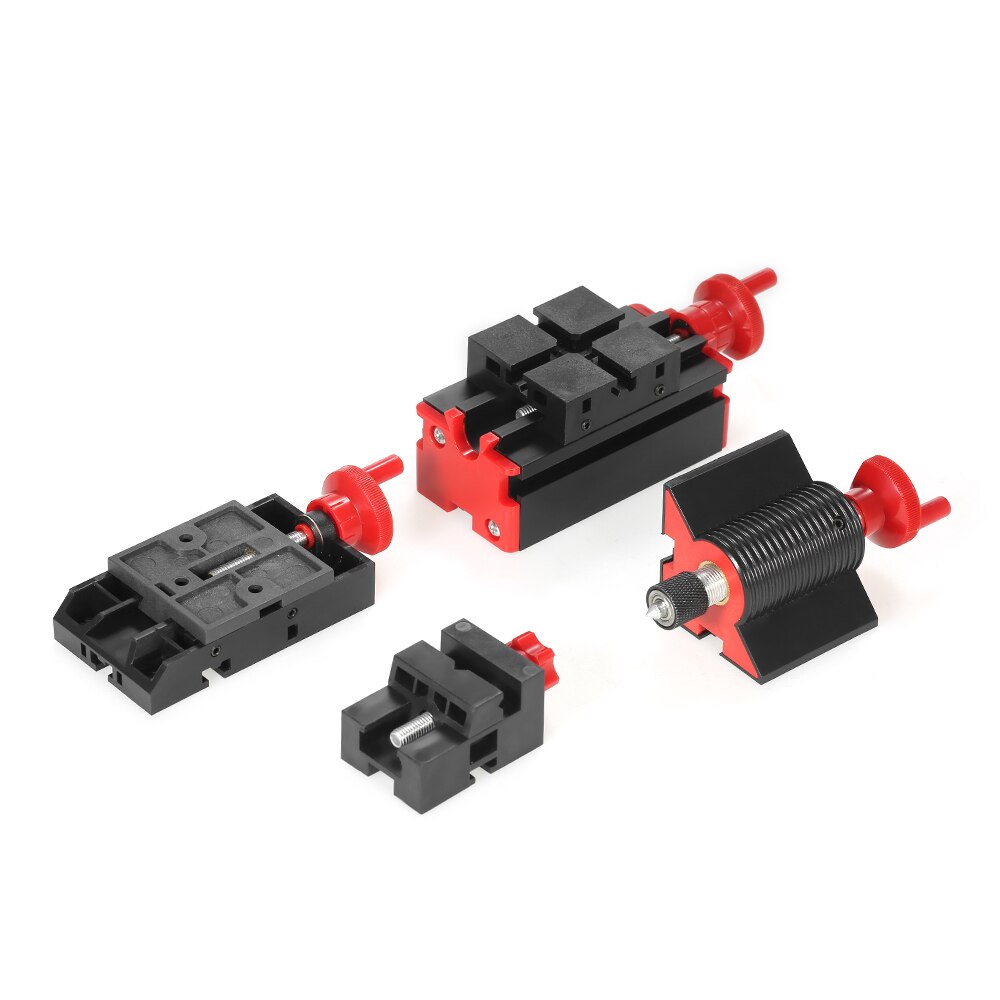

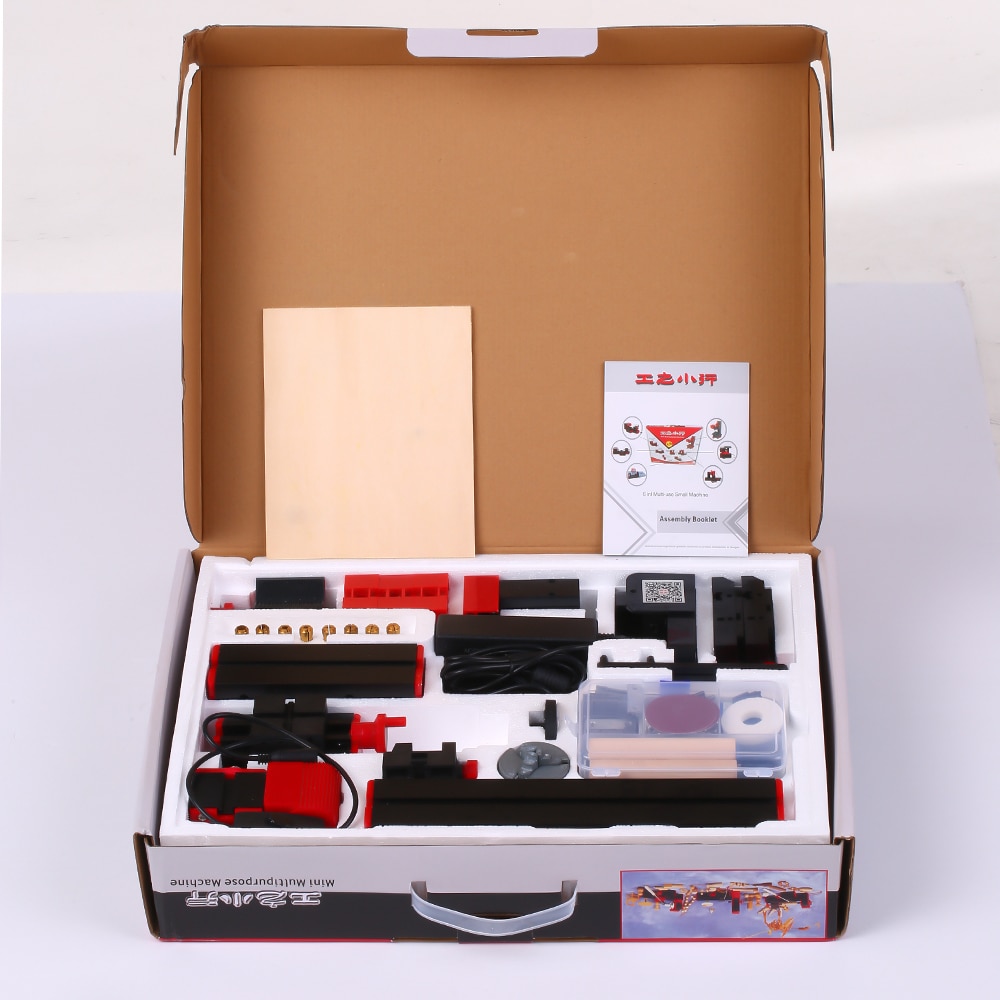

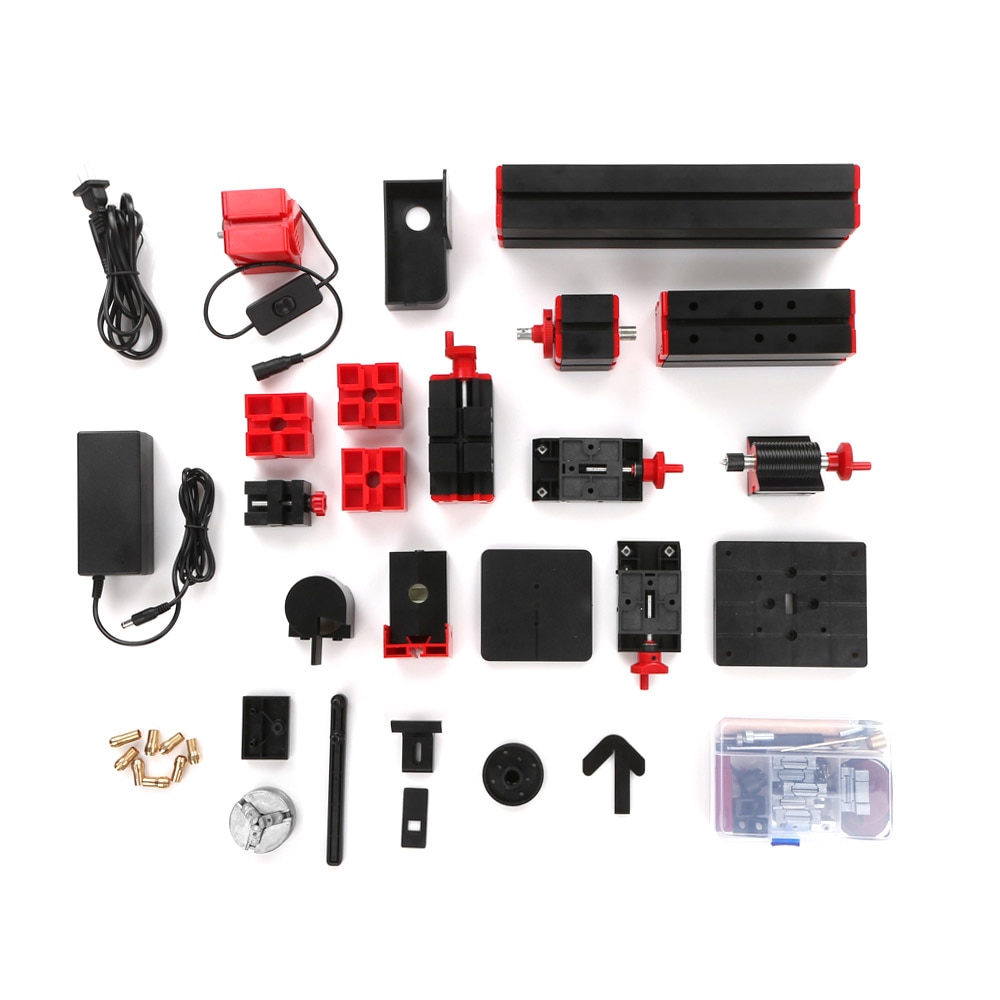

Package List:

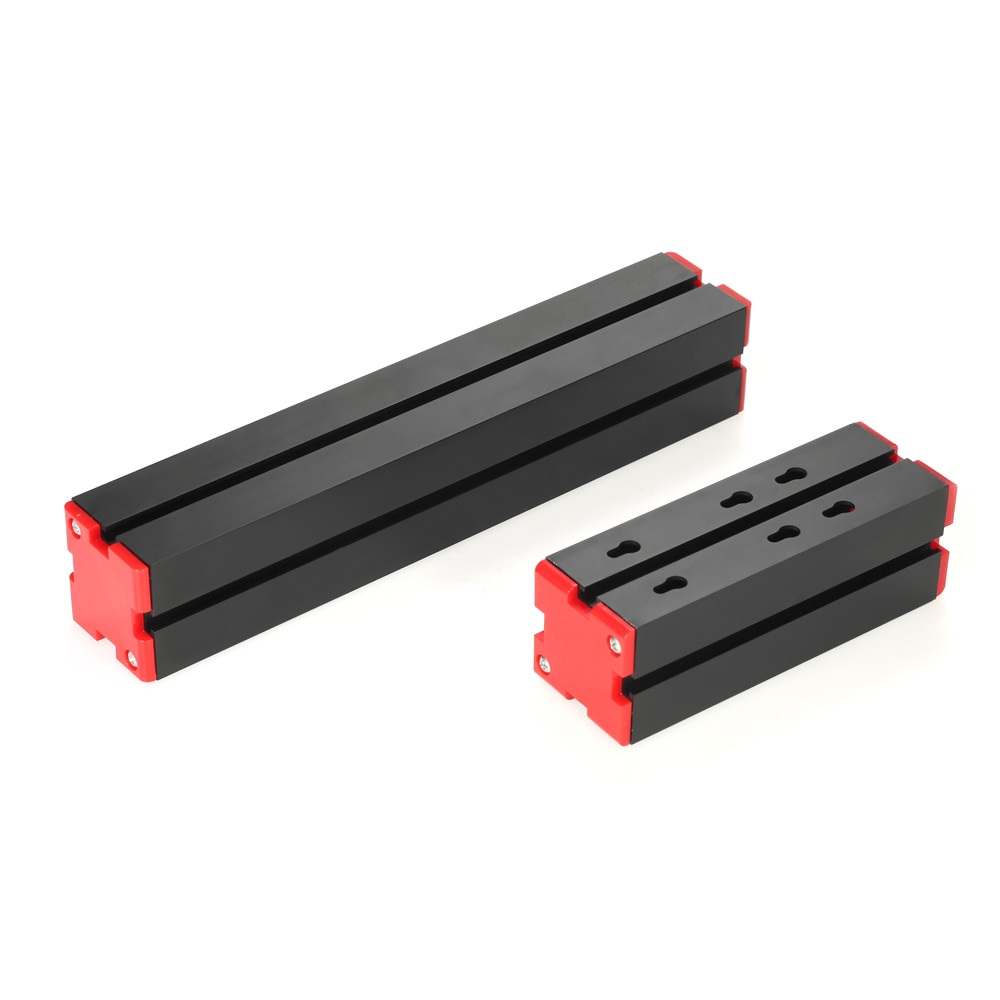

1 * Long Machine Bed
1 * 3-Jaw Chuck
1 * Abrasive Disc
1 * Working Accessories
1 * Driller Rocker Arm
2 * Small Slider
1 * Big Belt Cover Block
1 * Grinder Protection Cover
2 * Right-angle Fixed Plate
1 * Power Transformer
1 * Plain Vice
1 * Big Slider

1 * Motor
1 * Counter Shaft
1 * Tail Stock
1 * Short Machine Bed

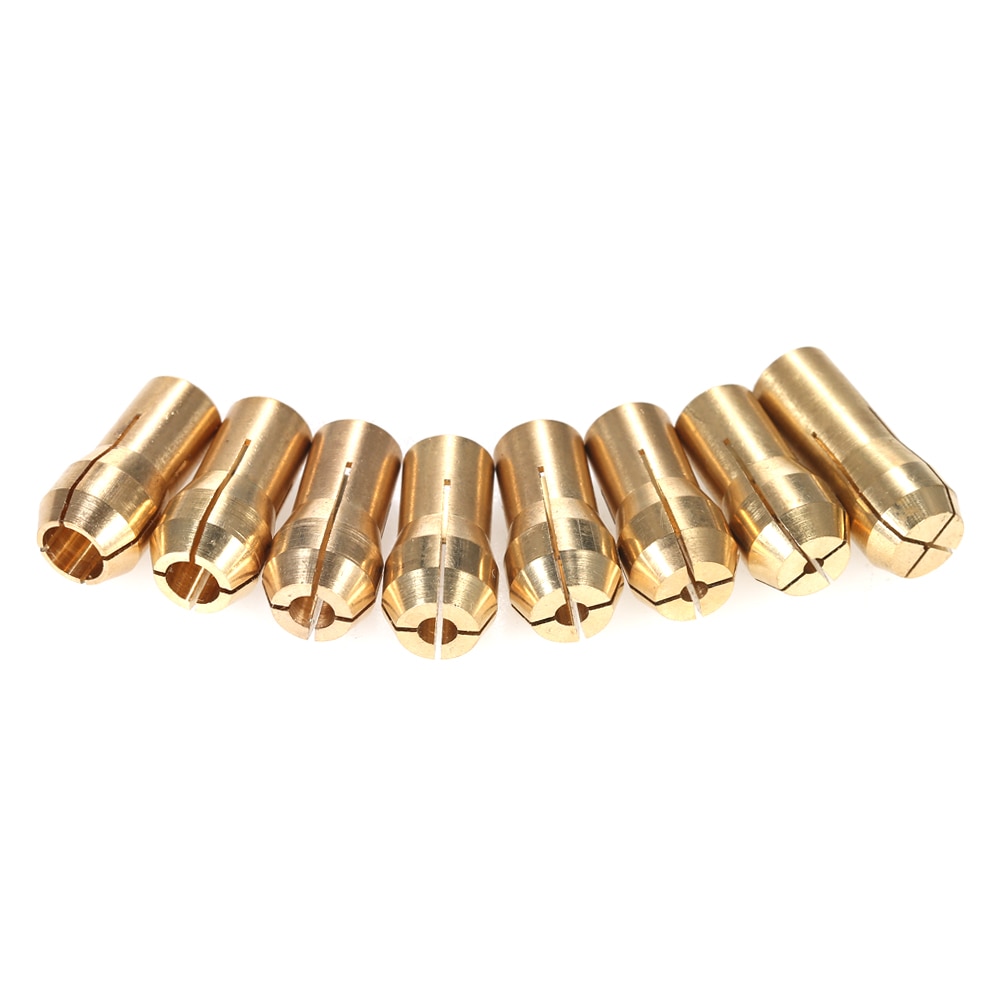

8 * Copper 1-6mm Collets

3 * Bracket
1 * Sawing Machine Base + Bracket

























Shipping:

1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.

Warranty:

1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.







  • Plug: EU
  • Condition: New
  • CNC or Not: Normal
  • Model Number: Machine Tool
  • Type: Other
  • Brand Name: KKMOON
  • Origin: Mainland China
  • Certification: NONE
