EU 2.2KW Air-cooled spindle motor ER20 runoff 0.01mm & 2.2KW VFD 220V Inverter & 80mm Clamp aluminium for CNC Router Milling

0.0 ( votes) | 1 orders
Price: US $872.24 - 1069.28 / Set
Discount Price:
US $ 705.08 - 850.88 / Set
-19%
Quantity





Notice:
this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty)andfree shipping by UPS/DHL, the package will be not easy broken with delivery.




The free ship and free VAT Europe countries area:


Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.





 Package include:

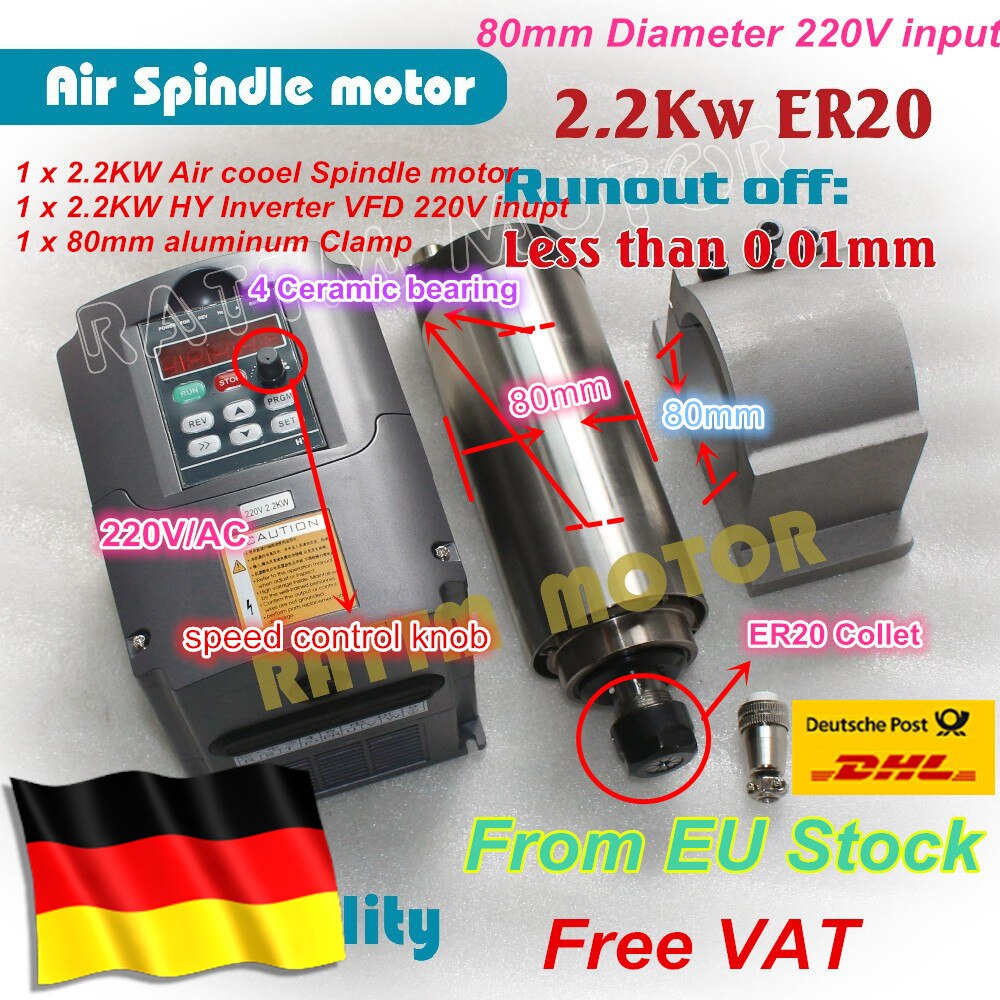

  • 1 x 2.2KW Quality Air cooled spindle motor ER20 Runoff 0.01mm 220V 24000rpm 400Hz

  • 1 x Inverter 2.2KW VFD 220V input with 220V output

  • 1 x 80mm  clamp cast aluminium bracket

  • 1 x English user manual of inverter

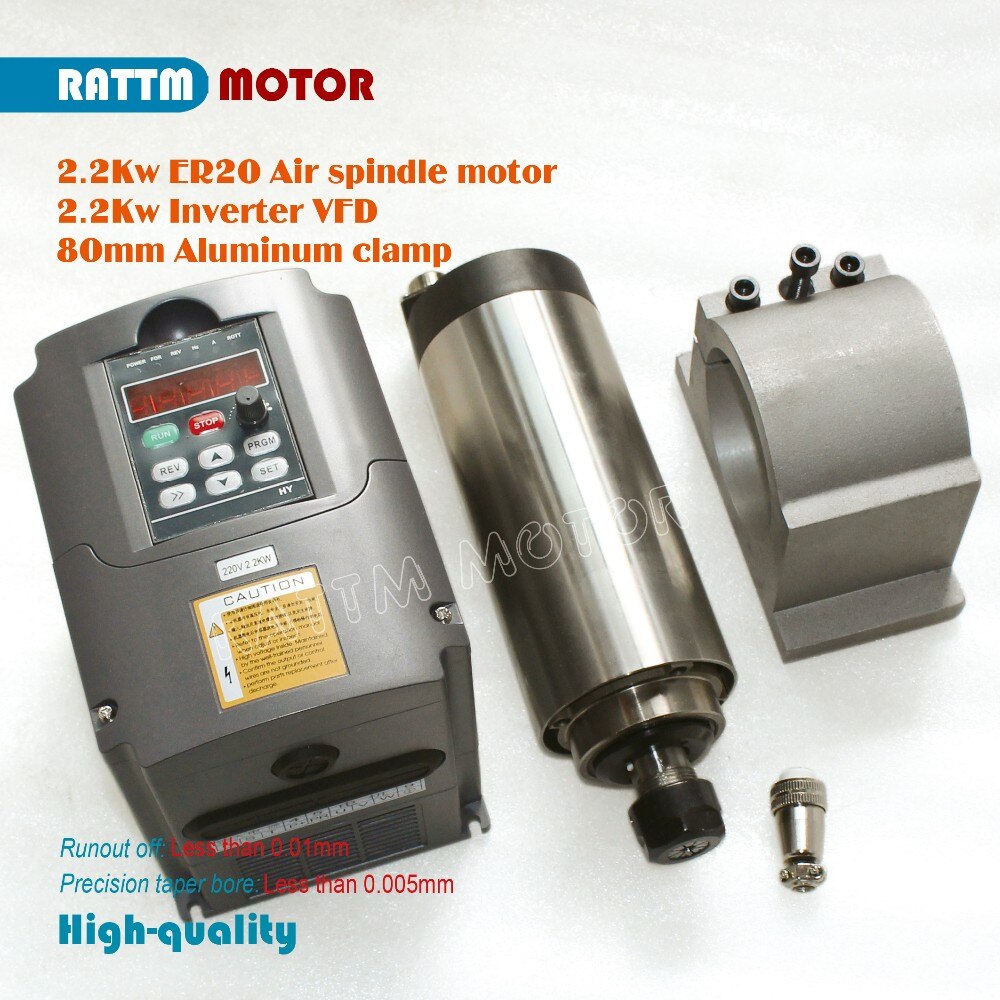

2.2KW Air-cooled spindle & 2.2KW 220V inverter & 80mm cast aluminium bracket

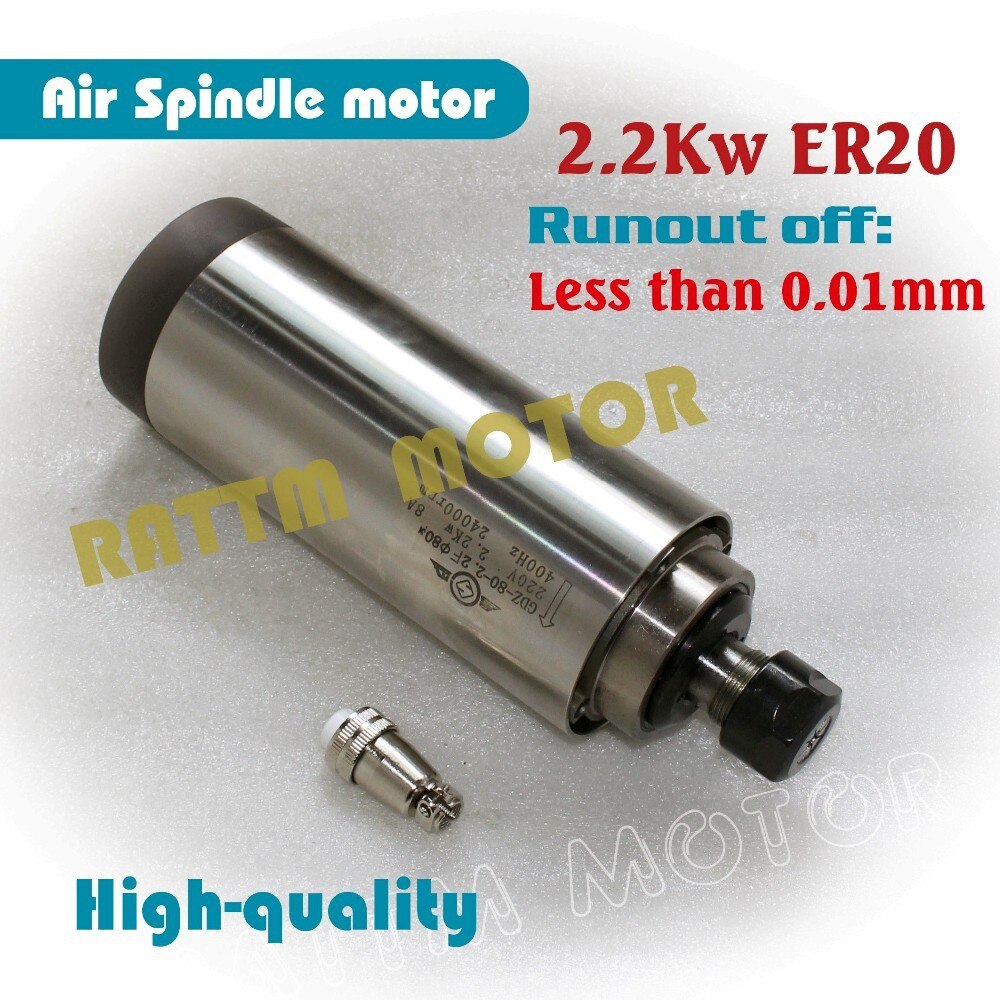

1. 2.2kw Air-cooled spindle motor engraving milling grind 80x213mm

Specification:

Material: Stainless Steel

Size: Diameter 80mm

Power: 2.2Kw

Voltage: 220VAC

Current: 8A

Frequency: 0-400Hz

Speed: 0-24000rpm

Cooling: Air cooled

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size:ER20

Bearings: 4 Ceramic bearing

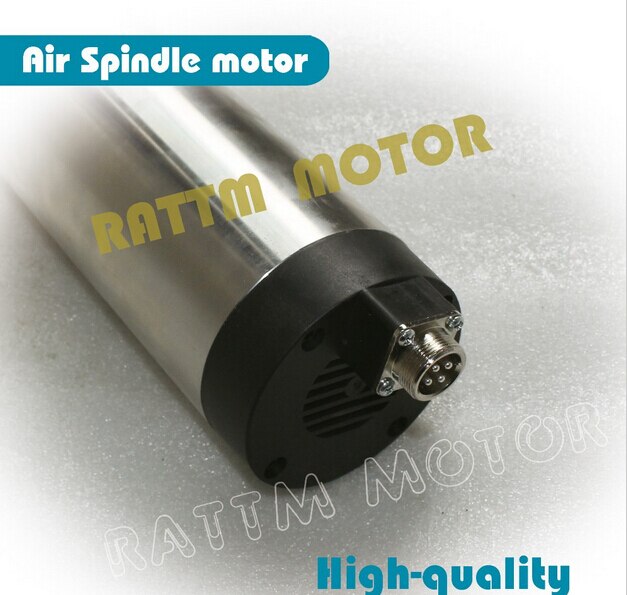

Power Interface: Optional GX16 waterproof air plug, there are marked  1234,123 were connected to the  inverter power supply (U, V, W), 4 connected inverter ground.

Net Weight: 4.4kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

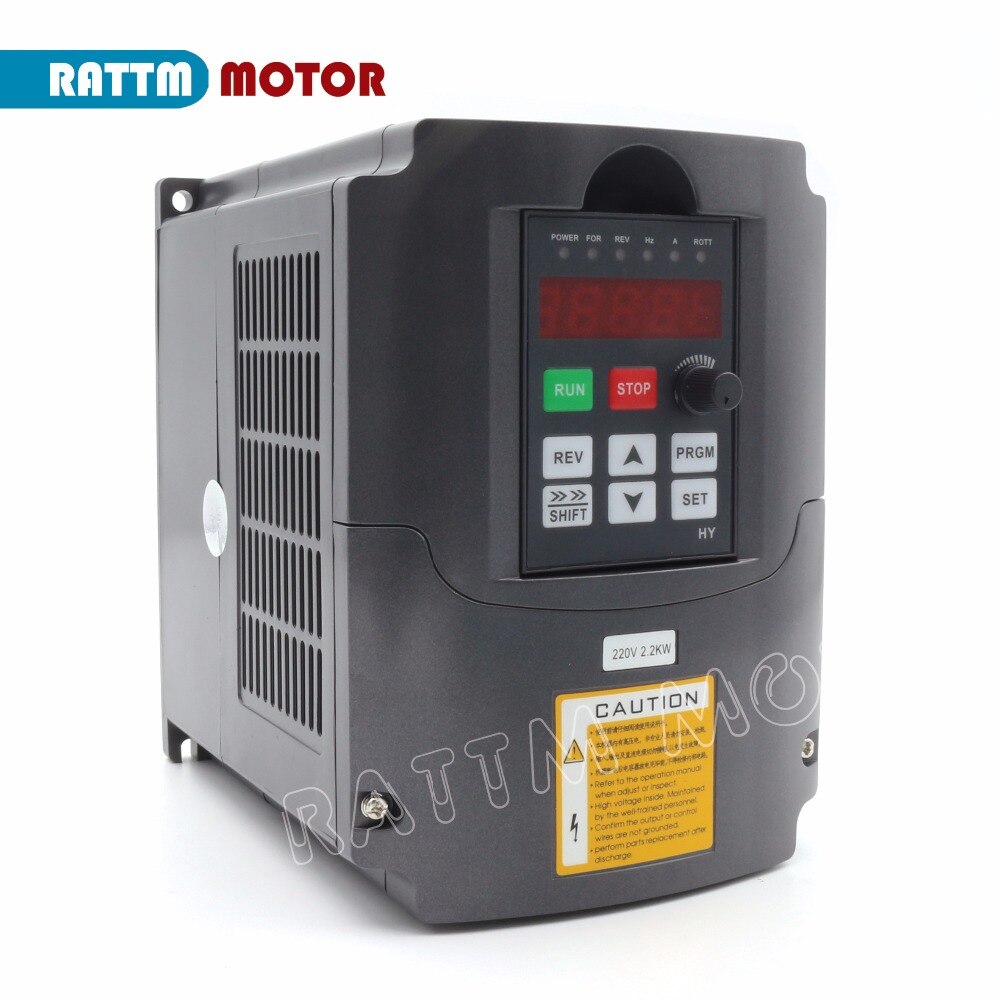

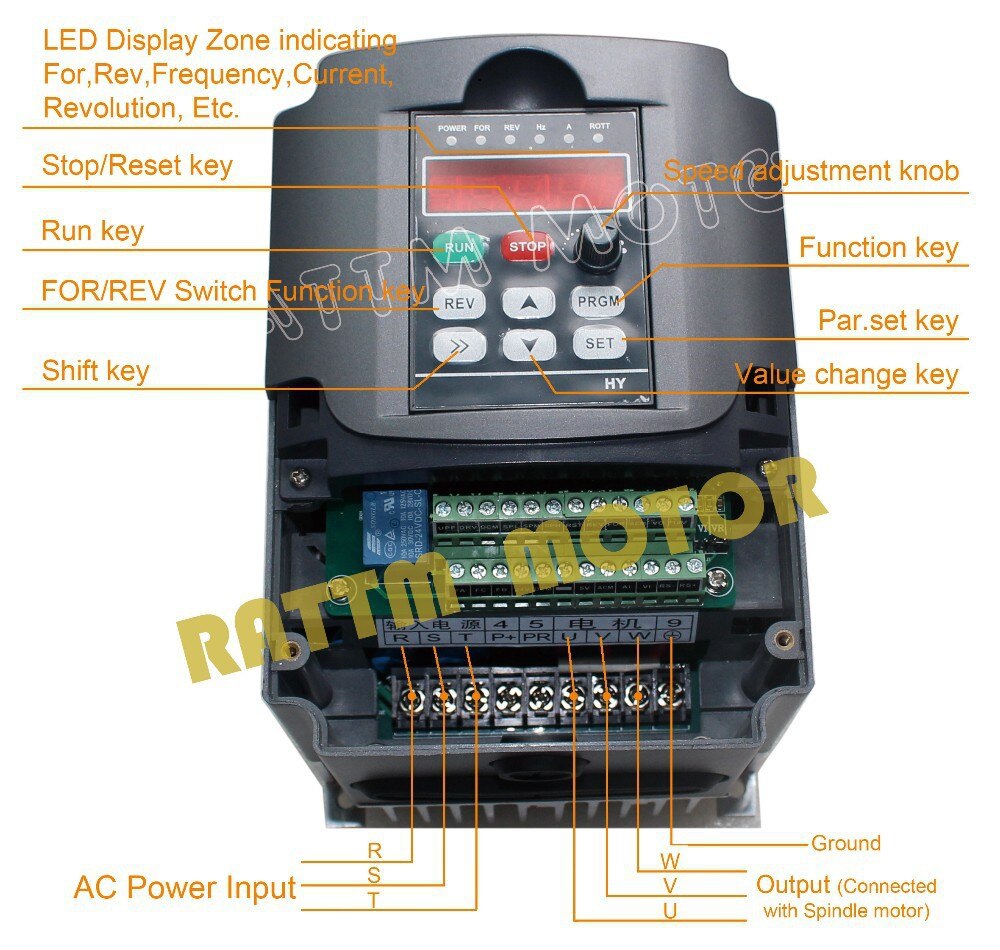

2.  2.2KW Variable Frequency Drive VFD Inverter 3HP 220VAC

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

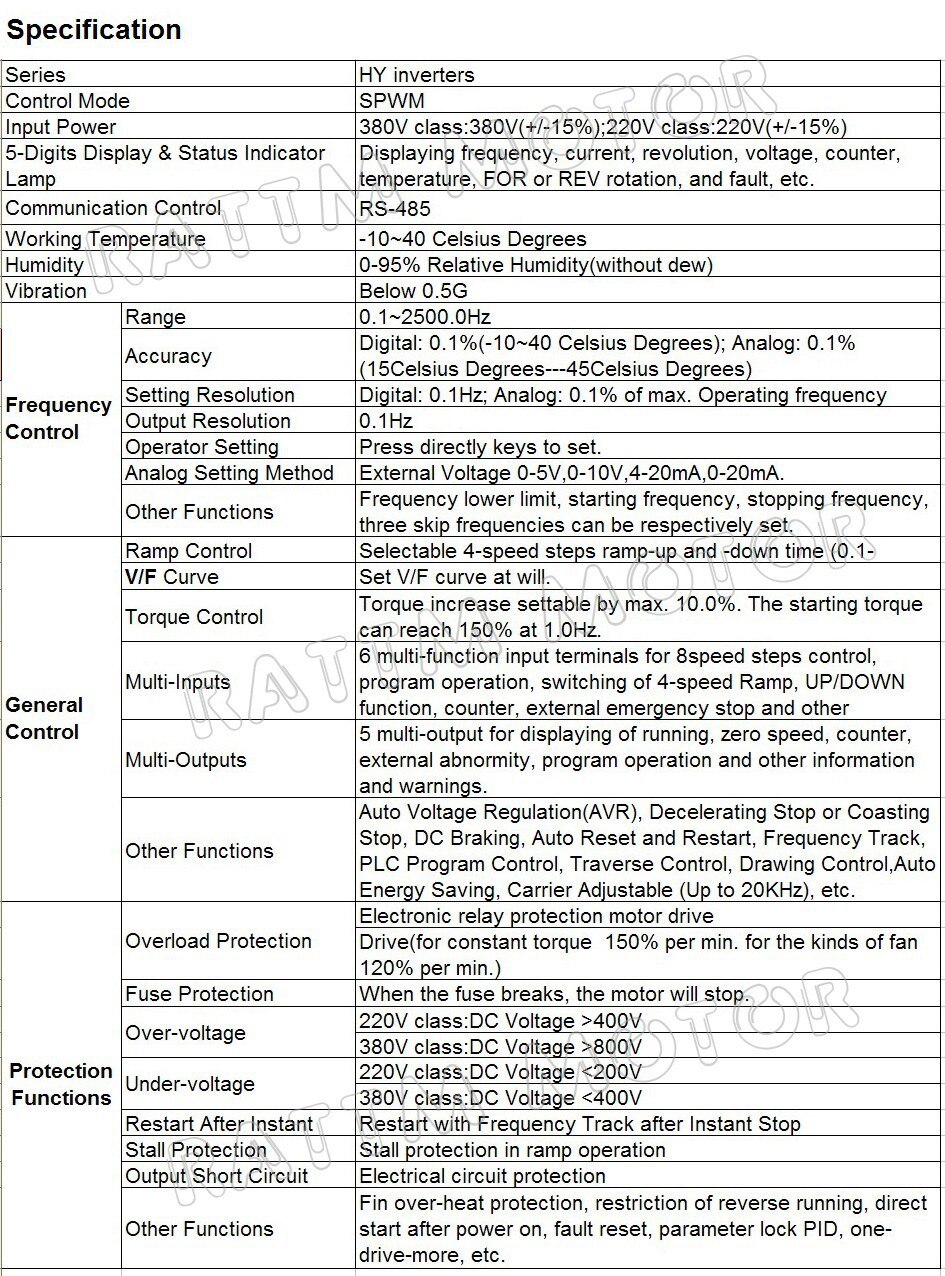

Tech parameters:
1) Input Voltage: 220V(+/-15%) ,

2) Output Voltage: 220VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase:    1 phase
6) Output Phase: 3 phase

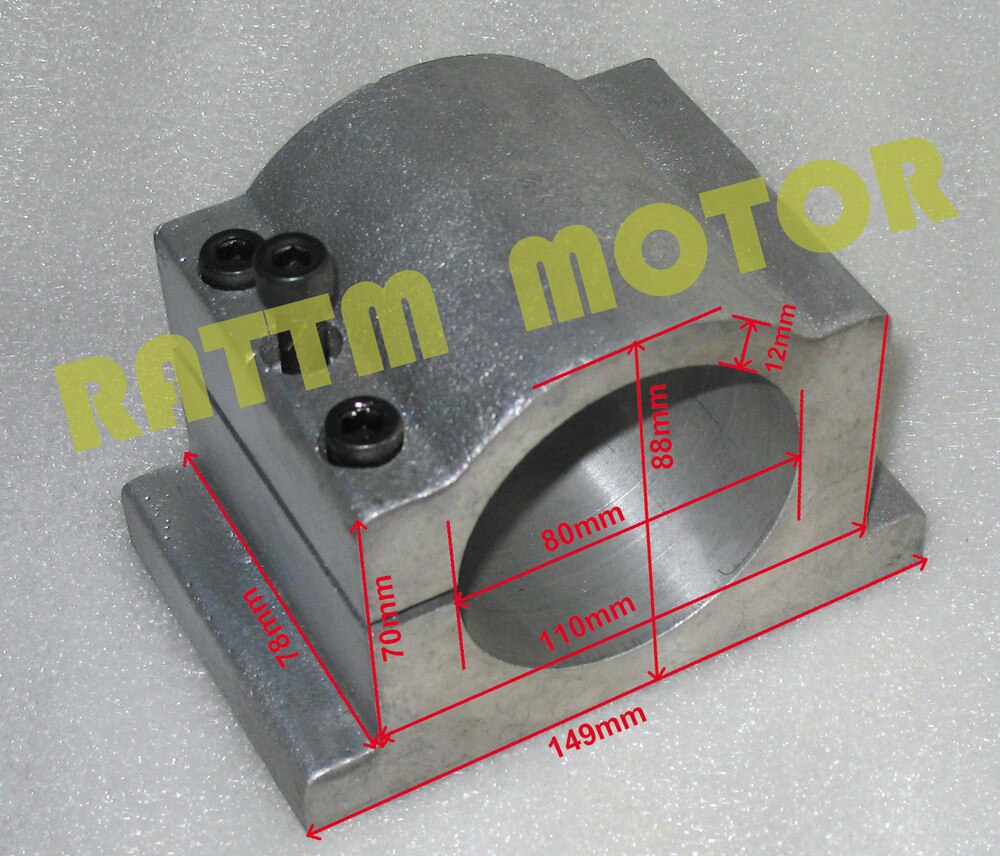

3.  80mm cast aluminium bracket

Shipping

===================================================================

This Item will ship within 1-2 business days by AUS POST on payment received .

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By "AUS POST" delivery 3-8 days     ,    more than 30KG,by "AUS land transportation" delivery 3-10 days

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.


Payment

===================================================================

1.Free of import tax within EU counties.

2.Before purchasing, pls confirm with us whether in stock.

3.Pls make payment within 3 days of the order if possible.

4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.


Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,


Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.


Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.




  • Operating Speed: 10-24000rpm
  • Maximum Torque: None
  • Application: Milling
  • Model Number: 2.2KW Air-cooled spindle & inverter
  • Drive: Motor
  • Certification: CE
  • Origin: Mainland China
  • Name: CNC spindle & inverter &80mm cast aluminium bracket
  • Spindle: 2.2KW Air-cooled ER20
  • Inverter: 2.2KW 220V
  • Fixture: 80mm
  • Place of Origin: Jiangsu, China (Mainland)
  • Run off: less than 0.01mm
  • Collet: ER20
  • Warehouse: from AUS warehouse
  • import duty: free
  • shipping cost: free
