DC 12V Wire Feeder Welding Wire Feeding Assembly for 160/180/200A MIG/MAG Welder Welding Machine

0.0 (2 votes) | 5 orders
Price: US $169.13 / Set
Discount Price:
US $ 105.34 / Set
-38%
Ships From
Quantity

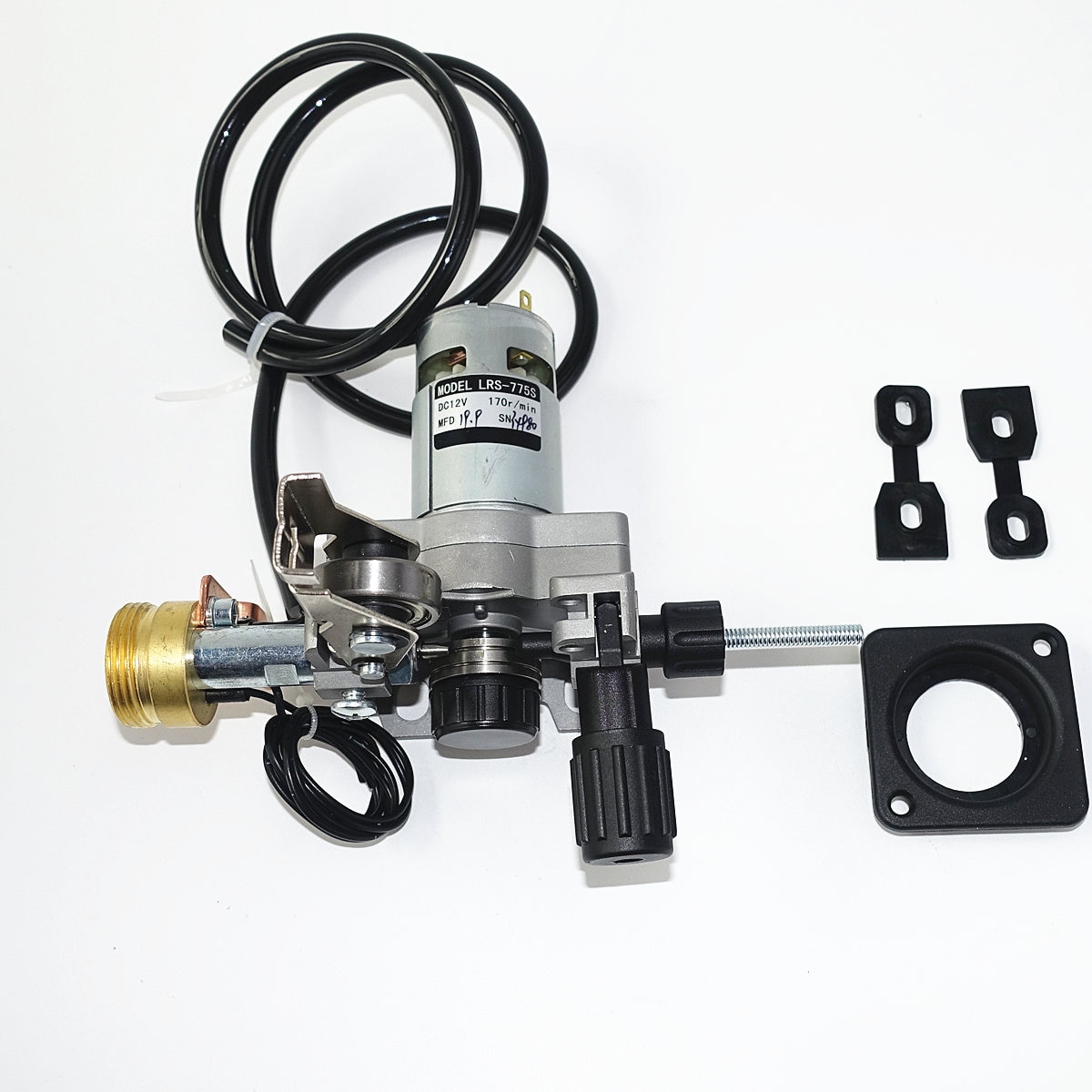

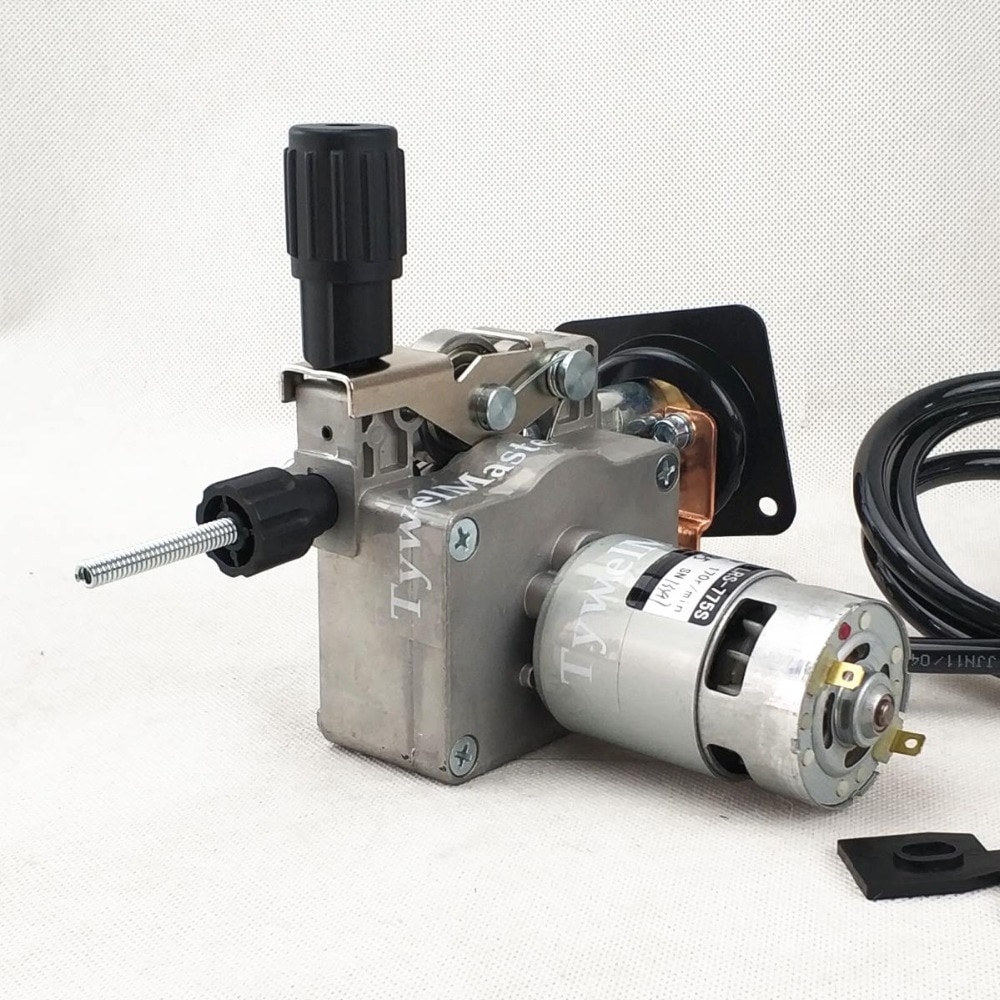

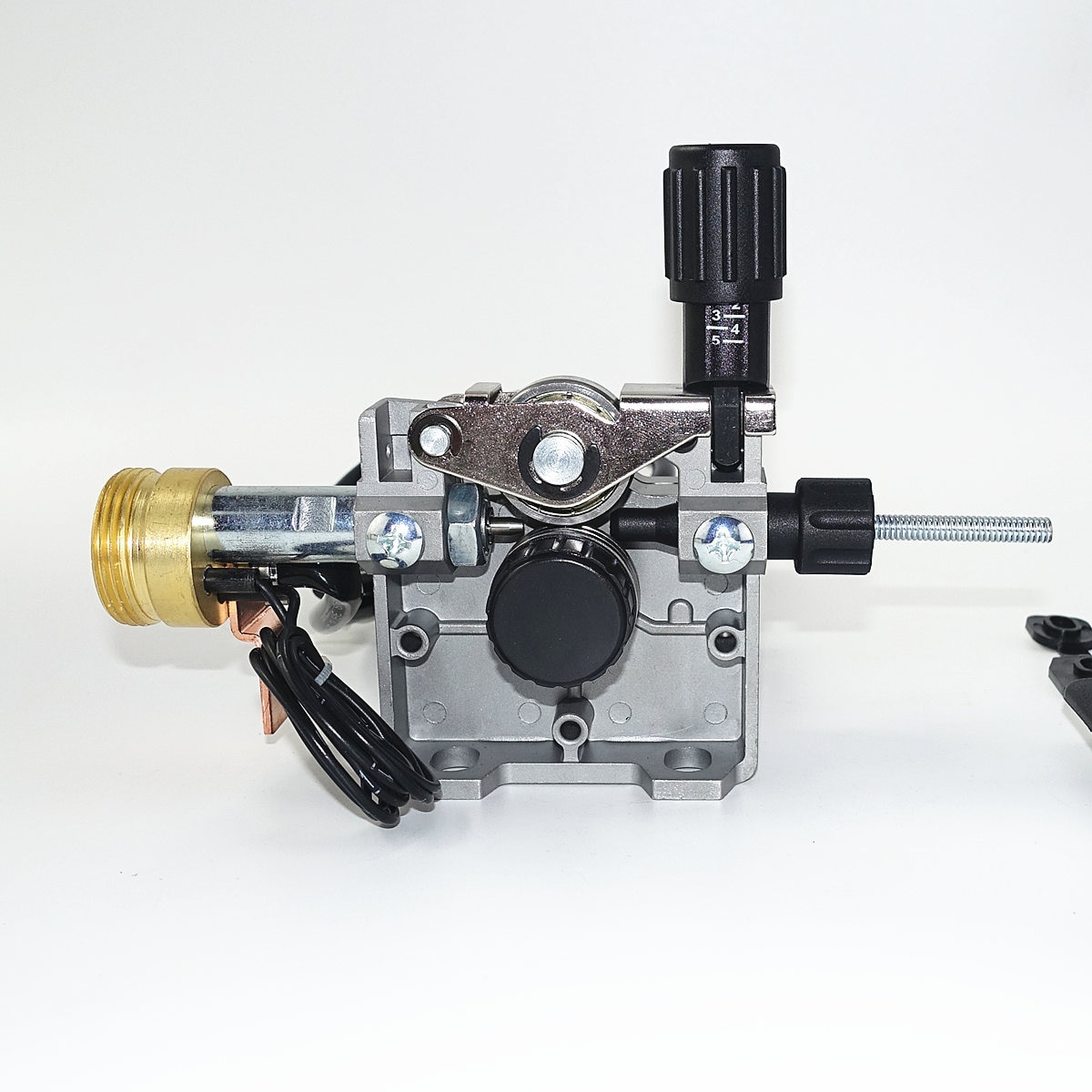

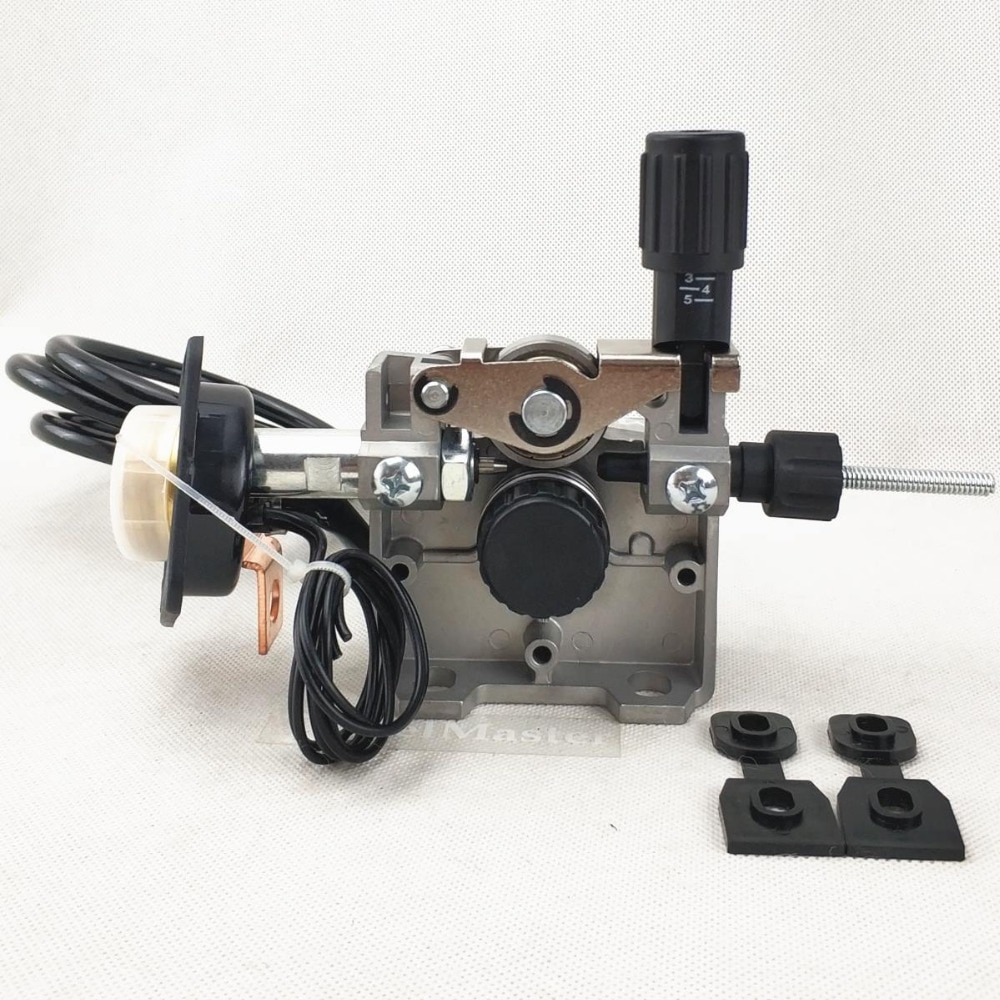

Wire Feeder DC 12V Welding Wire Feeding Assembly for Mig/MAG Welder Welding Machine

The Wire Feeder Assembly are widely used on MIG/MAG welding machines.
Including many of the top international brands, i.e. Lin*******, E**b.

The producer is the best welding wire feeder factory in China, they are only focusing on the welding wire feeder system.

The quality is very stable, because they are widely tested and approved by many international brands.

Standard Meets: EN60974-5, GB15579.5.

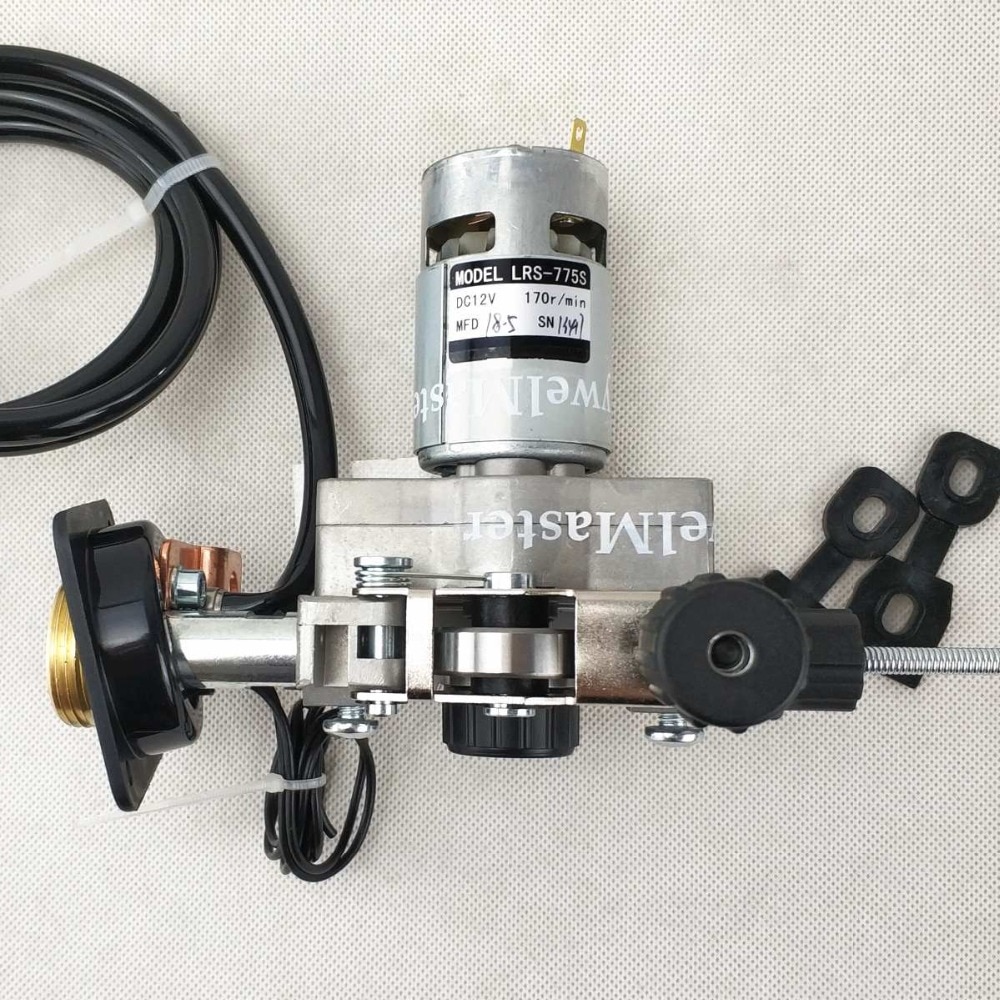

It is using High Quality DC 12V/24V motor, YZAlSi10Mg Body.

DC 12V Version:

The feeding speed is 1.5-13m/min.

Motor Rated Input Current: 1.5A.

Motor Input Voltage: DC 12V.

Moto Rated Power: 12W.

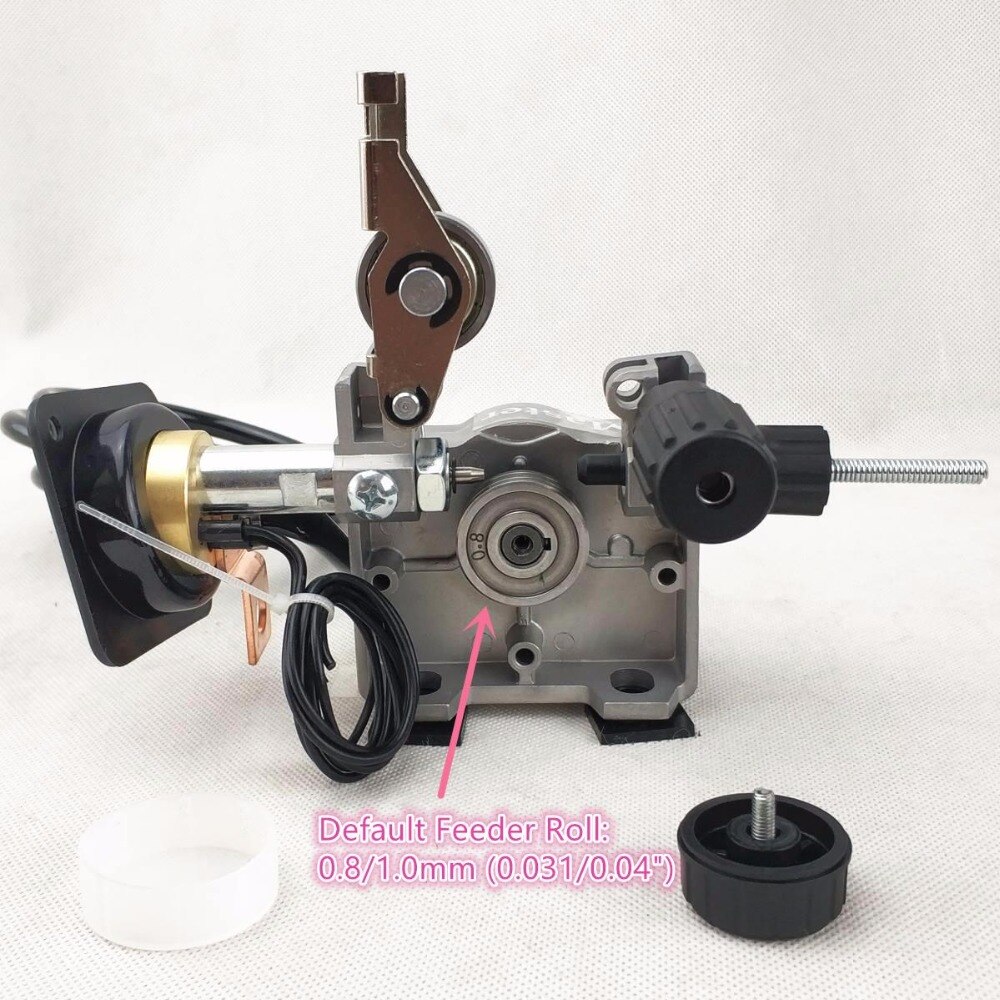

The wire feeding capability is 0.6mm to 1.0mm (0.024"-0.04"), the default feeding roll is 0.8/1.0mm (0.031/0.04").
1 Feeder Roll, and 1 Press Roll.

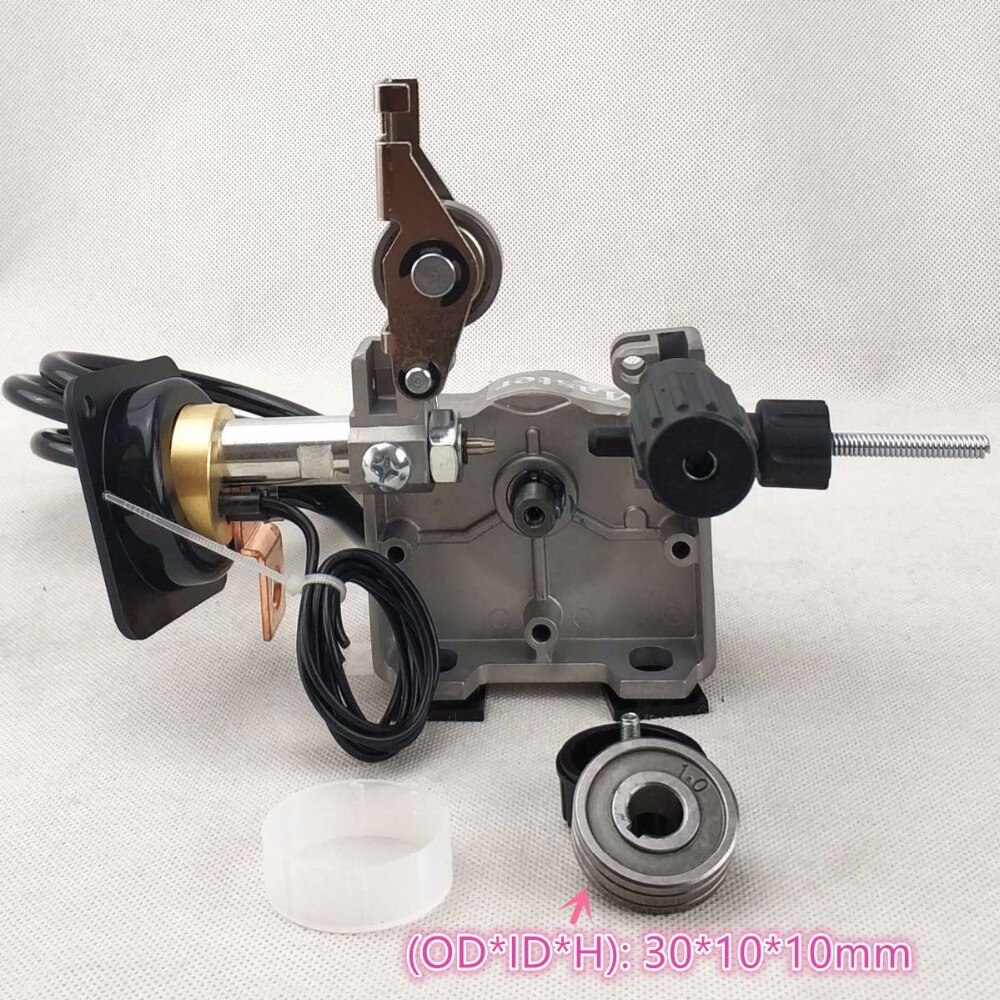

The feeder roll size is (OD*ID*H): 30*10*10mm.

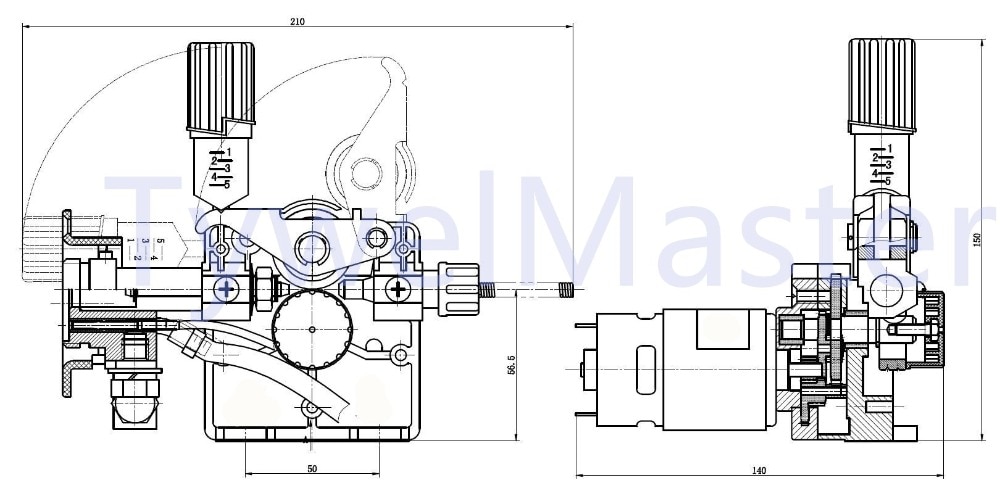

The Wire Feeder Assembly outer dimension is: 210*140*150mm.

Net Weight: about 850g.

Package:

1Set.

Additional Offer:

We are providing full range professional Welding & Cutting products, check our shop for more options.






  • Plug Type: EU plug
  • Is Smart Device: No
  • Usage: MIG/MAG welding wire feeding
  • Weight: about 850g
  • Dimensions: 210*140*150mm
  • Wire Feeding Speed: 1.5-13m/min
  • Model Number: Wire Feeder DC12V
  • Brand Name: TywelMaster
  • Certification: CE
  • Origin: Mainland China
  • Wire Feeder Frame(Body) Material: YZAlSi10Mg
  • Motor Rated Voltage: DC 21V
  • Default Feeder Roll: 0.8/1.0mm (0.031/0.04")
  • Wire Feeding Capability: 0.6mm to 1.0mm (0.024"-0.04")
  • Moto Rated Power: 12W
  • Standard Meets: EN60974-5, GB15579.5
  • Drive Style: Single Drive
