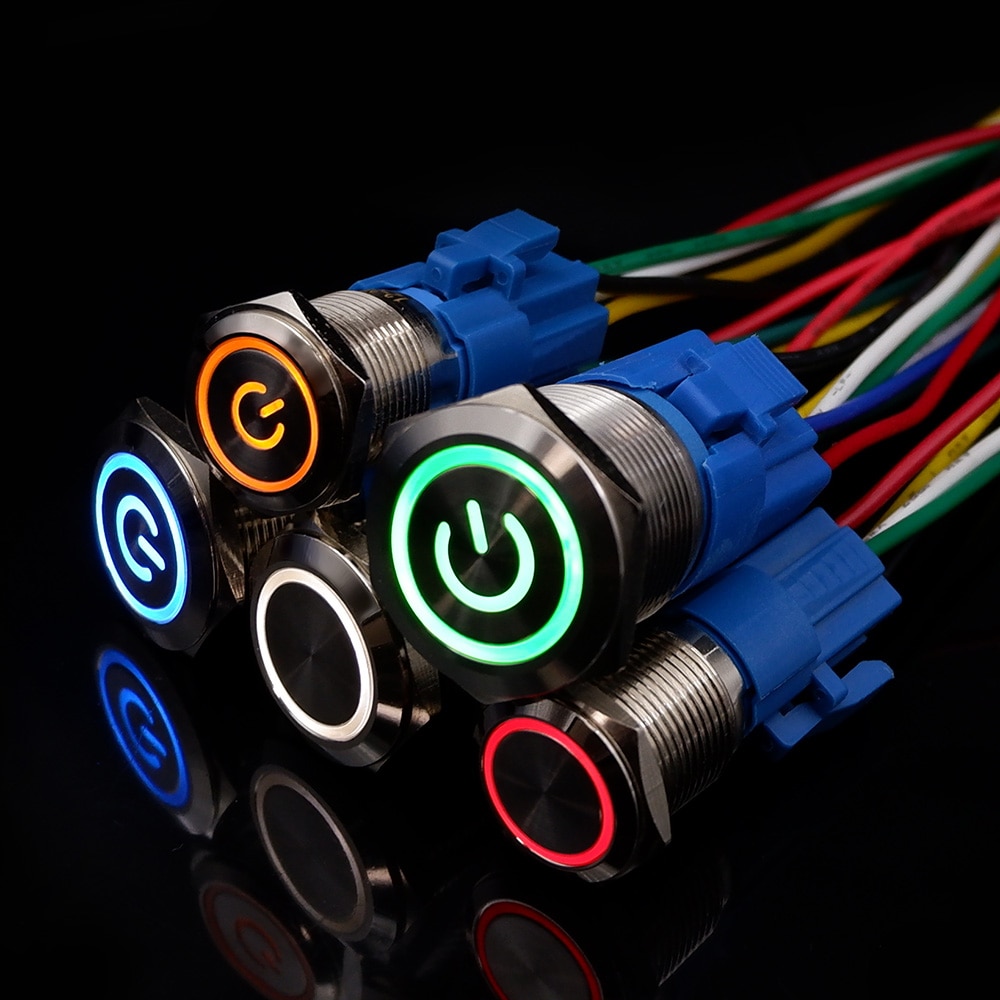

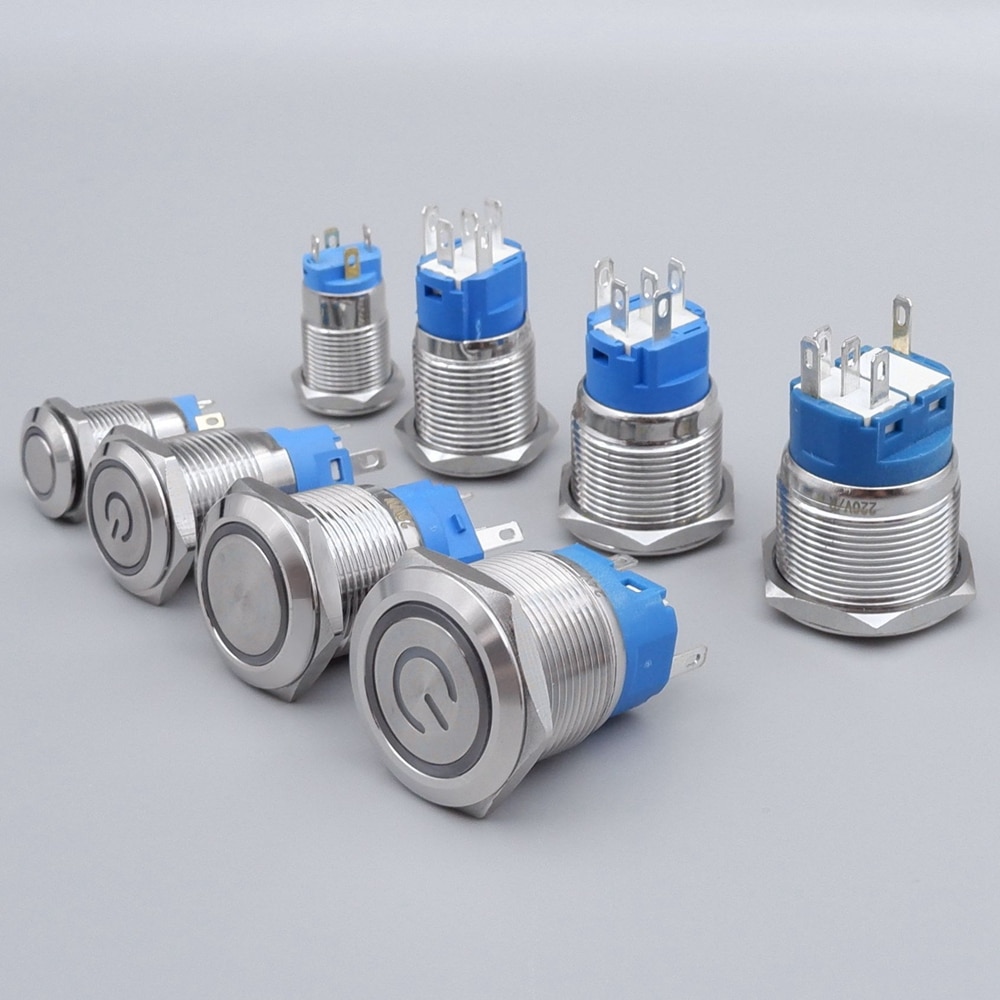

On Off PC Power Metal Waterproof Push Button Switch 12v for Car Ignition Switches Momentary/Latching NC 5V 220V 12 16 19 22 mm
4.9 (626 votes)
Price:
US $11.44 - 17.73
/ piece
Discount Price:
US $
9.95 -
11.39
/ piece
-13%
- Color
-
-
- Voltage
- Standard
Note: Connectors need to be purchased separately, you can click the following image to purchase.
Product Name: Push Button Switch
12mm:1NO
16/19/22mm:1NO1NC

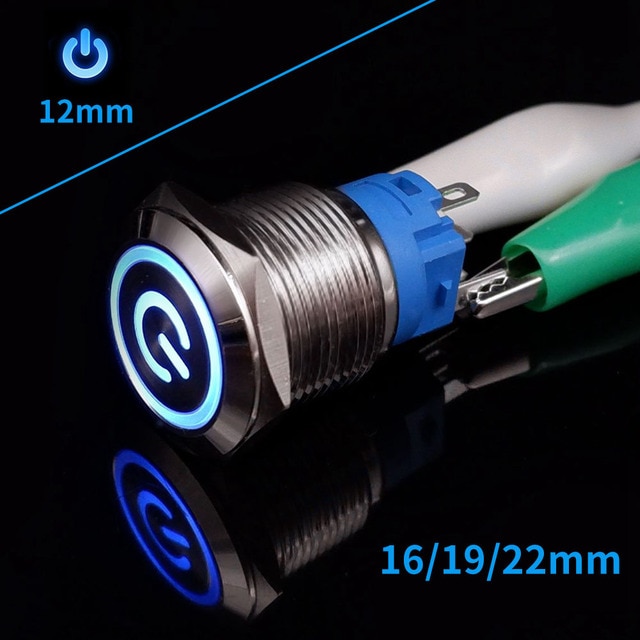

Opening Diameter:12mm/16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-locking
Material: Brass nickel plating

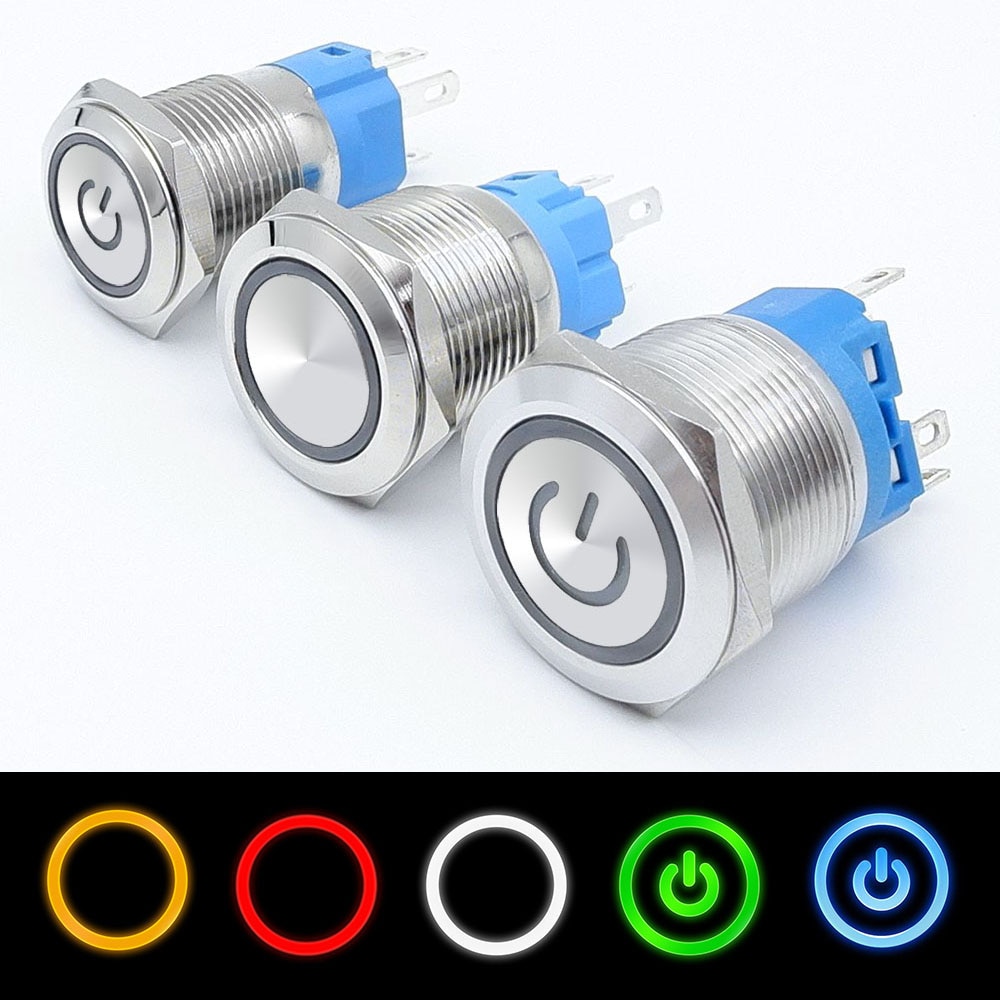

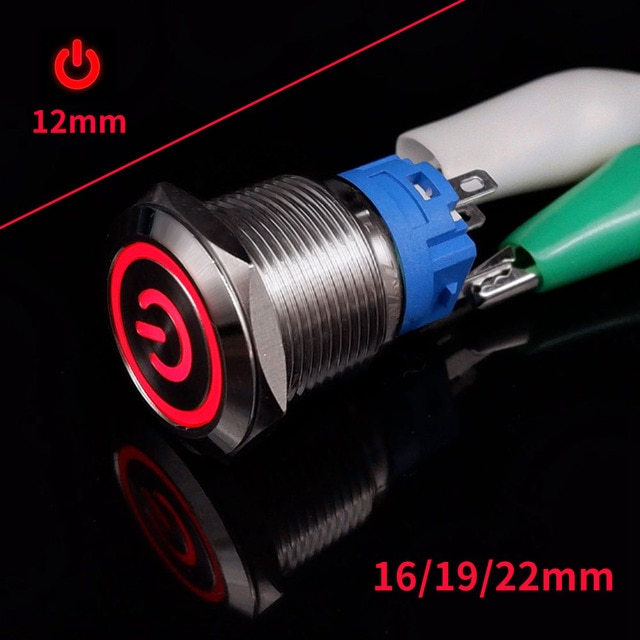

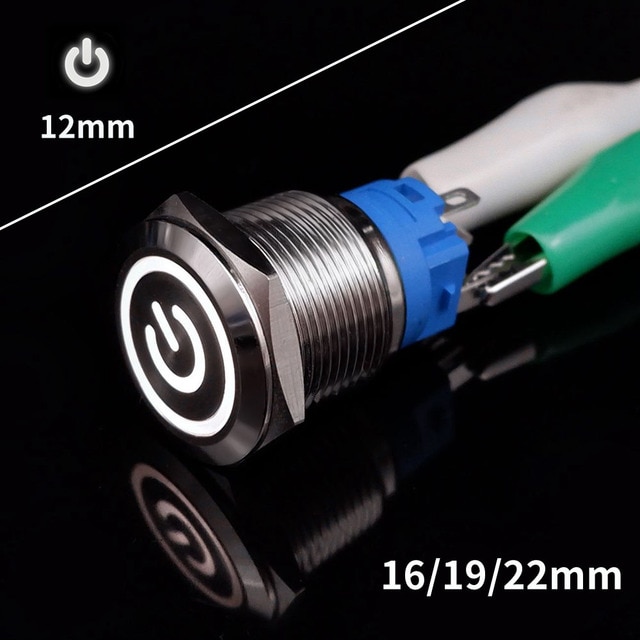

LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;9-24V;110-220V

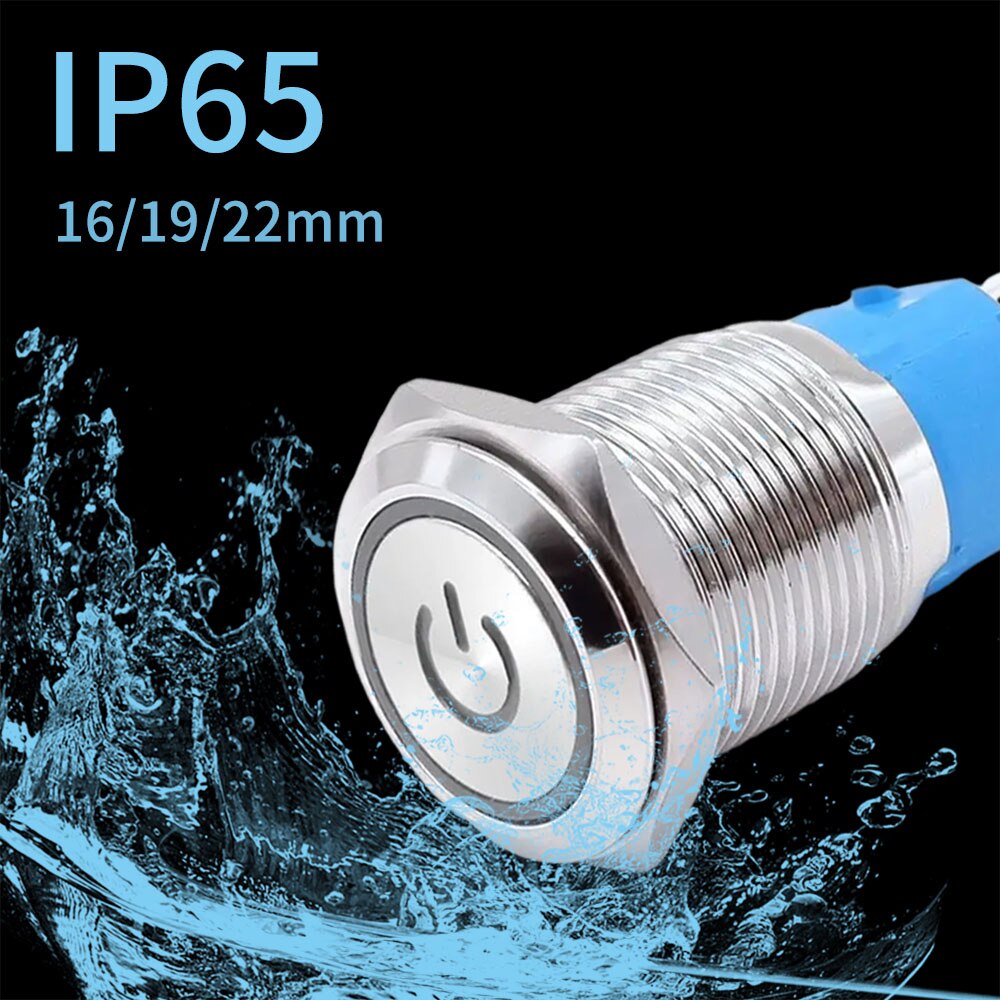

Waterproof Level: IP65（16/19/22mm）
No waterproof design for 12mm
Customization: Yes , please leave a message to us
Due to manual measurement, please allow a little error.
Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.
The metal shell can resist corrosion, pressure and wear.

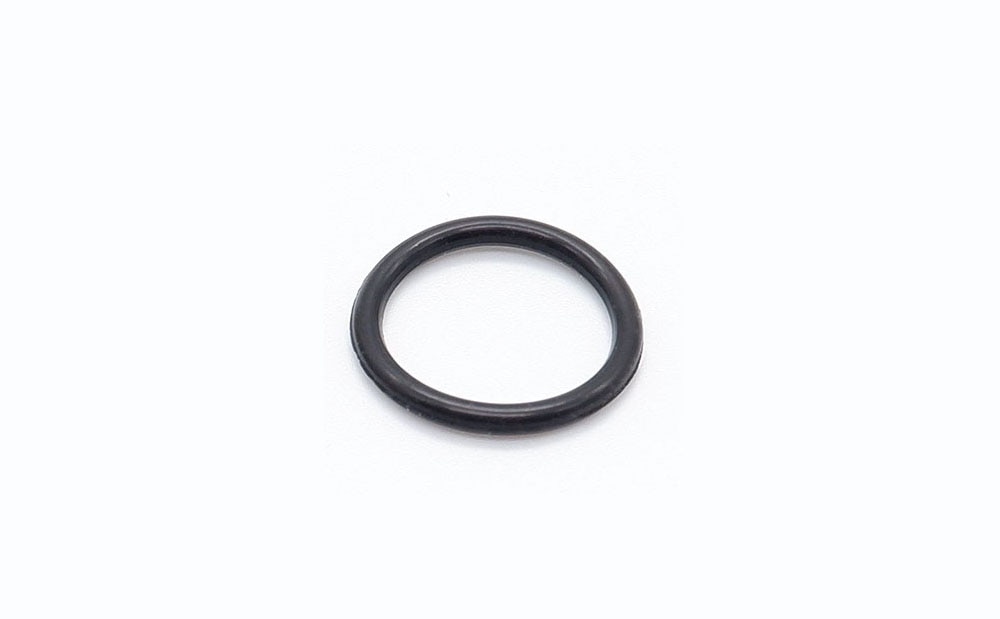

With rubber sealing ring, waterproof and dustproof.
Flame retardant base, fire and electricity proof, safer use.
Certificate

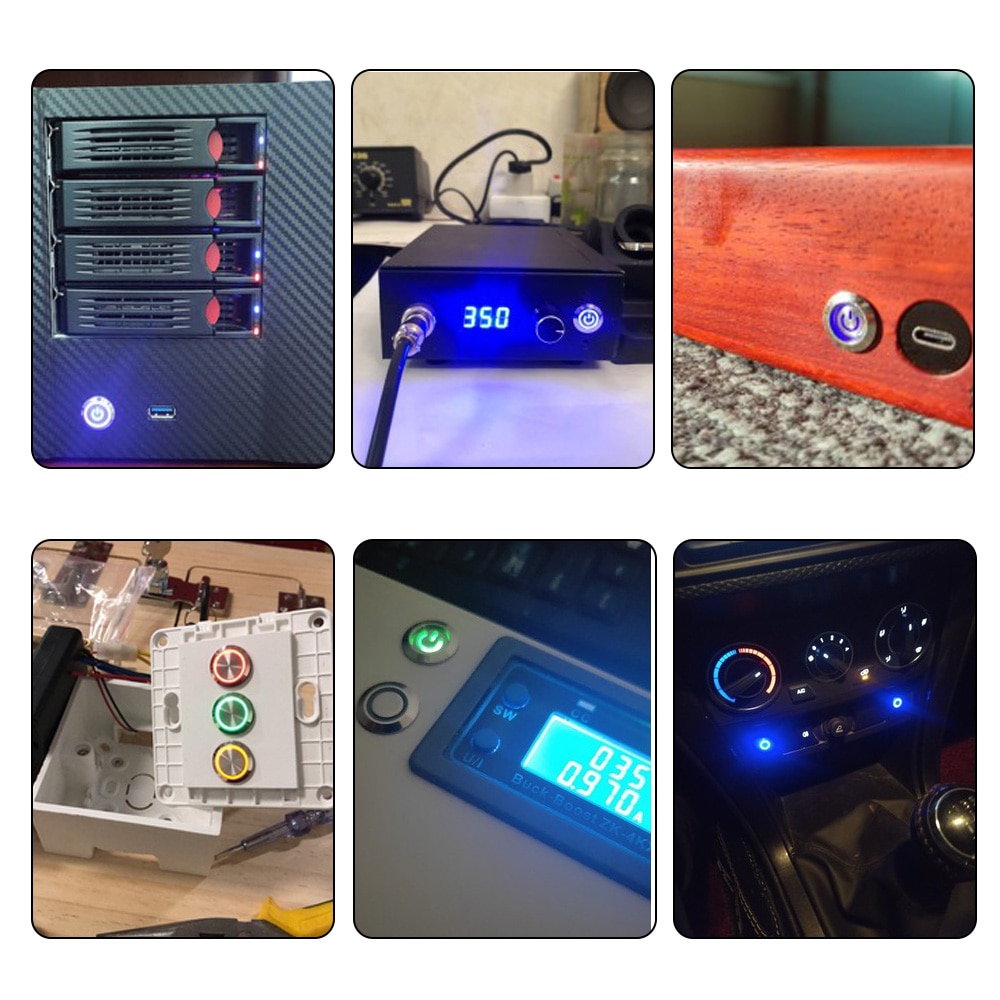

This metal push-button switch has many uses. For example, it is used in cars, computer mainframe, audio, socket, remote control and other places where you need switch control.
Factory direct sales, sufficient supply.

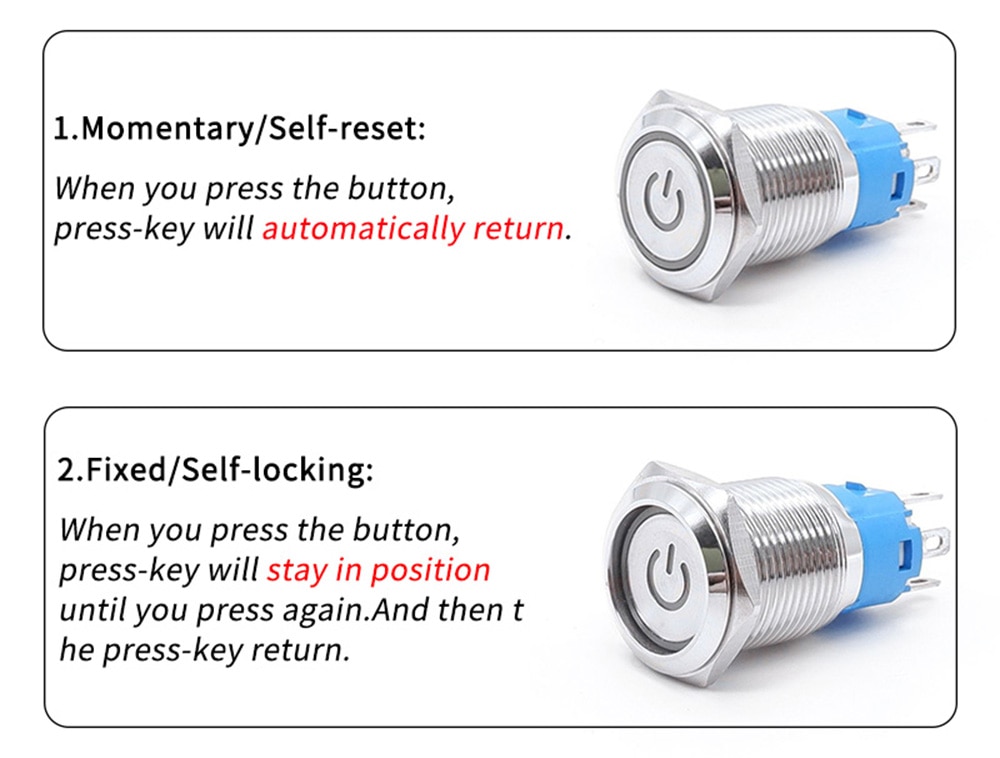

Switch Tip
1.Momentary/Self-reset: When you press the button, press-key will automatically return.
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.

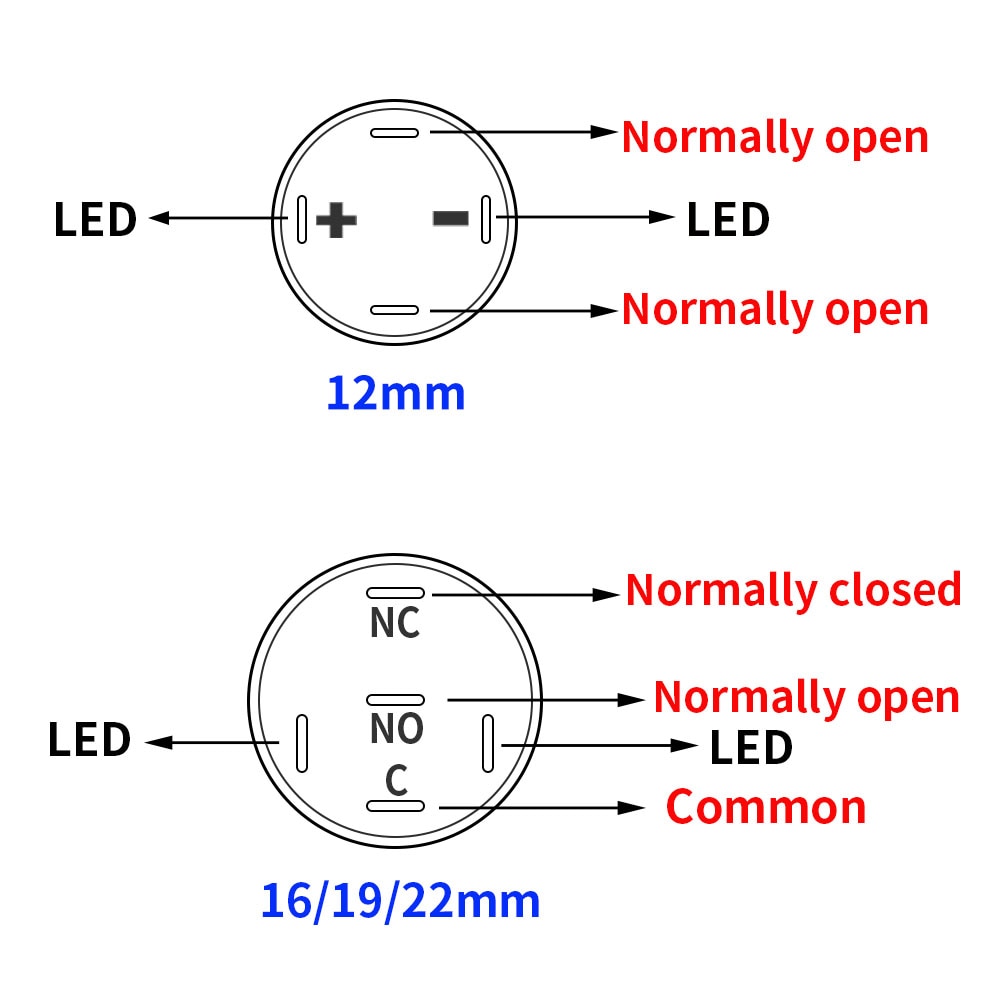

Wiring Instructions
1.What does the signal “C”、"NC" and "NO" means?
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.How to connect?
(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.
3.Do lights and switches have electrodes?
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

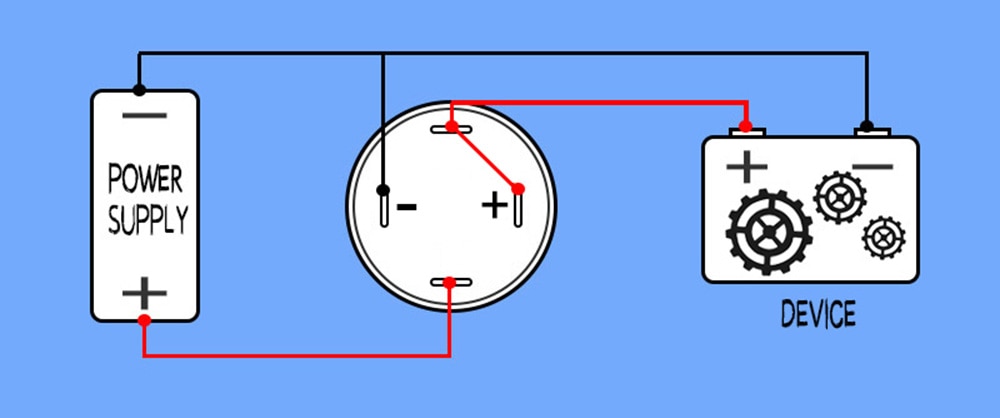

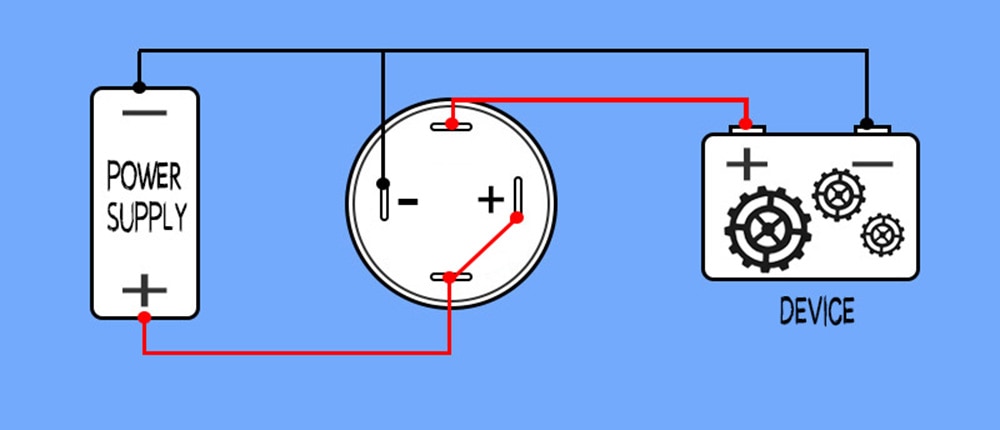

Wiring Diagram(12mm)
1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.

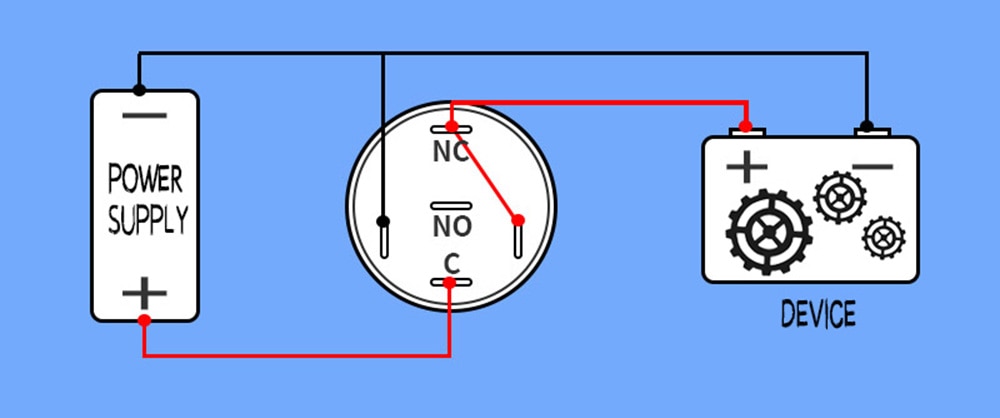

Wiring Diagram(16/19/22mm)
1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.
3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
- Is Smart Device: No
- Current: ≤3A
- Material: Alloy
- Features: Momentary Latching
- Model Number: Push button switch
- Switch Type: Push Button Switch
- Certification: CCC,ce
- Brand Name: PRONCH
- Origin: Mainland China
- Certification: CE,CCC
- Item Type: Switches
- Opening Diameter: 12mm/16mm/19mm/22mm
- Shell Material: Brass nickel plated
- Customizable Material: Stainless steel
- LED Color: Red Yellow Blue White Green
- LED Voltage: 3-6V 9-24V 110-220V
- Name: Power button/push button/switch button/Switches
- Function: Momentary/ Latching
- Switch Type: Normally Open/Normally closed
- 12mm: 4 Pins(1NO)
- 16/19/22mm: 5 Pins(1NO1NC)
- Using: Car PC machine Device buttons
- Customization: Yes , please leave a message to us
