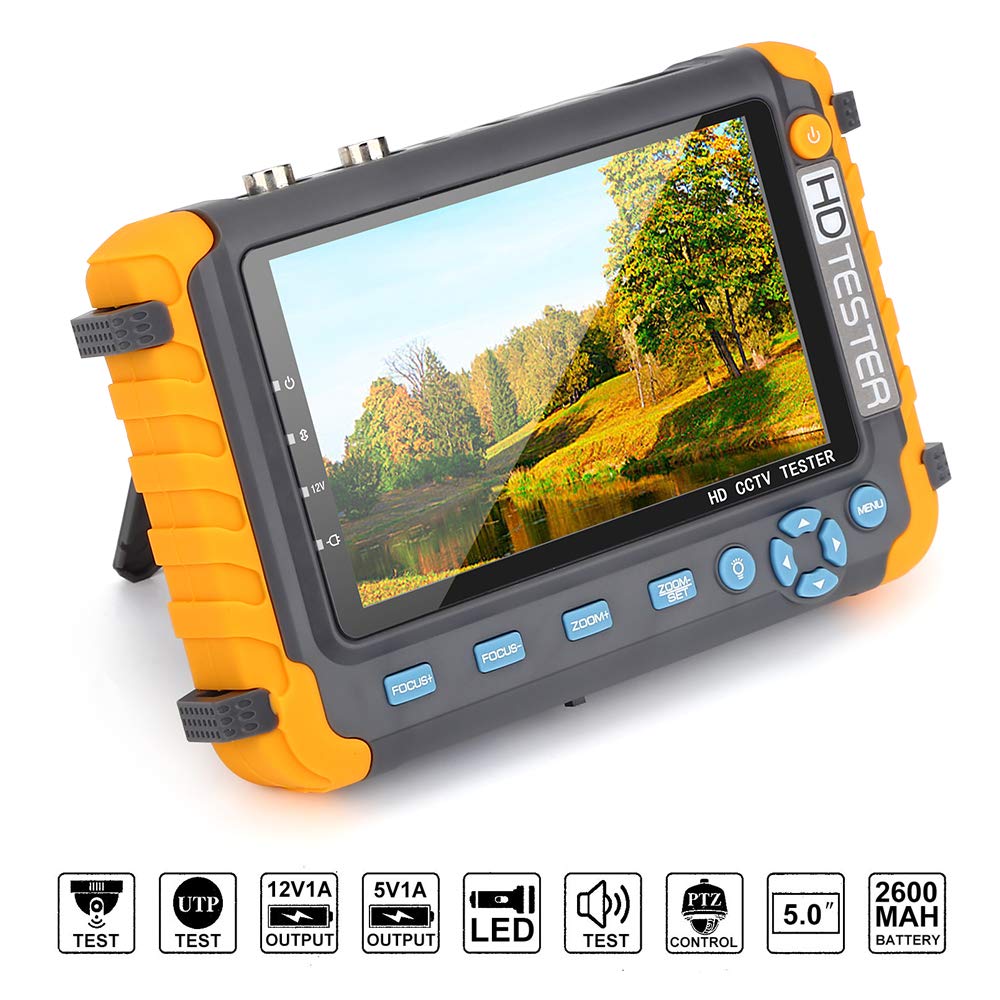

Pegatah CCTV Tester Camera Mini Monitor HDMI VGA Video Camera Tester Ccfv IPC 4K Portable Monitor Security Lan Cable Testing
796.22 465.80 $
ID: 14823
Quantity

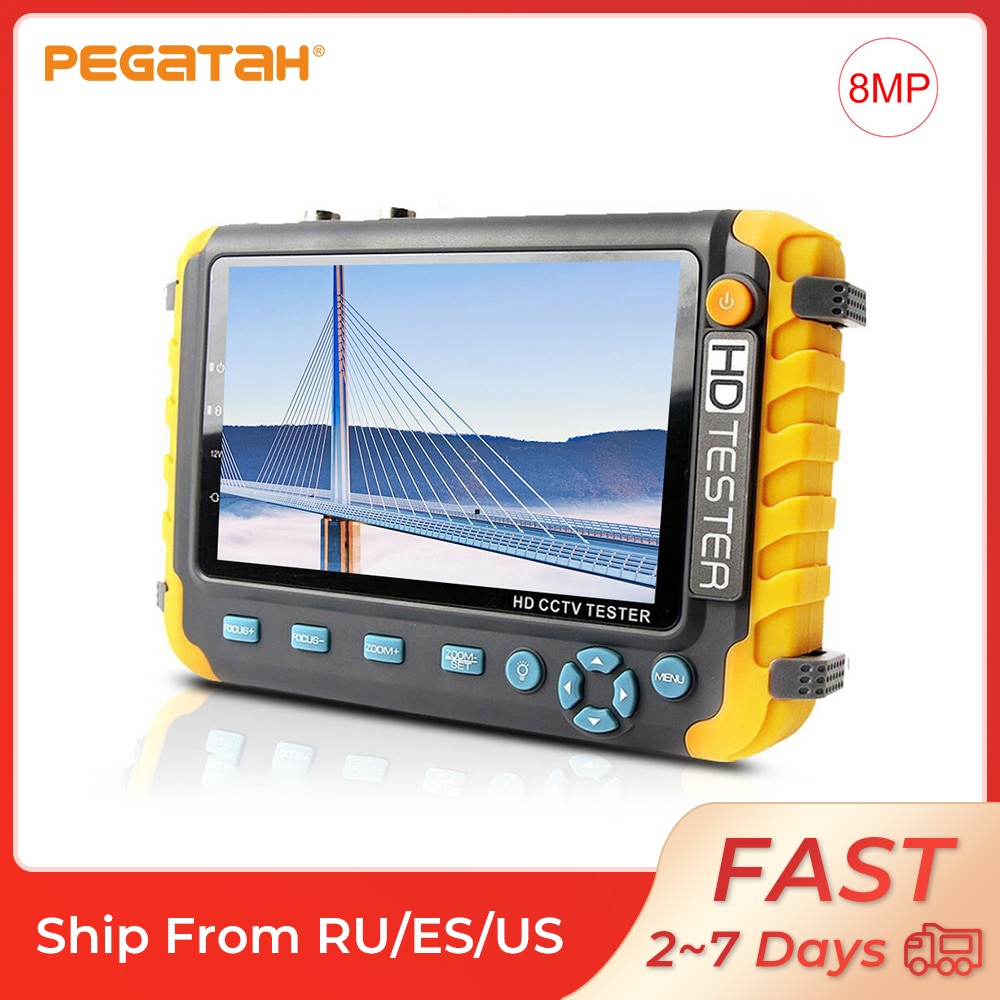

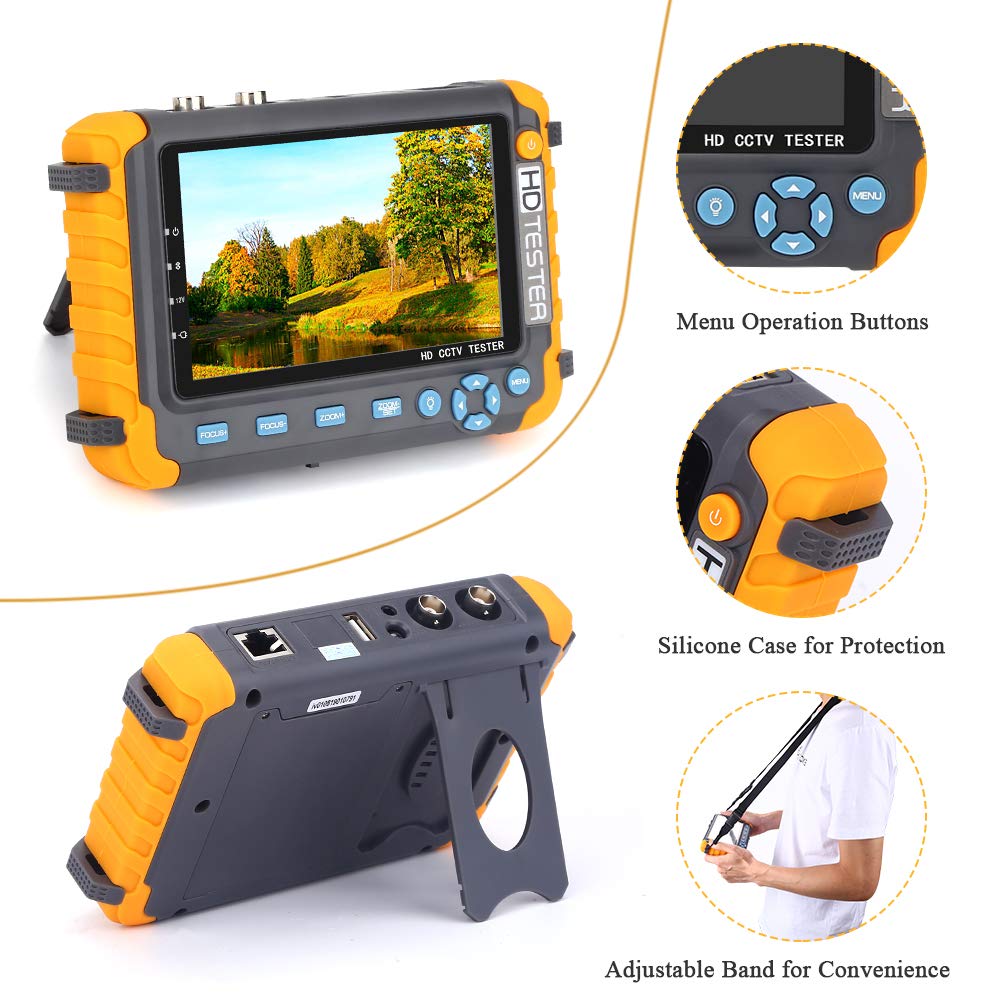

PEGATAH IV8W 8MP AHD/CVI/TVI CVBS CCTV Tester CCTV Cameras Tester AHD Testers with HDMI VGA Input Video Tester CFTV Mini Monitor
4.8 (366 votes) | 1147 orders
Price:
US $
163.23 -
335.75
/ piece
- Ships From
- Color
-
-

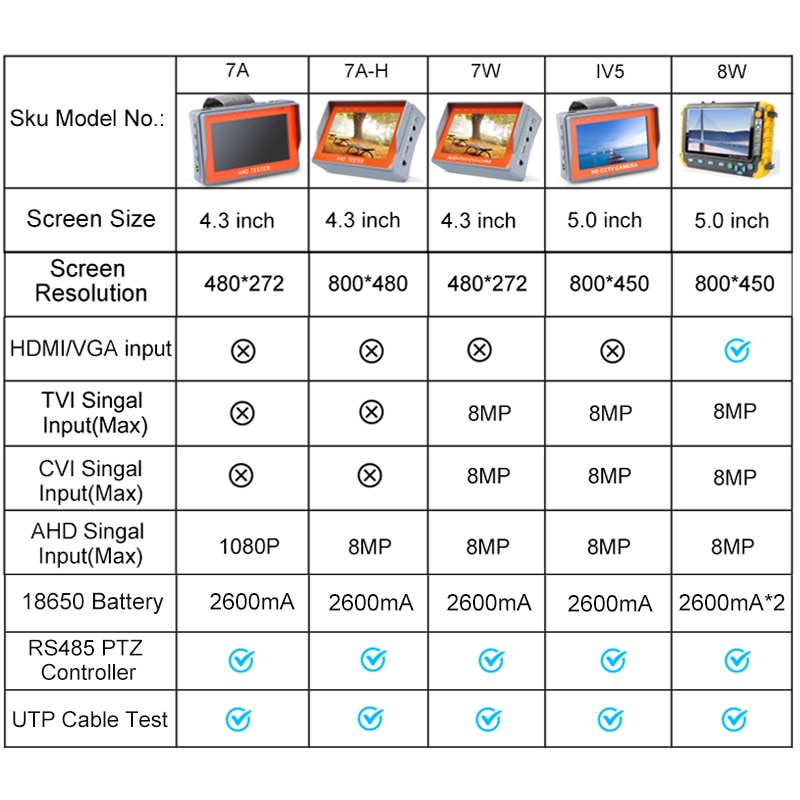

Parameter comparison table
Key Feature comparison

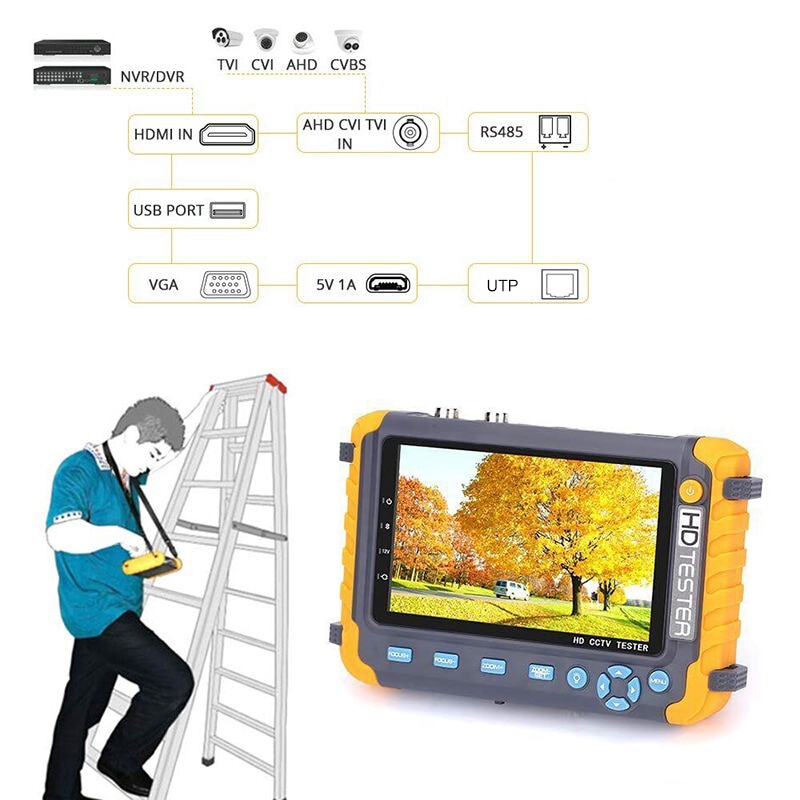

IV8W Application
The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

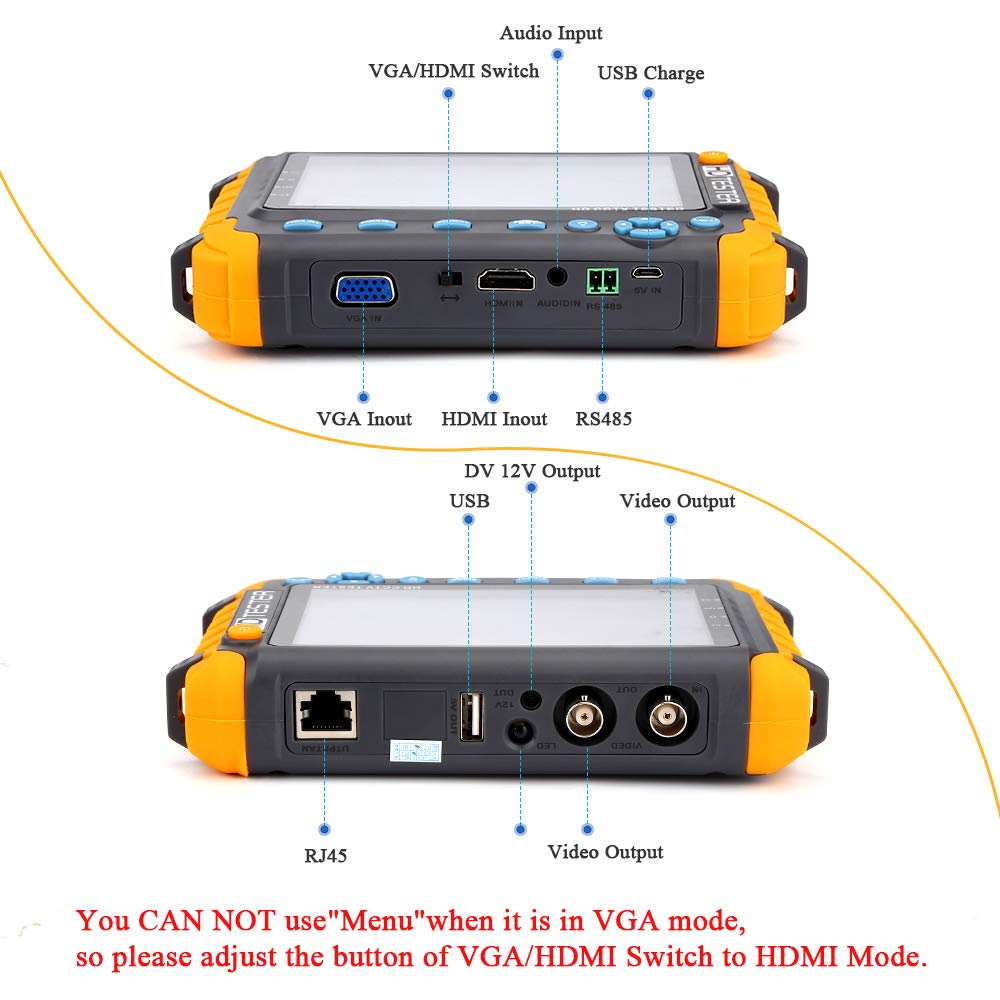

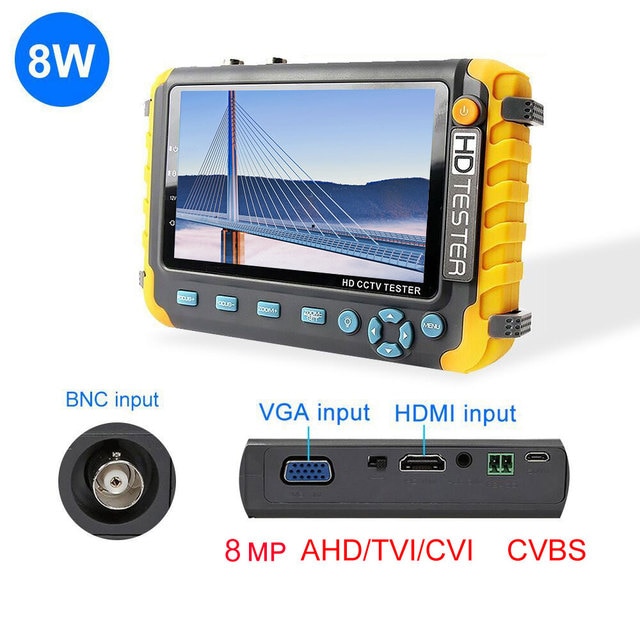

HDMI &VGA Input
VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.
DC12V 1A output power for camera
The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.
LCD Screen
Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

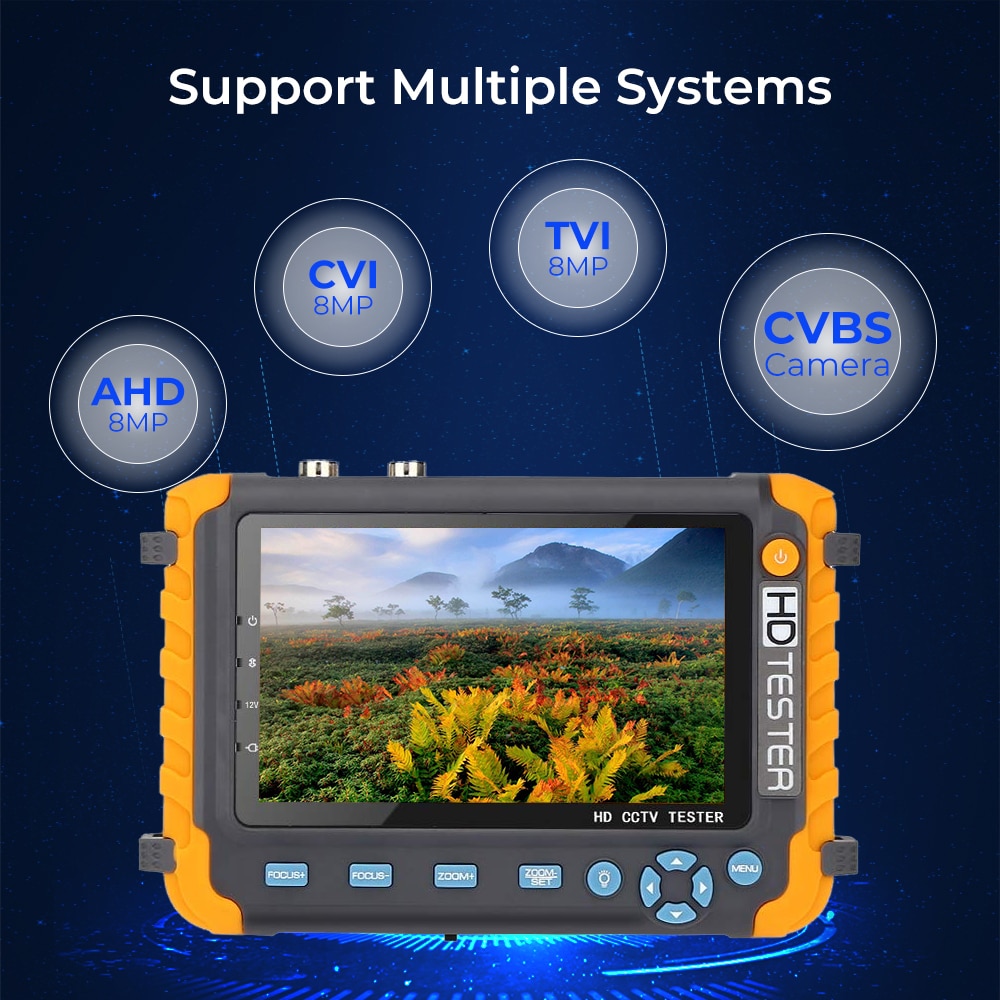

TVI input
1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

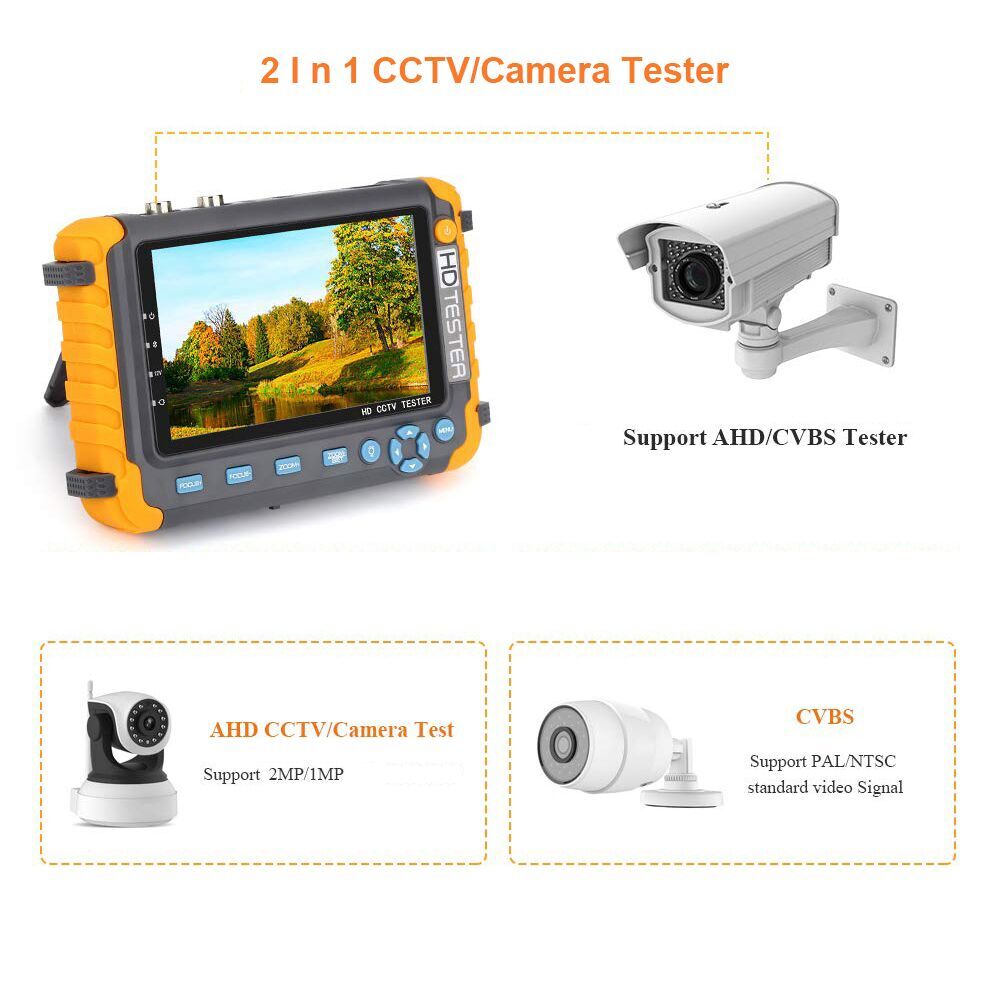

AHD camera test
support 1 channel AHD input (BNC interface）, 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30，8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
- Plug Type: EU plug
- Sensor Type: Sony CCD
- Model Number: IV8W
- Maximum IR Distance(m): Other
- Sensor Size: Other
- Lens: Other
- Brand Name: PEGATAH
- Origin: Mainland China
- Certification: CE
- Display screen: 5.0 inch 800*480 resolution TFT-LCD
- AHD camera test: Support 720P/1080P3MP/5MP/8MP
- CVI camera test: Support 720P/1080P3MP/4MP/5MP/8MP
- TVI camera test: Support 720P/1080P3MP/5MP/8MP
- IPC camera test: Not support
- HDMI/VGA input: 1920X1080 video input
- Video input: 1ch Analog signal input
- BNC output: support PAL / NTSC formats standard color bar output
- UTP Cable Tester: Support RJ45 cable test
- LED lamp: Support
- DC 12V/1A output for camera: Support
- Audio Input Test: 1 channel audio signal input
- Power Adapter: DC 5V 1.5A
- Battery: Rechargeable 18650 Battery
- PTZ Controller: Support RS485
- PTZ Protocol: Compatible with protocols PELCO-D/P
- Baud Rate: 600,1200, 2400, 4800, 9600,14400bps
- IP camera input: Not Support
