PEGATAH 12MP IPC Tester 8MP/AHD/CVI/TV/SDI CCTV Tester with HDMI VGA Input 5.4in CCTV Monitor for IP Camera Tester CFTV Tester

4.7 (63 votes) | 242 orders
Price: US $745.12 - 909.32 / piece
Discount Price:
US $ 453.57 - 551.23 / piece
-39%
Ships From
Color
Quantity

5.4inch 4K HDMI VGA POE IP tester Video IPC CCTV Tester AHD ip camera testers Test camera CCTV Tester Monitor camera testers TVI

Application

The 5.4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing
Video transmission channel testing
PTZ controller

Feature

● 5.4 inch IPS touch screen, 1920x1080 resolution
● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI camera test
● H.265/H.264, 4K video display via mainstream
● VGA input, support 2048 x 1152 60FPS
● HDMI Input, support 4K 30FPS
● DC12V 3A, 48V PoE power output
● Rapid ONVIF, Create the test report and modify IP address, etc
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable quality test
● UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head

IP Tester Sytem Languages Optional

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech

TI-N9651

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test

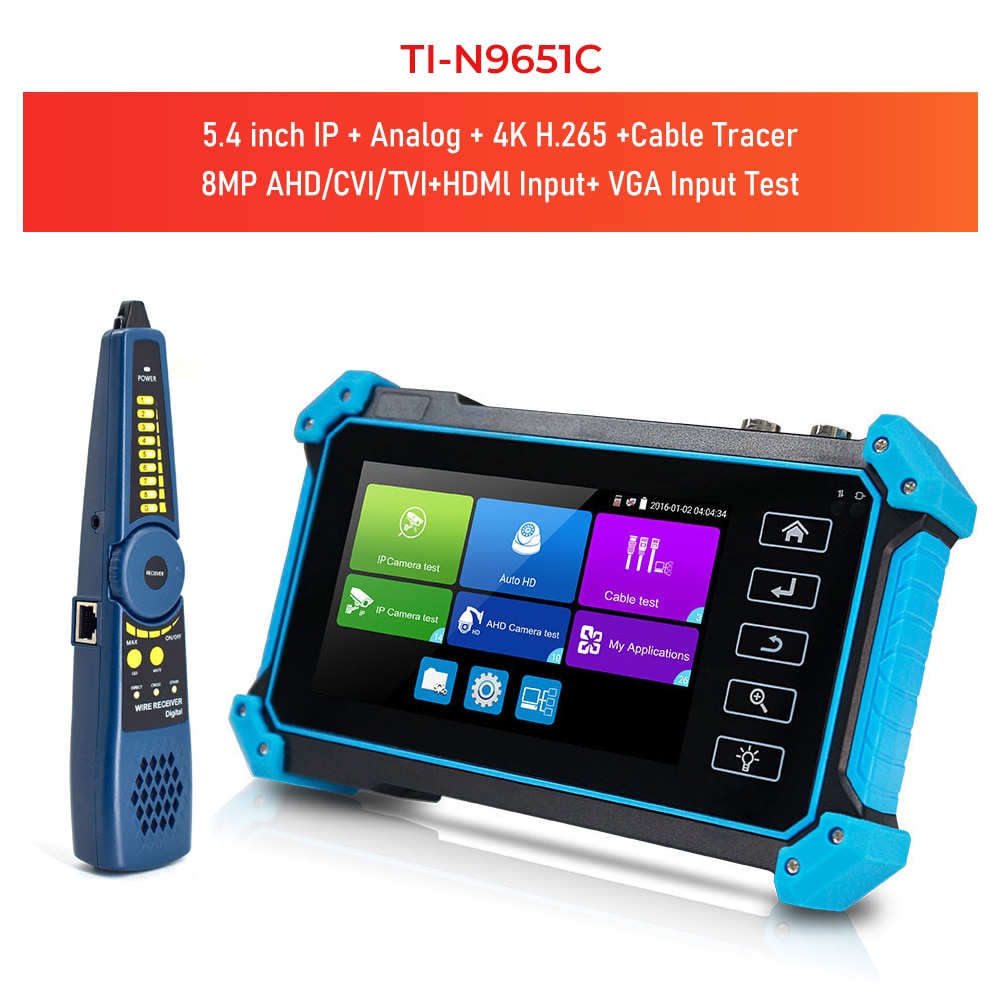

TI-N9651C

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test+Cable Tracer

TI-N9652

Support 8MP TVI+8MP CVI+8MP AHD+SDI+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test

TI-N9652C

Support 8MP TVI+8MP CVI+8MP AHD+SDI+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test+Cabie Tracer

IPC tester Interface

Camera testing

● 5.4 inch IPS touch screen, 1920*1080 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Analog camera test, PTZ controller
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
● IP and analog display image at the same time
● IPC TEST (Non-ONVF test), HIKVISON test tool , DAHA test tool
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time

Other Functions

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours

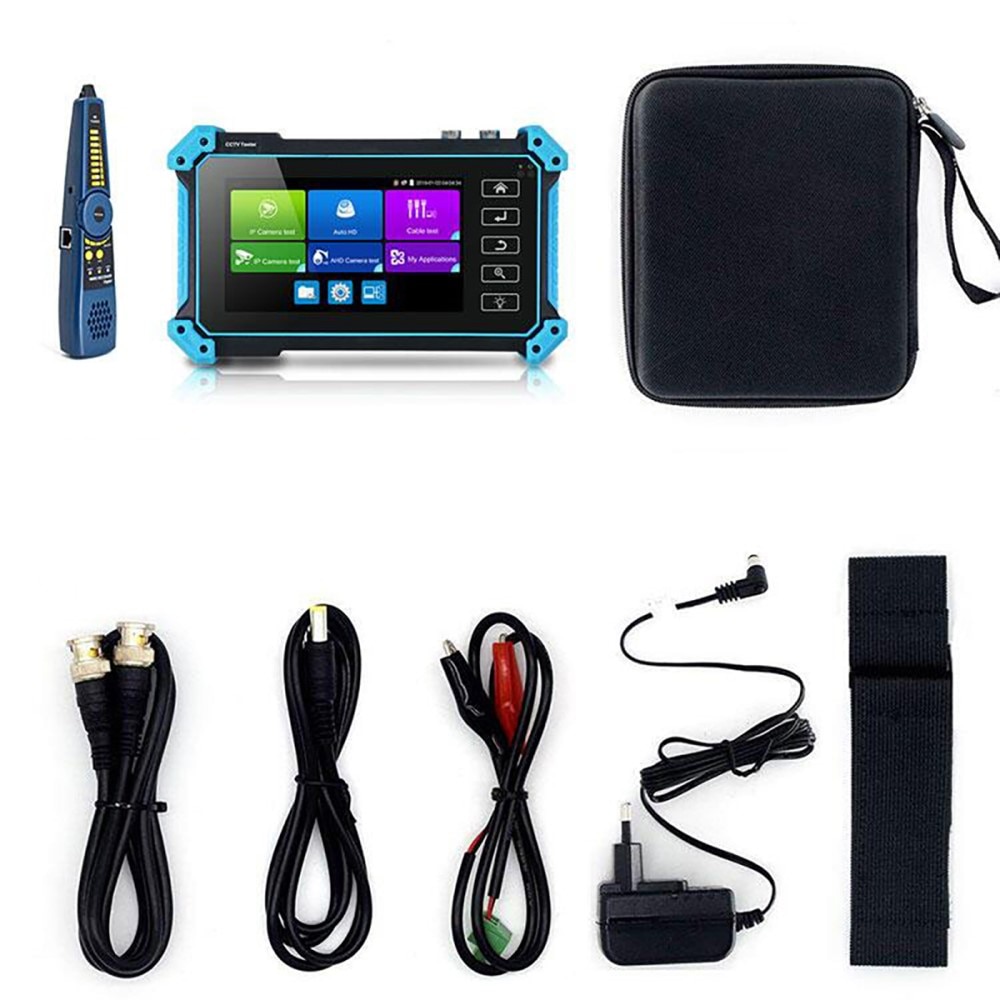

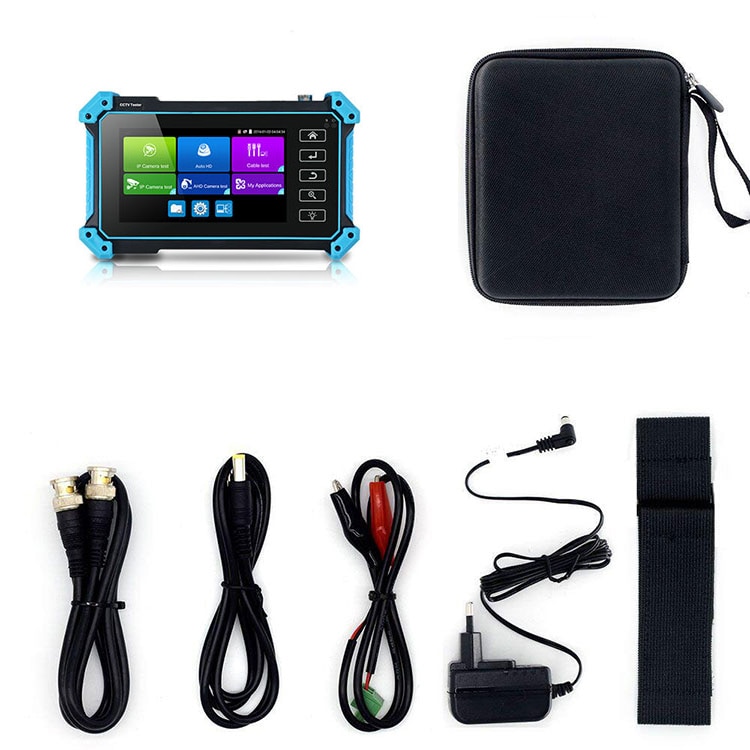

Package




  • Plug Type: EU plug
  • Model Number: TI-N9652/1(C)
  • Maximum IR Distance(m): 0
  • Sensor Size: 1/3 inch
  • Lens: 0
  • Brand Name: PEGATAH
  • Origin: Mainland China
  • Certification: CE
  • Display: 5.4 inch IPS touch screen, 1920x1080 resolution
  • IP camera test: Support 4K/H.265/H.264
  • IP camera input: Max 12MP with UTC control/ call OSD menu
  • TVI camera input: Max 8MP with UTC control/ call OSD menu
  • CVI camera input: Max 8MP with UTC control/ call OSD menu
  • AHD camera input: Max 8MP with UTC control/ call OSD menu
  • SDI camera input: 8MP EX-SDI/HD-SDI/3G-SDI with UTC control/ call OSD menu
  • DC Output for Camera: 12V/3A power
  • PoE power output for Camera: 48V PoE power output, max power 25.5W
  • HDMI input: 1 channel 4K 30FPS HDMI input
  • VGA input Input: 1 channel 2048 x 1152 60FPS VGA input
  • Digital Cable tracer: Search BNC/ Network etc cable from the mess cables
  • UTP cable test: support
  • RJ45 TDR cable test: support
  • Portable monitor: yes
  • monitor for camera: yes
  • IPC Tester: yes
  • CCTV Tester: yes
